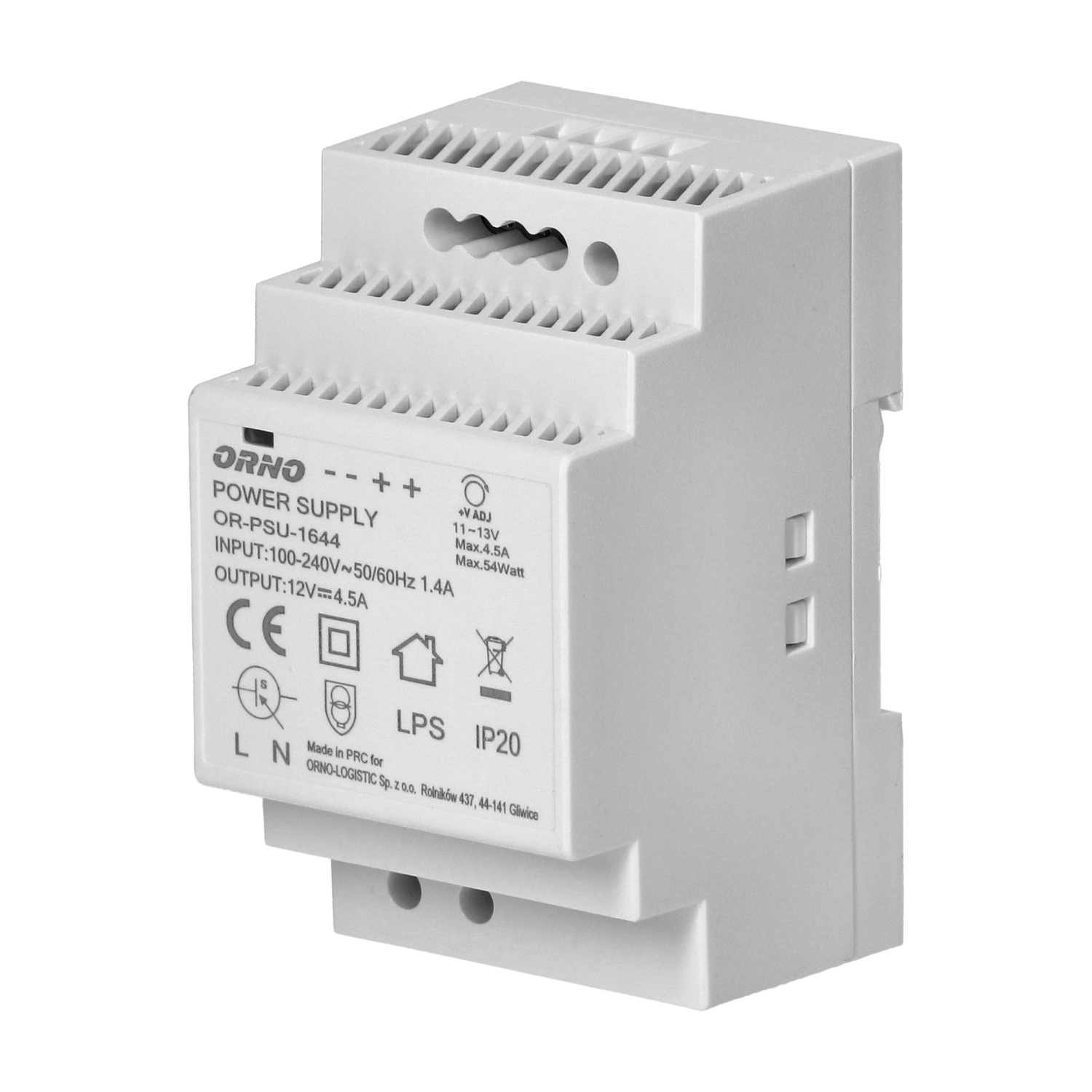

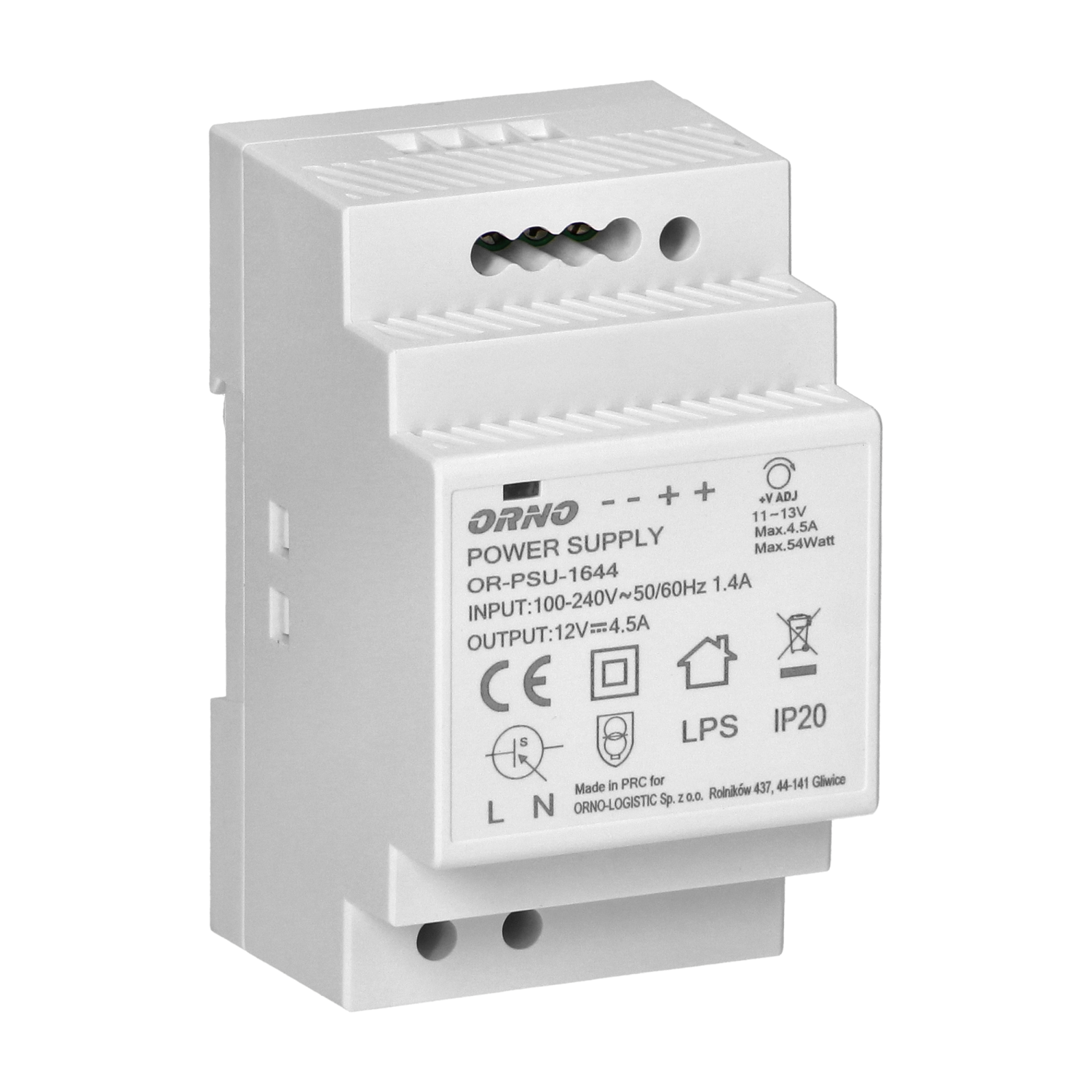

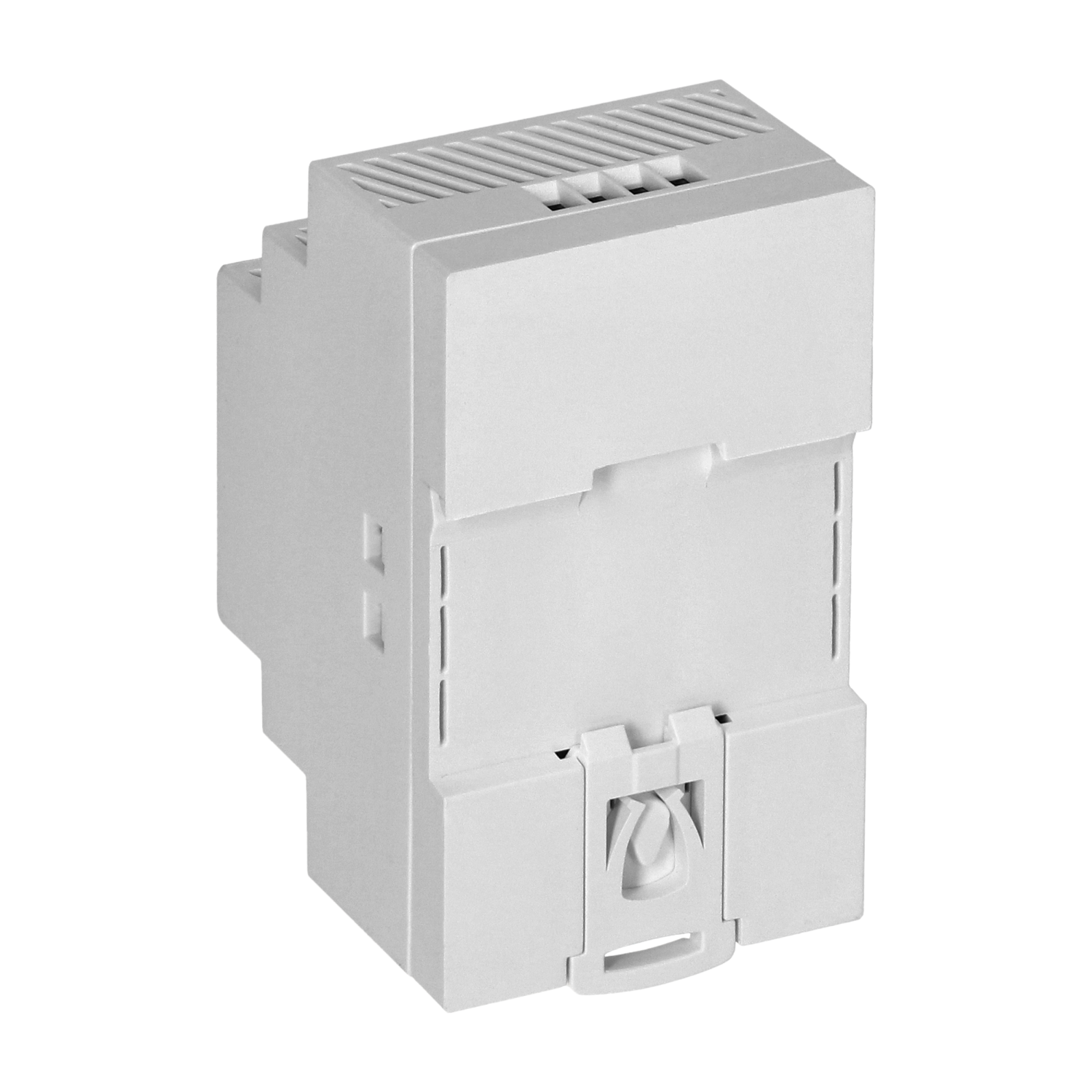

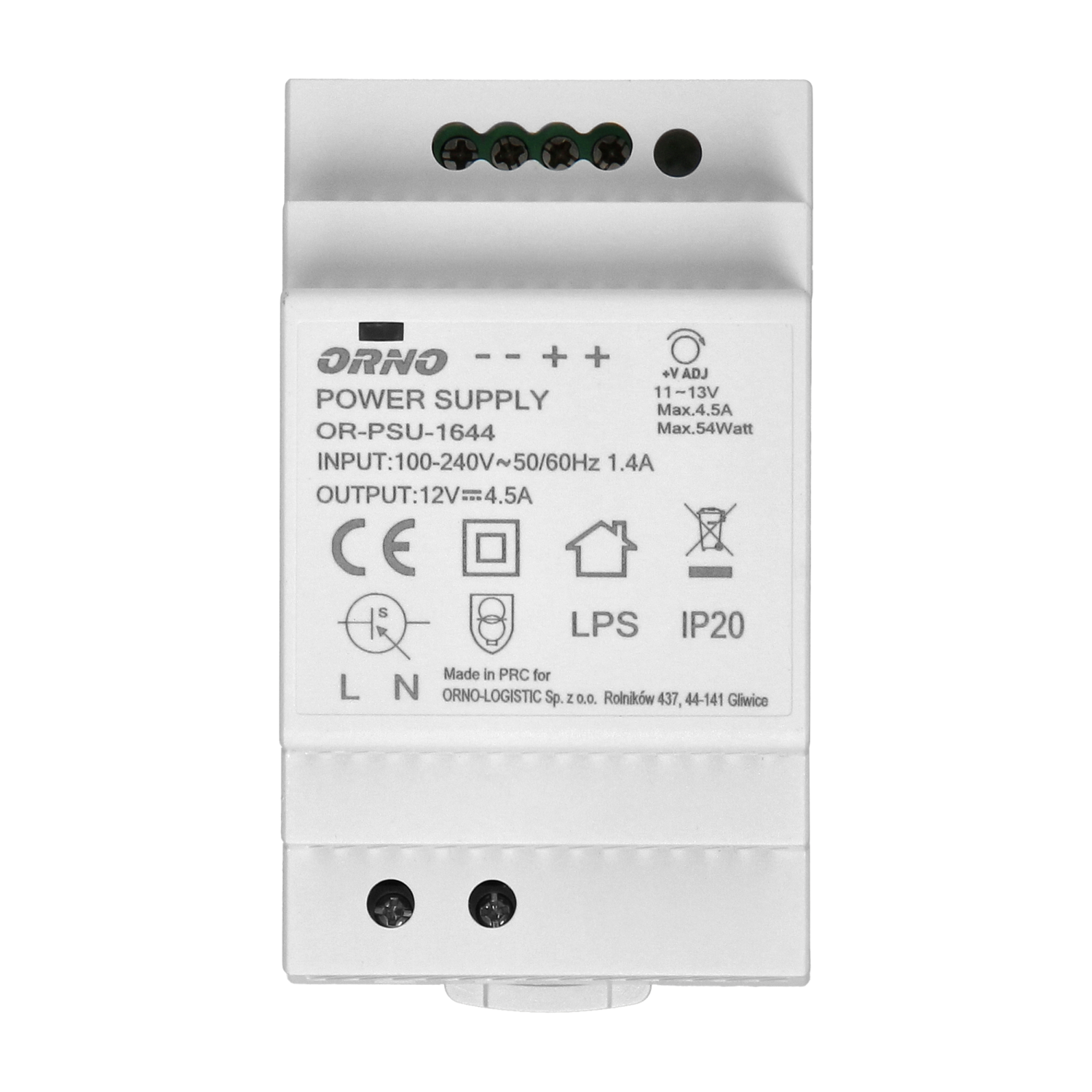

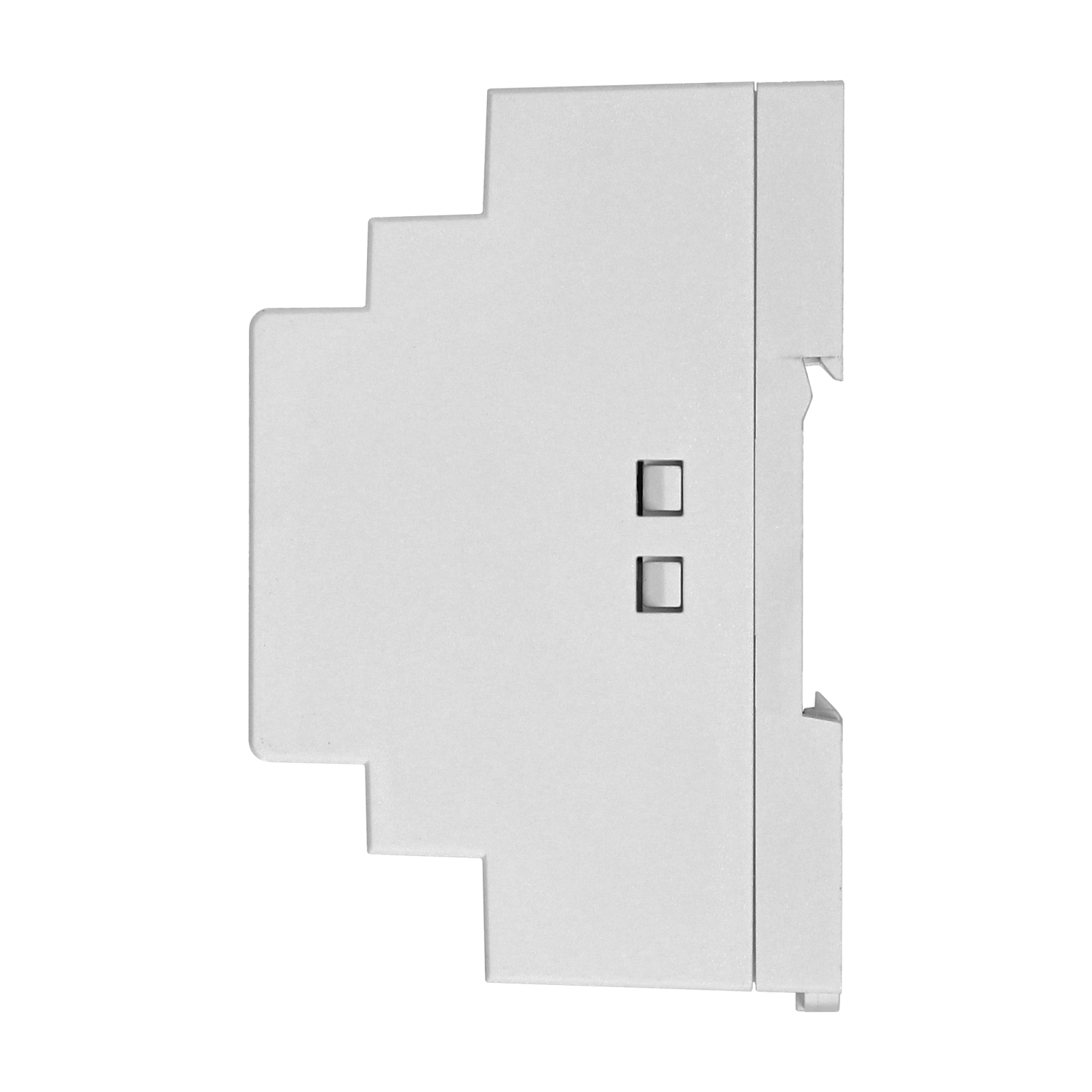

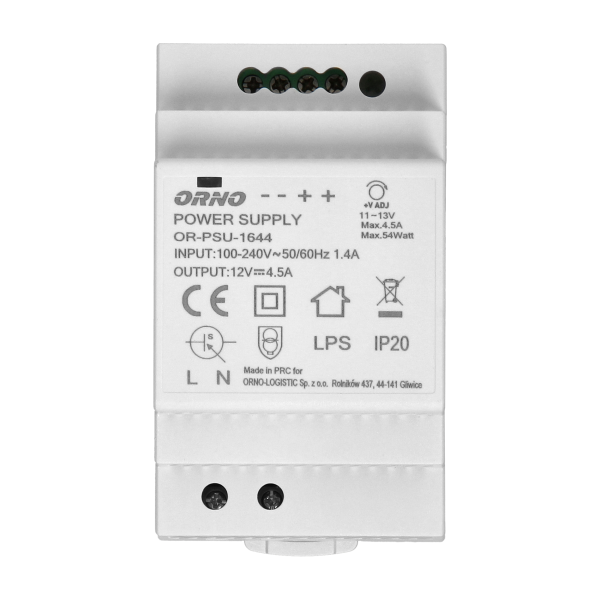

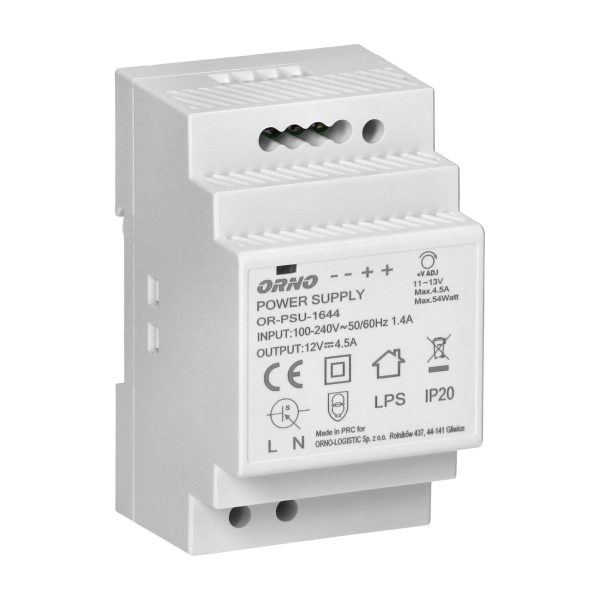

Modular power supply
Highly efficient and reliable DIN rail power adaptor of 54W max. load and 12V DC output voltage, which can be adjusted. It has been developed for DIN rail installation and can be used in vast number of applications, e.g. industrial applications, low voltage installations, such as CCTV or alarm systems. This power adaptor includes: overload protection, anti-surge protection and overvoltage protection. An integrated diode indicates activation of the device.
| General information: | |
|---|---|
| Rated power: | 54 W |
| Output voltage: | 12V DC V |
| Input voltage: | 100-230V 50-60Hz |
| Degree of protection (IP): | 20 |
| Output current: | 4.5 A |
| Max. short time current rating: | 5A |
| Standby power consumption: | 0.3 W |
| Over voltage category: | III |
| Installation: | a DIN rail |
| Dimensions - depth: | 52.5 mm |
| Dimensions - width: | 90 mm |
| Dimensions - height: | 58 mm |
