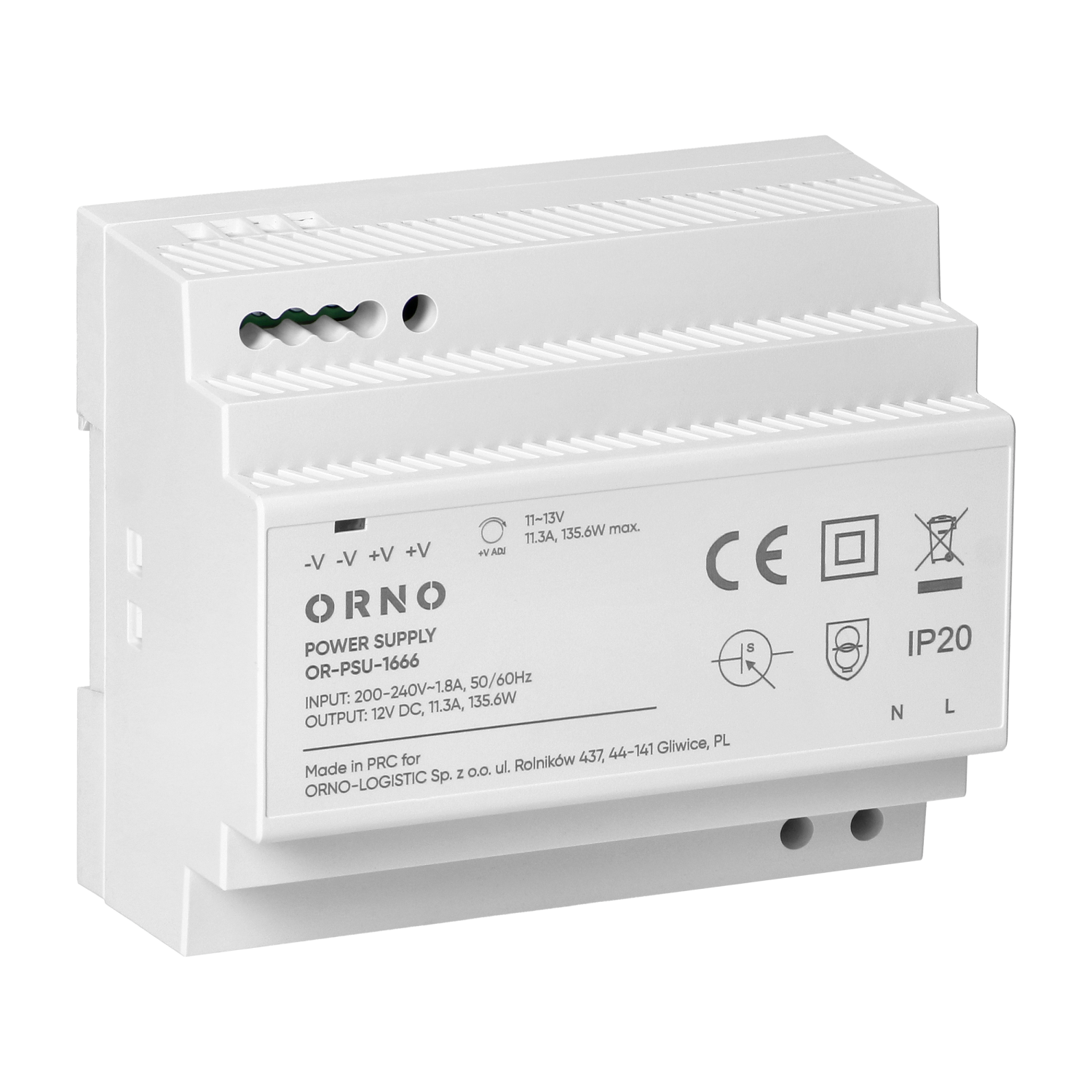

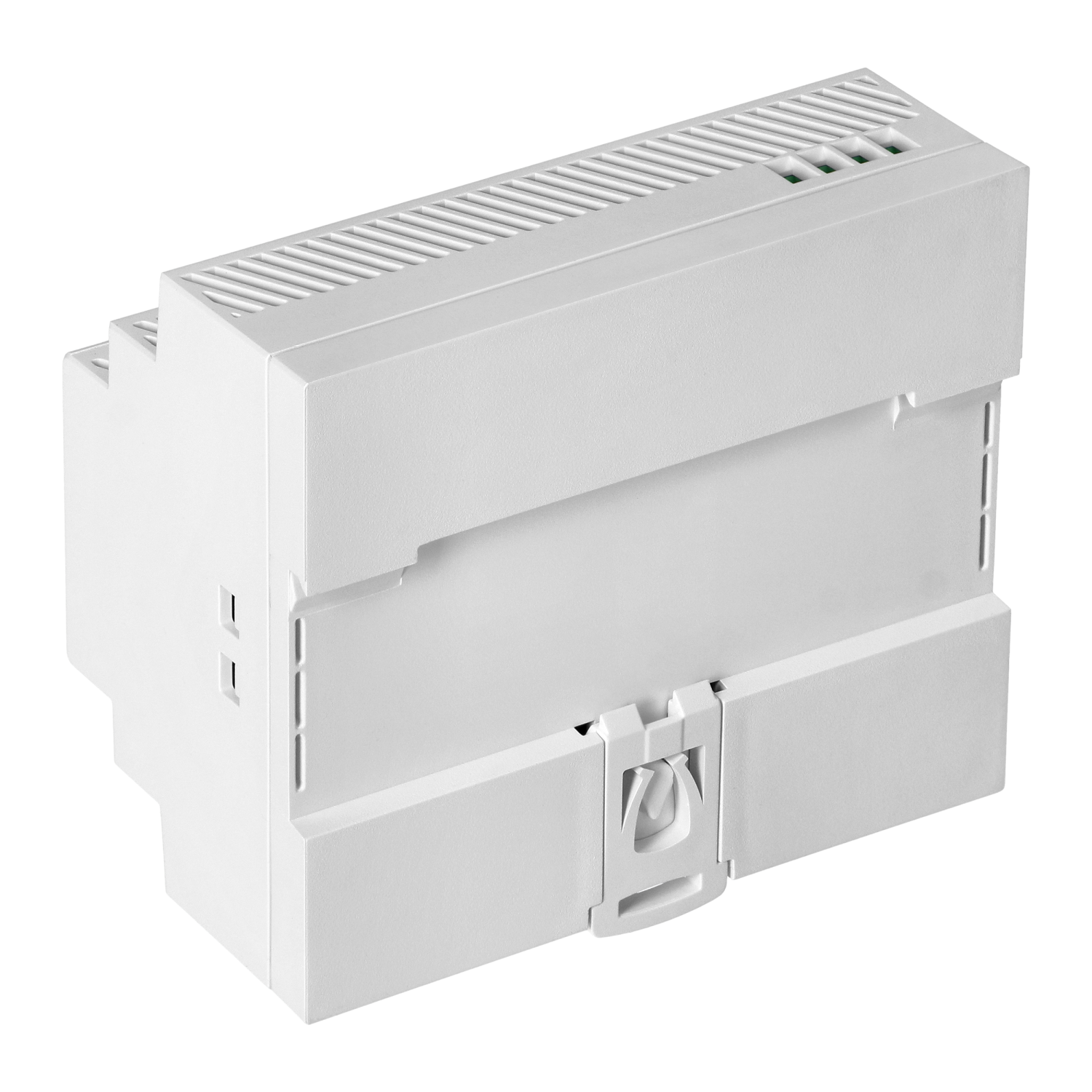

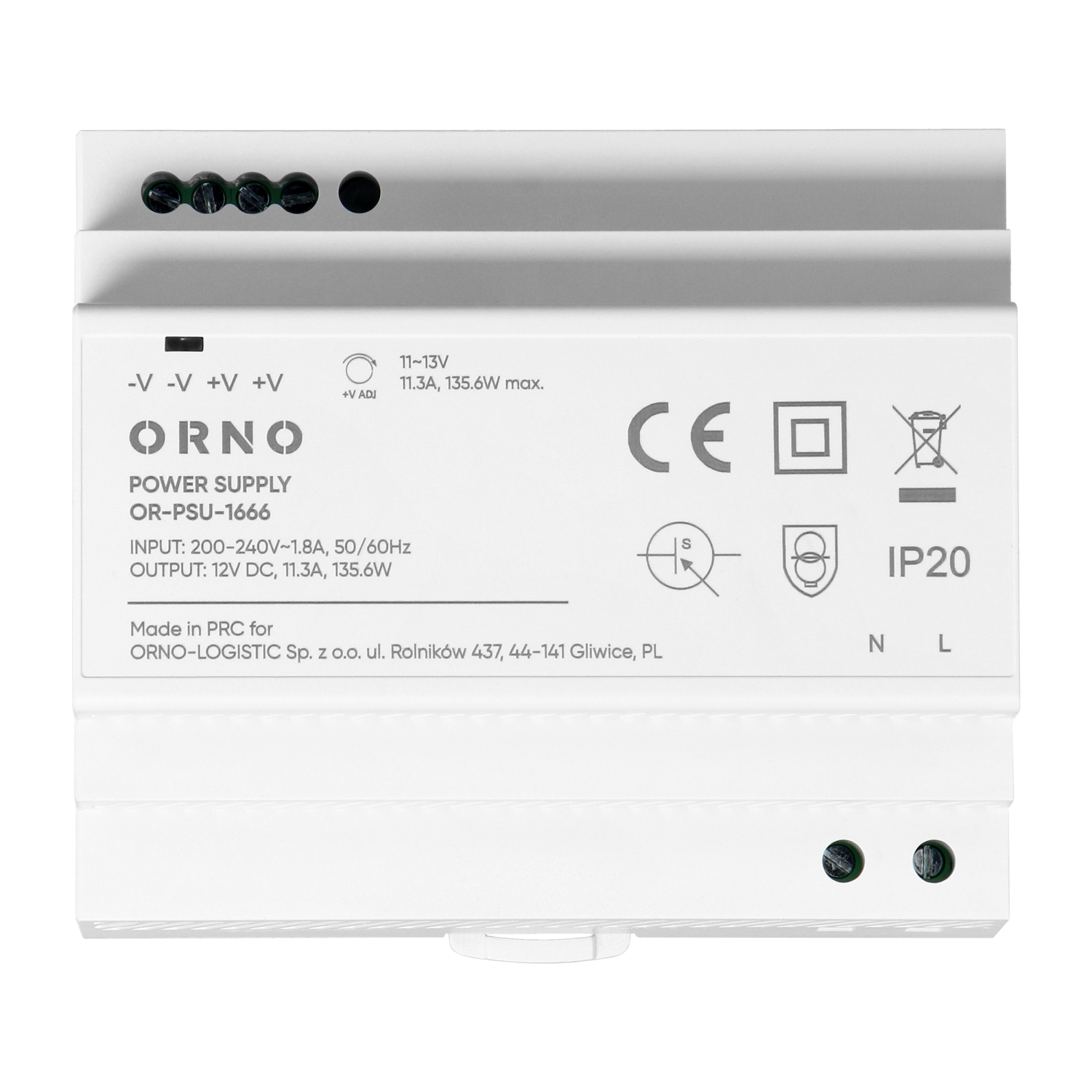

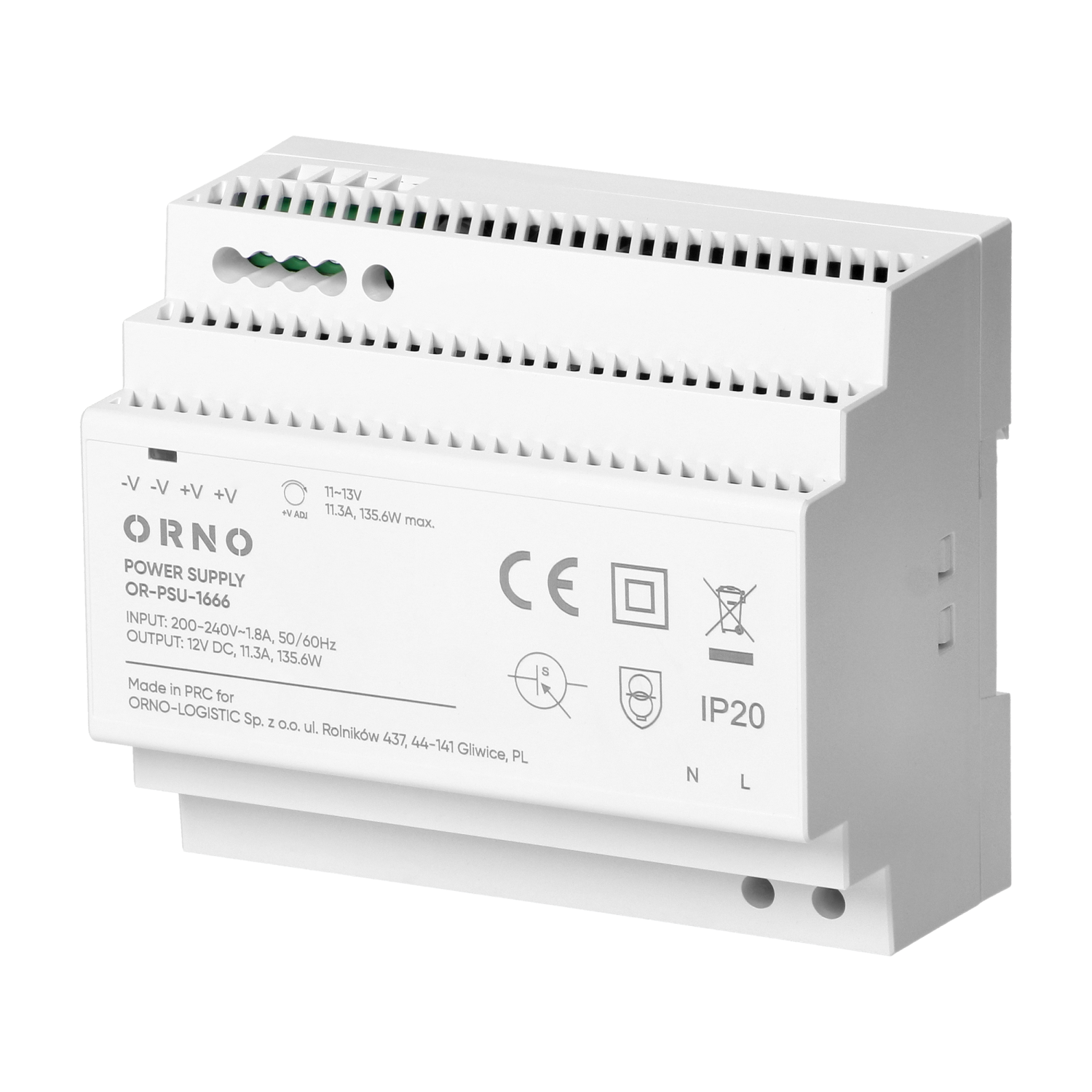

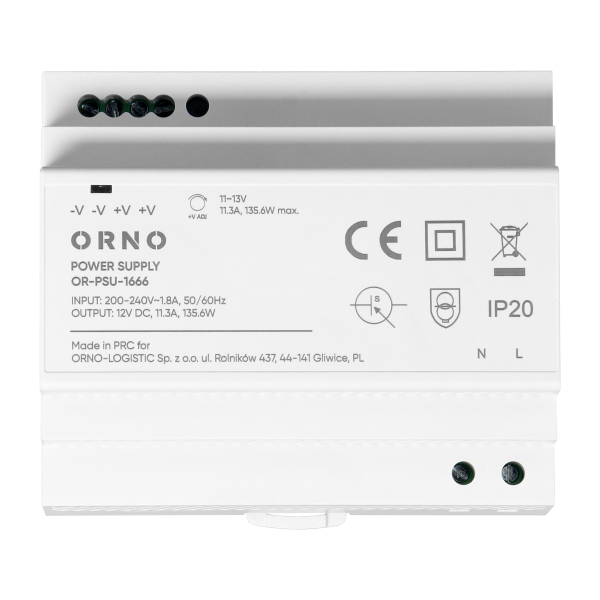

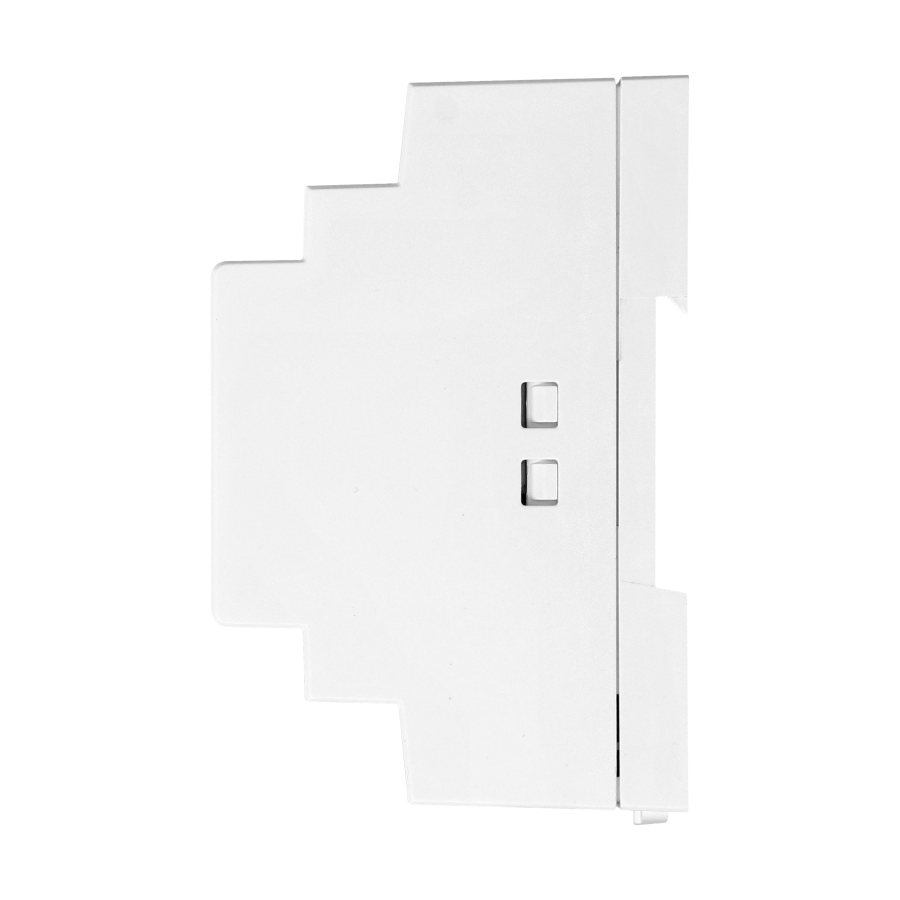

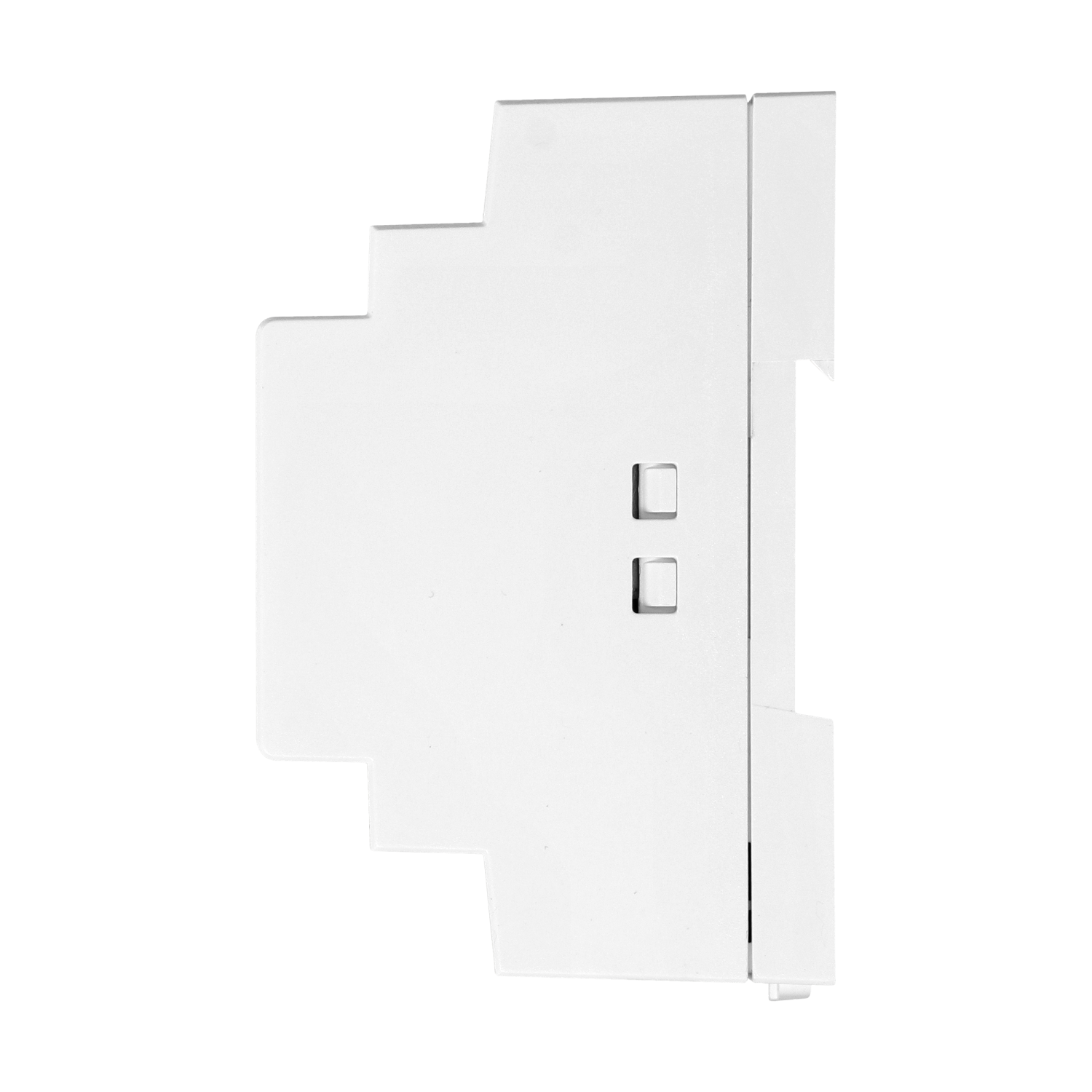

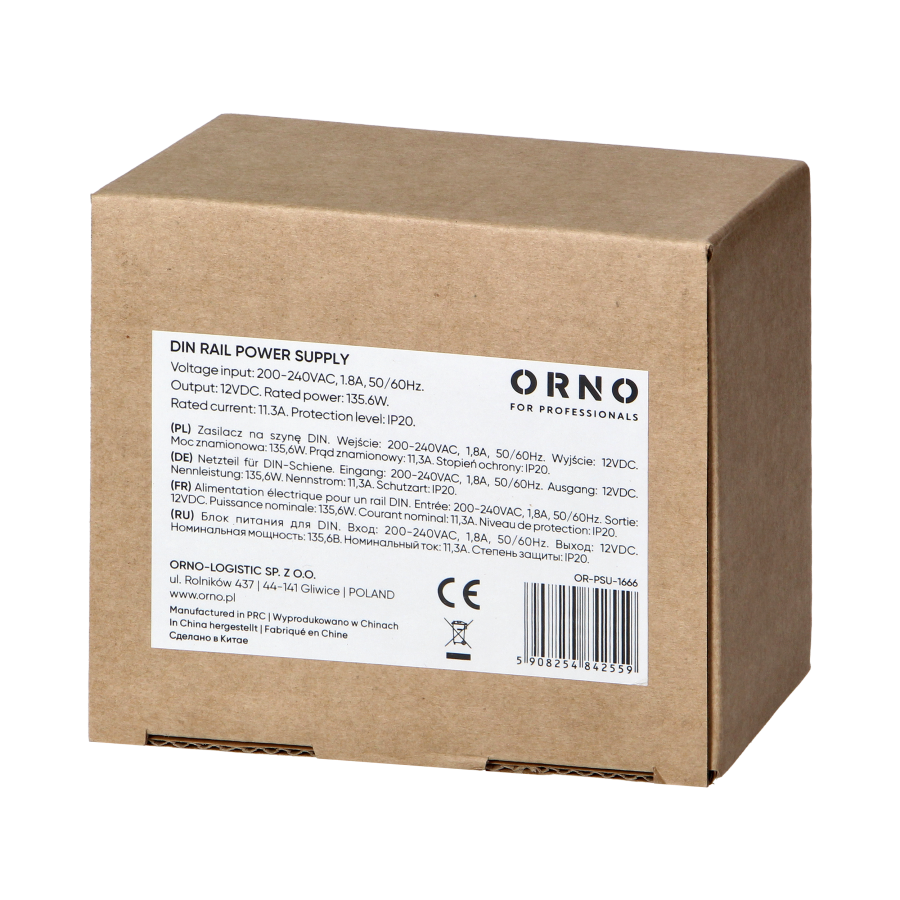

Modular power supply
DIN rail power supply is used to supply different kinds of electric devices, such as PLC controllers and sensors. The driver is designed for DIN mounting which enables easy and aesthetic installation in a distribution board.
The device provides output power of 135.6W and output voltage of 12V DC. Maximum 11.3A output current enables to supply more devices with lower power consumption or few devices with higher power consumption.
The presented product is the size of 6 modules which means that it is easily integrated with other devices and electronic modules in a system. The device has a number of protective features, i. e. overload protection, short circuit protection as well as overvoltage protection. Thanks to these features the driver is safe in use and may protect other devices connected to the same network.
Due to its parameters, the DIN-rail power supply unit found its place in many industries, i. e. industrial automation, safety systems, control systems and electrical installations. It is an ideal solution for those who need stable and safe power source in their electric and electronic system.
| General information: | |
|---|---|
| Voltage type of supply voltage: | AC |
| 1st secondary output voltage at DC [V]: | 12 |
| Max. output current 1 [A]: | 11.3 |
| Max. Overload [%]: | 160 |
| Max. Overcurrent [V]: | 240 |
| Secondary voltage adjustable [V]: | 11~13 |
| Short-circuit-proof: | Tak |
| Rated supply voltage at AC 50 Hz [V]: | 230 |
| Rated supply voltage at AC 60 Hz [V]: | 230 |
| Output voltage stabilized: | Tak |
| Line Regulation: | ±1% |
| Power output [W]: | 135.6 |
| Efficiency: | 85 |
| Stabilized: | Tak |
| Type of electric connection: | Połączenie Śrubowe |
| Rail mounting possible: | Tak |
| Wall mounting possible: | Nie |
| Modular version: | Tak |
| Direct mounting possible: | Nie |
| Width [moduls]: | 6 |
| Width [mm]: | 105 |
| Height [mm]: | 90 |
| Depth [mm]: | 58.2 |
| Weight[ g]: | 420 |
| Degree of protection (IP): | IP20 |
| Operating Temperature: | [-20 do +50] |
| Storage Temp: | [-40 do +80] |
| Storage Humidity(RH):: | [10 do 95%] |
| Working Humidity(RH): / wilgotność podczas pracy (bez kondensacji): | [20 do 90%] |
| Compliance with standards: | EN 55032; EN62368-1 |
