Monitors

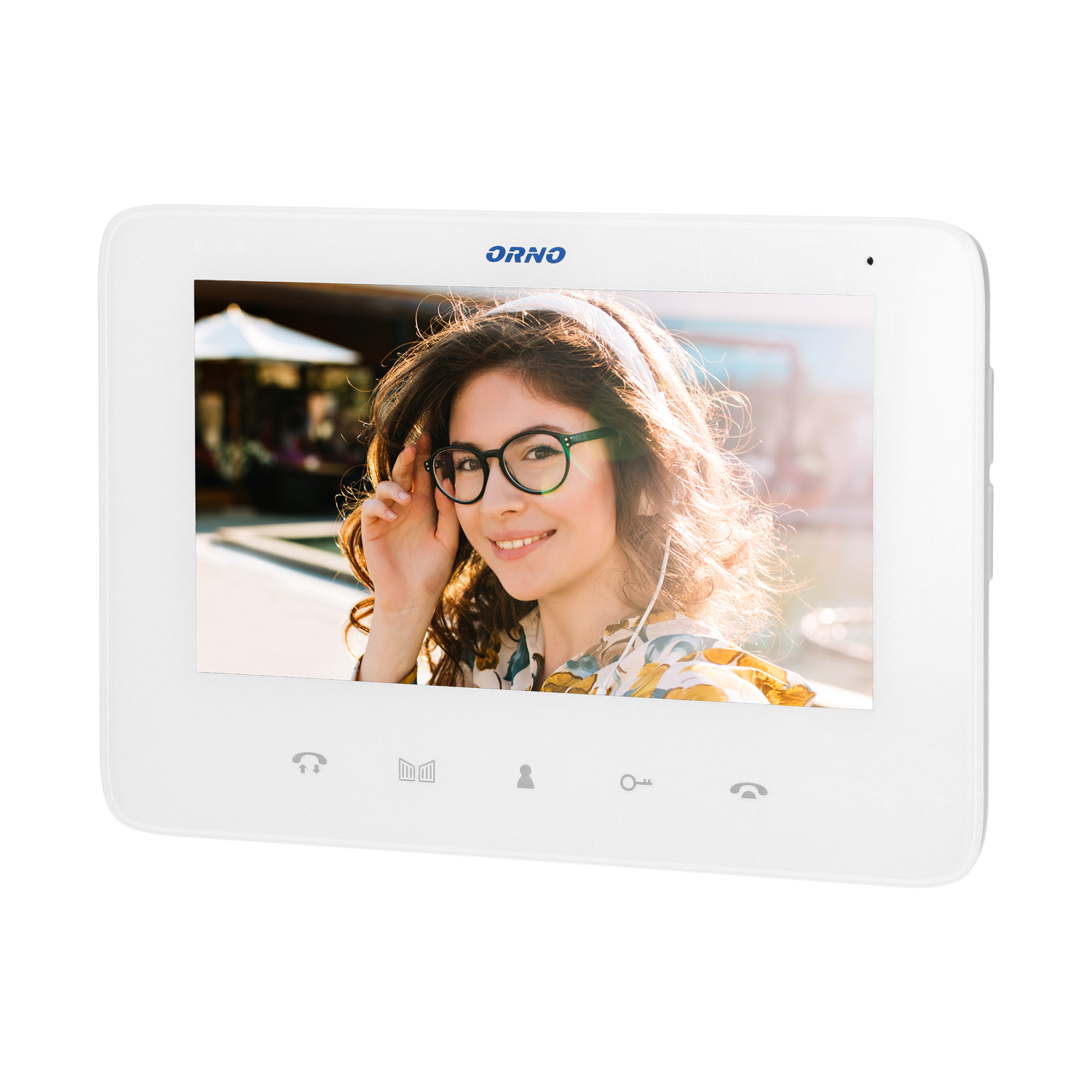

Video monitor for the extension of INDI and SCUTI video doorphone series. It is handset-free with multicolour, ultra-flat 7" LCD monitor with a touch panel and backlit buttons. Monitor parameters (brightness and colour, speech and ringtone volume) can be adjusted. There are 16 ringtones to choose from. Additionally this device can support gate opening. DC power source from power supply unit to power outlet (15V DC) or optionally from DIN rail power supply (OR-VID-VP-1009ZD).
| General information: | |
|---|---|
| With video: | Yes |
| Installation technique: | Multi-wire system |
| Number of wires: | 5+2 |
| Height: | 138 mm |
| Depth: | 23 mm |
| Screen diagonal: | 7 " |
| Mounting method: | Surface mounted (plaster) |
| Resolution of the monitor's screen: | 800 x 480 |
| Loudness control: | Yes |
| Property picture system: | Colour |
| Number of ringtones: | 16 |
| Colour: | White |
| SD card reader: | No |
| Operation door lock: | Yes |
| With automatic door opener: | Yes |
| Mutable call tone: | Yes |
| Width: | 200 mm |
