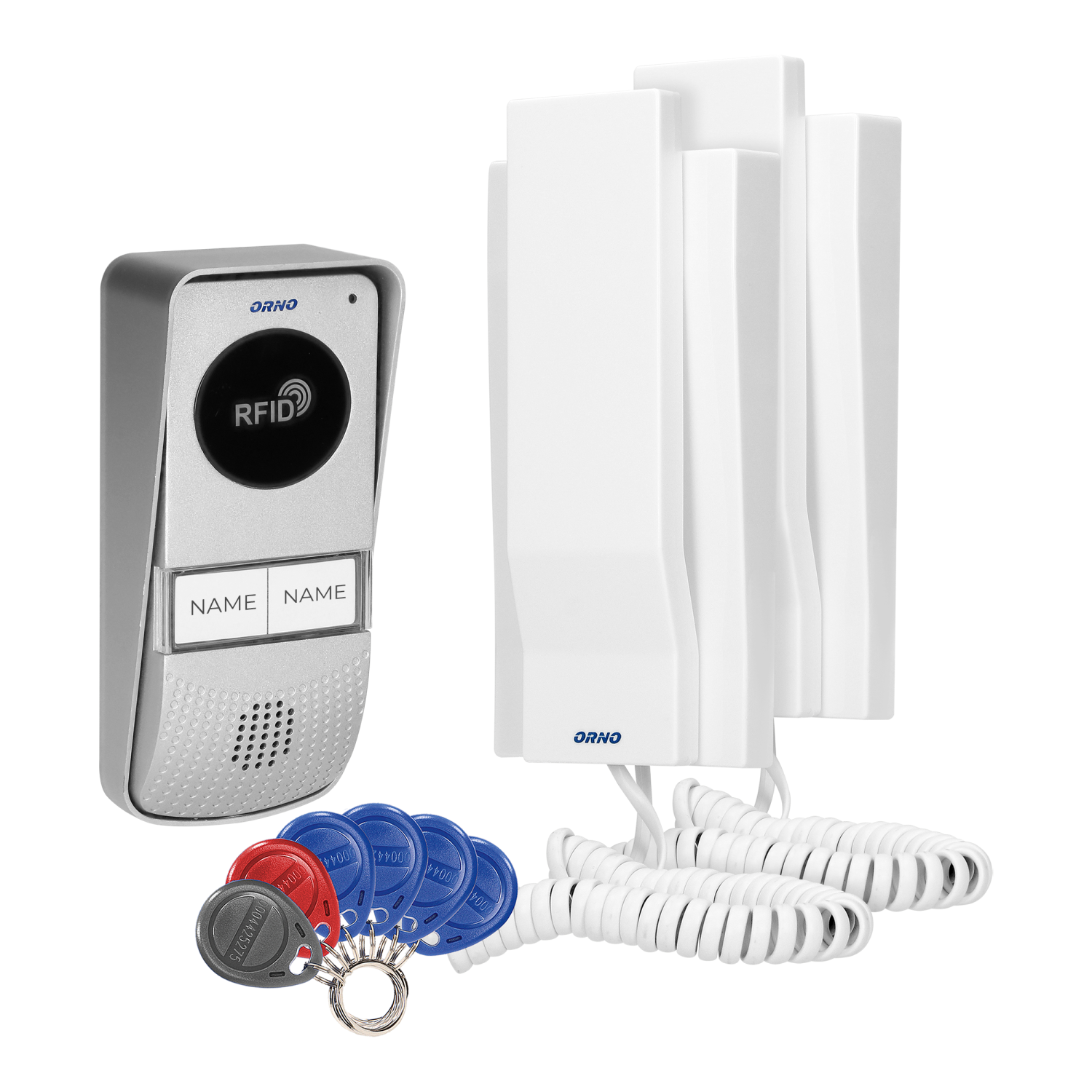

Two-family doorphone set, suitable for surface-mounting in residential buildings, offices, schools, kindergartens, hospitals, etc. It enables remote conversation between the external panel and an indoor handset, and it directly controls electric strike and gate opening. The external panel has got a protective hood. The set has been equipped with proximity tags reader. It allows volume adjustment and intercom function (after connection of an additional handset).
| General information: |
|---|
| Type: | wielorodzinny |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage [V]: | 13,5V DC |
| Type of transmission: | przewodowy |
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): | 3 (+2)* |
| Number of indoor stations: | 2 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 4 |
| Expandable to max. number of outdoor stations: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| : | z panelem zewnętrznym |
| With automatic door opener: | tak |

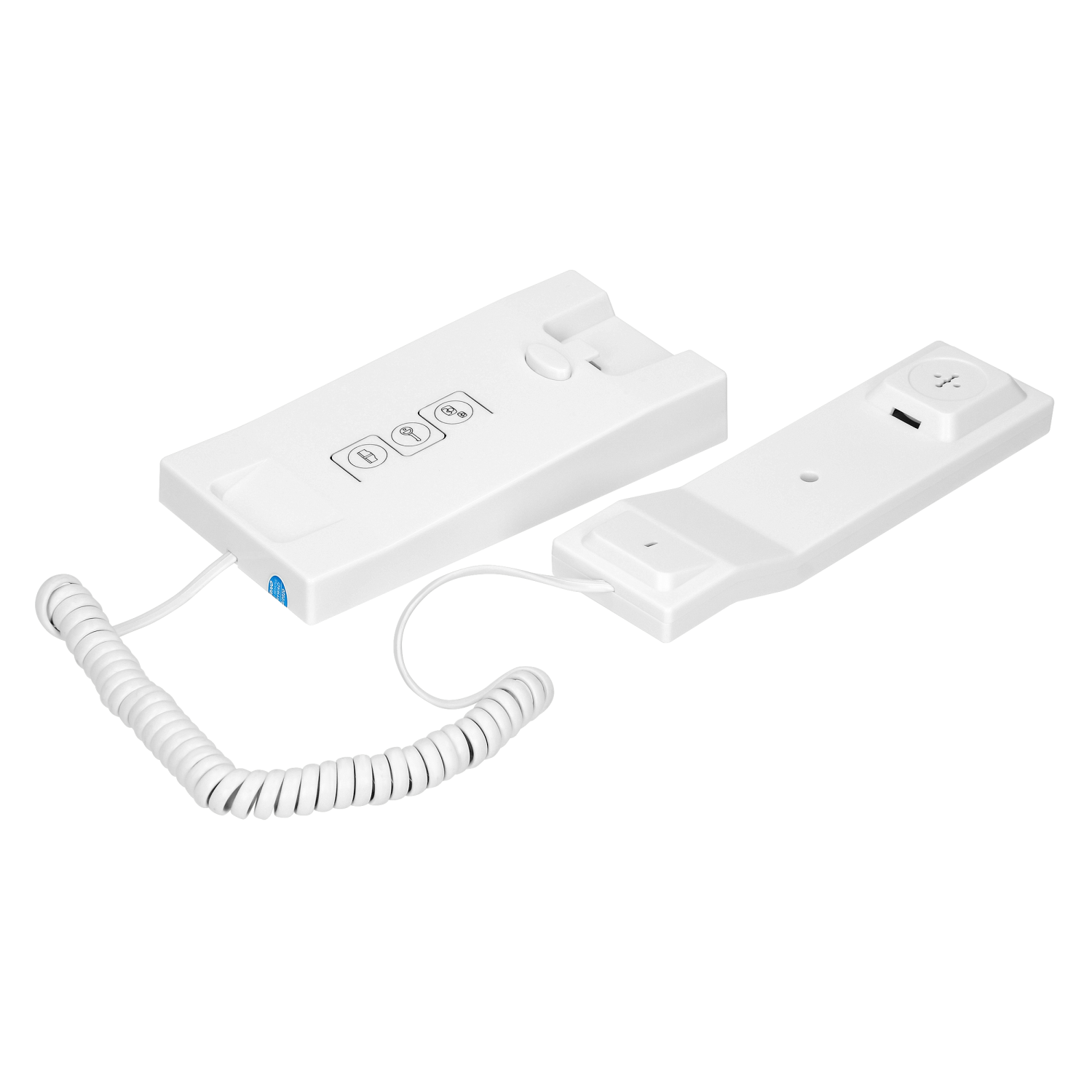

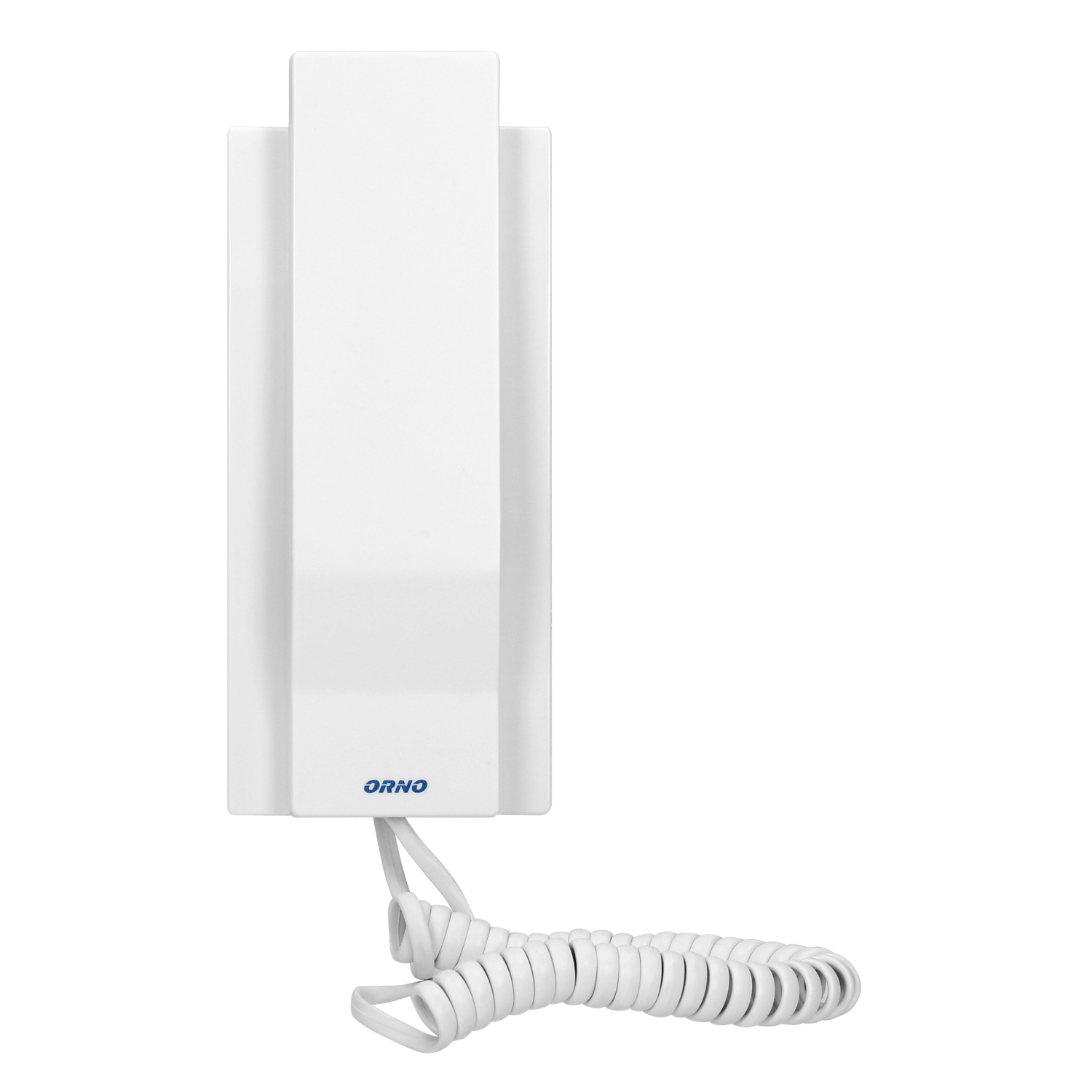

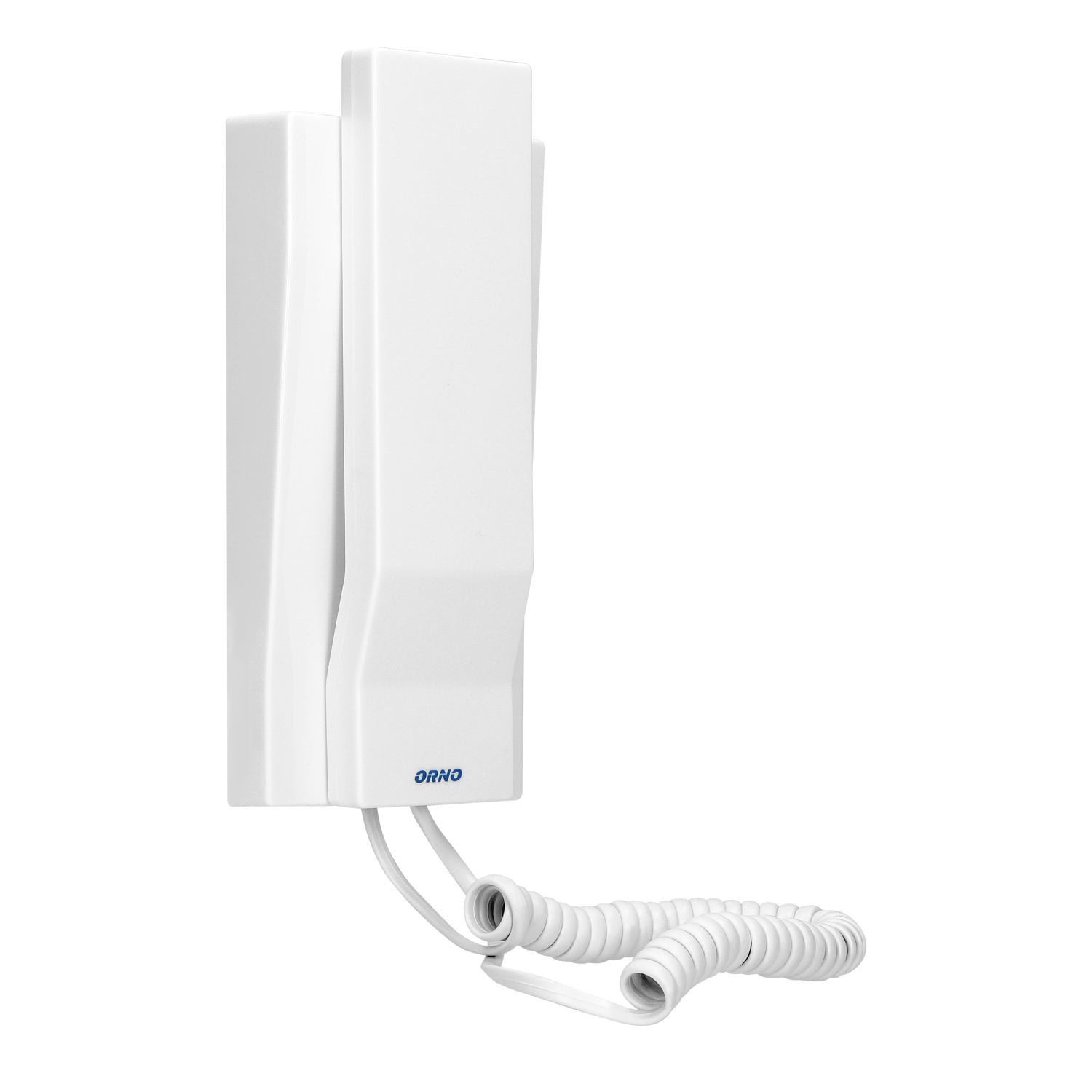

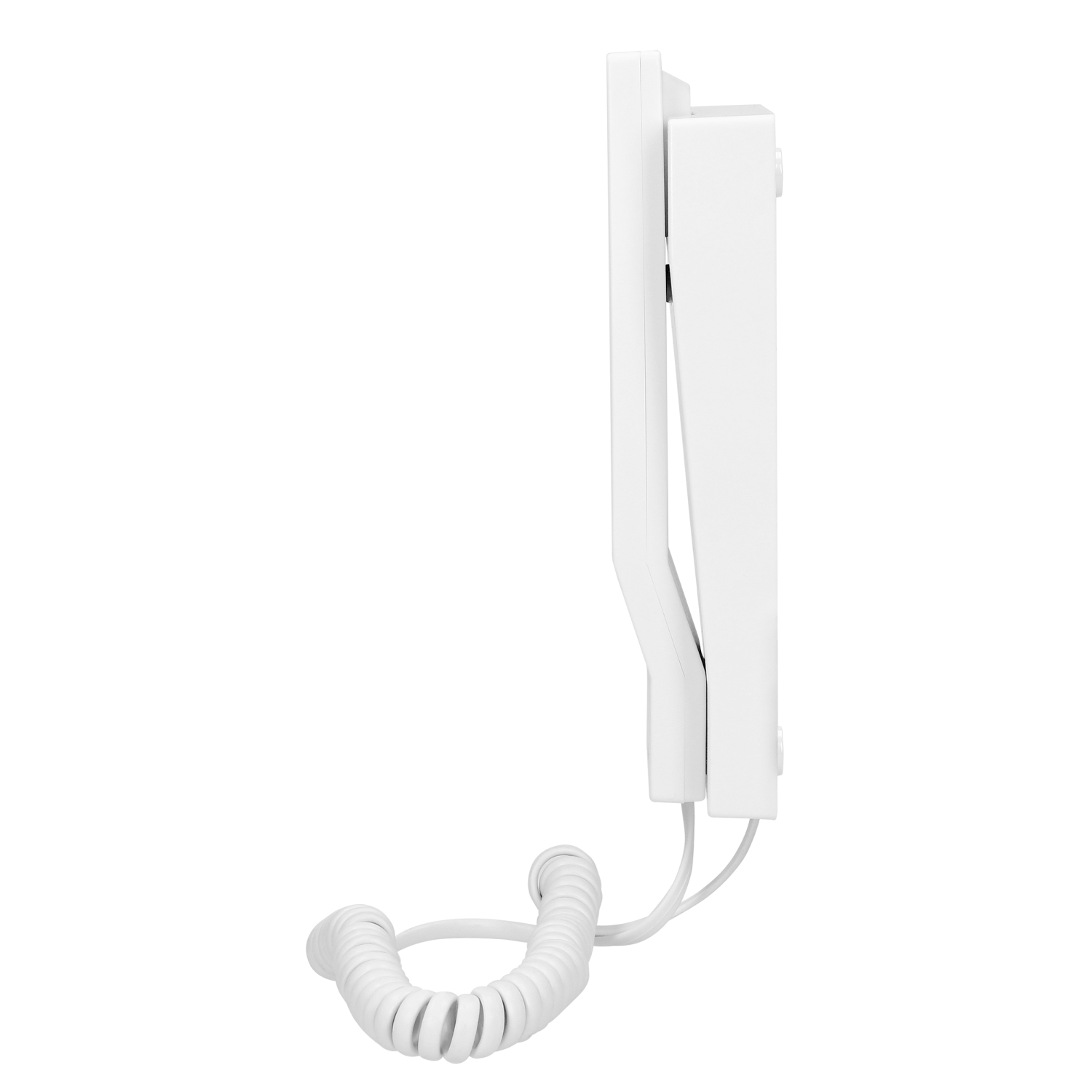

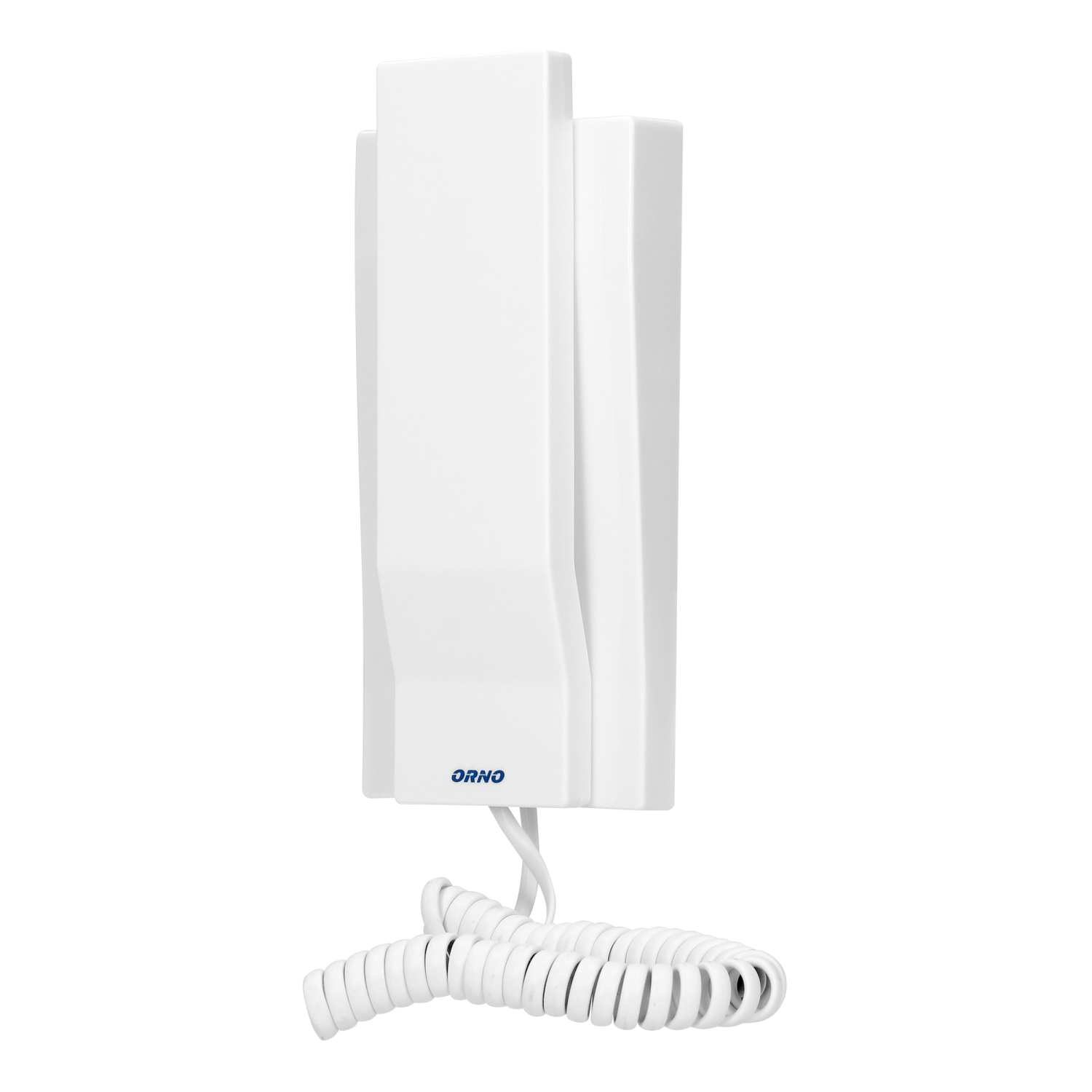

| Indoor panel: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | nie |
| Internal communication: | tak |
| Number of ringtones: | 1 |
| Loudness control: | tak |
| Mutable call tone: | nie |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Biały |
| Width [mm]: | 82 |
| Height [mm]: | 180 |
| Depth [mm]: | 40 |

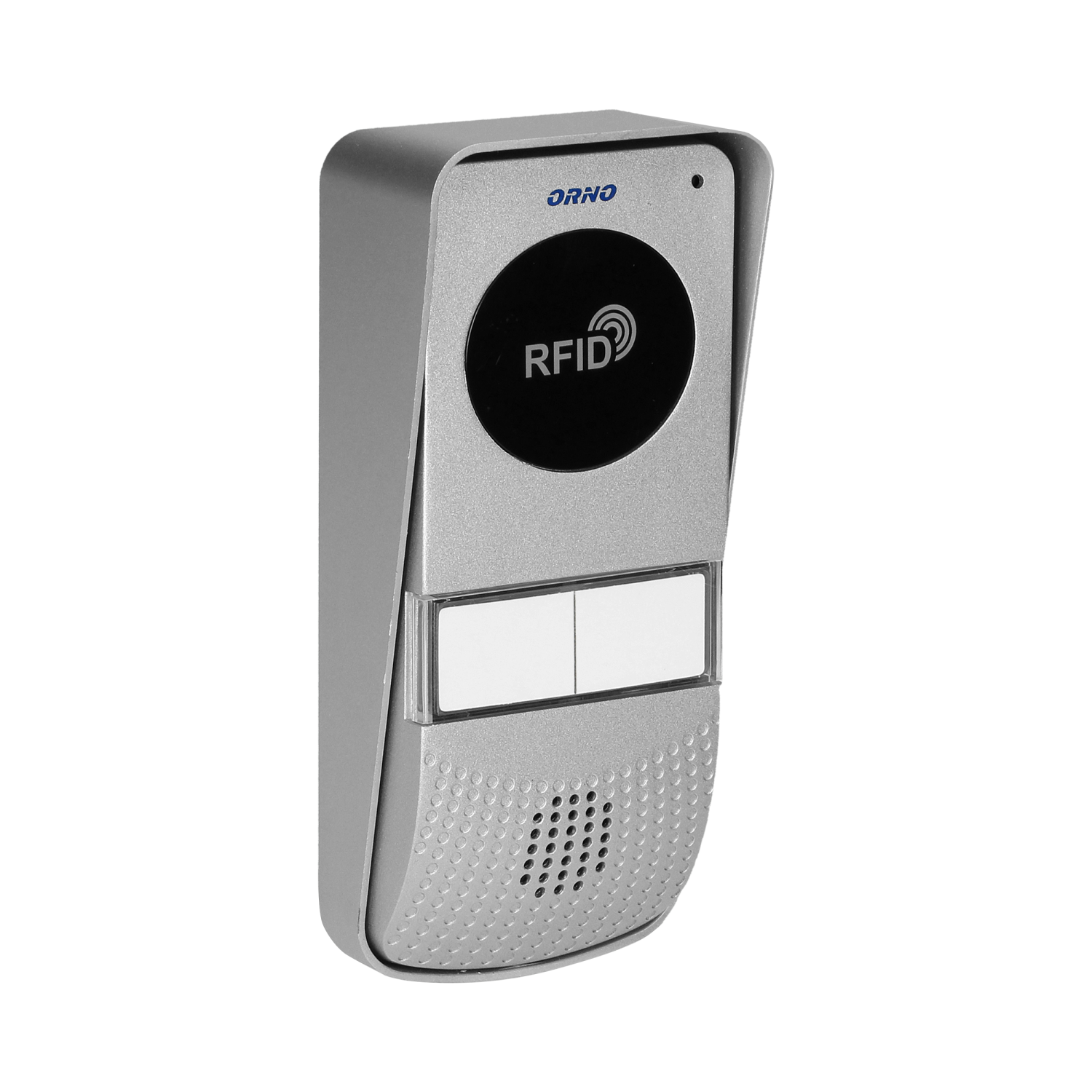

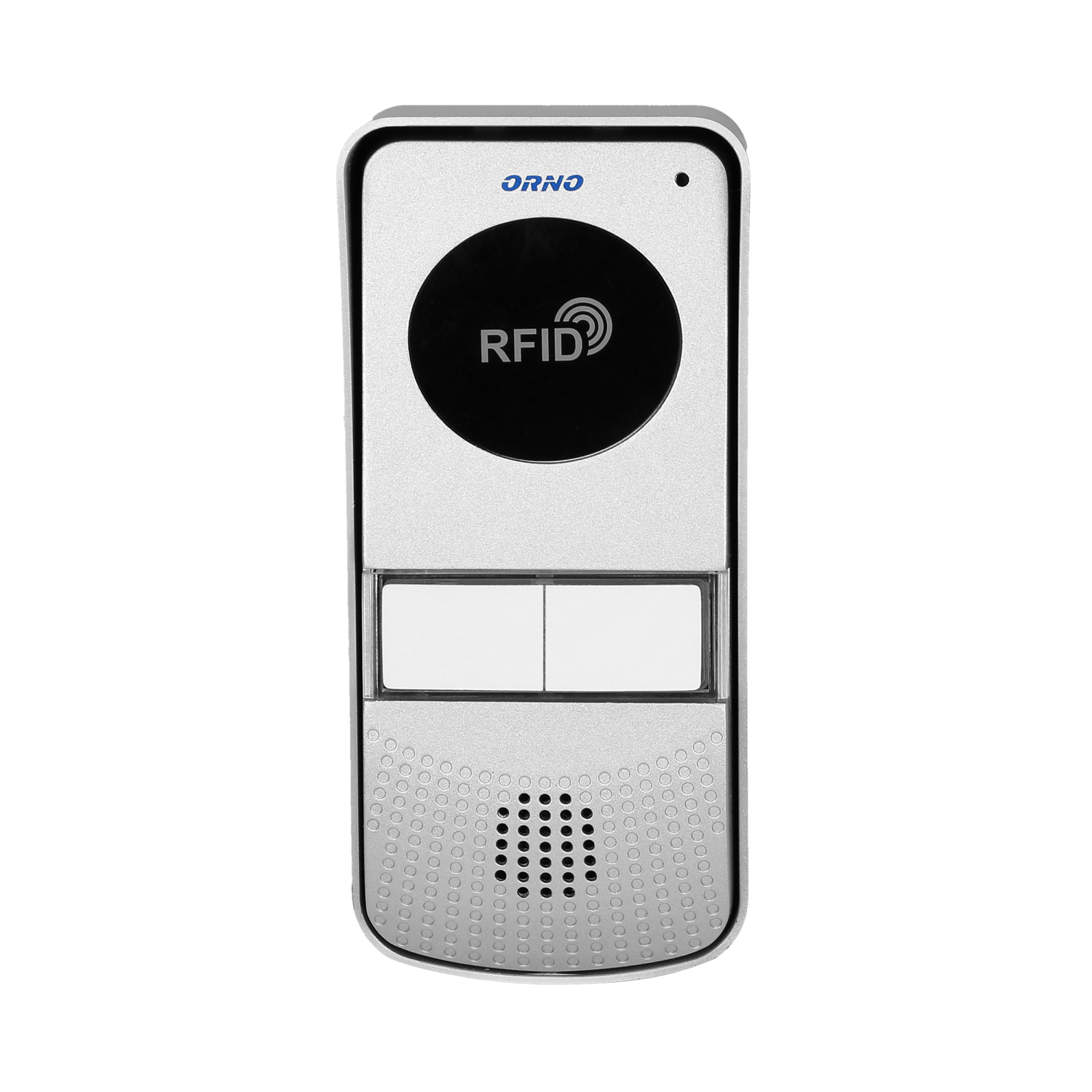

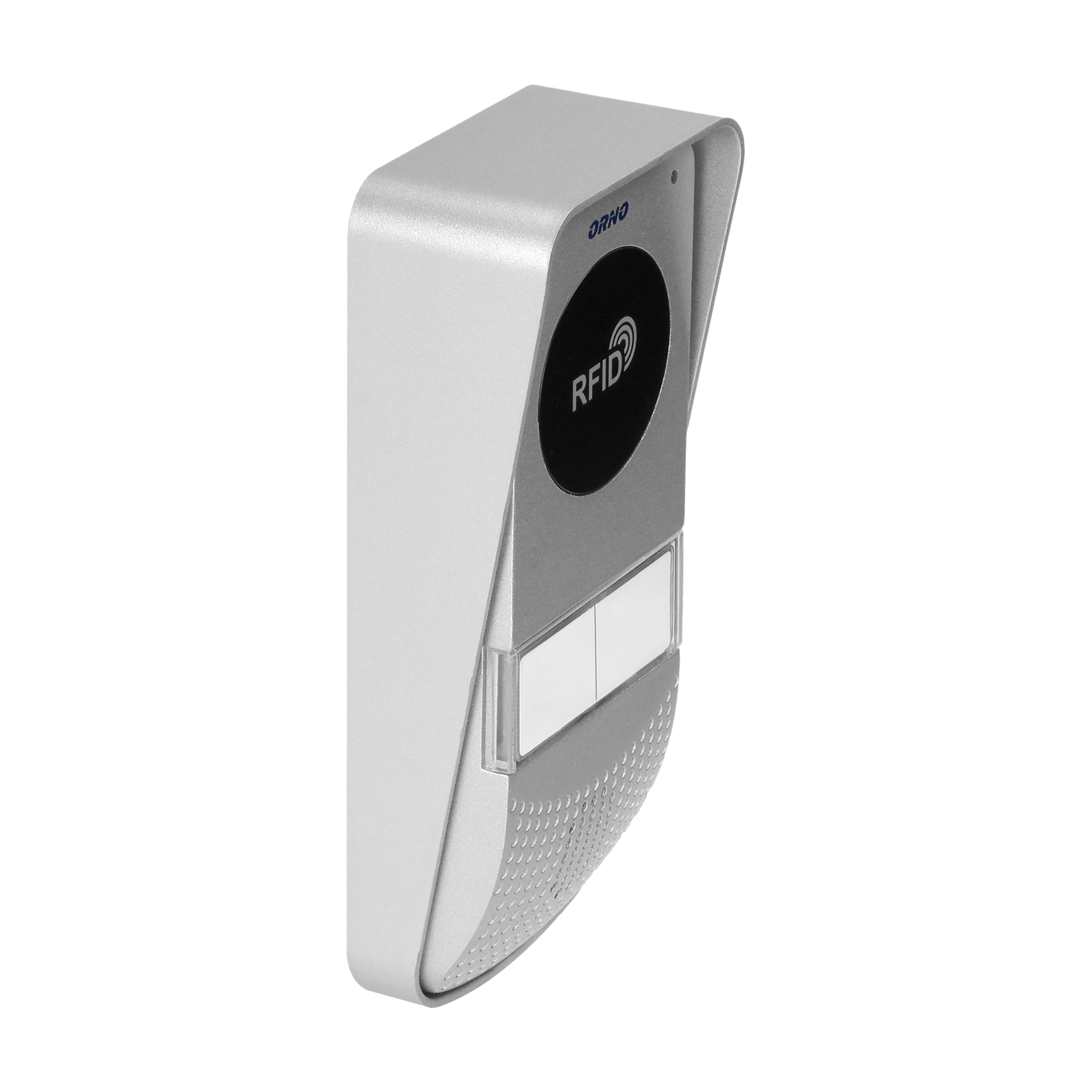

| External panel: |
|---|
| Number of call buttons: | 2 |
| Mounting method outdoor station: | Montaż natynkowy |
| With digital door code: | nie |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 125kHz |
| Label space/information surface: | tak |
| With cover: | tak |
| Degree of protection (IP): | IP44 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Srebrny |
| Width [mm]: | 74.5 |
| Height [mm]: | 165 |
| Depth [mm]: | 40 |
| Other features: | RFID - max. 10 użytkowników (breloki w zestawie: 4 użytkownika + 2 administracyjne) |
