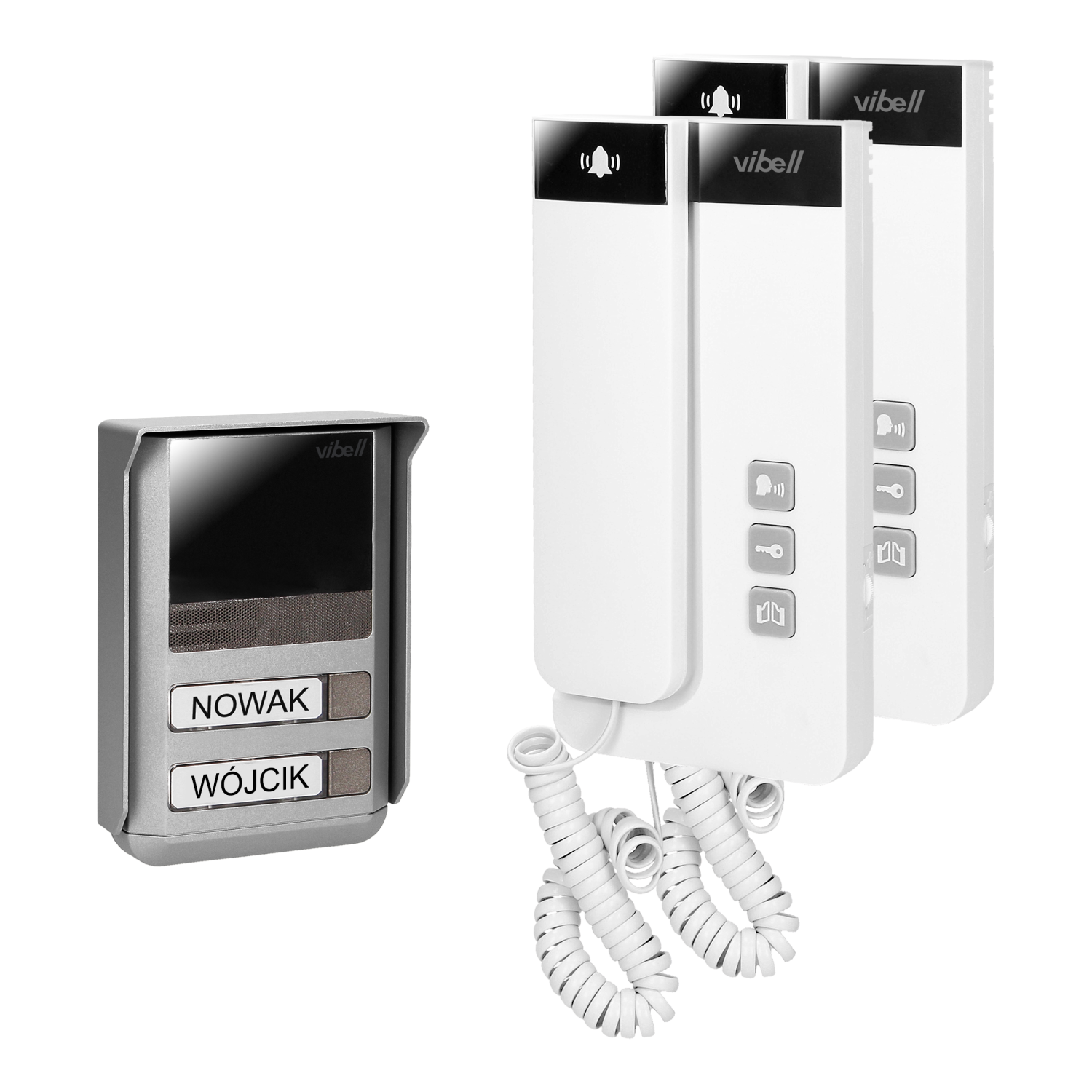

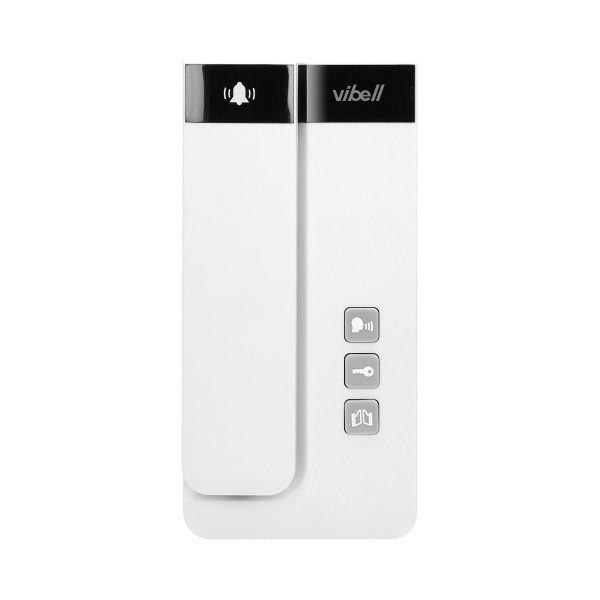

External panel requires surface mounting (protective rain cover included) Backlit place for name The duplex transmission allows trouble-free conversation Classic and elegant uniphone equipped with a handset Smooth volume adjustment Additional gate control function Direct control of an electric strike without any additional transformer The intercom function (after the application of an additional uniphone) enables communication between uniphones.
| General information: |
|---|
| Type: | wielorodzinny |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage [V]: | 18V DC |
| Type of transmission: | przewodowy |
| Installation technique: | Dwużyłowe |
| Number of wires (*from outdoor station to electric strike): | 2 (+2)* |
| Number of indoor stations: | 2 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 4 |
| Expandable to max. number of outdoor stations: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| : | z panelem zewnętrznym |
| With automatic door opener: | tak |
| Other features: | Zasilacz na szynę DIN - jeden dla całego zestawu |

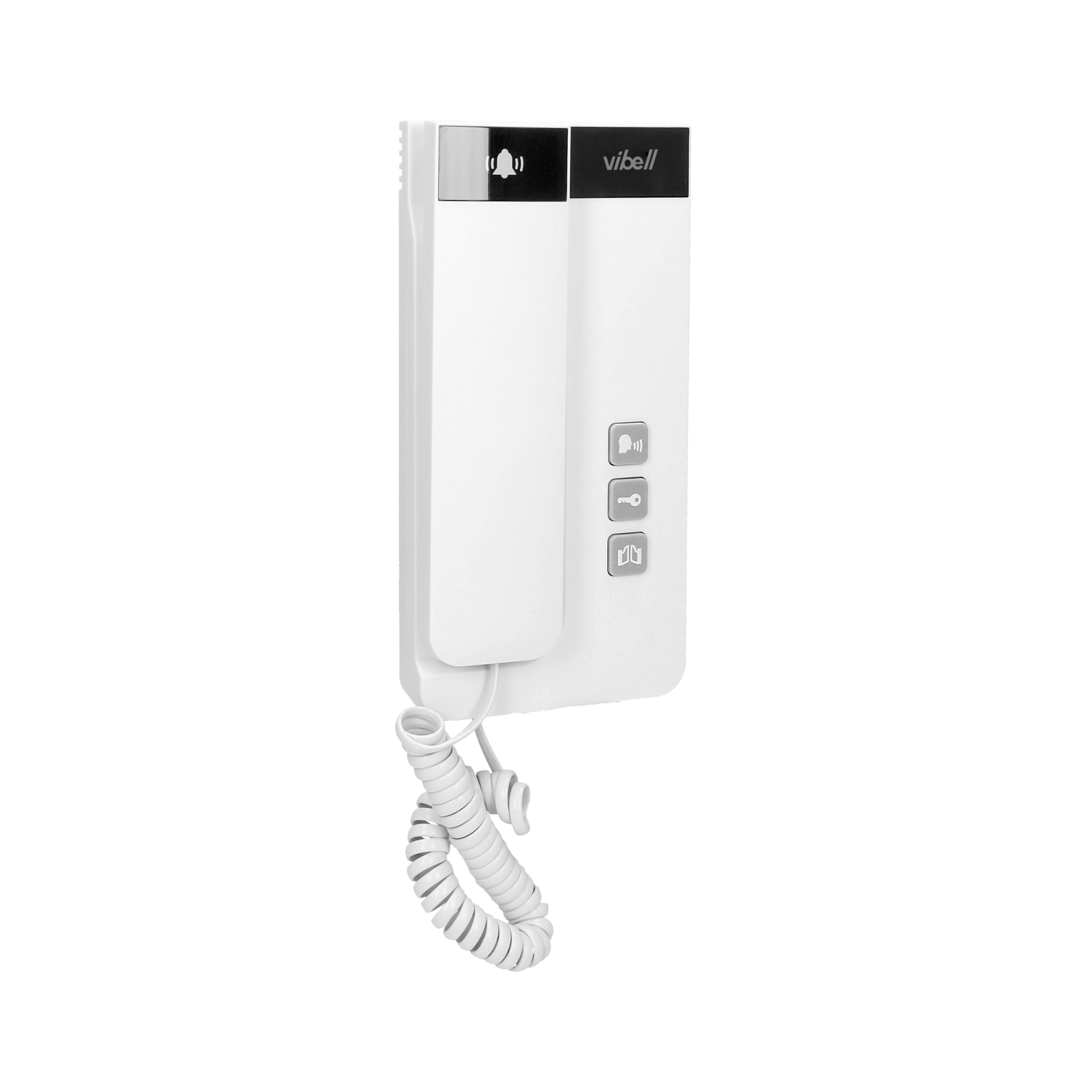

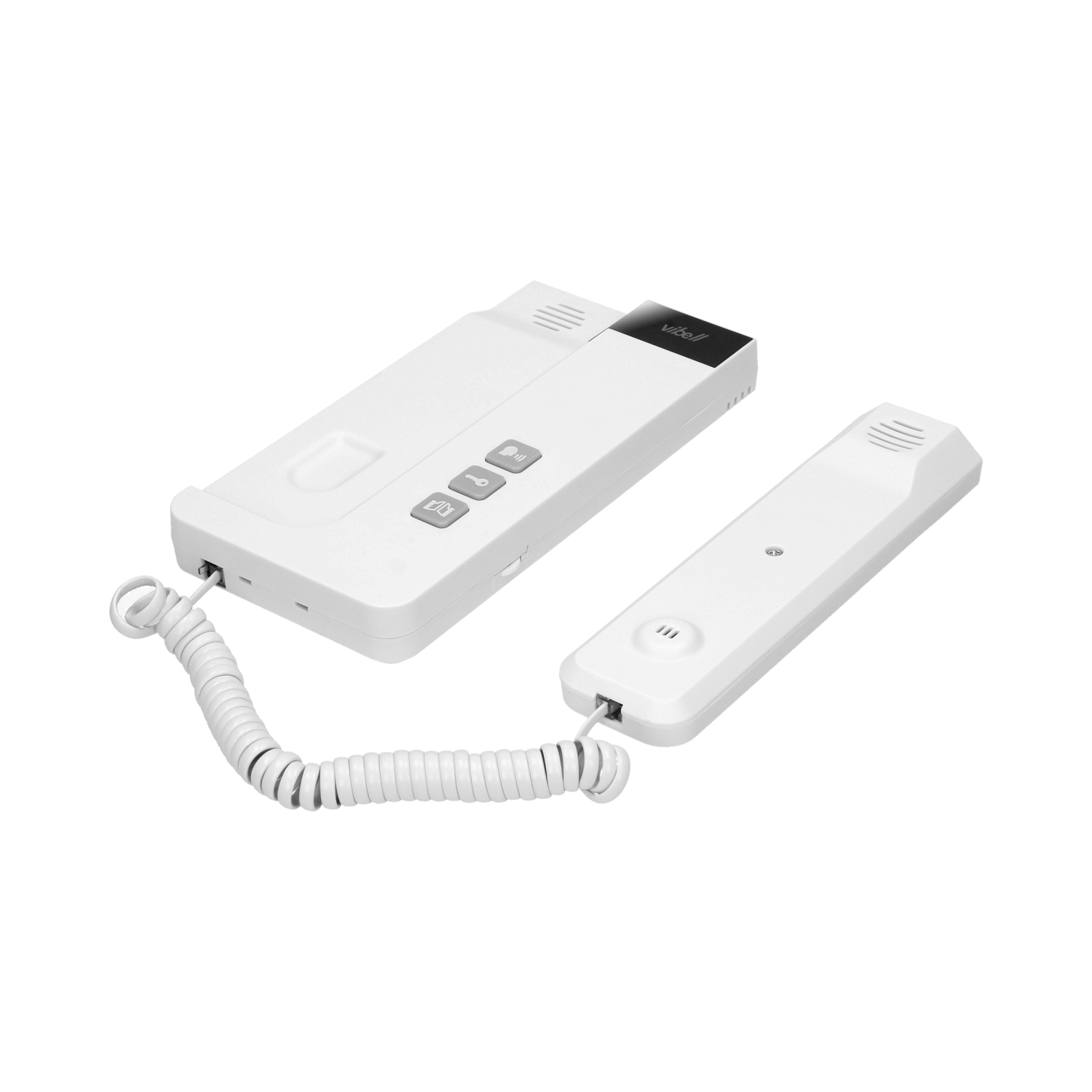

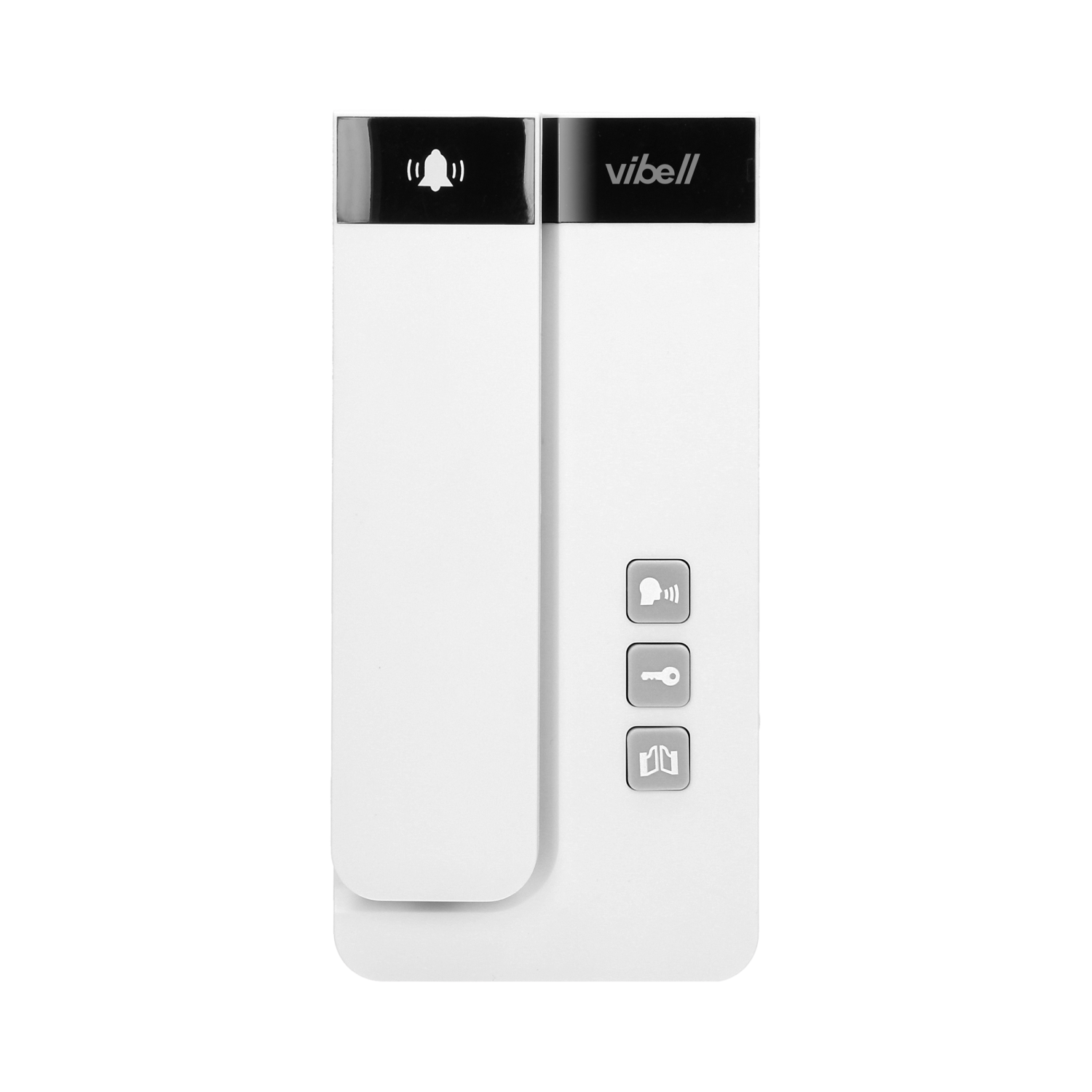

| Indoor panel: |
|---|

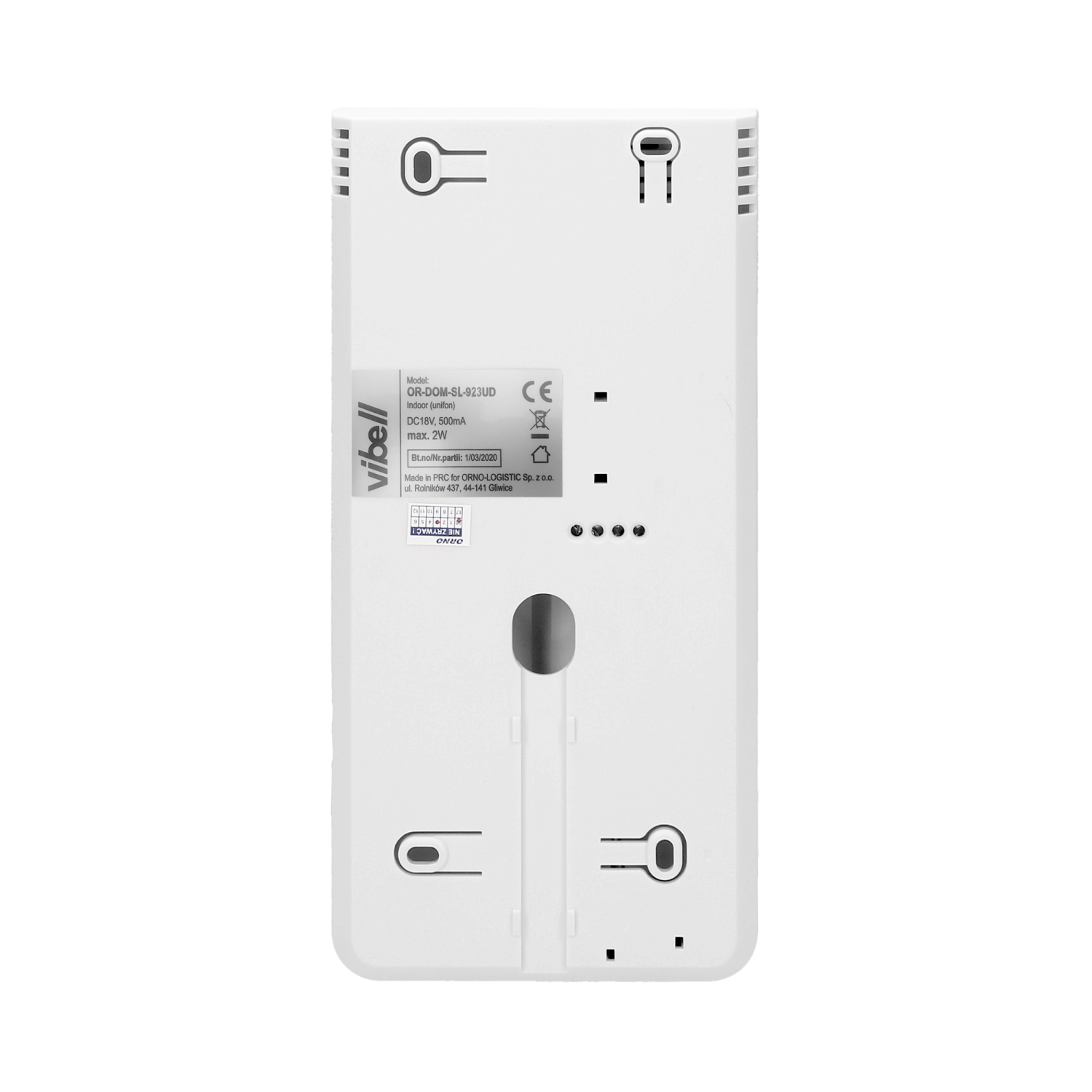

| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | nie |
| Internal communication: | tak |
| Number of ringtones: | 2 |
| Loudness control: | tak |
| Mutable call tone: | nie |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Biały |
| Width [mm]: | 105 |
| Height [mm]: | 210 |
| Depth [mm]: | 26 |
| Other features: | Słuchawka magnetyczna |

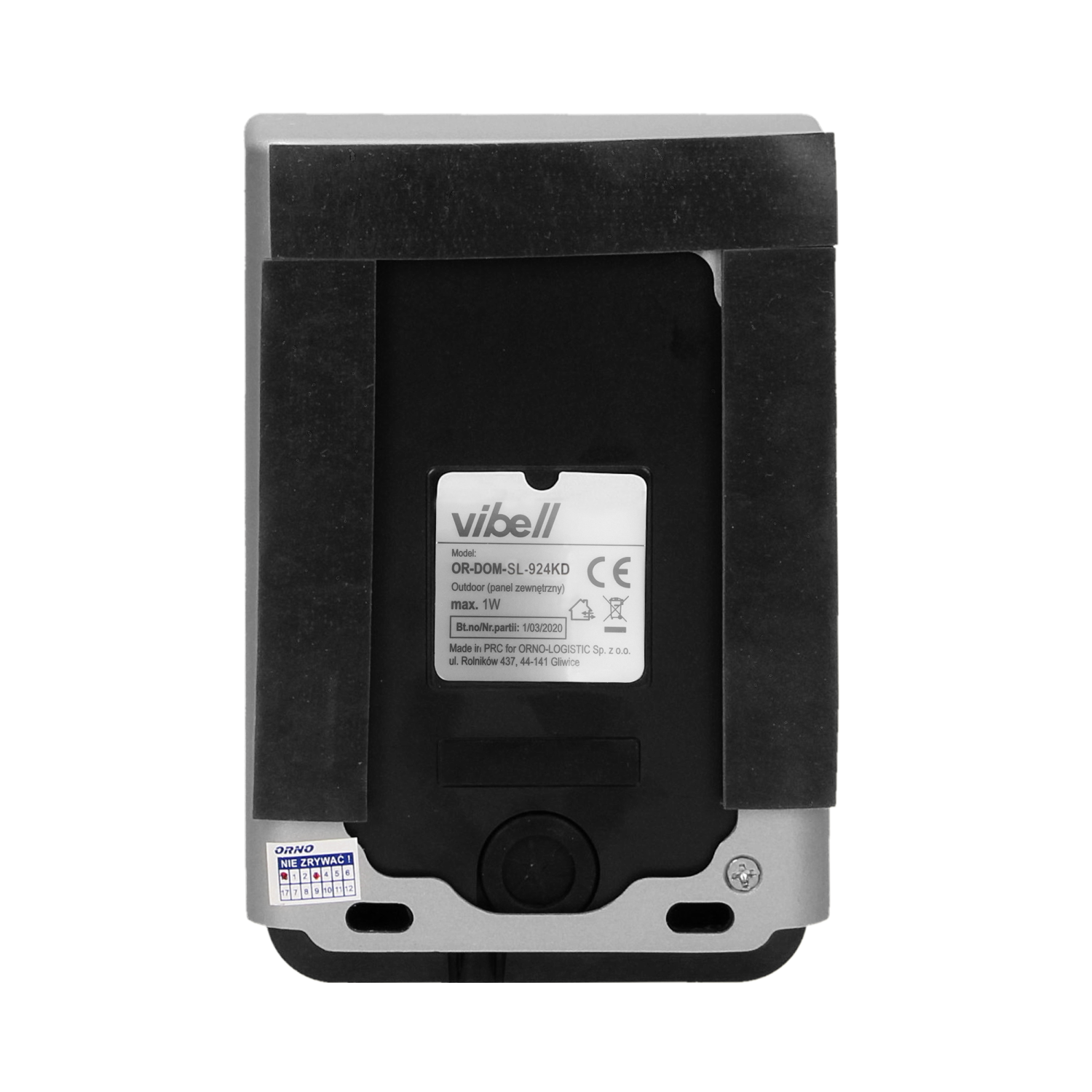

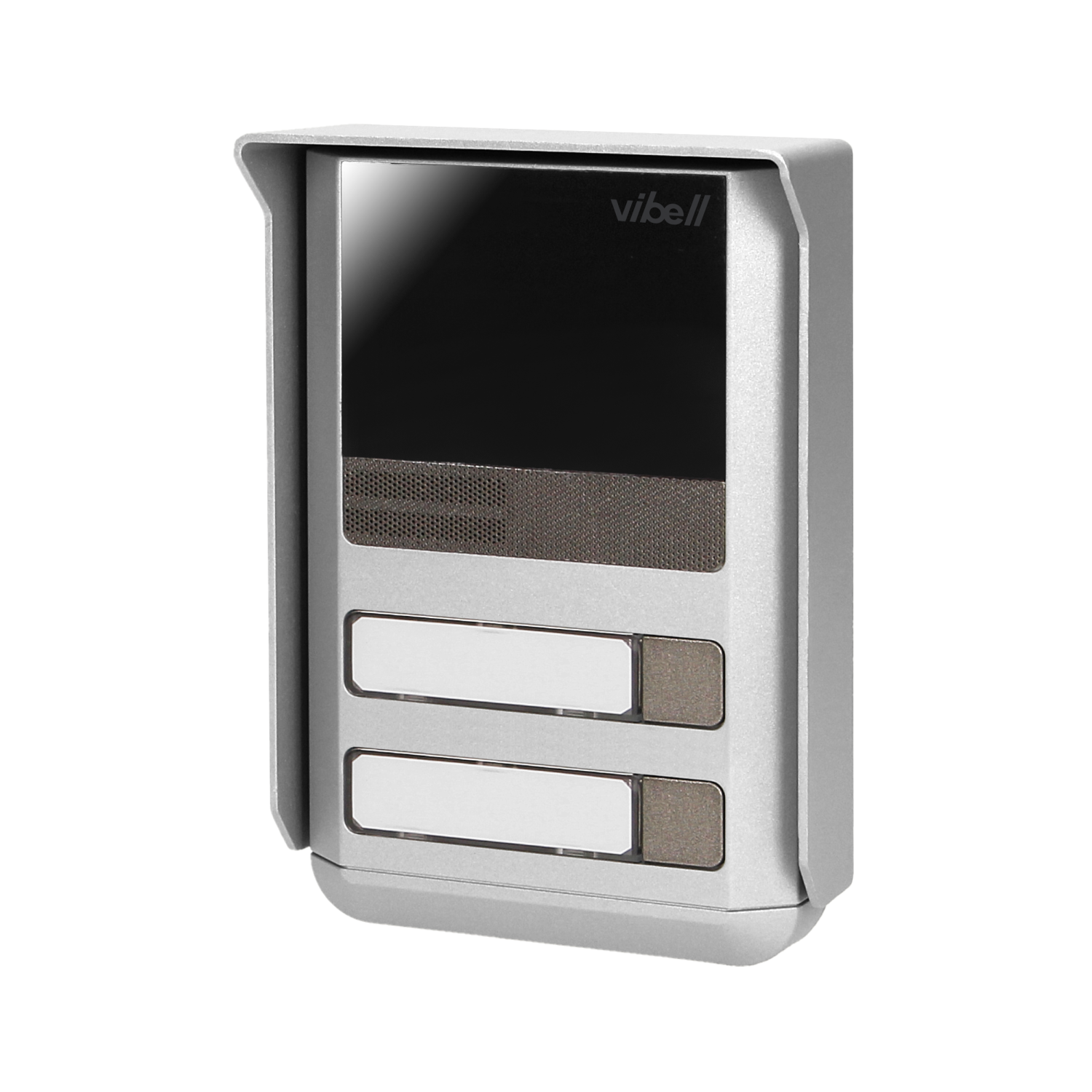

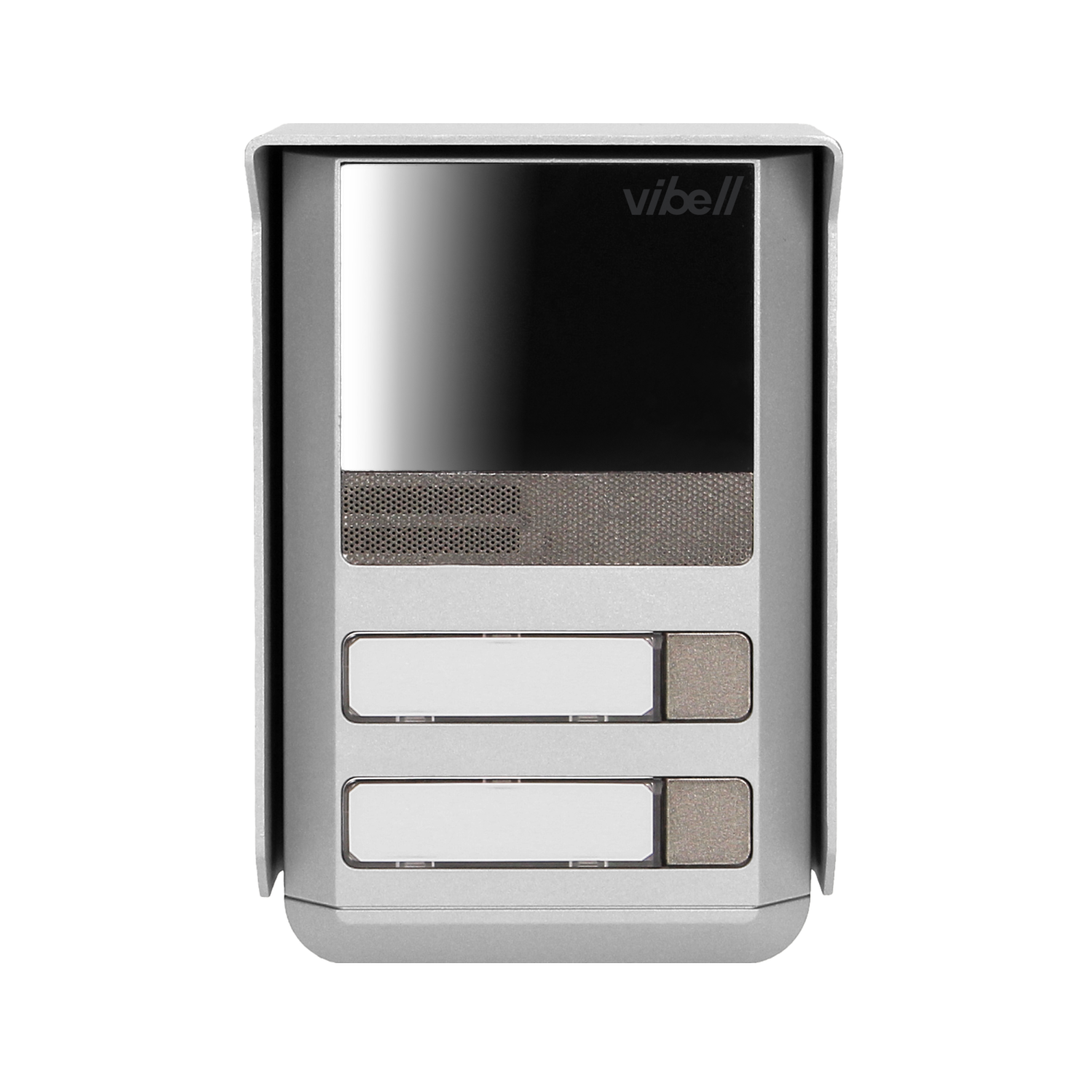

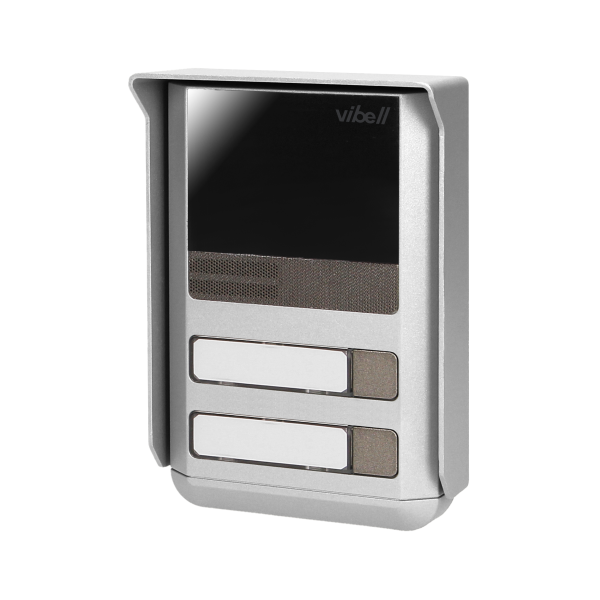

| External panel: |
|---|
| Number of call buttons: | 2 |
| Mounting method outdoor station: | Montaż natynkowy |
| With digital door code: | nie |
| Card and proximity tags reader: | nie |
| Label space/information surface: | tak |
| With cover: | tak |
| Degree of protection (IP): | IP54 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Srebrny |
| Width [mm]: | 90 |
| Height [mm]: | 135 |
| Depth [mm]: | 30 |
