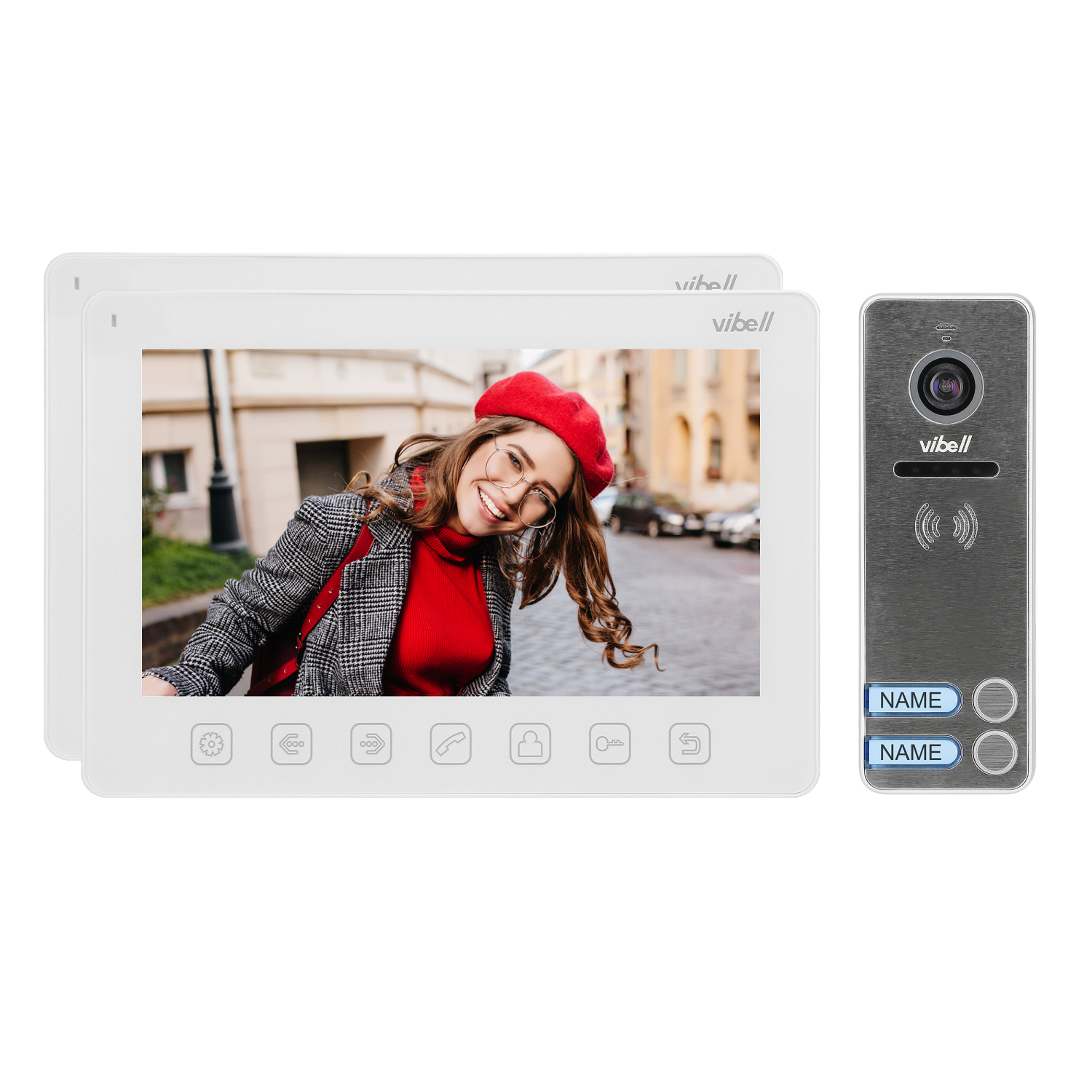

NOVEO MULTI2 two-family video door phone set, LCD 7" monitor, white
NOVEO MULTI2 two-family video door phone set, LCD 7" monitor, white

NOVEO MULTI2 two-family video door phone set, LCD 7" monitor, white

OR-VID-EX-1063/W

Description

An example of VIBELL set: NOVEO MULTI2 a two-family video door phone set does not require any uniphone. It includes a multicolour, flat 7" LCD monitor and a very durable, wide-angle video-camera. It has a user-friendly OSD menu, which is used to instantly adjust monitor parameters. The set enables gate control function and opening of the door lock output directly from the video-camera panel. Available colours: black and white.

General information:
Type: wielorodzinny
With video: tak
Current supply: Zasilanie sieciowe
Nominal voltage: 15V DC
Type of transmission: przewodowy
Can be connected to smartphone: nie
Installation technique: System wieloprzewodowy
Number of wires (*from outdoor station to electric strike): 4 (+2)*
Number of indoor stations: 2
Number of outdoor stations: 1
Expandable to max. number of indoor stations: 4
Expandable to max. number of outdoor stations: 2
Expandable to max. number of CCTV cameras: 8
Operation door lock: tak
Current supply of the electric strike: dodatkowy zasilacz wymagany
Connection system of the electric strike: z panelem zewnętrznym
With automatic door opener: tak
With day/night function: tak
Monitor:
Mounting method indoor station: Montaż natynkowy
Hands free: tak
Screen diagonal [inch]: 7"
Screen resolution: 800x480
Touch screen: nie
Property picture system: Kolor
With memory function: nie
Internal communication: tak
Number of ringtones: 12
Loudness control: tak
Mutable call tone: tak
Material indoor station: Tworzywo sztuczne
Colour indoor station: Biały
Dimensions of the monitor - Width [mm]: 185
Dimensions of the monitor - Height [mm]: 127
Dimensions of the monitor - Depth [mm]: 17
Other features: funkcja rozłoszeniowa i monitorowania dźwięku
External panel:
Number of call buttons: 2
Mounting method outdoor station: Montaż natynkowy
Camera resolution: 700 TVL
Camera view angle (vertical): 96 °
Camera view angle (horizontal): 110 °
Night light: białe LED
With digital door code: nie
Card and proximity tags reader: nie
Label space/information surface: tak
With cover: nie
Degree of protection (IP): IP65
Material outdoor station: Aluminium
Colour outdoor station: Srebrny
Width [mm]: 55
Height [mm]: 152
Depth [mm]: 21

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:40Download
Product data sheetENpdf2024-07-17 10:22:24Download
User manualPLpdf2024-03-14 10:39:51Download
User manualELpdf2024-03-14 10:39:51Download
