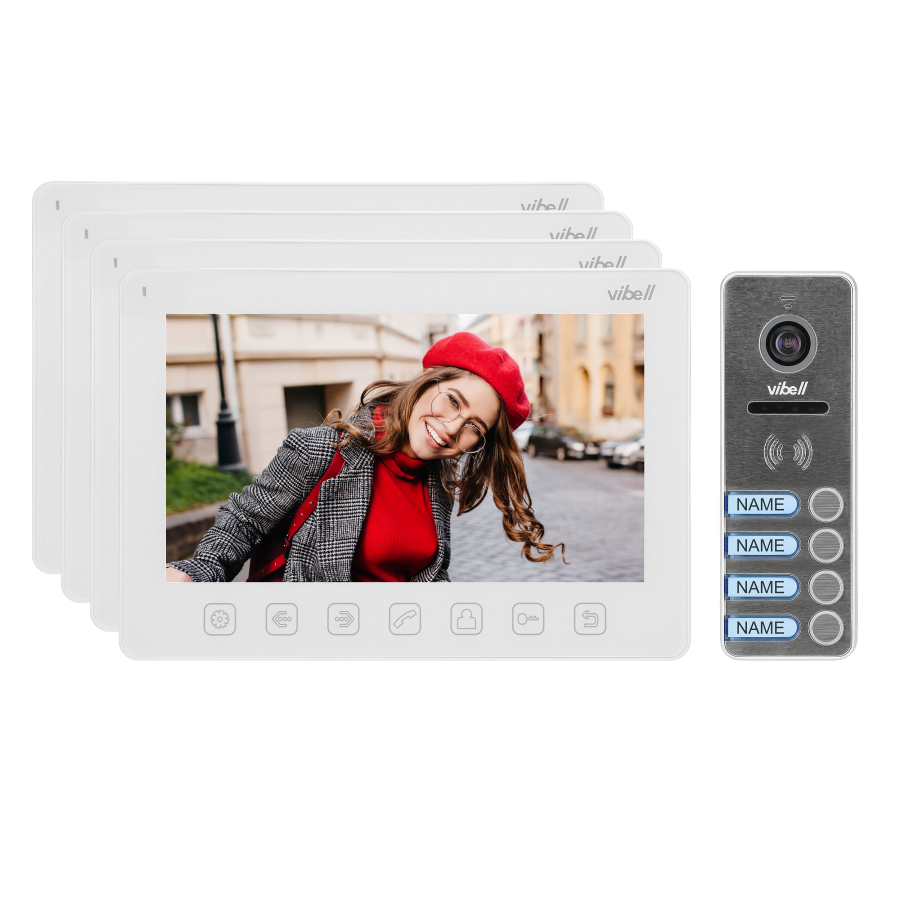

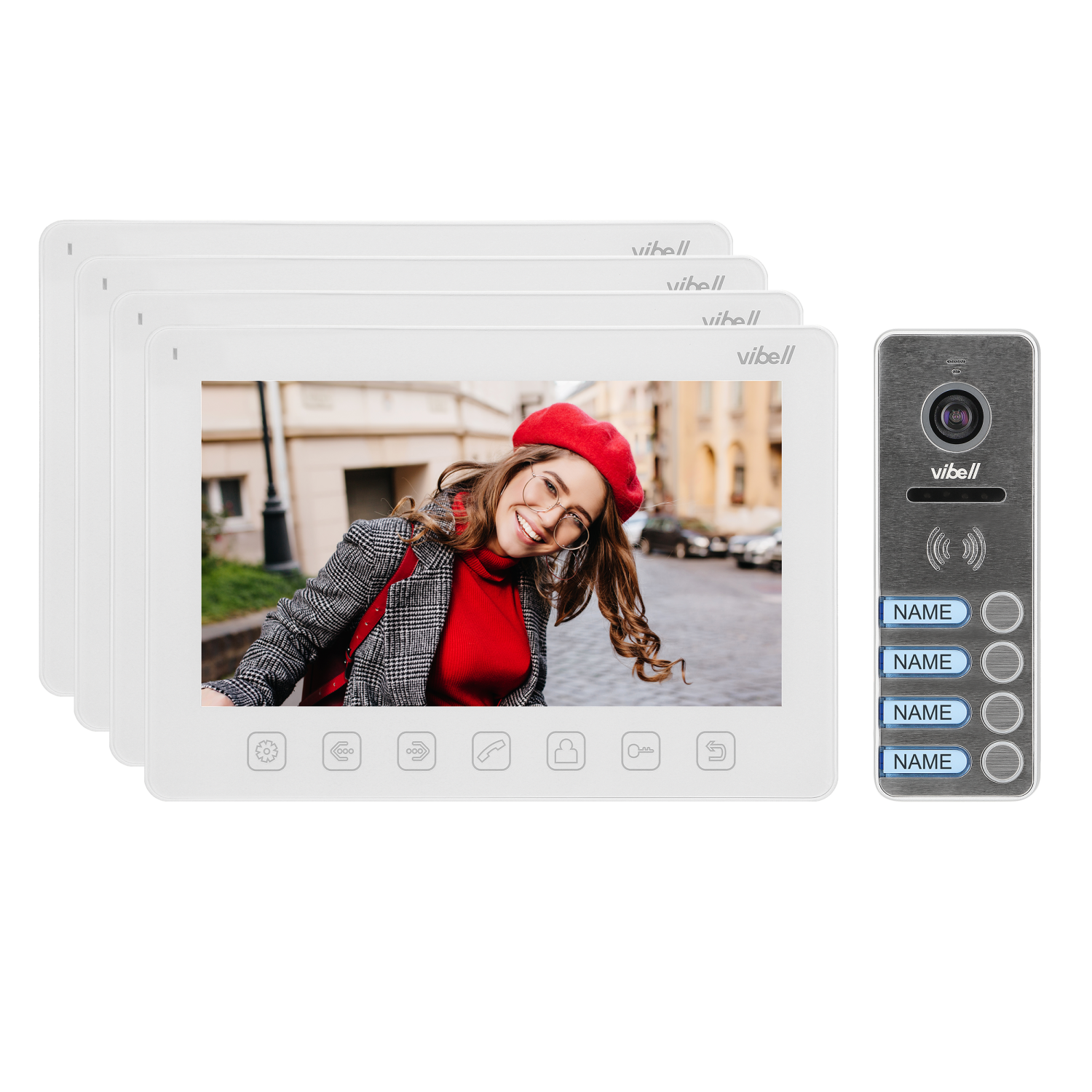

An example of VIBELL set: NOVEO MULTI4 a four-family video door phone set does not require any uniphone. It includes a multicolour, flat 7" LCD monitor and a very durable, wide-angle video-camera. It has a user-friendly OSD menu, which is used to instantly adjust monitor parameters. The set enables gate control function and opening of the door lock output directly from the video-camera panel. Available colours: black and white.
General information: |
---|
Type: | wielorodzinny |
With video: | tak |
Current supply: | Zasilanie sieciowe |
Nominal voltage: | 15V DC |
Type of transmission: | przewodowy |
Can be connected to smartphone: | nie |
Installation technique: | System wieloprzewodowy |
Number of wires (*from outdoor station to electric strike): | 4 (+2)* |
Number of indoor stations: | 4 |
Number of outdoor stations: | 1 |
Expandable to max. number of indoor stations: | 4 |
Expandable to max. number of outdoor stations: | 2 |
Expandable to max. number of CCTV cameras: | 8 |
Operation door lock: | tak |
Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
Connection system of the electric strike: | z panelem zewnętrznym |
With automatic door opener: | tak |
With day/night function: | tak |
Monitor: |
---|
Mounting method indoor station: | Montaż natynkowy |
Hands free: | tak |
Screen diagonal [inch]: | 7" |
Screen resolution: | 800x480 |
Touch screen: | nie |
Property picture system: | Kolor |
With memory function: | nie |
Internal communication: | tak |
Number of ringtones: | 12 |
Loudness control: | tak |
Mutable call tone: | tak |
Material indoor station: | Tworzywo sztuczne |
Colour indoor station: | Biały |
Dimensions of the monitor - Width [mm]: | 185 |
Dimensions of the monitor - Height [mm]: | 127 |
Dimensions of the monitor - Depth [mm]: | 17 |
Other features: | funkcja rozłoszeniowa i monitorowania dźwięku |
External panel: |
---|
Number of call buttons: | 4 |
Mounting method outdoor station: | Montaż natynkowy |
Camera resolution: | 700 TVL |
Camera view angle (vertical): | 96 ° |
Camera view angle (horizontal): | 110 ° |
Night light: | białe LED |
With digital door code: | nie |
Card and proximity tags reader: | nie |
Label space/information surface: | tak |
With cover: | nie |
Degree of protection (IP): | IP65 |
Material outdoor station: | Aluminium |
Colour outdoor station: | Srebrny |
Width [mm]: | 55 |
Height [mm]: | 152 |
Depth [mm]: | 21 |
