OR-AE-13268(GS)/W

Description

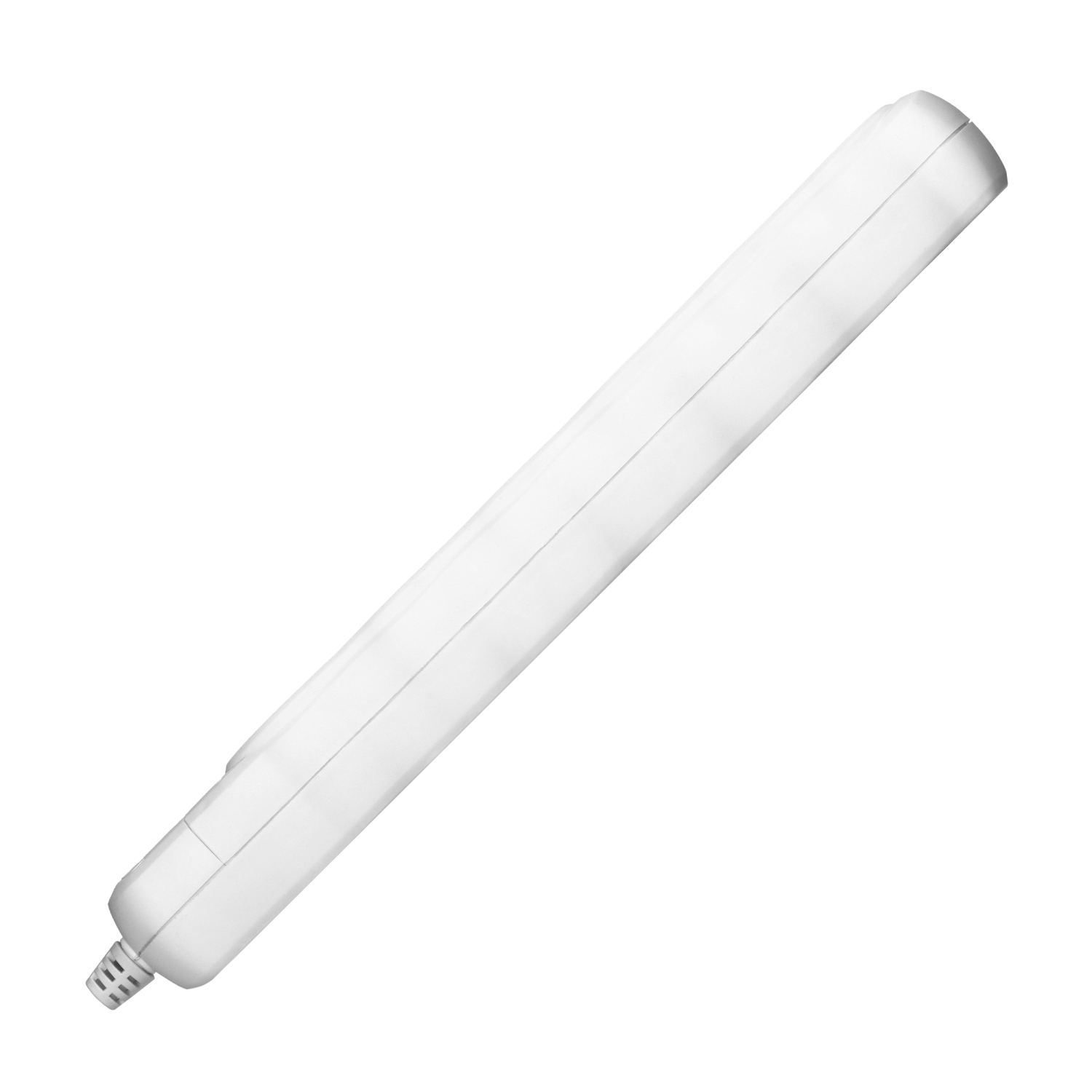

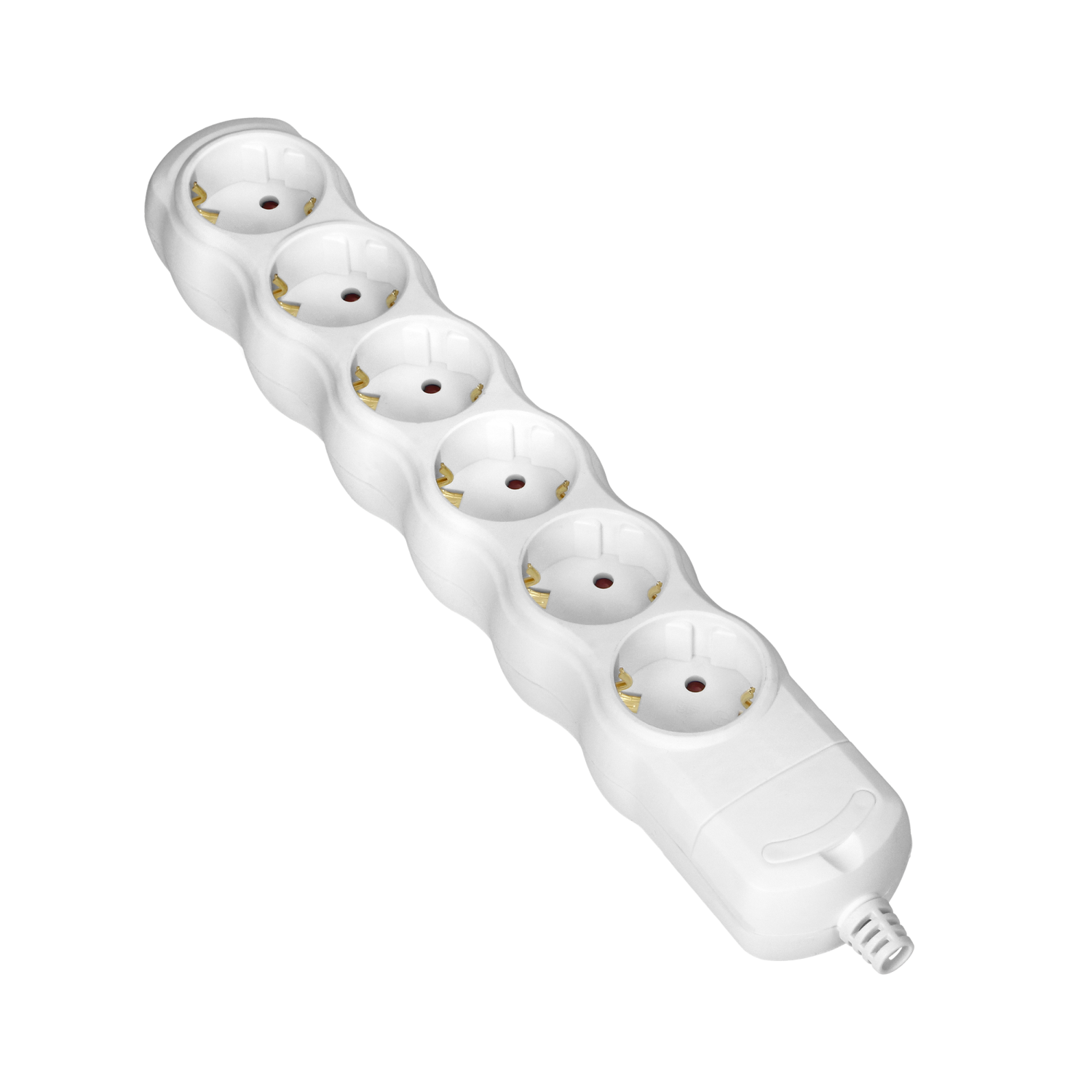

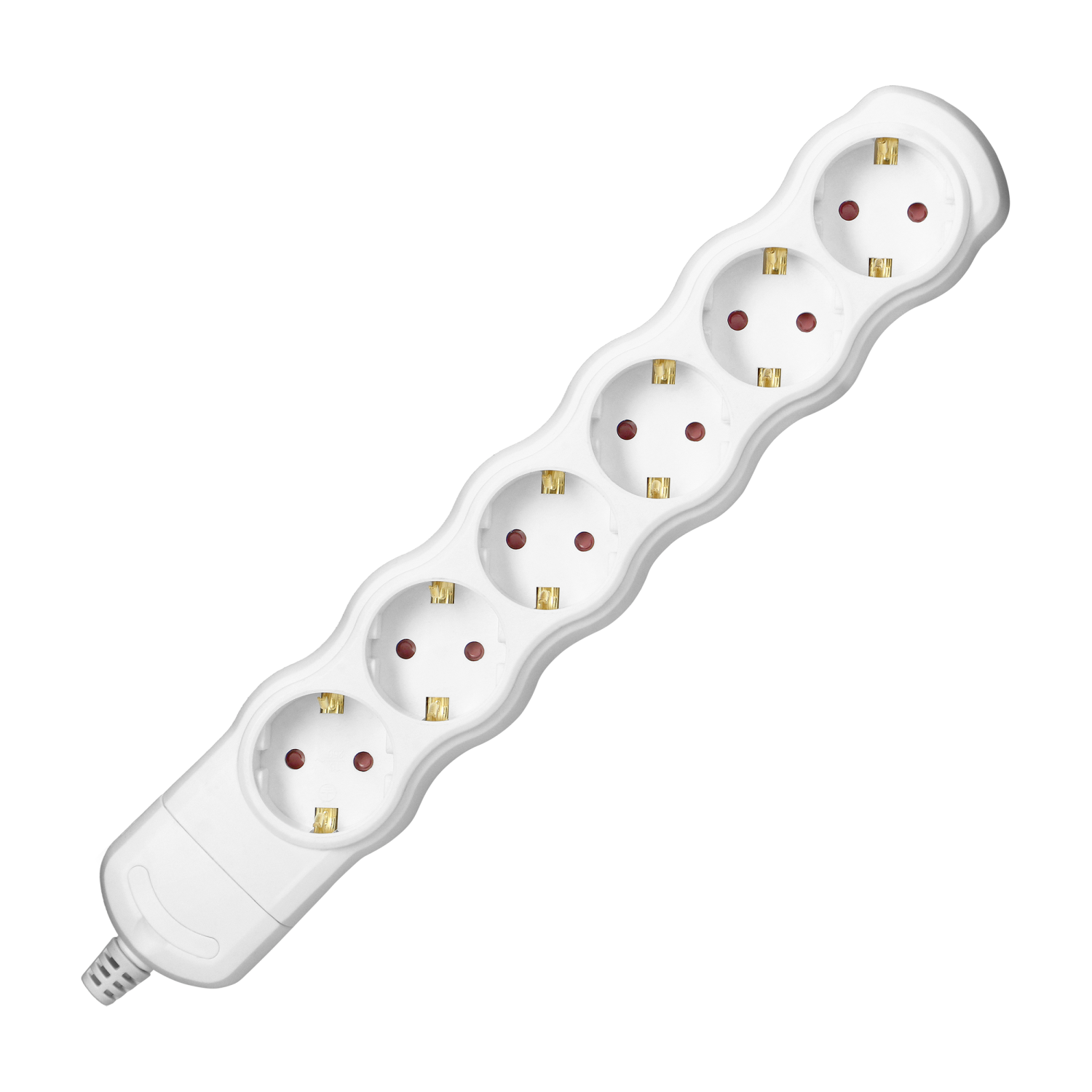

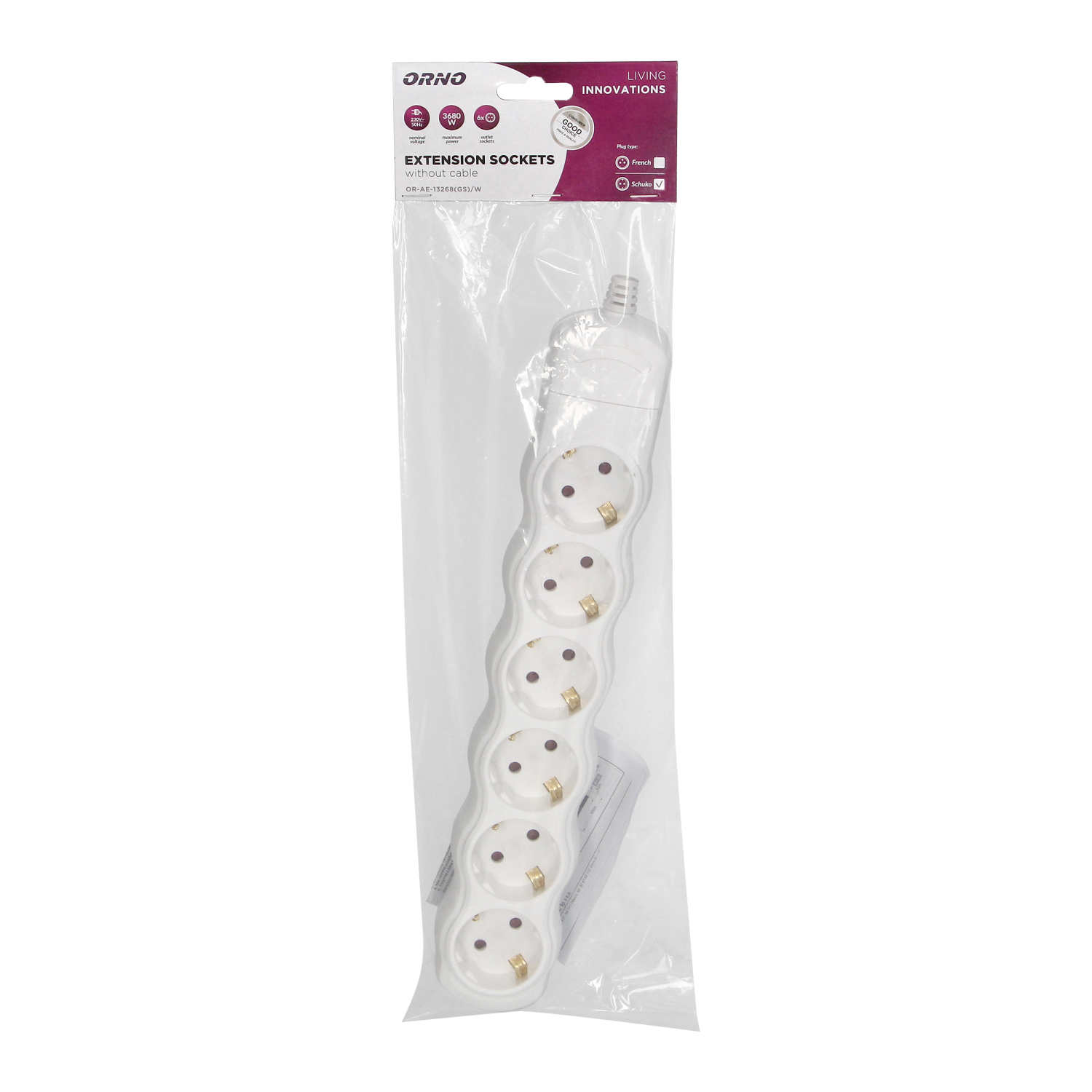

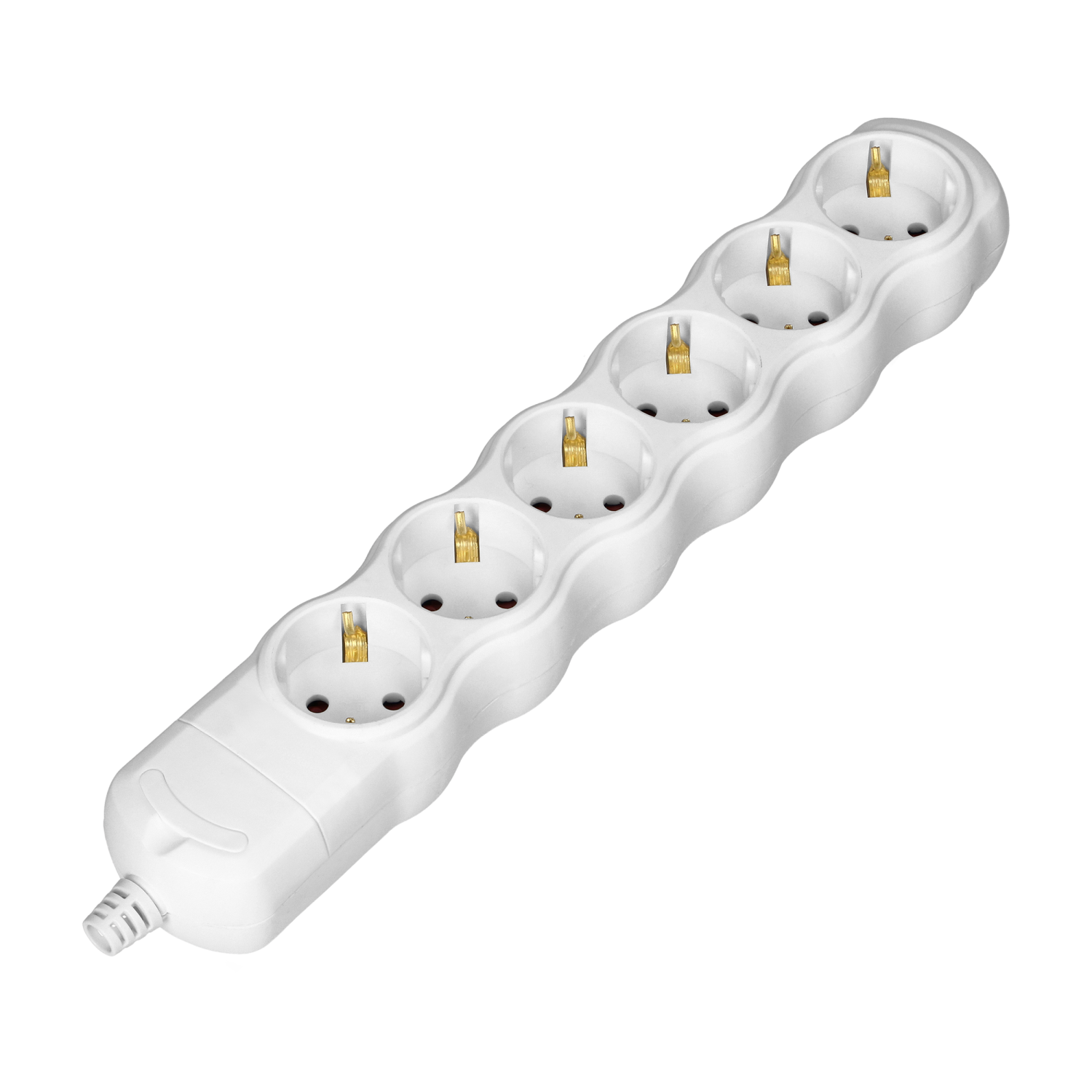

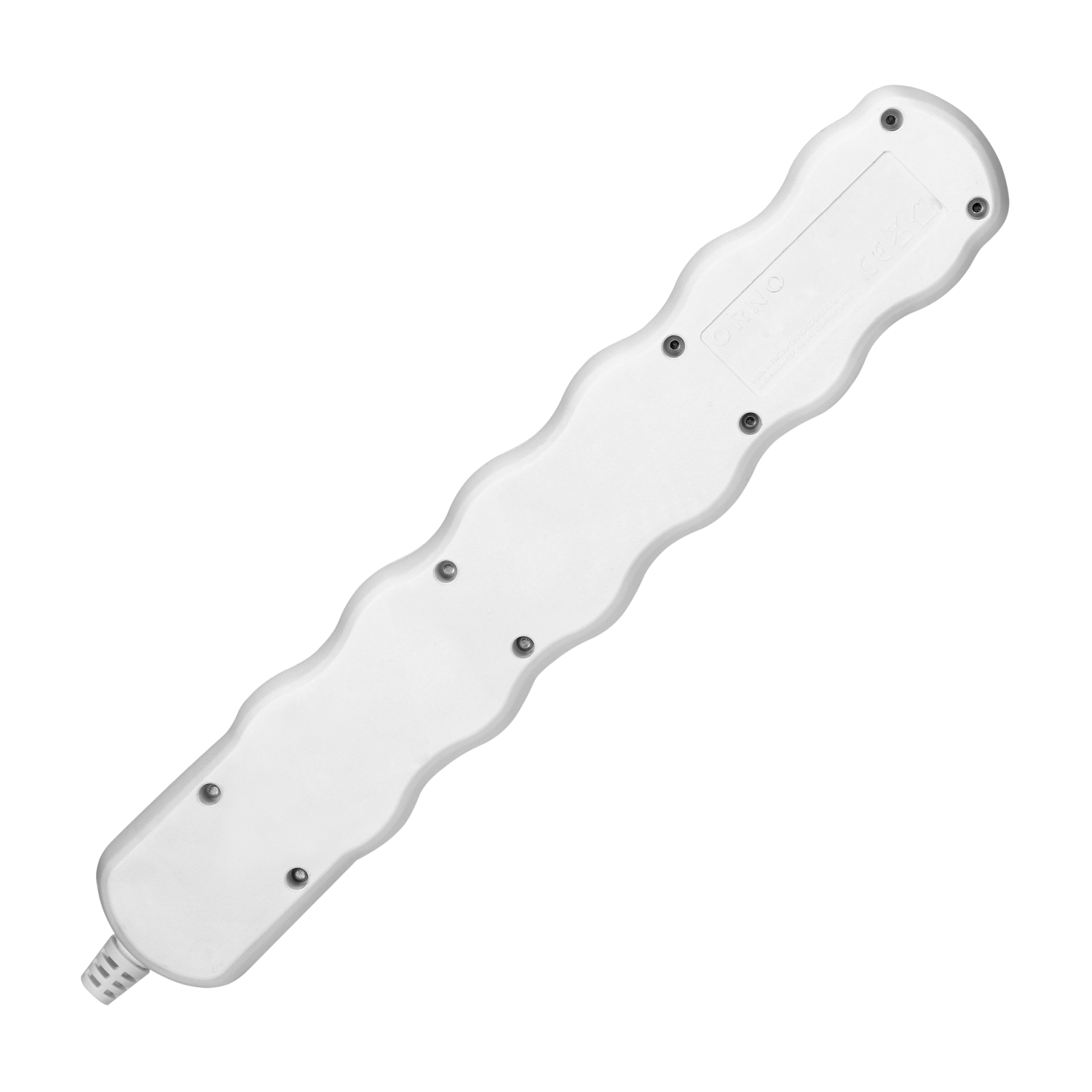

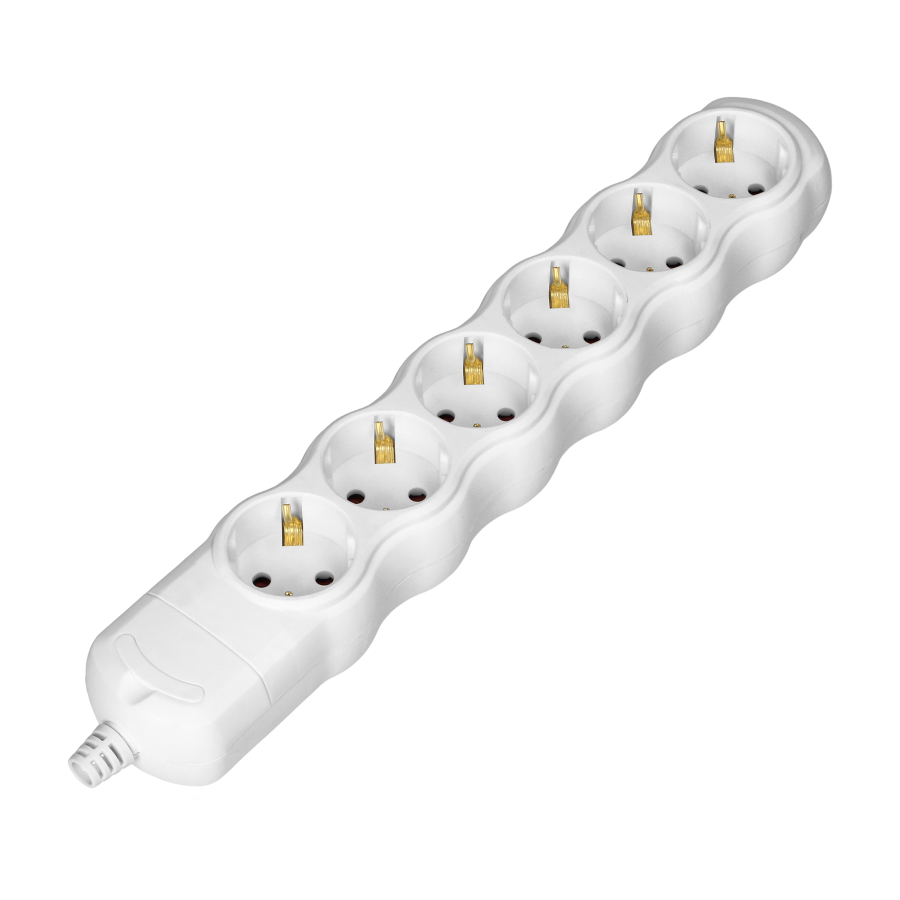

Multi-socket splitter with 6 Schuko outlets. It allows us to connect 6 devices in a room with one single socket. The socket splitter must be fitted with a cable with a recommended cross-section of 3x1.5mm2 before use. Available in white.

General information:
Housing shape: Rectangular
Wire cross-section: 1,5 mm²
Number of socket outlets with protective contact (SCHUKO): 6
Nominal current: 16 A
Frequency: 50 Hz
Safety shutters: Yes
Dimensions - width: 336 mm
Dimensions - height: 40 mm
Dimensions - depth: 54 mm
Colour: White
Material: Plastic
Degree of protection (IP): IP20
With on/off switch: No
Surface finishing: Matt
Operating temperature: -15 - +50°C
Nominal voltage: 230 V
Max. load: 3680 W
Number of wires: 3
Material quality: Thermoplastic
Rotated central insert: Yes
Angle rotated central insert: 45°
Weight: 0.19 kg

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:12:05Download
Product data sheetENpdf2024-07-17 10:20:12Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
User manualSLpdf2024-03-14 10:39:51Download
