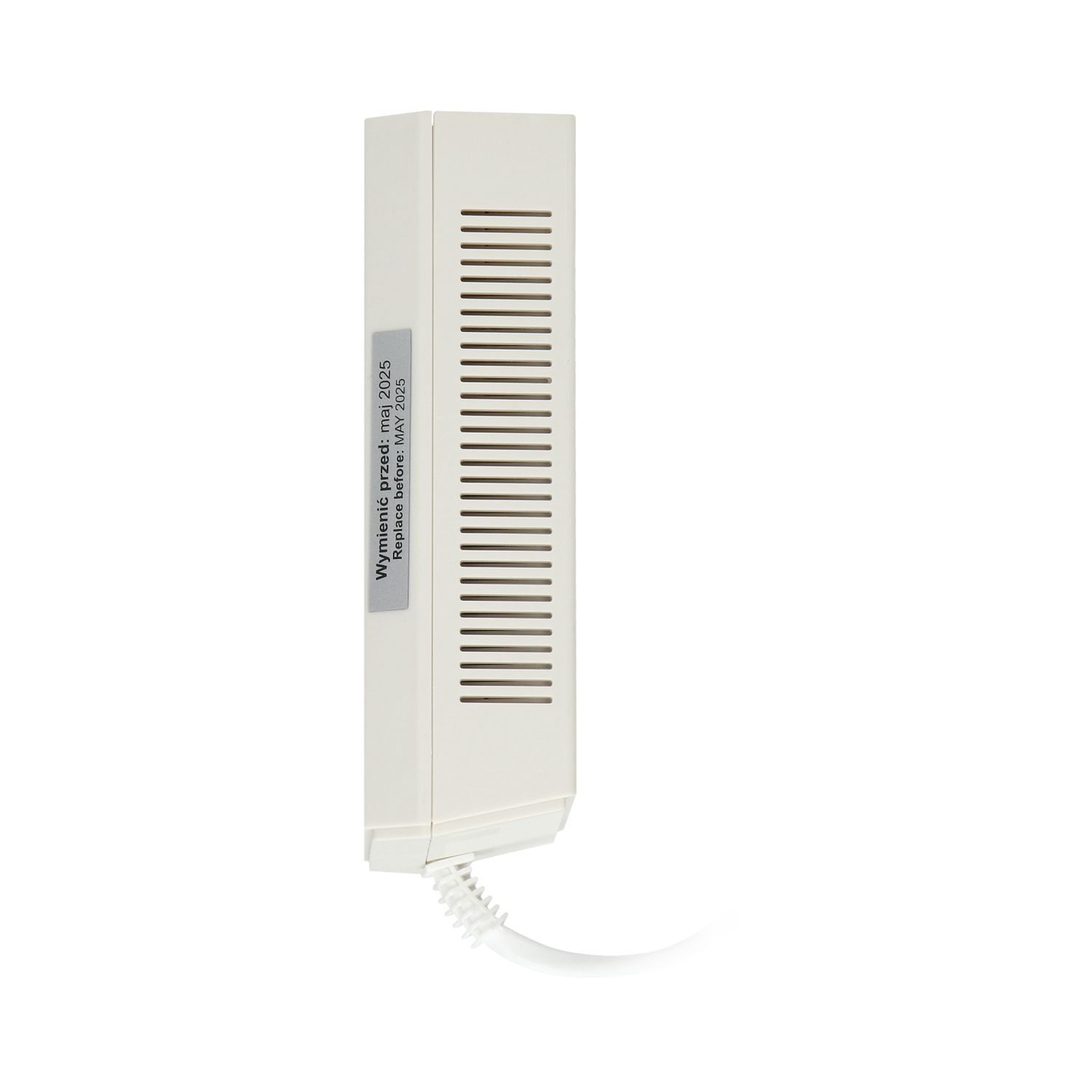

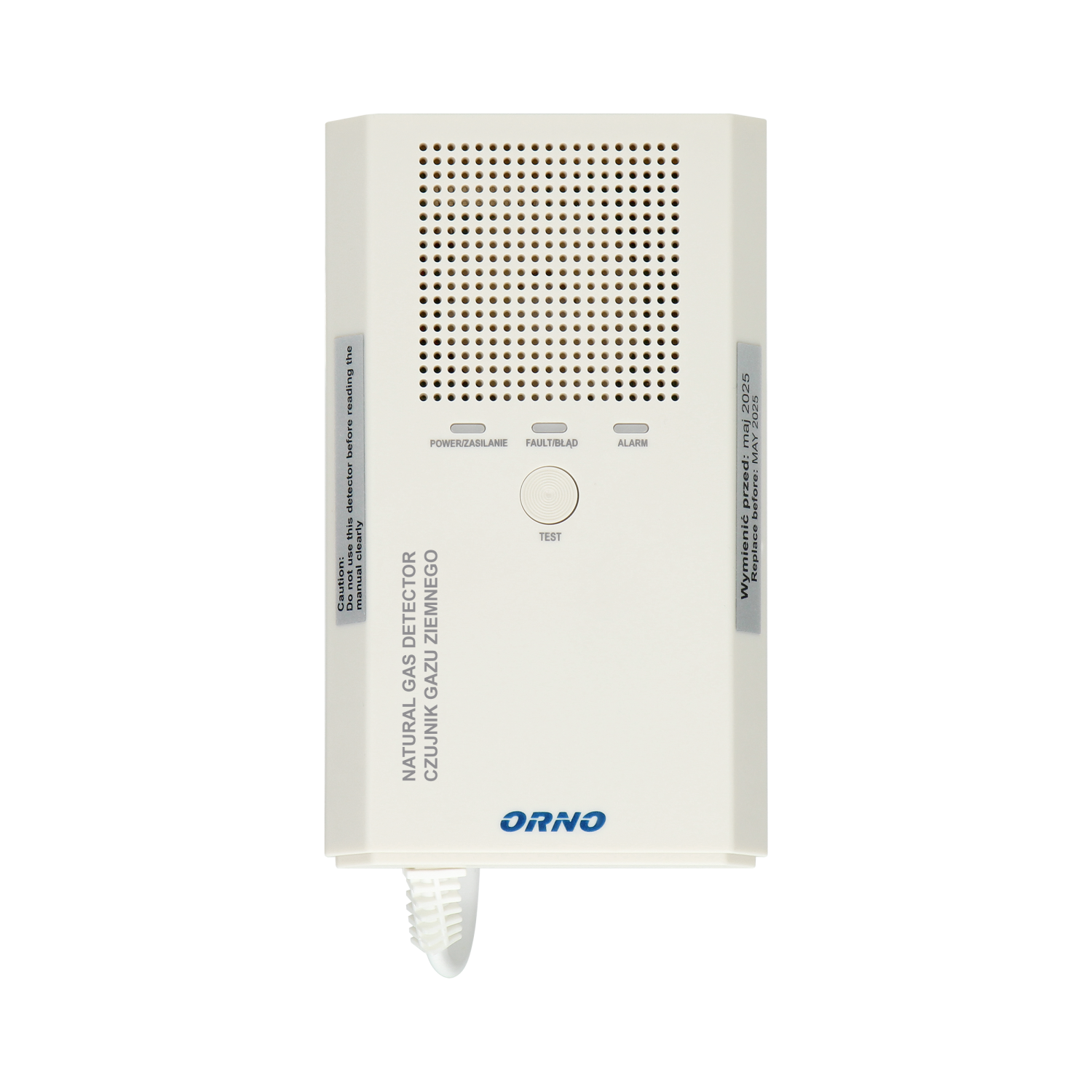

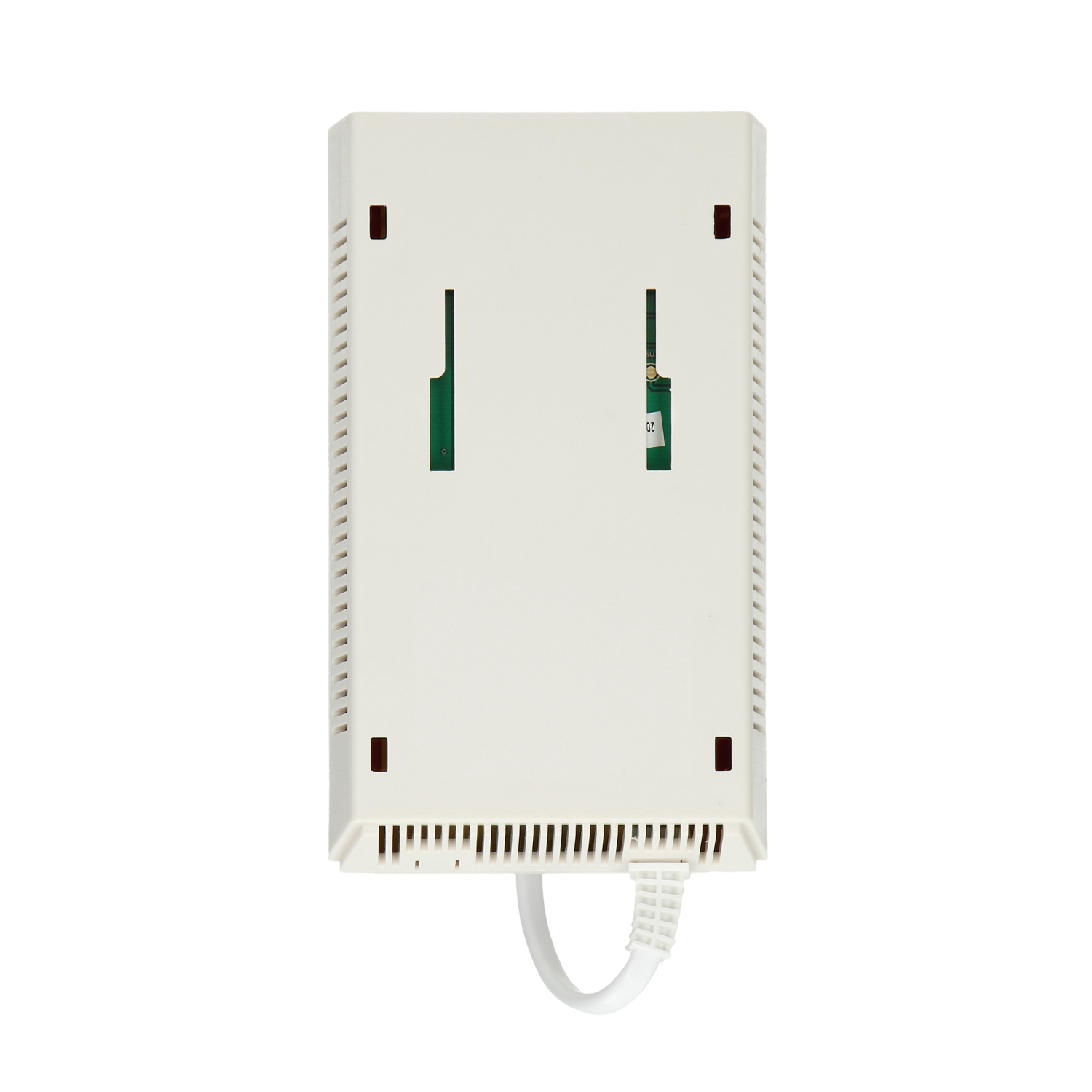

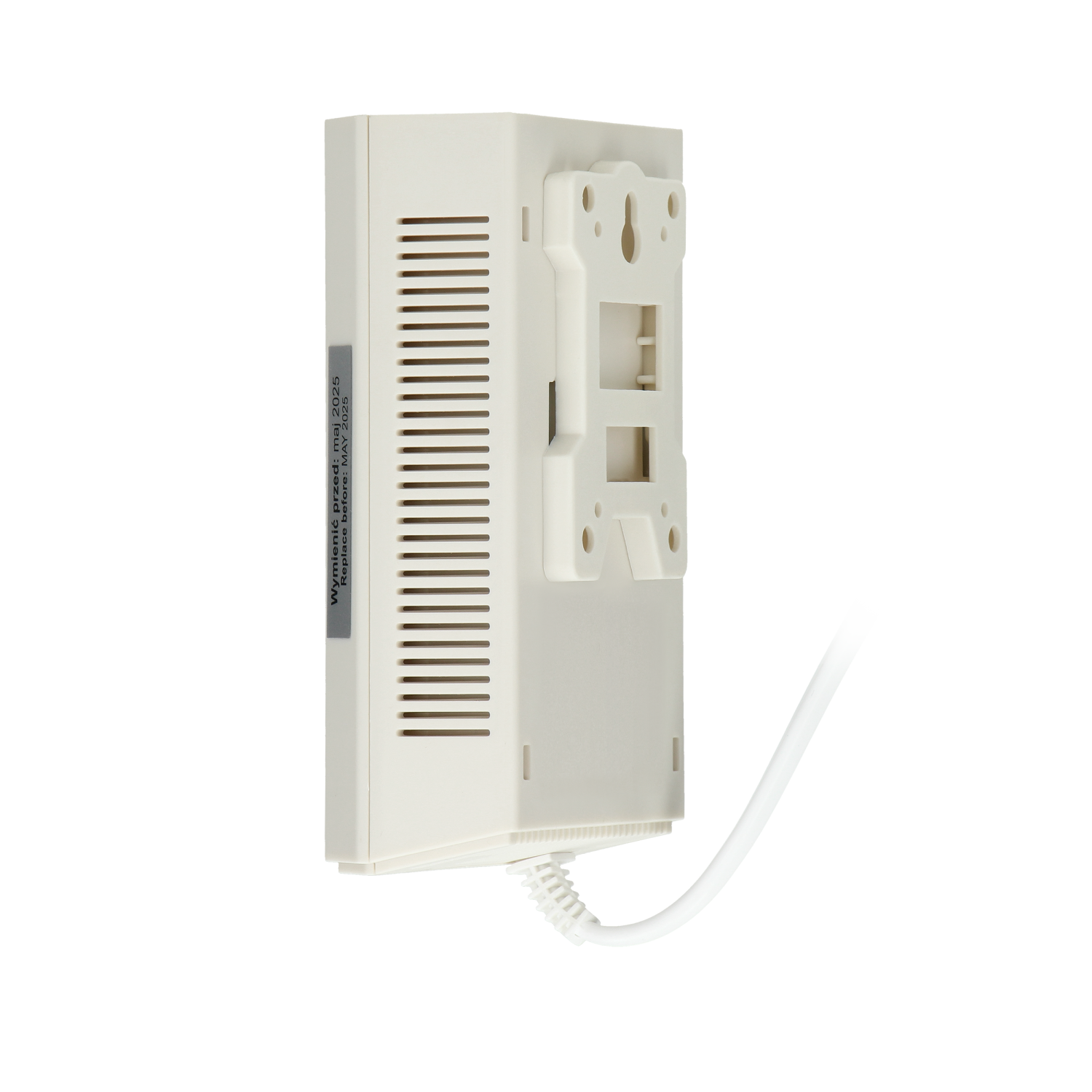

OR-DC-632 sensor is a modern natural gas detector for indoor use. It is used for continuous monitoring of the presence and detection of natural gas escaping from the leaks. The device uses a high-quality electrochemical sensor that allows to achieve a high rate of detection. After detecting a gas leak, reaching the set alarm threshold, the detector will emit an acoustic and light signal. Installation approx. 30 cm from the ceiling.
General information: | |
---|---|
Types of detected threats: | natural gas |
Nominal voltage: | 230V~, 50Hz |
Alarm volume (db): | 85 |
Test button: | Yes |
Hush button: | No |
Type of power supply: | directly to 230V |
Failure indication: | Yes |
End of life indication: | Yes |
Compliance with standards: | EN 50194-1:2009 |
Life time of the sensor: | 5 years |
Dimensions - width: | 102 mm |
Dimensions - height: | 170 mm |
Dimensions - depth: | 51 mm |
Type of sensor: | semiconductor |
