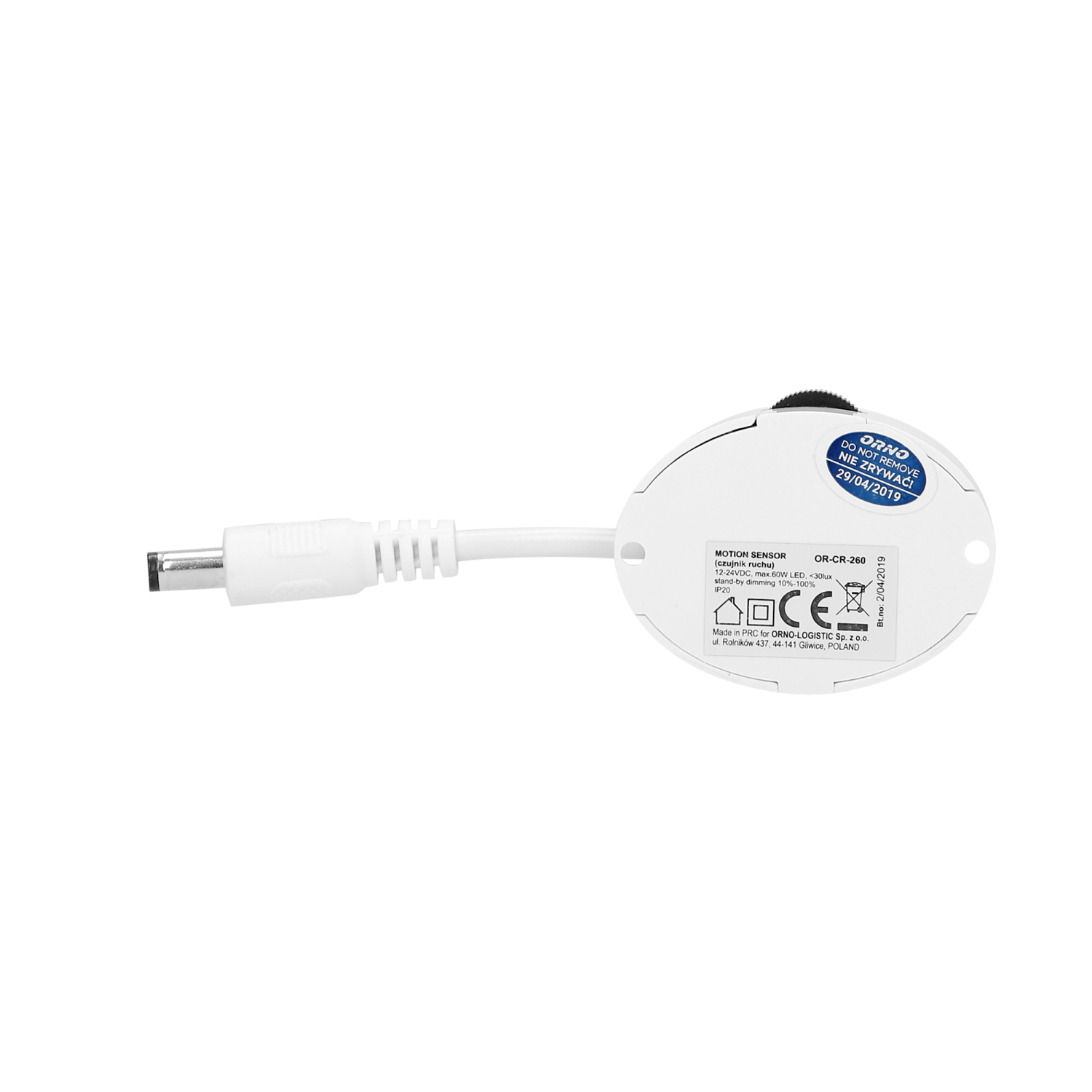

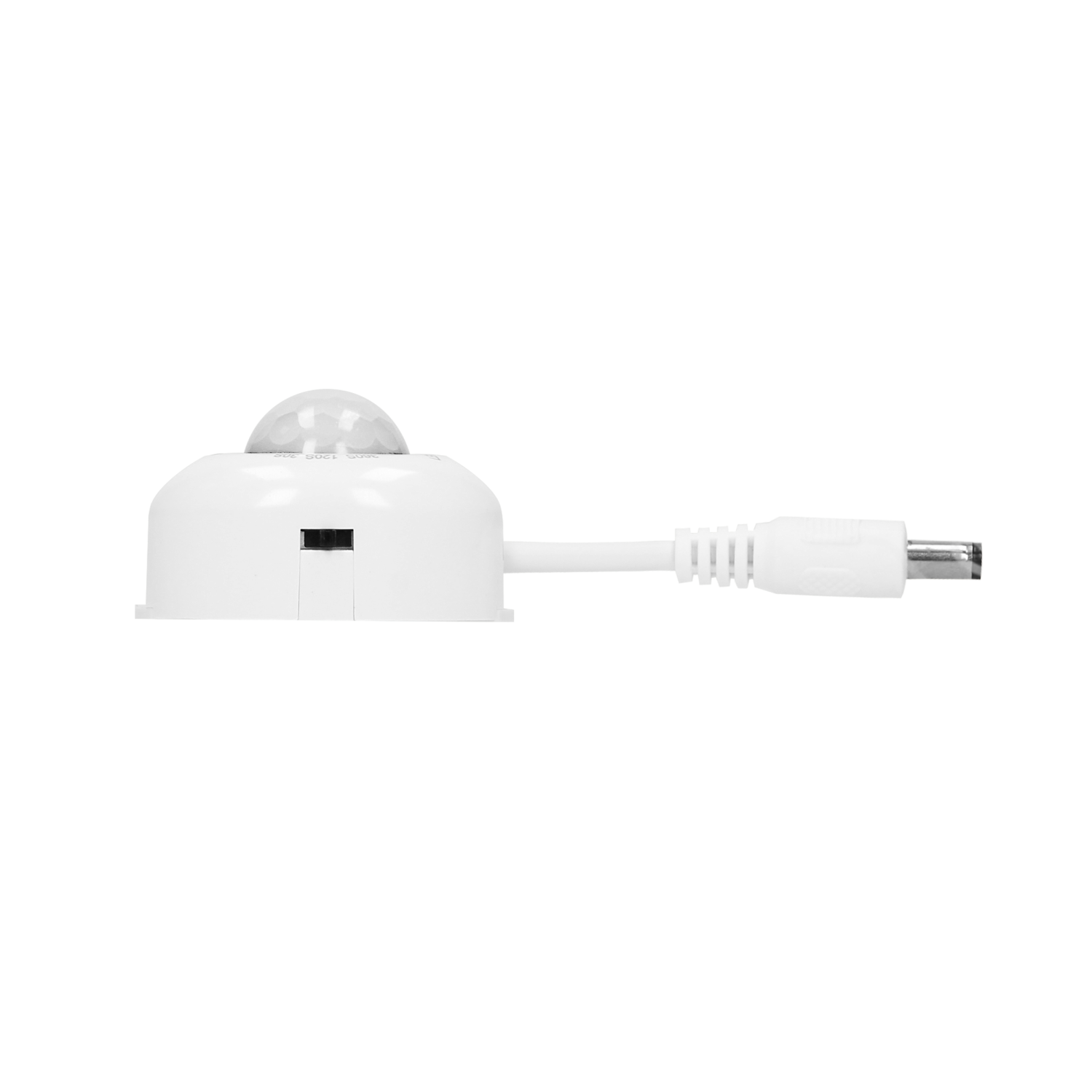

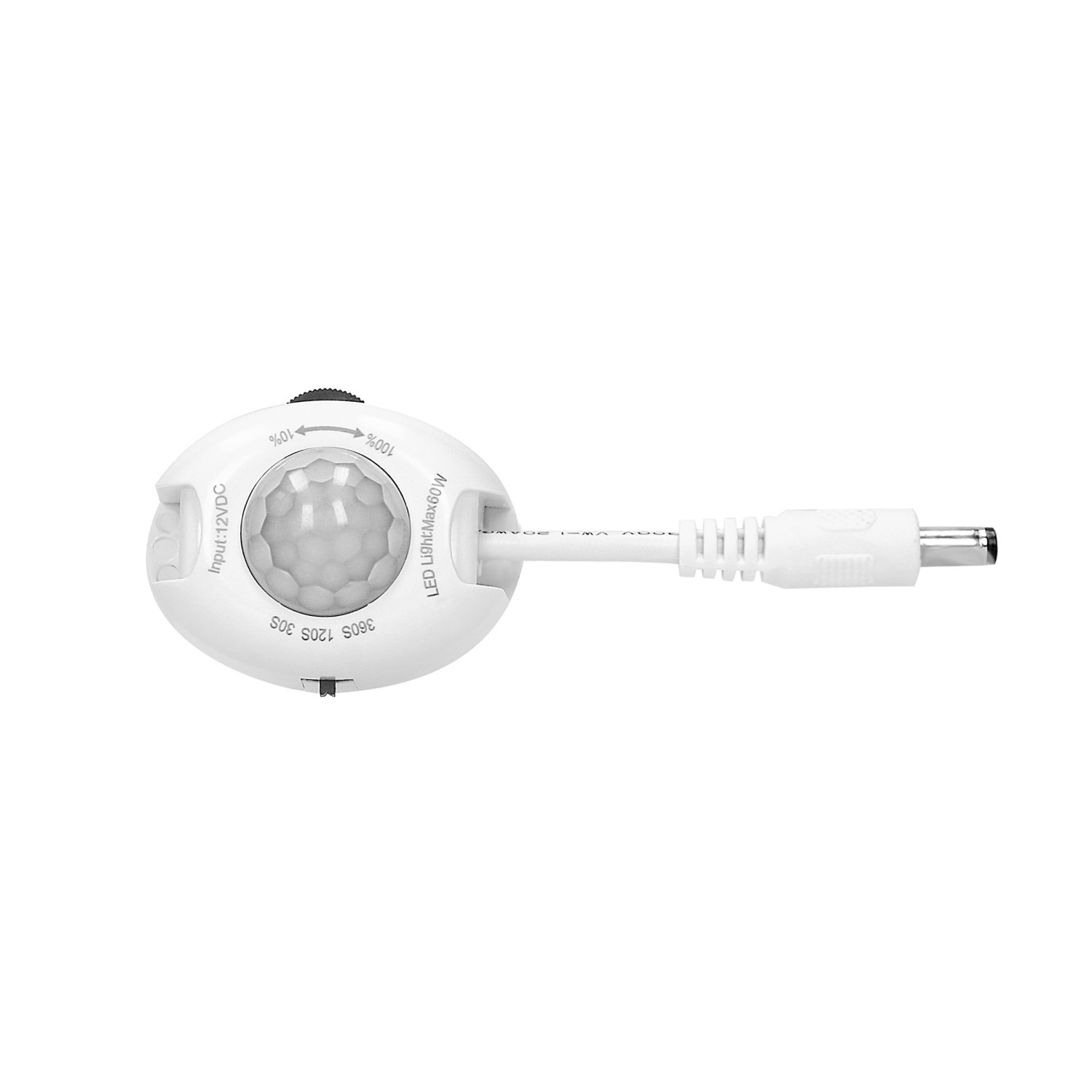

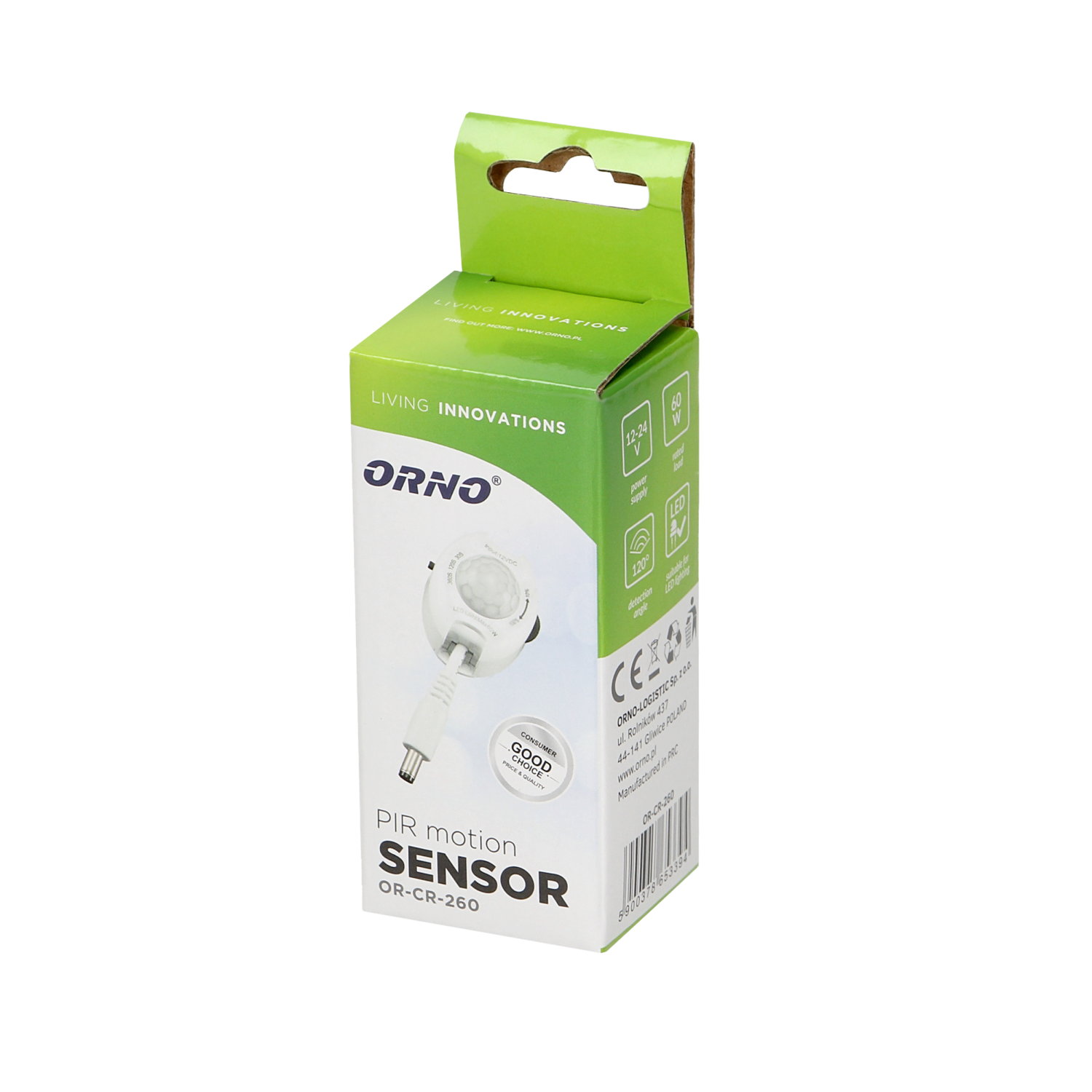

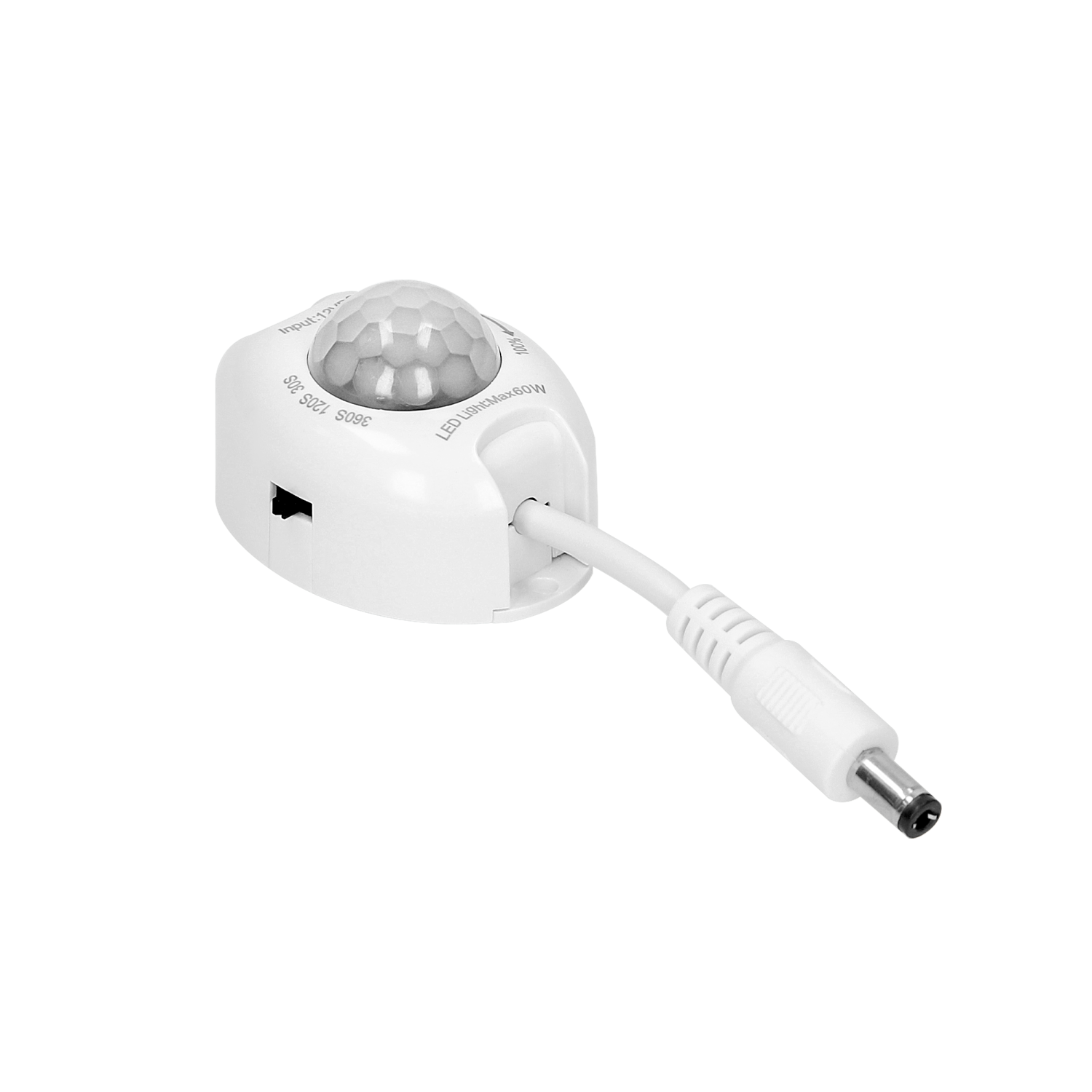

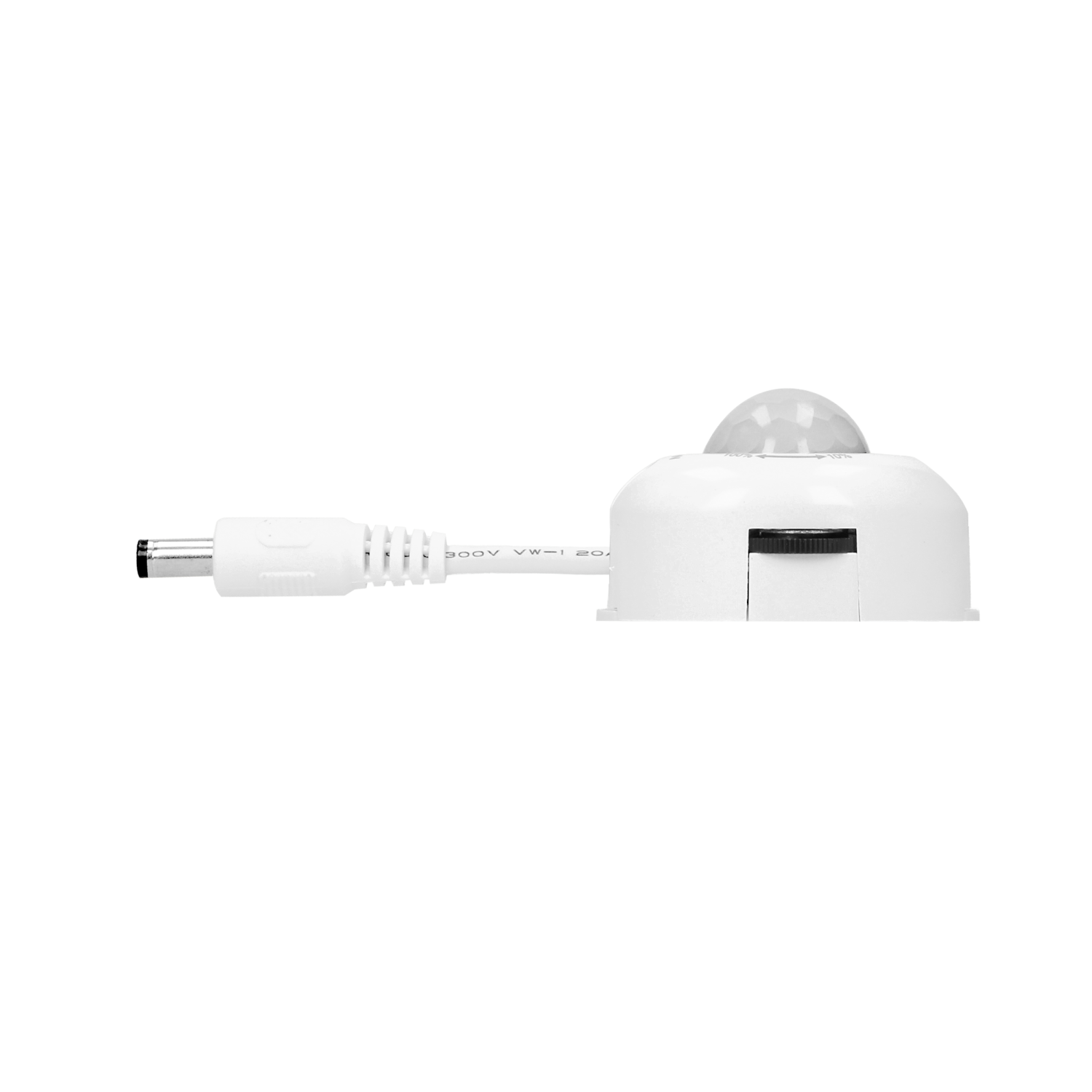

LED strip motion sensor, 120°
LED strip motion sensor, 120°
LED strip motion sensor, 120°
LED strip motion sensor, 120°
LED strip motion sensor, 120°
LED strip motion sensor, 120°
LED strip motion sensor, 120°
LED strip motion sensor, 120°
LED strip motion sensor, 120°
LED strip motion sensor, 120°
LED strip motion sensor, 120°
LED strip motion sensor, 120°

LED strip motion sensor, 120°

OR-CR-260

Description

The sensor is used for an automatic control of LED strips. The built-in twilight sensor causes the device to turn on when the light intensity is below 30 lux. Additionally, it has a dimming function up to 10% of its power at a selected time.

General information:
Max. load: 60W LED
Max. load of the LED light source: 60 W
Degree of protection (IP): 20
Nominal voltage: 12-24V
Presence detector: No
Colour: white
Installation: surface mounting
Dimensions of the sensor - width (mm): 50 mm
Dimensions of the sensor - height (mm): 37 mm
Dimensions of the sensor - depth (mm): 31 mm
Working temperature: -20℃~+40℃
Other features: regulation of dimming in the range of 10% - 100%
Detection angle: 120°
Type of sensor: PIR
Detection range: 10 m
Adjustable daylight sensor (LUX): No
Adjustable time setting (TIME): Yes
Lighting time adjustment range (TIME): 30 sek./120 sek./360 sek.
Adjustment of motion detection range (SENS): No
