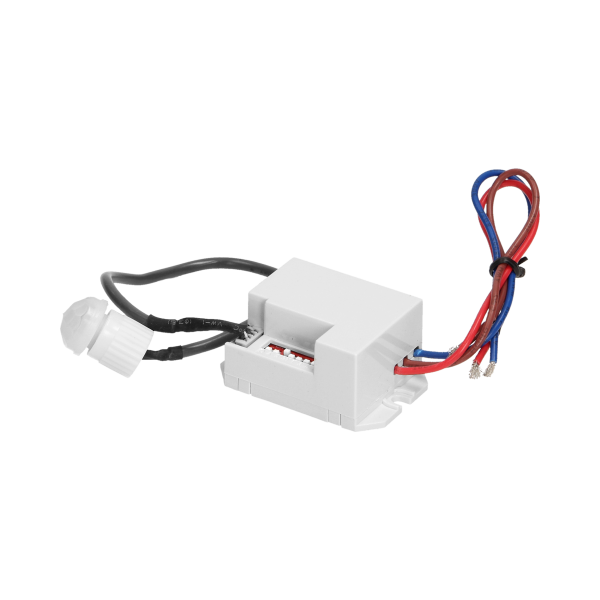

PIR motion sensor 360° with external probe
PIR motion sensor 360° with external probe
PIR motion sensor 360° with external probe
PIR motion sensor 360° with external probe
PIR motion sensor 360° with external probe
PIR motion sensor 360° with external probe
PIR motion sensor 360° with external probe
PIR motion sensor 360° with external probe
PIR motion sensor 360° with external probe
PIR motion sensor 360° with external probe

PIR motion sensor 360° with external probe

OR-CR-211

Description

Passive infrared sensor with external probe For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX).

General information:
Max. load: 800
Max. load of the LED light source: 200 W
Degree of protection (IP): 20
Relay output: Yes
Nominal voltage: 230V~, 50Hz
Presence detector: No
Colour: white
Installation: surface mounting
Dimensions of the sensor - width (mm): 26 mm
Dimensions of the sensor - height (mm): 37 mm
Dimensions of the sensor - depth (mm): 56 mm
Working temperature: -20℃~+40℃
Detection angle: 360°
Dimensions of the mounting hole: Ø12 mm
Type of sensor: Infrared
Detection range: Ø3 or Ø6 m
Adjustable daylight sensor (LUX): Yes
Daylight sensor adjustment range (LUX): 10lux or 2000lux
Adjustable time setting (TIME): Yes
Lighting time adjustment range (TIME): 5 sek., 30 sek., 1 min., 3 min., 5 min., 8 min.
Adjustment of motion detection range (SENS): Yes

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:12:22Download
Product data sheetENpdf2024-07-17 10:20:28Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
