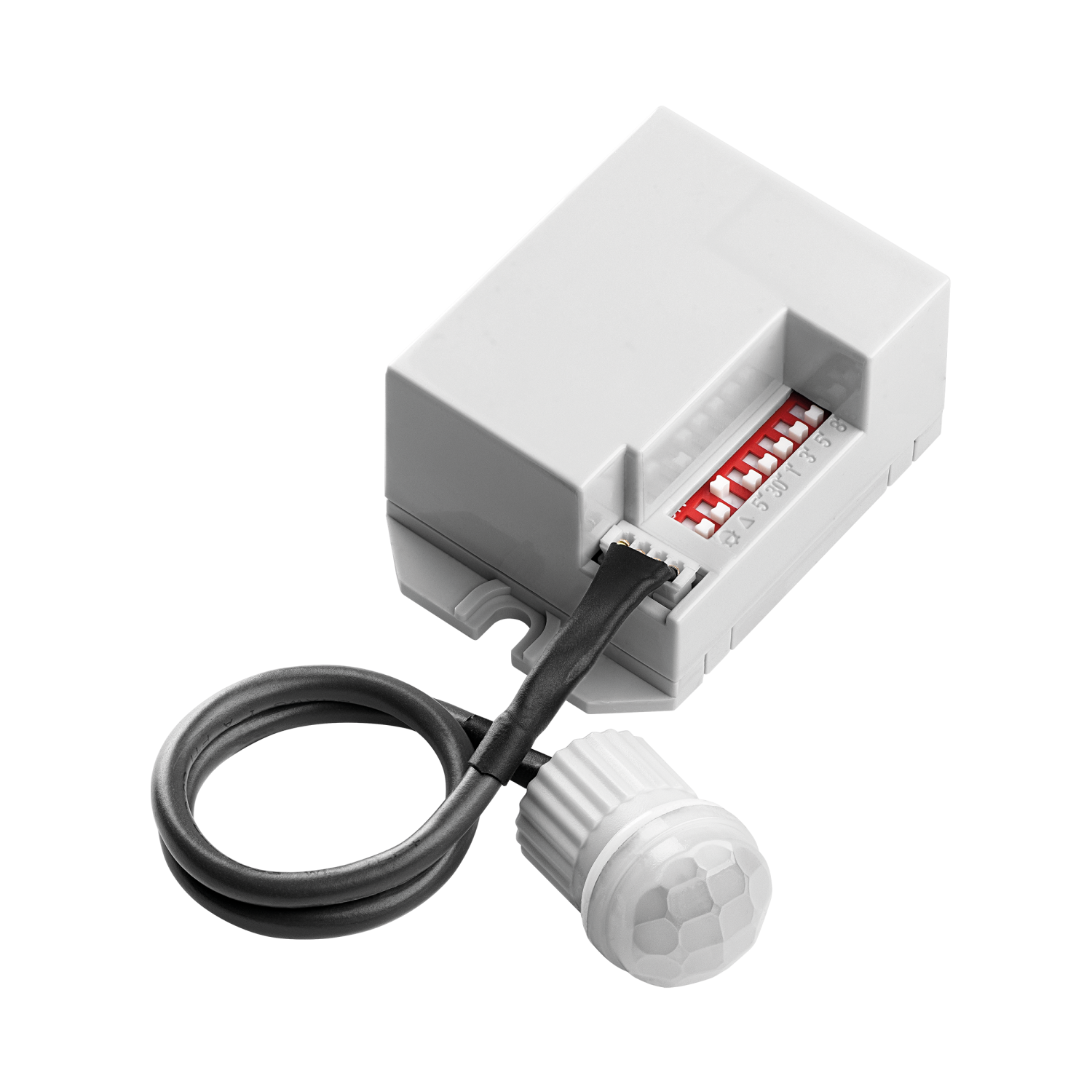

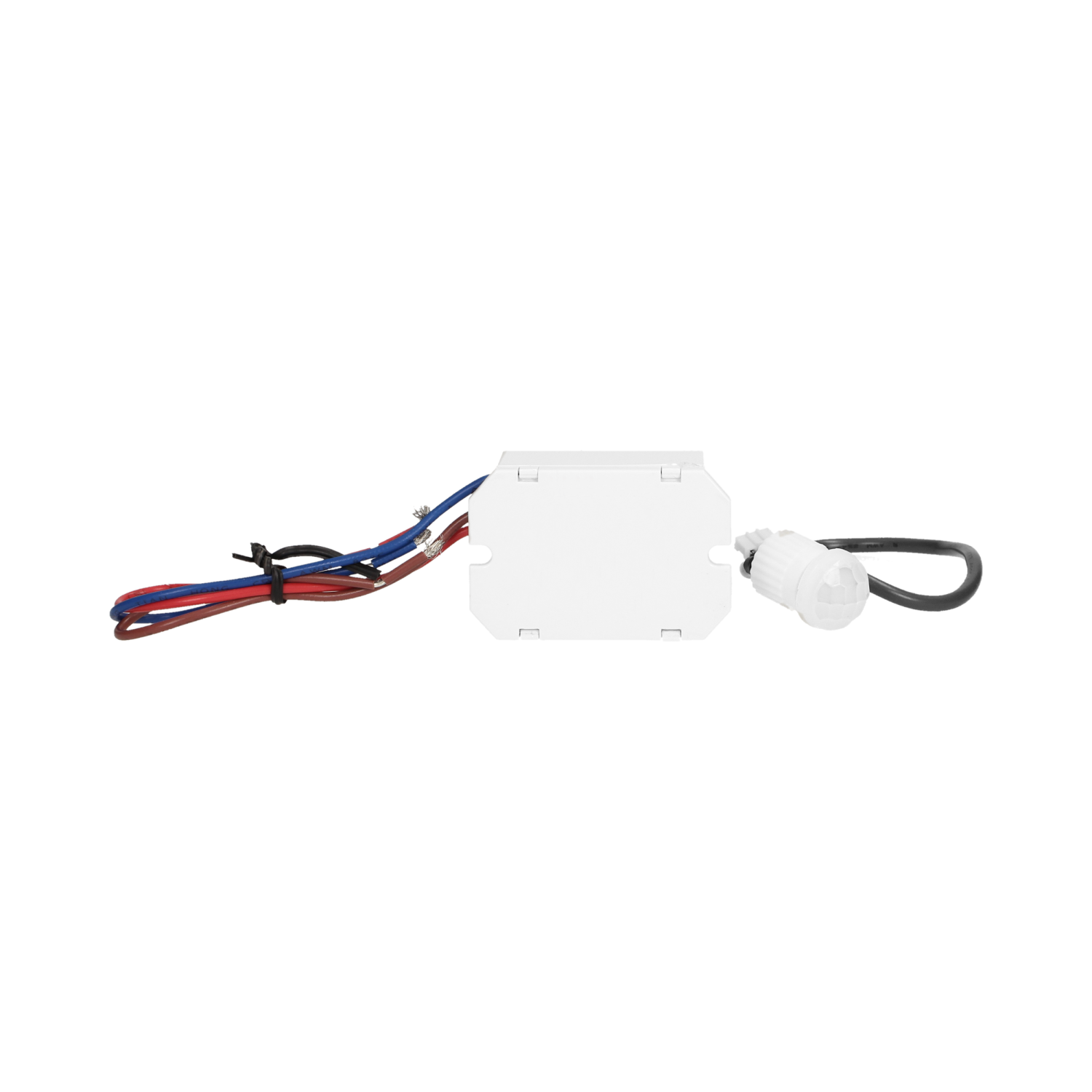

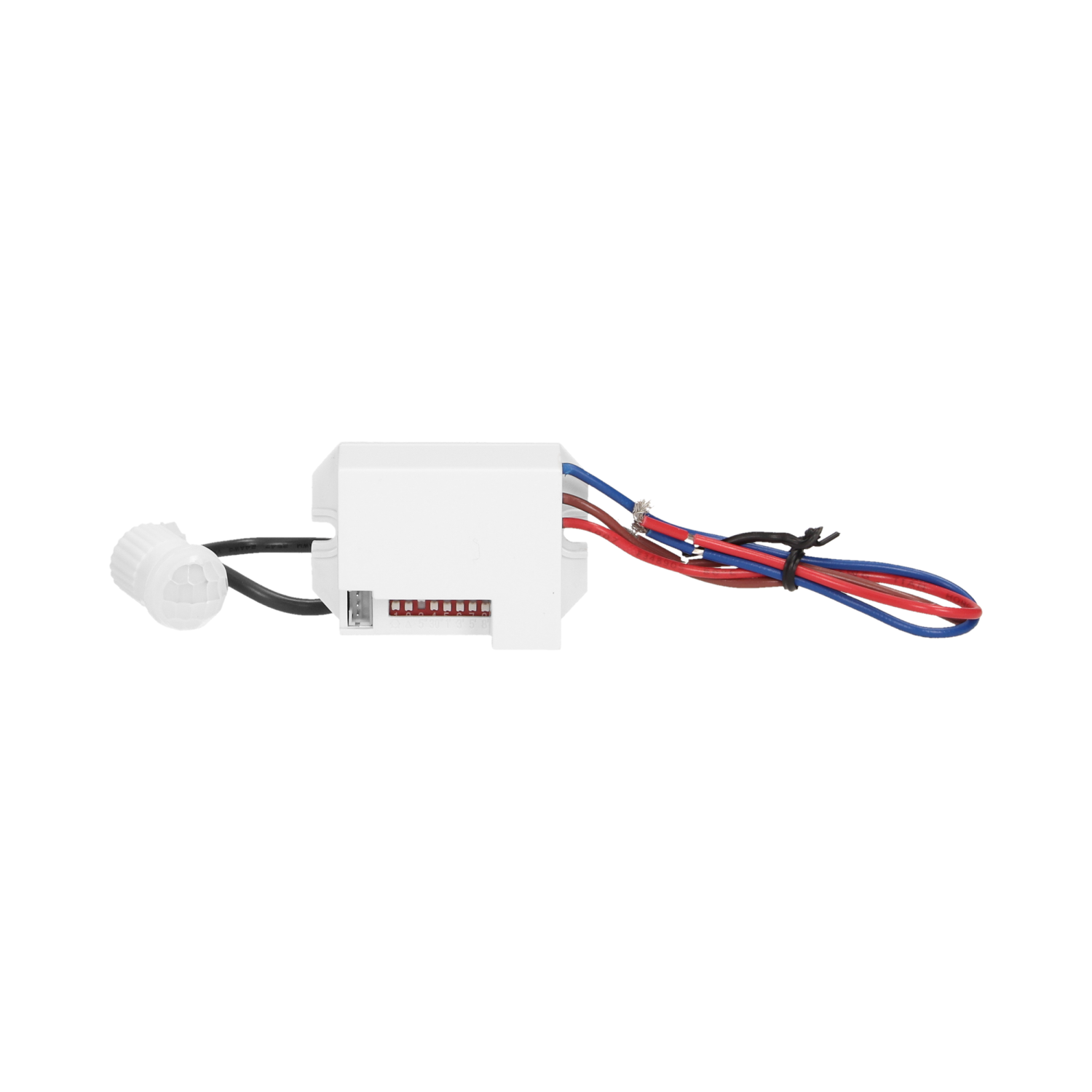

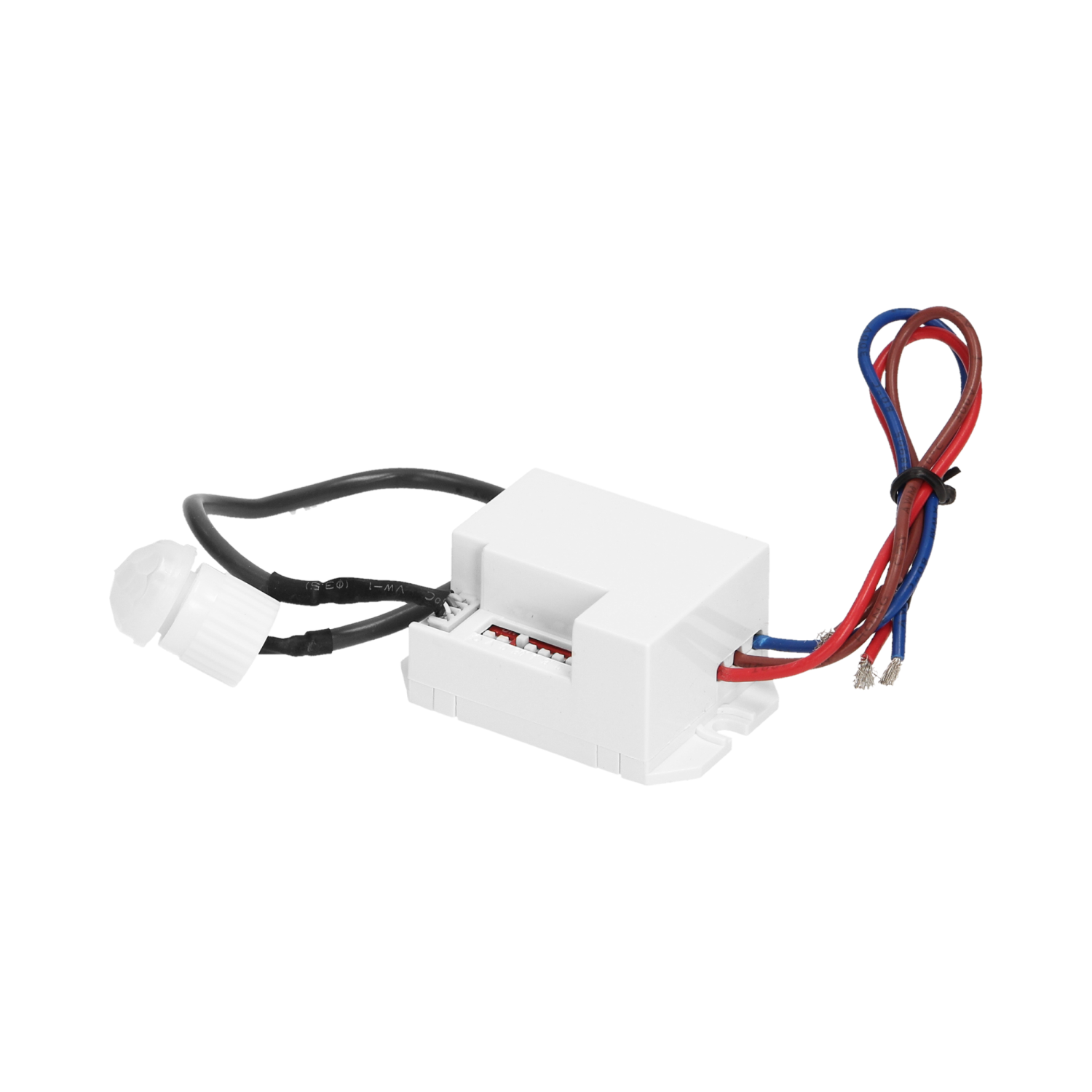

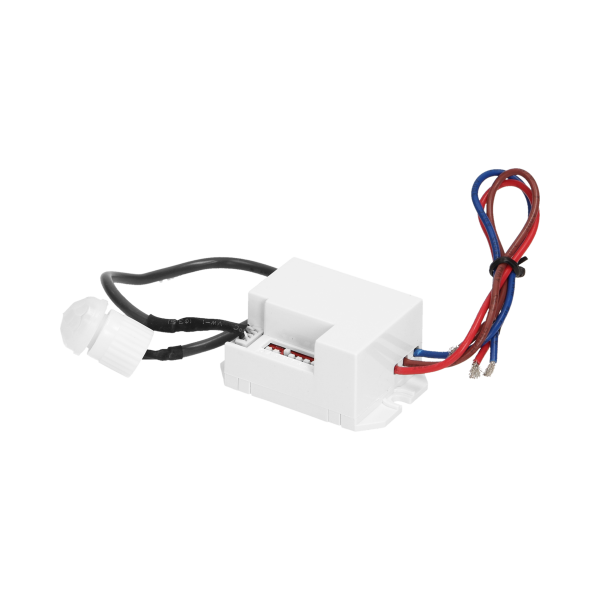

Passive infrared sensor with external probe For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX).
| General information: | |
|---|---|
| Max. load: | 60-120 |
| Max. load of the LED light source: | 60-120 W |
| Degree of protection (IP): | 20 |
| Relay output: | No |
| Nominal voltage: | 12-24V |
| Presence detector: | No |
| Colour: | white |
| Installation: | surface mounting |
| Dimensions of the sensor - width (mm): | 26 mm |
| Dimensions of the sensor - height (mm): | 37 mm |
| Dimensions of the sensor - depth (mm): | 56 mm |
| Working temperature: | -20℃~+40℃ |
| Detection angle: | 360° |
| Dimensions of the mounting hole: | Ø12 mm |
| Type of sensor: | Infrared |
| Detection range: | Ø3m lub Ø6m m |
| Adjustable daylight sensor (LUX): | Yes |
| Daylight sensor adjustment range (LUX): | 10lux or 2000lux |
| Adjustable time setting (TIME): | Yes |
| Lighting time adjustment range (TIME): | 5 sek., 30 sek., 1 min., 3 min., 5 min., 8 min. |
| Adjustment of motion detection range (SENS): | No |
