OR-CR-213

Description

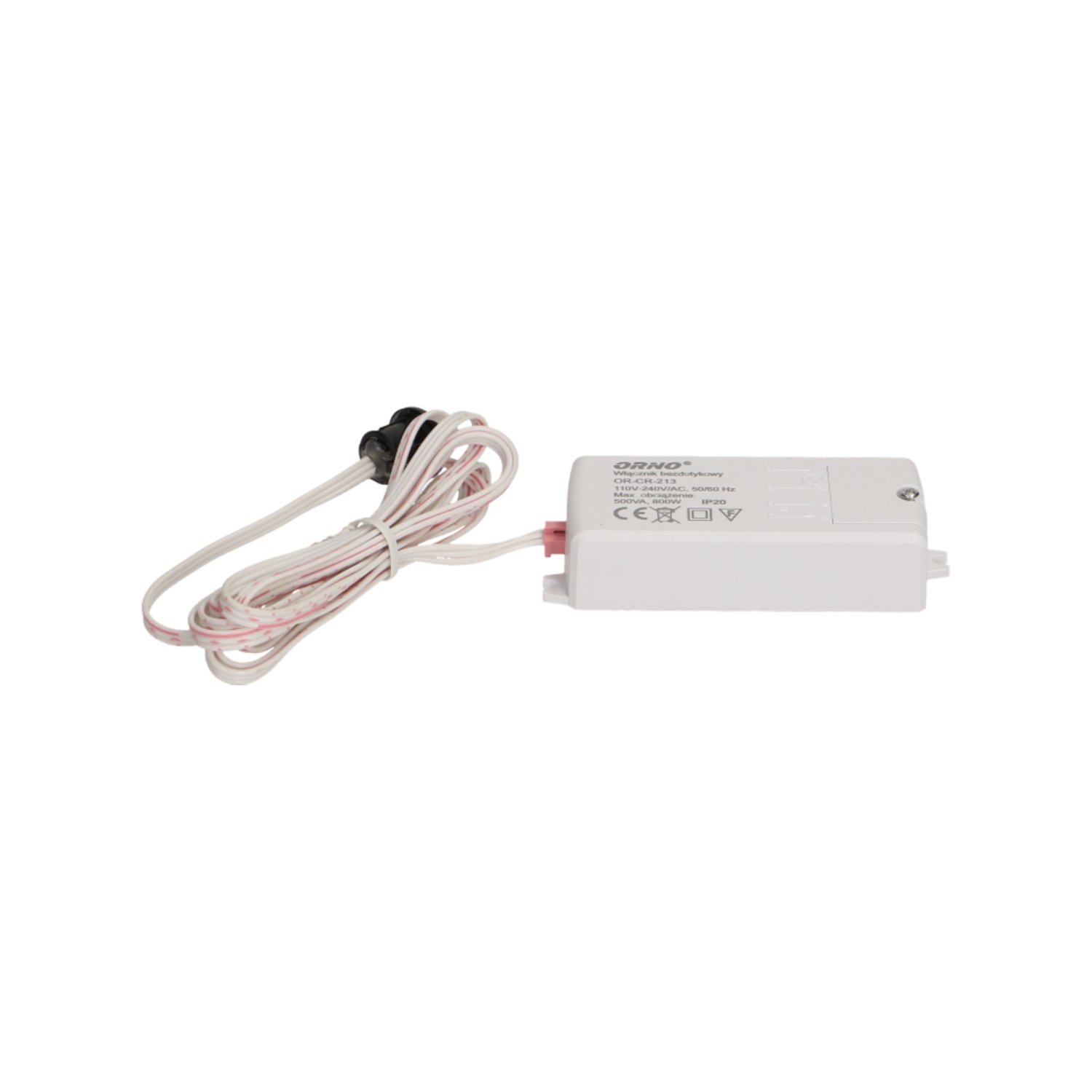

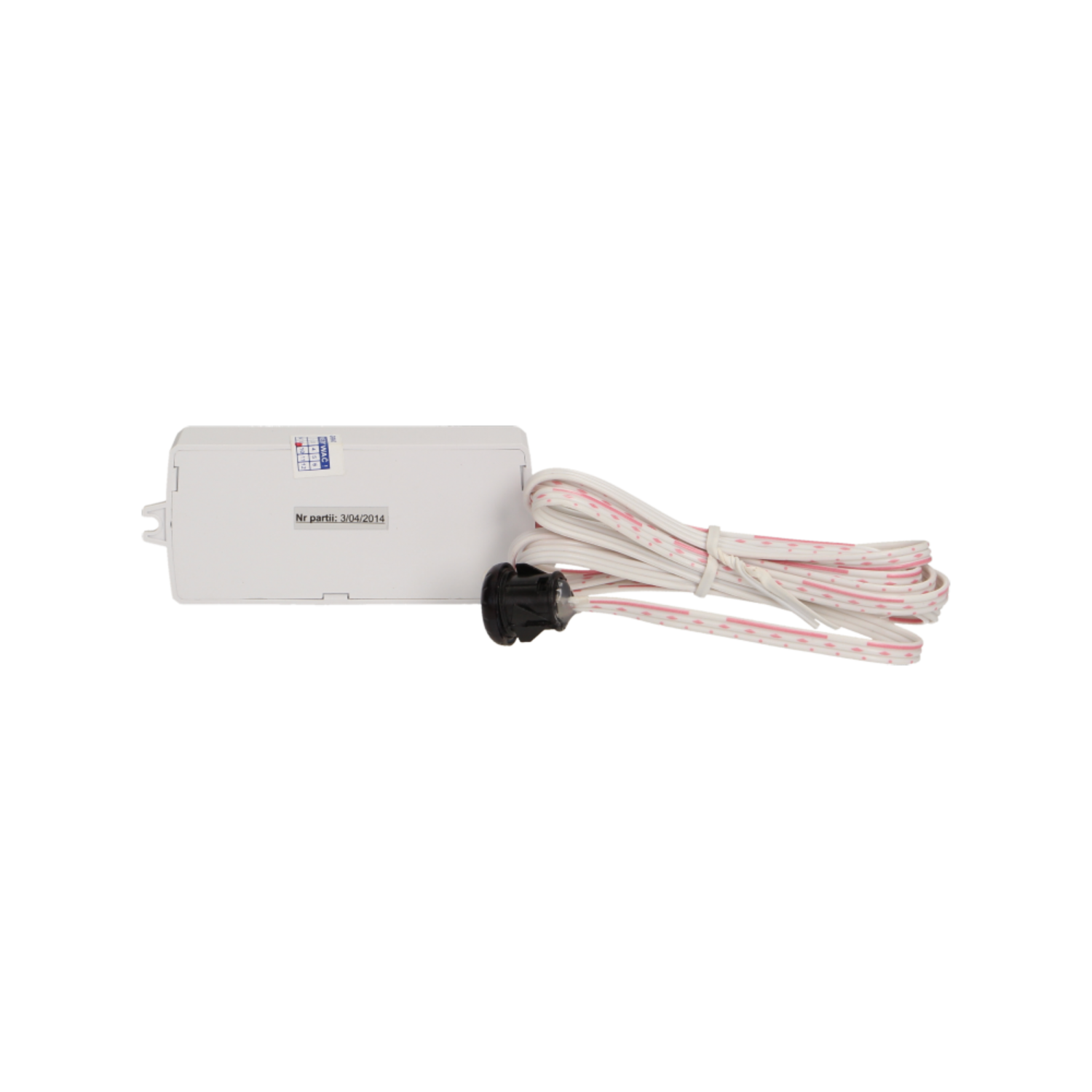

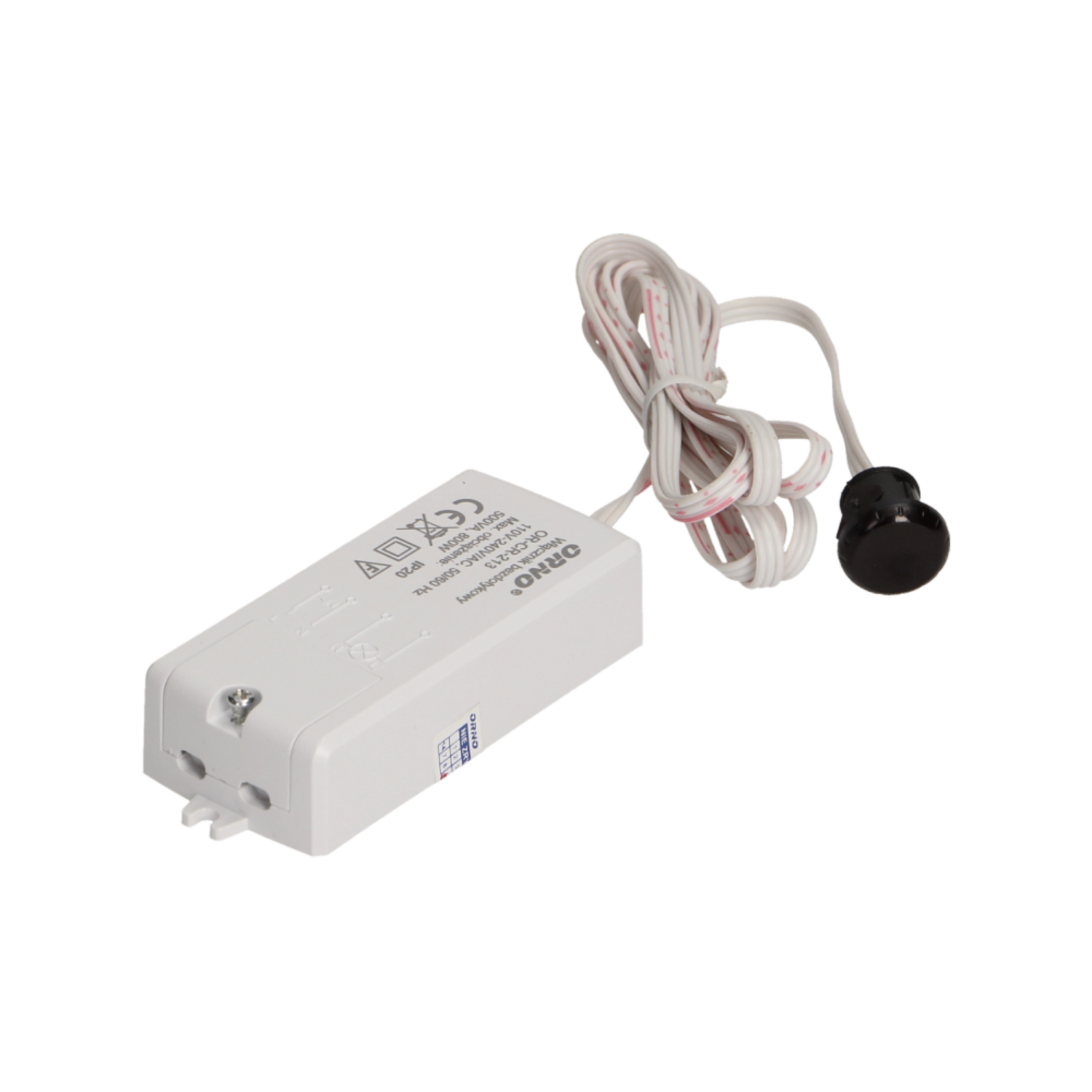

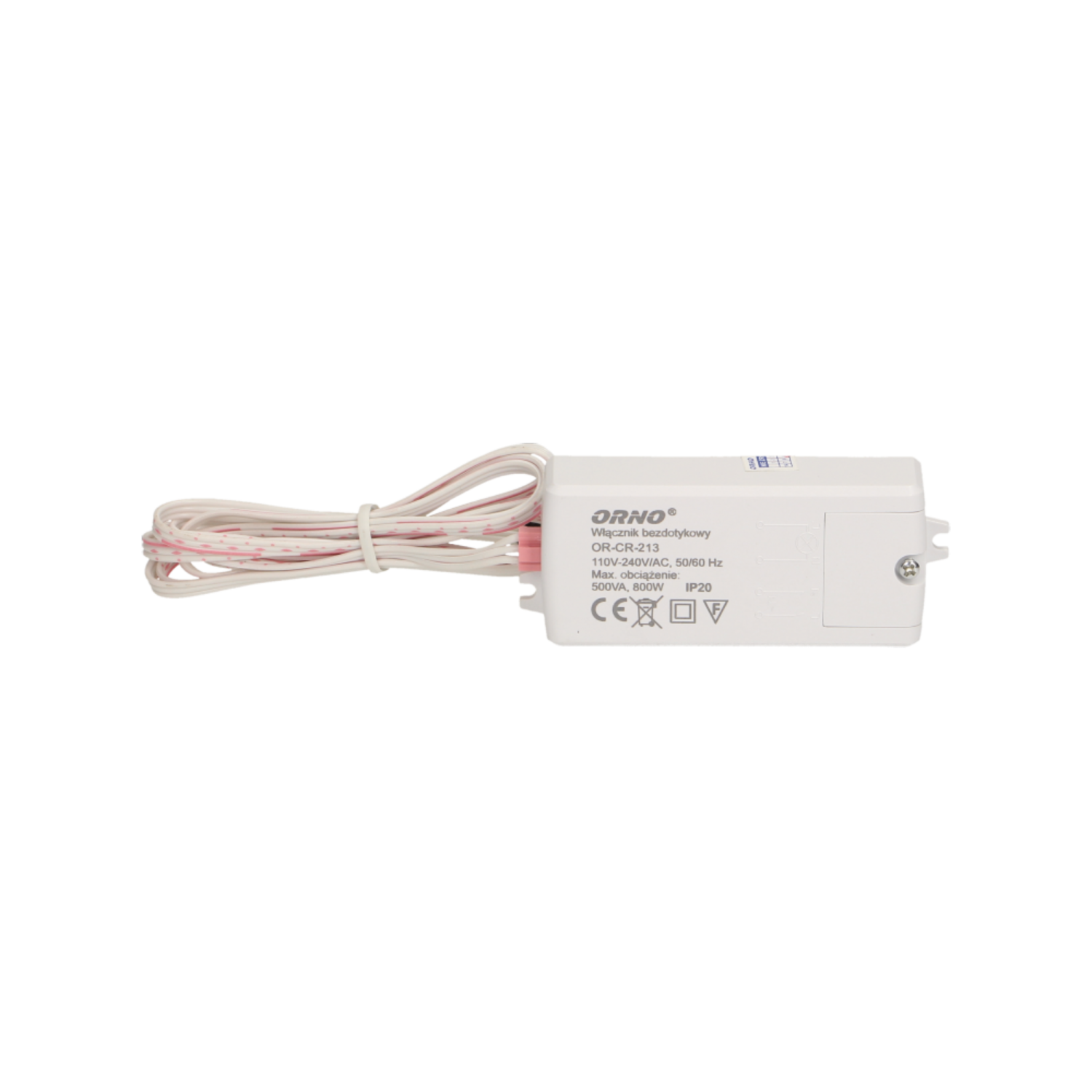

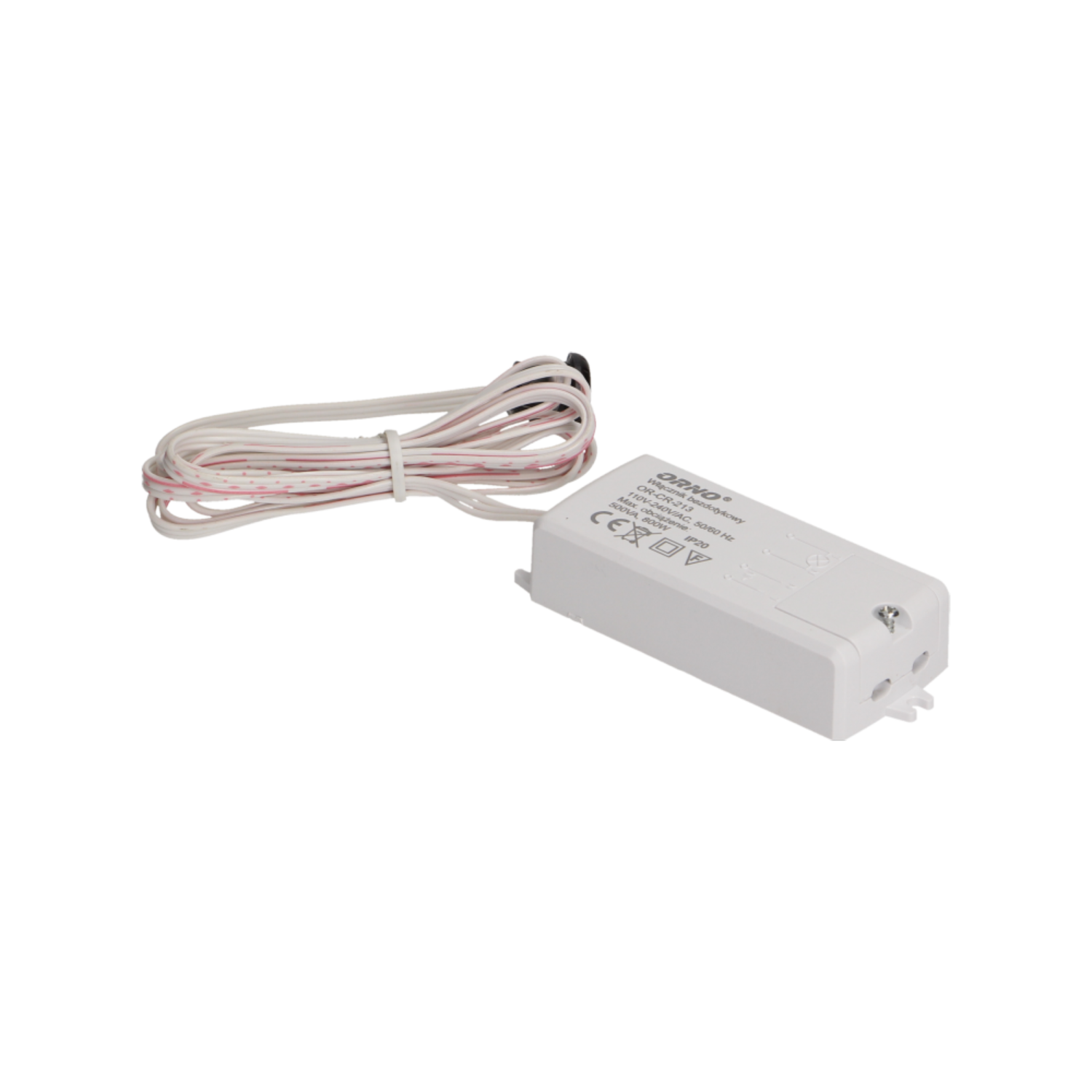

Passive infrared sensor Two-way, touchless switch For indoor usage Collaborates with LED lighting For use in lighting mirrors, cabinets etc.

General information:
Max. load: 800
Max. load of the LED light source: 200 W
Degree of protection (IP): 20
Relay output: Yes
Nominal voltage: 230V~, 50Hz
Presence detector: No
Colour: white
Installation: surface mounting
Dimensions of the sensor - width (mm): 78 mm
Dimensions of the sensor - height (mm): 35 mm
Dimensions of the sensor - depth (mm): 19 mm
Detection angle: not applicable
Dimensions of the mounting hole: Ø13 mm
Type of sensor: proximity
Adjustable daylight sensor (LUX): No
Adjustable time setting (TIME): No
Adjustment of motion detection range (SENS): No

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:12:23Download
Product data sheetENpdf2024-07-17 10:20:28Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
User manualPTpdf2024-03-14 10:39:51Download
User manualHRpdf2024-03-14 10:39:51Download
