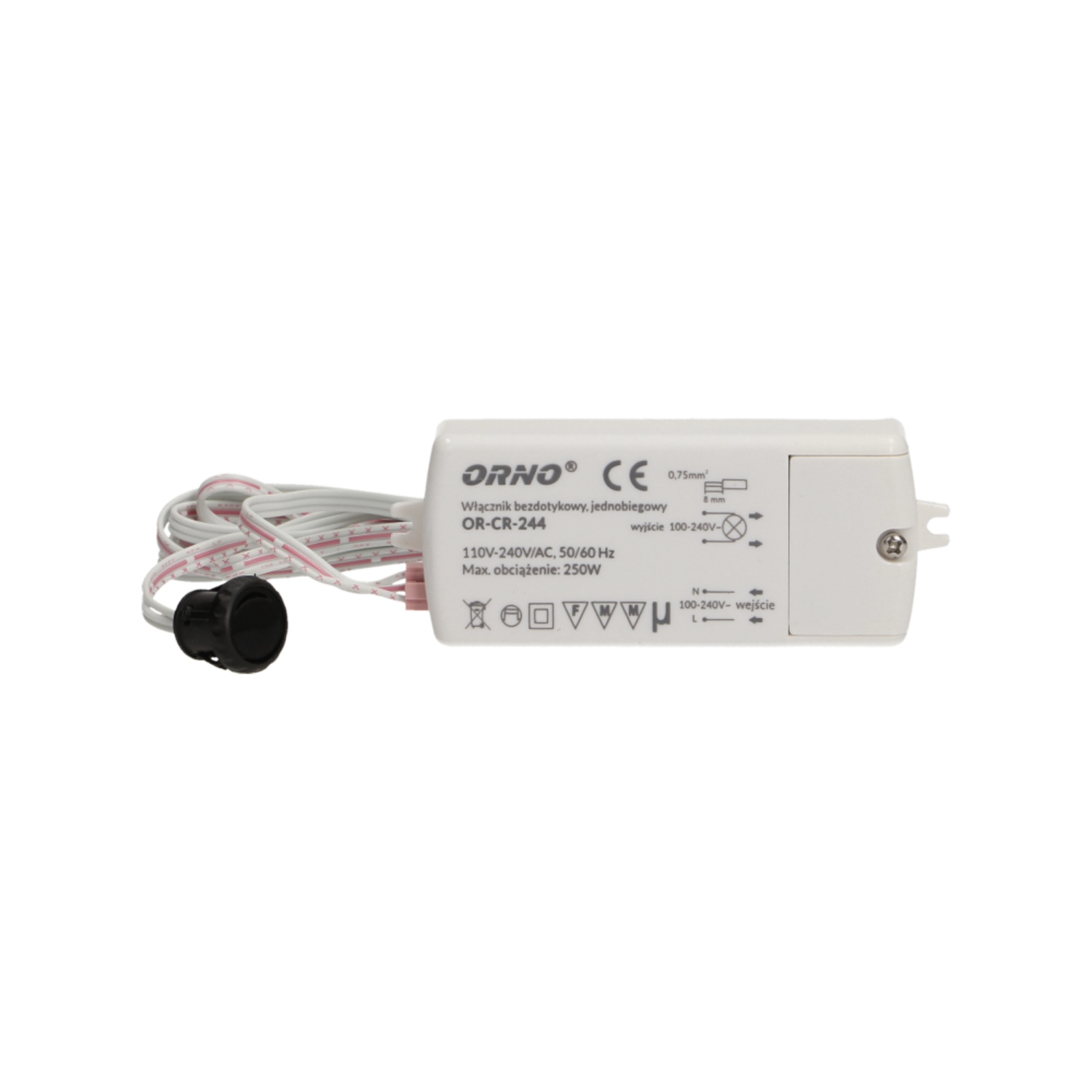

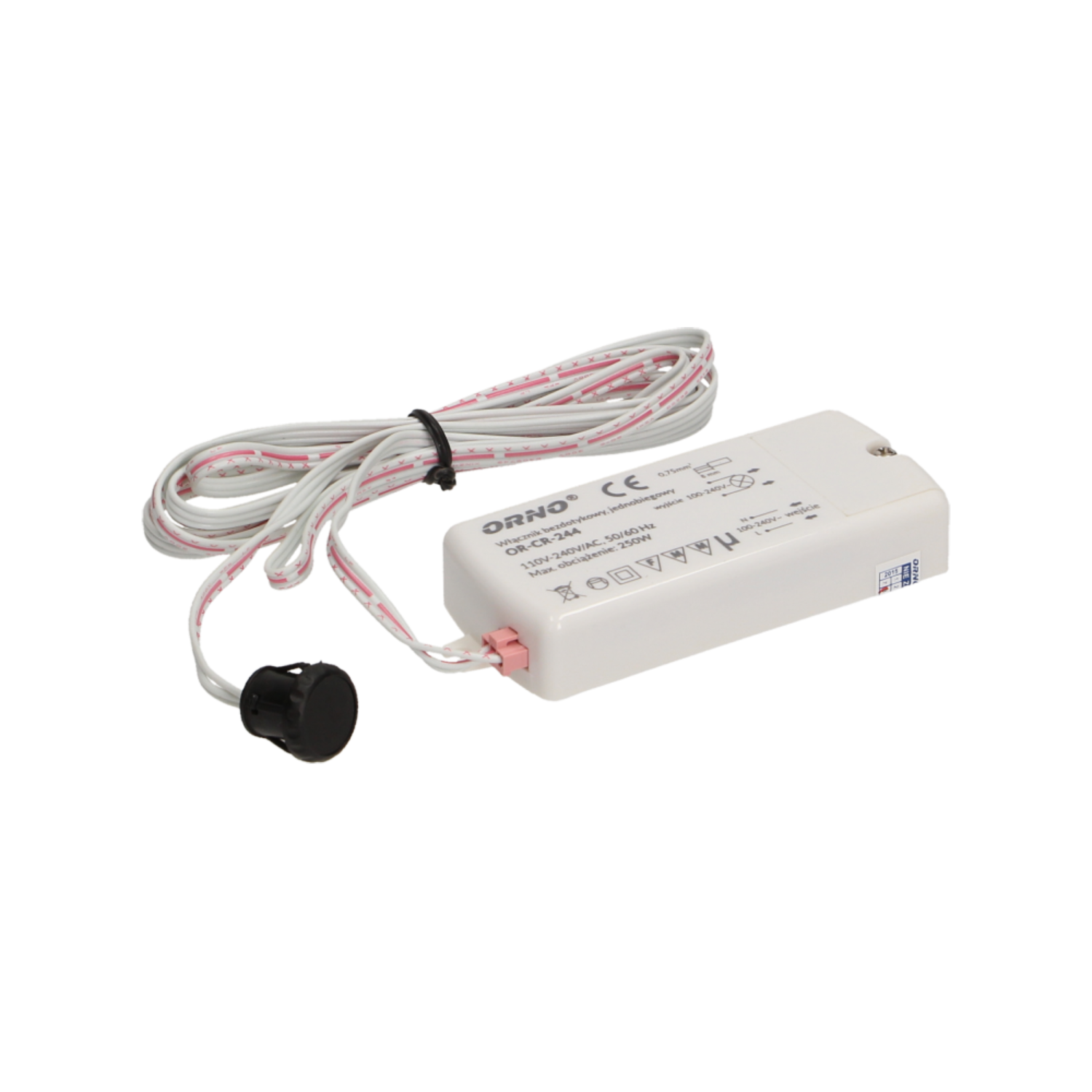

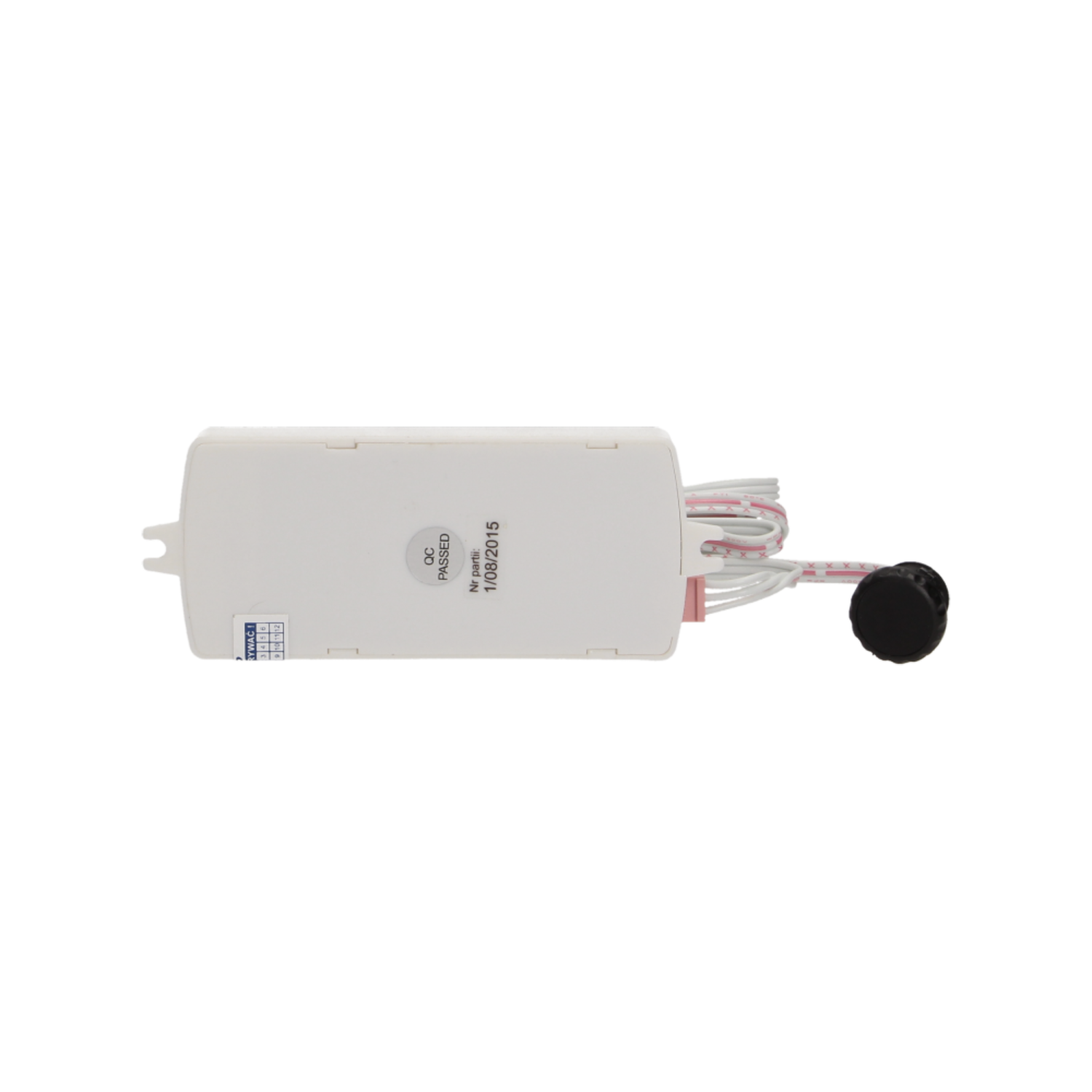

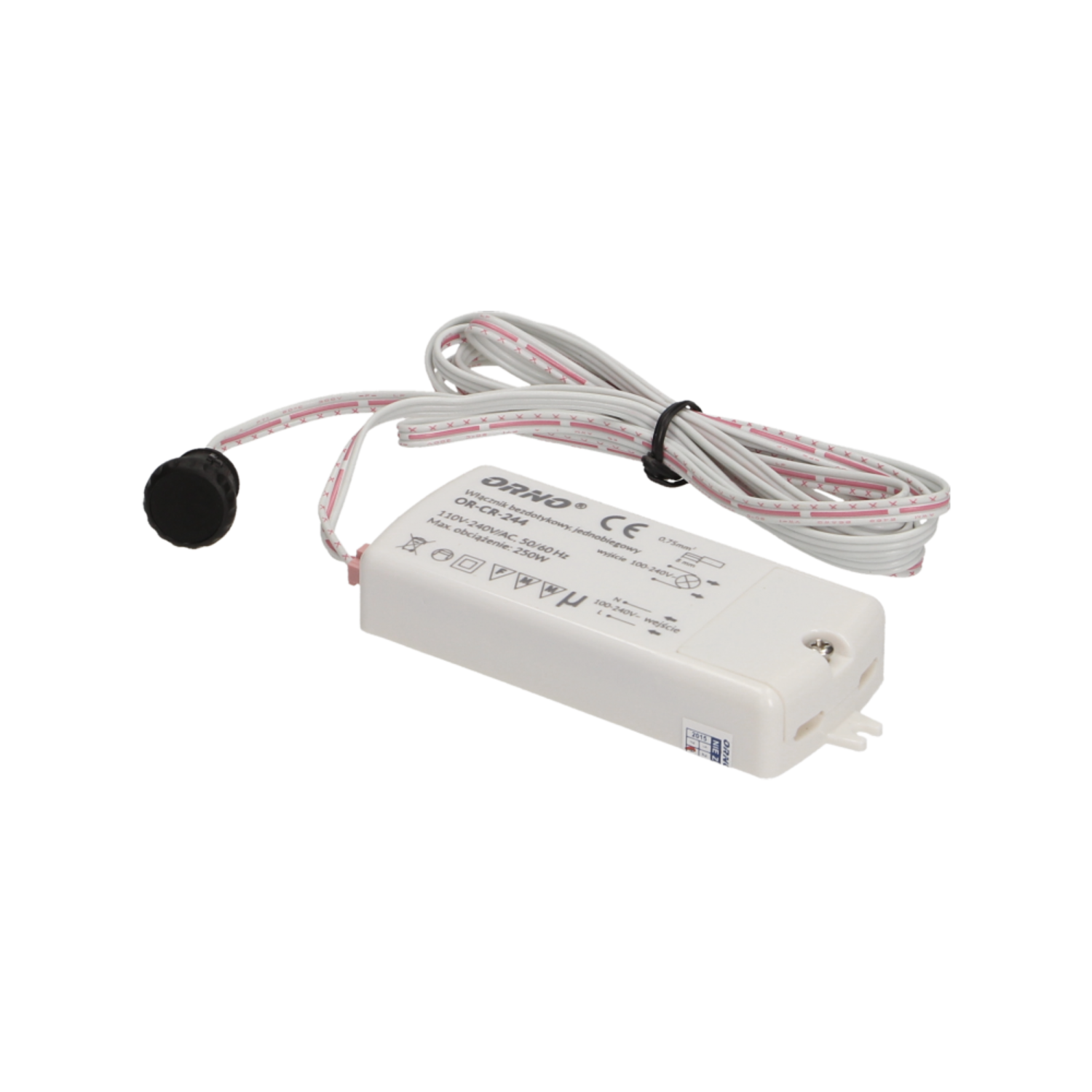

OR-CR-244

Description

Passive infrared sensor One-way, touchless switch For indoor usage Collaborates with LED lighting Can be used in cabinet furniture, sliding wardrobes, dressing rooms etc.

General information:
Max. load: 250
Max. load of the LED light source: 200 W
Degree of protection (IP): 20
Relay output: Yes
Nominal voltage: 230V~, 50Hz
Presence detector: No
Colour: white
Installation: surface mounting
Dimensions of the sensor - width (mm): 90 mm
Dimensions of the sensor - height (mm): 40 mm
Dimensions of the sensor - depth (mm): 18 mm
Detection angle: not applicable
Dimensions of the mounting hole: Ø13 mm
Type of sensor: proximity
Detection range: 5cm m
Adjustable daylight sensor (LUX): No
Adjustable time setting (TIME): No
Adjustment of motion detection range (SENS): No

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:12:25Download
Product data sheetENpdf2024-07-17 10:20:30Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
User manualPTpdf2024-03-14 10:39:51Download
