OR-CR-216

Description

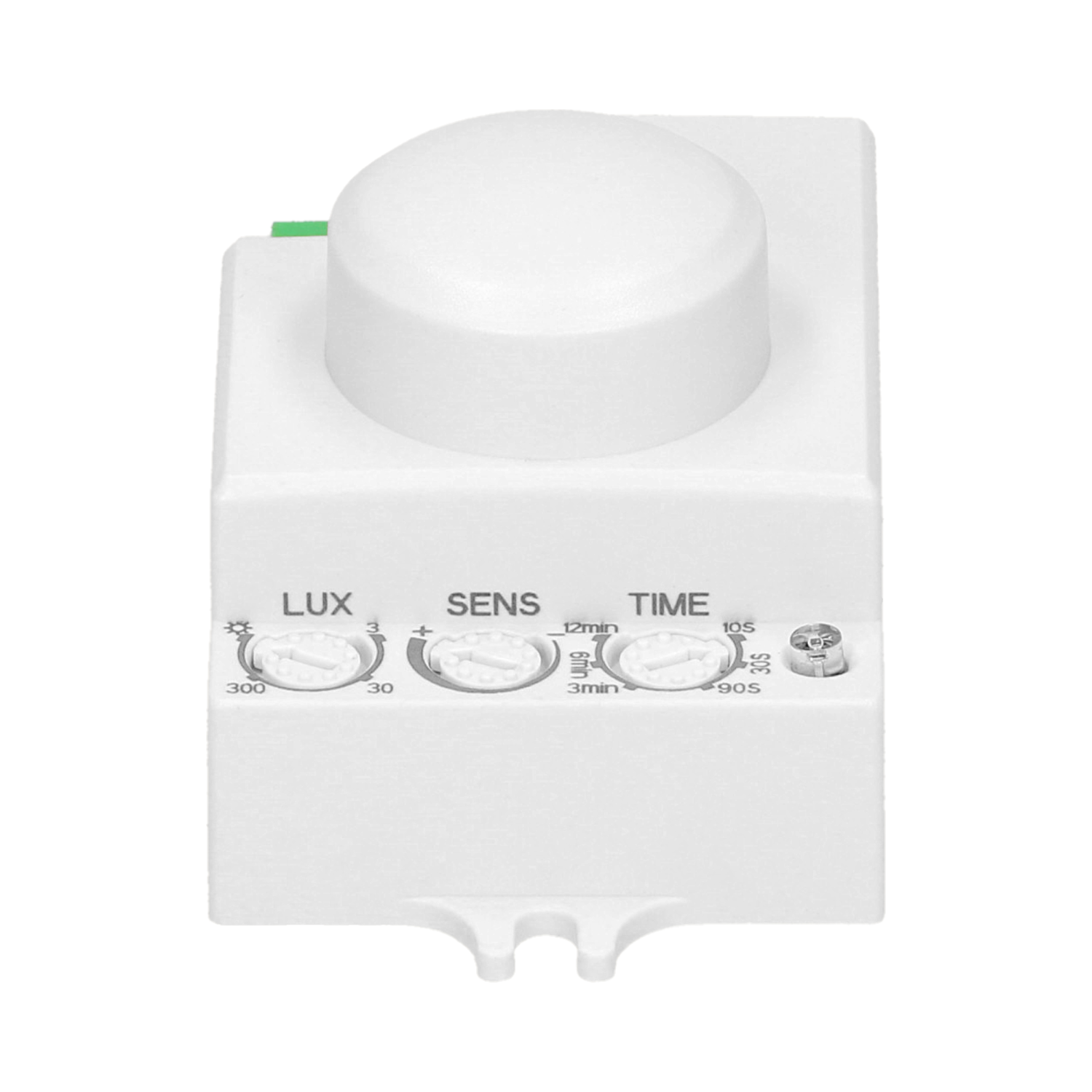

Microwave (radar) motion sensor with low power emission For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME), the sensitivity of the light intensity (LUX) and the range of motion detection (SENS) Small size of the sensor allows the use in fixtures and luminaires Built-in twilight sensor and timer Temperature does not affect the detection.

General information:
Max. load: 1200
Max. load of the LED light source: 300 W
Degree of protection (IP): 20
Relay output: Yes
Nominal voltage: 230V~, 50Hz
Presence detector: No
Colour: white
Installation: surface mounting
Dimensions of the sensor - width (mm): 39,4 mm
Dimensions of the sensor - height (mm): 54,6 mm
Dimensions of the sensor - depth (mm): 37.2 mm
Working temperature: -20℃~+50℃
Detection angle: 360°/180°
Type of sensor: microwave
Detection range: 1-8 m
Adjustable daylight sensor (LUX): Yes
Daylight sensor adjustment range (LUX): <3—2000lux
Adjustable time setting (TIME): Yes
Lighting time adjustment range (TIME): min: 10 sek. ± 3 sek.; max: 12 min. ± 1 min.
Adjustment of motion detection range (SENS): Yes

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:12:23Download
Product data sheetENpdf2024-07-17 10:20:28Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
User manualHRpdf2024-03-14 10:39:51Download
User manualROpdf2024-03-14 10:39:51Download
