Other sensors

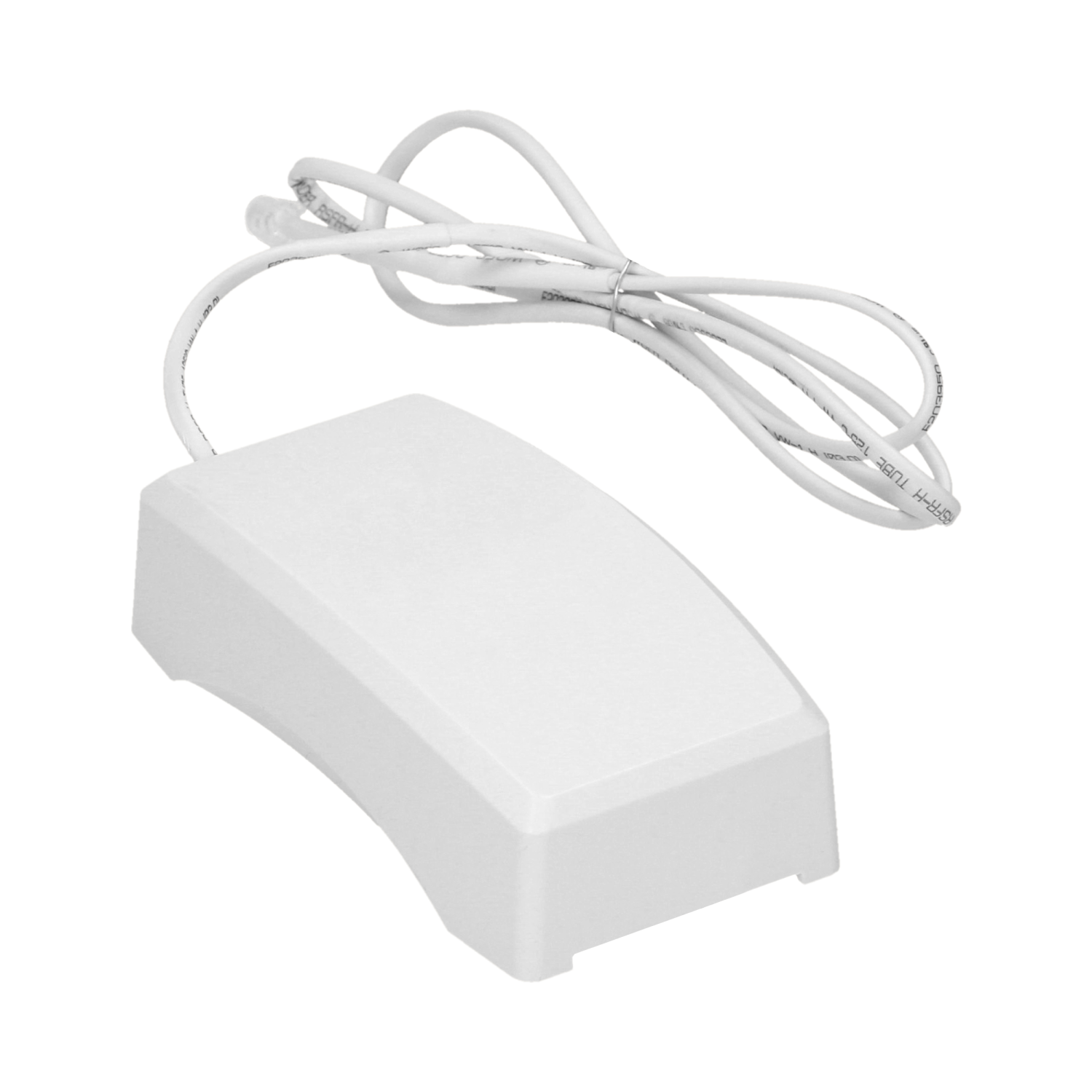

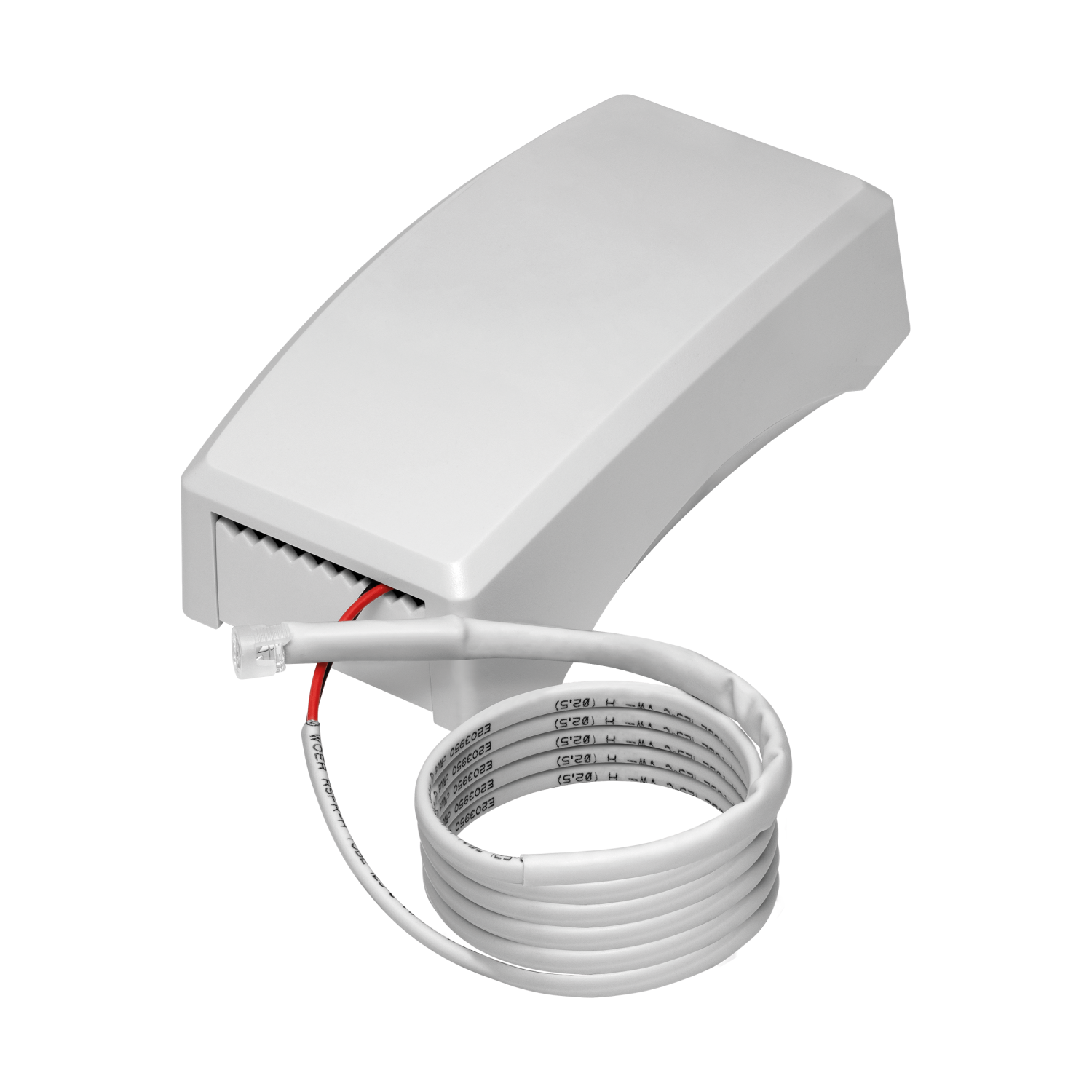

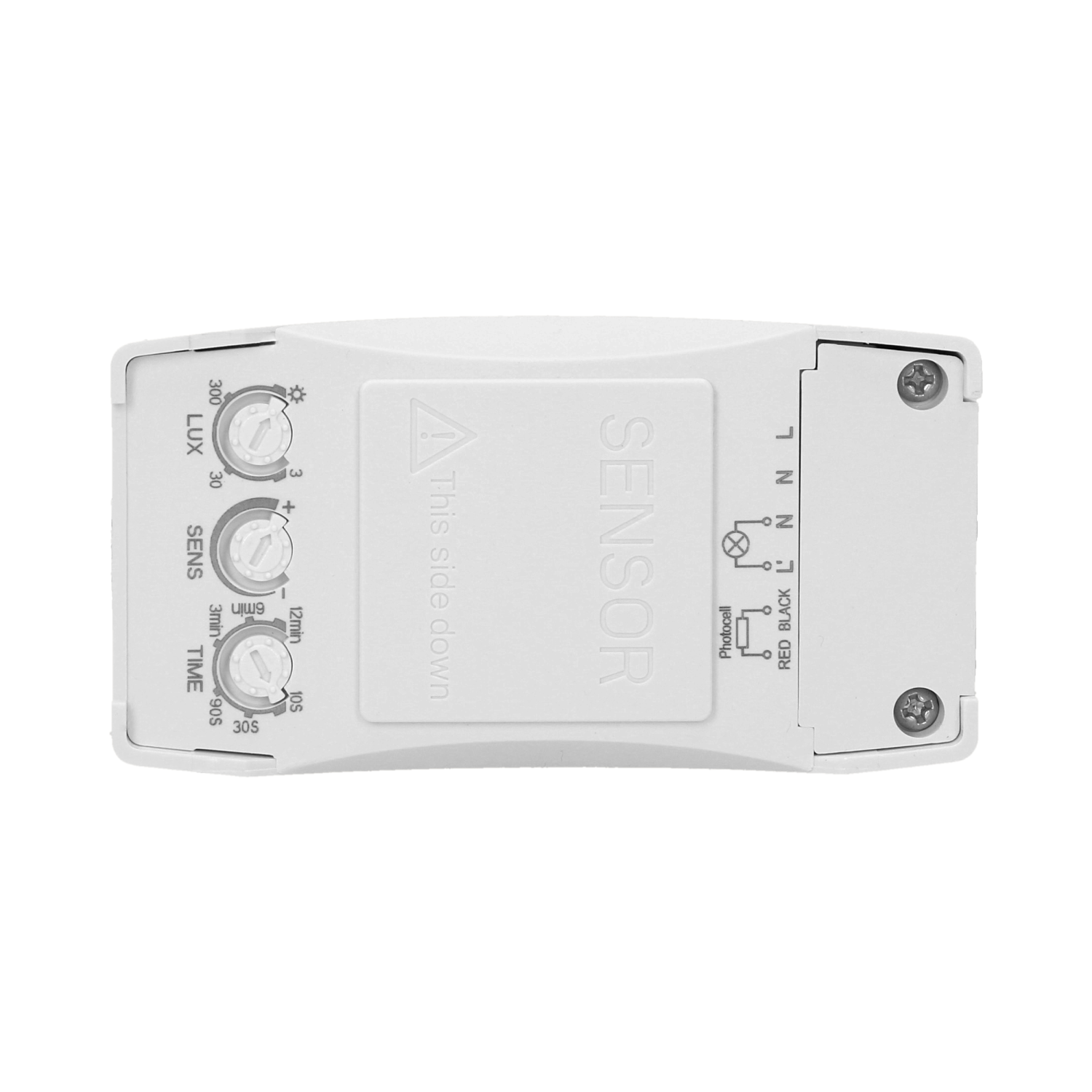

Microwave (radar) motion detector with external probe For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME), the sensitivity of the light intensity (LUX) and the range of motion detection (SENS) Temperature does not affect the detection.
| General information: | |
|---|---|
| Max. load: | 1200 |
| Max. load of the LED light source: | 300 W |
| Degree of protection (IP): | 20 |
| Relay output: | Yes |
| Nominal voltage: | 230V~, 50Hz |
| Presence detector: | No |
| Colour: | white |
| Installation: | surface mounting |
| Dimensions of the sensor - width (mm): | 28 mm |
| Dimensions of the sensor - height (mm): | 96,2 mm |
| Dimensions of the sensor - depth (mm): | 51 mm |
| Detection angle: | 360° |
| Dimensions of the mounting hole: | Ø7 mm |
| Type of sensor: | microwave |
| Detection range: | 1-8m m |
| Adjustable daylight sensor (LUX): | Yes |
| Daylight sensor adjustment range (LUX): | <3—2000lux |
| Adjustable time setting (TIME): | Yes |
| Lighting time adjustment range (TIME): | min: 10 sek. ± 3 sek.; max: 12 min. ± 1 min. |
| Adjustment of motion detection range (SENS): | Yes |
