Plugs

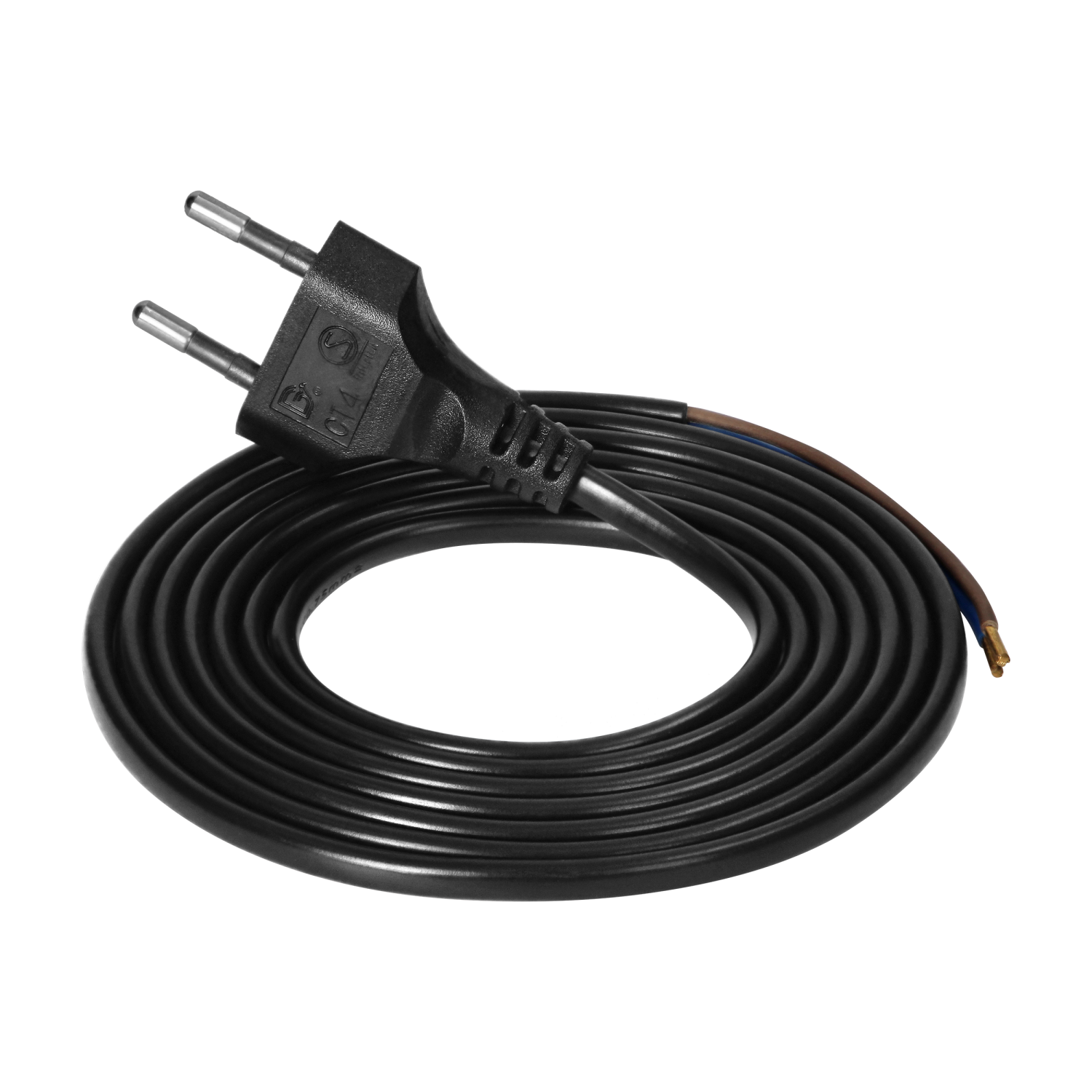

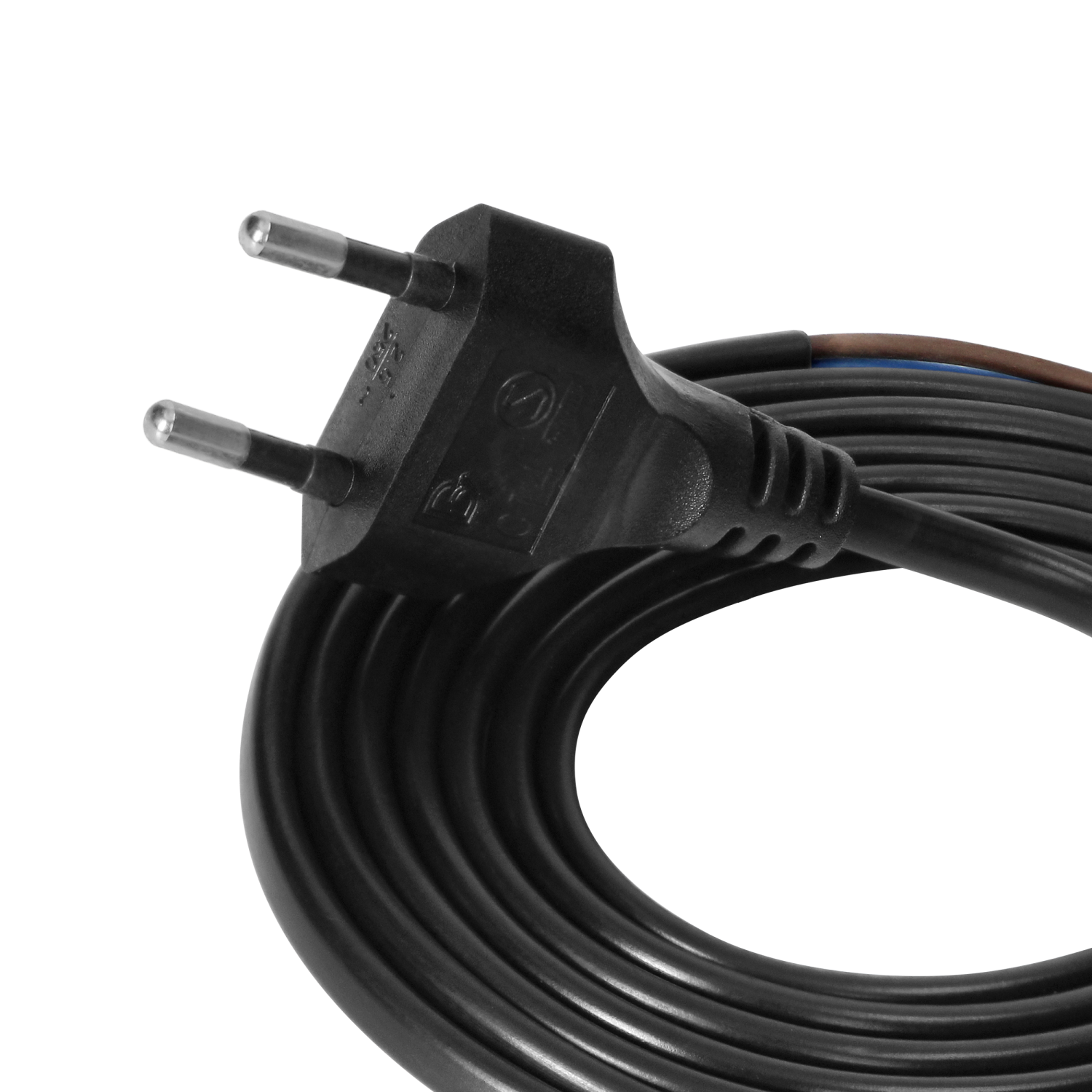

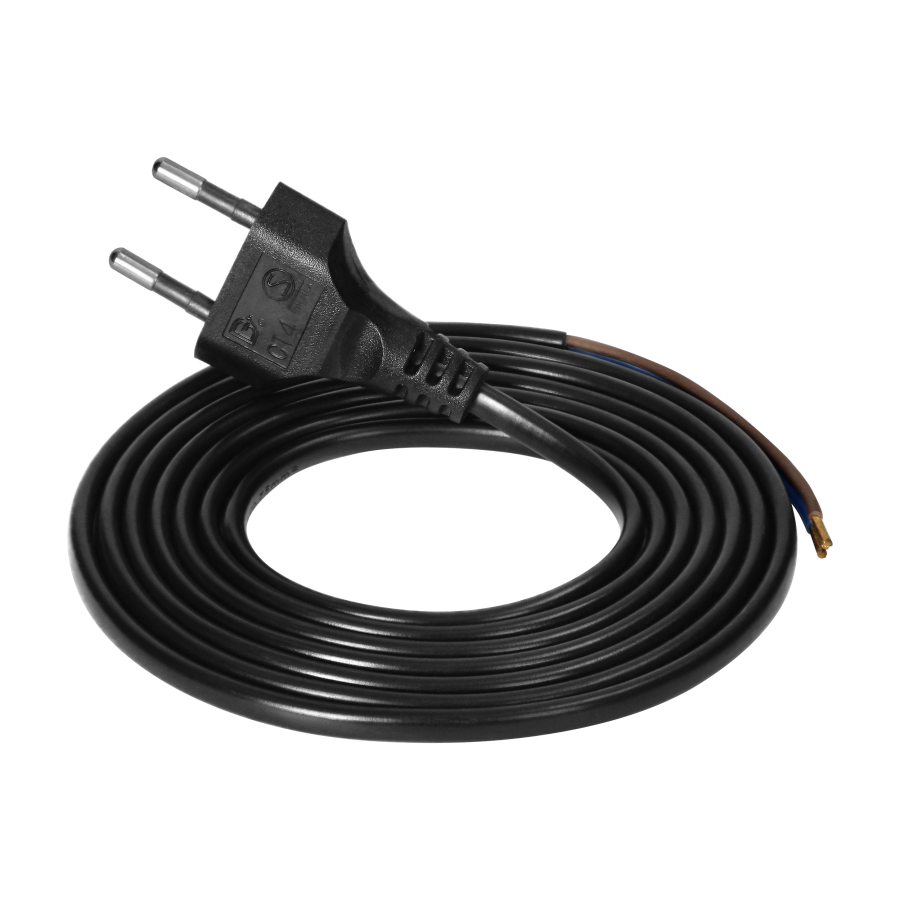

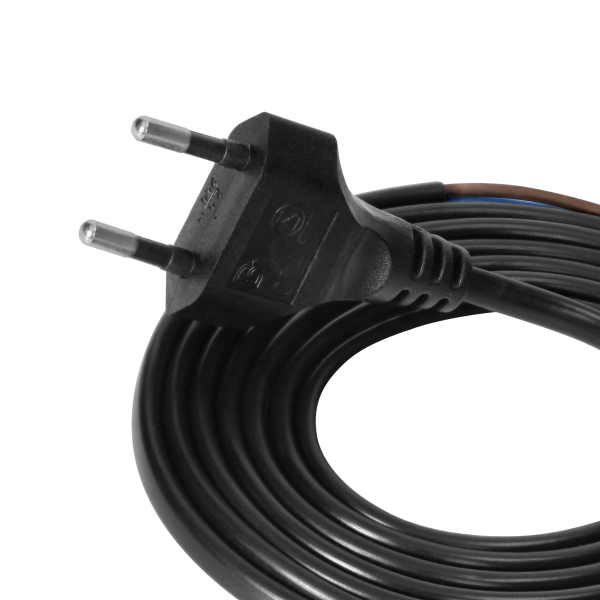

2-wire black connection cable with EURO plug with a maximum power of 500W and a voltage of 230V. The cable allows the connection of electrical appliances or extension sockets.
It provides standard mechanical and chemical resistance thanks to standardised materials that meet European standards.
The IP20 protection level allows the cable to be used indoors, such as in the home, garage or workshop.
Cable type: H03VV-F with a cross section of 2x 0.75mm2.
The cable length is 1.9m.
| General information: | |
|---|---|
| Connection 1: | Inne |
| Connection 2: | Końcówka tulejkowa |
| Number of cores: | 2 |
| Nominal cross section conductor [mm²]: | 0.75 |
| Length [m]: | 1.9 |
| Material outer sheath: | Polichlorek winylu (PVC) |
| Nominal current [A]: | 2.5 |
| Nominal voltage [V]: | 230 |
| Frequency [Hz]: | 50 |
| Power [W]: | 500 |
| Colour outer sheath: | Biały |
| With protective conductor: | Nie |
| Degree of protection (IP): | 20 |
| Plug-in type: | Euro |
| Grounding: | Nie |
| Oil resistant according to EN 60811-404: | Nie |
