Power strips and SPD

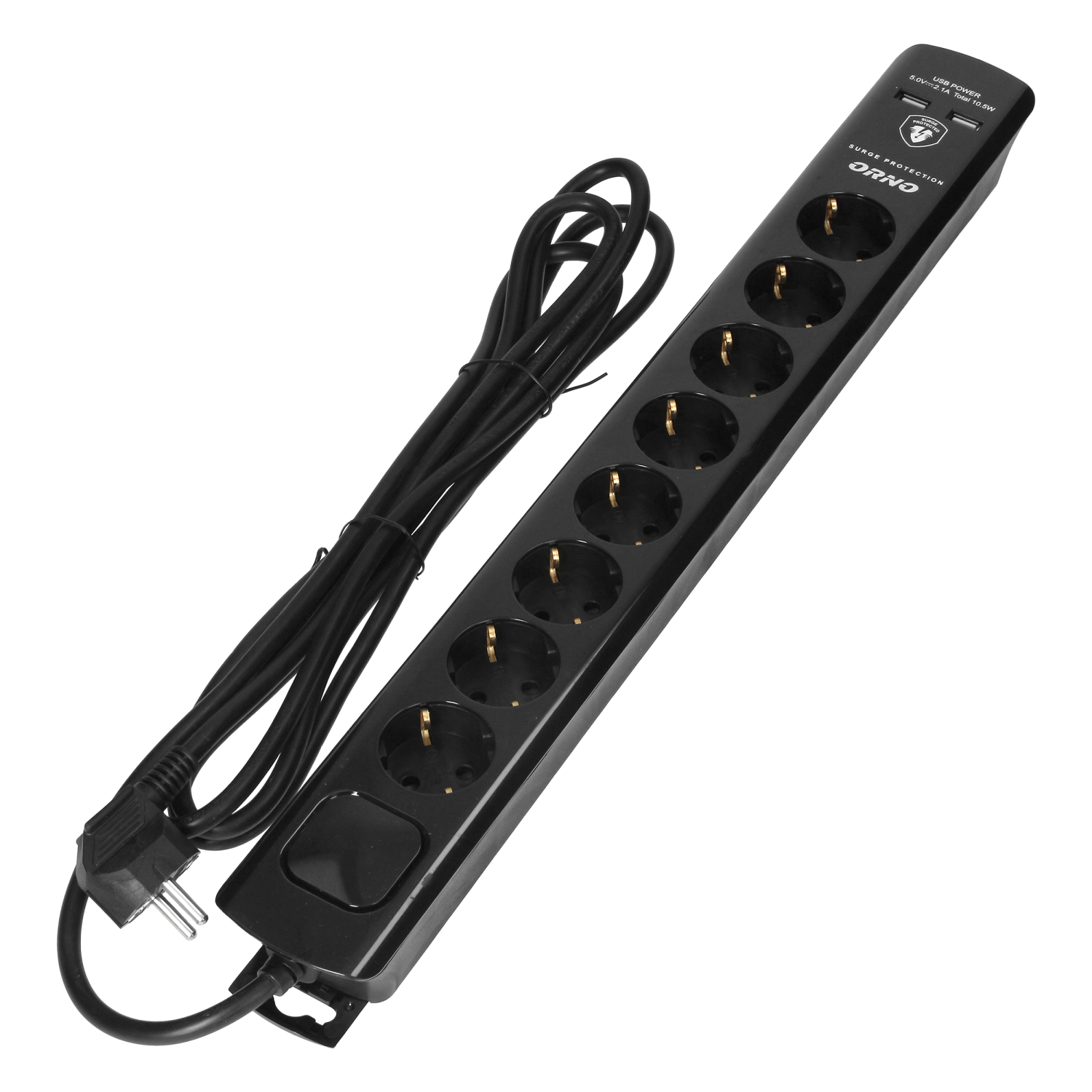

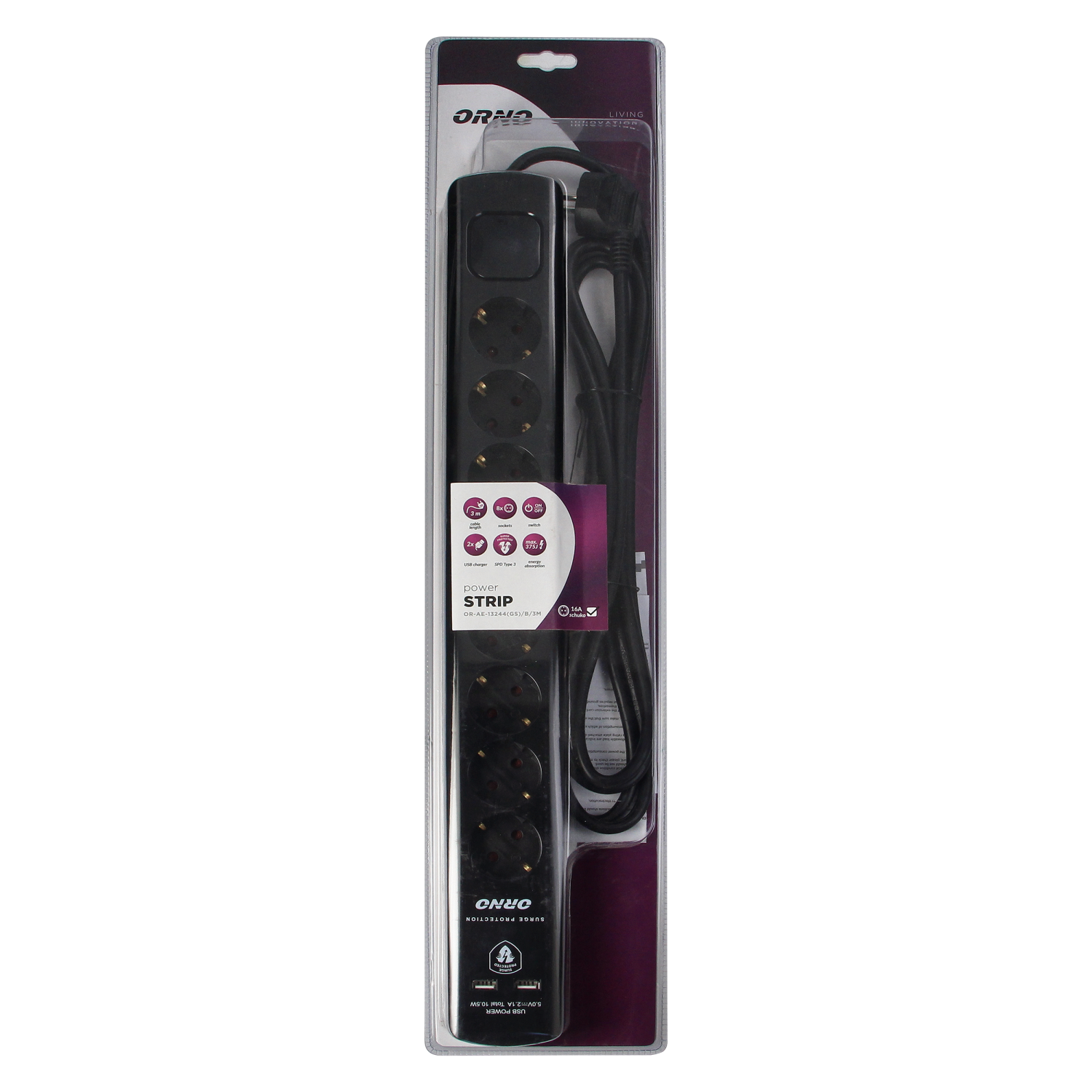

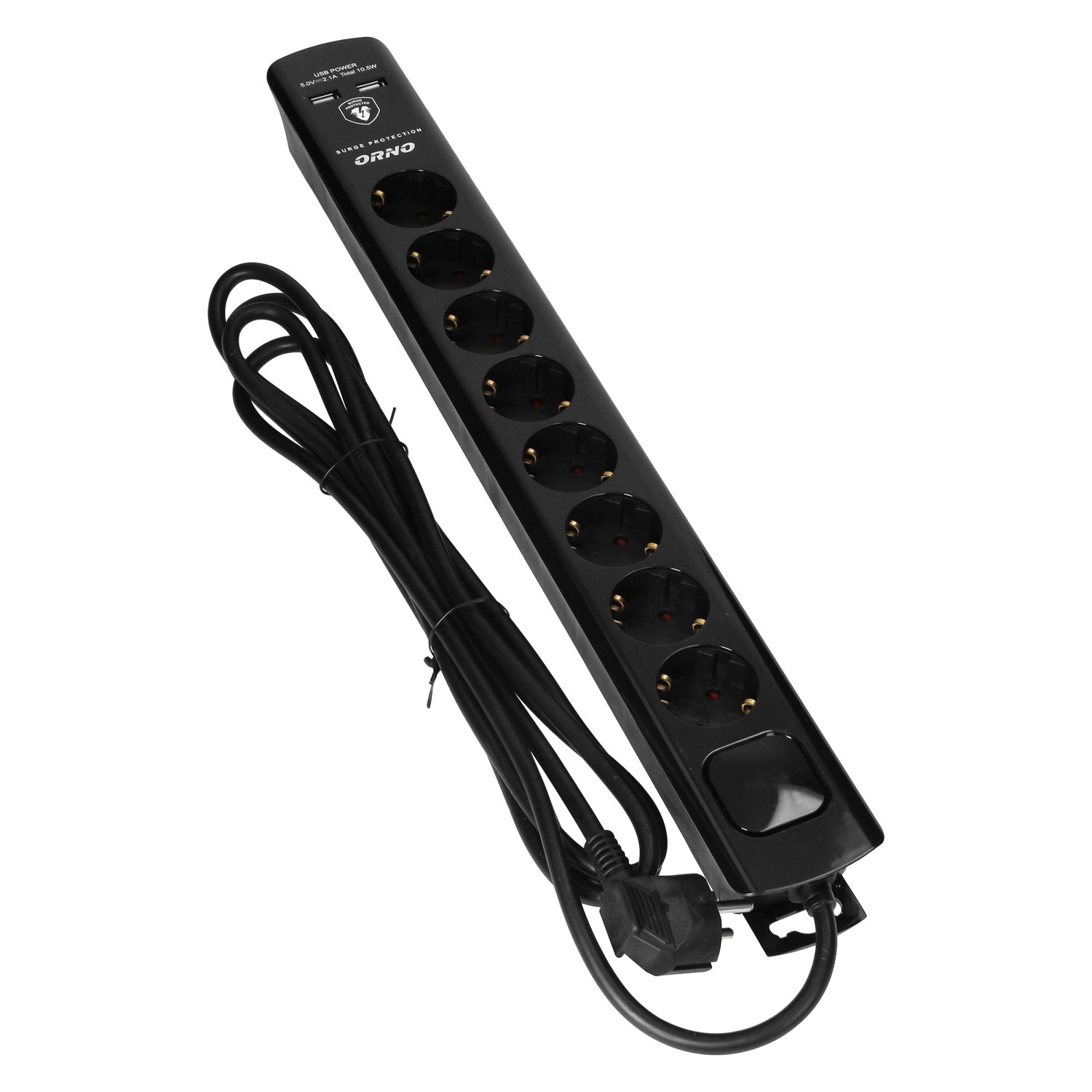

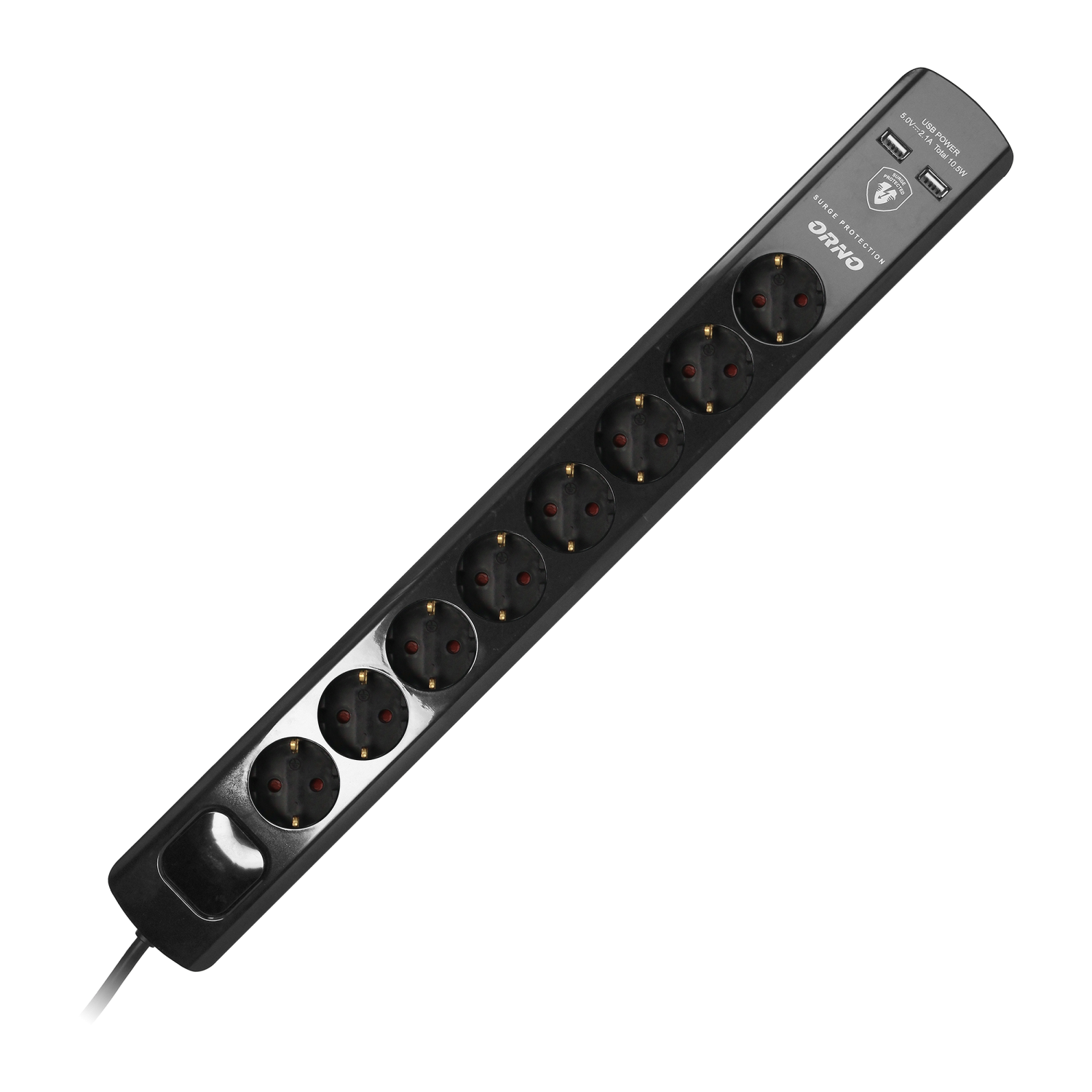

The power strip with surge protection and a 3m cable allows us to connect 8 electrical appliances (Schuko socket) with a total power consumption of 3680W. We can switch off the power supply with a 2-wire, backlit main switch. The device is efficient in protecting our appliances against power surges caused by weather conditions or mains failures. Includes 2 USB inputs.
| General information: | |
|---|---|
| Housing shape: | Rectangular |
| Wire cross-section: | 1,5 mm² |
| Number of socket outlets with protective contact (SCHUKO): | 8 |
| Length of power cord: | 3 m |
| Nominal current: | 16 A |
| USB charger: | Yes |
| Output current of the USB charger: | 2.1 A |
| Frequency: | 50 Hz |
| Safety shutters: | Yes |
| Dimensions - width: | 54 mm |
| Dimensions - height: | 40 mm |
| Dimensions - depth: | 98 mm |
| Number of USB connections: | 2 |
| Colour: | Black |
| Material: | Plastic |
| Degree of protection (IP): | IP20 |
| With on/off switch: | Yes |
| Surface finishing: | Glossy |
| Output voltage of the USB charger: | 5 V |
| Over voltage protection: | Yes |
| Output power of the USB charger: | 10 W |
| USB port type: | USB-A |
| Surge protection type: | Type 3 |
| Operating temperature: | -10°C to +40°C |
| Voltage protection level L+N-PE: | 4 kV |
| Voltage protection level L-N: | 2.2 kV |
| Voltage protection level L-PE/N-PE: | 2.2 kV |
| Absorption energy of the SPD: | 375 J |
| Nominal voltage: | 230 V |
| Max. load: | 3680 W |
| Number of wires: | 3 |
| Insulation type: | PVC |
| Material quality: | Thermoplastic |
| Angle rotated central insert: | 45° |
| Weight: | 0.69 kg |
