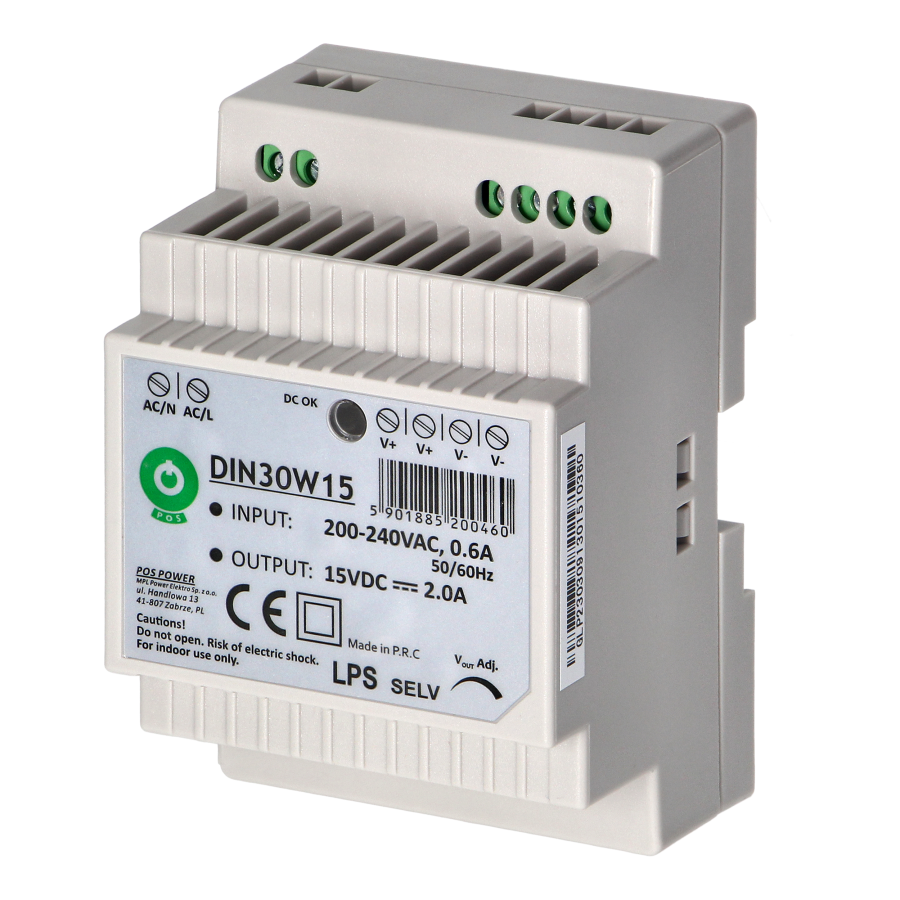

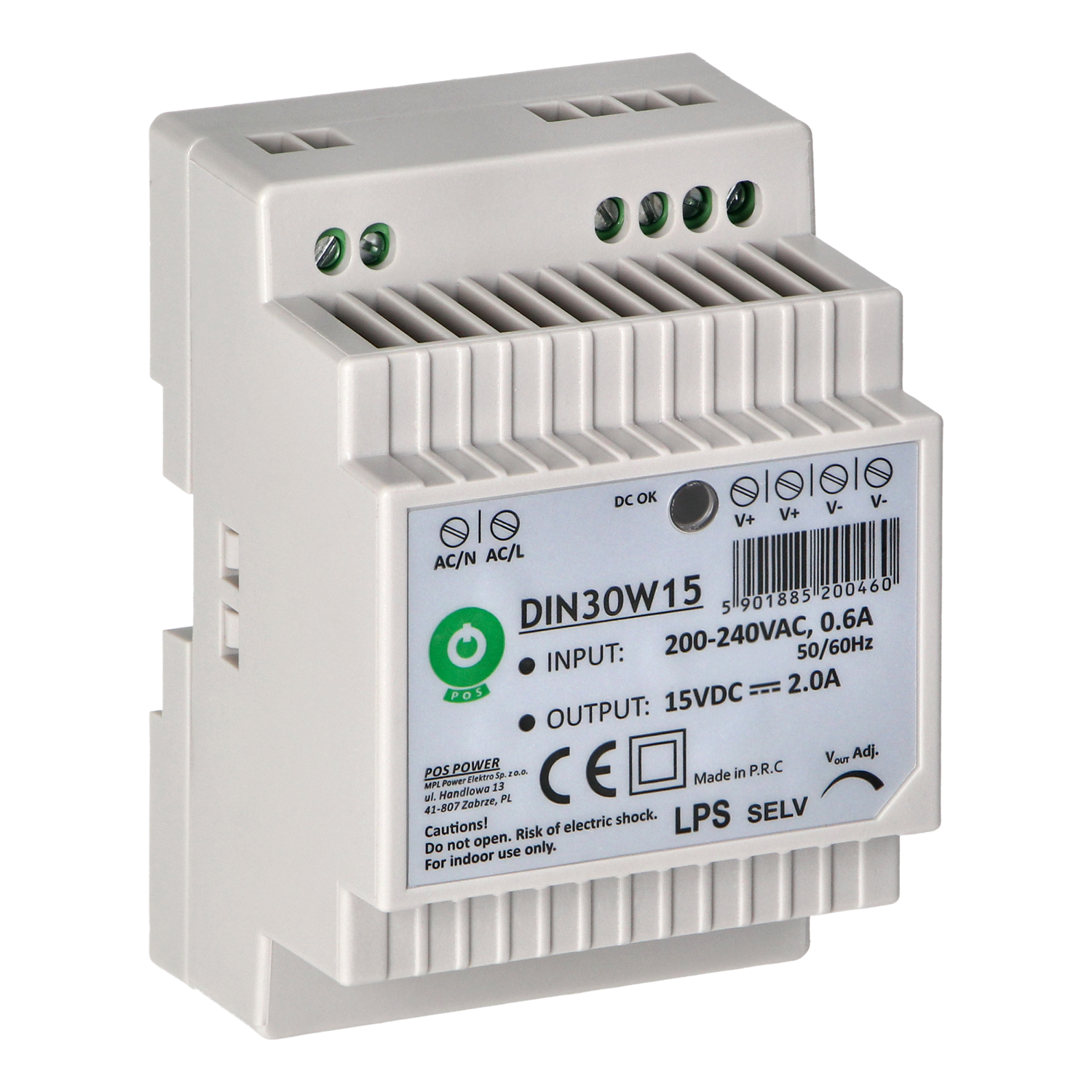

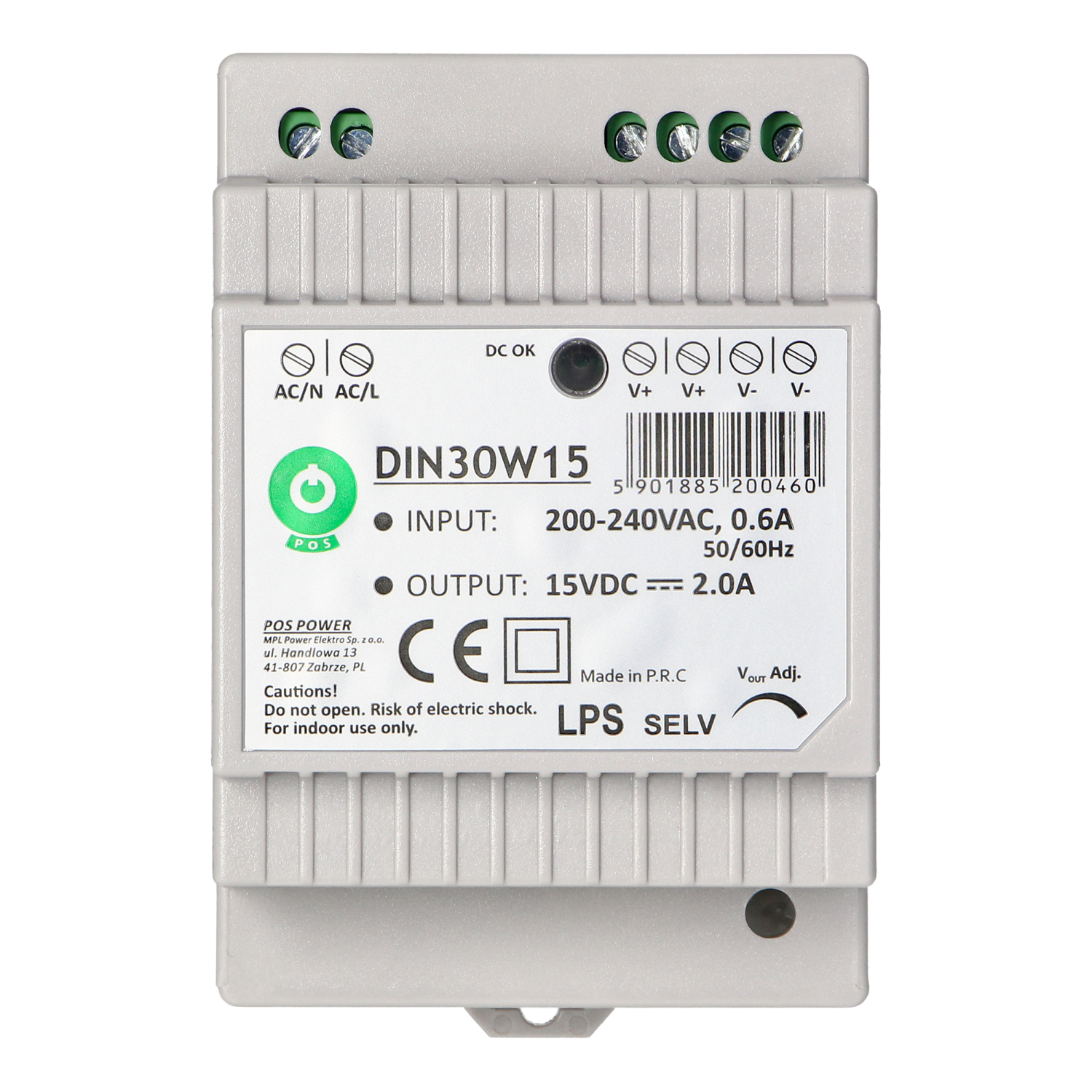

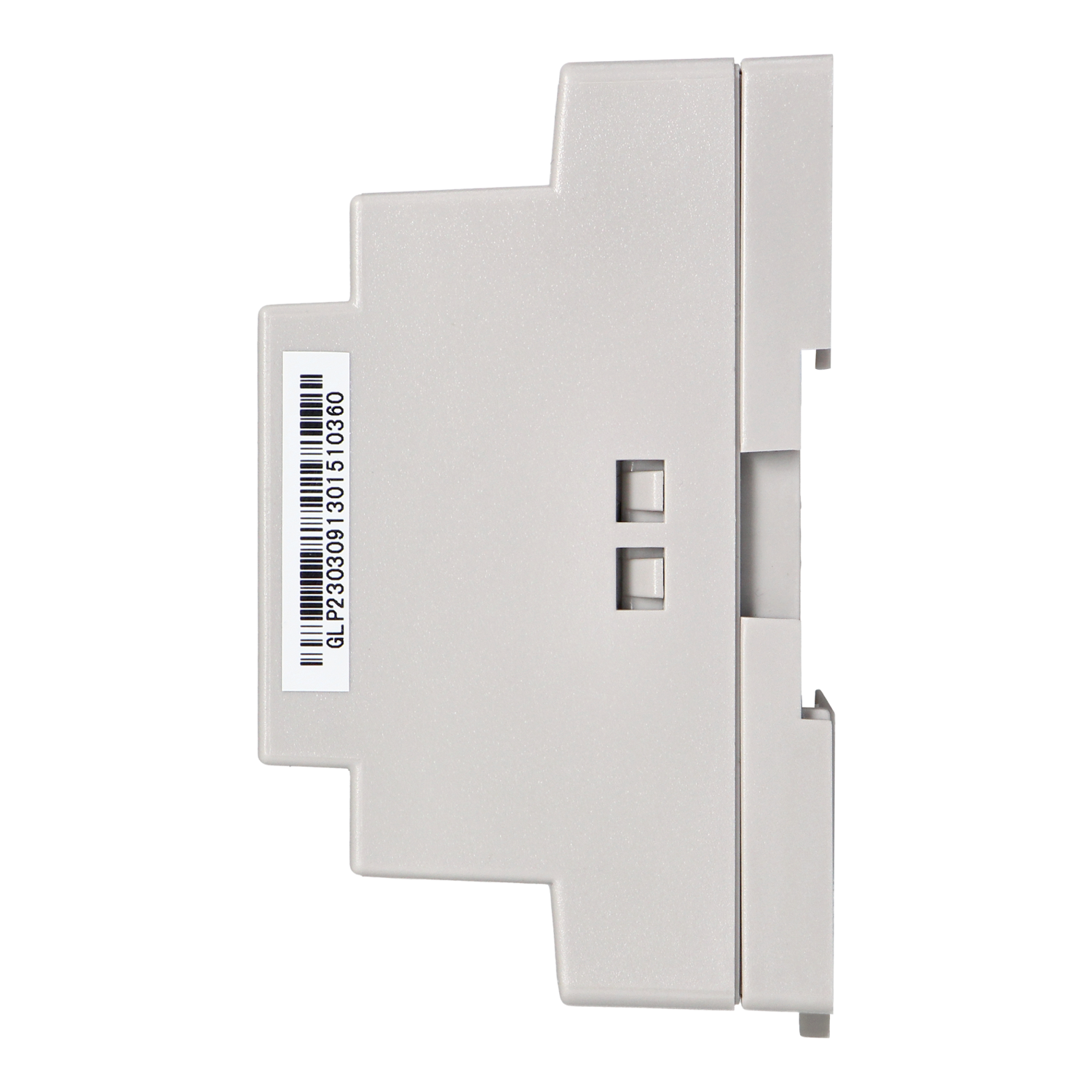

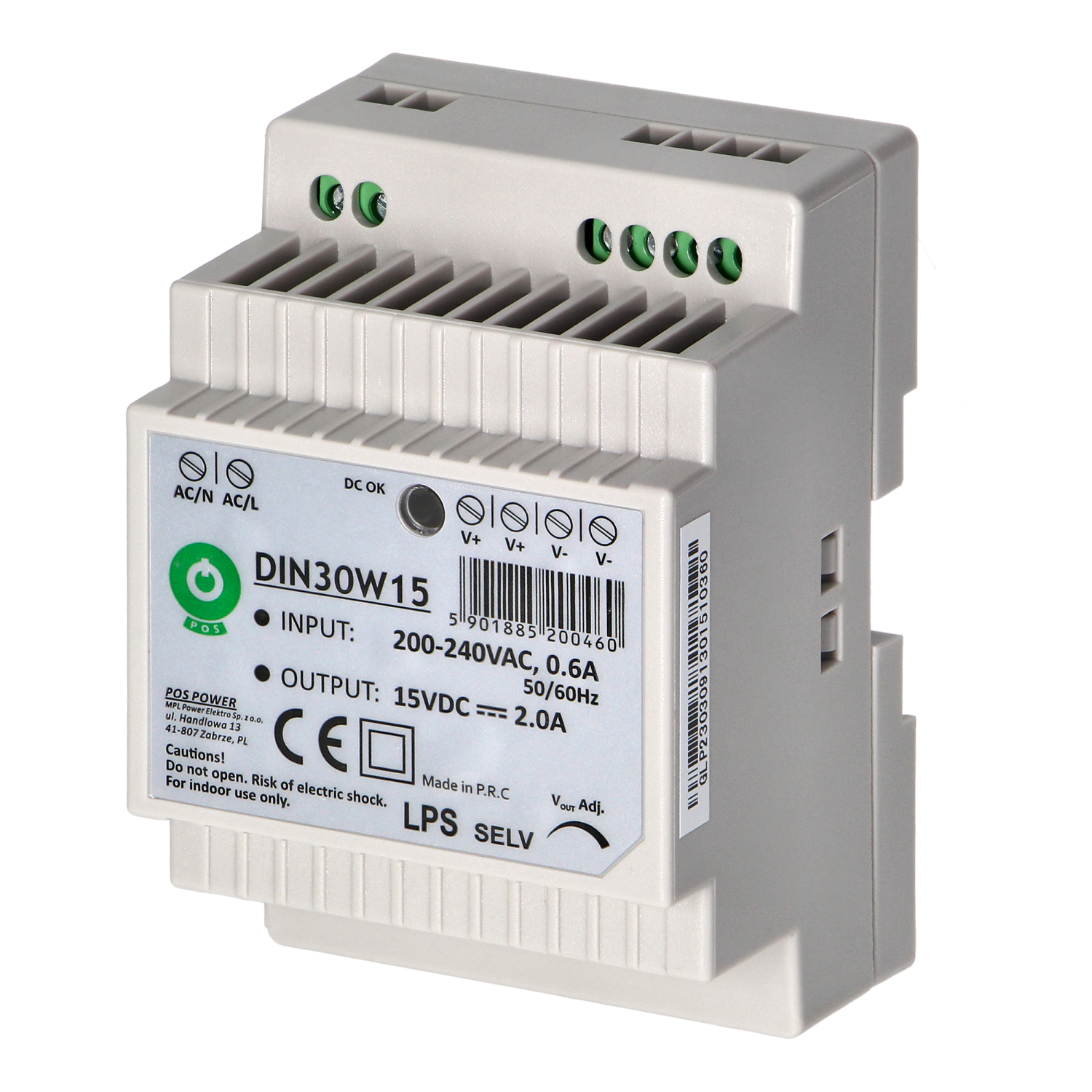

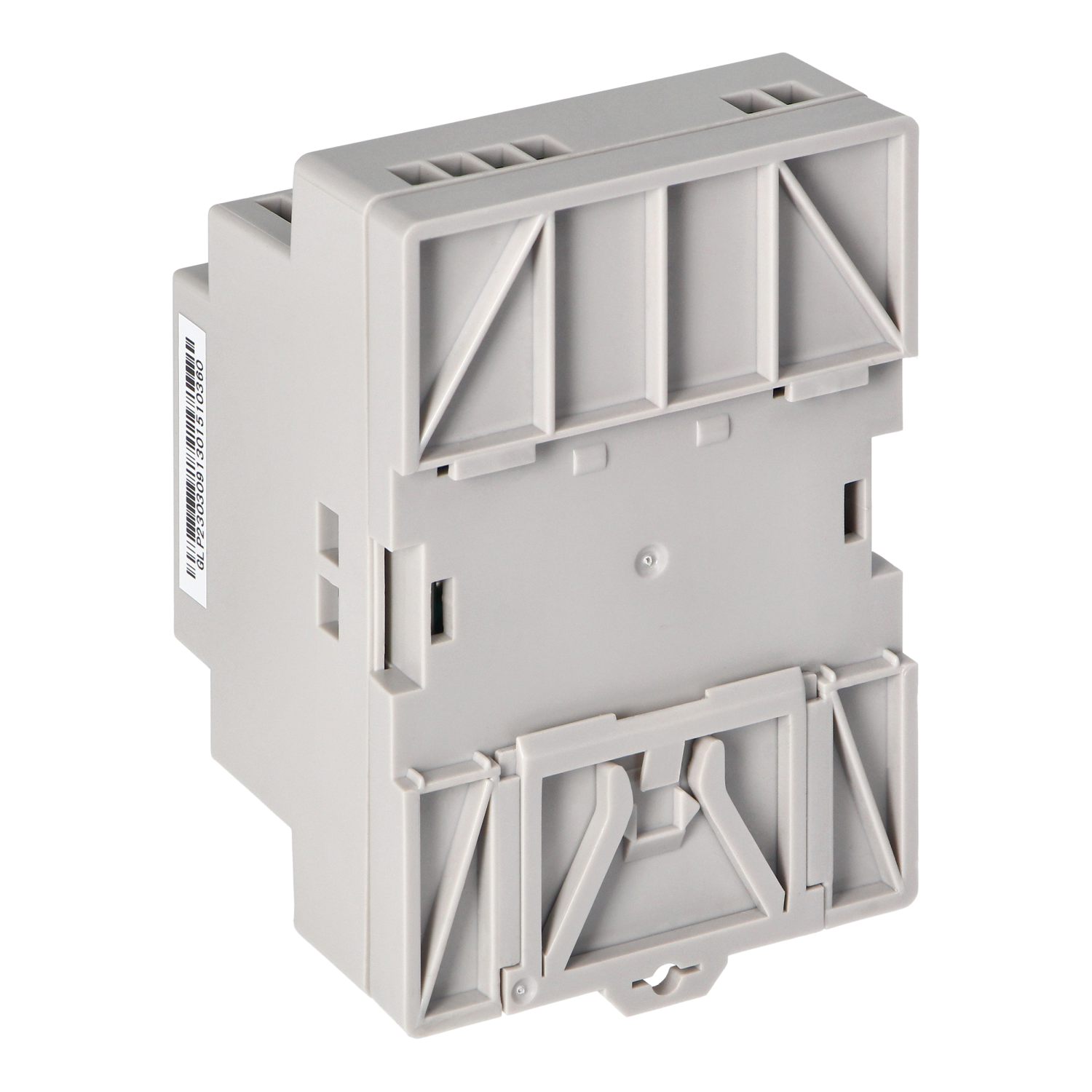

Modular power supply
A DIN rail power supply unit. Its use allows hiding the cables and preserving the high aesthetics of the room.
It is an accessory for video doorphone sets from the INDI and SCUTI series.
Output voltage: 15VDC 2.0A
| General information: | |
|---|---|
| Voltage type of supply voltage: | AC |
| 1st secondary output voltage at DC [V]: | 15 |
| Max. output current 1 [A]: | 2 |
| Max. Overcurrent [V]: | 240 |
| Power output [W]: | 30 |
| Efficiency: | 84 |
| Rail mounting possible: | Tak |
| Wall mounting possible: | Nie |
| Width [mm]: | 62.5 |
| Height [mm]: | 97 |
| Depth [mm]: | 56 |
| Weight[ g]: | 172.3 |
| Degree of protection (IP): | IP20 |
| Operating Temperature: | -20°C ÷ +50°C |
| Working Humidity(RH): / wilgotność podczas pracy (bez kondensacji): | 10 do 95% |
| Compliance with standards: | EN62368-1; EN55032; EN55035; EN 61000-3-3; EN 61000-3-2 |
