Professional cable reels

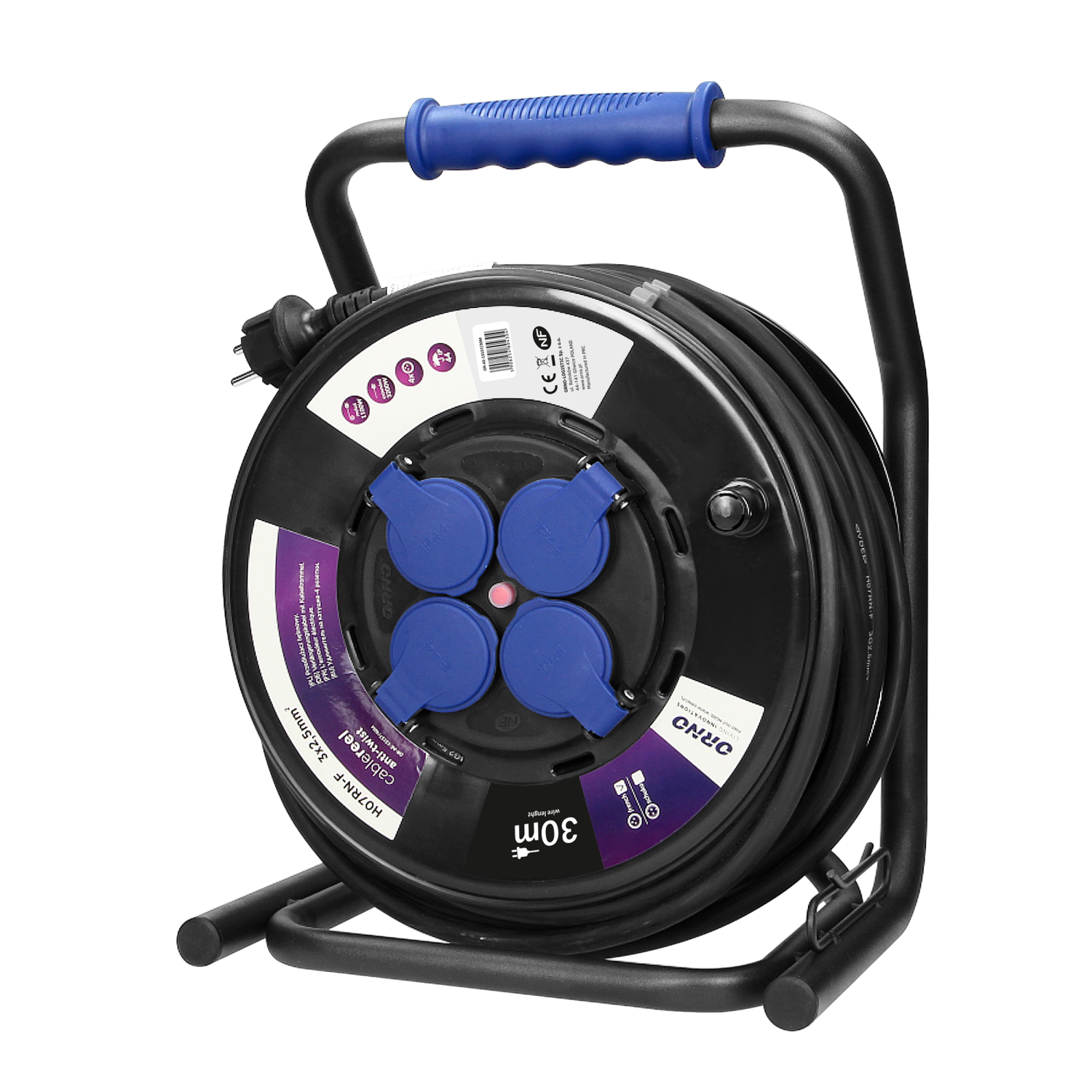

Cable reel with an innovative anti-twist system (fixed sockets), a unique metal CUBE stand and an overload protection (thermal switch). It is equipped with a rubber, oil resistant H07RN-F cable which is 30m long. It has four grounded sockets with current circuit protection and sealing covers that protect the device against dust, dirt and water. Moreover it has a handy, rubber carrying grip, a rotary drum winding handle, reel rotation lock and an insulated IP 44 plug. Designed for challenging conditions and suitable for outdoor use.
| General information: | |
|---|---|
| Nominal voltage: | 230V~, 50Hz |
| Wire cross-section: | 2.5 mm² |
| Type of socket: | 2P+E |
| Number of wires: | 3 |
| Max. load/current for the reeled wire: | 1100W / 4,8A |
| Standard of the socket: | french (type E) |
| Number of sockets: | 4 |
| Degree of protection (IP): | 44 |
| USB charger: | No |
| Max. load/current for the extended wire: | 3200W / 13,9A |
| Safety shutters: | Yes |
| Dimensions - depth: | 220 mm |
| Dimensions - width: | 310 mm |
| Dimensions - height: | 415 mm |
| Other features: | Fixed sockets, CUBE stand |
| Type of cable: | H07RN-F |
| Wire length: | 30 m |
| Insulation type: | oil resistant rubber |
