OR-AE-13157/40M

Description

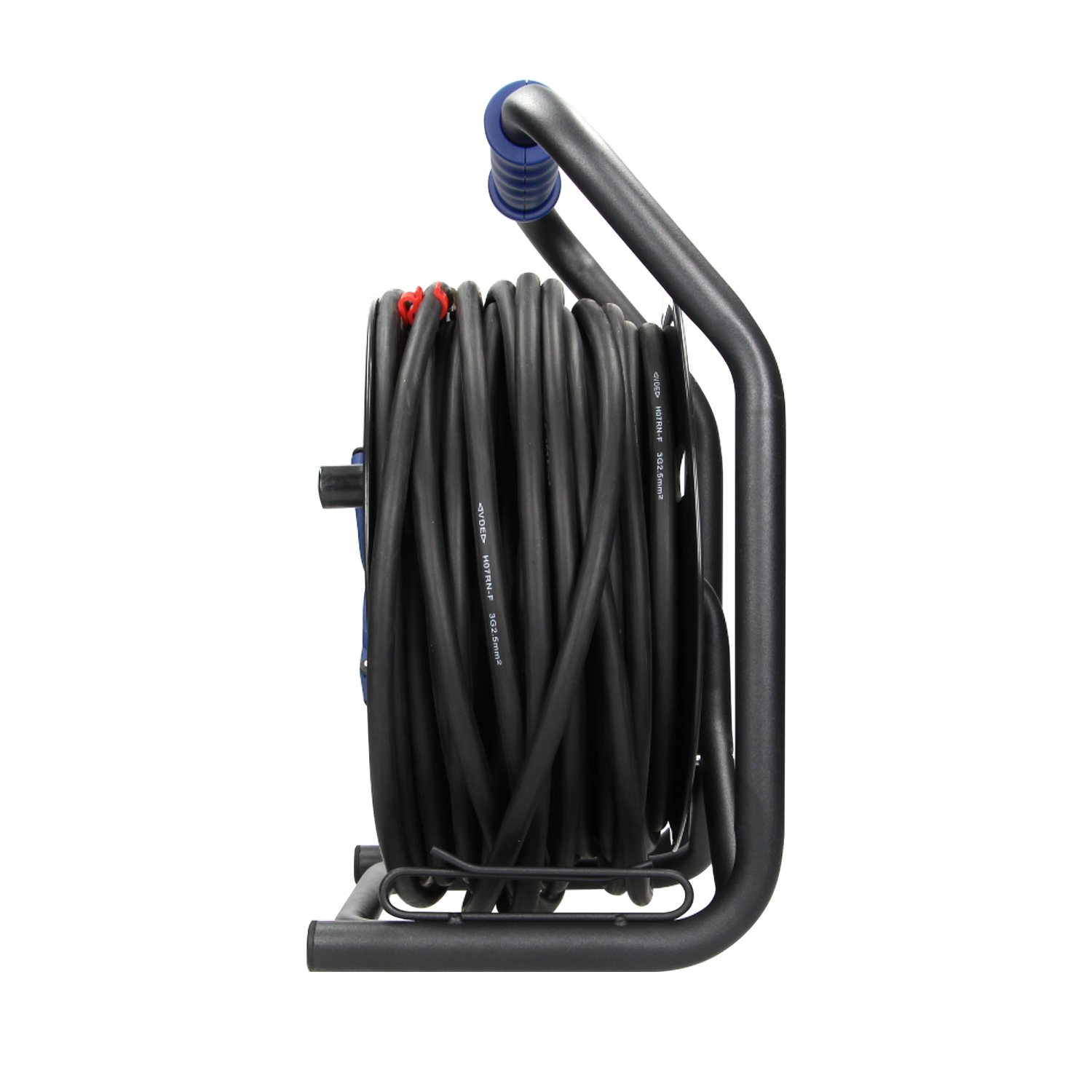

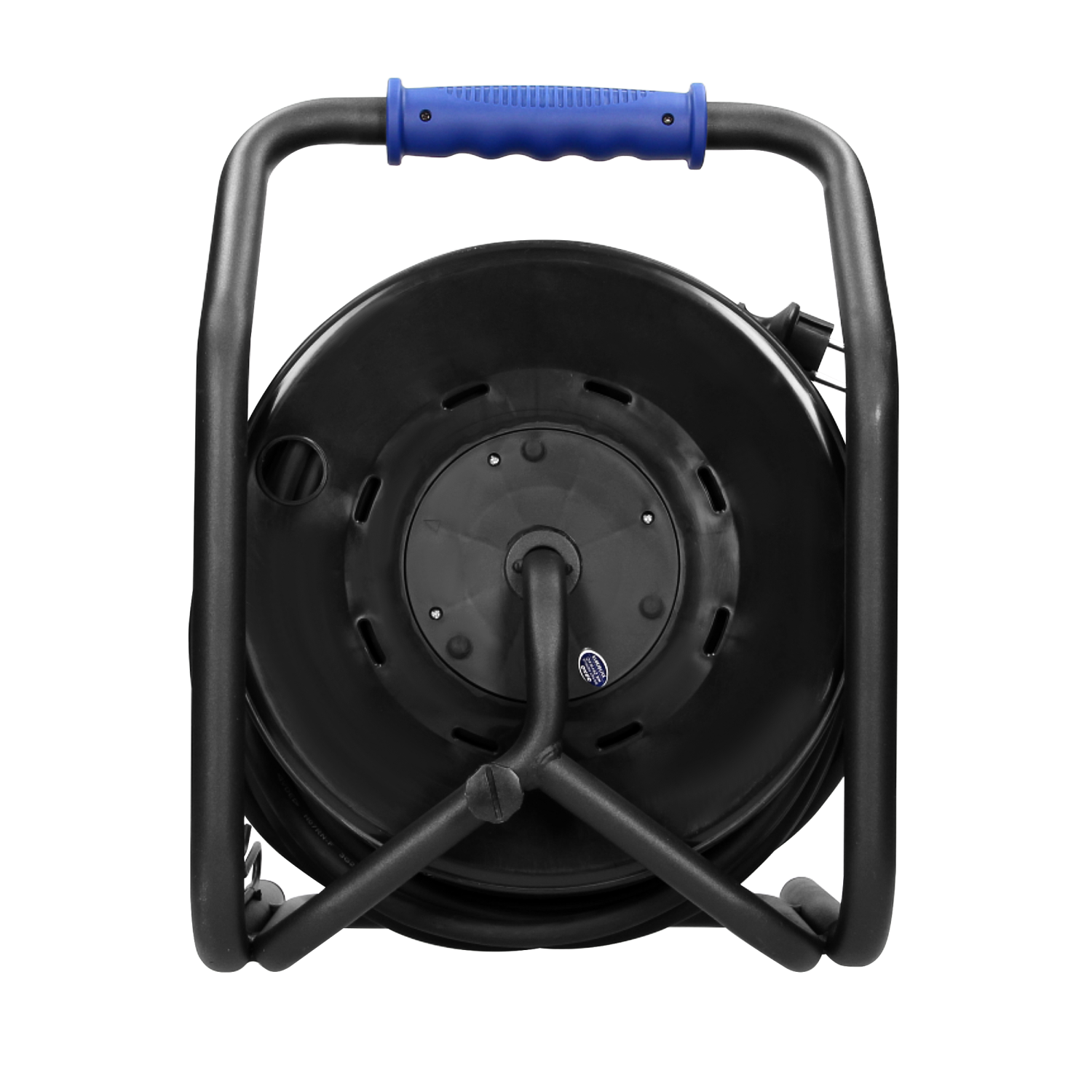

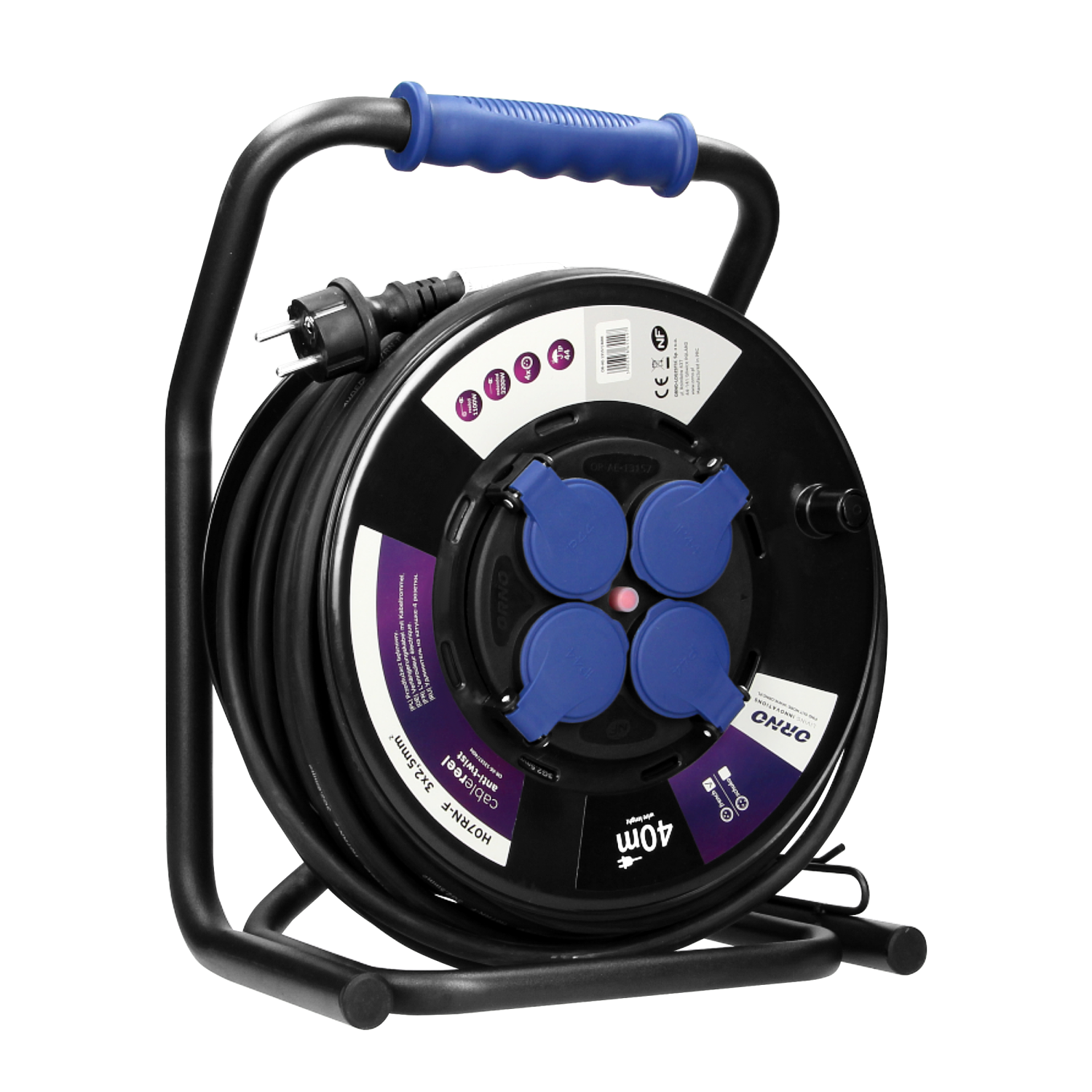

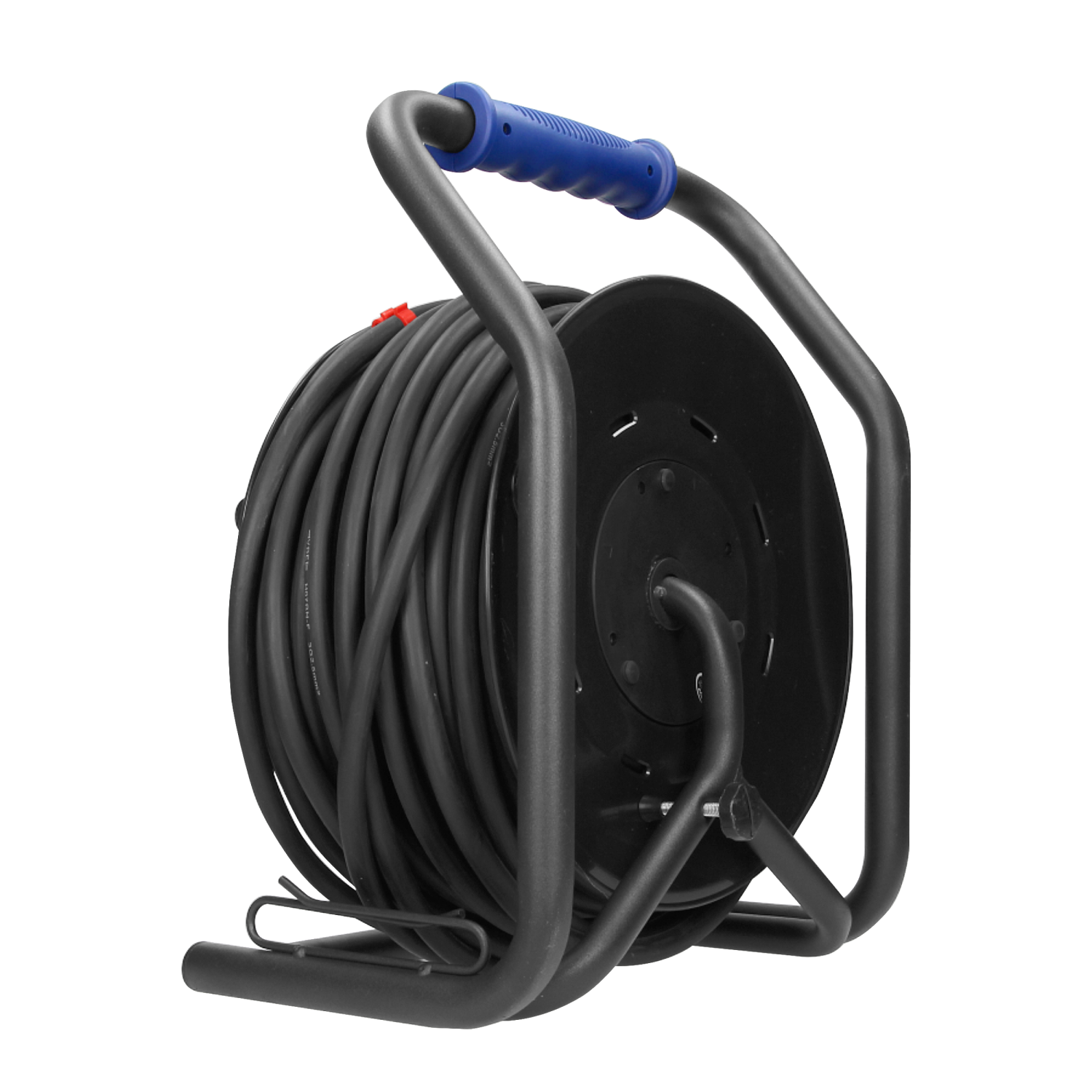

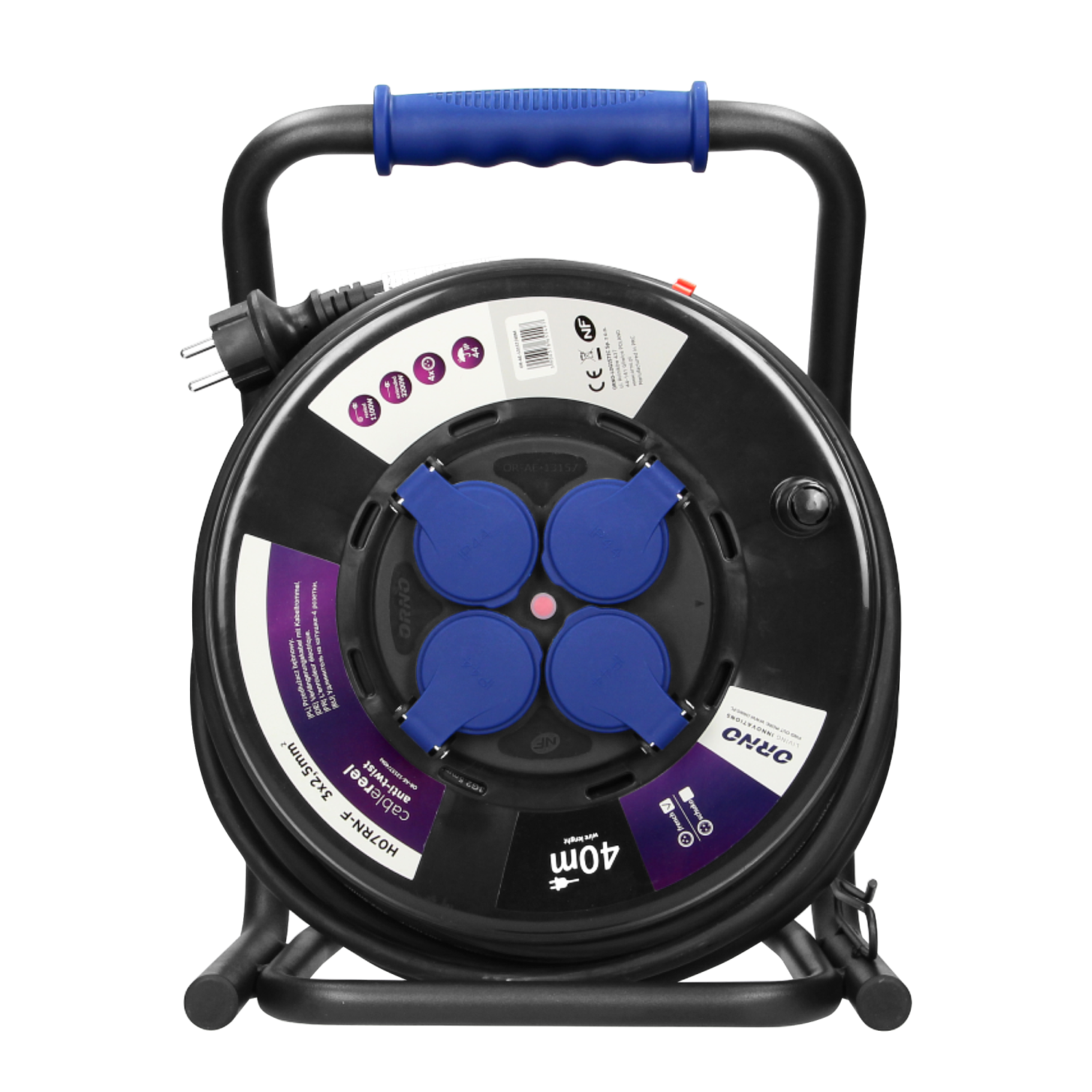

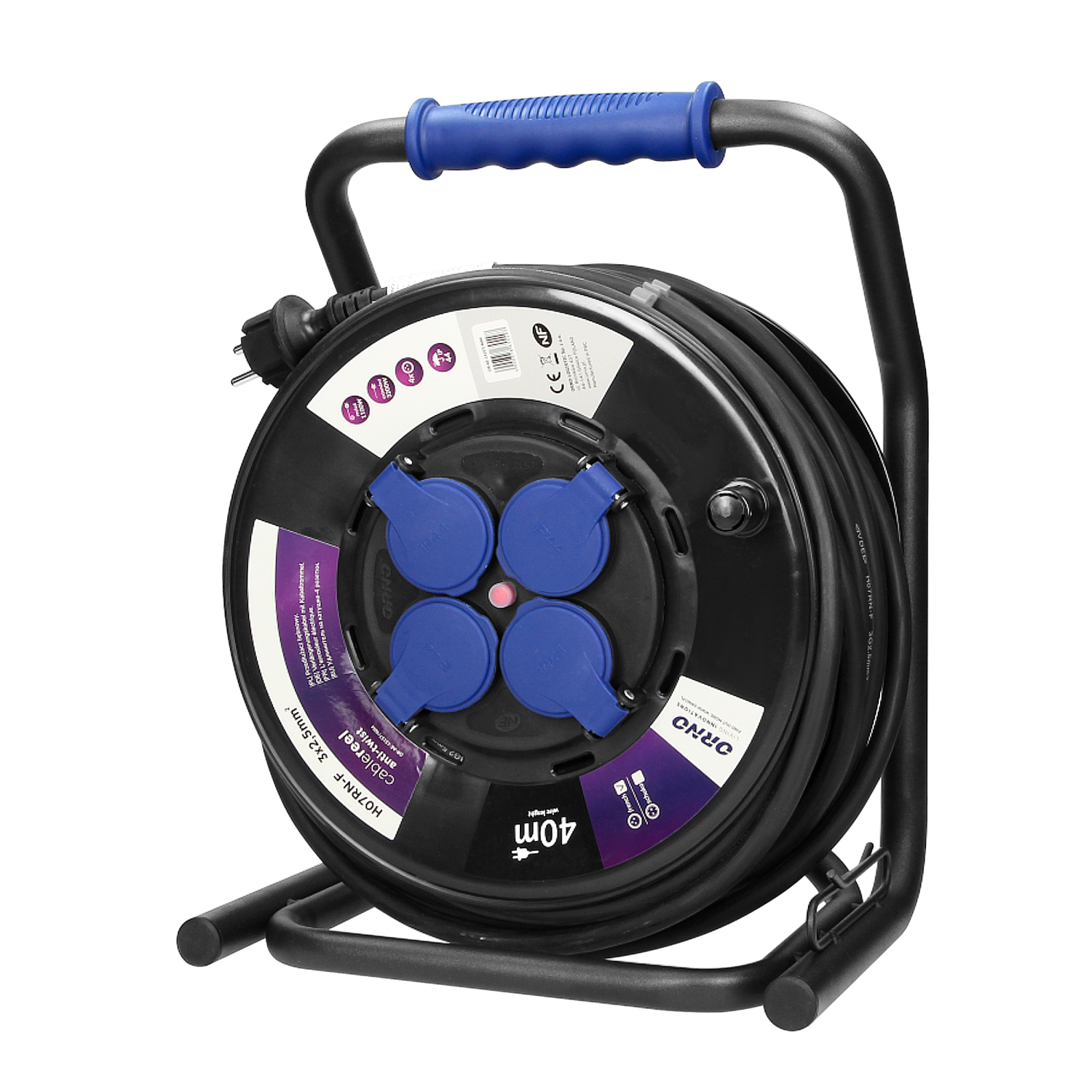

Cable reel with an innovative anti-twist system (fixed sockets), a unique metal CUBE stand and an overload protection (thermal switch). It is equipped with a rubber, oil resistant H07RN-F cable which is 40m long. It has four grounded sockets with current circuit protection and sealing covers that protect the device against dust, dirt and water. Moreover it has a handy, rubber carrying grip, a rotary drum winding handle, reel rotation lock and an insulated IP 44 plug. Designed for challenging conditions and suitable for outdoor use.

General information:
Nominal voltage: 230V~, 50Hz
Wire cross-section: 2.5 mm²
Type of socket: 2P+E
Number of wires: 3
Max. load/current for the reeled wire: 1100W / 4.8A
Standard of the socket: french (type E)
Number of sockets: 4
Degree of protection (IP): 44
USB charger: No
Max. load/current for the extended wire: 3200W / 13.9A
Safety shutters: Yes
Other features: fixed sockets, CUBE stand
Type of cable: H07RN-F
Wire length: 40 m
Insulation type: oil resistant rubber
