OR-KK-8111

Description

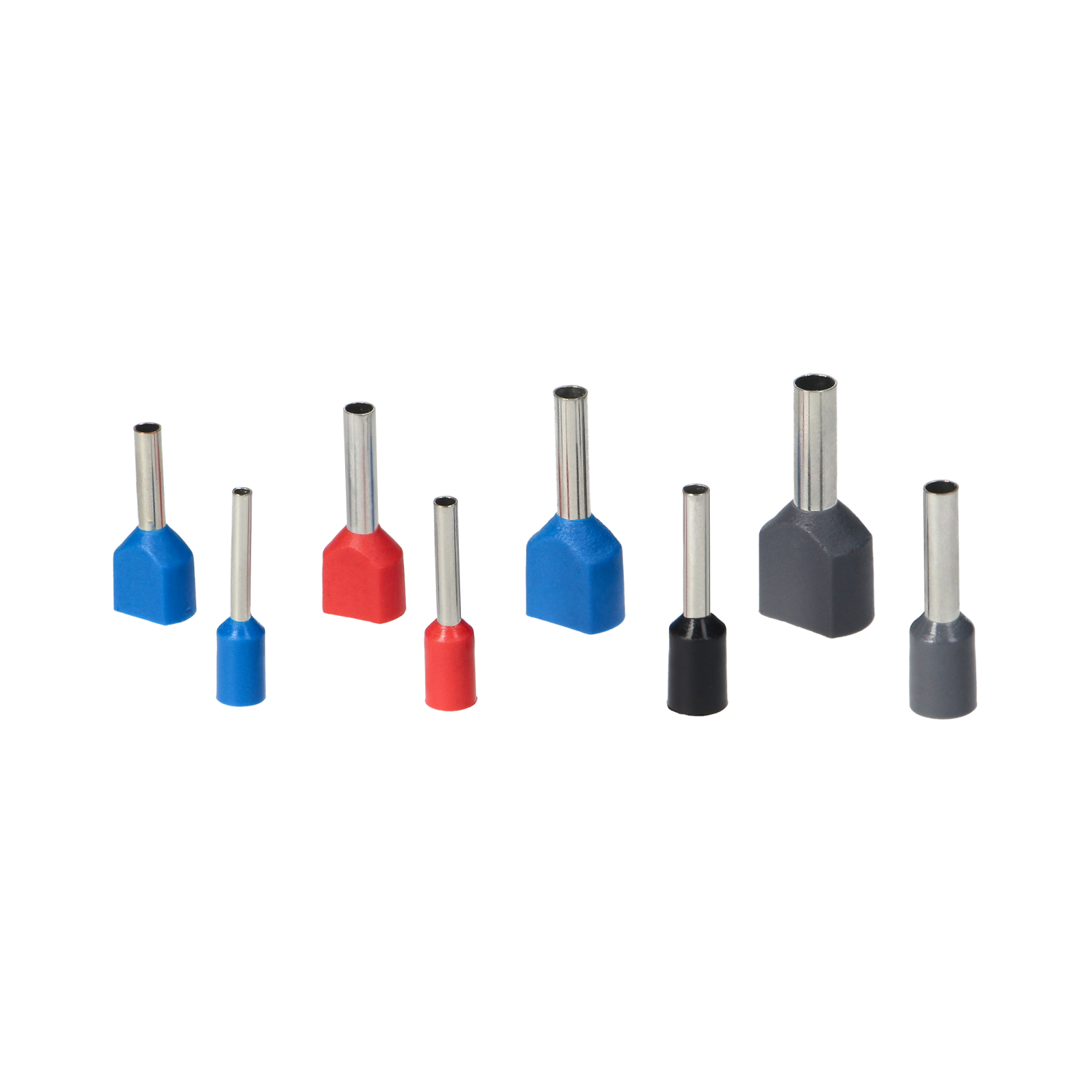

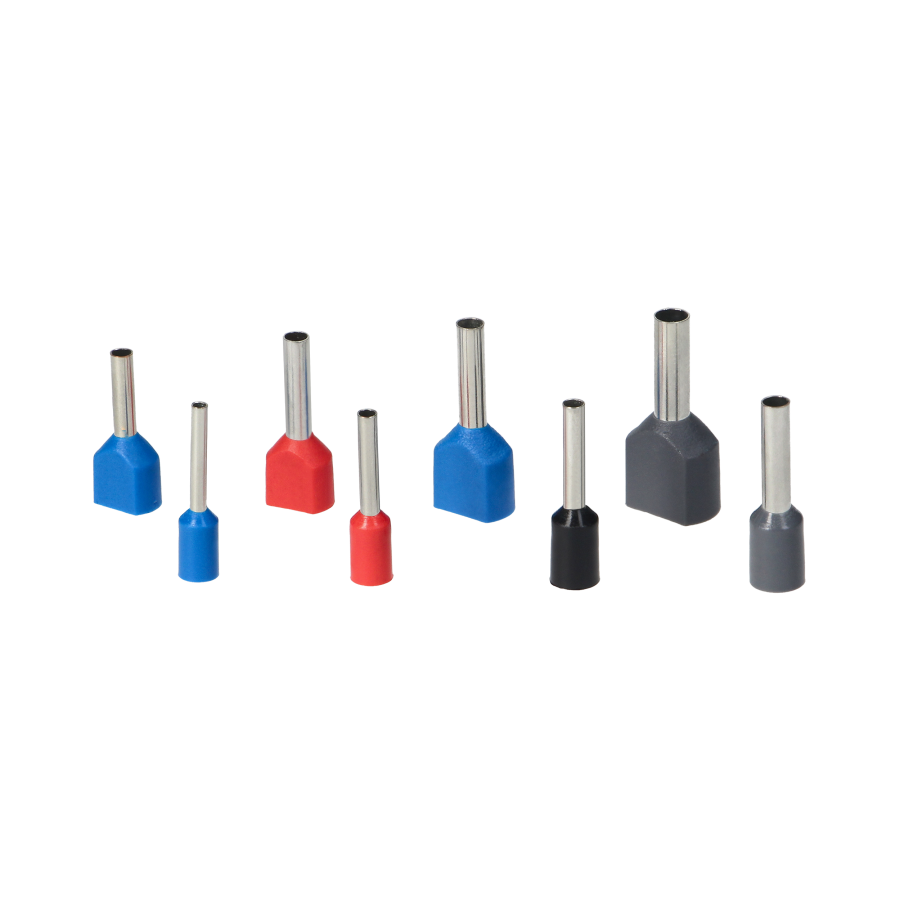

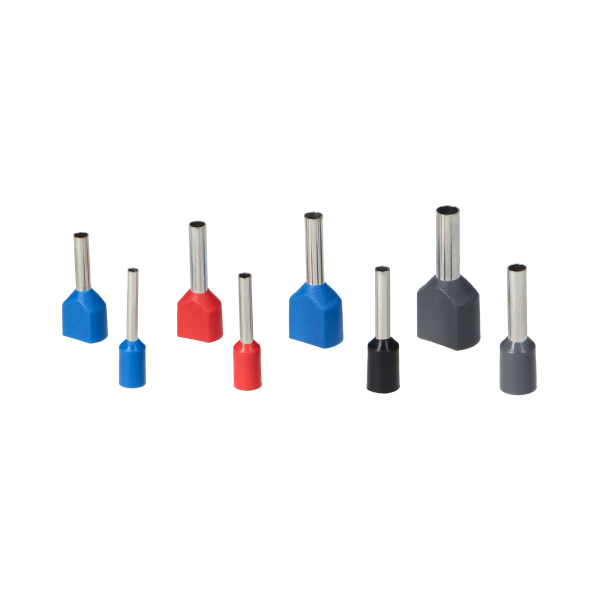

Set of insulated end terminals that can be clenched on cable ends.Tube terminals help to join cables in a neat and fixed manner. Thanks to the use of end terminals, stranded wires can be entered to push-in connectors and they help to increase the quality of screw connection. The set includes 350 elements – single tube terminals: 0.75mm x 2.10mm - 80 pcs; 1mm2 x 10mm: 70 pcs; 1.5mm2 x 10mm: 60 pcs; 2.5mm2 x 10mm: 50 pcs and double tube terminals: 0.75mm2 x 8mm: 30 pcs; 1mm2 x 10mm: 25 pcs; 1.5mm2 x 10mm: 20 pcs; 2.5mm2 x 10mm: 15 pcs.

General information:
Wire cross-section: 0,75 - 2,5 mm²
Compliance with standards: EN 60352-2:2014
Contacts material: tinned copper (100%)
UV radiation resistance: No
Material housing: PP

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:13:26Download
Product data sheetENpdf2024-07-17 10:21:18Download
