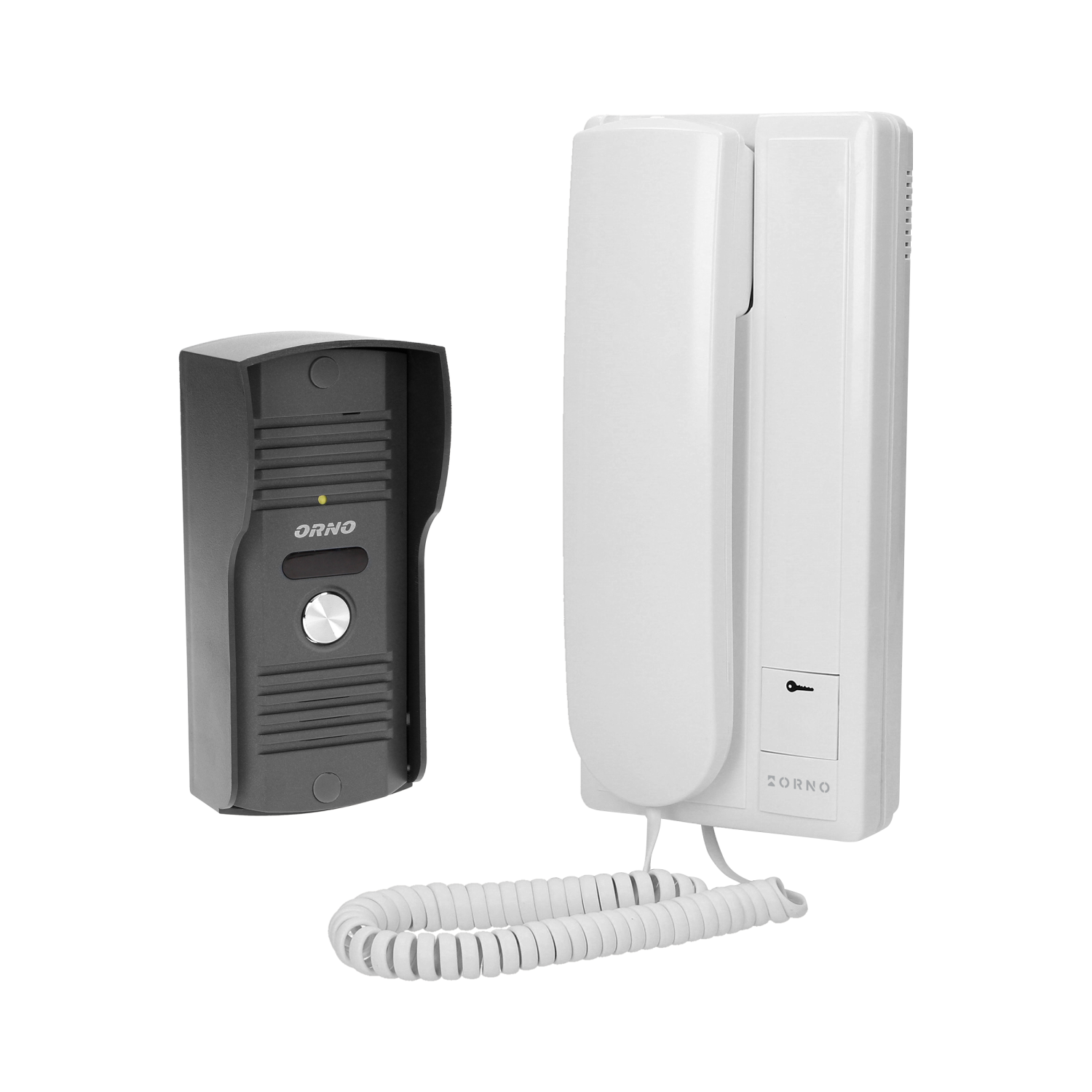

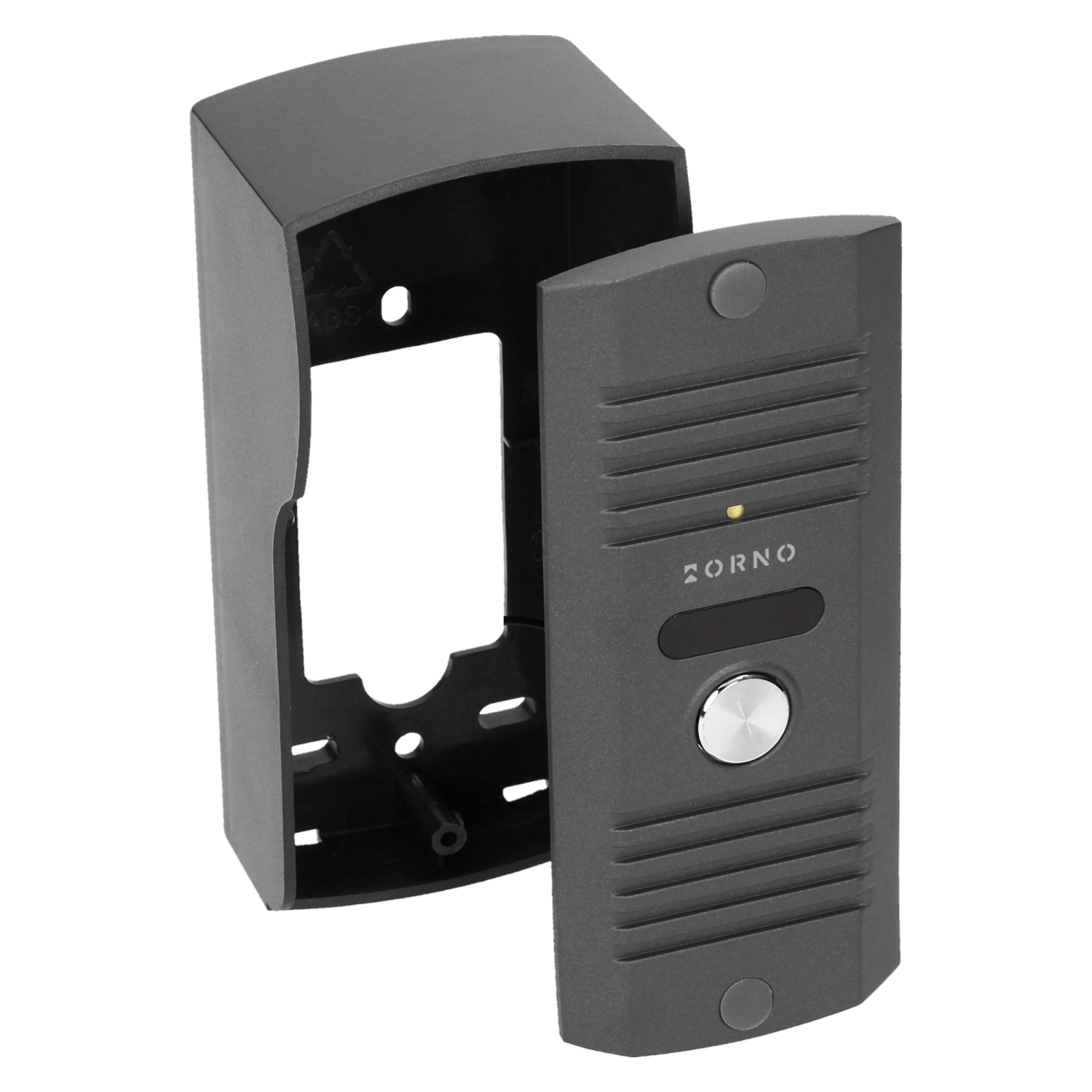

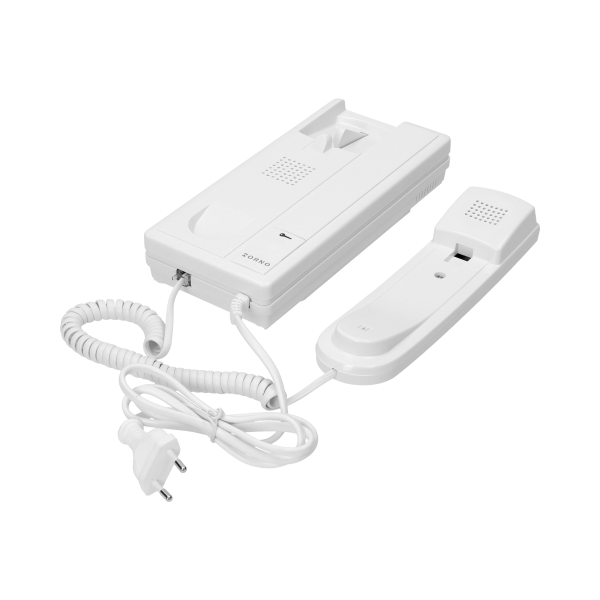

External panel can be flush or surface mounted (after usage of the protective rain cover) The duplex transmission allows trouble-free conversation Classic and elegant uniphone equipped with a handset Direct control of an electric strike without any additional transformer Energy efficient Each uniphone is protected by a fuse.
| General information: |
|---|
| Type: | jednorodzinny |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage [V]: | 230V AC |
| Type of transmission: | przewodowy |
| Installation technique: | System wieloprzewodowy |

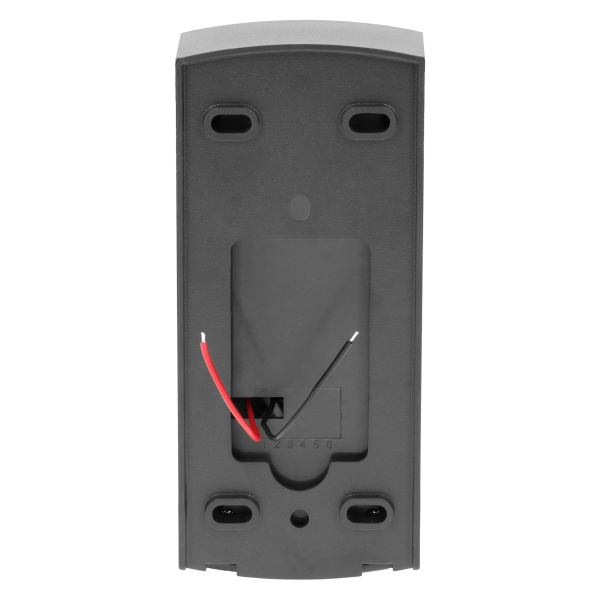

| Number of wires (*from outdoor station to electric strike): | 4 |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 1+n |
| Expandable to max. number of outdoor stations: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| : | z unifonem |
| With automatic door opener: | nie |

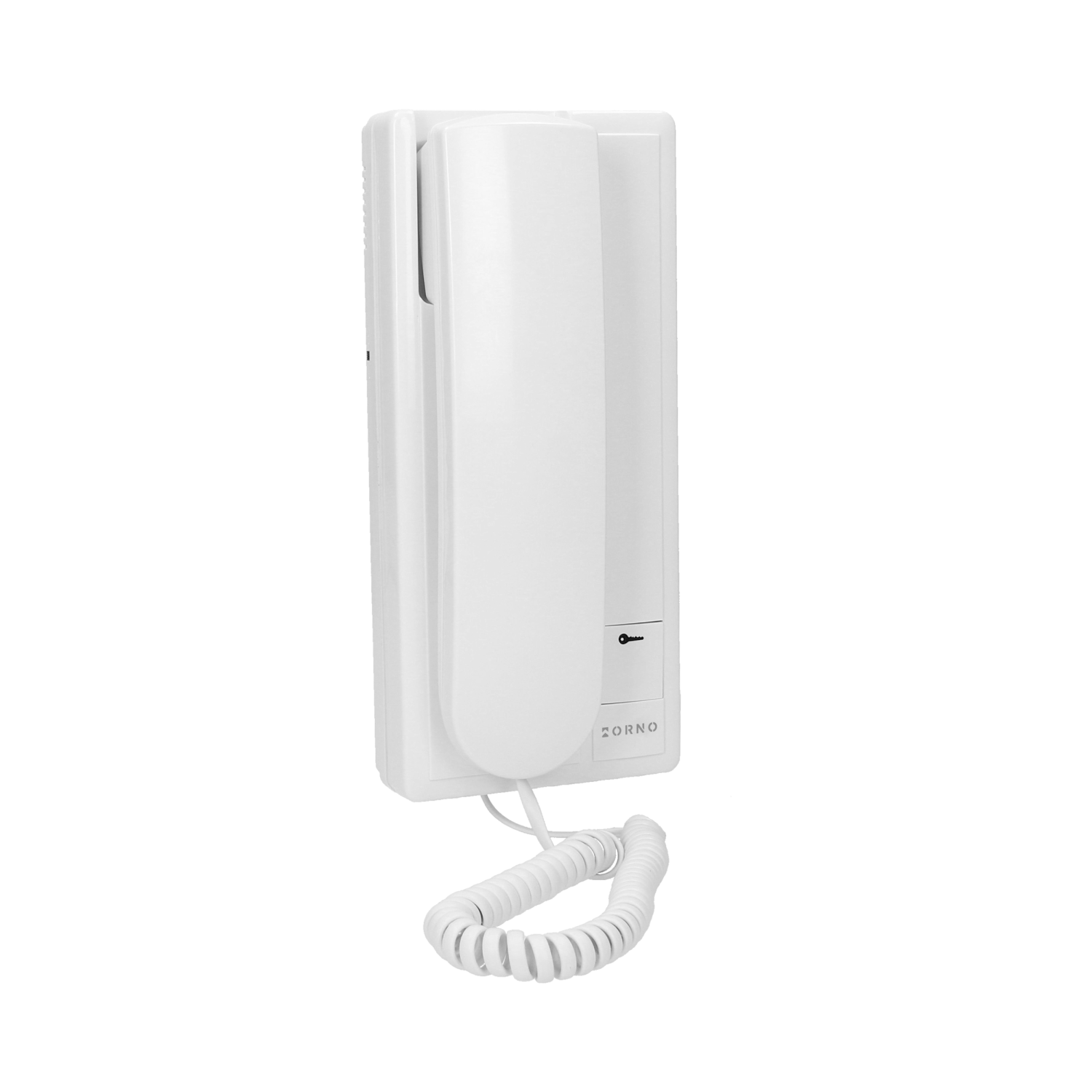

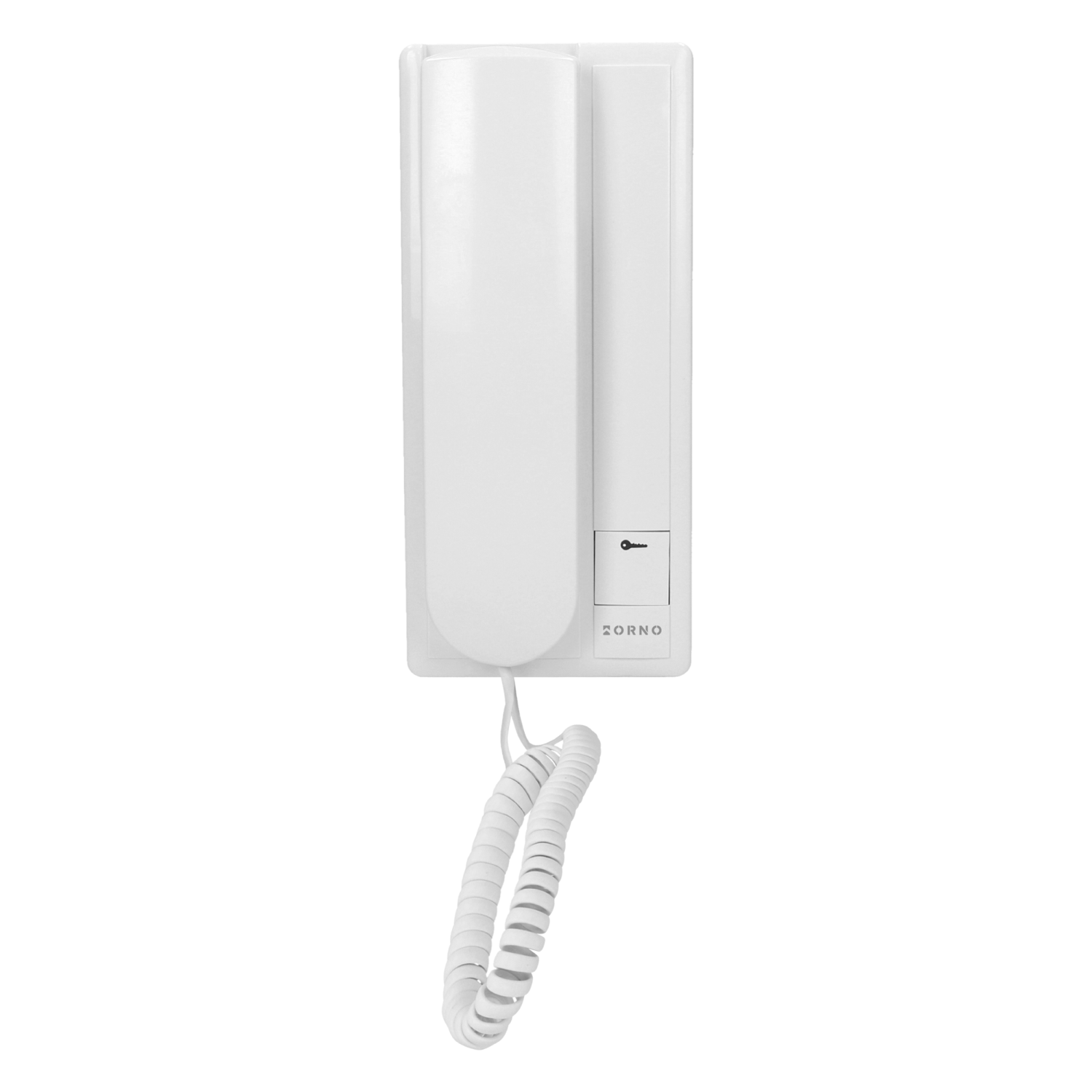

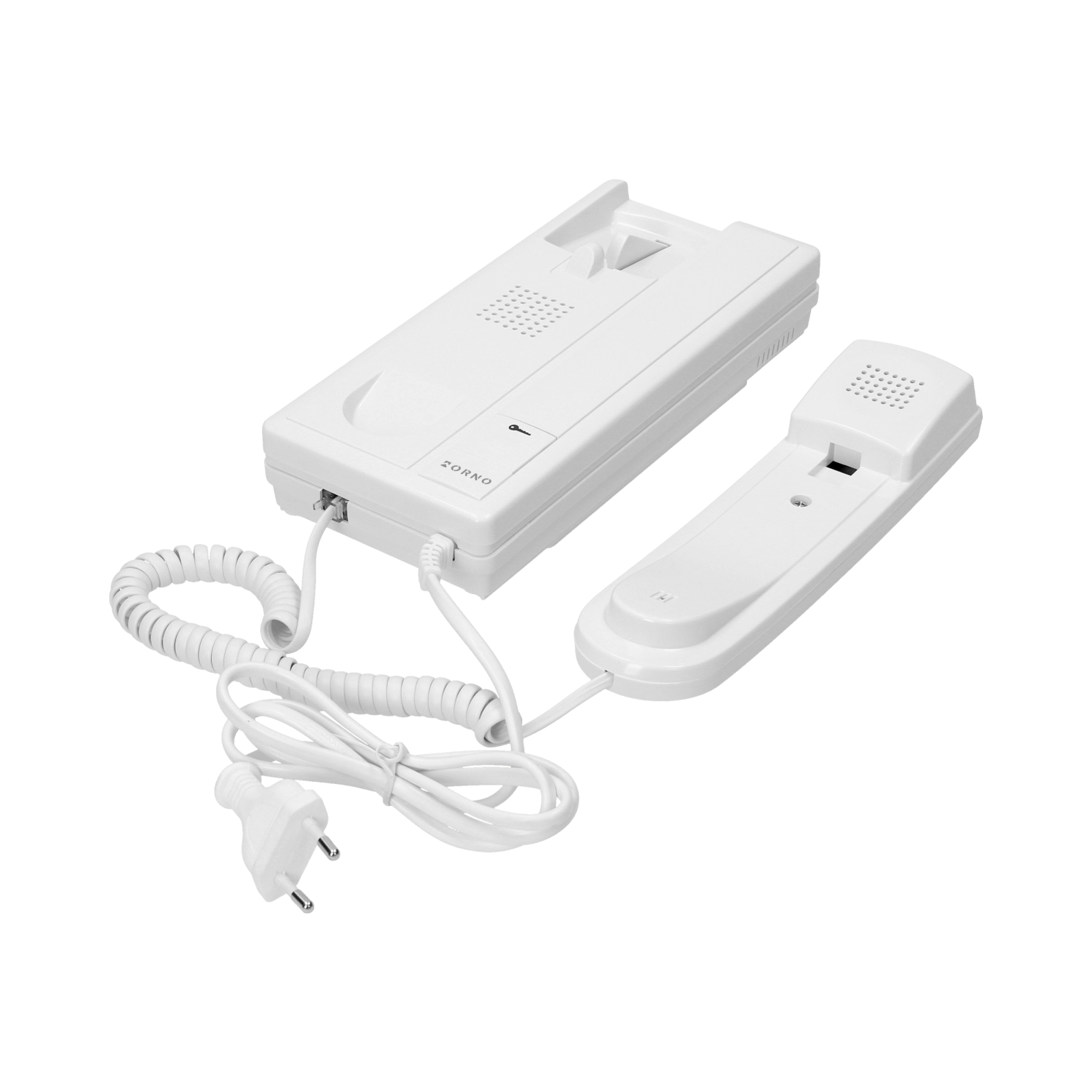

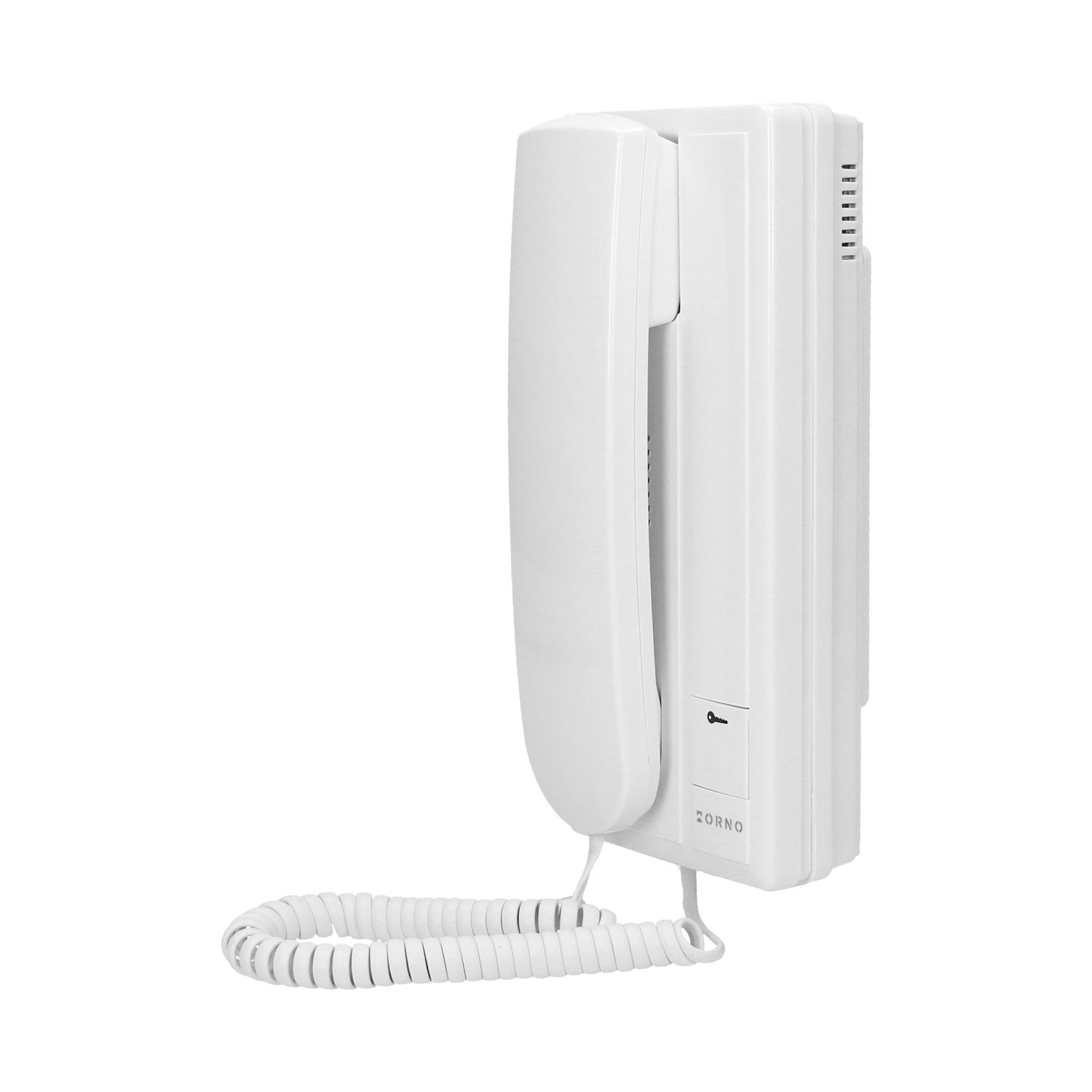

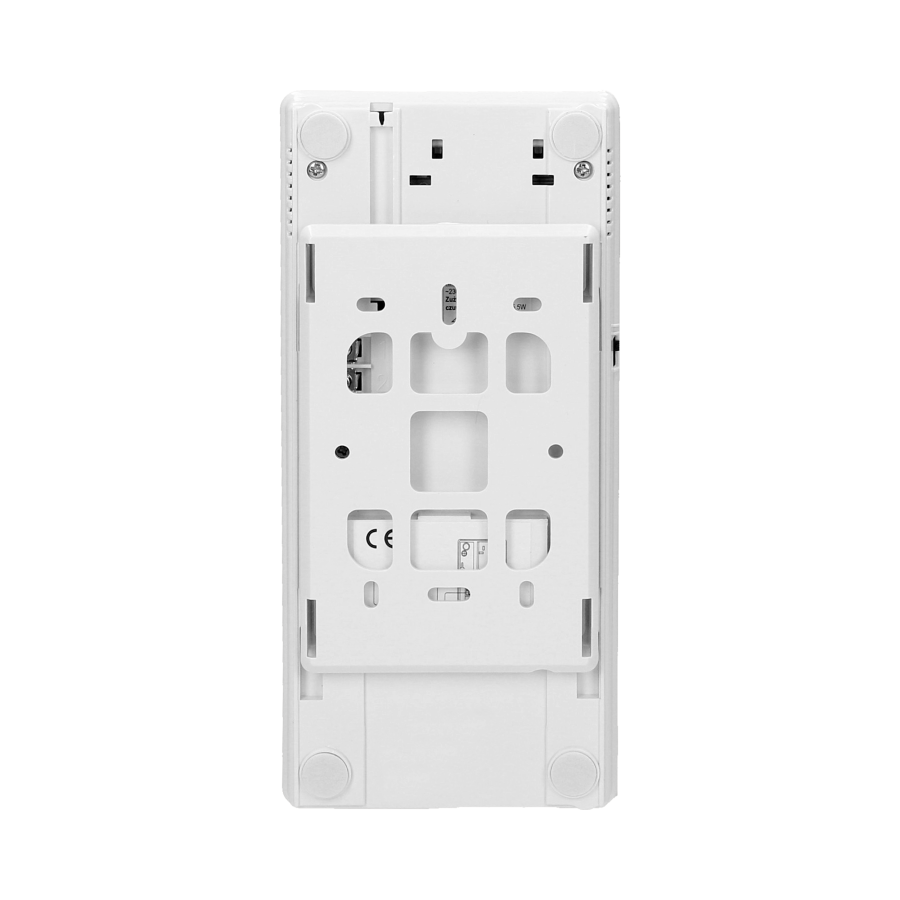

| Indoor panel: |
|---|

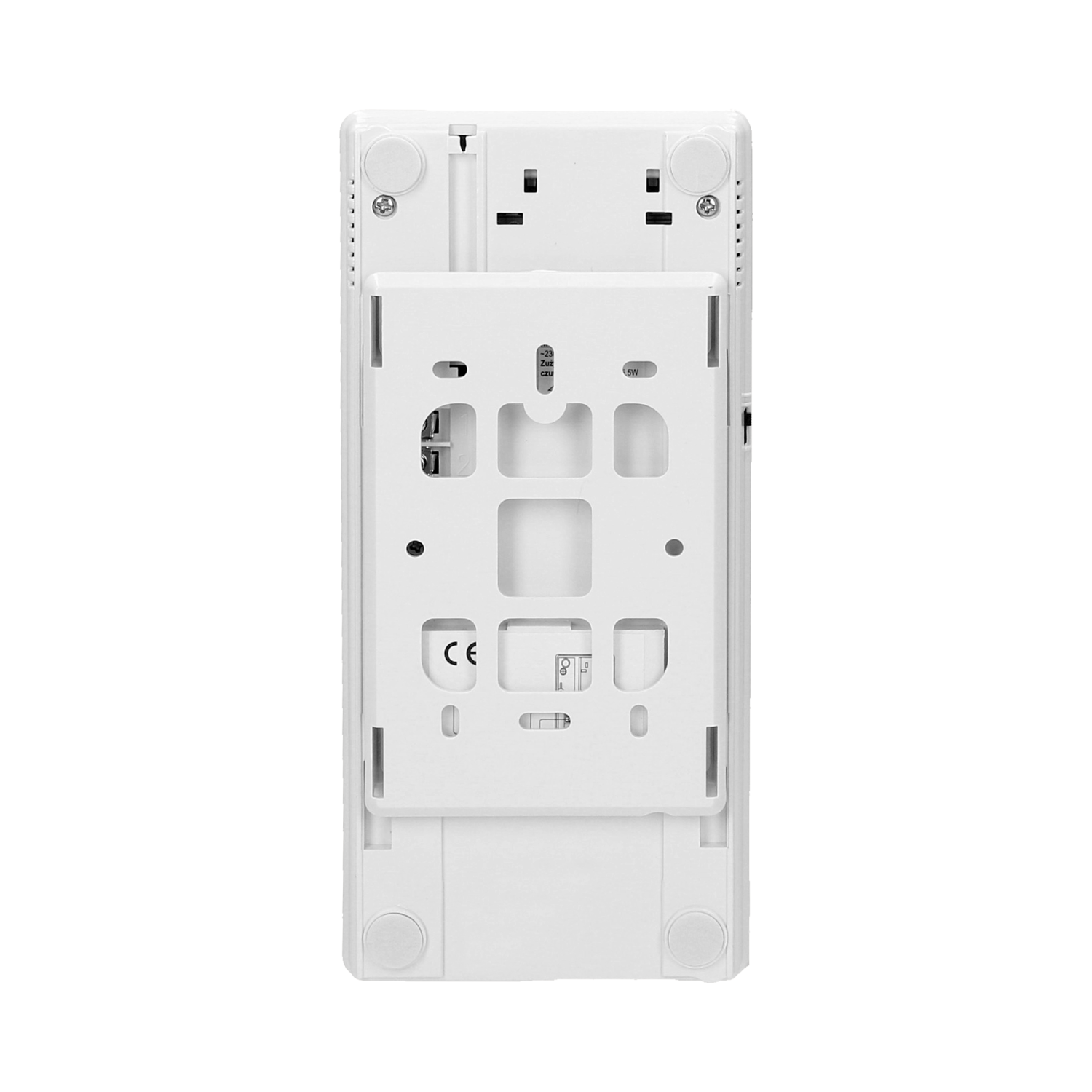

| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | nie |
| Internal communication: | nie |
| Number of ringtones: | 1 |
| Loudness control: | nie |
| Mutable call tone: | nie |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Biały |
| Width [mm]: | 98 |
| Height [mm]: | 215 |
| Depth [mm]: | 68 |

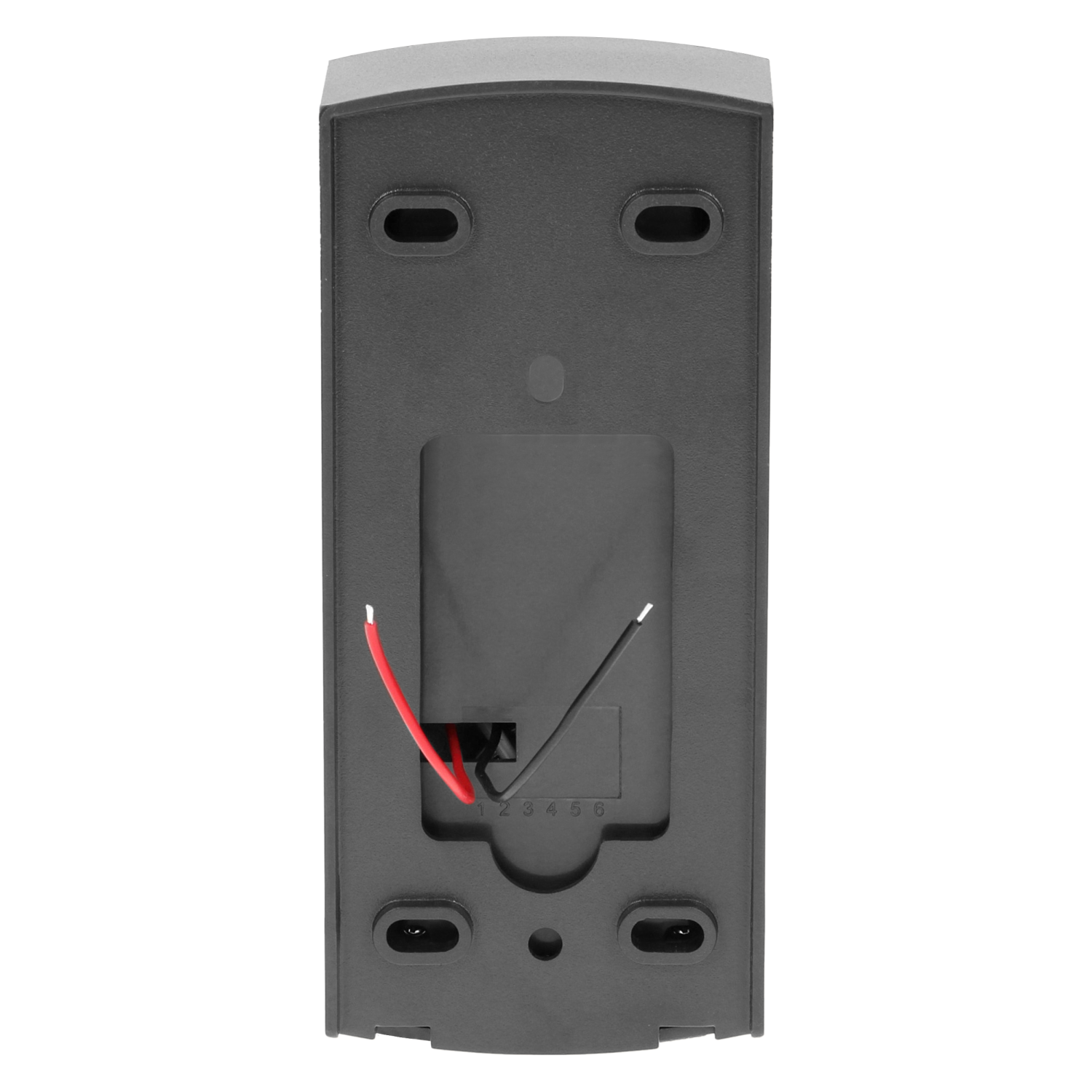

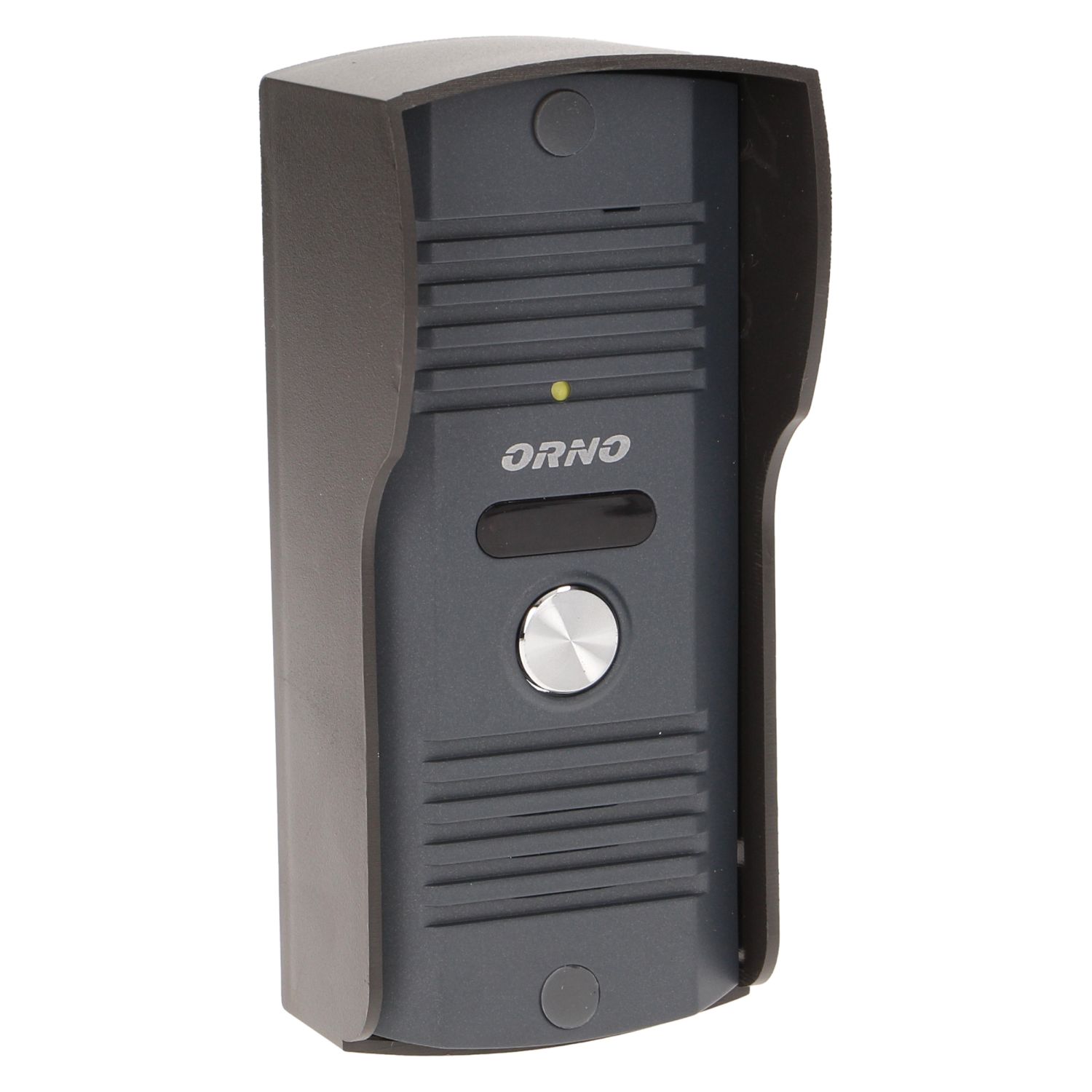

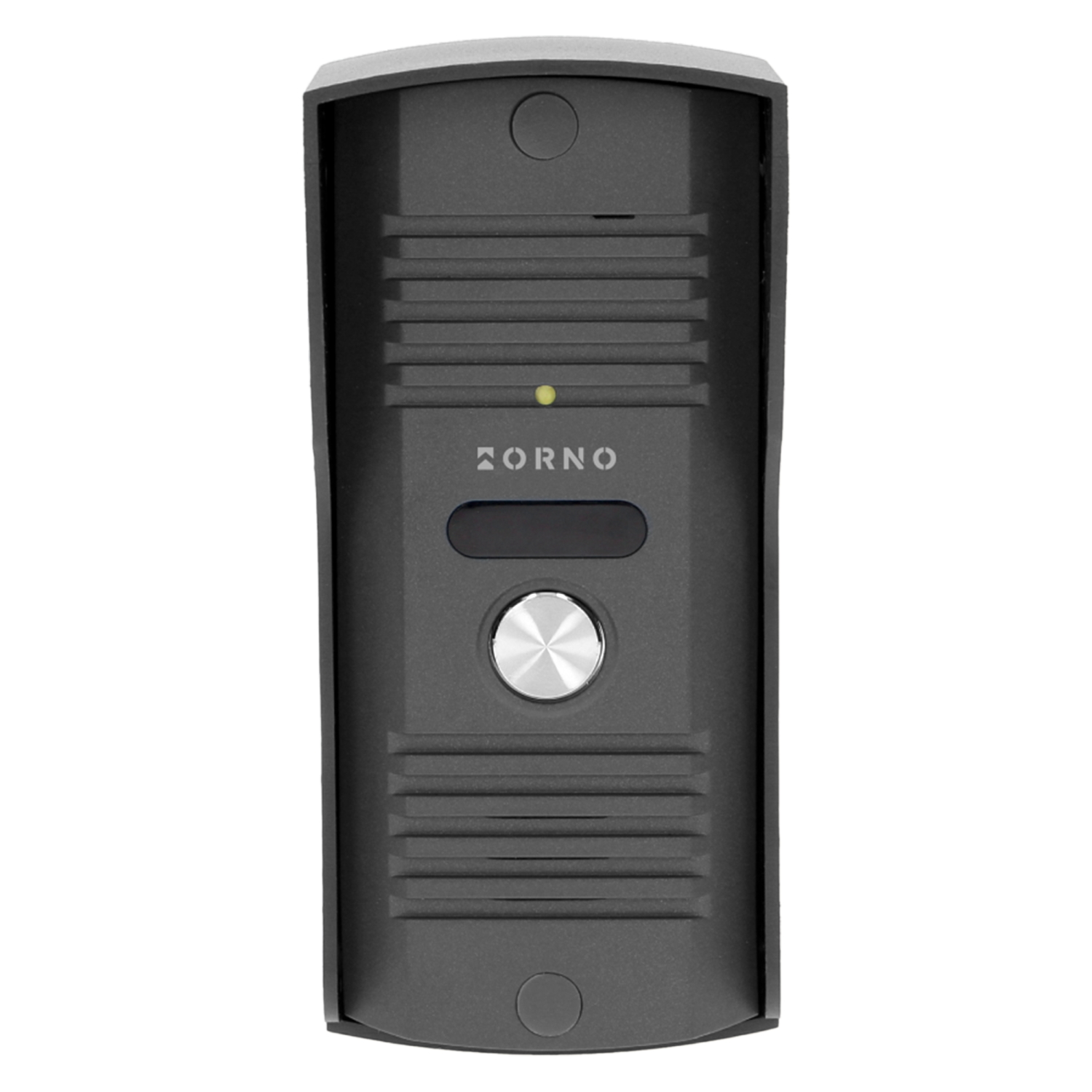

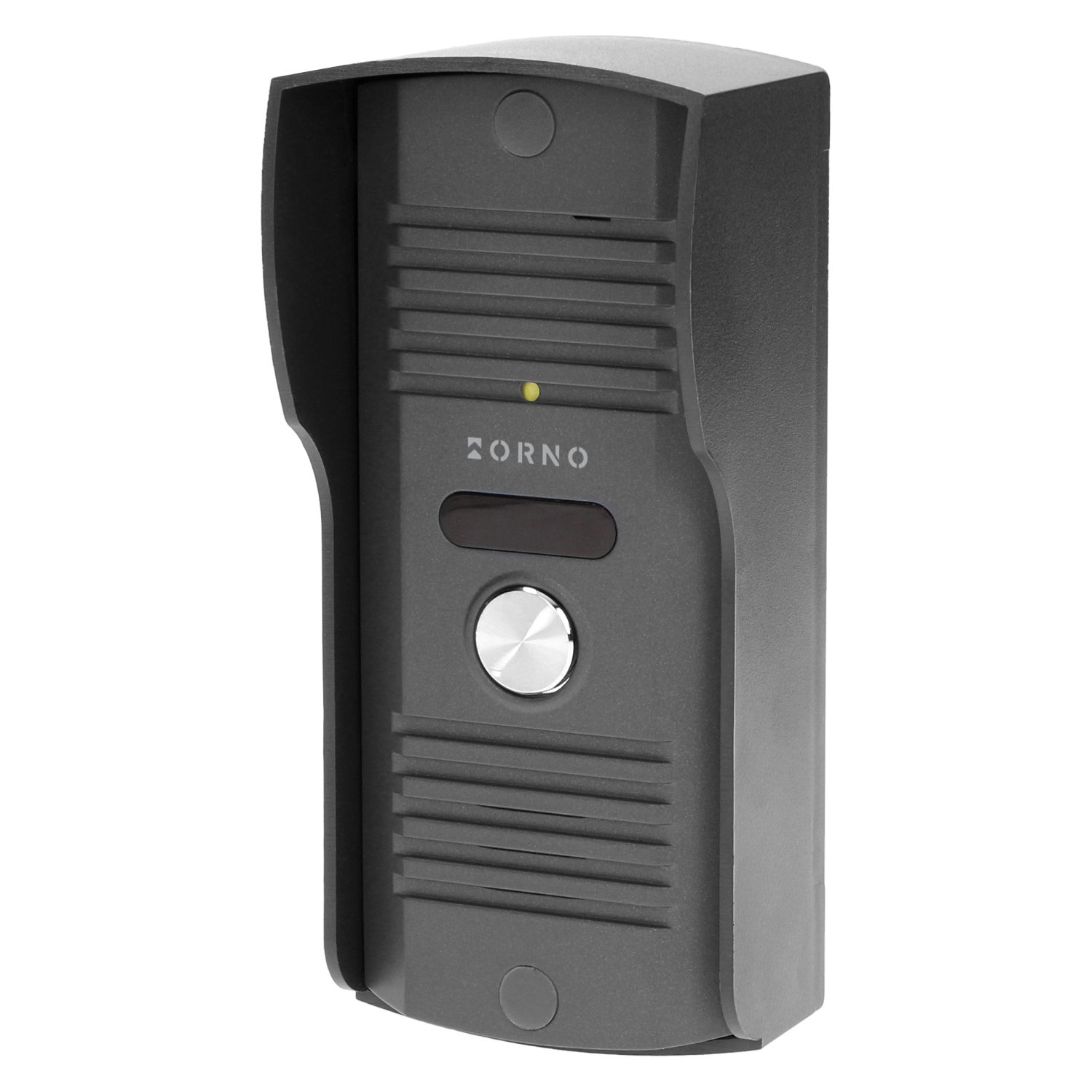

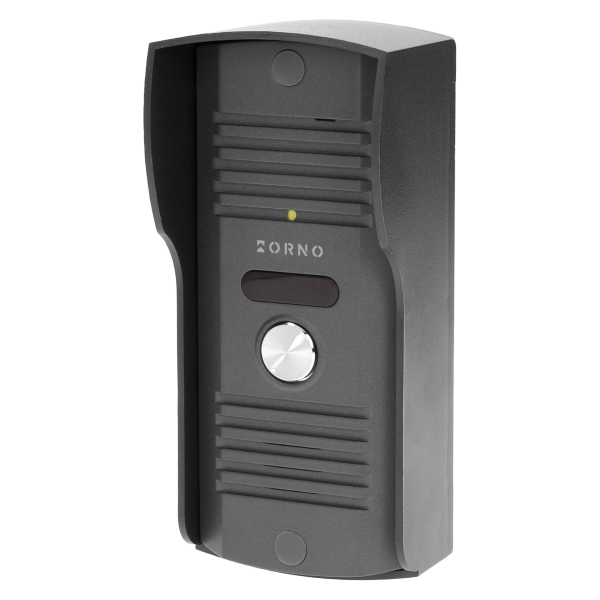

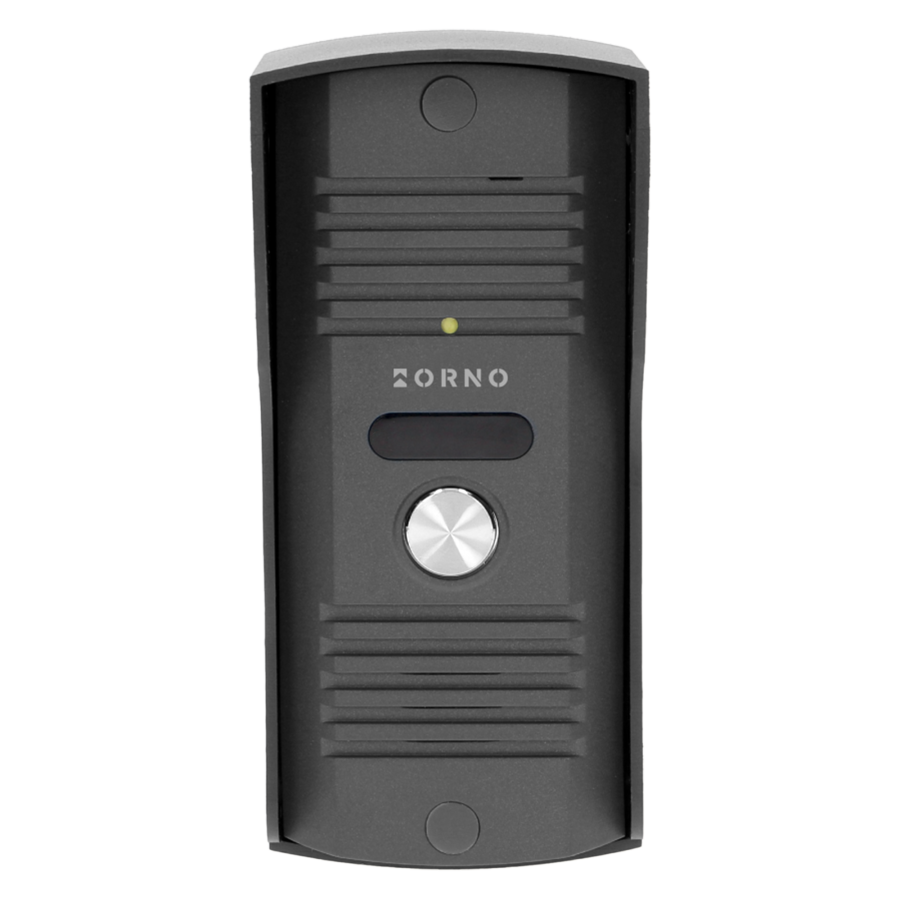

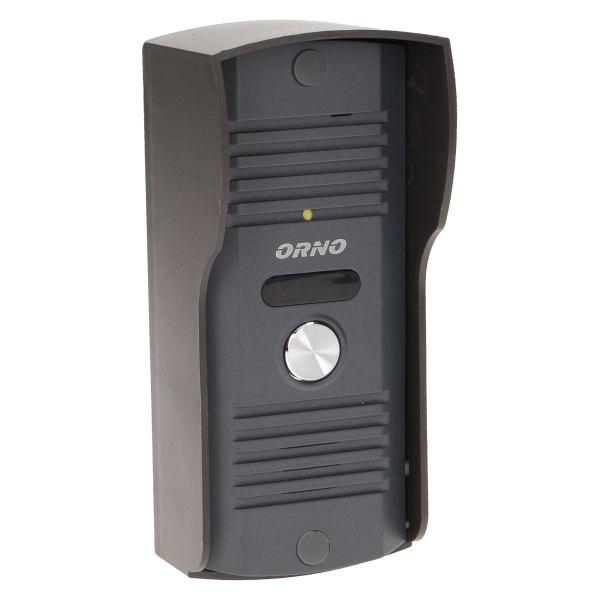

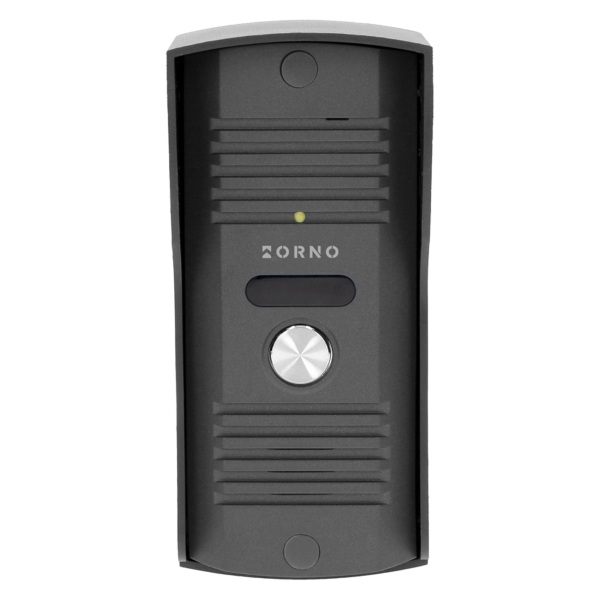

| External panel: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| With digital door code: | nie |
| Card and proximity tags reader: | nie |
| Label space/information surface: | nie |
| With cover: | nie |
| Vandal proof: | tak |
| Degree of protection (IP): | IP44 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Szary |
| Width [mm]: | 60 |
| Height [mm]: | 140 |
| Depth [mm]: | 23 |
