OR-DOM-RE-914/G

Description

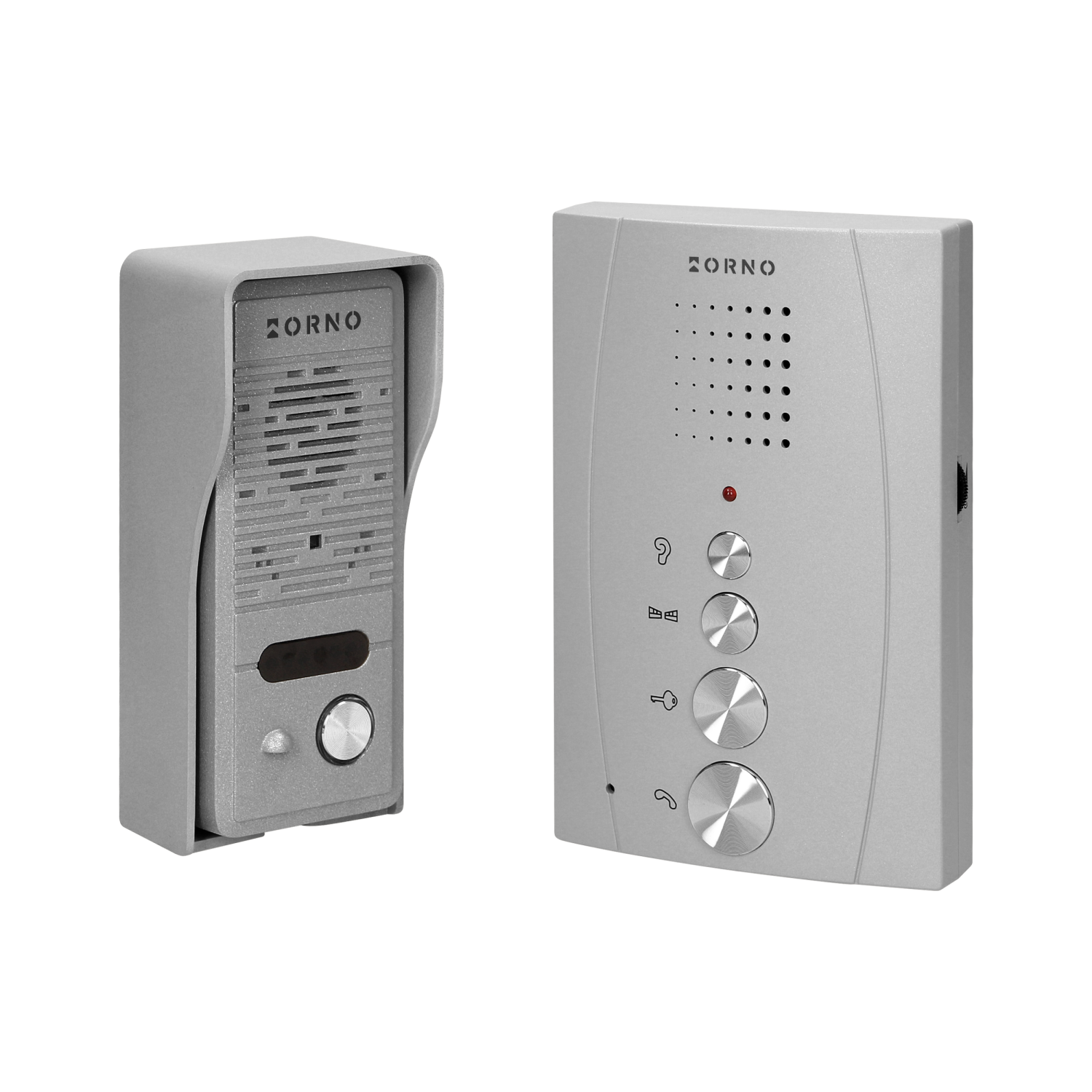

Compact external panel requires surface mounting can be also installed on narrows posts Elegant, ultra-slim and small size uniphone without handset Stepless volume adjustment and duplex transmission allow trouble-free conversation Direct control of an electric strike without any additional transformer Additional gate control function.

General information:
Type: jednorodzinny
Current supply: Zasilanie sieciowe
Nominal voltage [V]: 12V DC
Type of transmission: przewodowy
Installation technique: System wieloprzewodowy
Number of wires (*from outdoor station to electric strike): 4 (+2)*
Number of indoor stations: 1
Number of outdoor stations: 1
Expandable to max. number of indoor stations: 1
Expandable to max. number of outdoor stations: 1
Operation door lock: tak
Current supply of the electric strike: dodatkowy zasilacz niewymagany
: z panelem zewnętrznym
With automatic door opener: tak

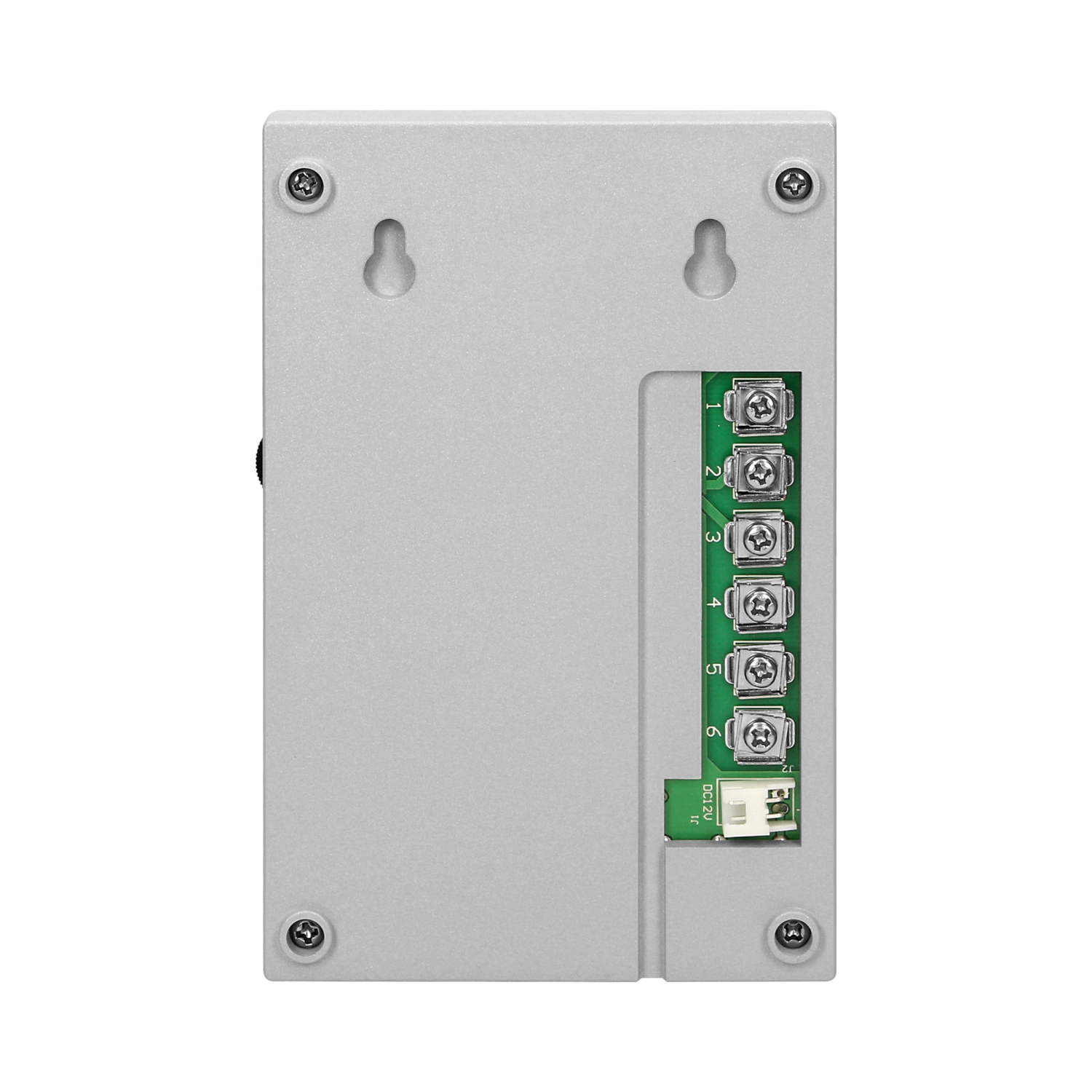

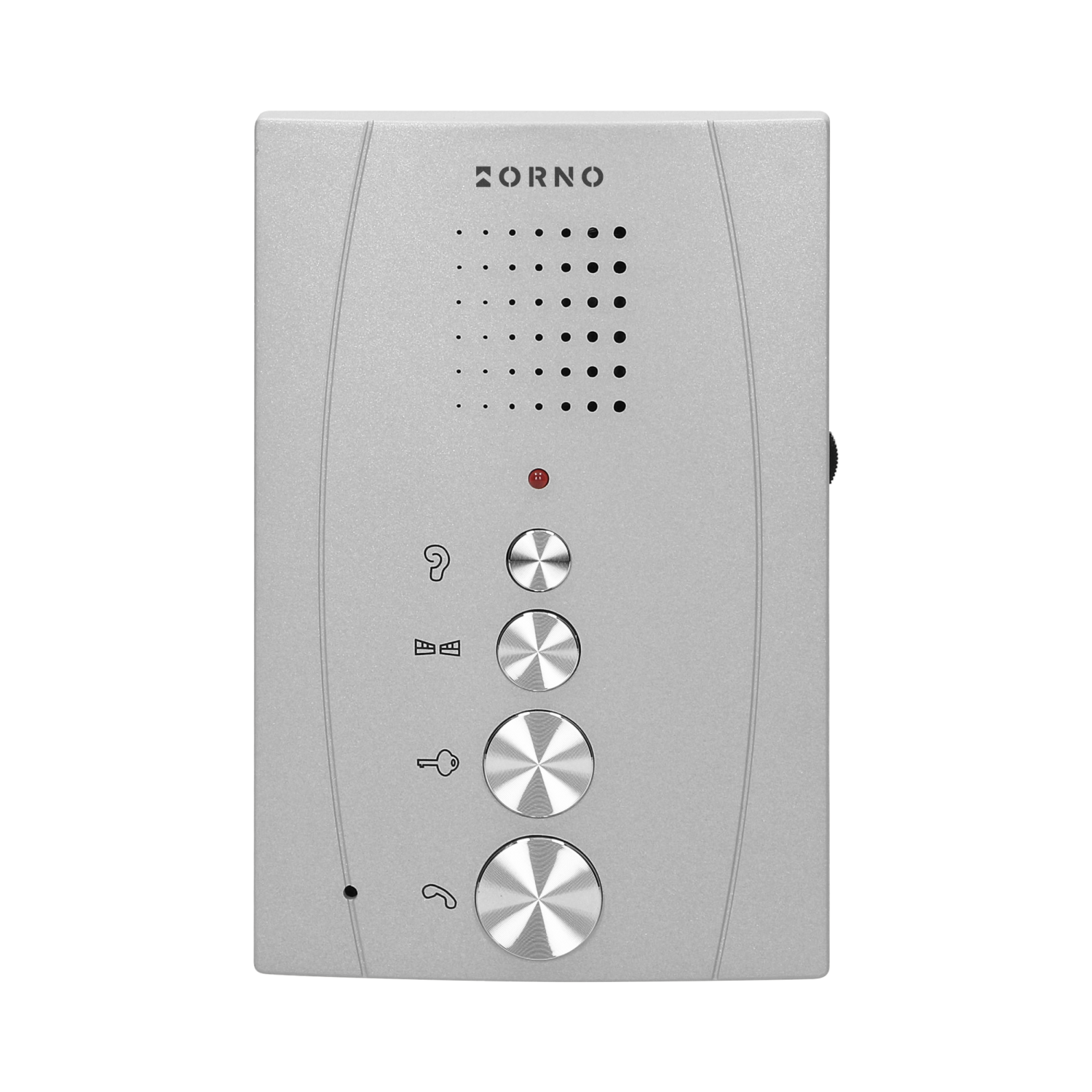

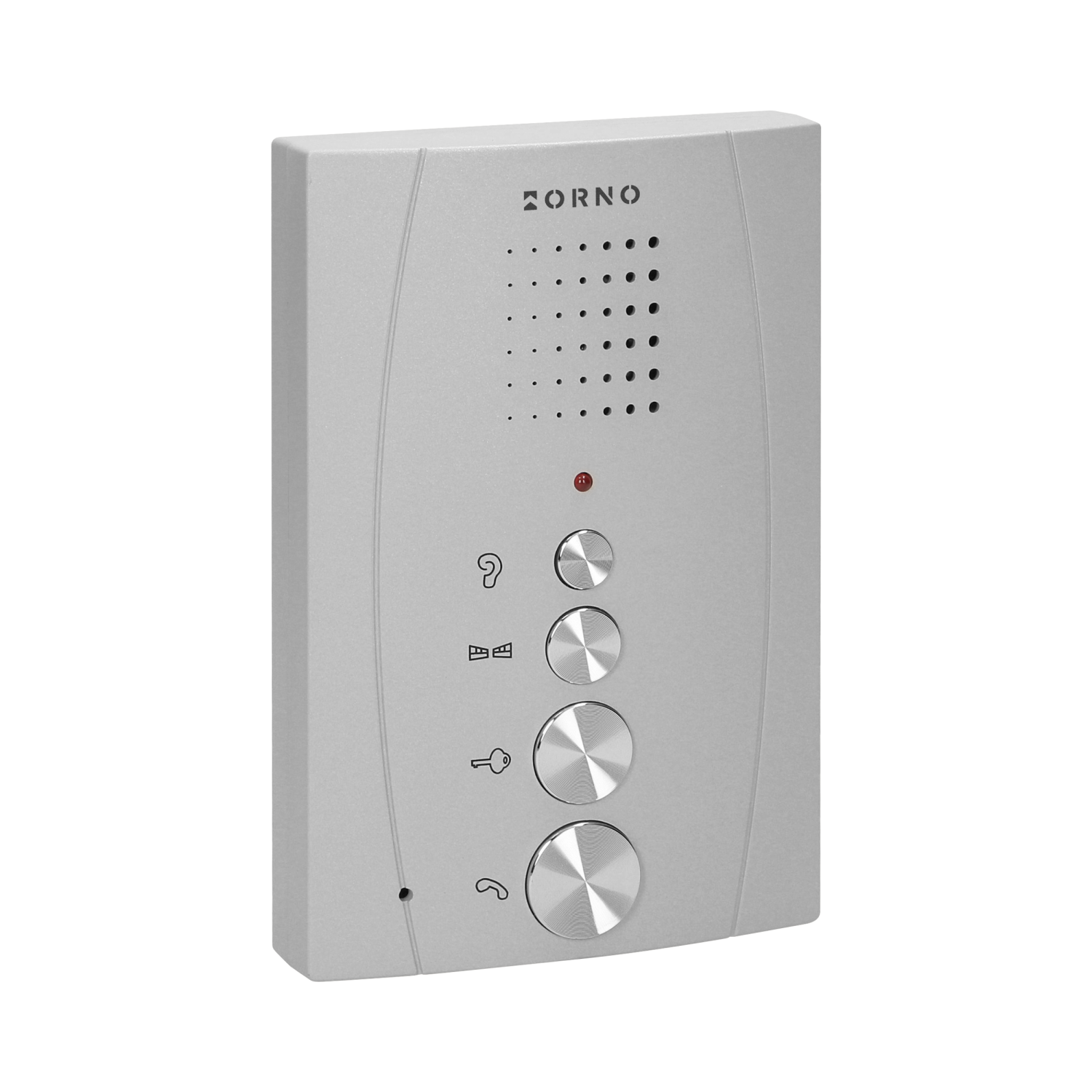

Indoor panel:
Mounting method indoor station: Montaż natynkowy
Hands free: tak
Internal communication: nie
Number of ringtones: 1
Loudness control: tak
Mutable call tone: nie
Material indoor station: Tworzywo sztuczne
Colour indoor station: Szary
Width [mm]: 90
Height [mm]: 137
Depth [mm]: 26
Other features: dyskretny podsłuch

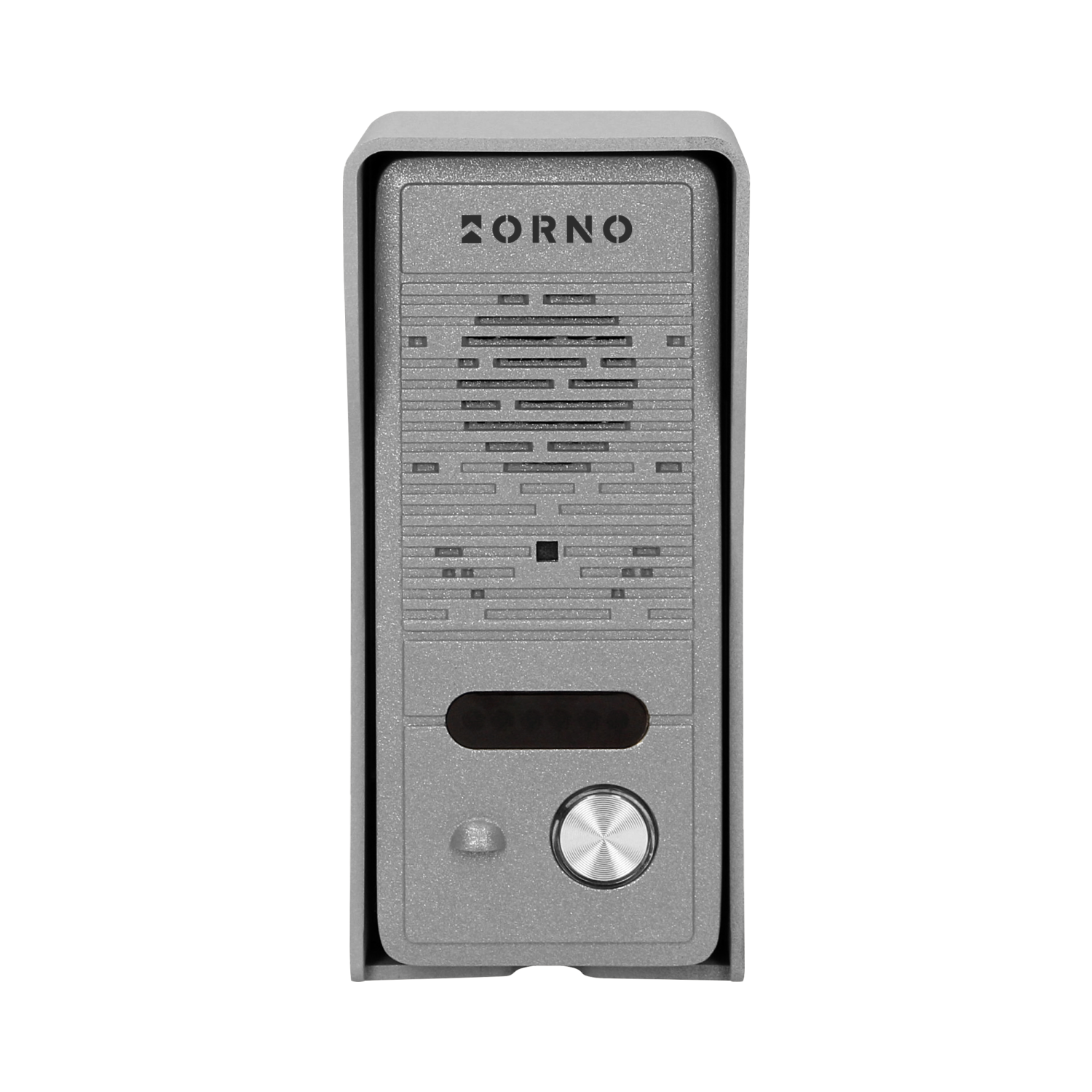

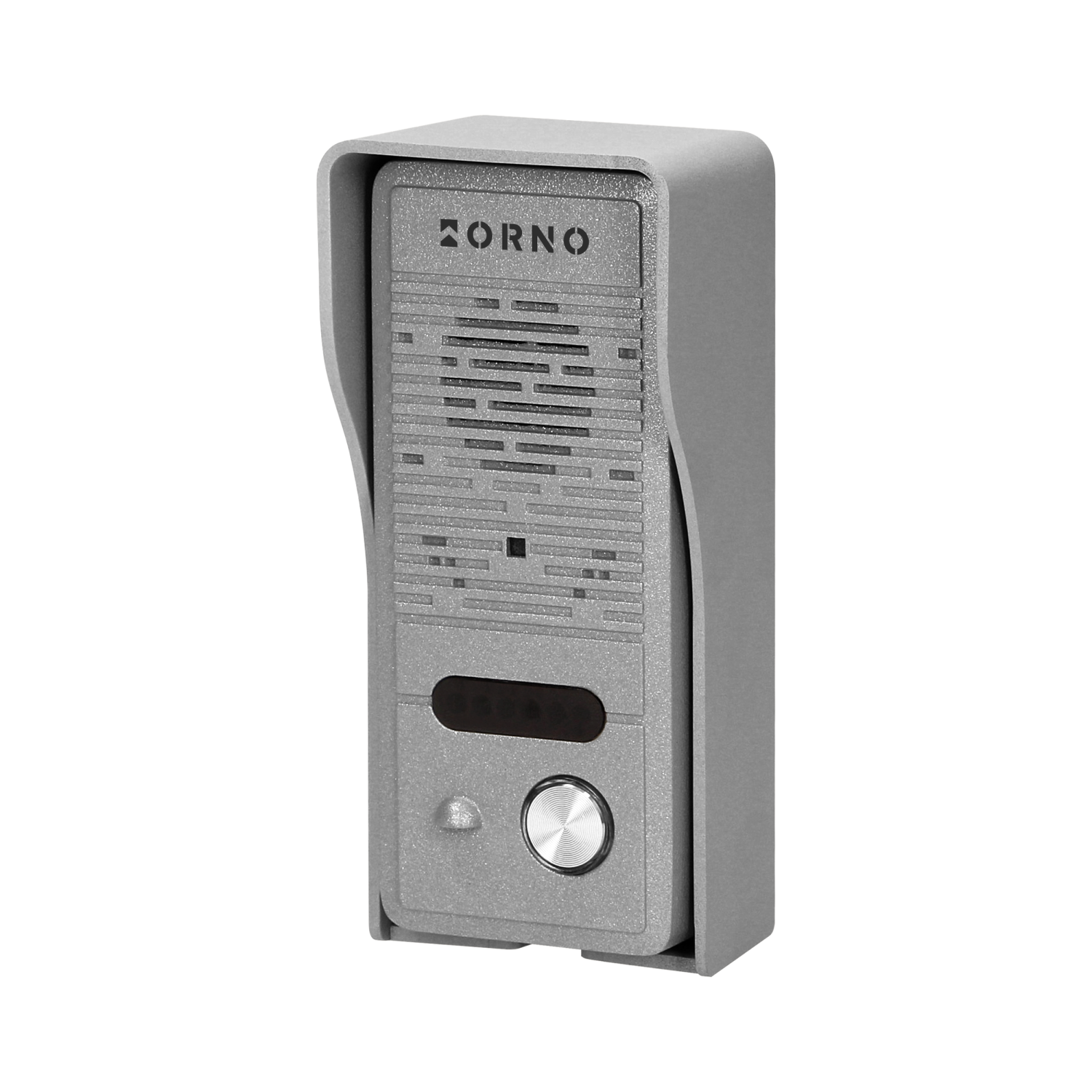

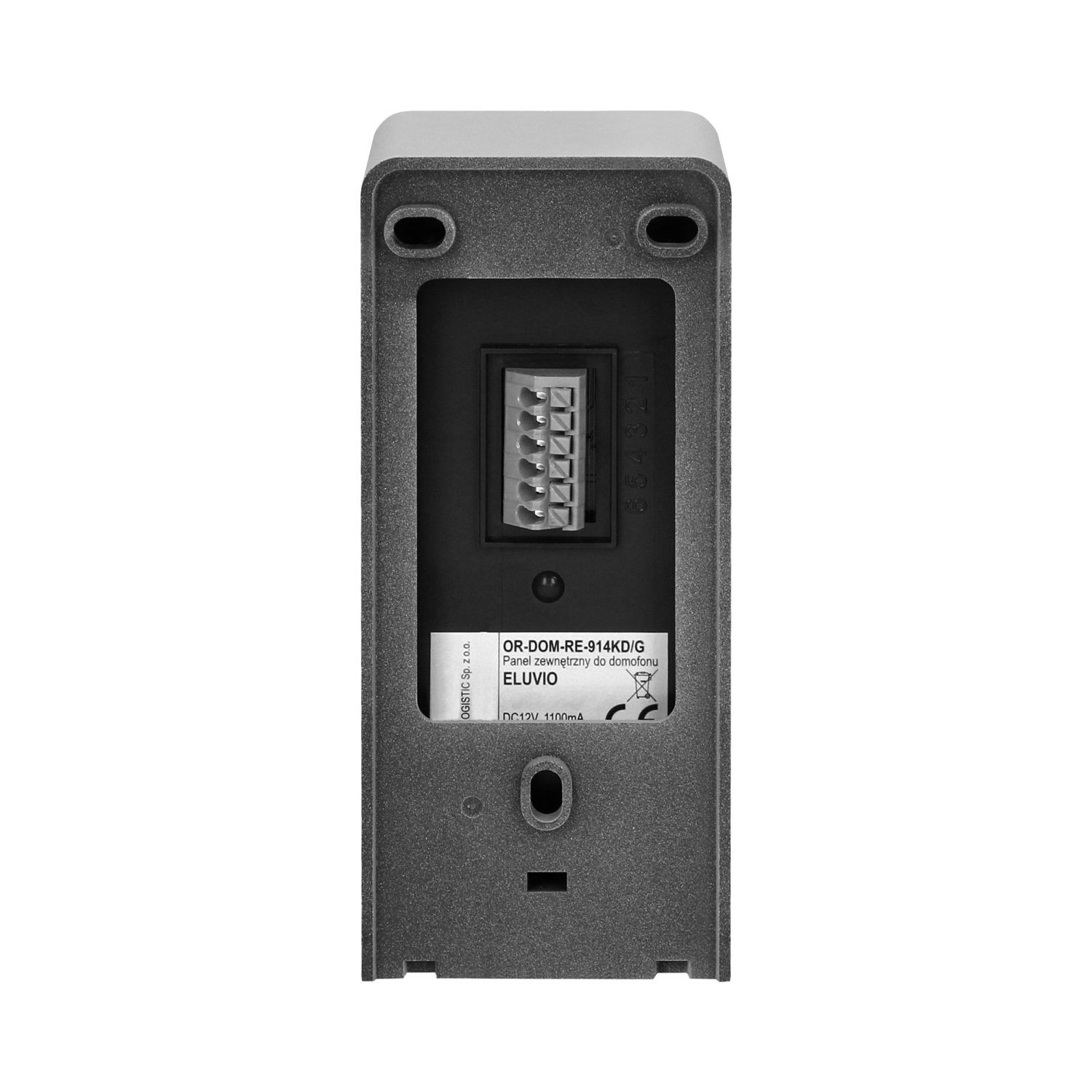

External panel:
Number of call buttons: 1
Mounting method outdoor station: Montaż natynkowy
With digital door code: nie
Card and proximity tags reader: nie
Label space/information surface: tak
With cover: tak
Degree of protection (IP): IP44
Material outdoor station: Aluminium
Colour outdoor station: Szary
Width [mm]: 56
Height [mm]: 124
Depth [mm]: 41.5

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:12:40Download
Product data sheetENpdf2024-07-17 10:20:41Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
User manualMEpdf2024-03-14 10:39:51Download
User manualPTpdf2024-03-14 10:39:51Download
