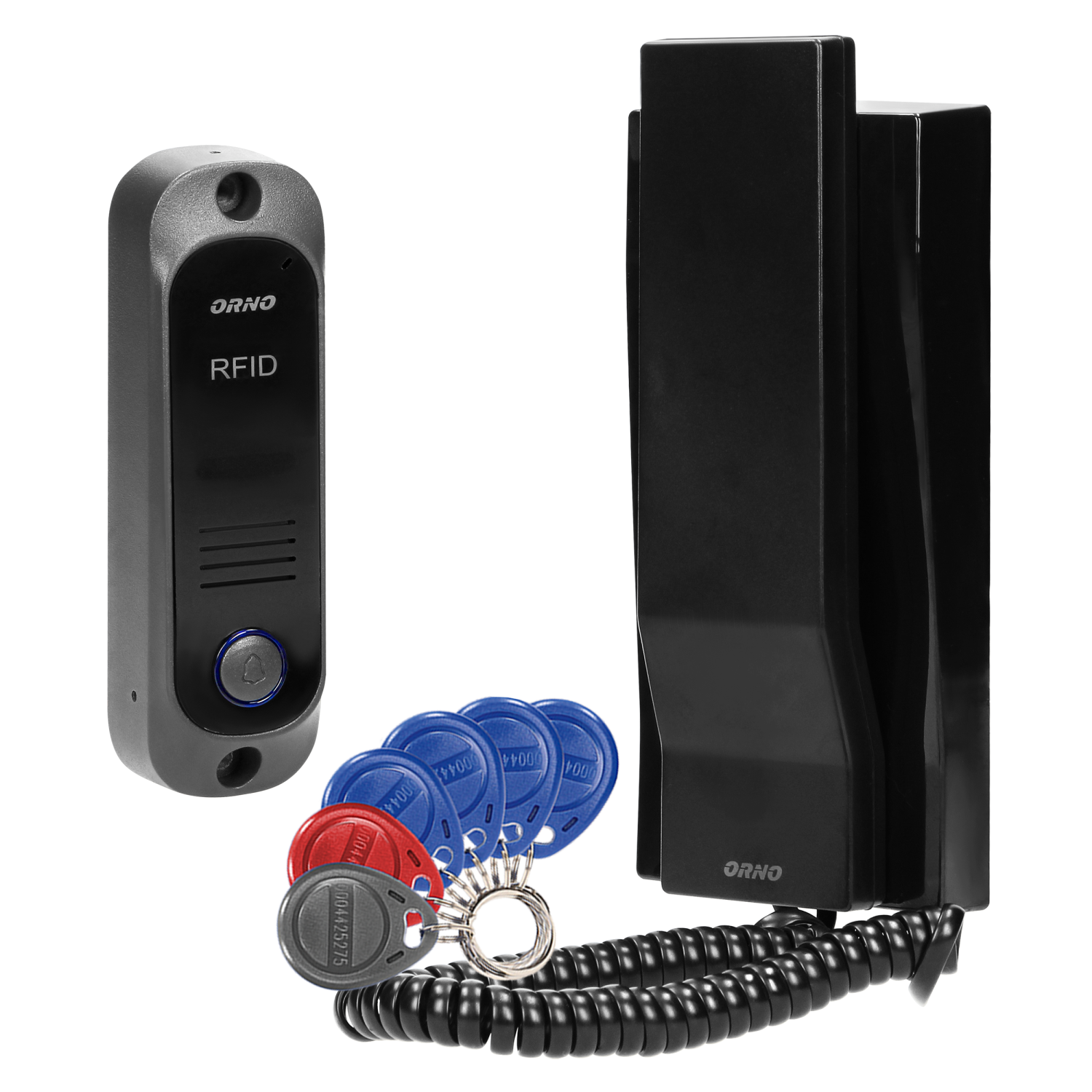

AVIOR single-family doorphone set includes a small-sized external panel, which is perfect for mounting on narrow posts, and an elegant uniphone that suits every interior. The set can be expanded with an additional outdoor panel and an additional uniphone, which enables internal communication (intercom) between two uniphones. It also supports remote communication and access control from different places around your house. Installation of the device is intuitive and easy, thus can be done by the users themselves. The set enables easy door-lock opening with a proximity tag, and has an additional button on the uniphone to open the automatic gate.
| General information: |
|---|
| Type: | jednorodzinny |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage [V]: | 13,5V DC |
| Type of transmission: | przewodowy |
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): | 3 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 2 |
| Expandable to max. number of outdoor stations: | 2 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| : | z panelem zewnętrznym |
| With automatic door opener: | tak |

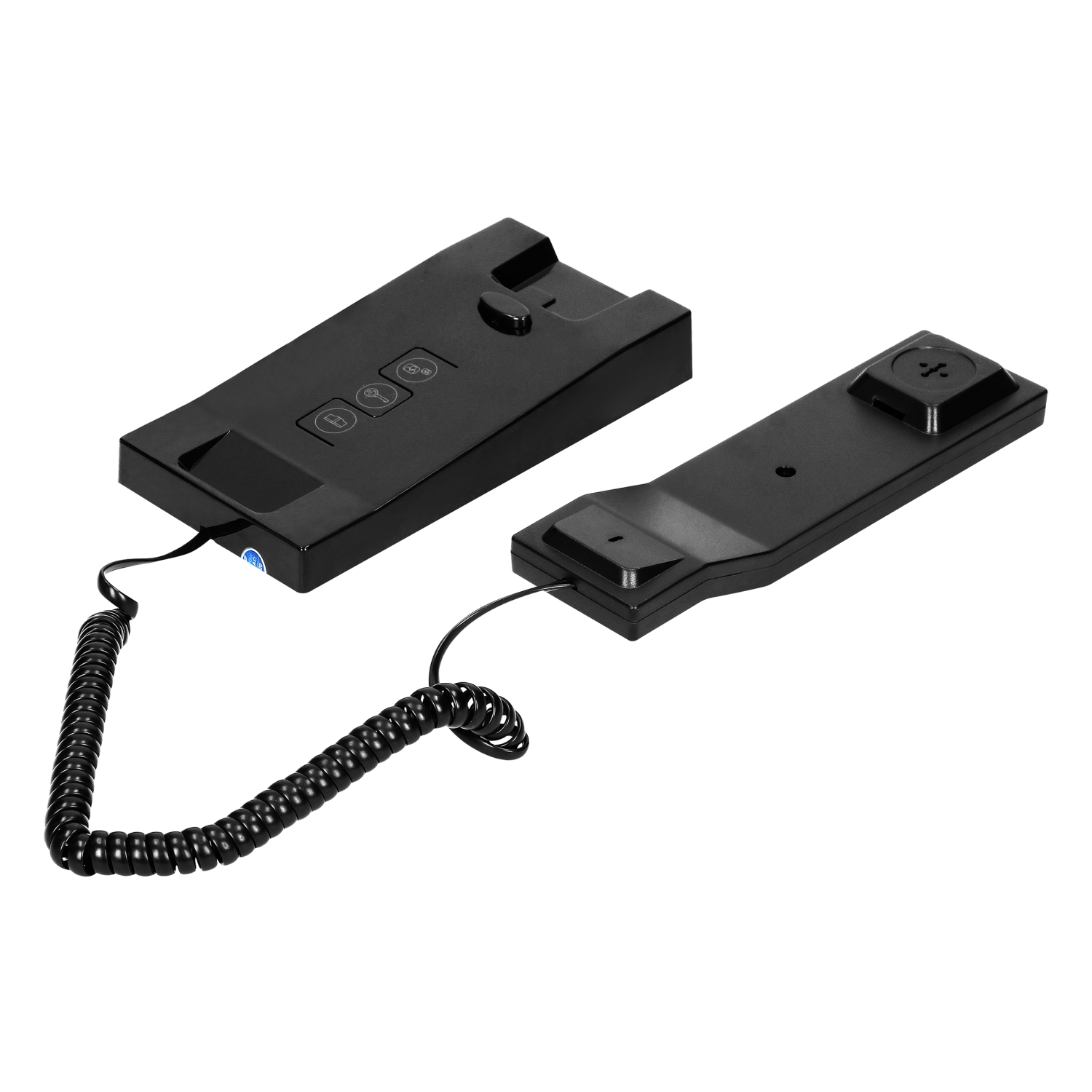

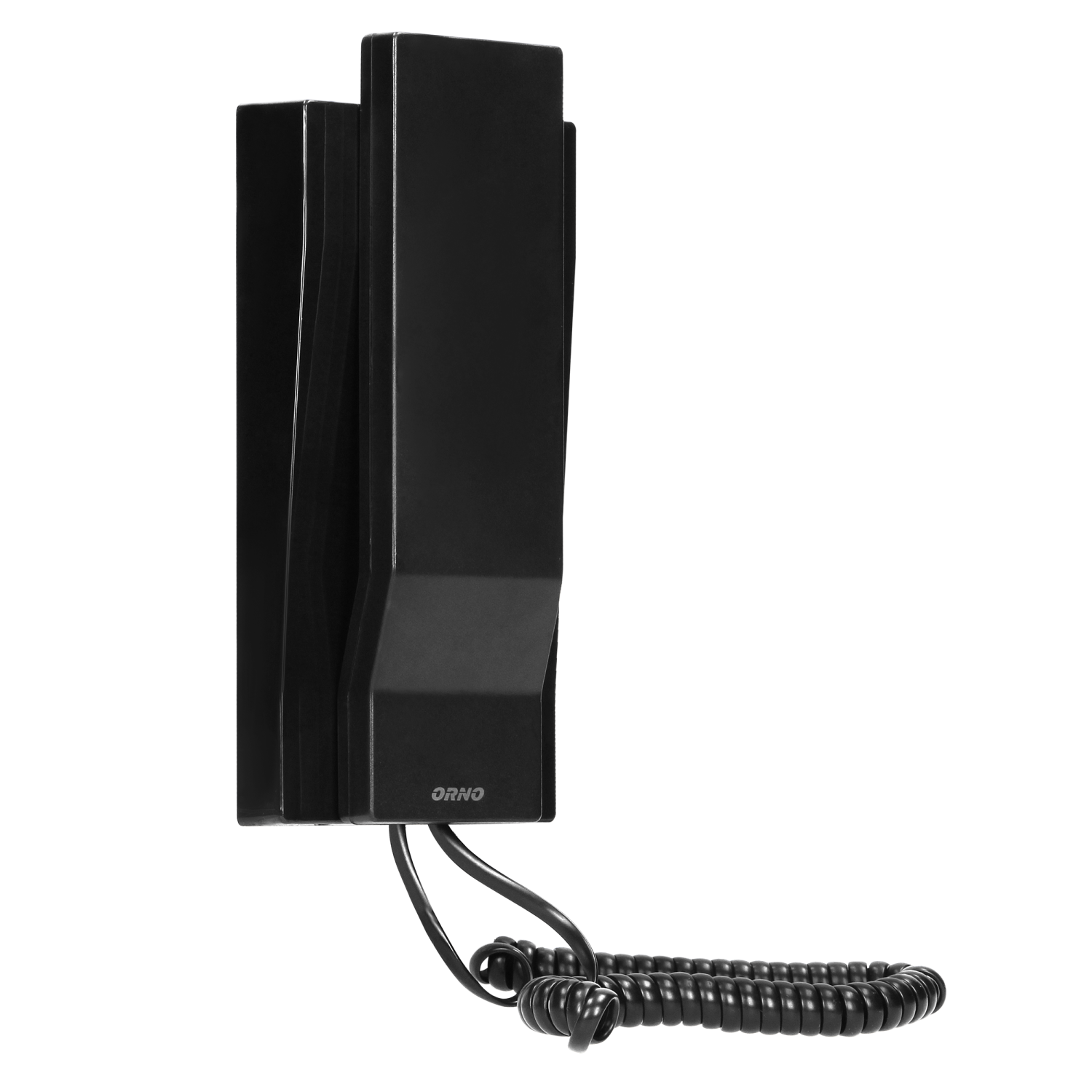

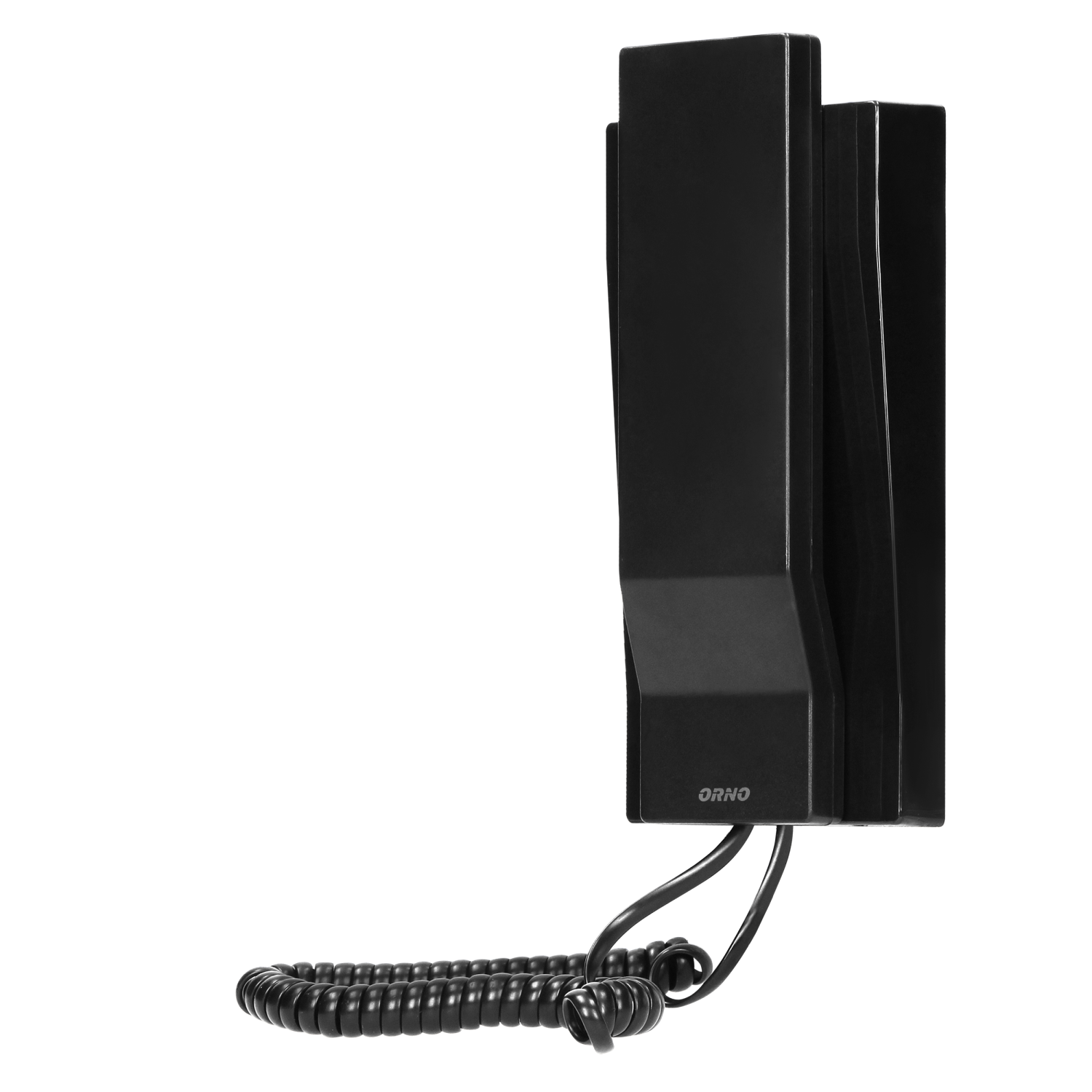

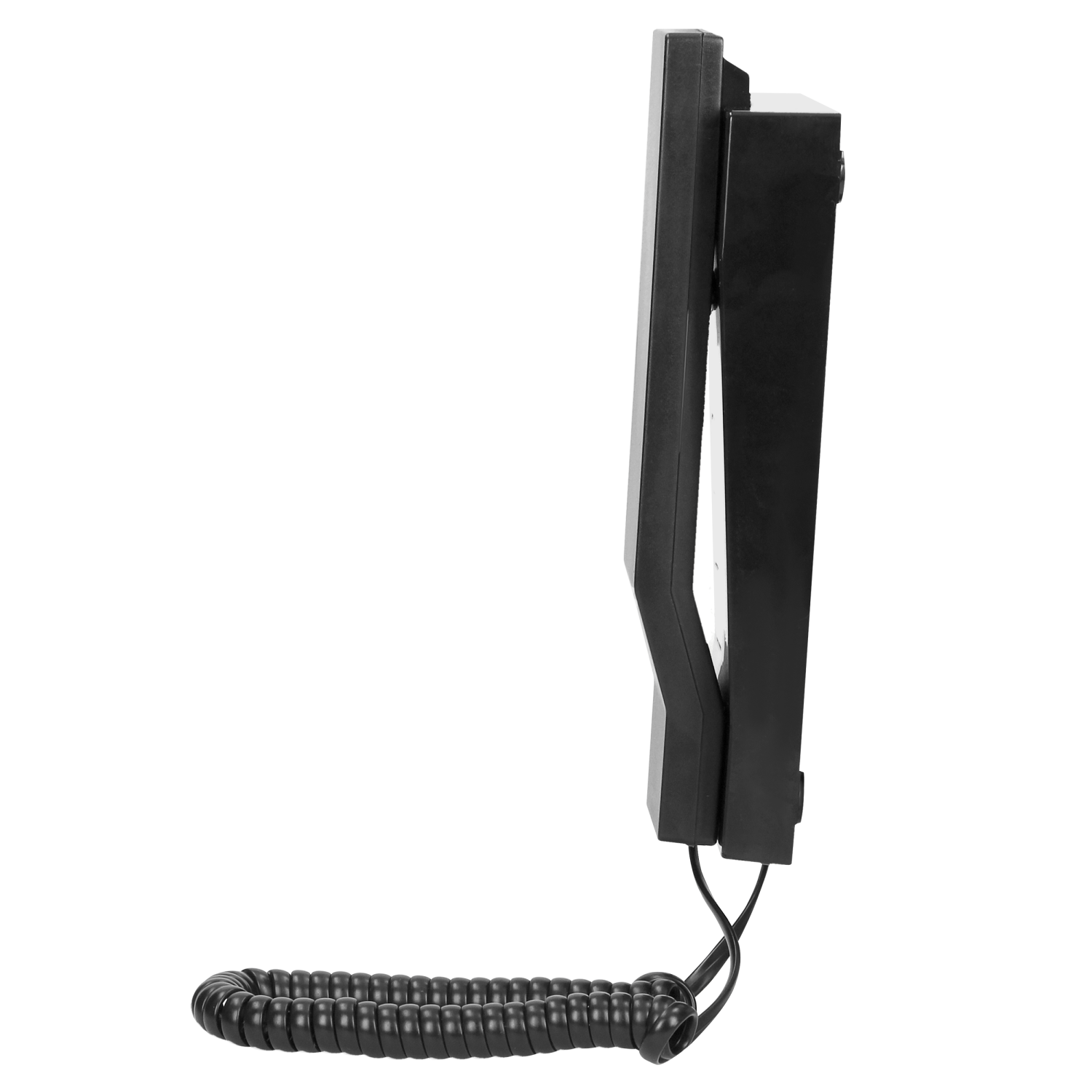

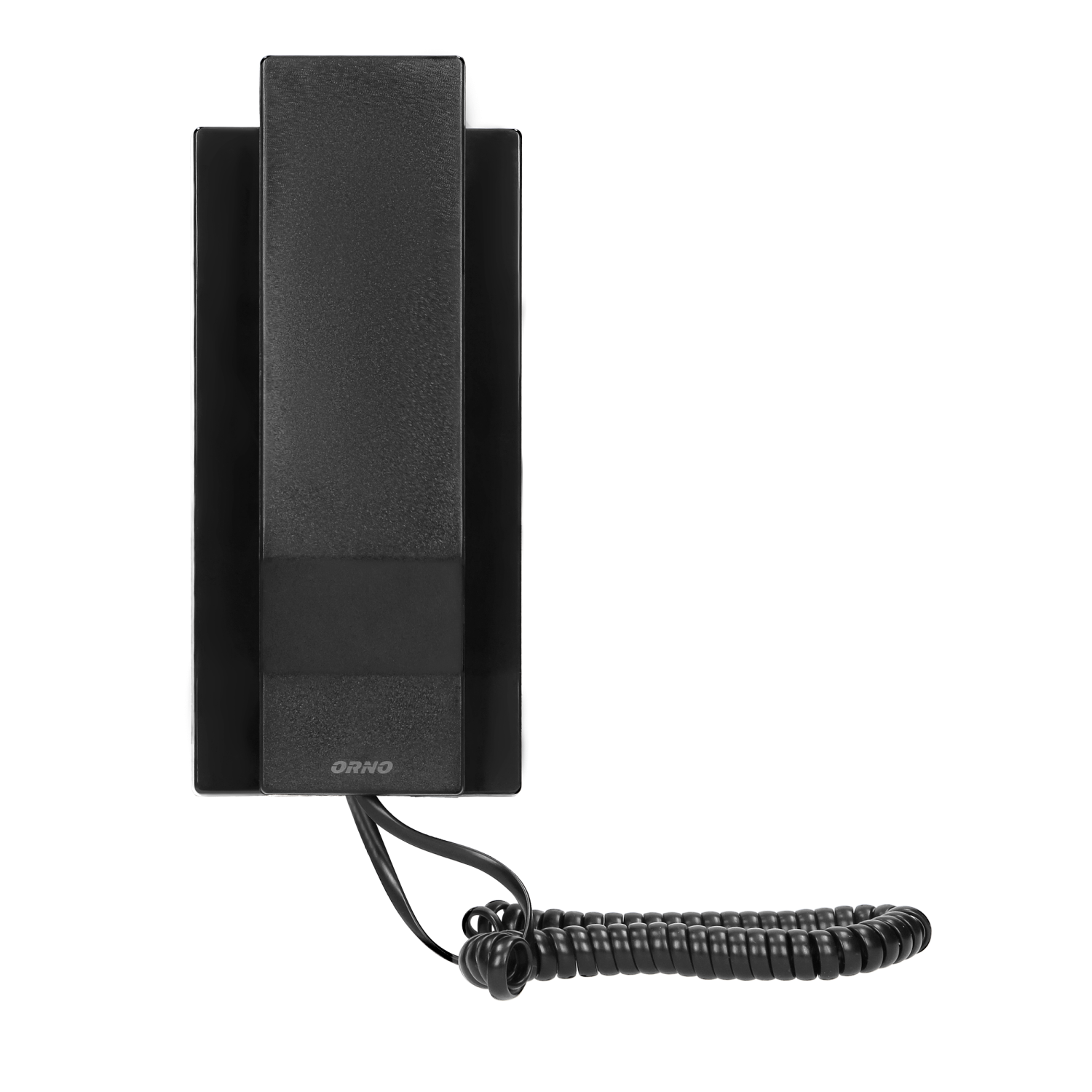

| Indoor panel: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | nie |
| Internal communication: | tak |
| Number of ringtones: | 1 |
| Loudness control: | tak |
| Mutable call tone: | nie |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Czarny |
| Width [mm]: | 82 |
| Height [mm]: | 180 |
| Depth [mm]: | 40 |

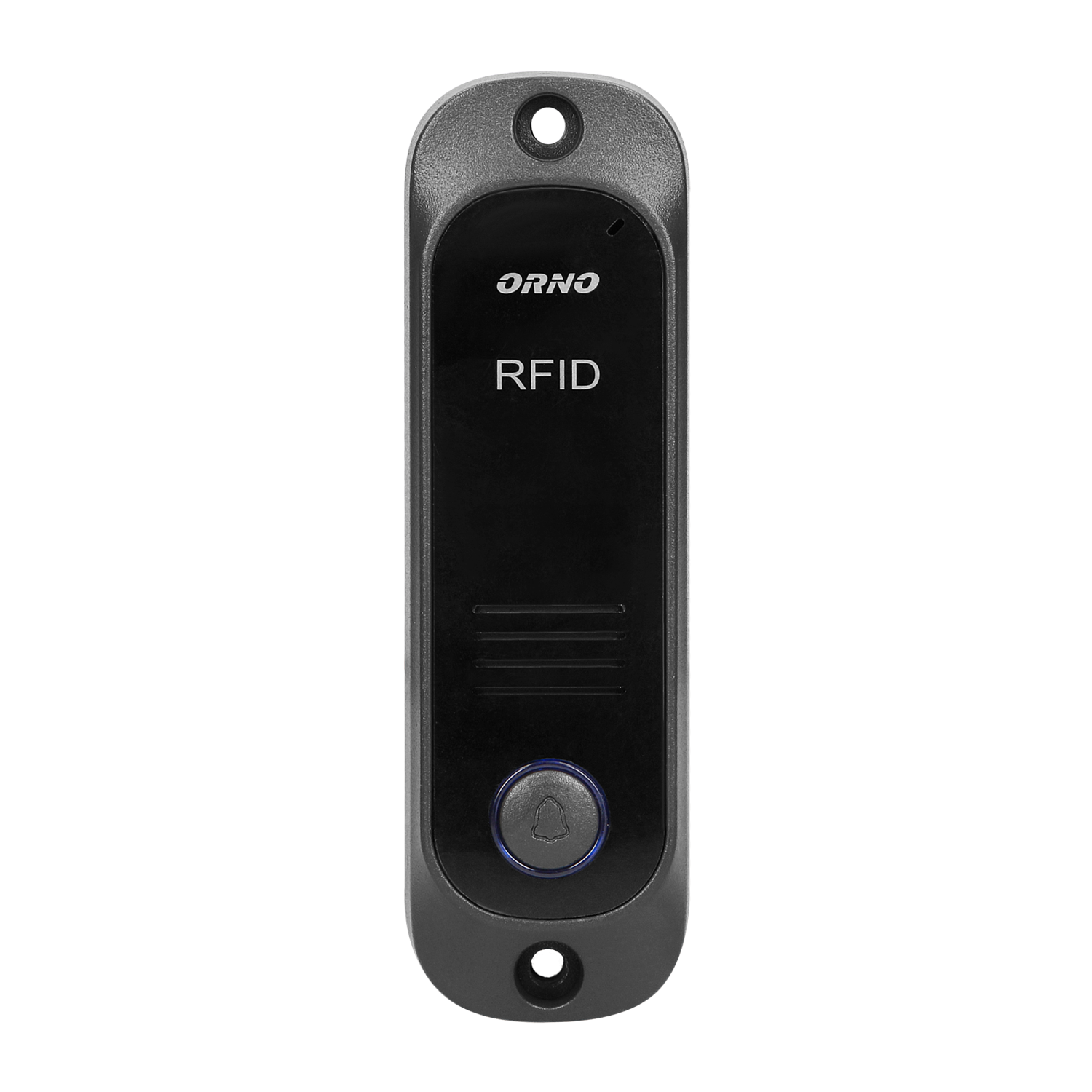

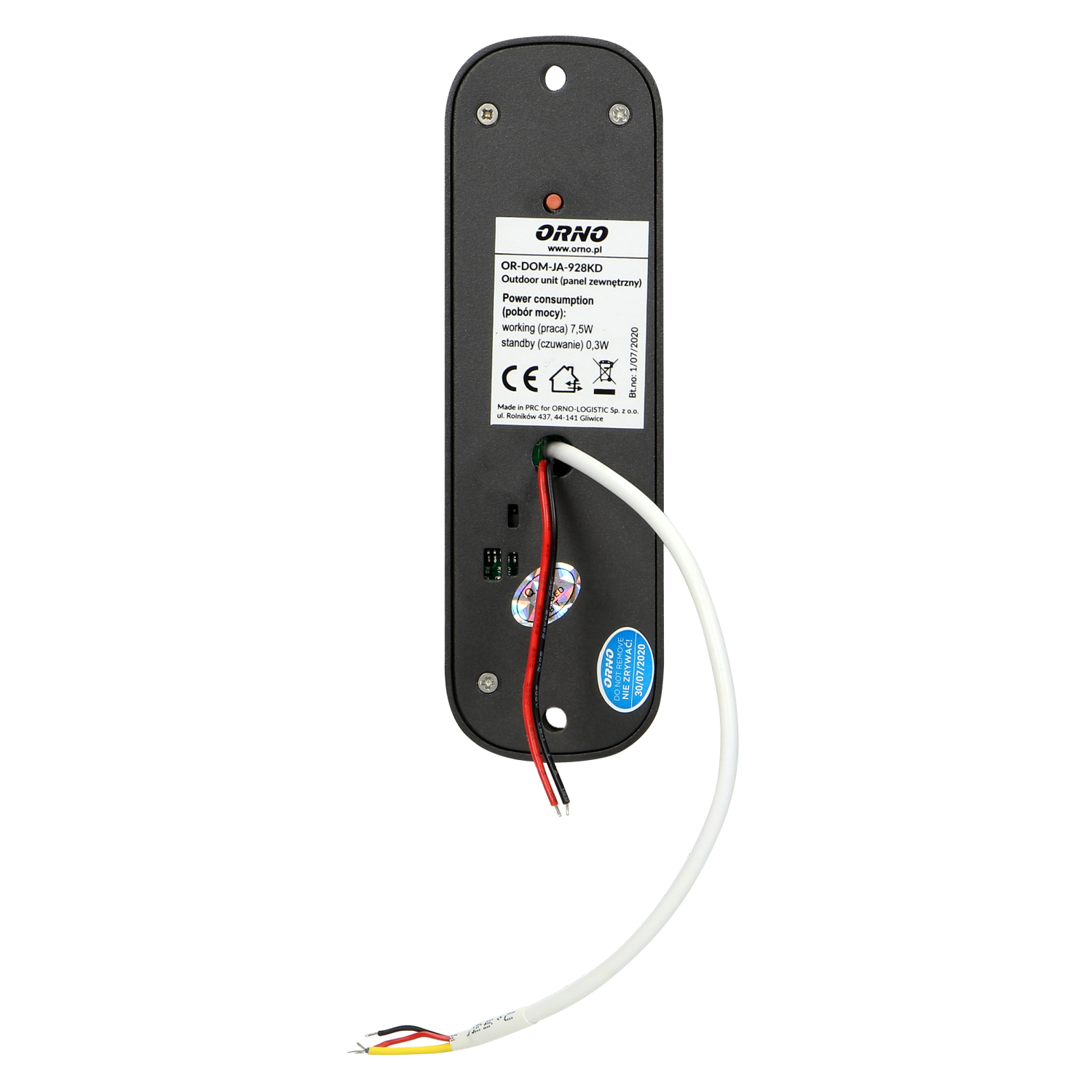

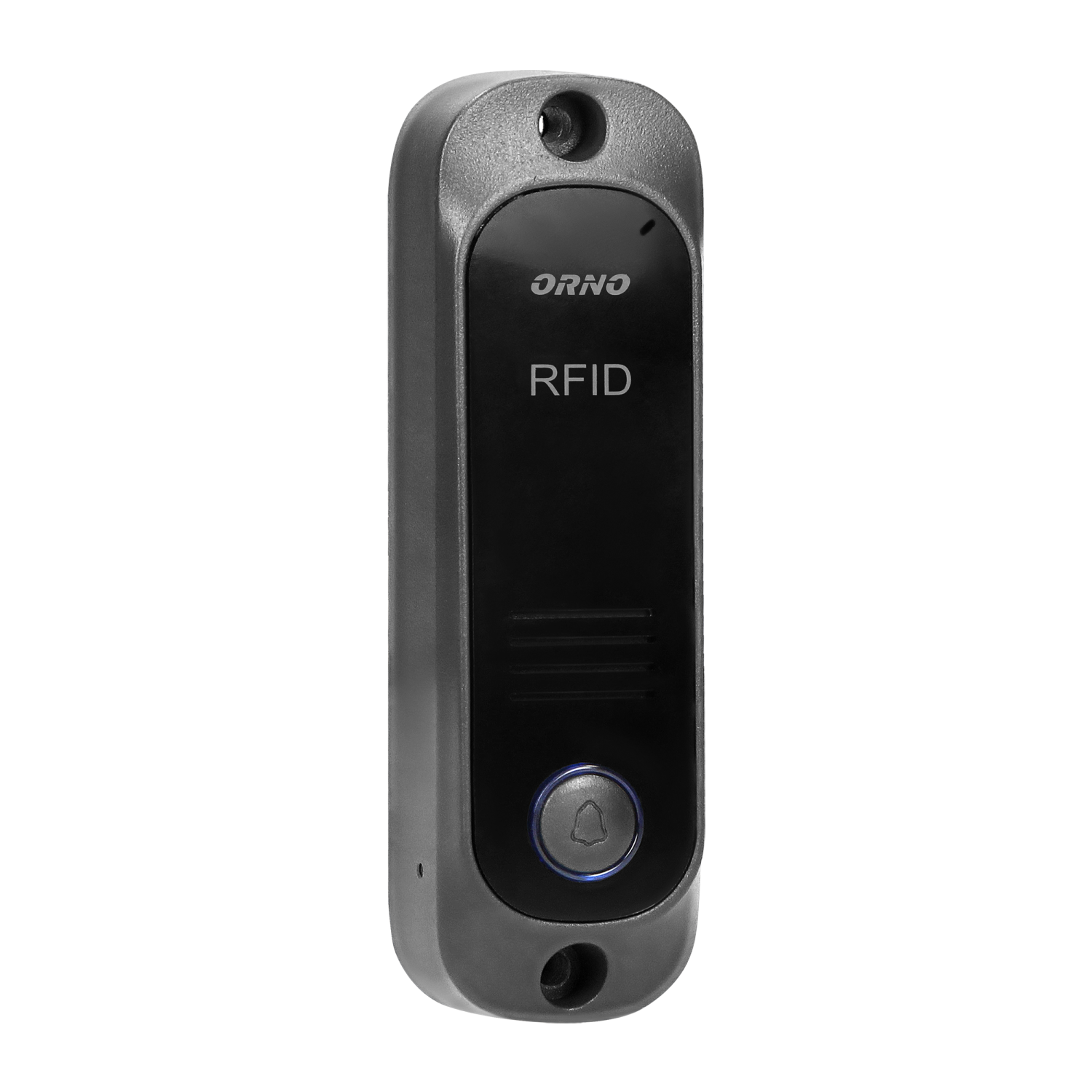

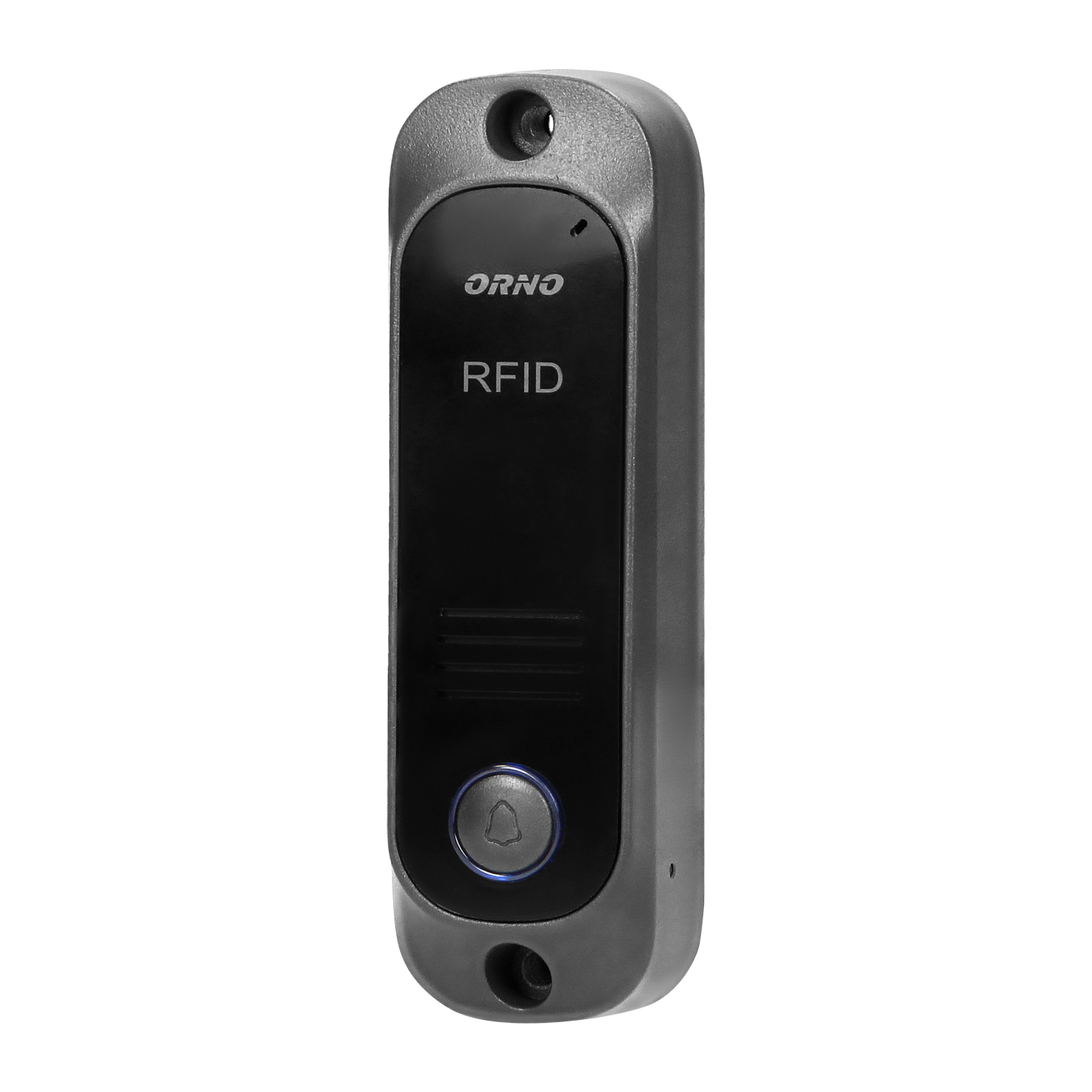

| External panel: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| With digital door code: | nie |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 125kHz |
| Label space/information surface: | nie |
| With cover: | nie |
| Degree of protection (IP): | IP44 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Szary |
| Width [mm]: | 43 |
| Height [mm]: | 140 |
| Depth [mm]: | 29 |
| Other features: | RFID - max. 10 użytkowników (breloki w zestawie: 4 użytkownika + 2 administracyjne) |
