OR-DOM-SG-918

Description

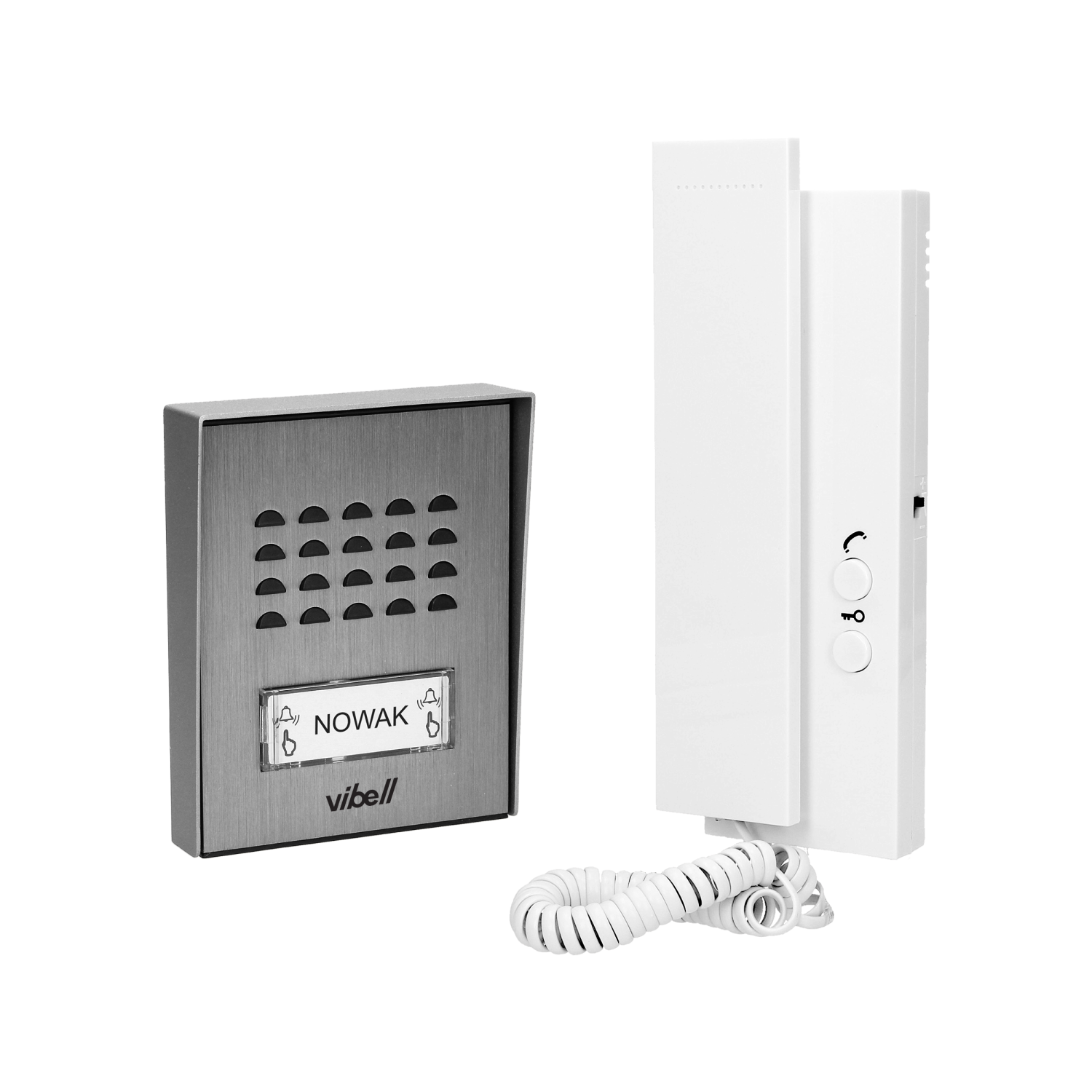

External panel requires surface mounting (protective rain cover included) Backlit place for name The duplex transmission allows trouble-free conversation Classic and elegant uniphone equipped with a handset Volume adjustment Additional gate control function Direct control of an electric strike without any additional transformer The intercom function (after the application of an additional uniphone) enables communication between uniphones.

General information:
Type: jednorodzinny
Current supply: Zasilanie sieciowe
Nominal voltage [V]: 18V DC
Type of transmission: przewodowy
Installation technique: Dwużyłowe
Number of wires (*from outdoor station to electric strike): 2 (+2)*
Number of indoor stations: 1
Number of outdoor stations: 1
Expandable to max. number of indoor stations: 4
Expandable to max. number of outdoor stations: 1
Operation door lock: tak
Current supply of the electric strike: dodatkowy zasilacz niewymagany
: z panelem zewnętrznym
With automatic door opener: tak
Other features: Jednorodzinny (możliwość zmiany trybu na dwurodzinny); Zasilacz na szynę DIN - jeden dla całego zestawu

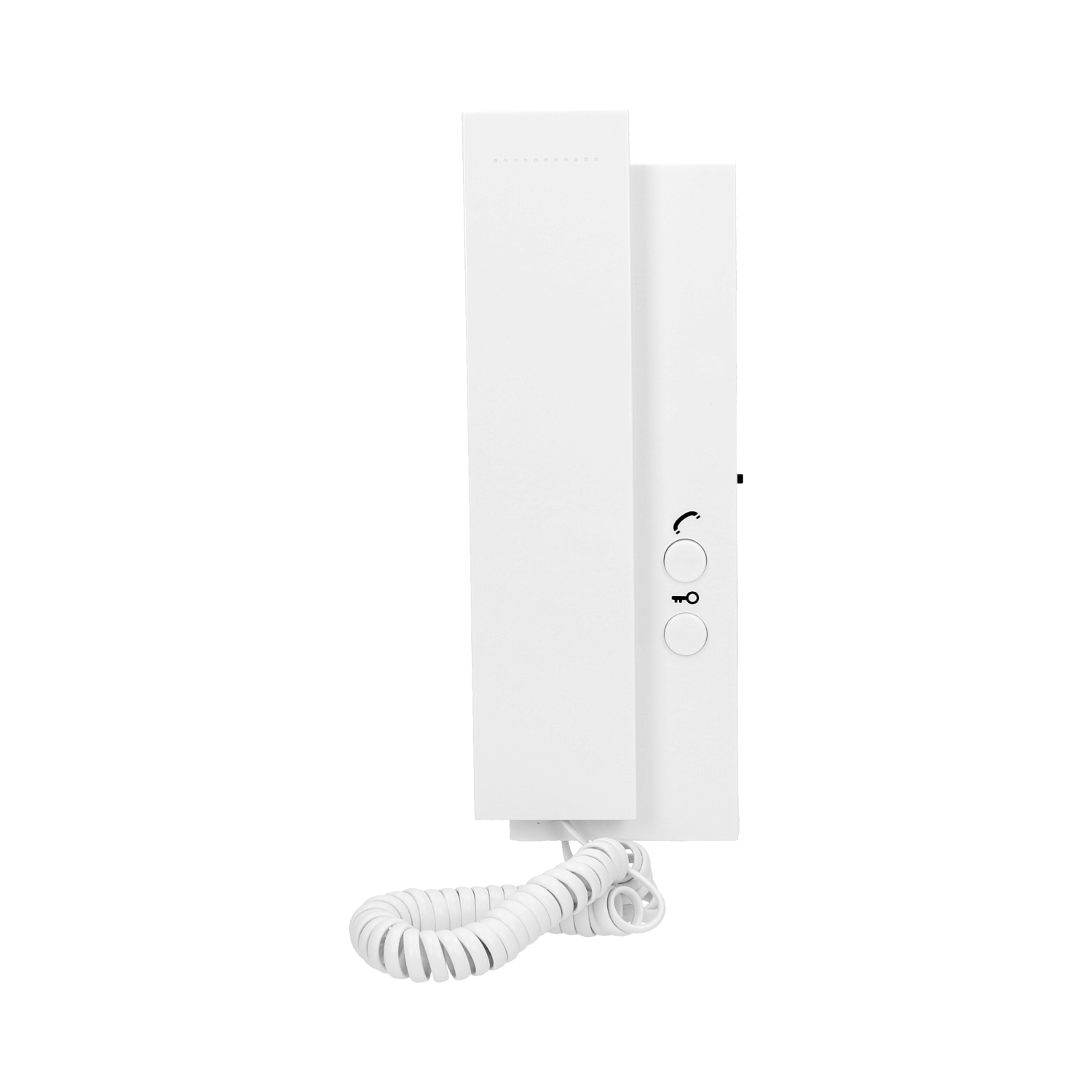

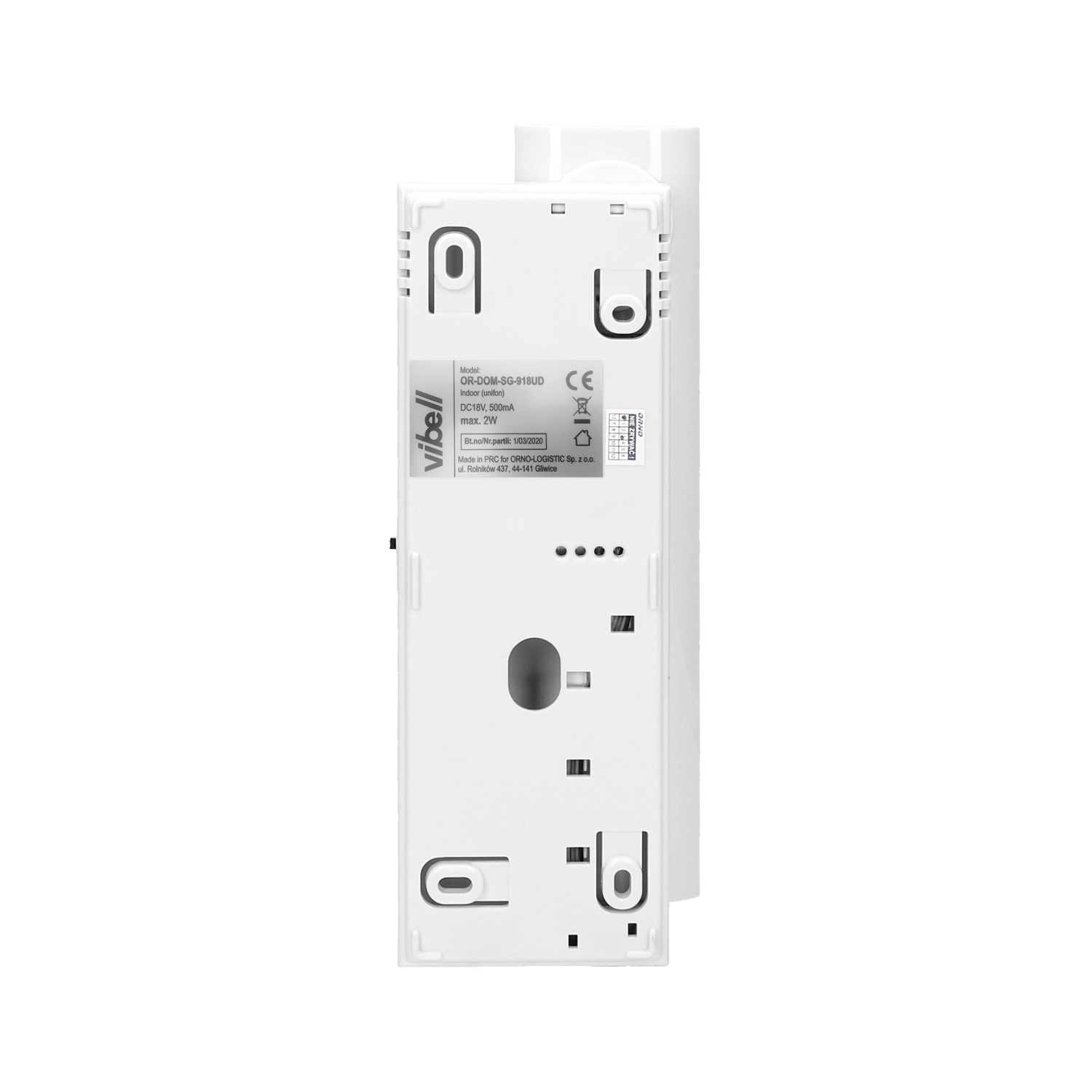

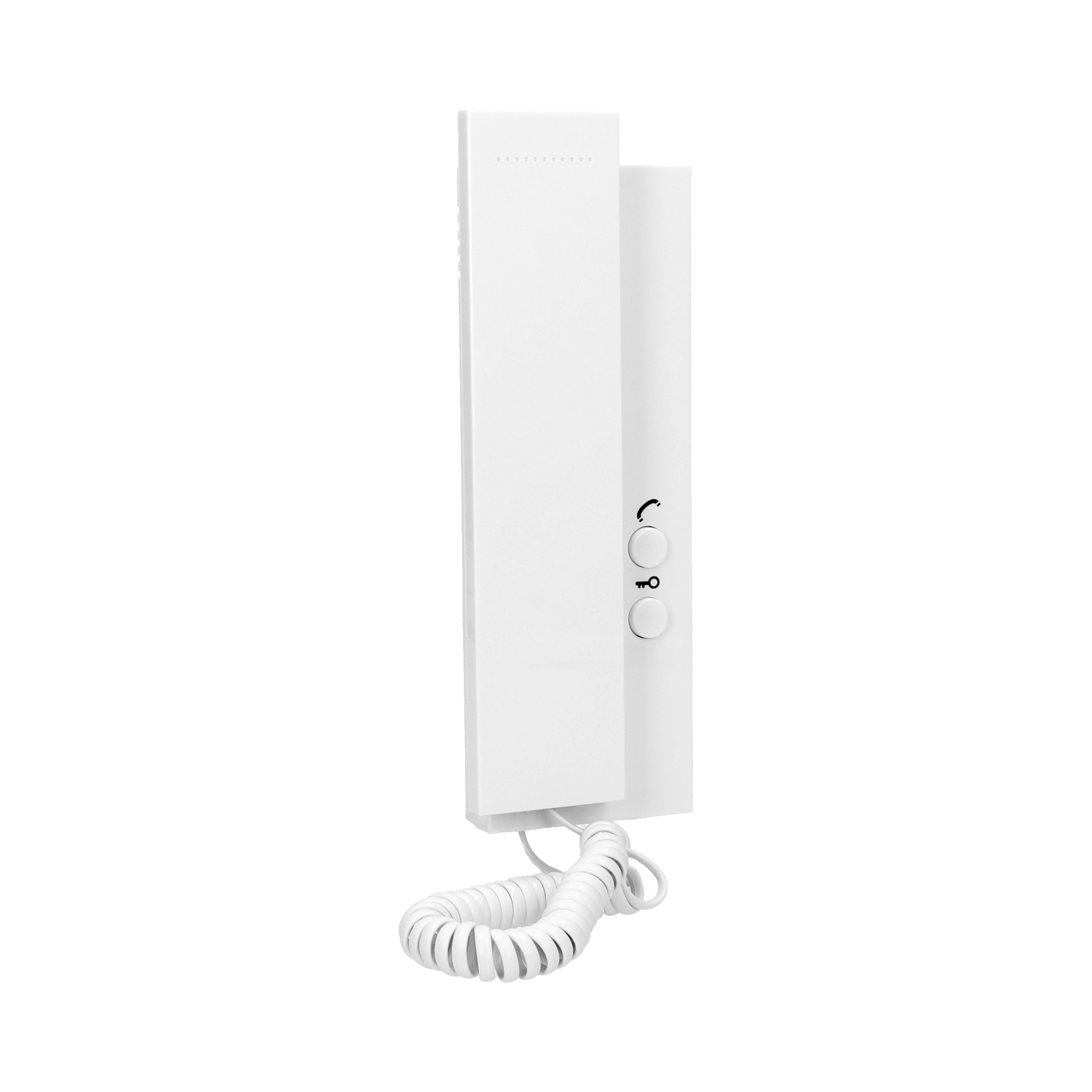

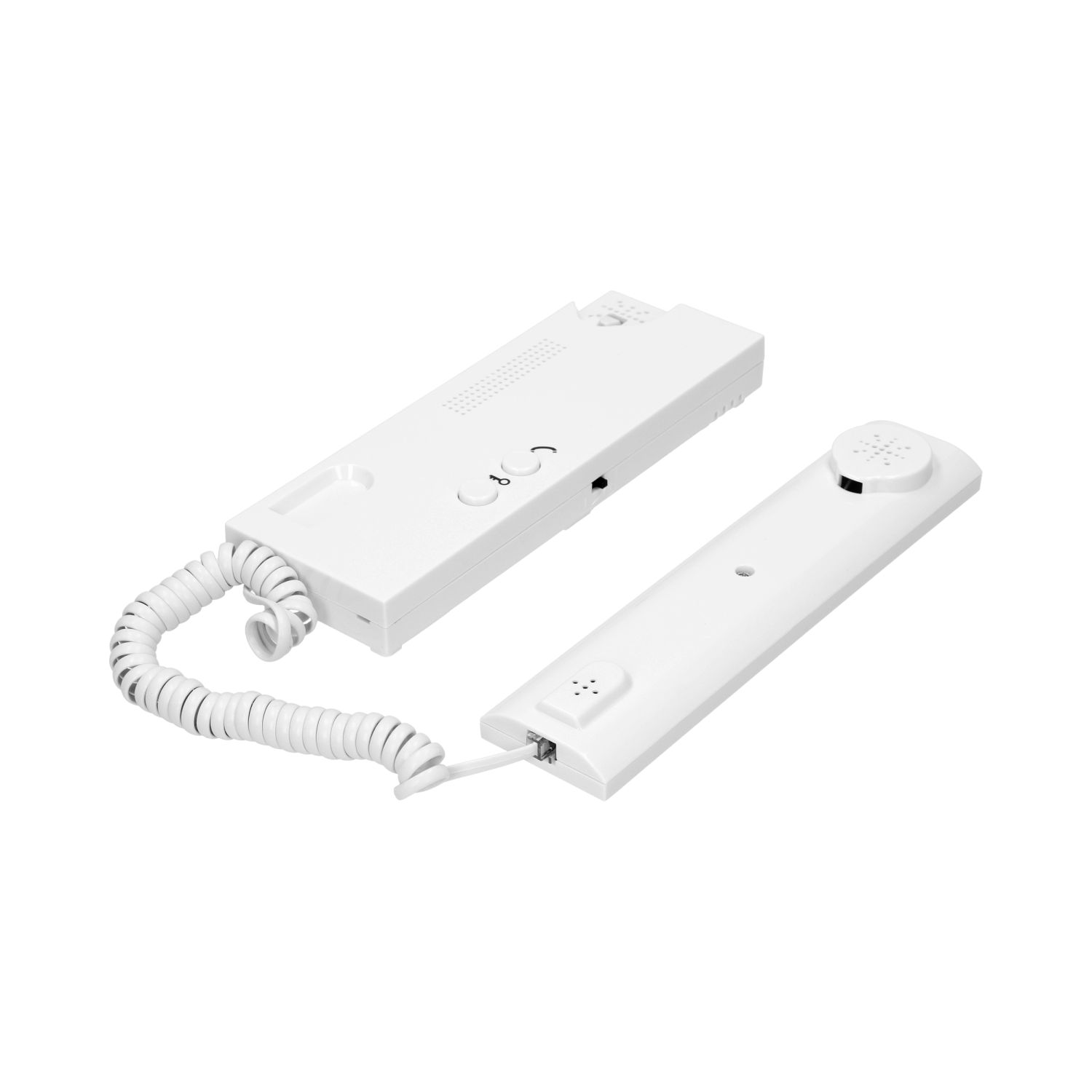

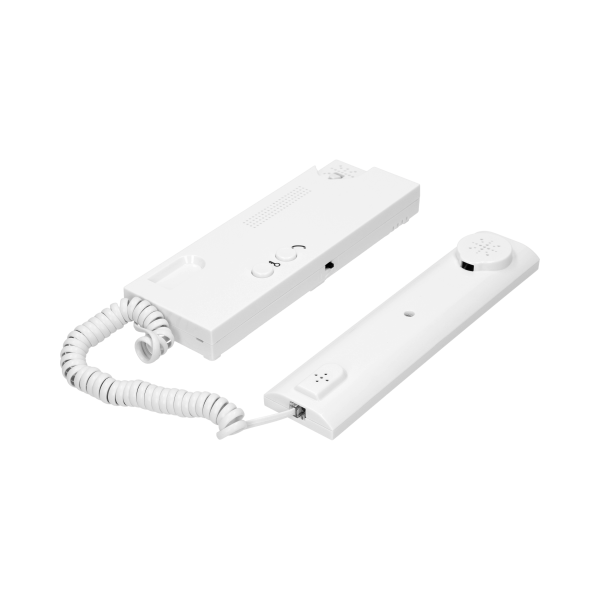

Indoor panel:
Mounting method indoor station: Montaż natynkowy
Hands free: nie
Internal communication: tak
Number of ringtones: 1
Loudness control: tak
Mutable call tone: nie
Material indoor station: Tworzywo sztuczne
Colour indoor station: Biały
Width [mm]: 70
Height [mm]: 210
Depth [mm]: 40

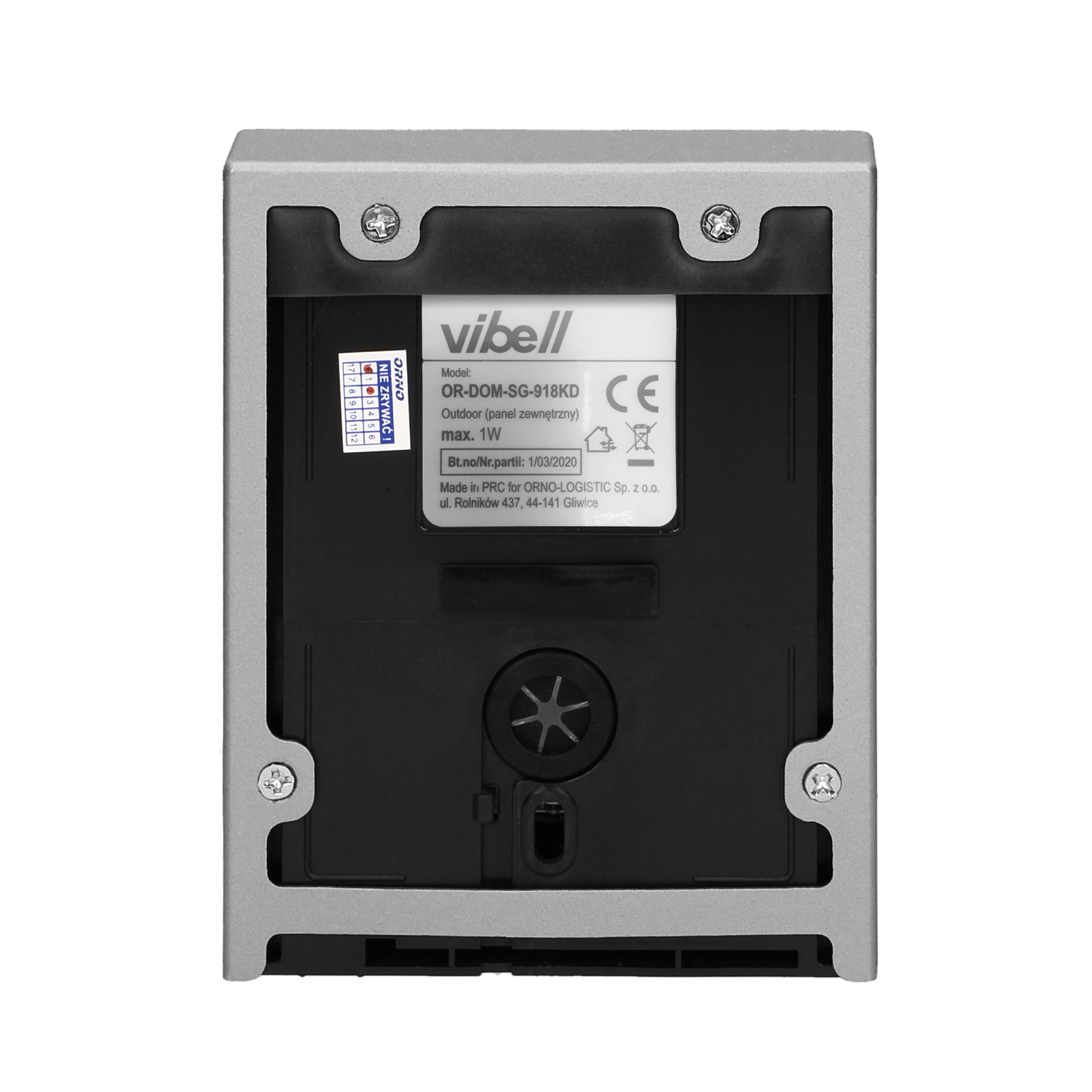

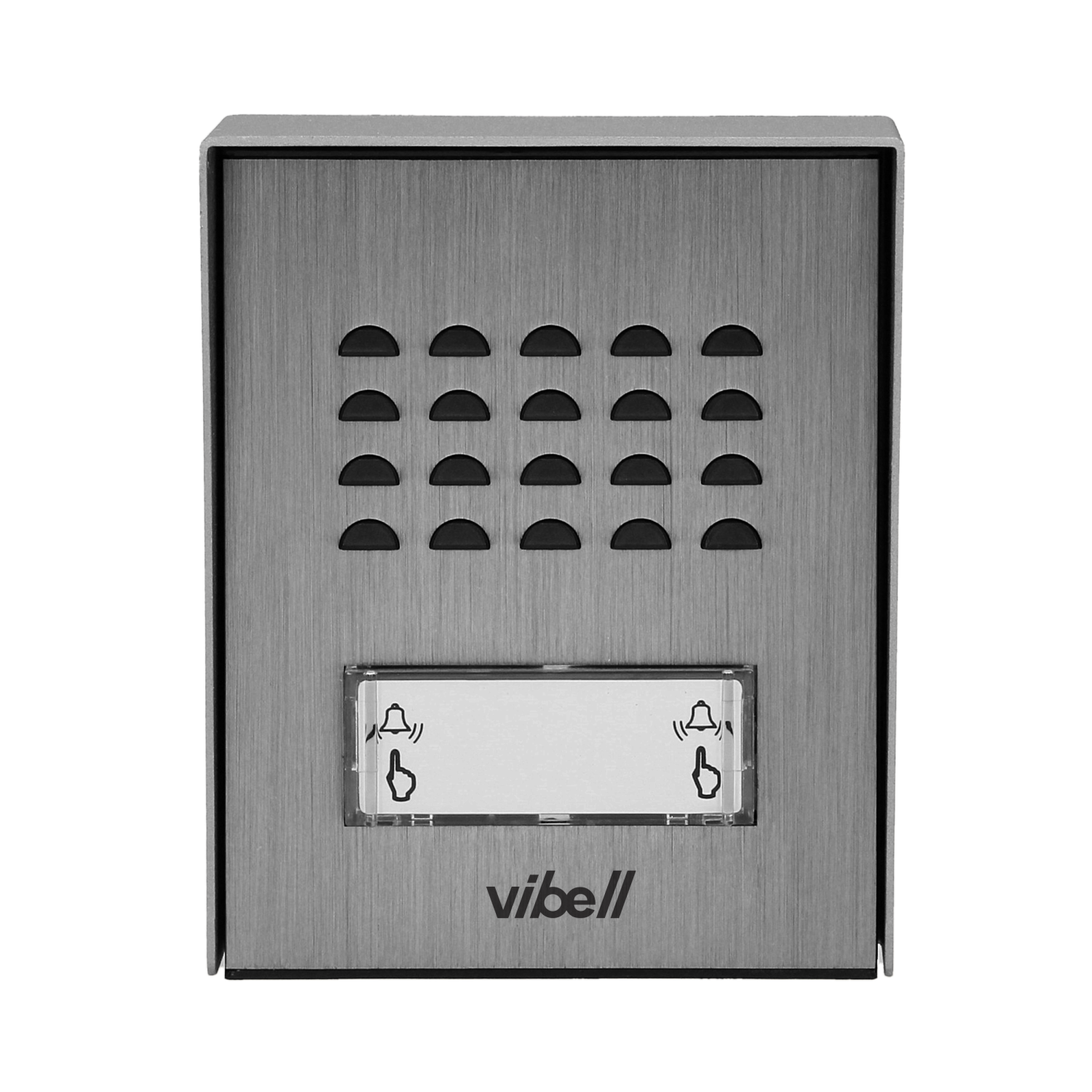

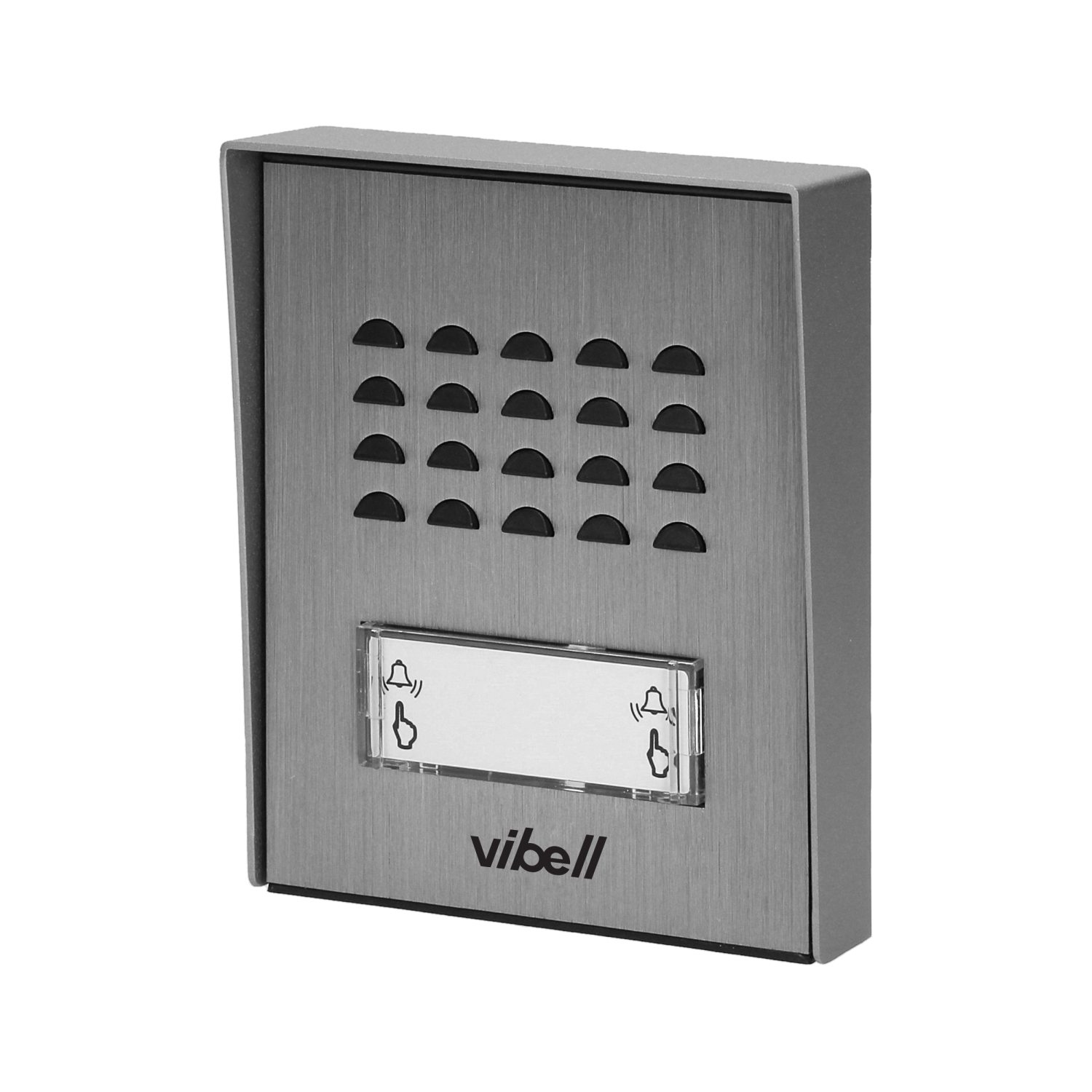

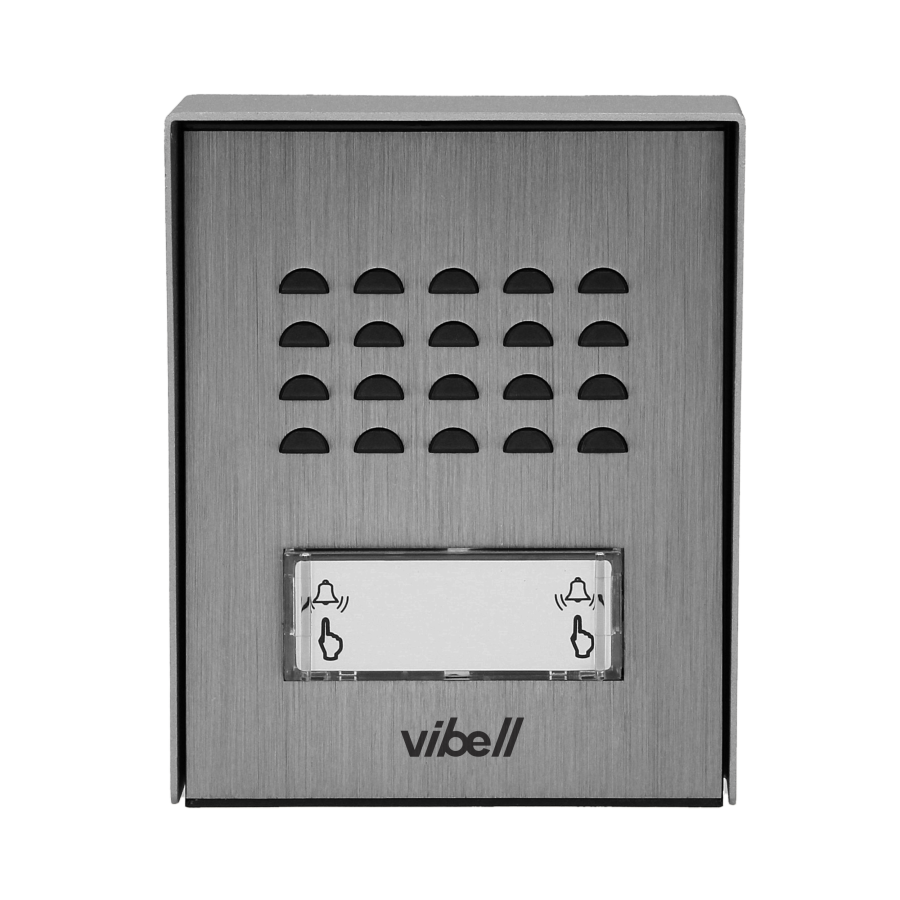

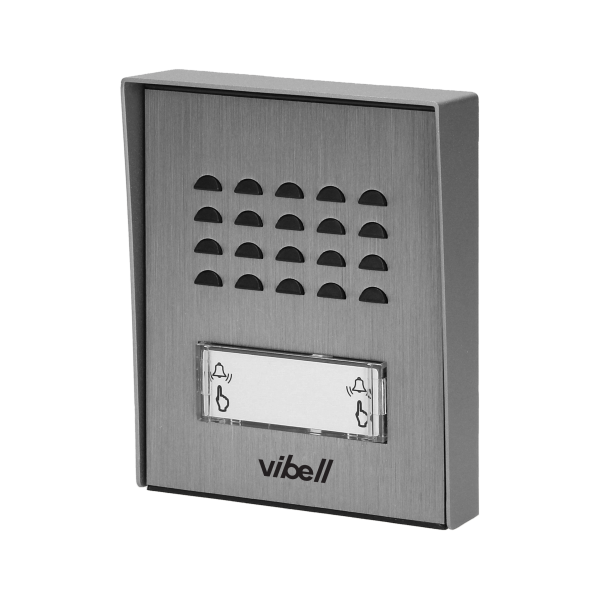

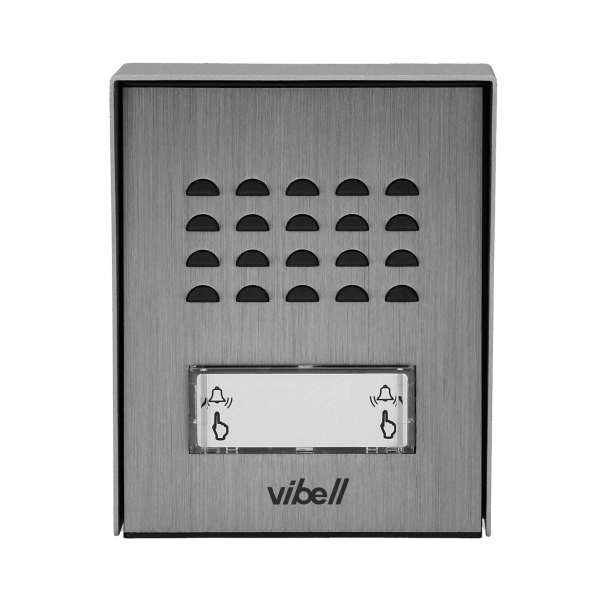

External panel:
Number of call buttons: 1
Mounting method outdoor station: Montaż natynkowy
With digital door code: nie
Card and proximity tags reader: nie
Label space/information surface: tak
With cover: tak
Degree of protection (IP): IP54
Material outdoor station: Aluminium
Colour outdoor station: Srebrny
Width [mm]: 95
Height [mm]: 120
Depth [mm]: 30

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:12:42Download
Product data sheetENpdf2024-07-17 10:20:43Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
