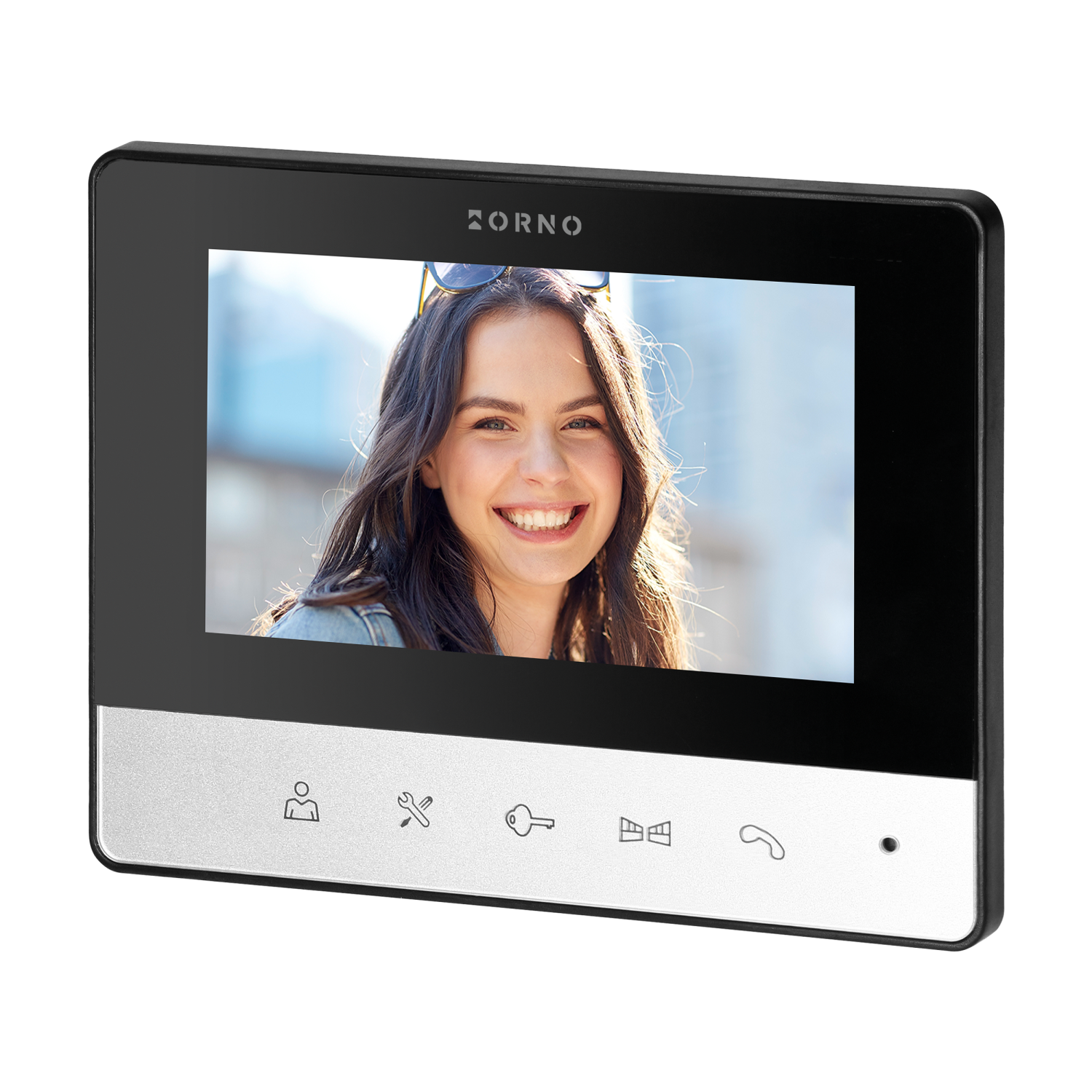

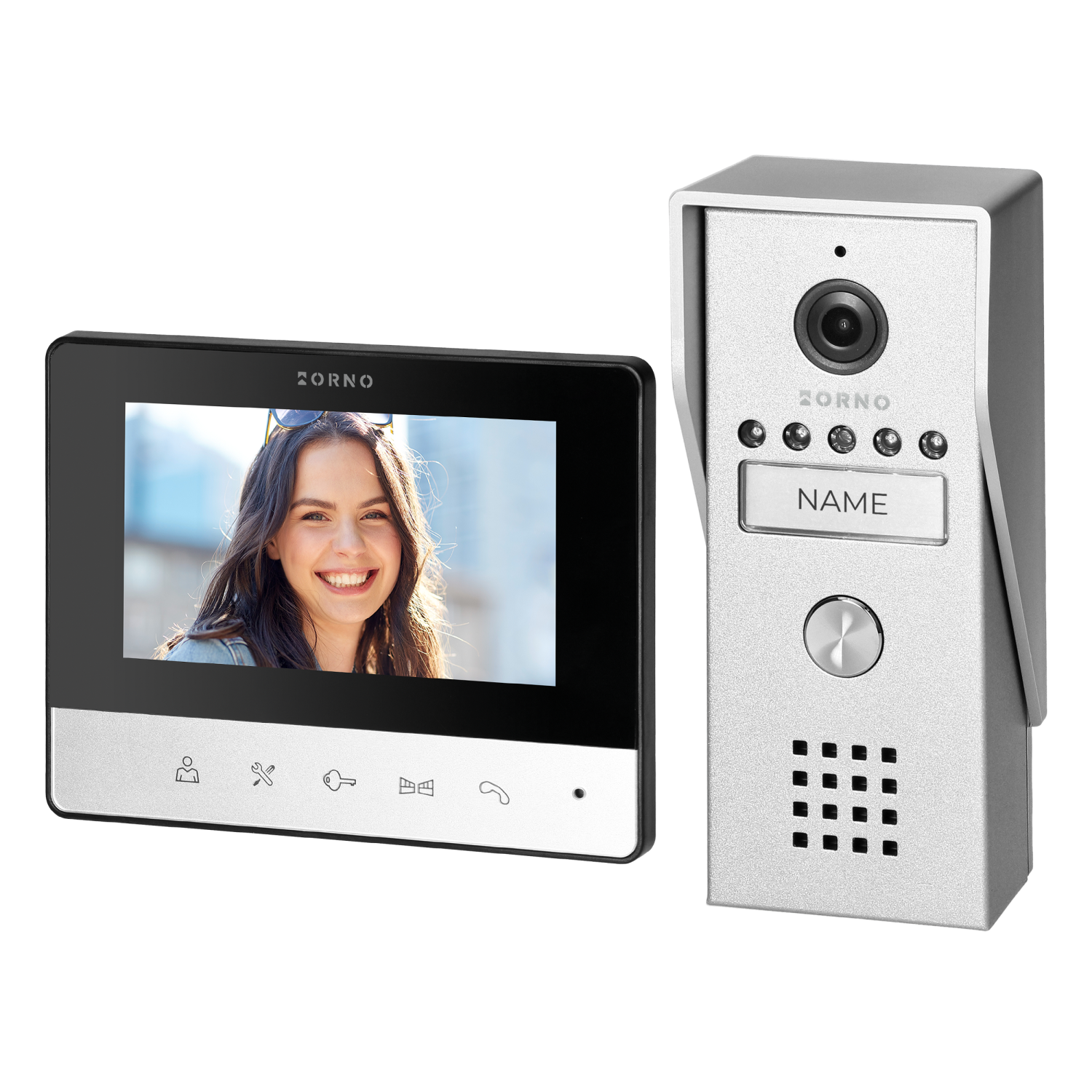

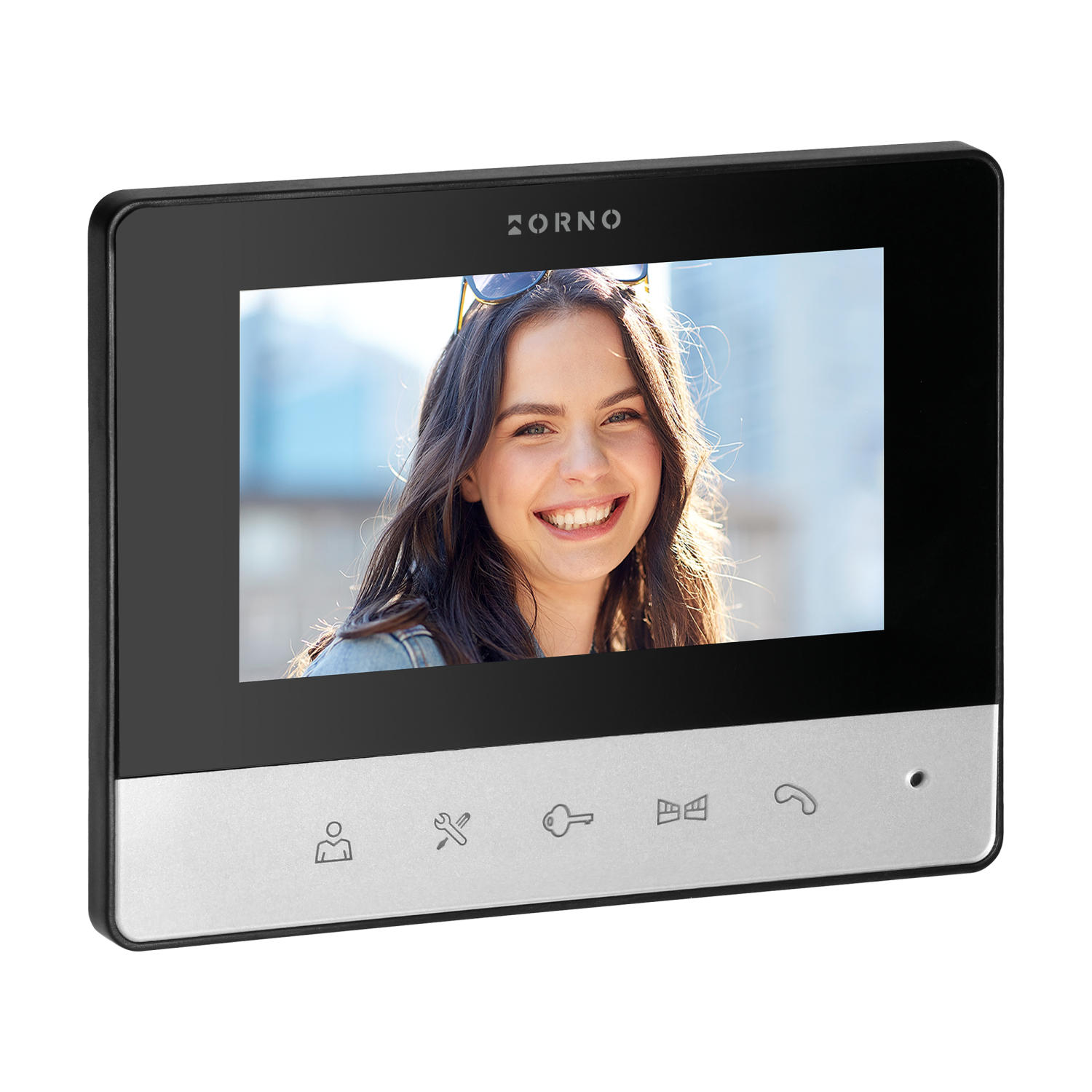

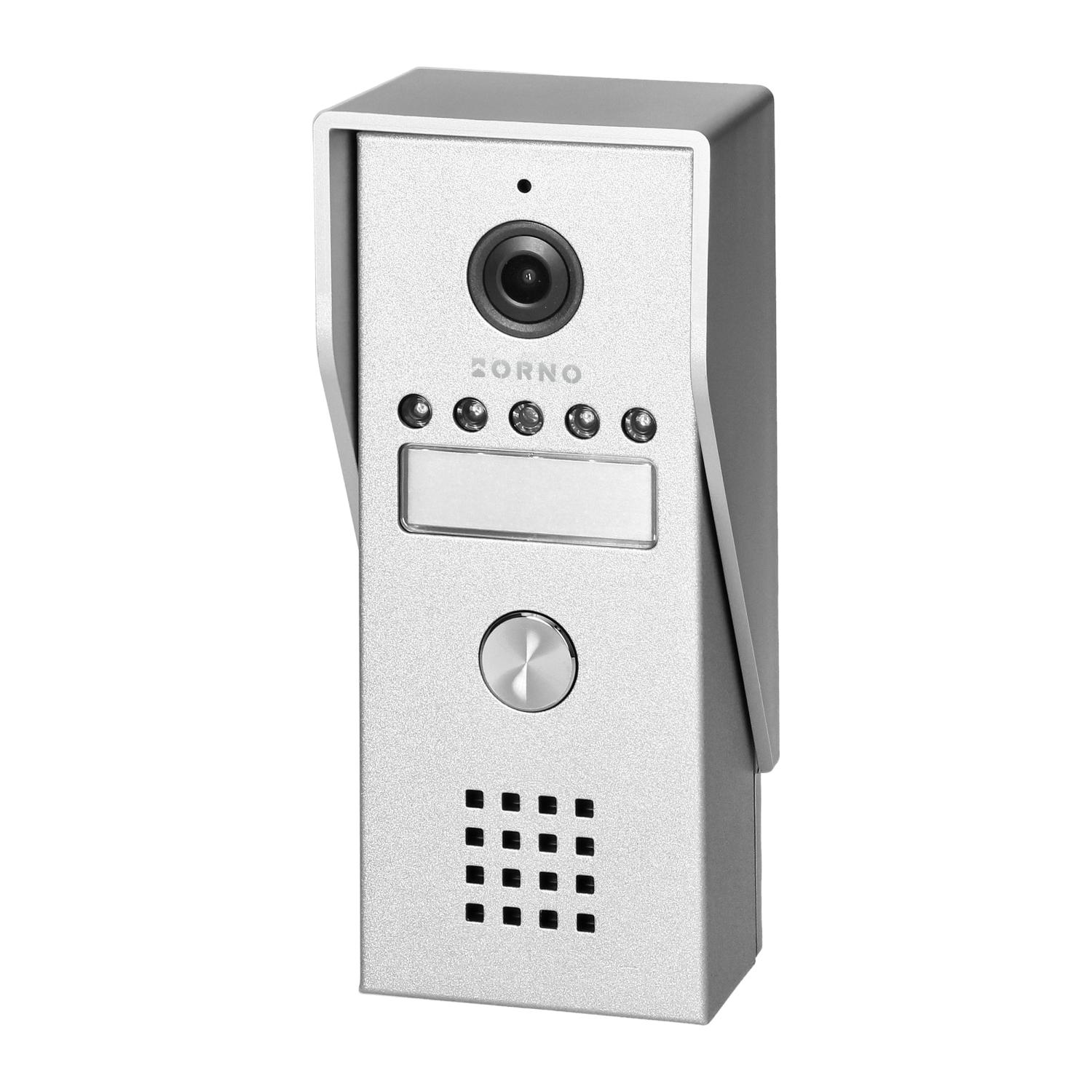

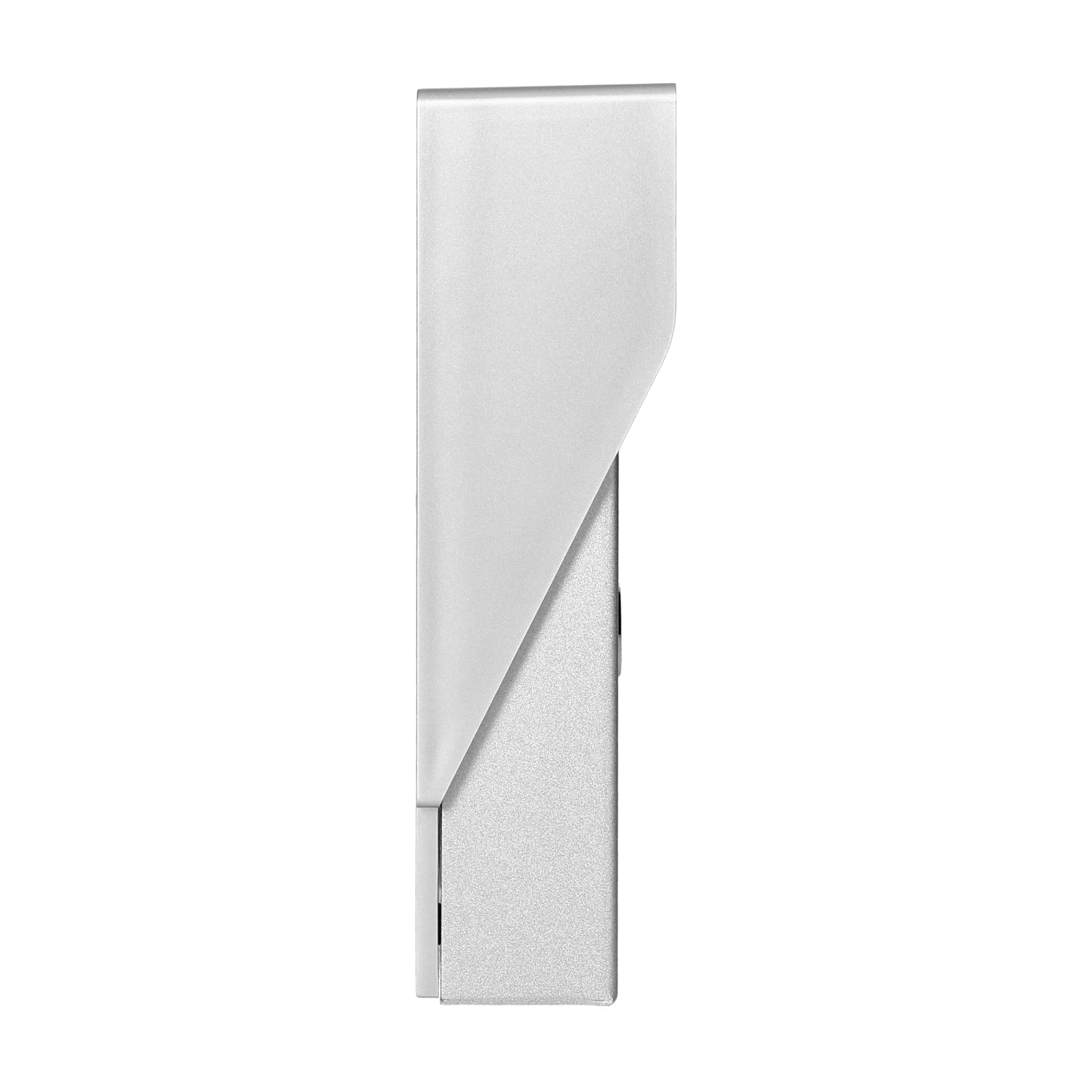

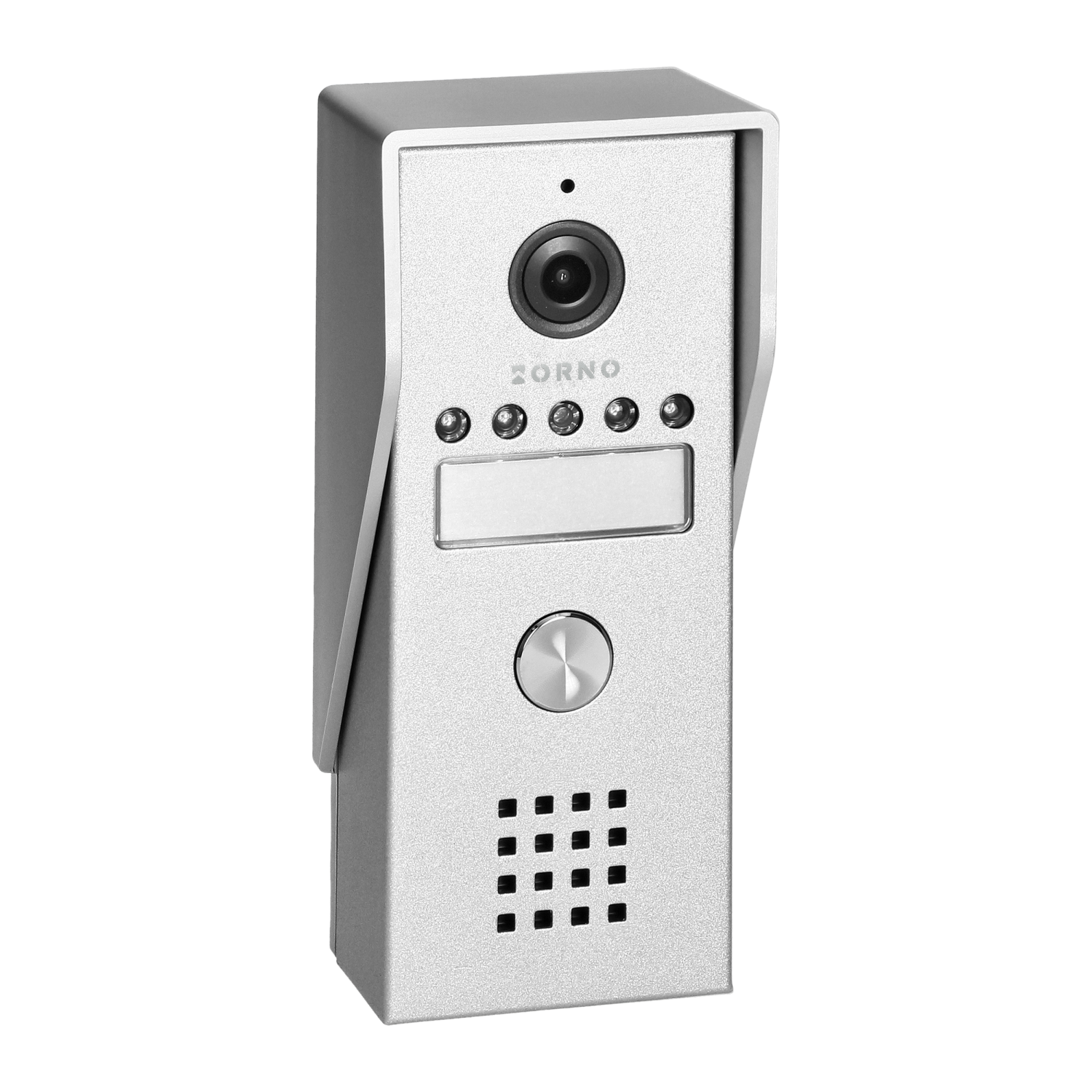

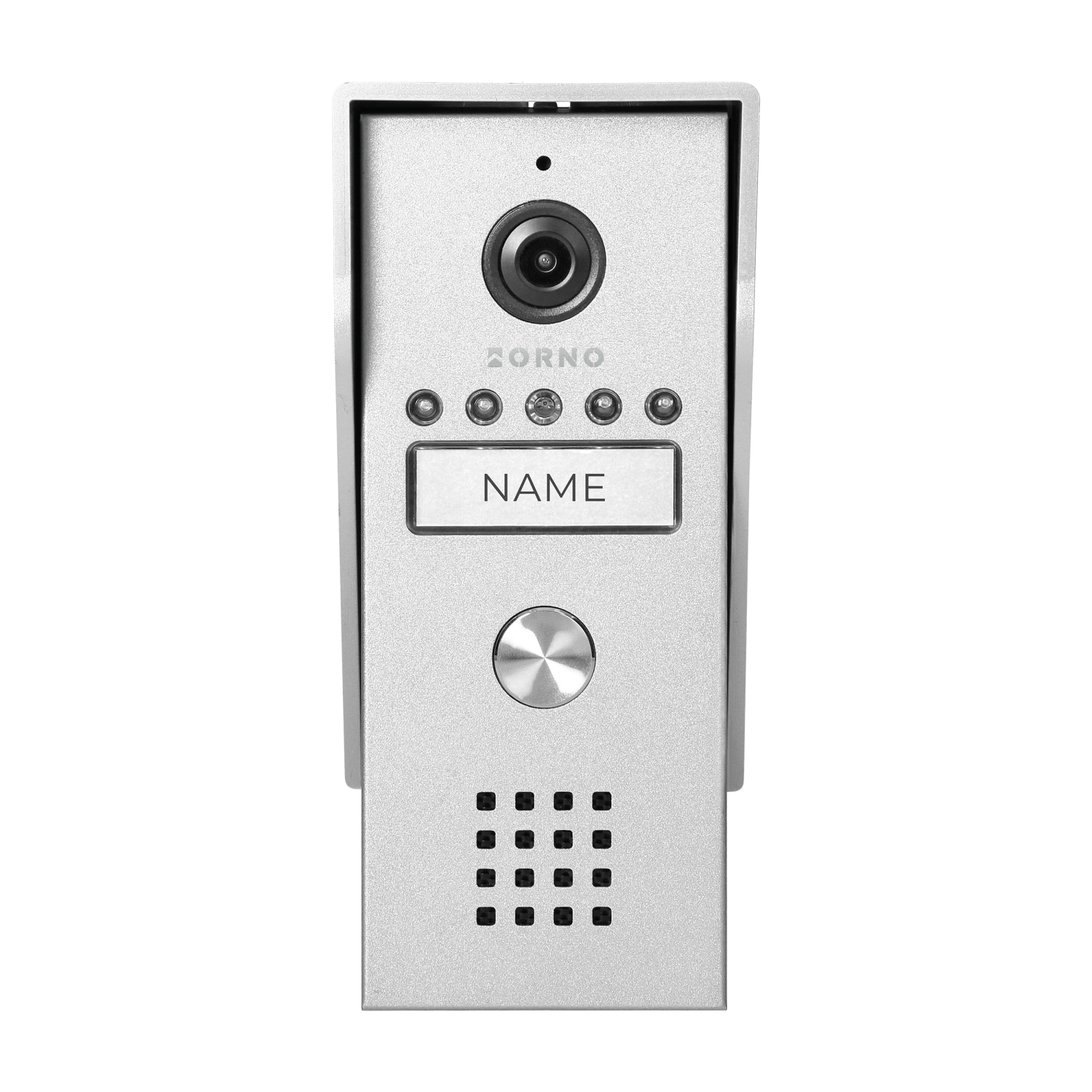

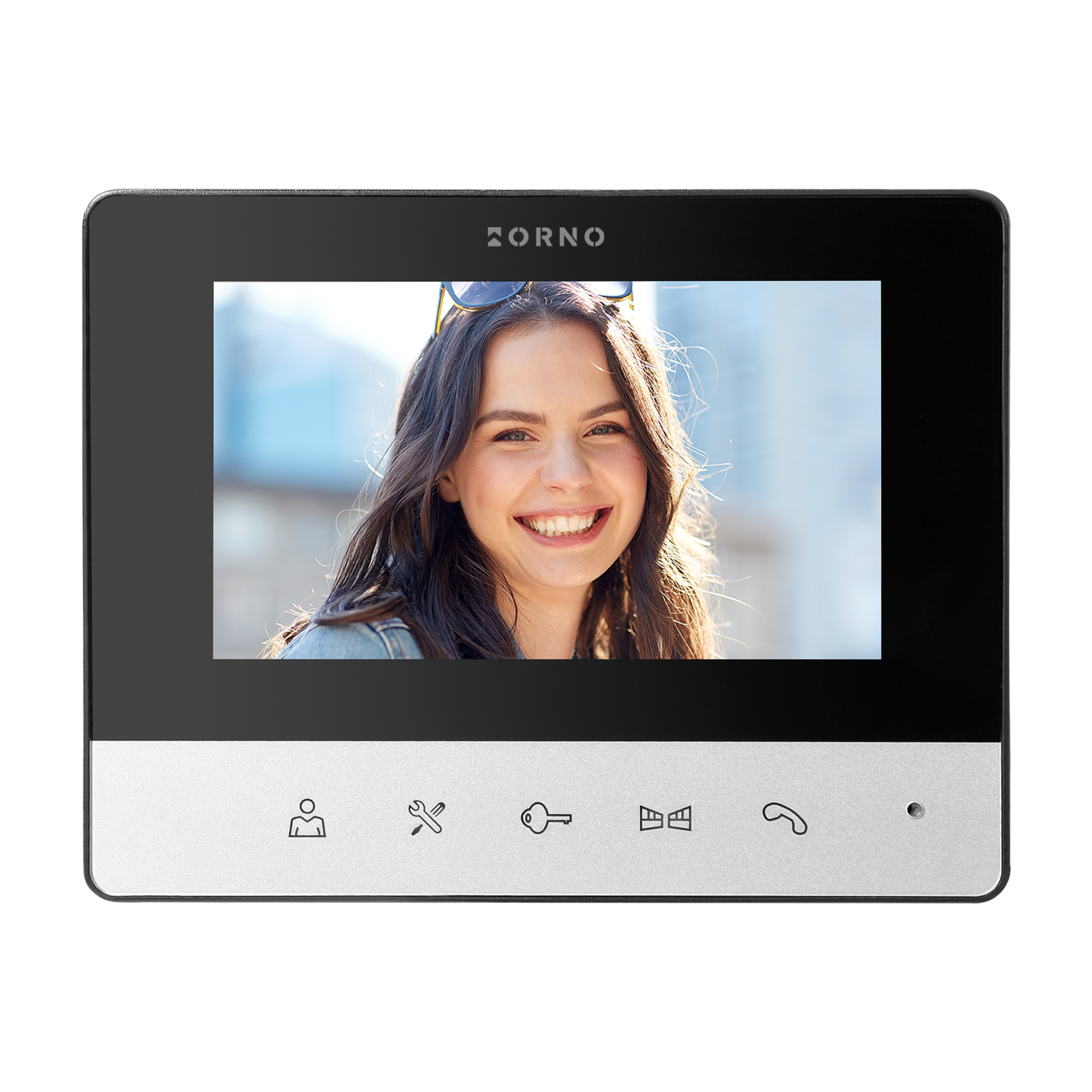

LIRA handset-free video doorphone set with a color 4.3" display (external panel + monitor). Simple and convenient to use LIRA videophone set, dedicated to single-family houses, entrance control and enables communication between house residents and their guests. It allows you to safely open the door only with the use of the monitor. It is functional and easy to use with a clear menu. It’s basic functions and controls are suitable even for the elderly people. LIRA set consists of two elements: • External panel, i.e. a discreet and elegantly made silver-colored panel, housing a camera with a horizontal viewing angle of 68°. It also has high resistance to force / mechanical damage. The panel with the camera is designed for surface mounting and is made of aluminum. Resistant to dust and moisture (IP44), it has got its own roof that protects the device against continuous rainfall and exposure to water. The entry panel is also equipped with a simple call button, a loudspeaker and a name plate. The camera works in the day and night mode, thanks to the IR LEDs with a range of 1m and allows you night vision, at a resolution of 700 TVL. • 4.3 inches monitor is also suitable for surface mounting. It displays a color image from the camera, additionally it allows you to mute the ringer and choose one of the 16 pre-programmed ringtones. The screen of the monitor is not touch-responsive; however, it has a number of intuitive, touch buttons that allow easy control. LIRA is a so-called single-family set, where one panel is connected to one control monitor. However, it can be expanded with an additional LIRA external camera panel.
General information: |
Type: |
jednorodzinny |
With video: |
tak |
Current supply: |
Zasilanie sieciowe |
Nominal voltage: |
12V DC |
Type of transmission: |
przewodowy |
Can be connected to smartphone: |
nie |
Installation technique: |
System wieloprzewodowy |
Number of wires (*from outdoor station to electric strike): |
4 (+2)* |
Number of indoor stations: |
1 |
Number of outdoor stations: |
1 |
Expandable to max. number of indoor stations: |
1 |
Expandable to max. number of outdoor stations: |
2 |
Operation door lock: |
tak |
Current supply of the electric strike: |
dodatkowy zasilacz niewymagany |
Connection system of the electric strike: |
z panelem zewnętrznym |
With automatic door opener: |
tak |
With day/night function: |
tak |
Monitor: |
Mounting method indoor station: |
Montaż natynkowy |
Hands free: |
tak |
Screen diagonal [inch]: |
4.3" |
Screen resolution: |
480x272 |
Touch screen: |
nie |
Picture system: |
PAL |
Property picture system: |
Kolor |
With memory function: |
nie |
Internal communication: |
nie |
Number of ringtones: |
16 |
Loudness control: |
tak |
Mutable call tone: |
tak |
Material indoor station: |
Tworzywo sztuczne |
Colour indoor station: |
Czarno-srebrny |
Dimensions of the monitor - Width [mm]: |
133 |
Dimensions of the monitor - Height [mm]: |
103 |
Dimensions of the monitor - Depth [mm]: |
19 |
External panel: |
Number of call buttons: |
1 |
Mounting method outdoor station: |
Montaż natynkowy |
Camera resolution: |
700 TVL |
Camera view angle (vertical): |
48 ° |
Camera view angle (horizontal): |
68 ° |
Night light: |
IR |
With digital door code: |
nie |
Card and proximity tags reader: |
nie |
Label space/information surface: |
tak |
With cover: |
tak |
Degree of protection (IP): |
IP44 |
Material outdoor station: |
Aluminium |
Colour outdoor station: |
Srebrny |
Width [mm]: |
65 |
Height [mm]: |
143 |
Depth [mm]: |
41 |
