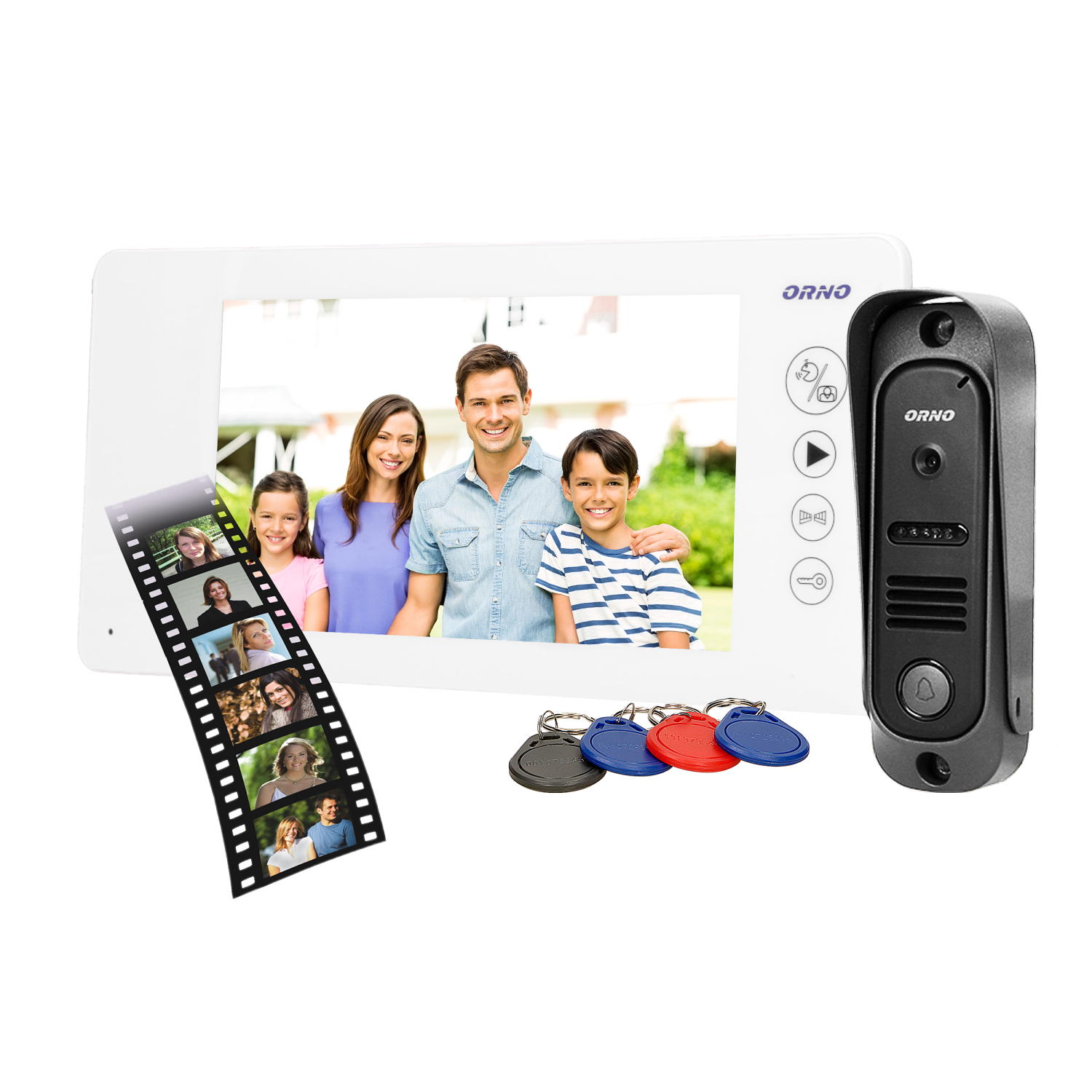

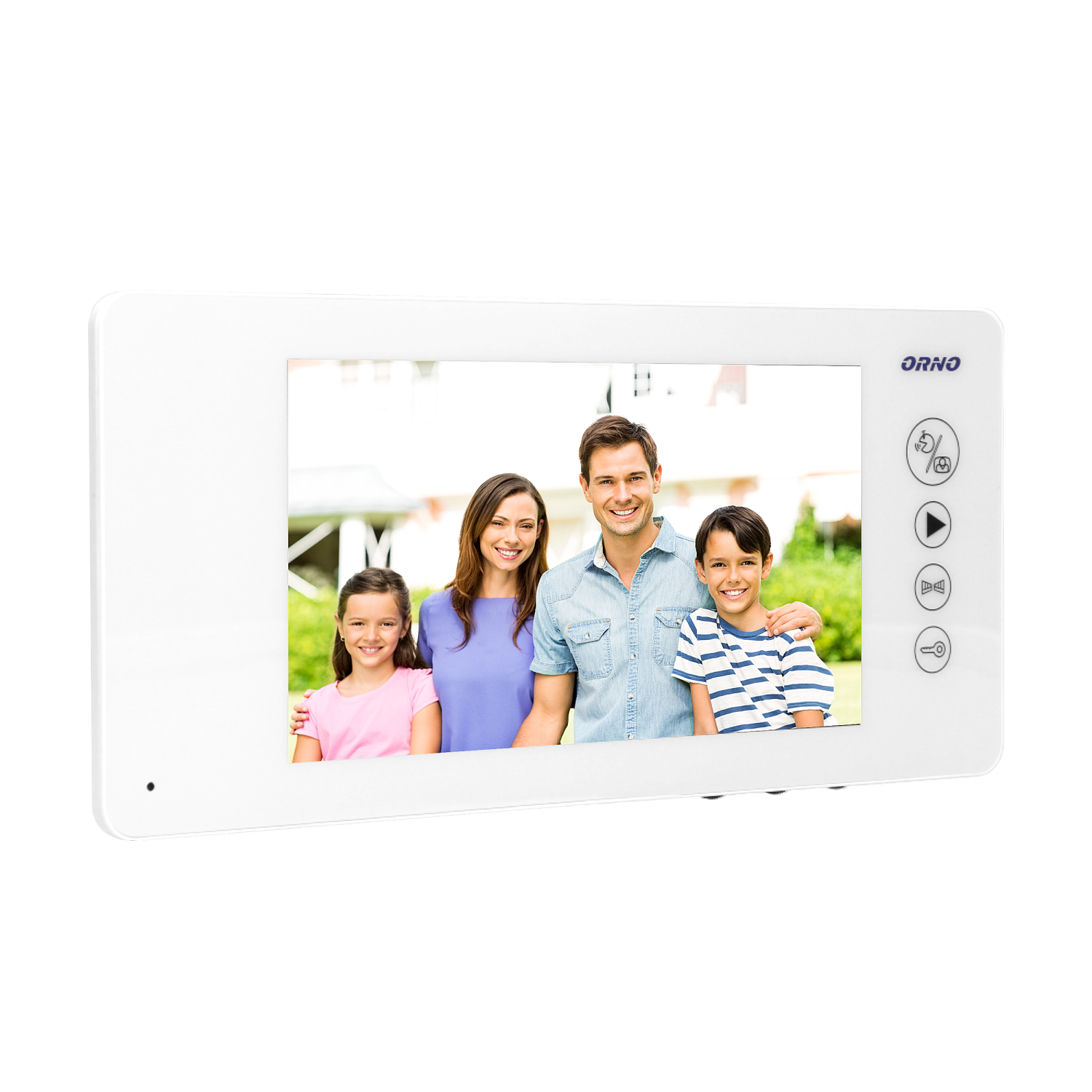

It is a modern videodoorphone equipped with an ultra slim LCD monitor with smooth adjustment of parameters (brightness, volume of conversation and ringtone), 9 selectable ringtones, a touch panel with backlit buttons and an additional gate control function. The internal memory module of the monitor saves about 20 color images, recording images in an automatic mode. The pin-hole CCD camera in a vandal-proof external panel is equipped with infrared lighting that enable night vision. It coopeartes with promiximity tags DC power supply from the power supply to the 13,5V DC socket. Electric strike with power consumption of no more than 500mA does not require additional power supply.
| General information: |
| Type: |
jednorodzinny |
| With video: |
tak |
| Current supply: |
Zasilanie sieciowe |
| Nominal voltage: |
13,5V DC |
| Type of transmission: |
przewodowy |
| Can be connected to smartphone: |
nie |
| Installation technique: |
System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): |
4 (+2)* |
| Number of indoor stations: |
1 |
| Number of outdoor stations: |
1 |
| Expandable to max. number of indoor stations: |
1 |
| Expandable to max. number of outdoor stations: |
1 |
| Operation door lock: |
tak |
| Current supply of the electric strike: |
dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: |
z panelem zewnętrznym |
| With automatic door opener: |
tak |
| With day/night function: |
tak |

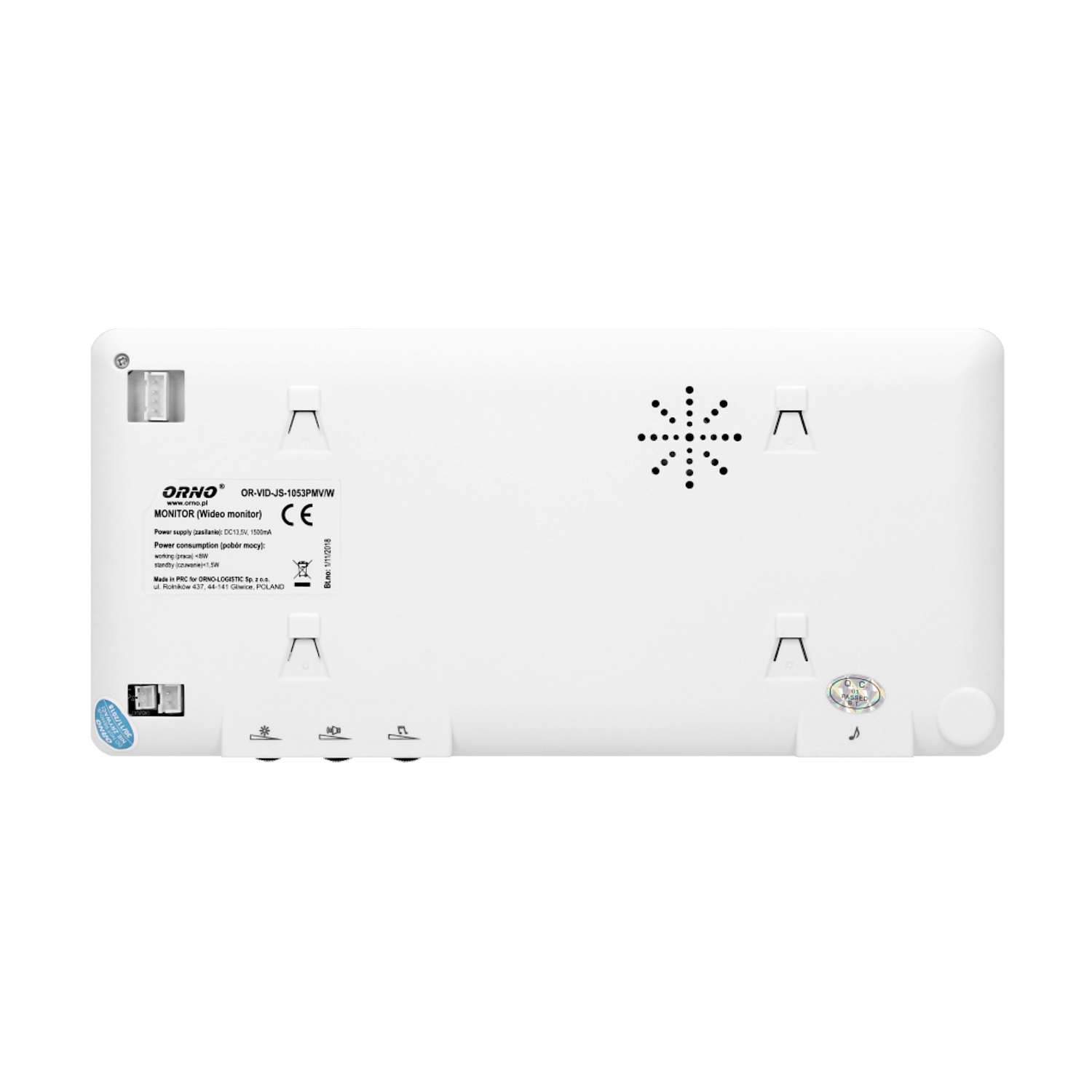

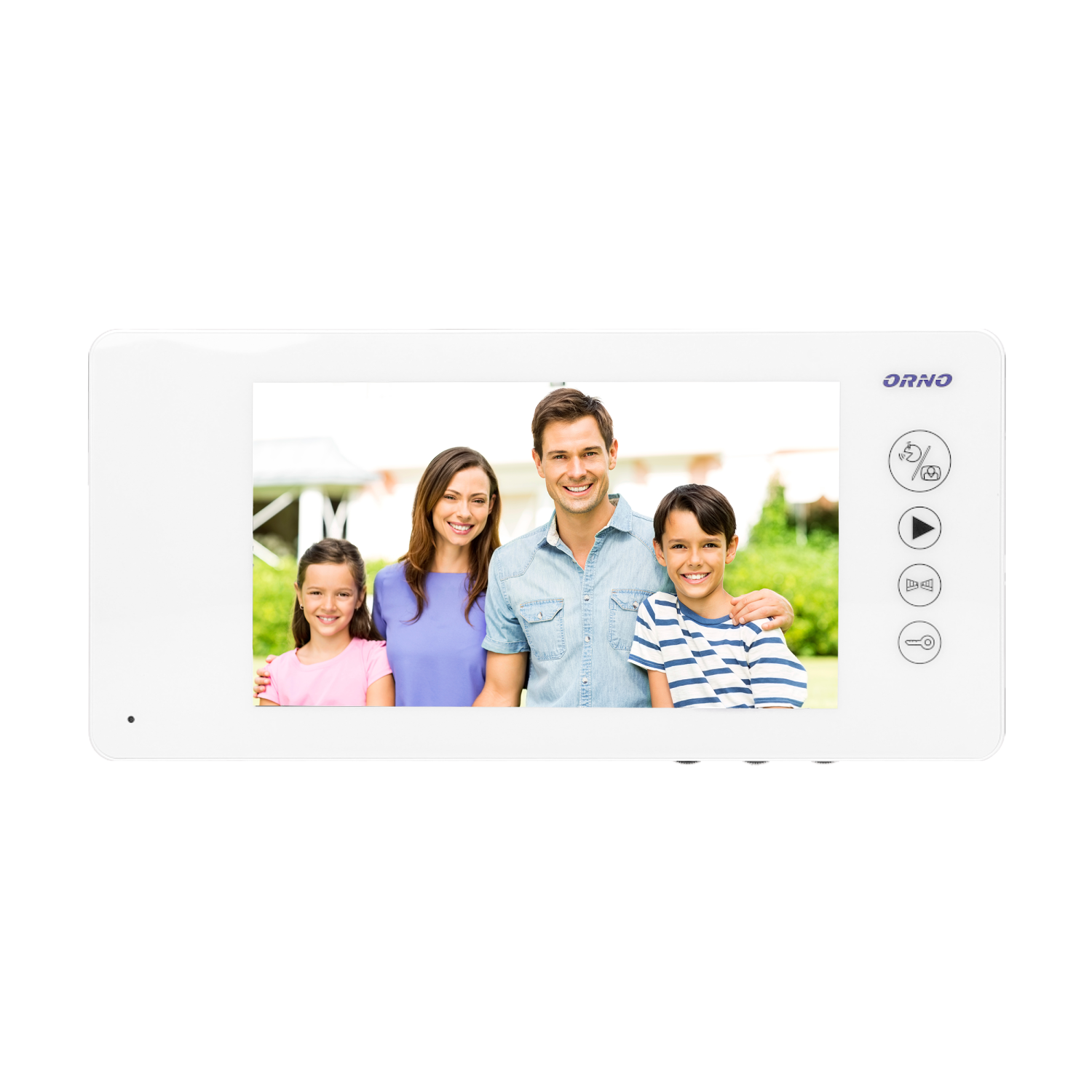

| Monitor: |
| Mounting method indoor station: |
Montaż natynkowy |
| Hands free: |
tak |
| Screen diagonal [inch]: |
7" |
| Screen resolution: |
800x480 |
| Touch screen: |
nie |
| Property picture system: |
Kolor |
| With memory function: |
tak |
| SD card reader: |
nie |
| Internal communication: |
nie |
| Number of ringtones: |
9 |
| Loudness control: |
tak |
| Mutable call tone: |
tak |
| Material indoor station: |
Tworzywo sztuczne |
| Colour indoor station: |
Biały |
| Dimensions of the monitor - Width [mm]: |
240 |
| Dimensions of the monitor - Height [mm]: |
114 |
| Dimensions of the monitor - Depth [mm]: |
12 |

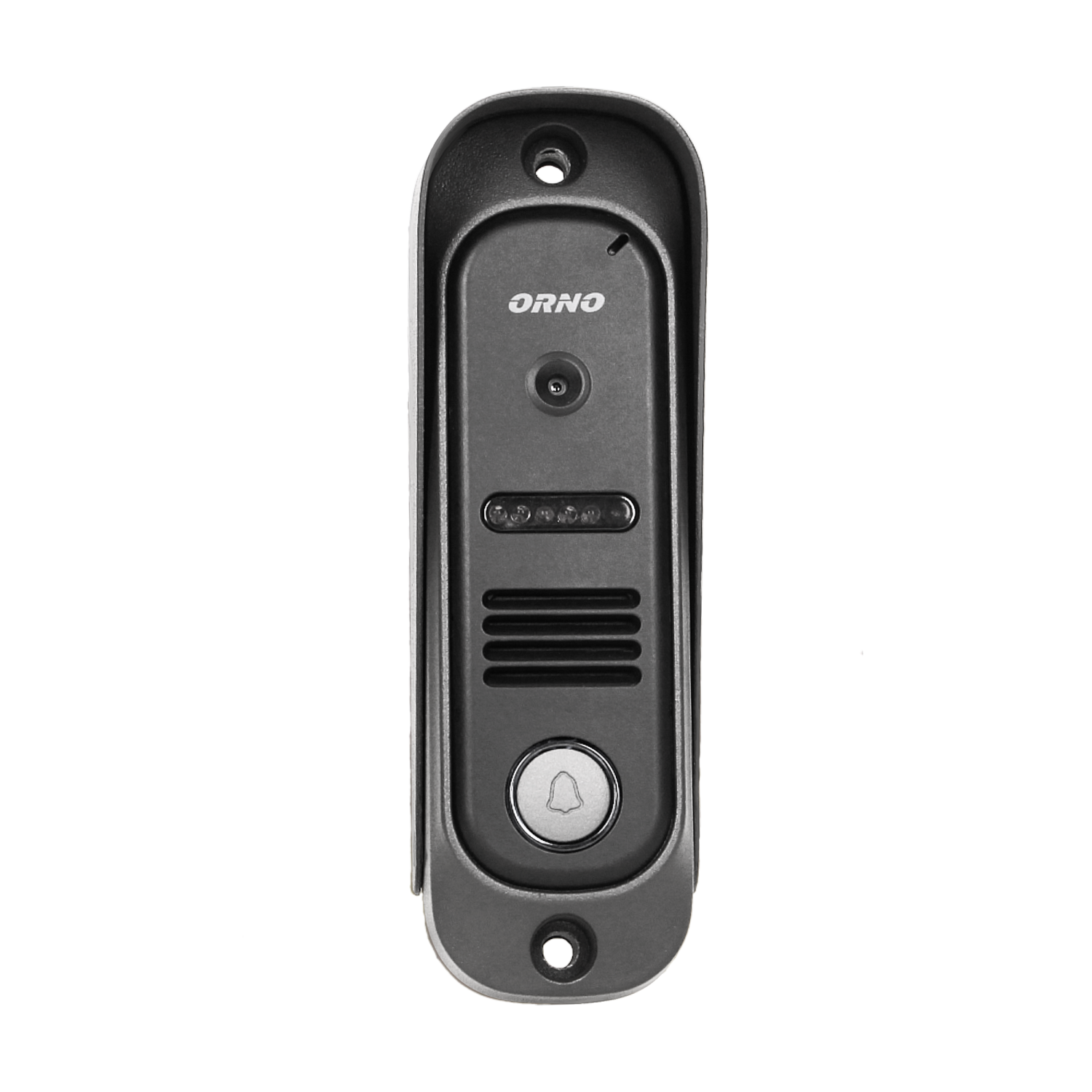

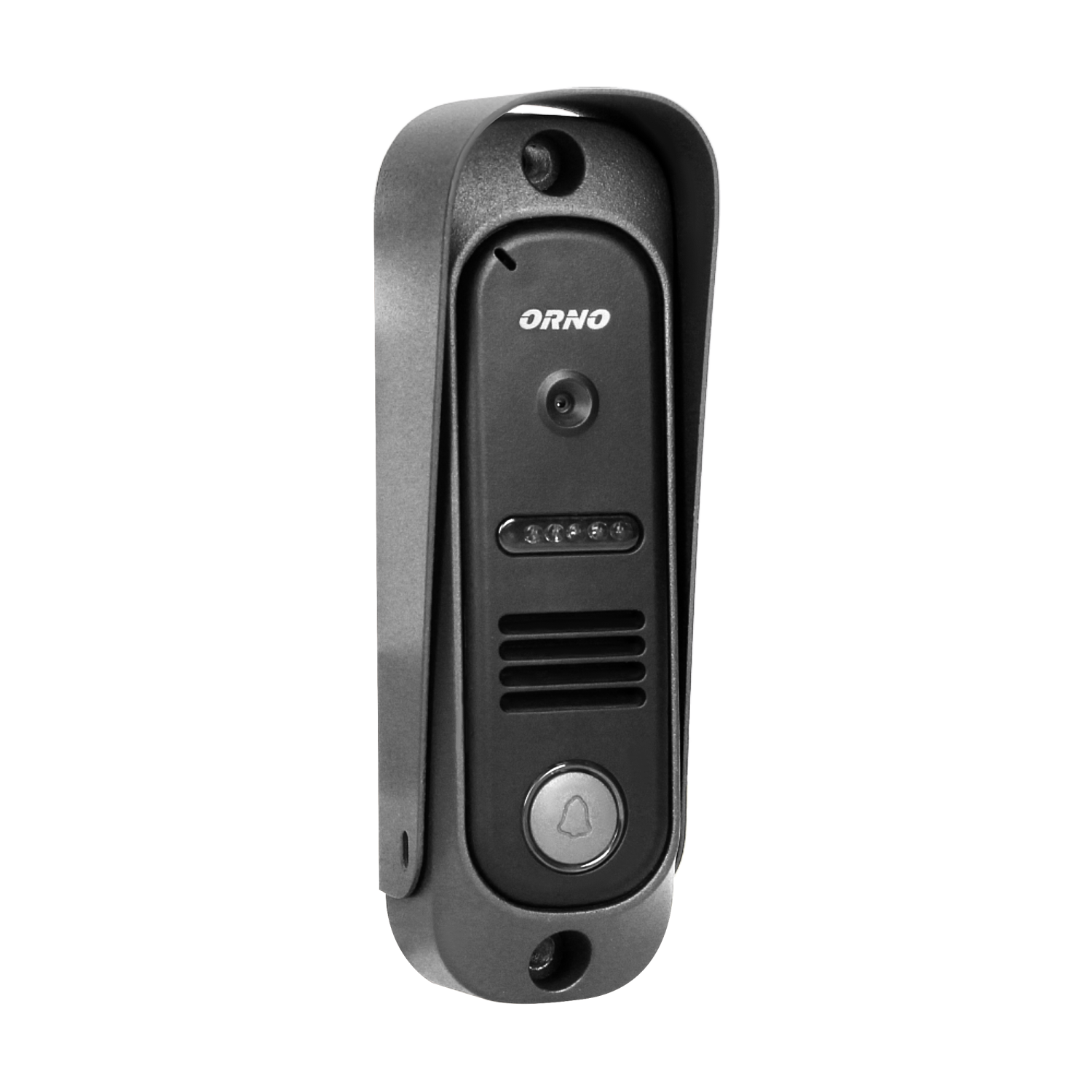

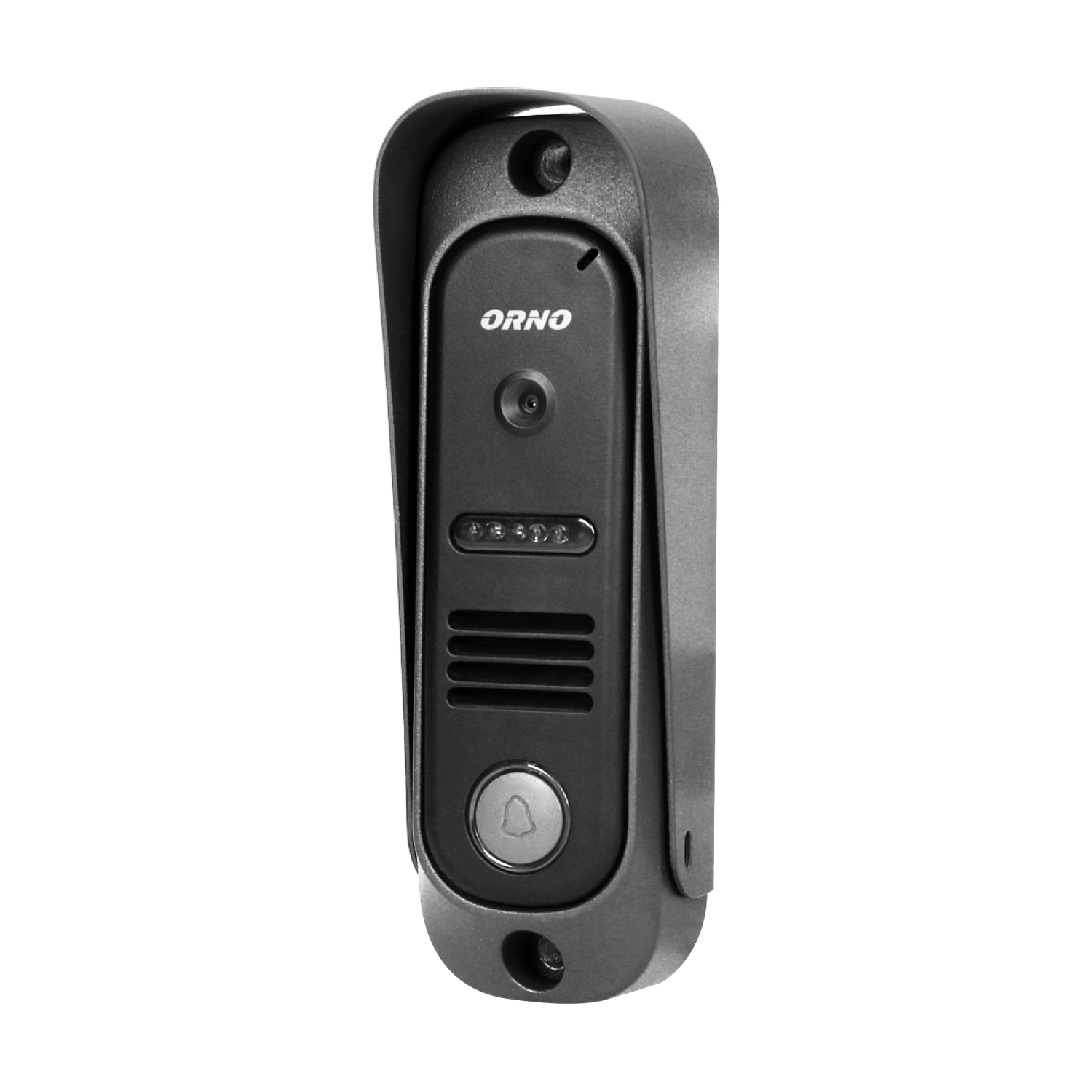

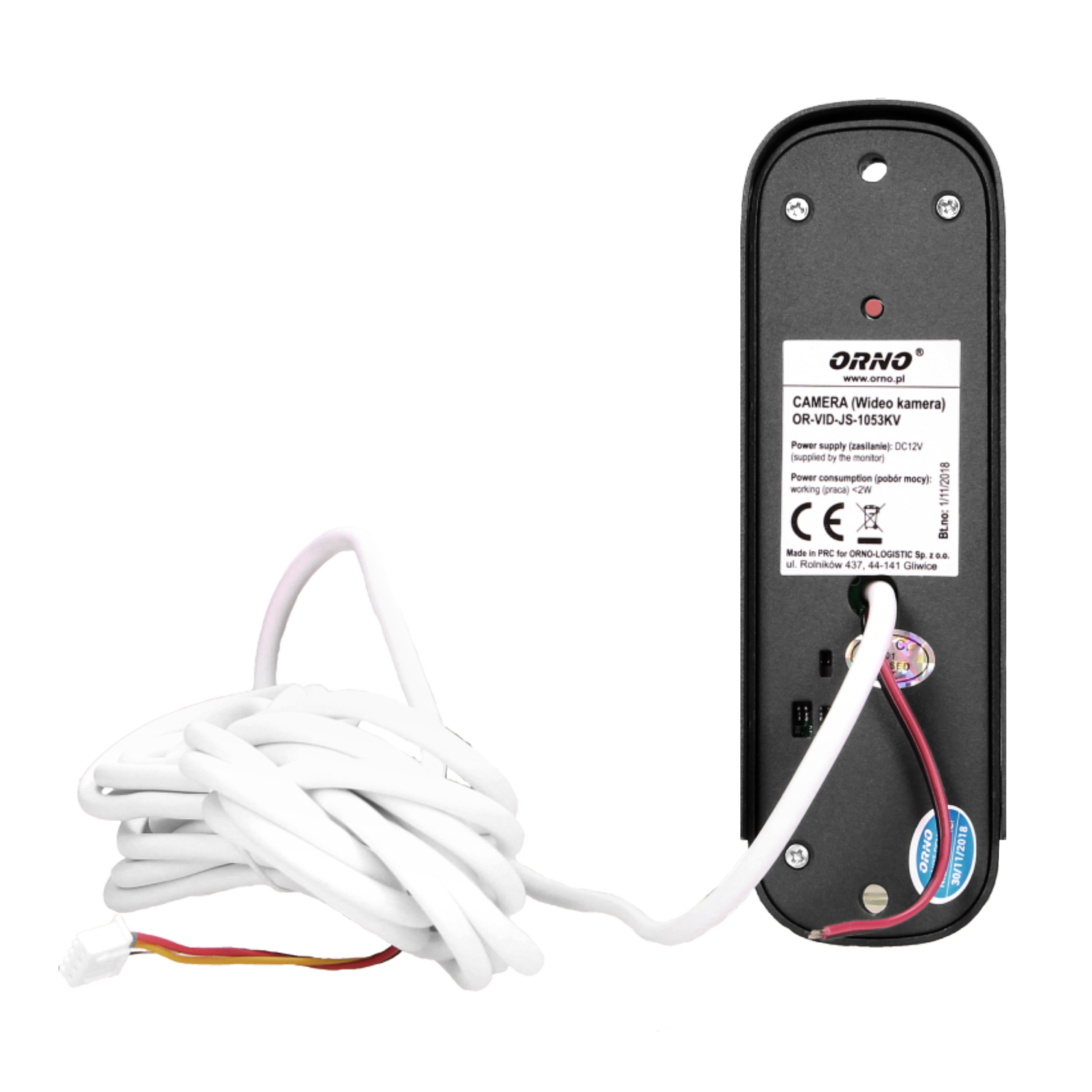

| External panel: |
| Number of call buttons: |
1 |
| Mounting method outdoor station: |
Montaż natynkowy |
| Camera resolution: |
0,3 Mpix |
| Camera view angle (vertical): |
32 ° |
| Camera view angle (horizontal): |
34 ° |
| Night light: |
IR |
| With digital door code: |
nie |
| Card and proximity tags reader: |
tak |
| Frequency of RFID tags: |
125kHz |
| Label space/information surface: |
nie |
| With cover: |
tak |
| Vandal proof: |
tak |
| Degree of protection (IP): |
IP44 |
| Material outdoor station: |
Aluminium |
| Colour outdoor station: |
Czarny |
| Width [mm]: |
43.2 |
| Height [mm]: |
140.6 |
| Depth [mm]: |
29.3 |
| Other features: |
RFID - max. 4 użytkowników (breloki w zestawie: 2 użytkownika + 2 administracyjne) |
