OR-VID-VP-1073/B

Description

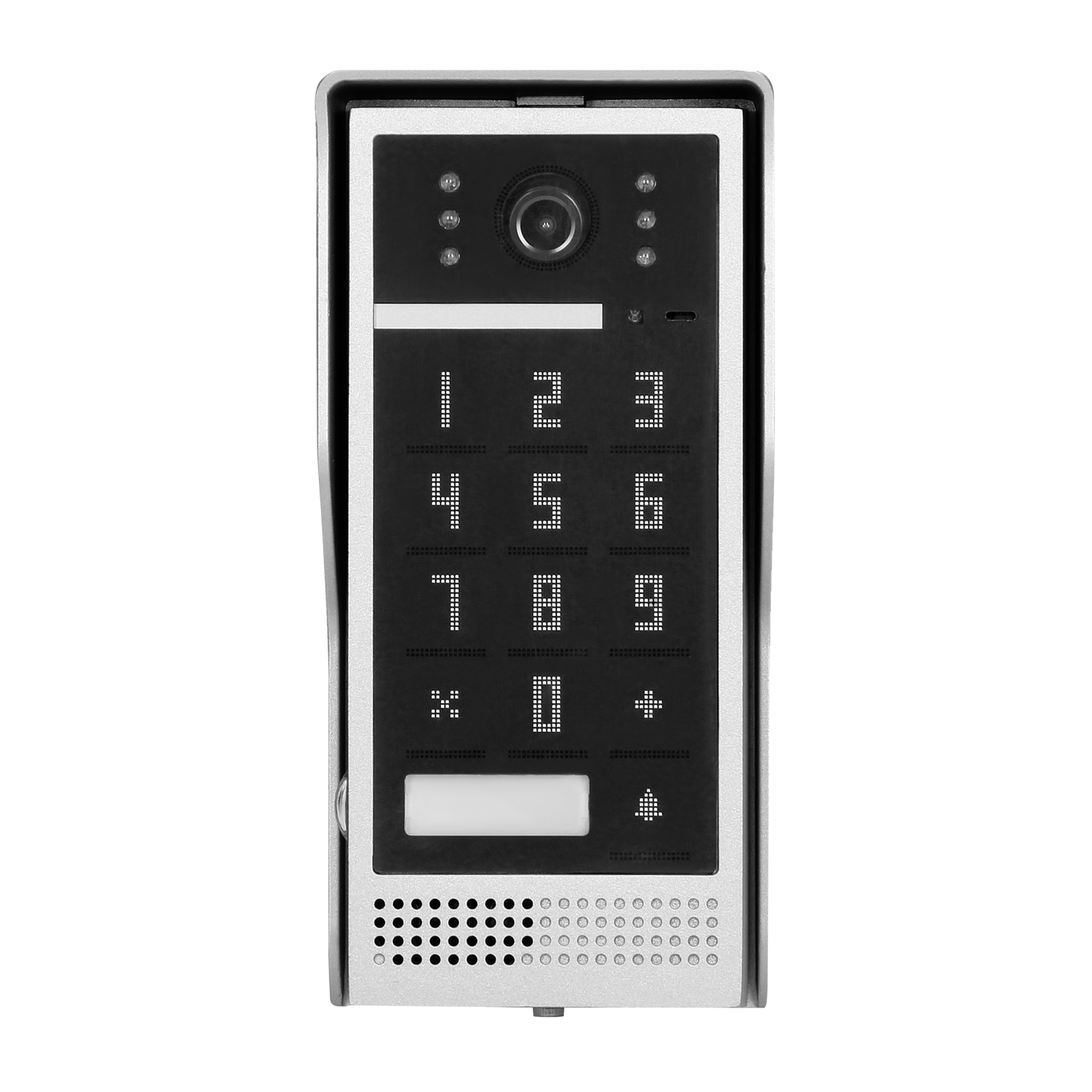

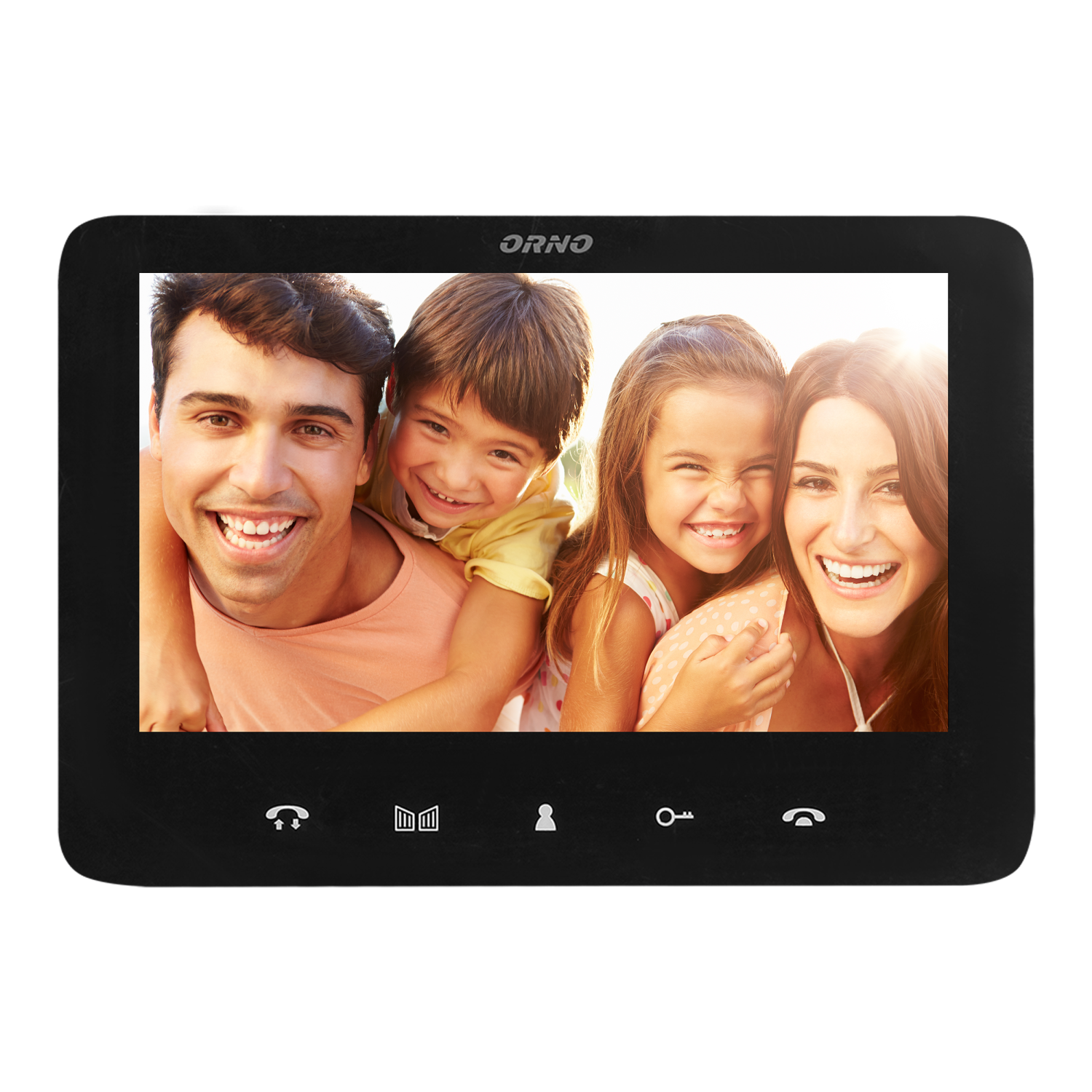

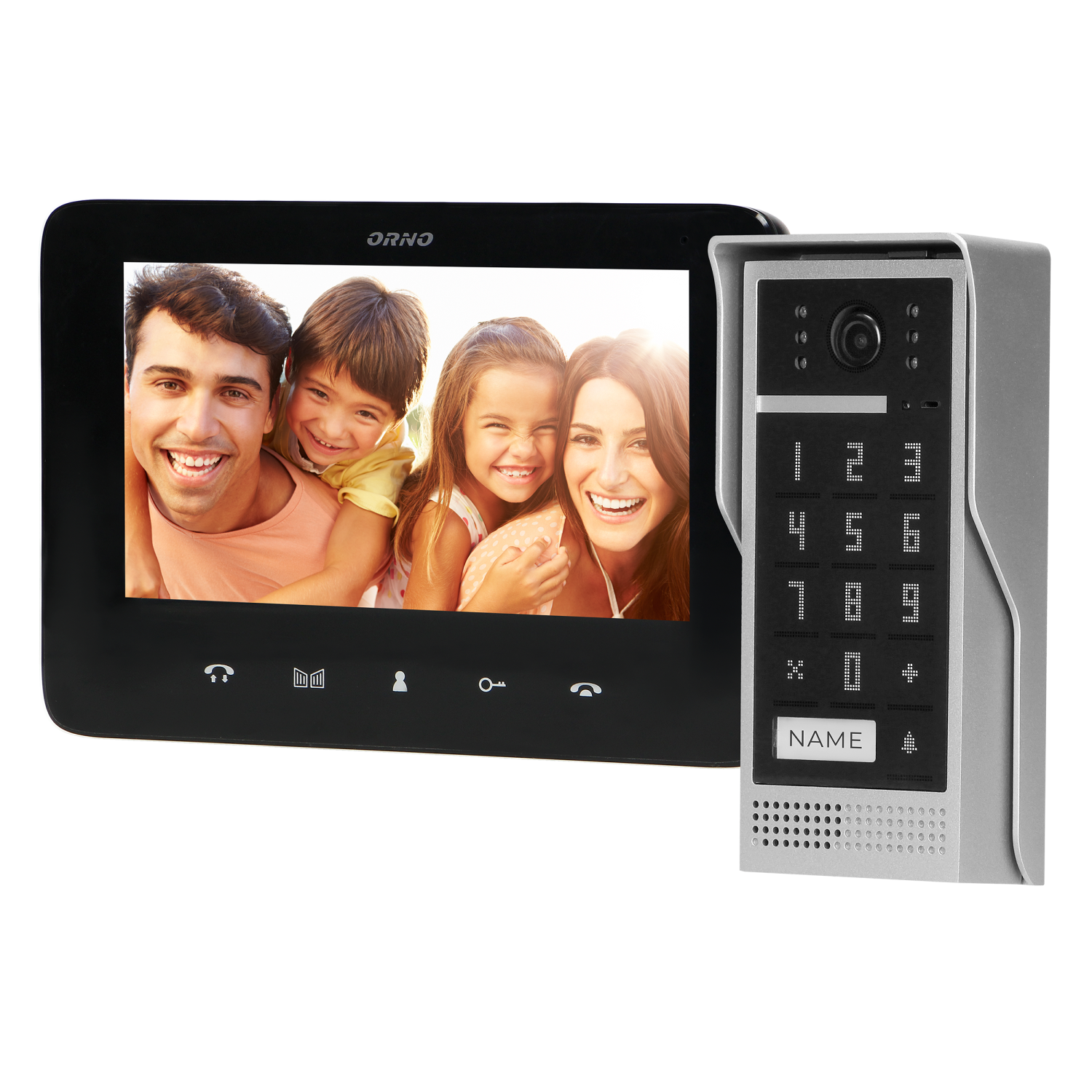

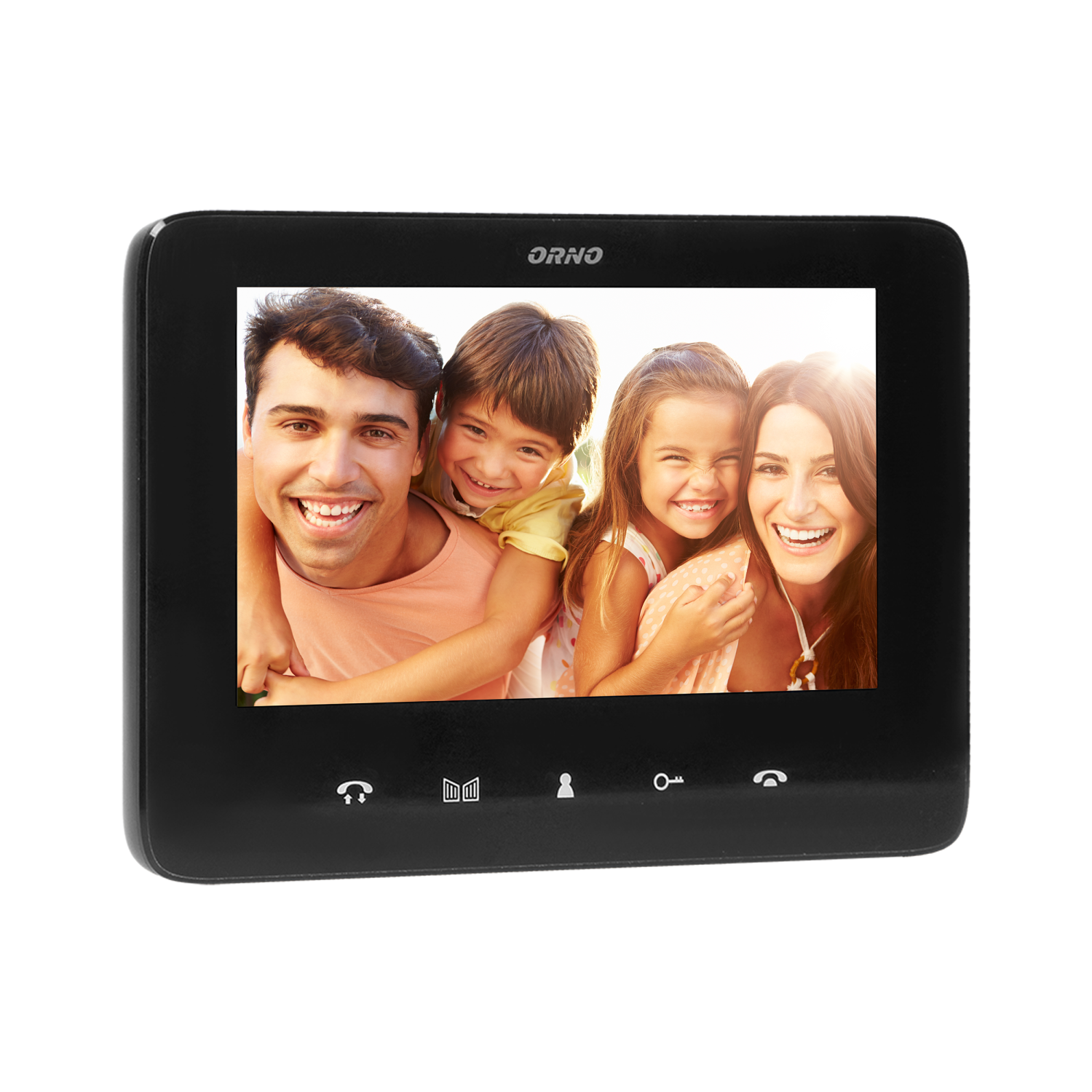

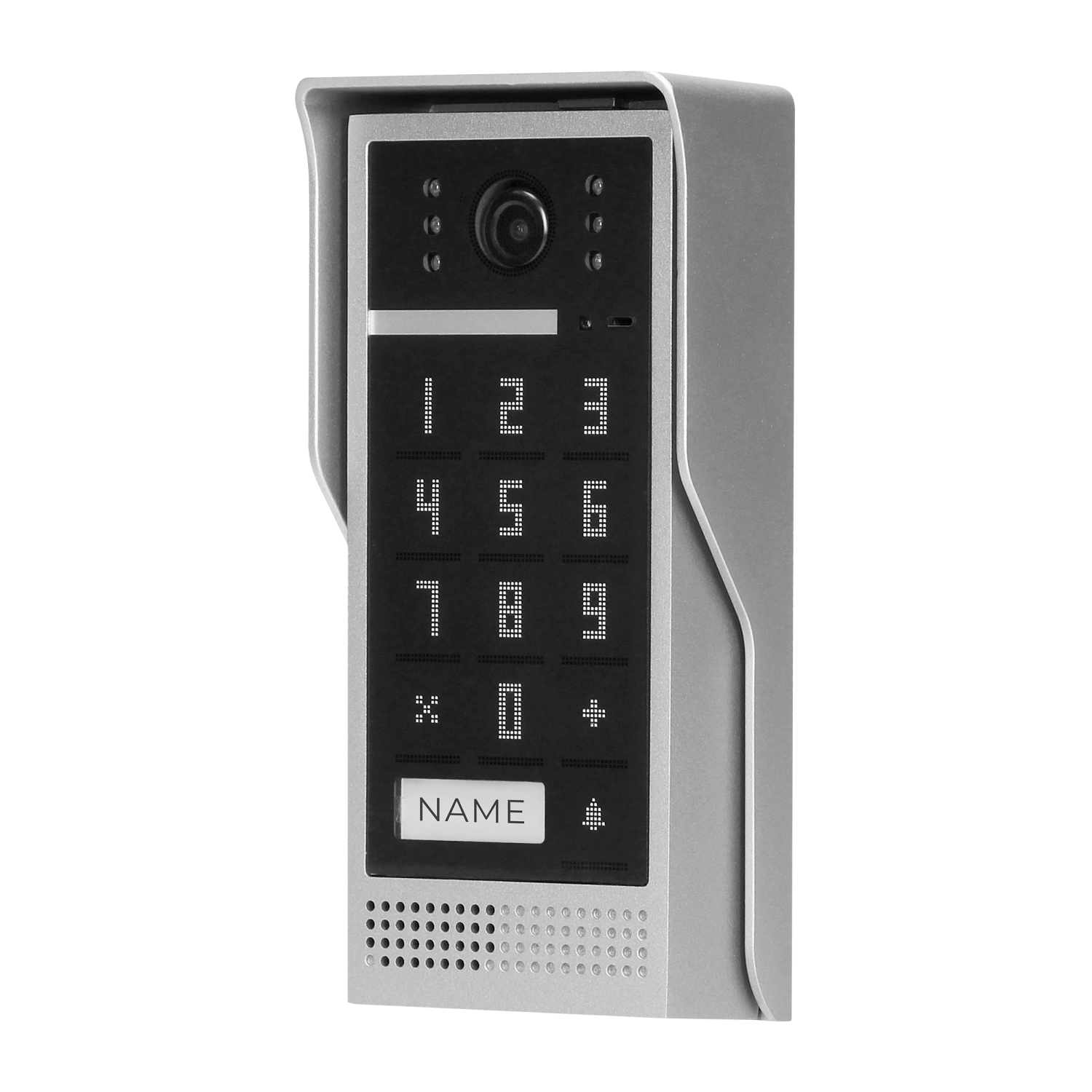

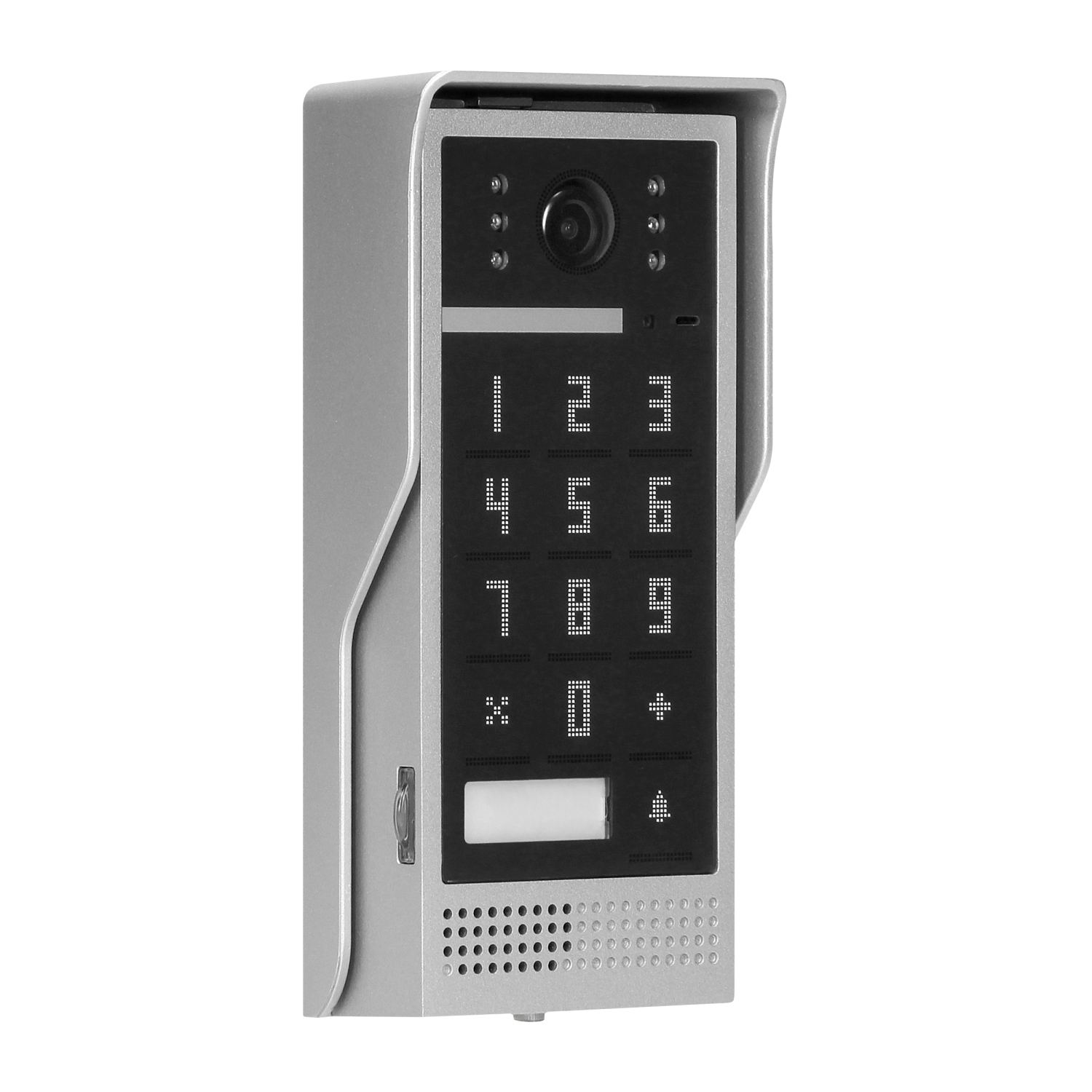

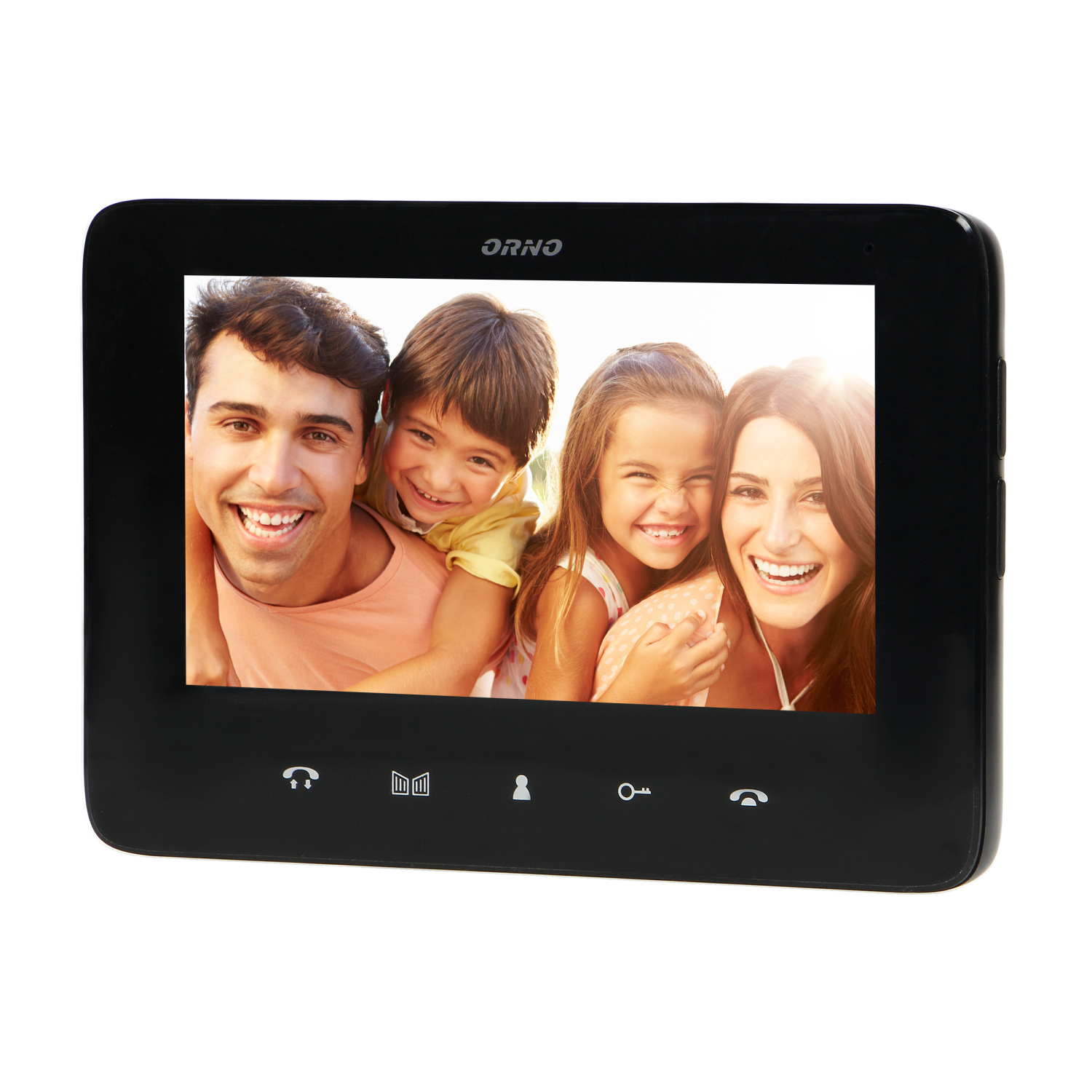

Video doorphone set includes multicolour, ultra-flat 7" LCD monitor with a touch panel and backlit buttons. Monitor parameters (brightness and colour, speech and ringtone volume) can be adjusted. There are 16 ringtones to choose from. The outdoor unit with a CMOS camera is suitable for surface mounting. It has got a protective roof, a name plate and IR diodes that provide excellent night vision. Additionally, the outdoor unit has a backlit numeric keypad (code lock) that grants access to authorized visitors only. The set can support gate opening and, if you connect an additional monitor to it, you can activate intercom function. DC power source from power supply unit to power outlet (15V DC) or optionally from DIN rail power supply (OR-VID-VP-1009ZD). Electric strike suitable for 12V DC and power consumption of max. 300mA does not require additional power supply.

General information:
Type: jednorodzinny
With video: tak
Current supply: Zasilanie sieciowe
Nominal voltage: 12V DC
Type of transmission: przewodowy
Can be connected to smartphone: nie
Installation technique: System wieloprzewodowy
Number of wires (*from outdoor station to electric strike): 5 (+2)*
Number of indoor stations: 1
Number of outdoor stations: 1
Expandable to max. number of indoor stations: 3
Expandable to max. number of outdoor stations: 1
Operation door lock: tak
Current supply of the electric strike: dodatkowy zasilacz niewymagany
Connection system of the electric strike: z panelem zewnętrznym
With automatic door opener: tak
With day/night function: tak
Monitor:
Mounting method indoor station: Montaż natynkowy
Hands free: tak
Screen diagonal [inch]: 7"
Screen resolution: 800x480
Touch screen: nie
Property picture system: Kolor
With memory function: nie
Internal communication: tak
Number of ringtones: 16
Loudness control: tak
Mutable call tone: tak
Material indoor station: Tworzywo sztuczne
Colour indoor station: Czarny
Dimensions of the monitor - Width [mm]: 200
Dimensions of the monitor - Height [mm]: 138
Dimensions of the monitor - Depth [mm]: 23
External panel:
Number of call buttons: 1
Mounting method outdoor station: Montaż natynkowy
Camera resolution: 600 TVL
Camera view angle (vertical): 64 °
Camera view angle (horizontal): 96 °
Night light: IR
With digital door code: tak
Card and proximity tags reader: nie
Label space/information surface: tak
With cover: tak
Degree of protection (IP): IP44
Material outdoor station: Aluminium
Colour outdoor station: Srebrny
Width [mm]: 63
Height [mm]: 150
Depth [mm]: 24

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:51Download
Product data sheetENpdf2024-07-17 10:22:36Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
User manualHRpdf2024-03-14 10:39:51Download
User manualROpdf2024-03-14 10:39:51Download
