OR-VID-MS-1078

Description

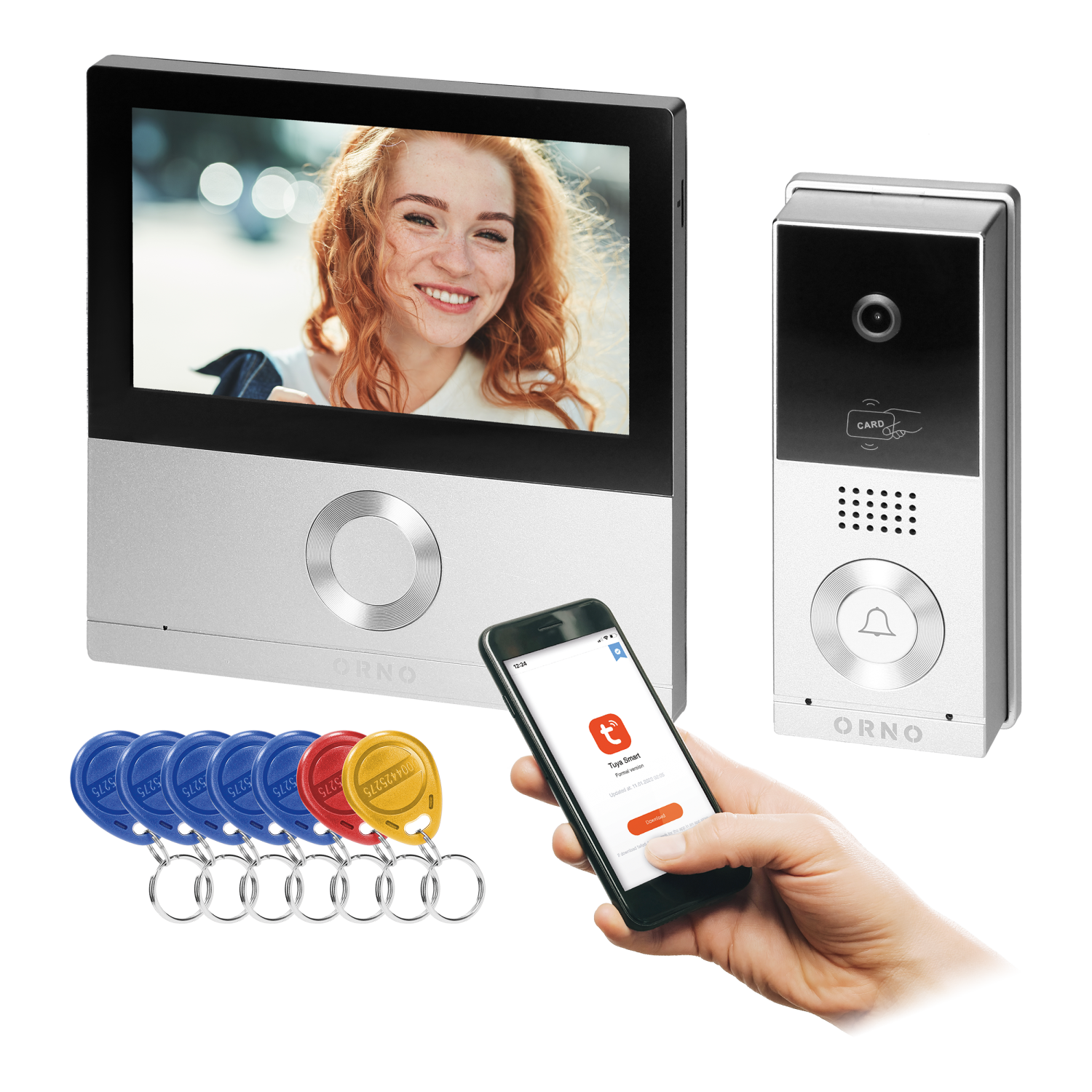

The TALOS video-doorphone set is designed for individual users, small businesses and institutions. The devices are characterised by an intuitive 4-wire connection, which enables easy self-assembly and reduces the number of cables leading to the wicket. Thanks to the Wi-Fi functions and remote control, it is possible to operate the video doorphone from anywhere in the world via the popular and recognised smart home platform, Tuya.

The Tuya Smart app, available for mobile devices, allows you to easily connect to your home equipment and manage access to your property and building.

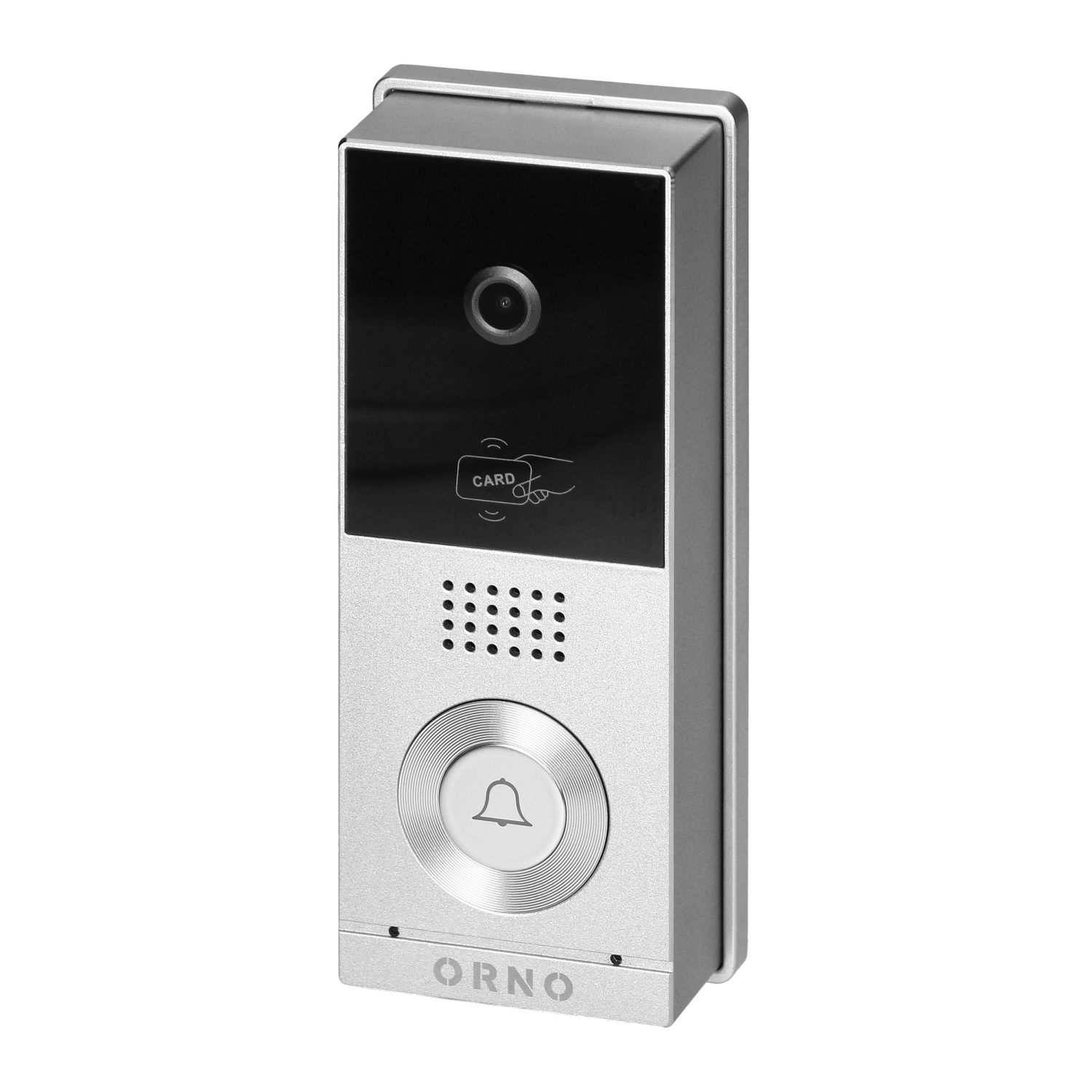

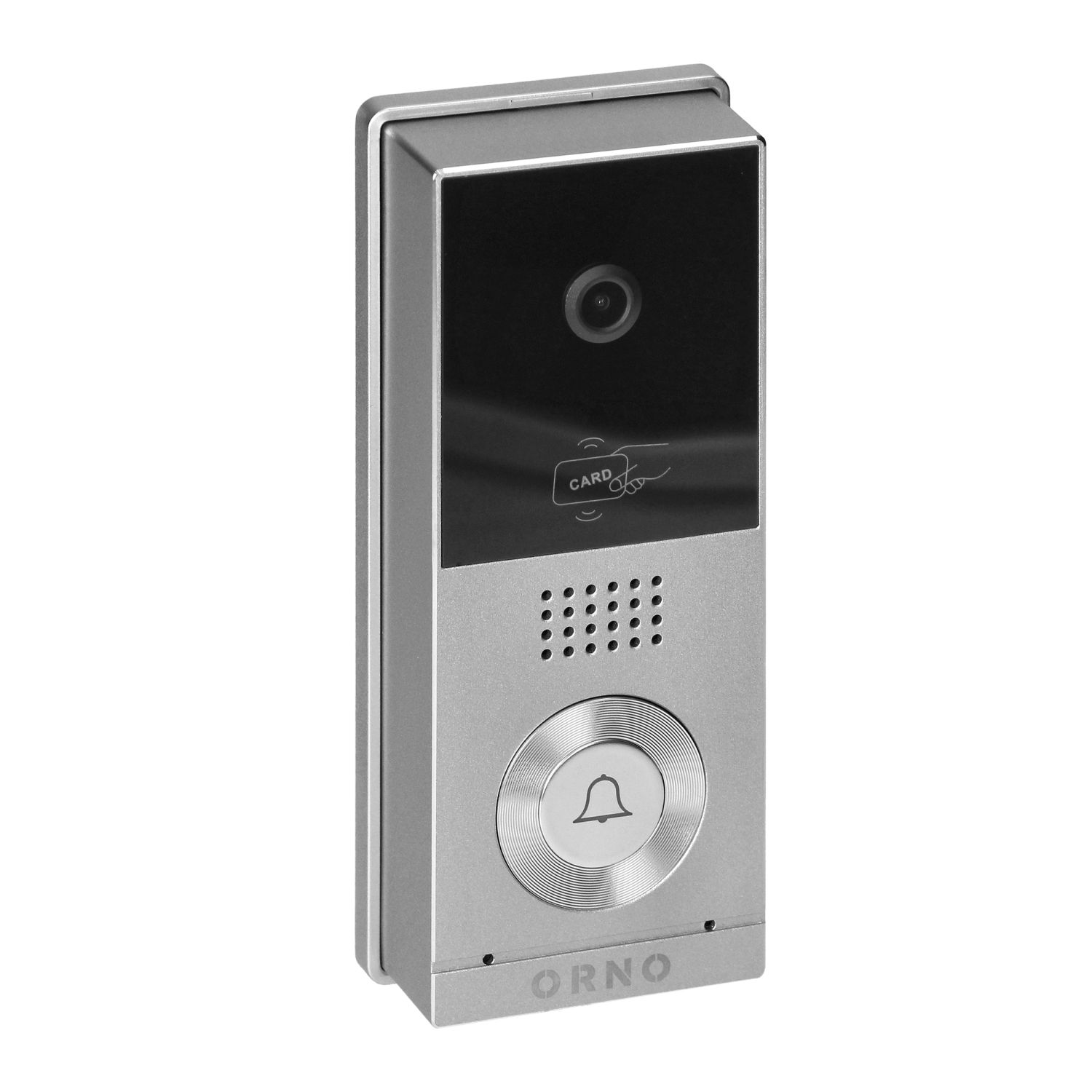

The TALOS outdoor unit offers 2MP, 1920x1080, 1080p color camera images and a wide viewing angle of 112° horizontally - providing a full view in front of the wicket. The night-lighting function ensures visibility in the dark without dazzling the visitor and without signalling the connection. The RFID reader allows easy entry to the property for authorised persons, and the low-current electric strike (max. 500mA) is powered directly from the outdoor unit, so no additional power supply is needed for the wicket, resulting in fewer wires running through the garden.

A motion sensor in the outdoor unit allows recording of photos/videos when motion is detected (microSD card). The outdoor unit is IP65-rated, made of high-quality aluminium and has a rain cover.

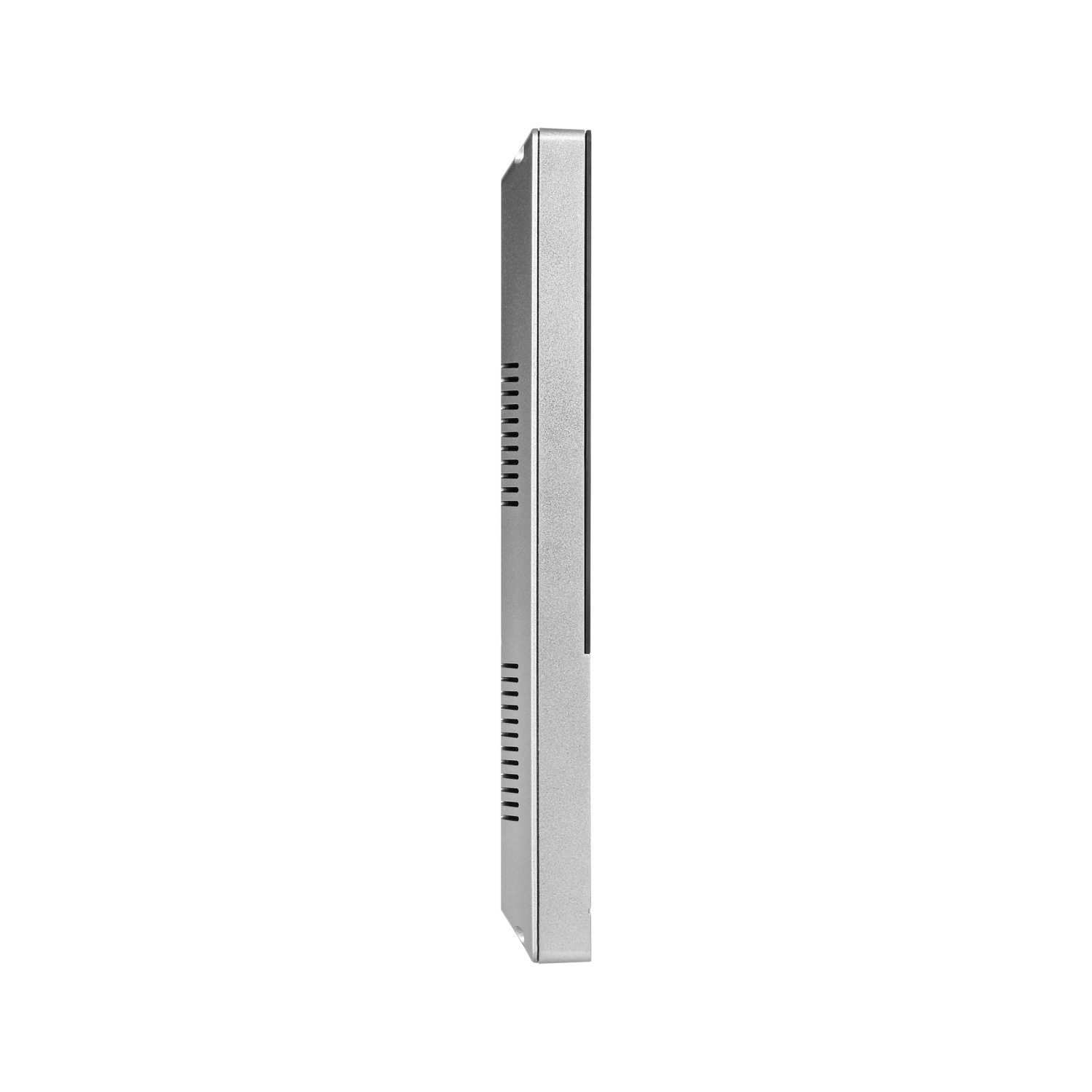

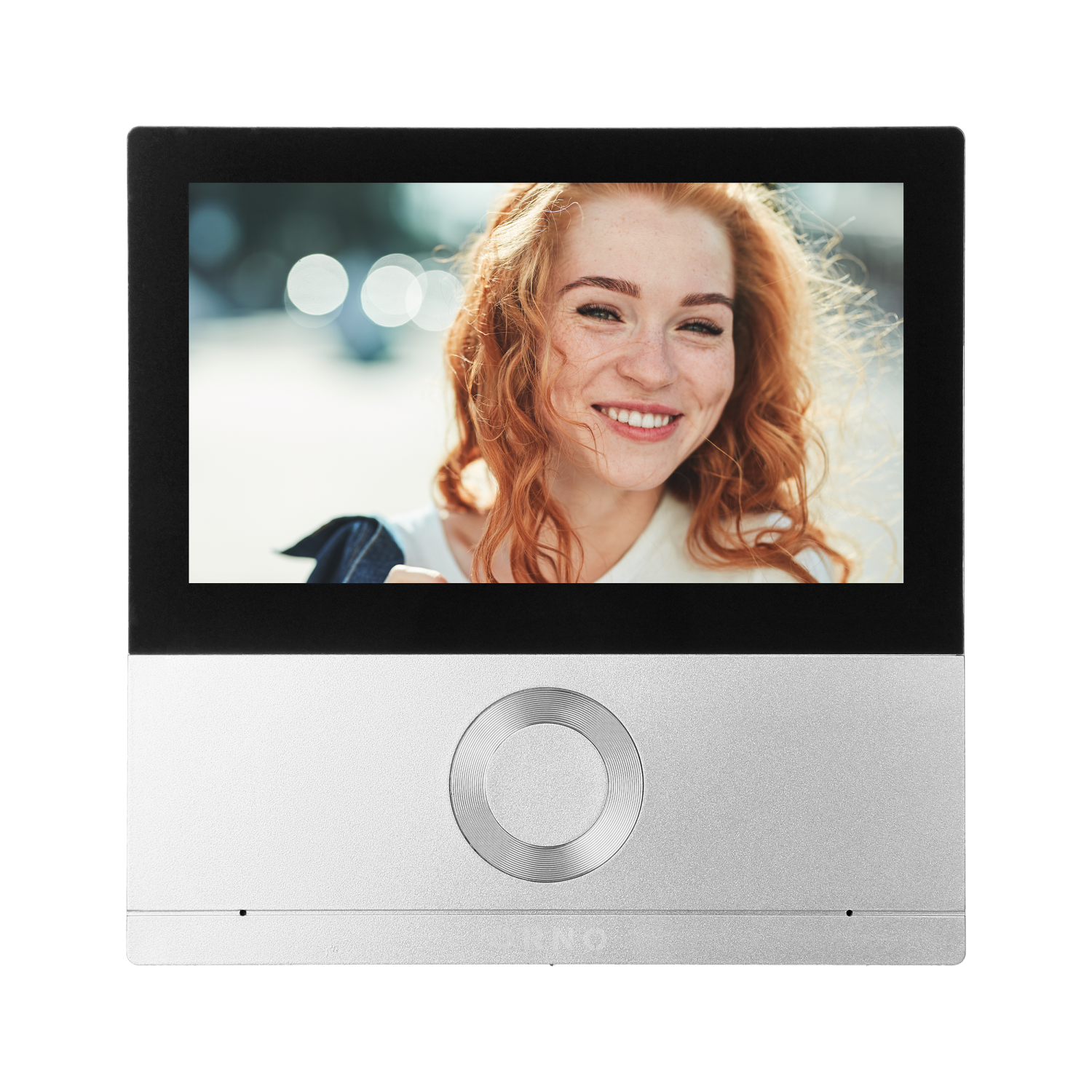

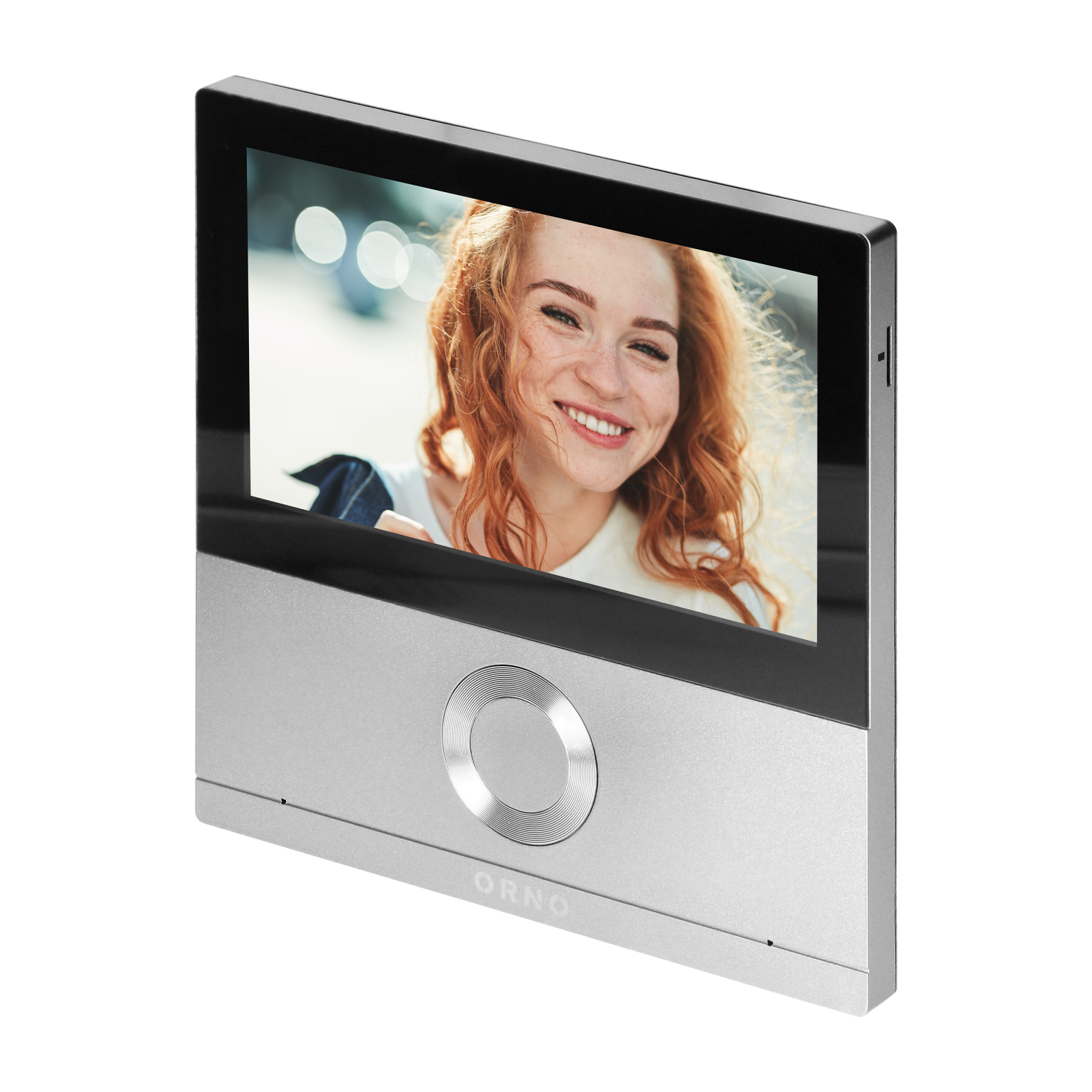

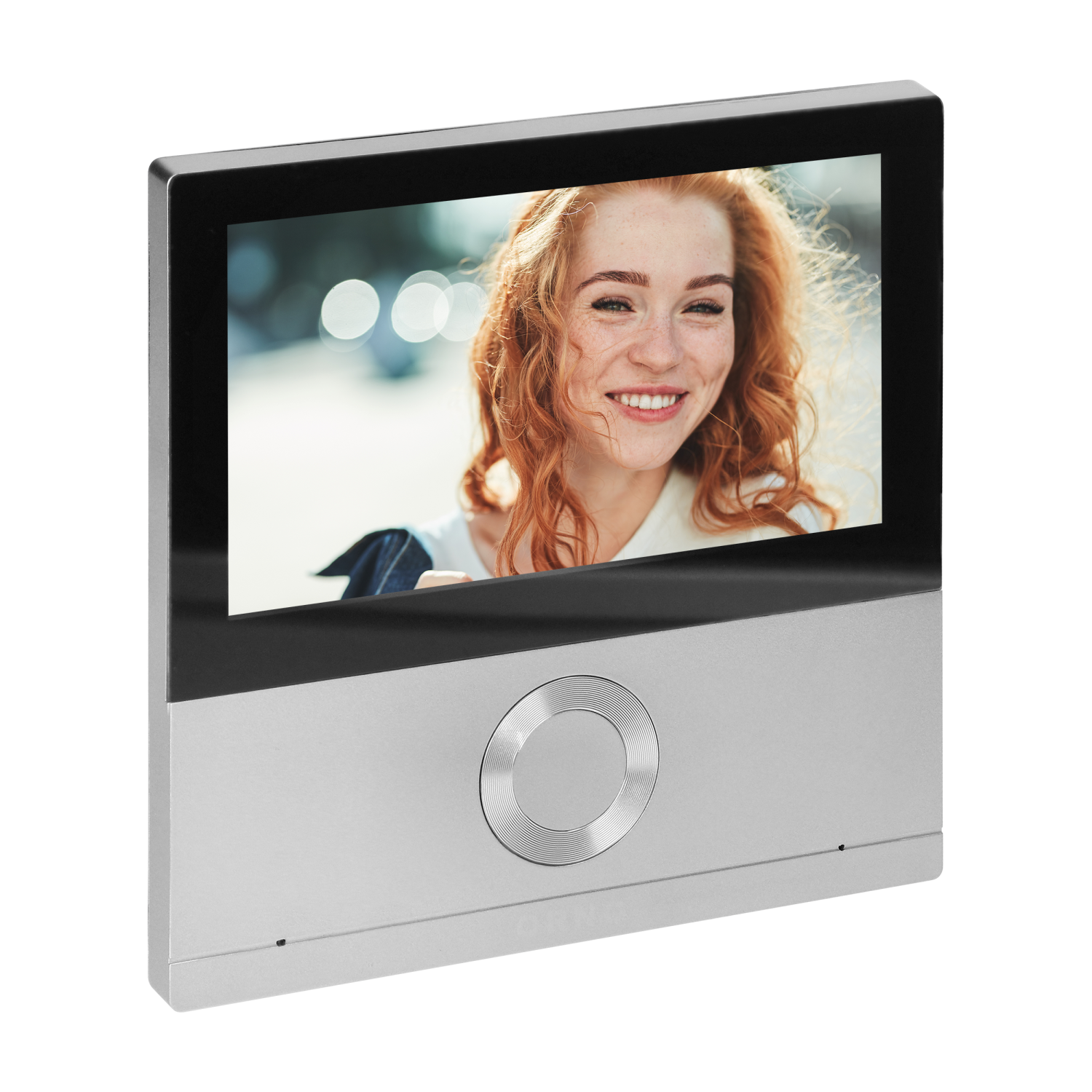

The monitor has a large and clear touchscreen for simple and fast navigation. Talos is a model with a memory function that records events while you are away or during a call - the internal memory is sufficient to store 30 images. As an option, you can use the SD card reader, which gives you the option of activating the record function (movies) and increasing the capacity for storing photos, or you can upload your own favourite melodies as the sound of an incoming call - default there are 6 basic melodies to choose from. In addition, a 4-stage volume control (including total mute) adapts the device to the user's needs.

The device also has the functions of a weather station, digital frame and answering machine.

It is also expandable with up to 3 additional monitors, an additional outdoor unit and 2 additional CCTV cameras to create a bigger entrance control and monitoring system, even with two home entrances and a multi-storey building. An additional facility is the intercom function, which allows connections between others monitors, facilitating communication in large buildings, e.g. between floors (function possible with additional monitors).

General information:
Type: jednorodzinny
With video: tak
Current supply: Zasilanie sieciowe
Nominal voltage: 12V DC
Type of transmission: przewodowy
Can be connected to smartphone: tak
Wi-Fi Frequency: 2.4 GHz
Wi-Fi standard: IEEE 802.11 b/g/n
App: Tuya Smart
Installation technique: System wieloprzewodowy

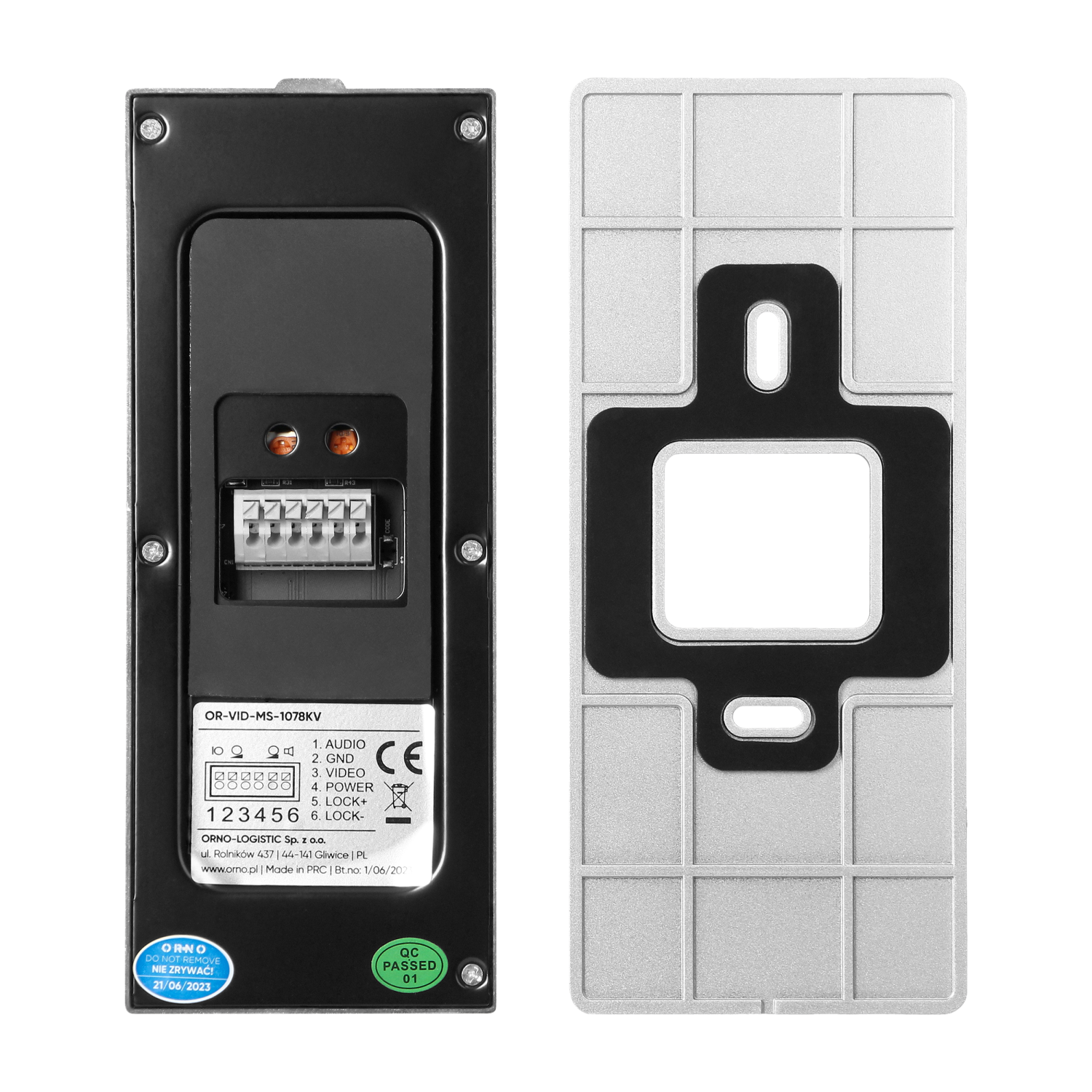

Number of wires (*from outdoor station to electric strike): 4 (+2)*
Number of indoor stations: 1
Number of outdoor stations: 1
Expandable to max. number of indoor stations: 4
Expandable to max. number of outdoor stations: 2
Expandable to max. number of CCTV cameras: 2
Operation door lock: tak
Current supply of the electric strike: dodatkowy zasilacz niewymagany
Connection system of the electric strike: z panelem zewnętrznym
With automatic door opener: tak
With day/night function: tak

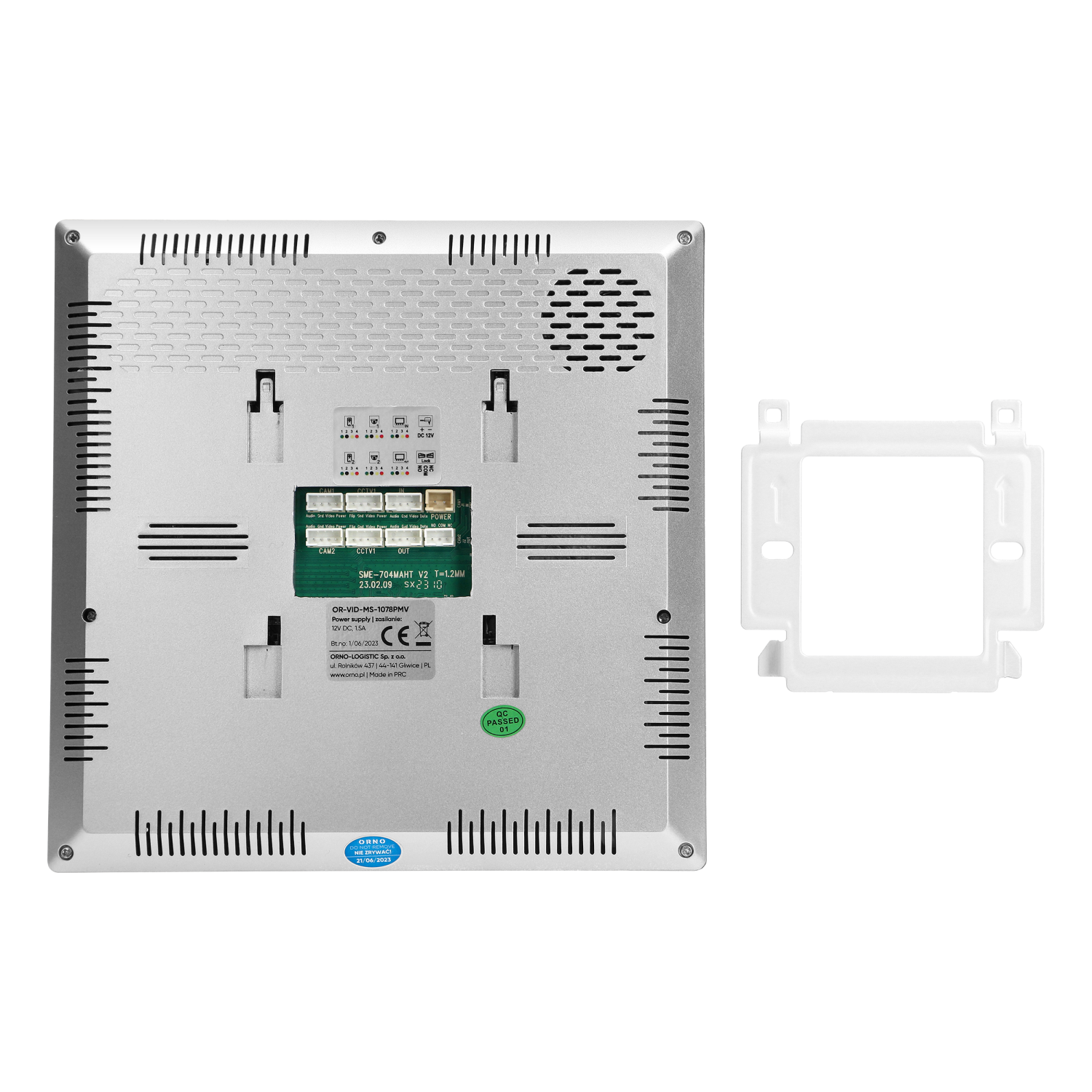

Monitor:
Mounting method indoor station: Montaż natynkowy
Hands free: tak
Screen diagonal [inch]: 7"
Screen resolution: 1024x600
Touch screen: tak
Property picture system: Kolor
With memory function: tak
SD card reader: tak
Internal communication: tak
Number of ringtones: 6
Specific call tone: tak
Loudness control: tak
Mutable call tone: tak
Material indoor station: Tworzywo sztuczne
Colour indoor station: Srebrny
Dimensions of the monitor - Width [mm]: 181
Dimensions of the monitor - Height [mm]: 181
Dimensions of the monitor - Depth [mm]: 18
Other features: automatyczna sekretarka; stacja pogody

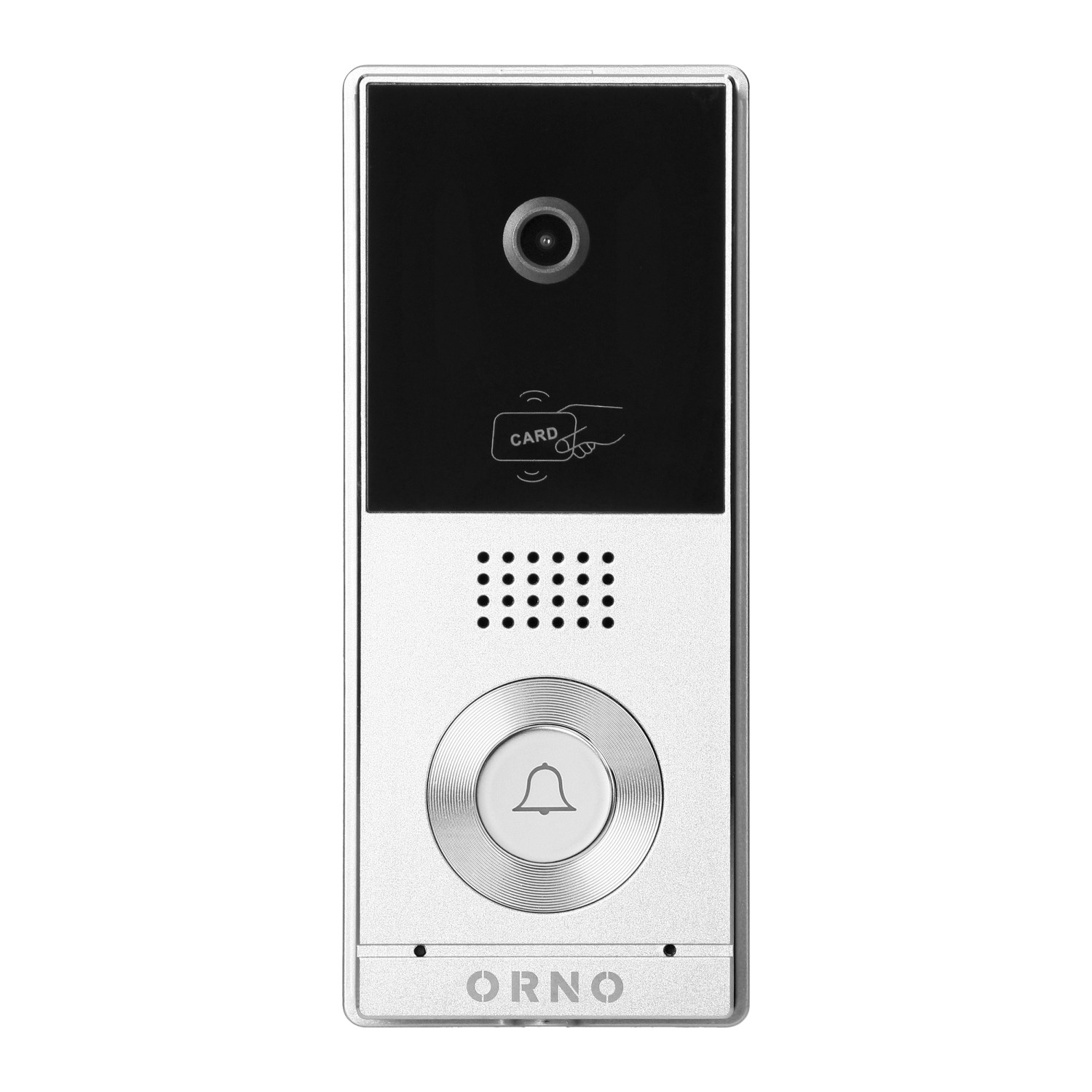

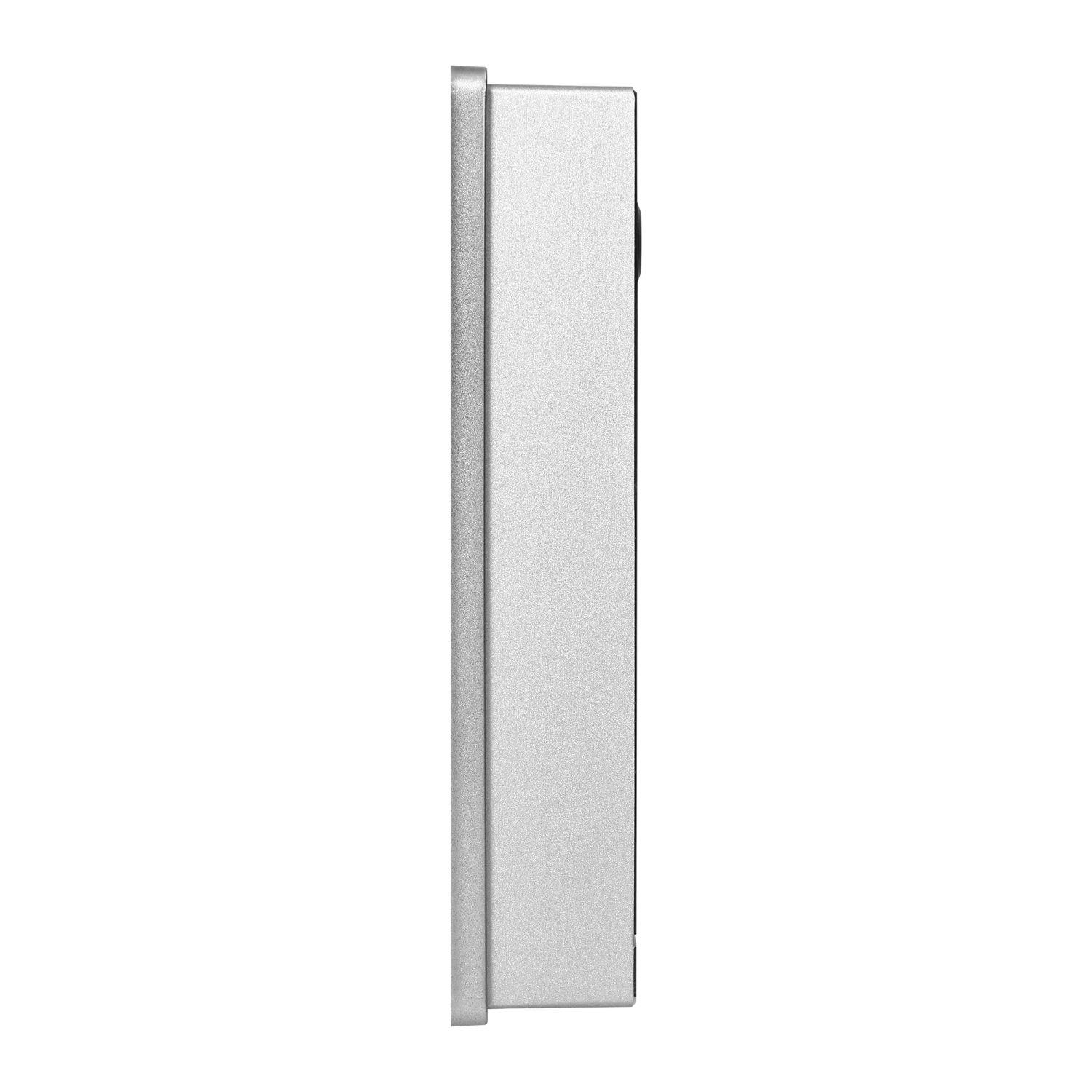

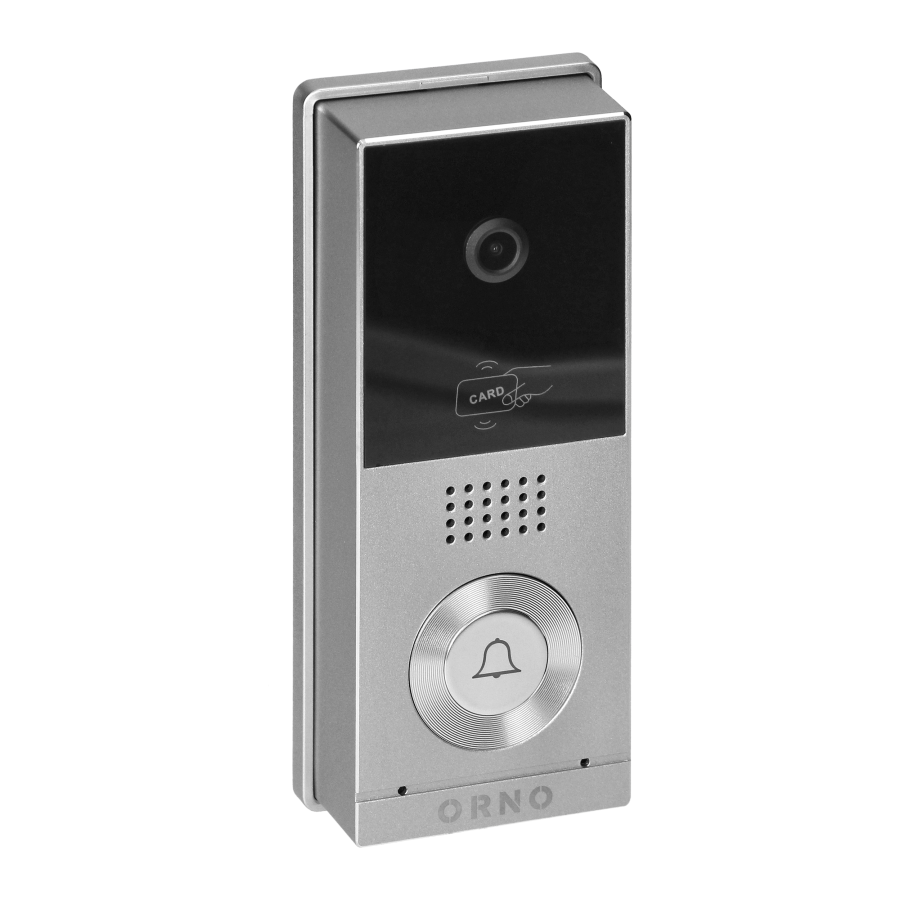

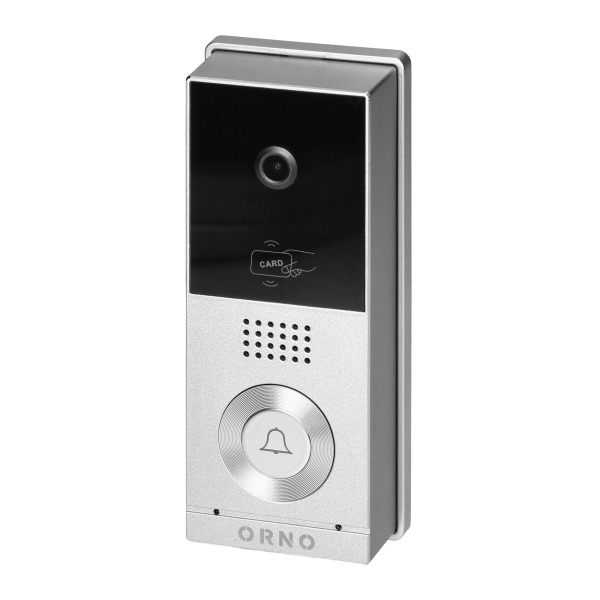

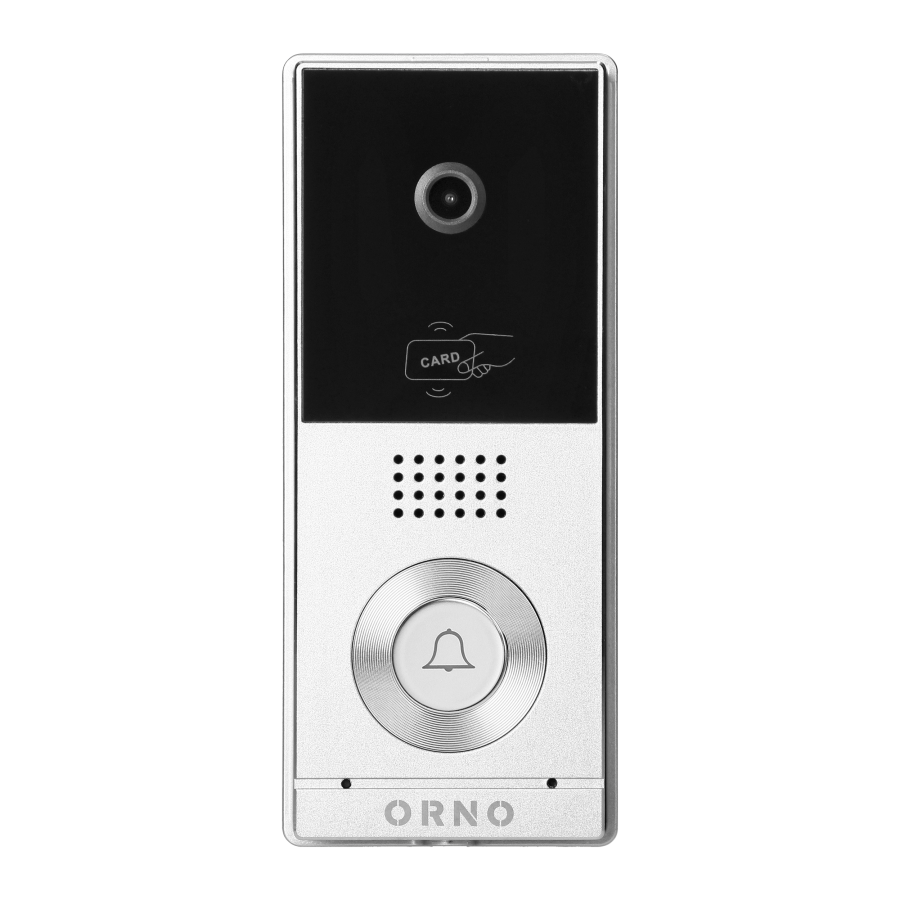

External panel:
Number of call buttons: 1
Mounting method outdoor station: Montaż natynkowy
Camera resolution: 1920x1080
Camera view angle (vertical): 55 °
Camera view angle (horizontal): 112 °
Night light: IR
With digital door code: nie
Card and proximity tags reader: tak
Frequency of RFID tags: 125kHz
Label space/information surface: nie
With cover: tak
Degree of protection (IP): IP65
Material outdoor station: Aluminium
Colour outdoor station: Srebrny
Width [mm]: 67
Height [mm]: 130
Depth [mm]: 33
Other features: RFID - max. 24 użytkowników (breloki w zestawie: 5 użytkownika + 2 administracyjne)

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:47Download
Product data sheetENpdf2024-07-17 10:22:32Download
User manualPLpdf2024-03-14 10:39:51Download
User manualENpdf2024-03-14 10:39:51Download
User manualDEpdf2024-03-14 10:39:51Download
