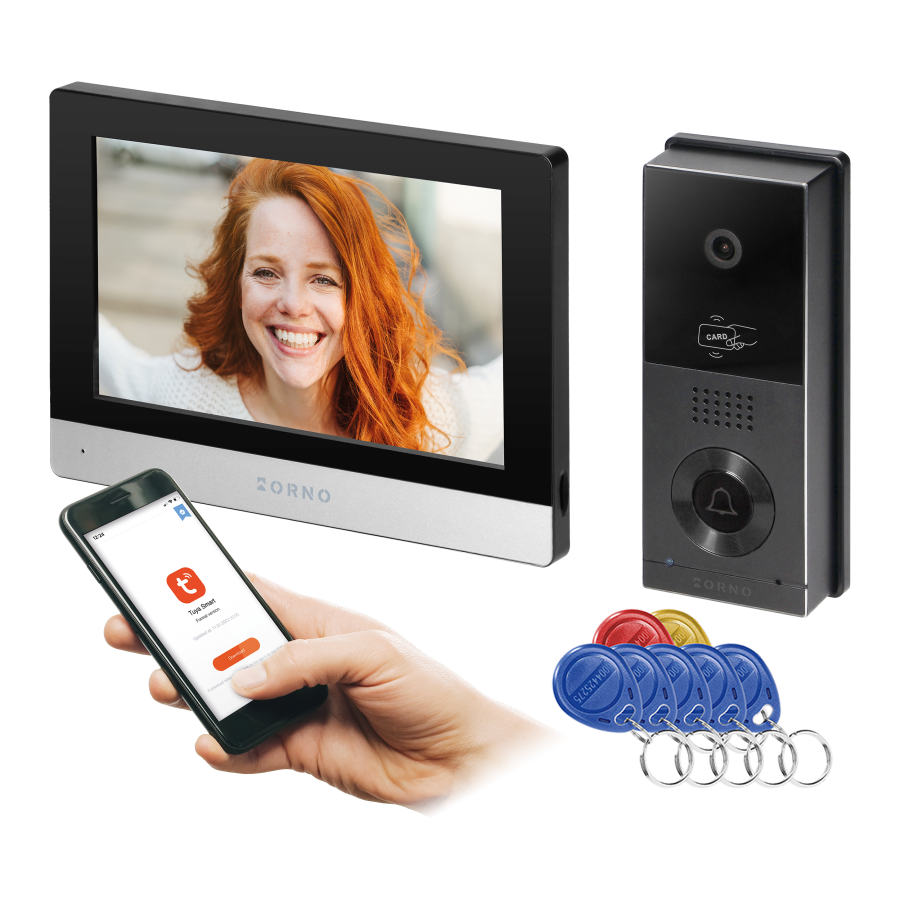

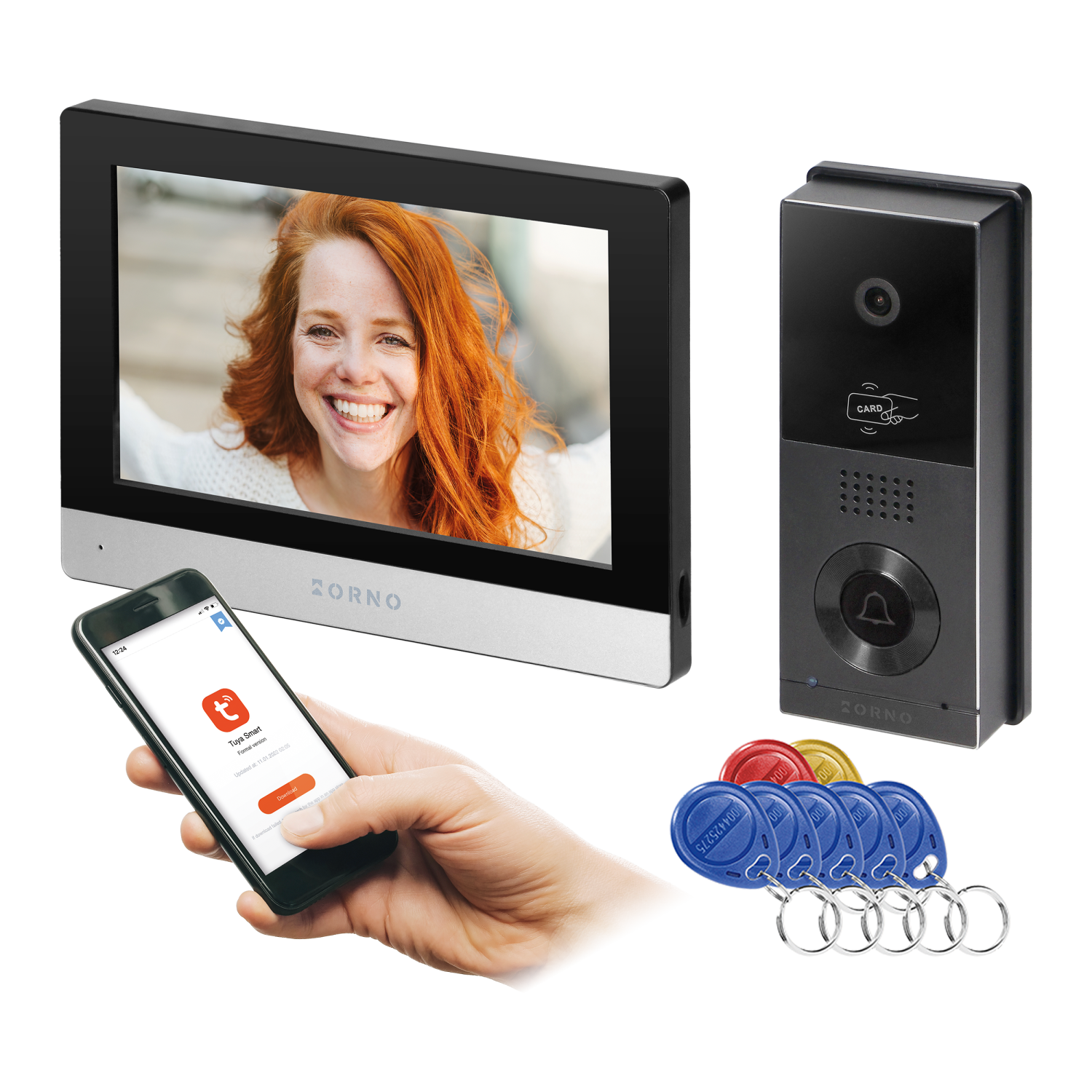

Single-family videodoorphones
| General information: | |
|---|---|
| Type: | jednorodzinny |
| With video: | tak |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage [V]: | 24V DC 1A |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | tak |
| Wi-Fi Frequency: | 2.4 GHz |
| Wi-Fi standard: | 802.11 b/g/n |
| App: | Tuya Smart |
| Installation technique: | Dwużyłowe |
| Number of wires (*from outdoor unit to electric strike): | 2 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 6 |
| Expandable to max. number of outdoor stations: | 2 |
| Expandable to max. number of CCTV cameras: | 2 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |
| With day/night function: | tak |
| Other features: | współpracuje z kamerami IP |

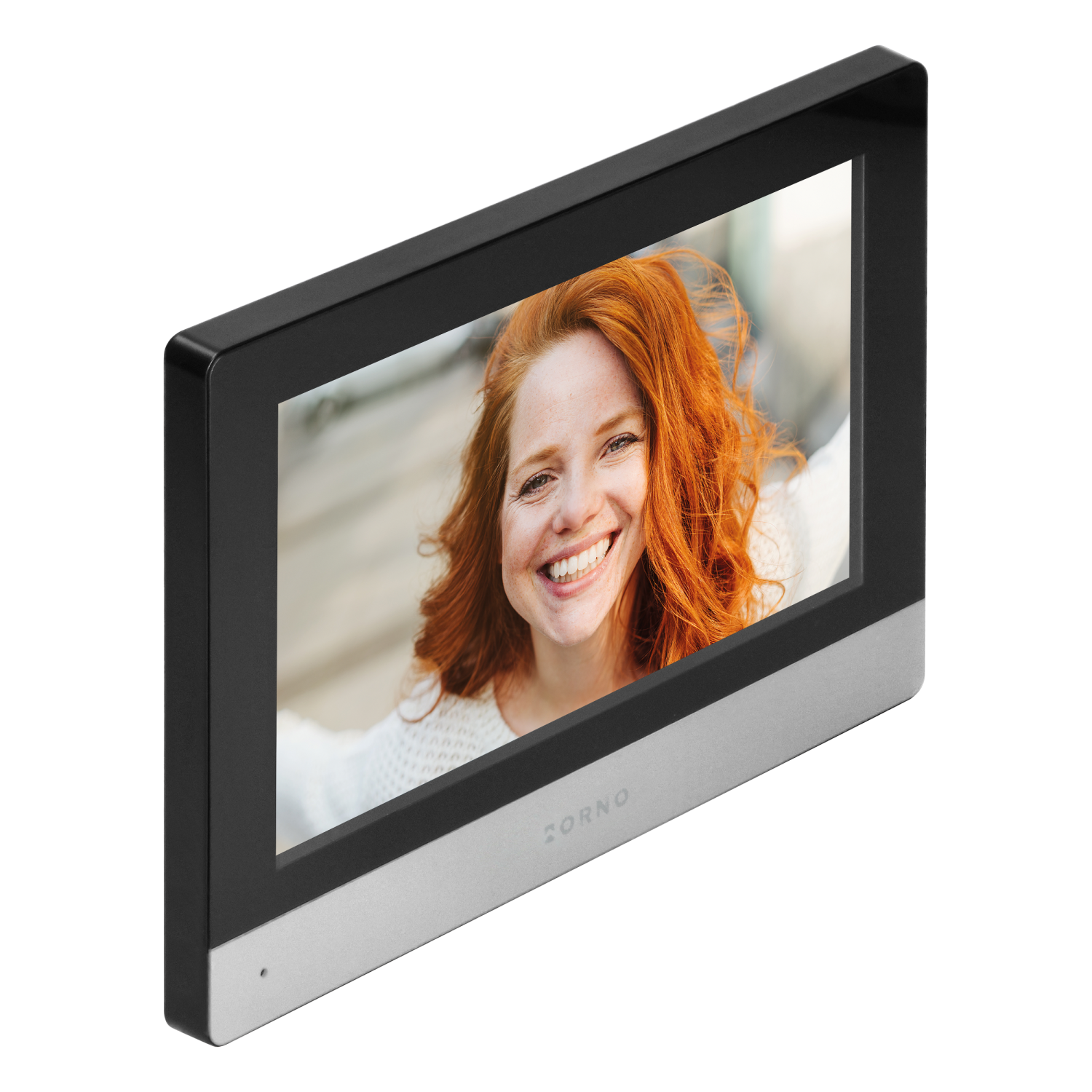

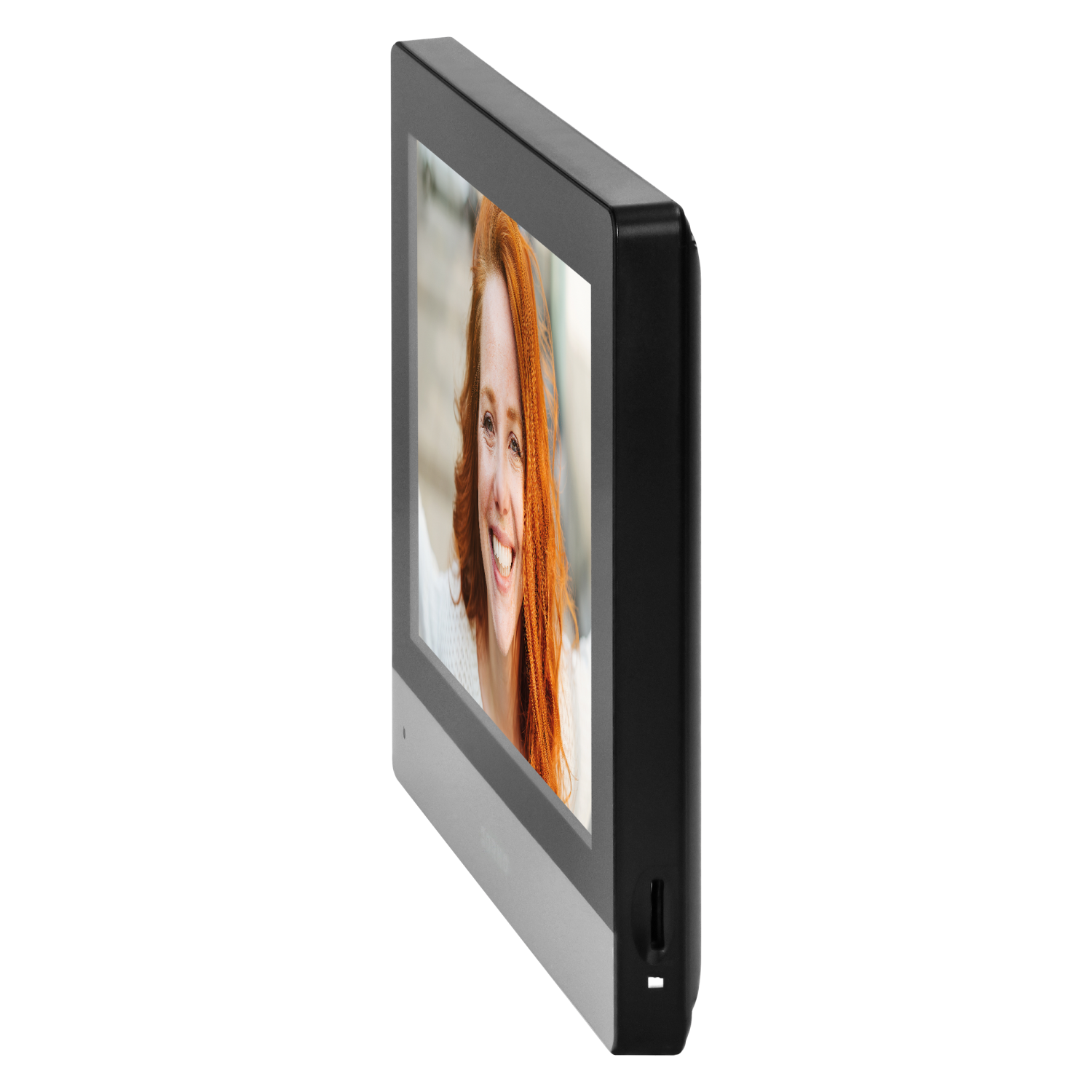

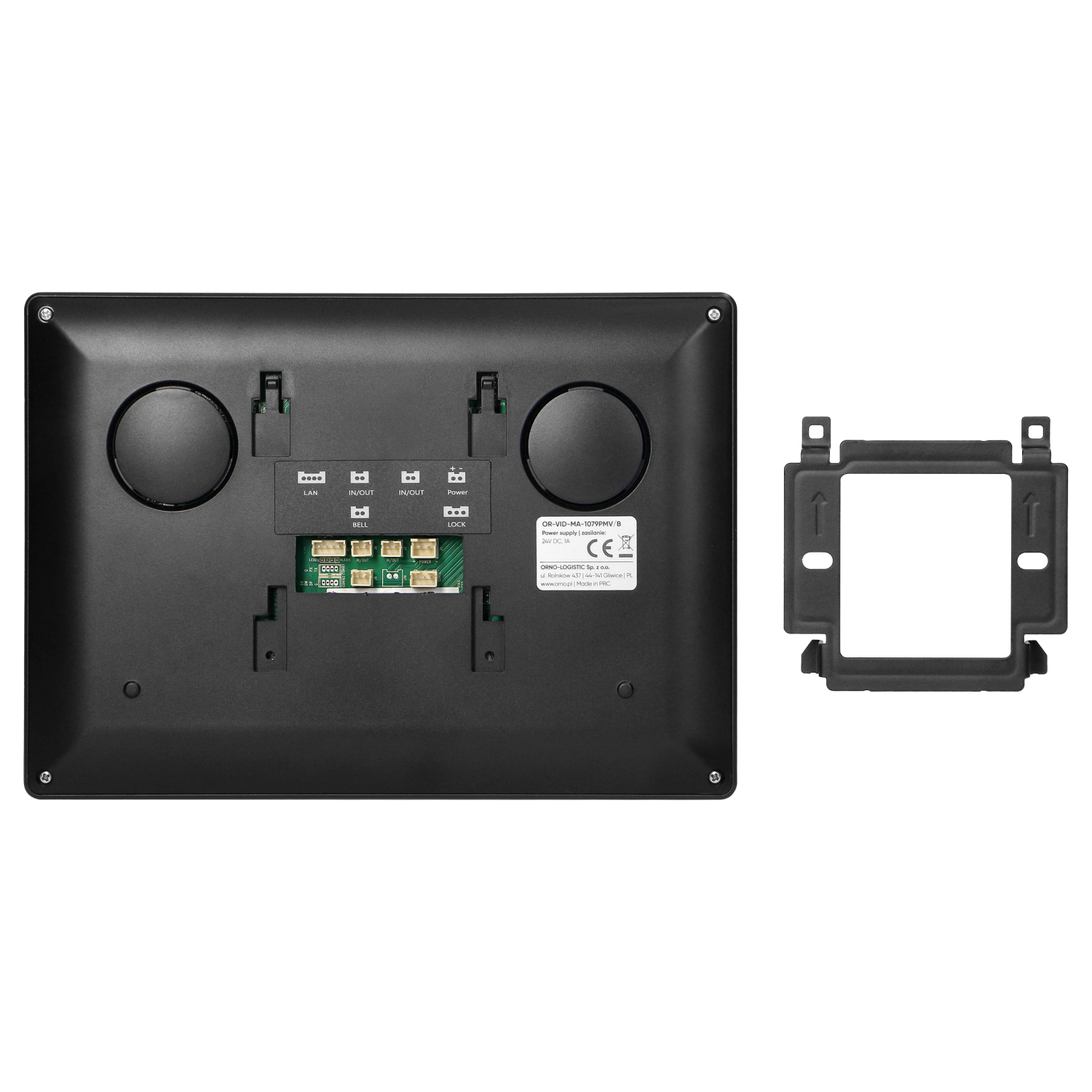

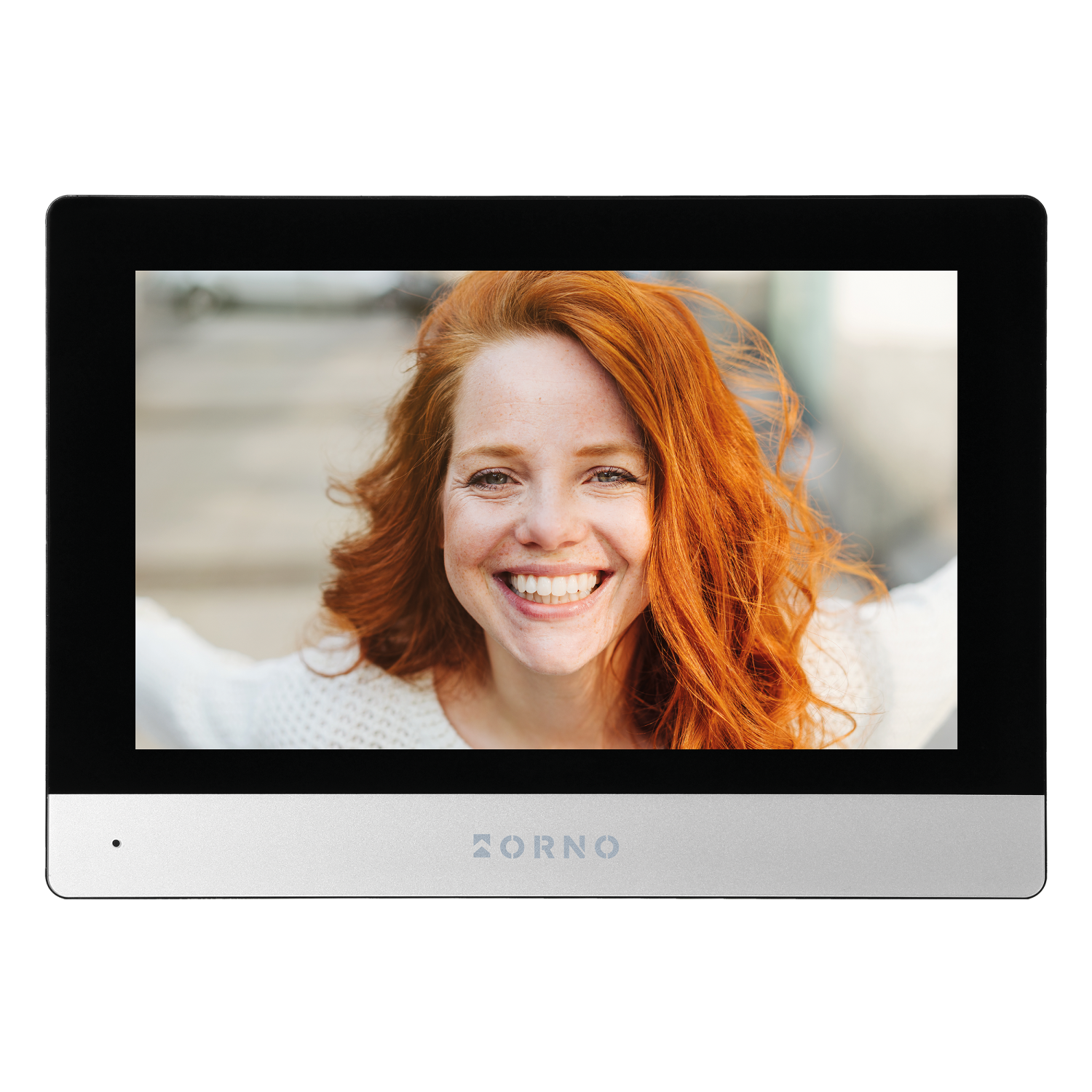

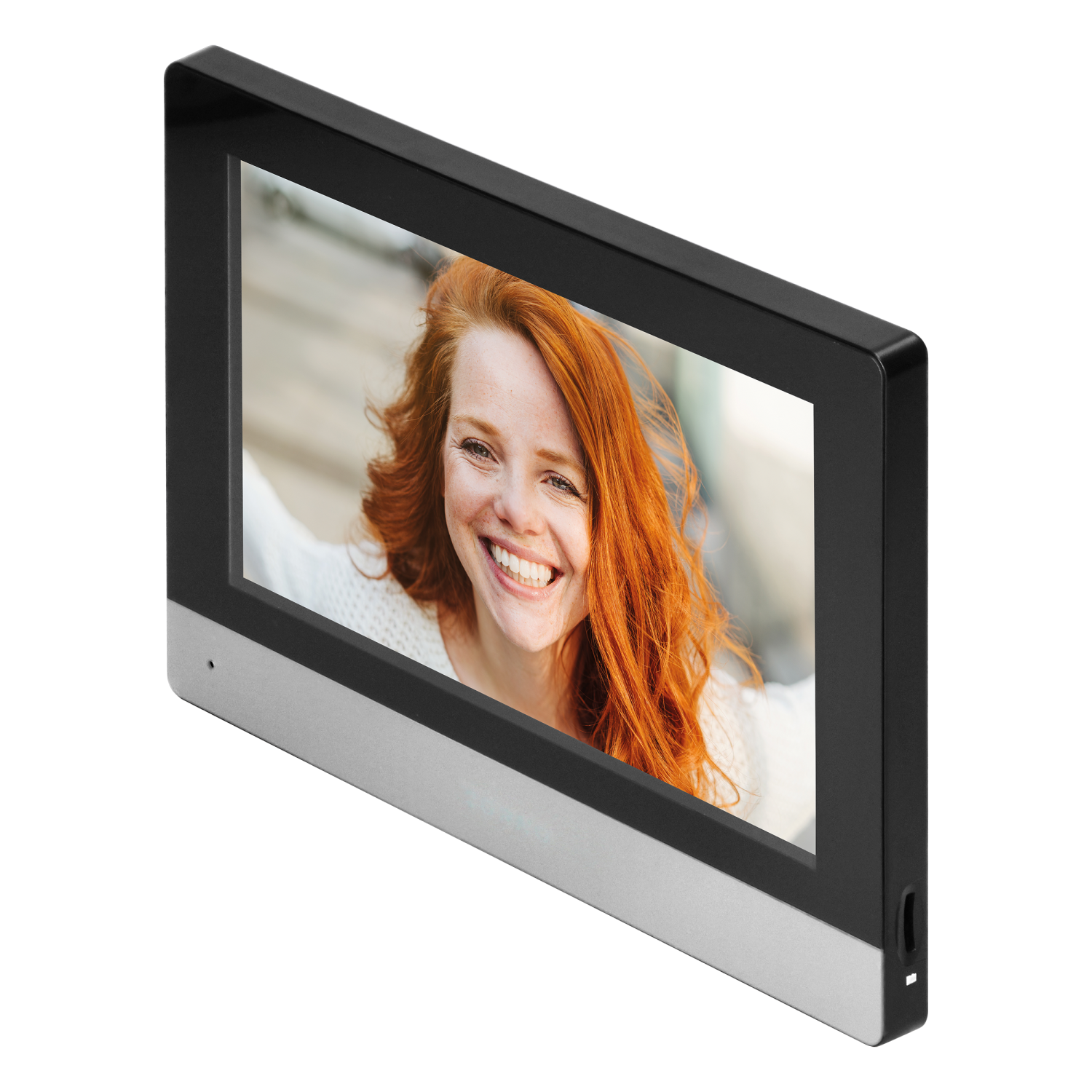

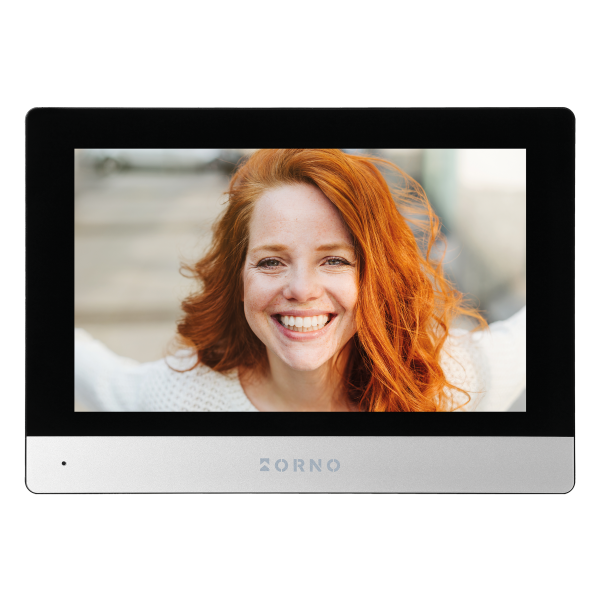

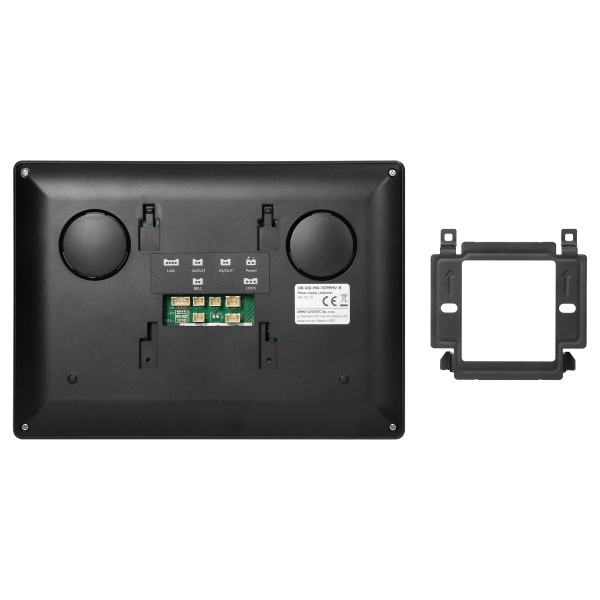

| Monitor: | |
|---|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Screen diagonal [inch]: | 8" |
| Screen resolution: | 1024x600 |
| Touch screen: | tak |
| Property picture system: | Kolor |
| With memory function: | tak |
| SD card reader: | tak |
| Internal communication: | tak |
| Number of ringtones: | 6 |
| Specific call tone: | tak |
| Loudness control: | tak |
| Mutable call tone: | tak |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Czarny |
| Dimensions of the monitor - Width [mm]: | 215 |
| Dimensions of the monitor - Height [mm]: | 153 |
| Dimensions of the monitor - Depth [mm]: | 27 |
| Other features: | stacja pogody, automatyczna sekretarka, funkcja foto ramki |

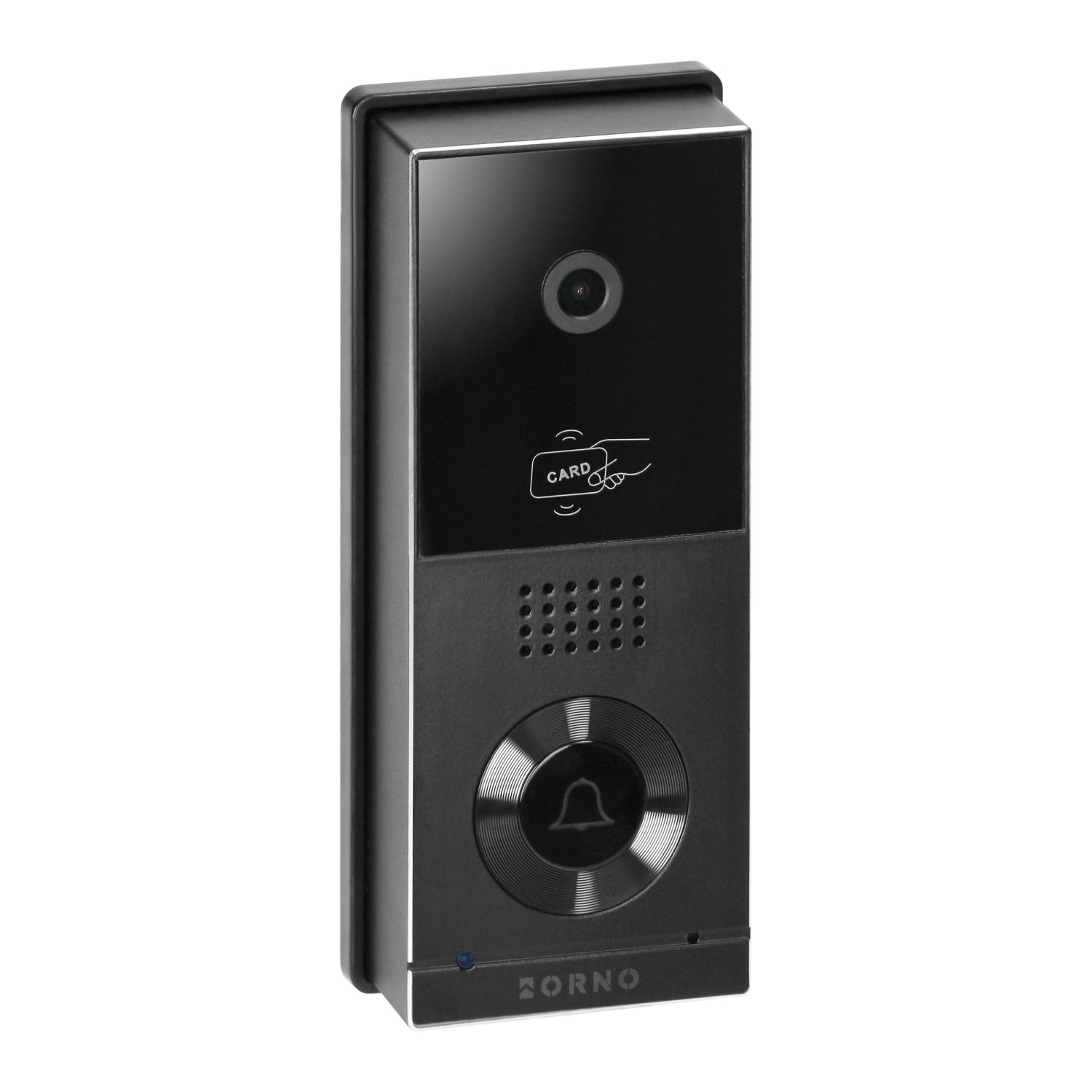

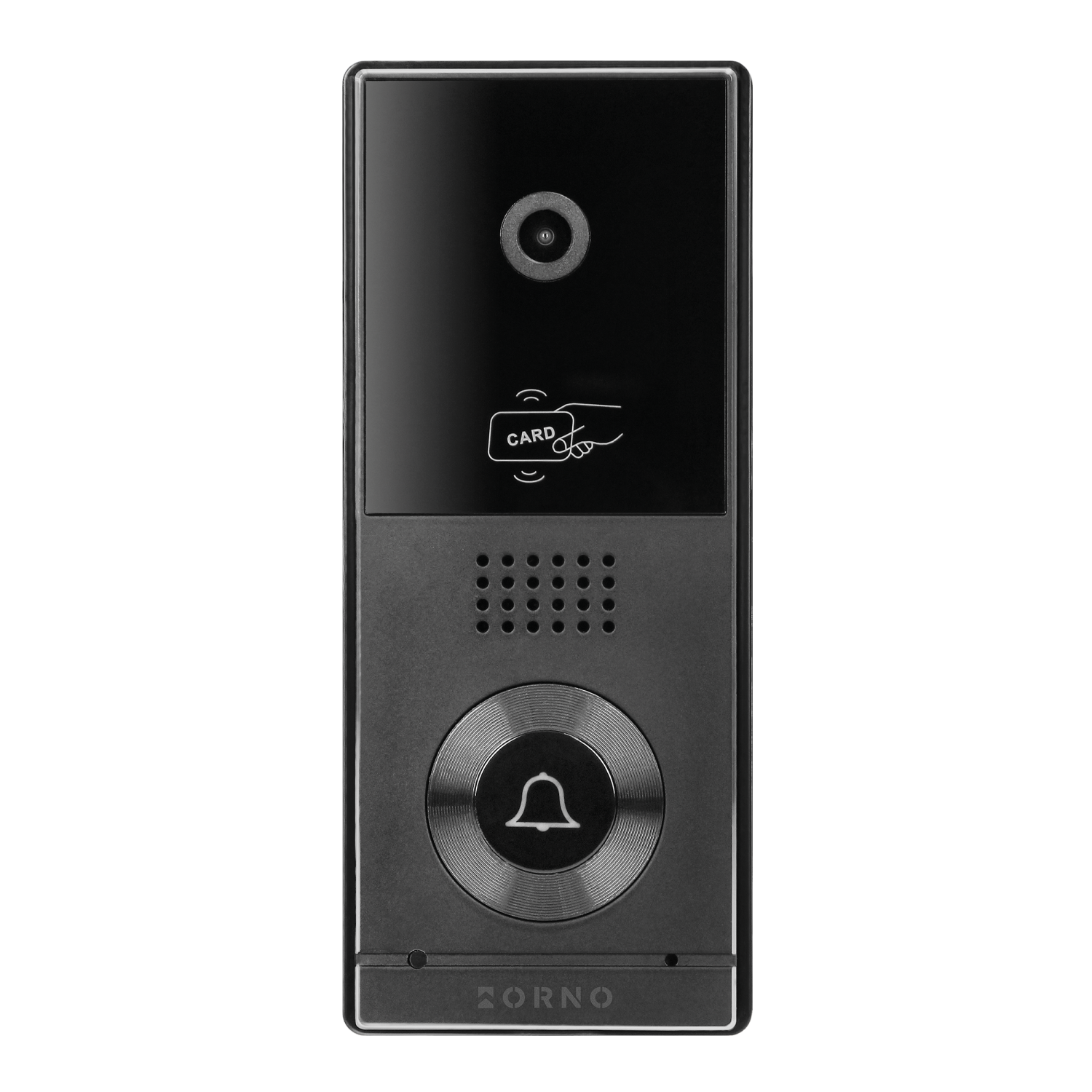

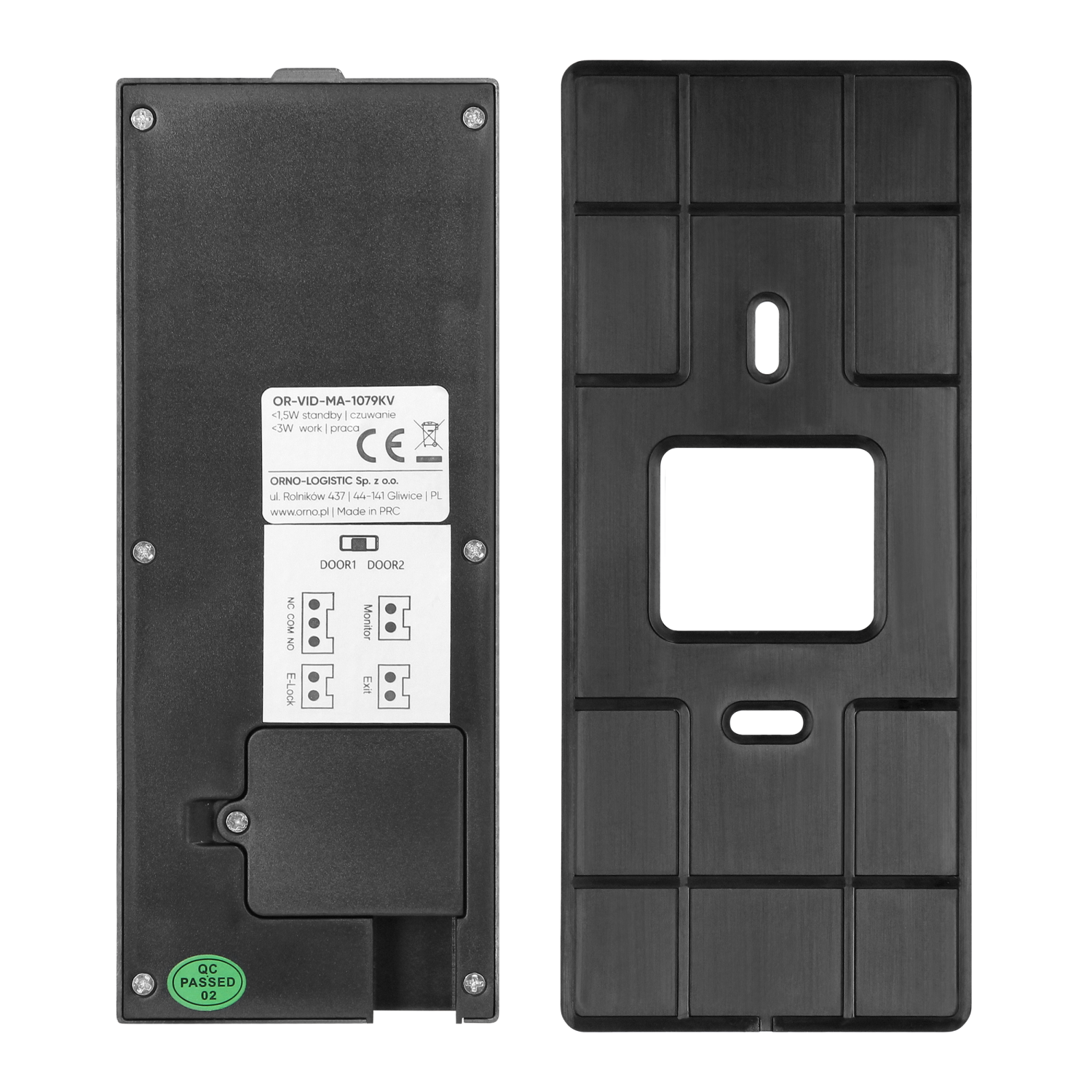

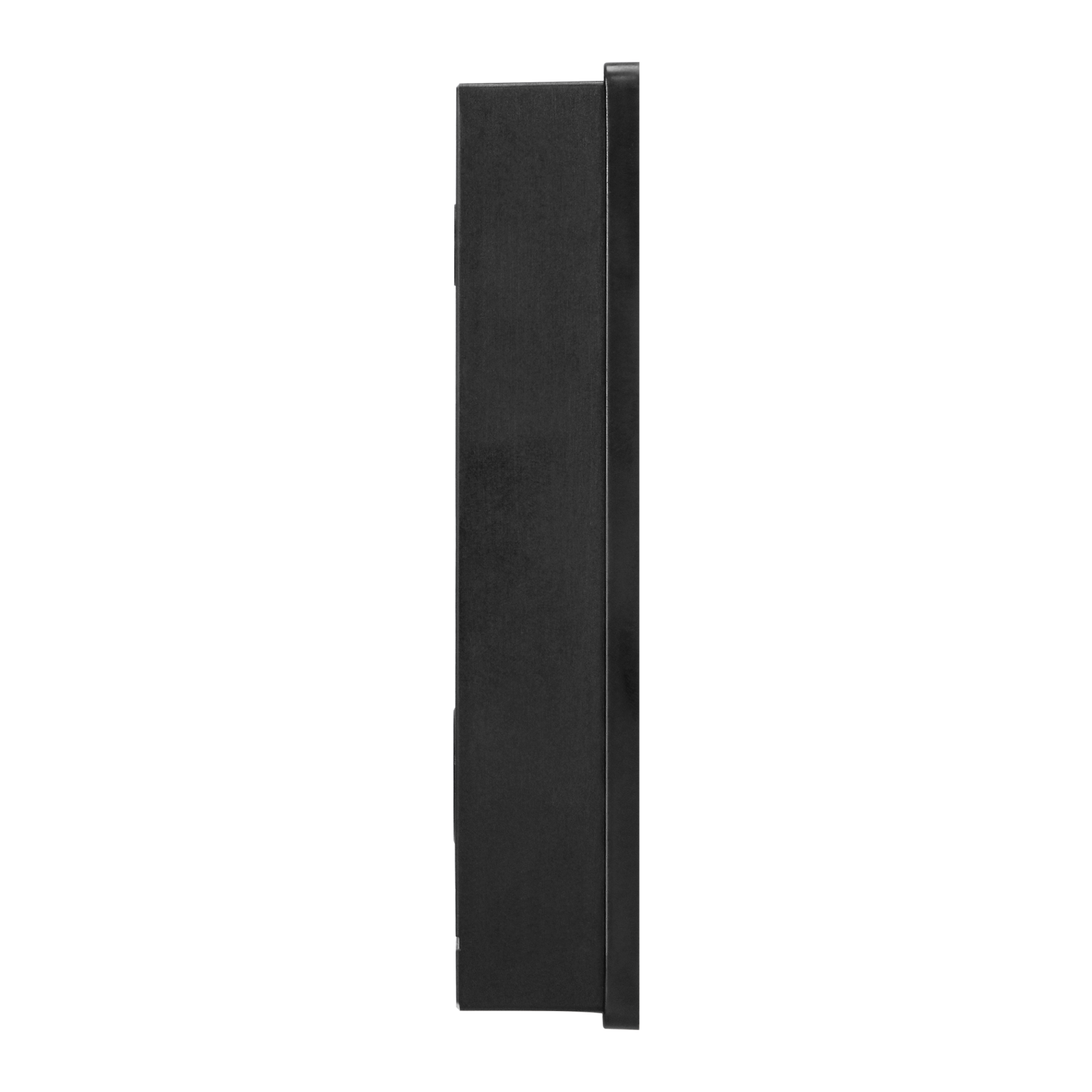

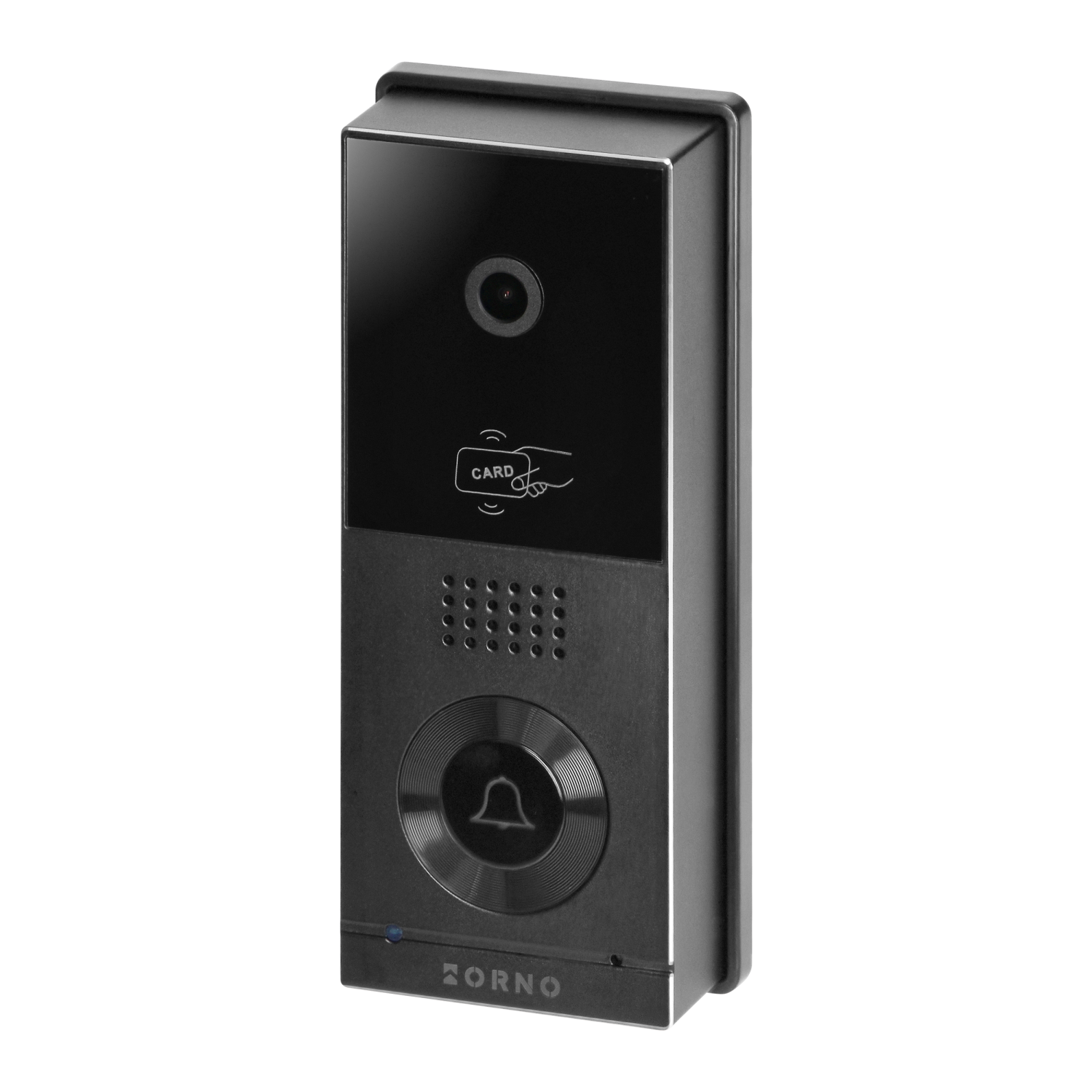

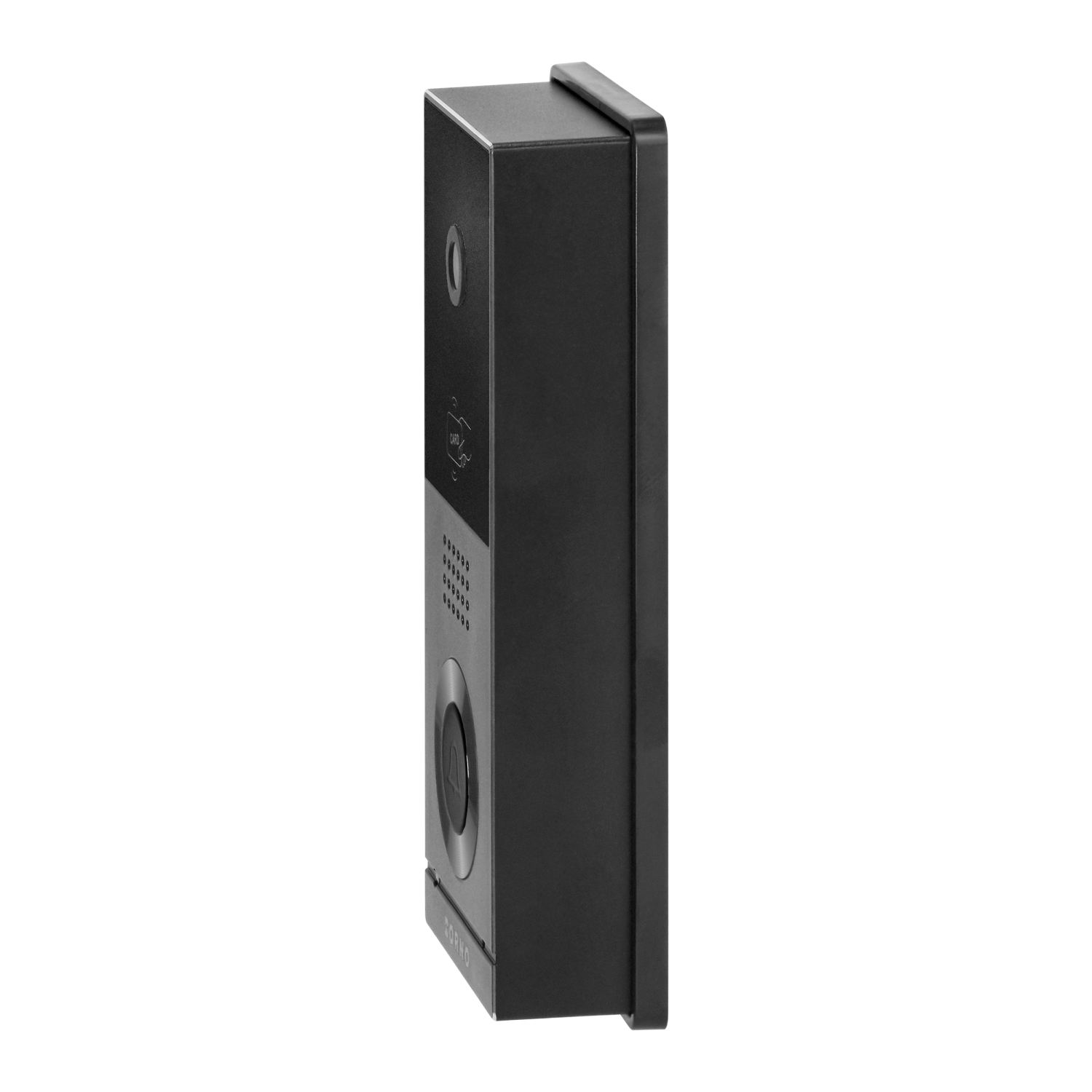

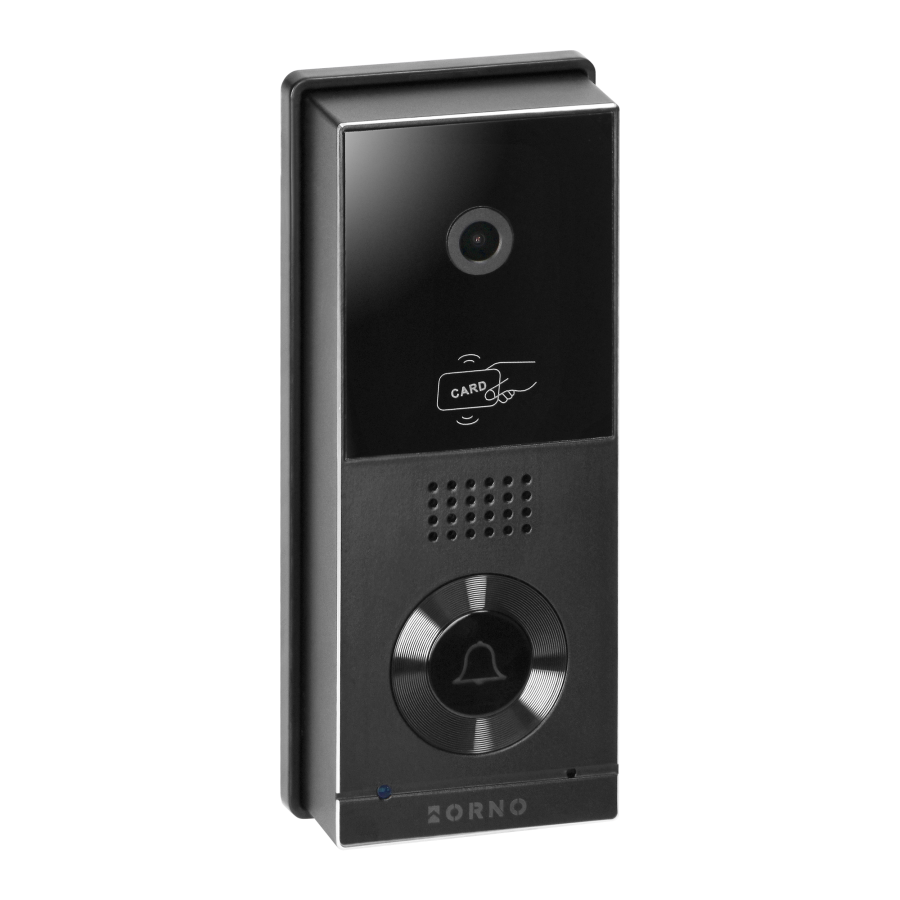

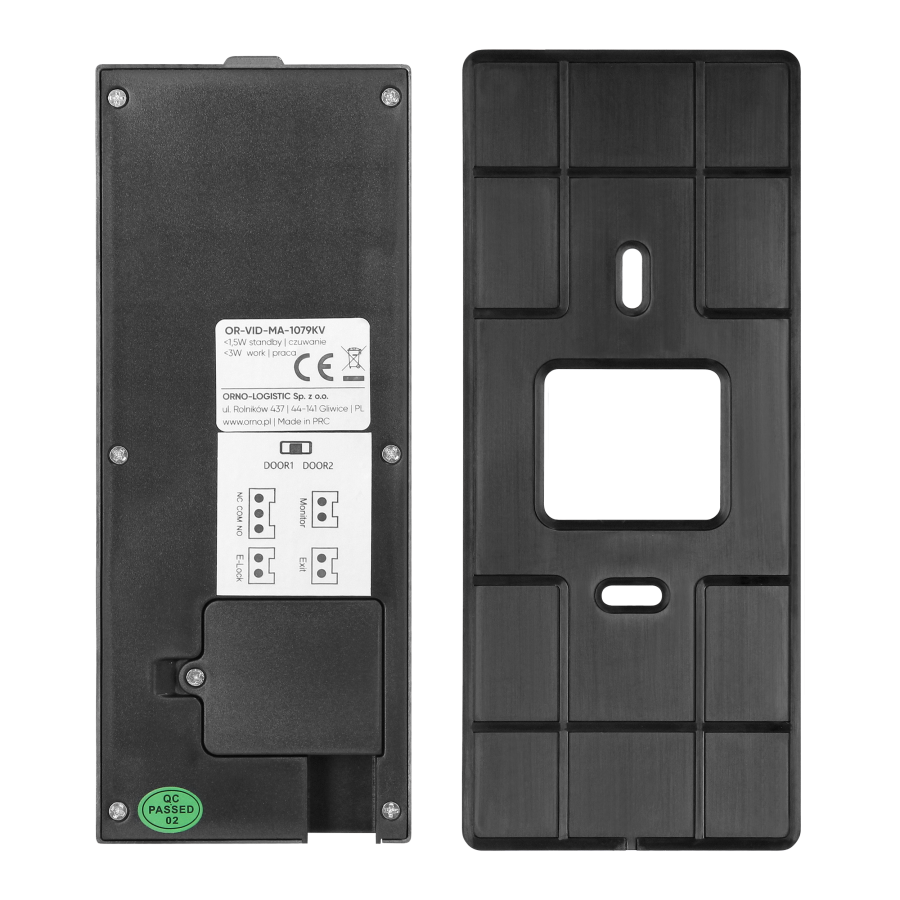

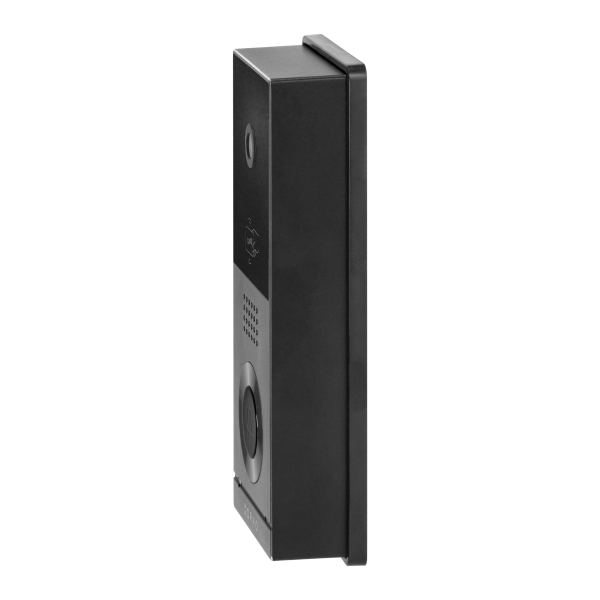

| Outdoor unit: | |
|---|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Camera resolution: | 2MP, 1920x1080, 1080p |
| Camera view angle (horizontal): | 108 |
| Camera view angle (vertical): | 54 |
| Night light: | IR |
| With digital door code: | nie |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 13,56MHz |
| Label space/information surface: | nie |
| With cover: | nie |
| Vandal proof: | nie |
| Degree of protection (IP): | IP65 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Czarny |
| Width [mm]: | 67 |
| Height [mm]: | 159 |
| Depth [mm]: | 31 |
| Other features: | RFID - max. 200 użytkowników (breloki w zestawie: 5 użytkownika + 2 administracyjne) |
