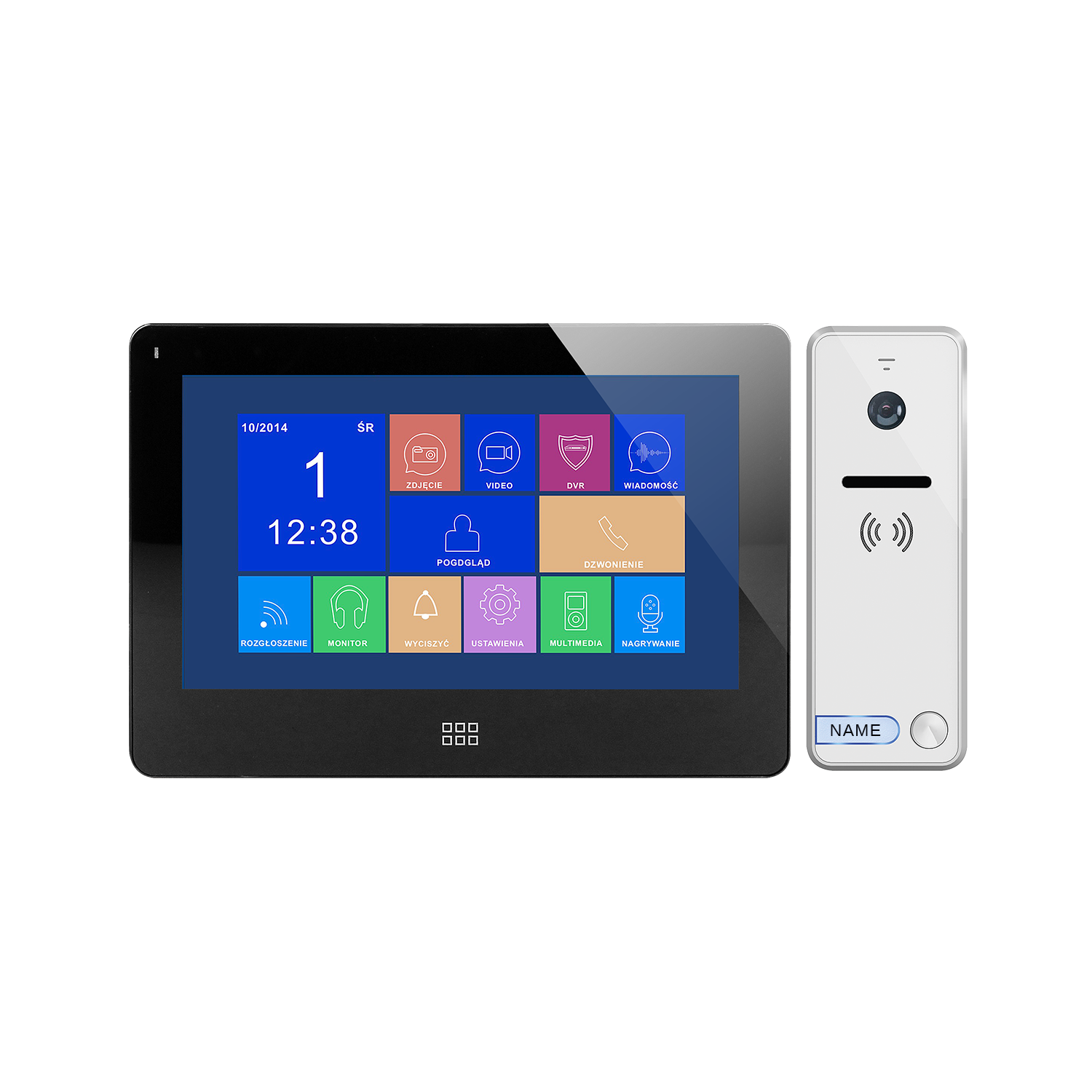

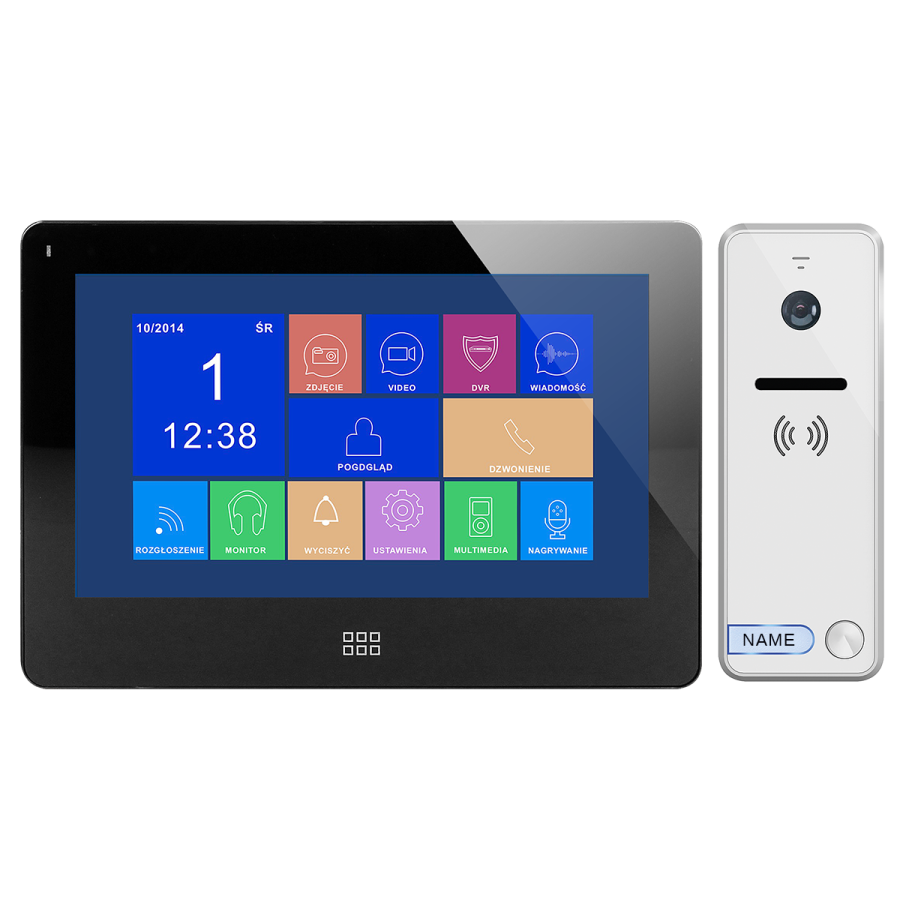

An example of VIBELL set - FELIS MEMO video door phone set that does not require any uniphone. It includes a multicolour, flat 7" LCD touch screen and a very durable, wide-angle video-camera. It has a user-friendly OSD menu, which is used to instantly adjust monitor parameters. The set has a built-in SD and DVR card slots. The set enables gate control function and opening of the door lock output directly from the video-camera panel. Available colours: black and white.
| General information: |
|---|
| Type: | jednorodzinny |
| With video: | tak |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage: | 15V DC |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | nie |
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): | 4 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 4 |
| Expandable to max. number of outdoor stations: | 2 |
| Expandable to max. number of CCTV cameras: | 8 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |
| With day/night function: | tak |
| Monitor: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Screen diagonal [inch]: | 7" |
| Screen resolution: | 800x480 |
| Touch screen: | tak |
| Property picture system: | Kolor |
| With memory function: | tak |
| SD card reader: | tak |
| Internal communication: | tak |
| Number of ringtones: | 7 |
| Loudness control: | tak |
| Mutable call tone: | tak |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Czarny |
| Dimensions of the monitor - Width [mm]: | 185 |
| Dimensions of the monitor - Height [mm]: | 127 |
| Dimensions of the monitor - Depth [mm]: | 17 |
| Other features: | funkcja rozłoszeniowa i monitorowania dźwięku, kalendarz, budzik, automatyczna sekretarka, ramka cyfrowa |
| External panel: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Camera resolution: | 700 TVL |
| Camera view angle (vertical): | 96 ° |
| Camera view angle (horizontal): | 110 ° |
| Night light: | białe LED |
| With digital door code: | nie |
| Card and proximity tags reader: | nie |
| Label space/information surface: | tak |
| With cover: | nie |
| Degree of protection (IP): | IP65 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Srebrny |
| Width [mm]: | 55 |
| Height [mm]: | 152 |
| Depth [mm]: | 21 |
