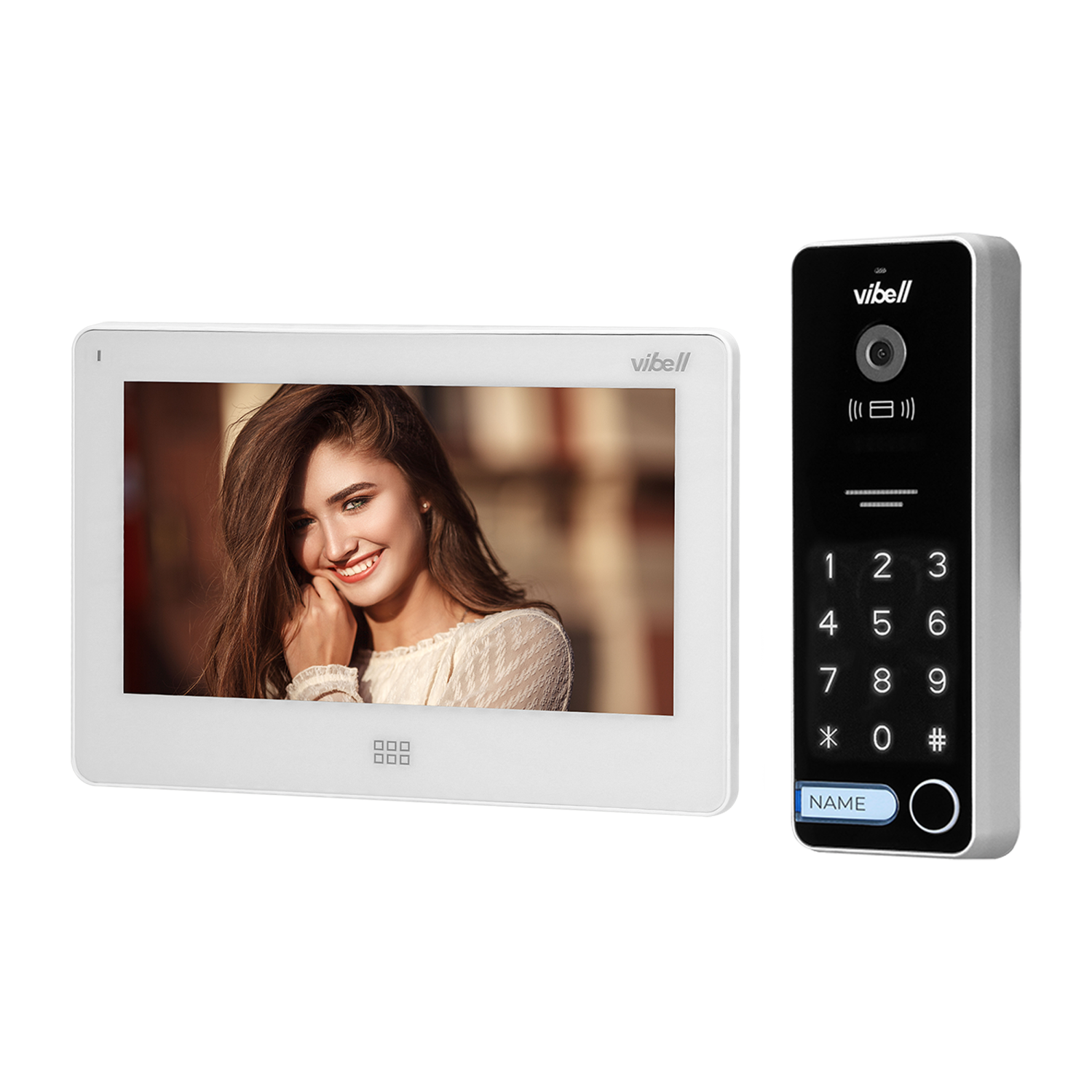

An example of VIBELL set - TAURI MEMO video door phone set includes a multicolour, ultra-flat 7" LCD monitor and a very durable, wide-angle video-camera. Communication between the indoor and outdoor panels does not require any uniphone. It has a user-friendly OSD menu, which is used to instantly adjust monitor parameters. An additional lighting of the camera panel, provided by bright LED diodes, enables excellent night vision. The set has a built-in memory card and additional SD card slot. Moreover, it has a numeric keypad and a RFID reader used to log in authorised users only. The set enables gate control function and opening of the door lock output. Additional functions require additional power source (included). Available colours: black and white.
| General information: |
|---|
| Type: | jednorodzinny |
| With video: | tak |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage: | 15V DC |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | nie |
| Installation technique: | System wieloprzewodowy |

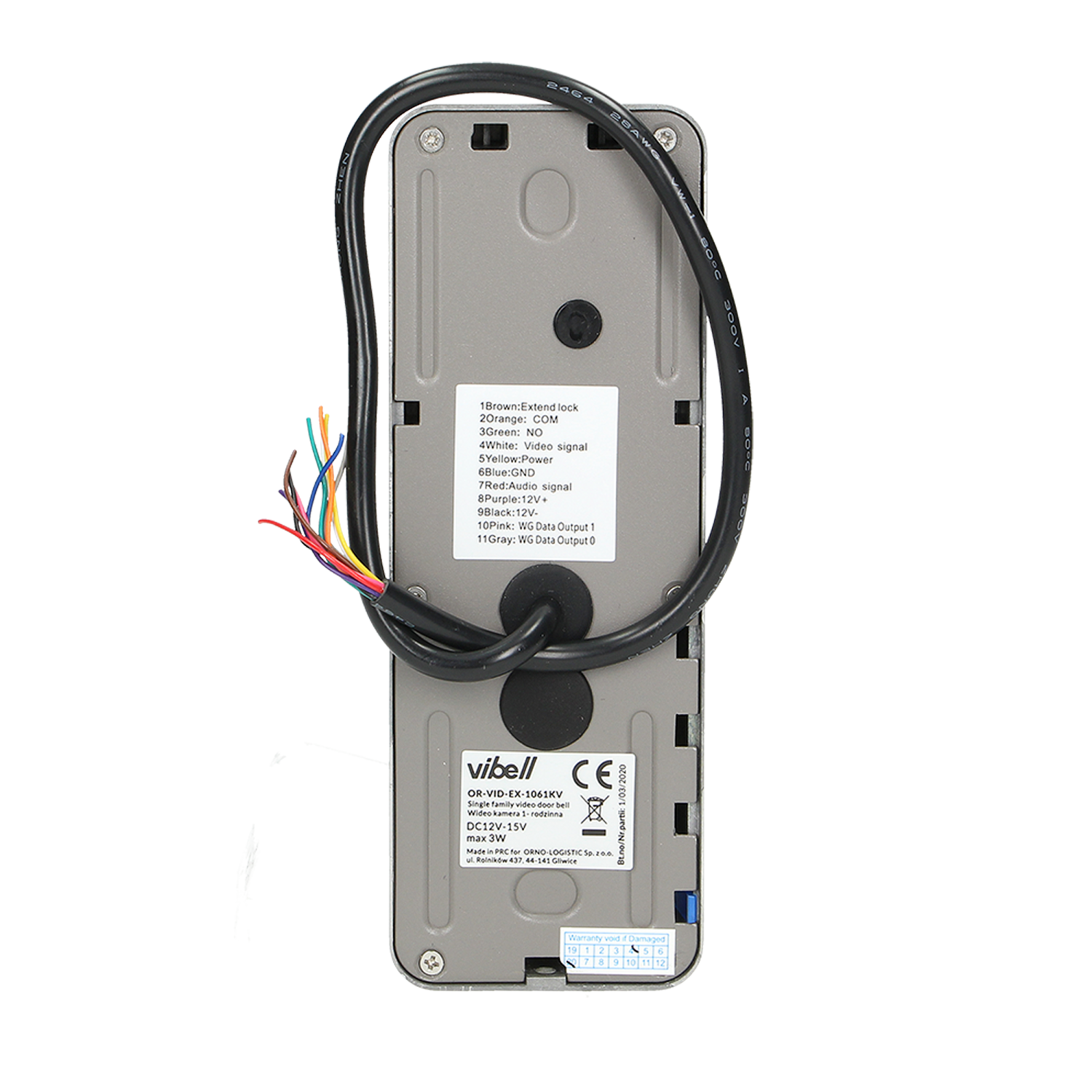

| Number of wires (*from outdoor station to electric strike): | 4 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 4 |
| Expandable to max. number of outdoor stations: | 2 |
| Expandable to max. number of CCTV cameras: | 8 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |
| With day/night function: | tak |

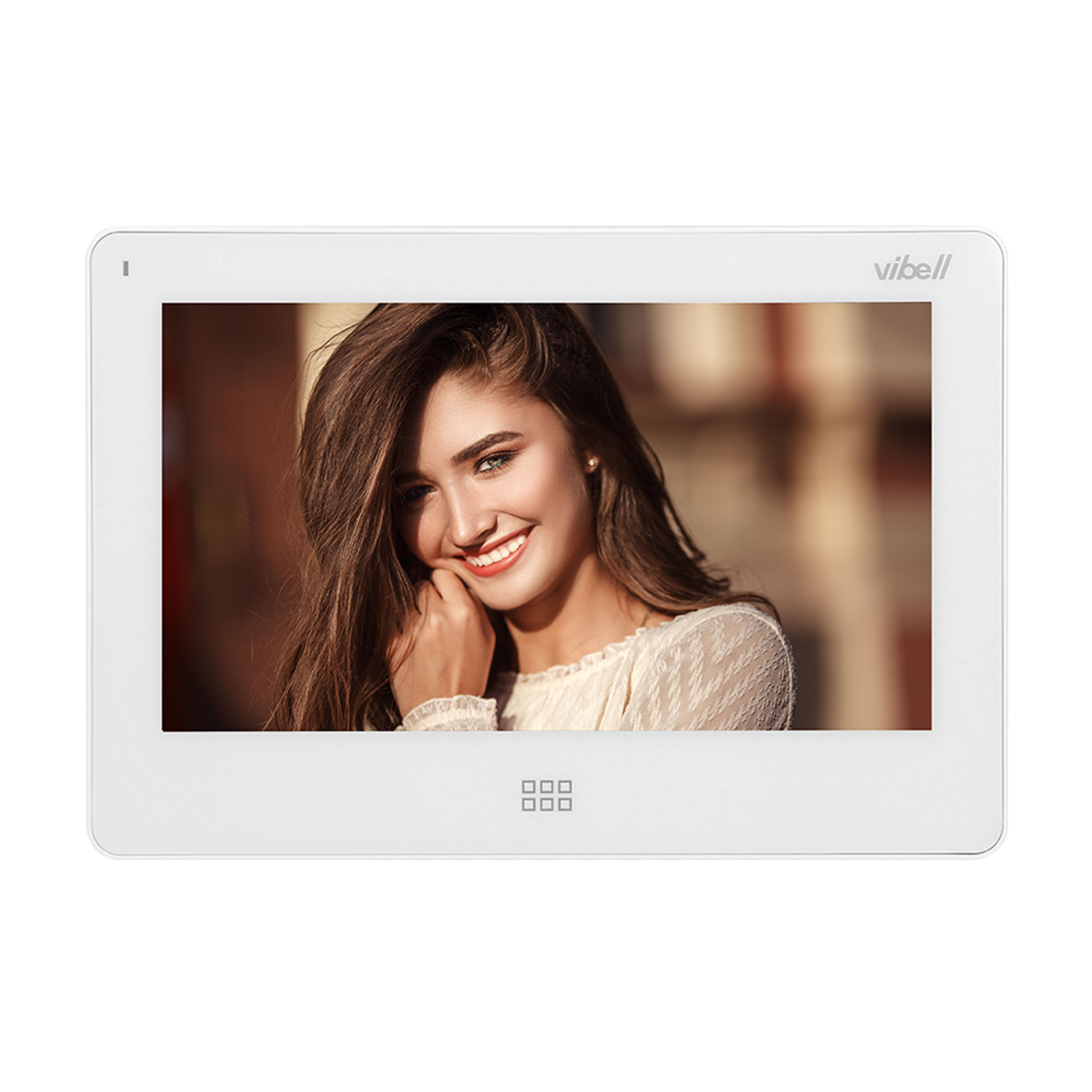

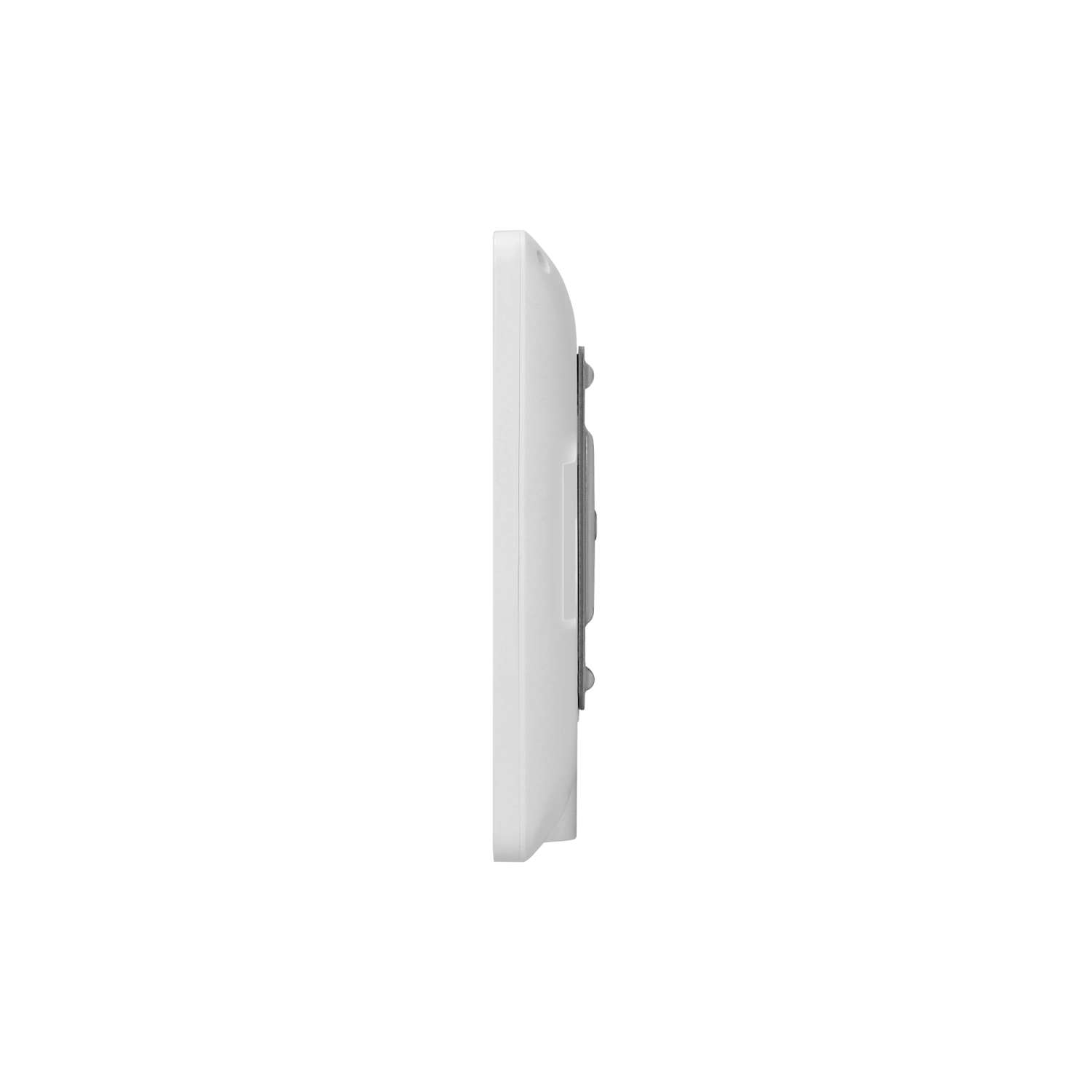

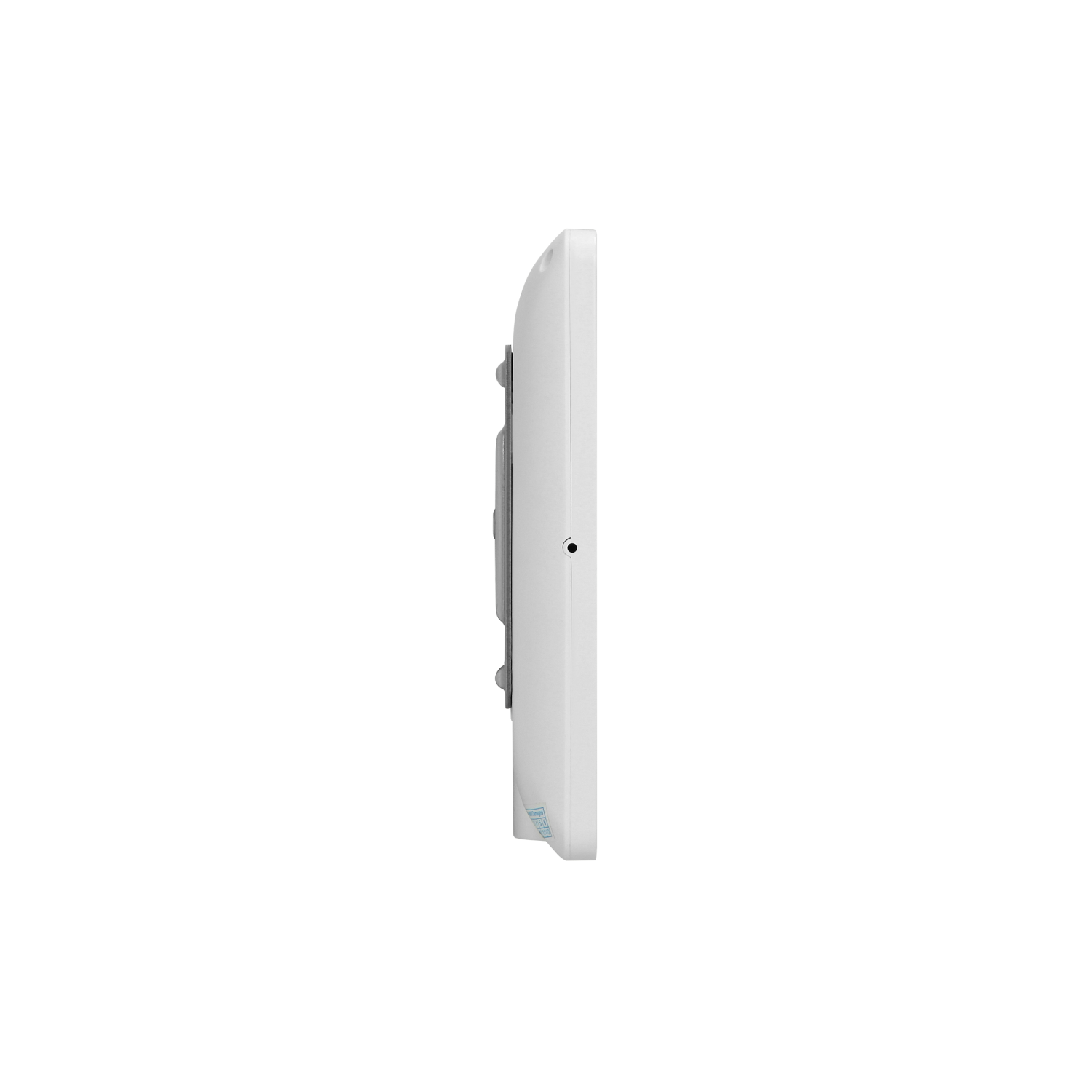

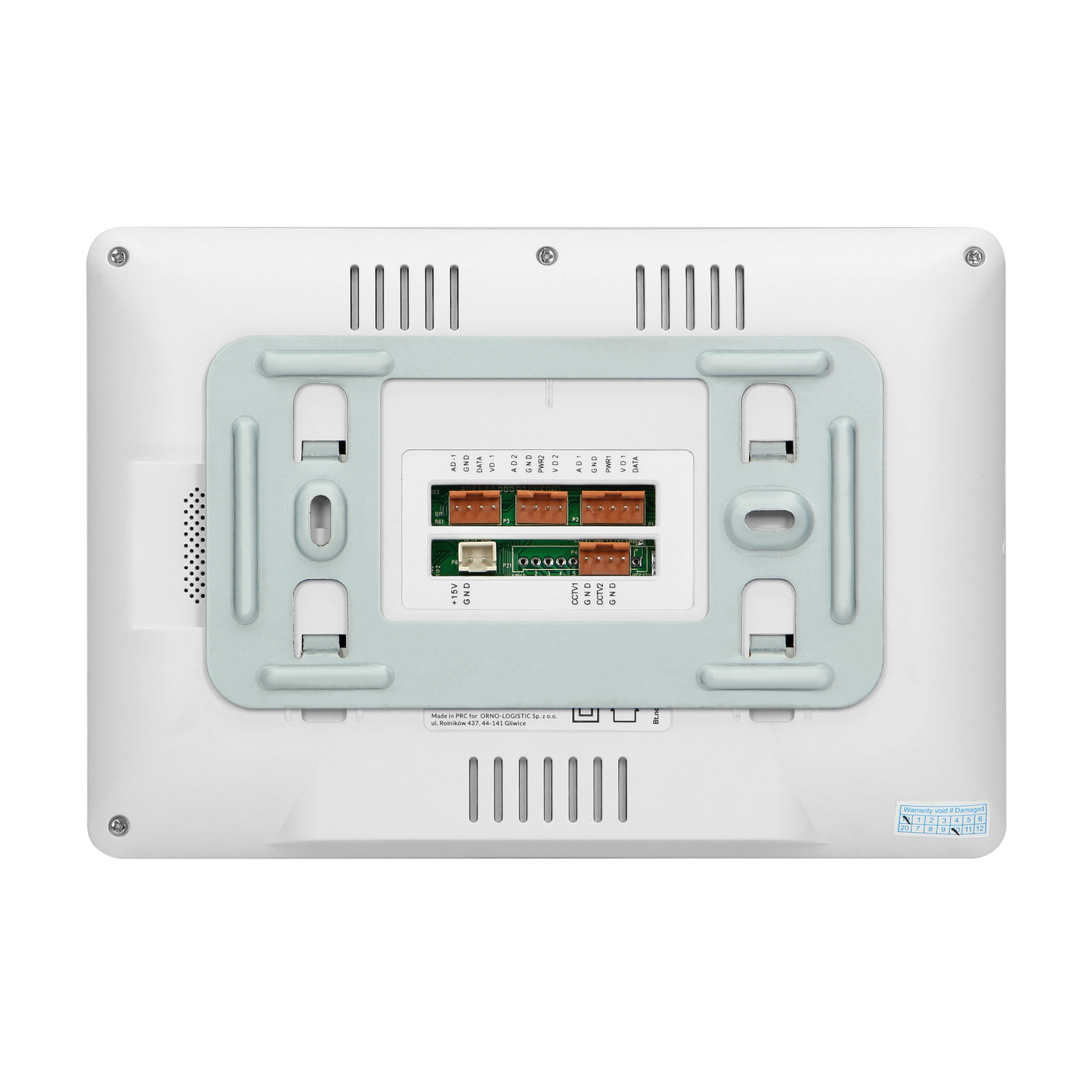

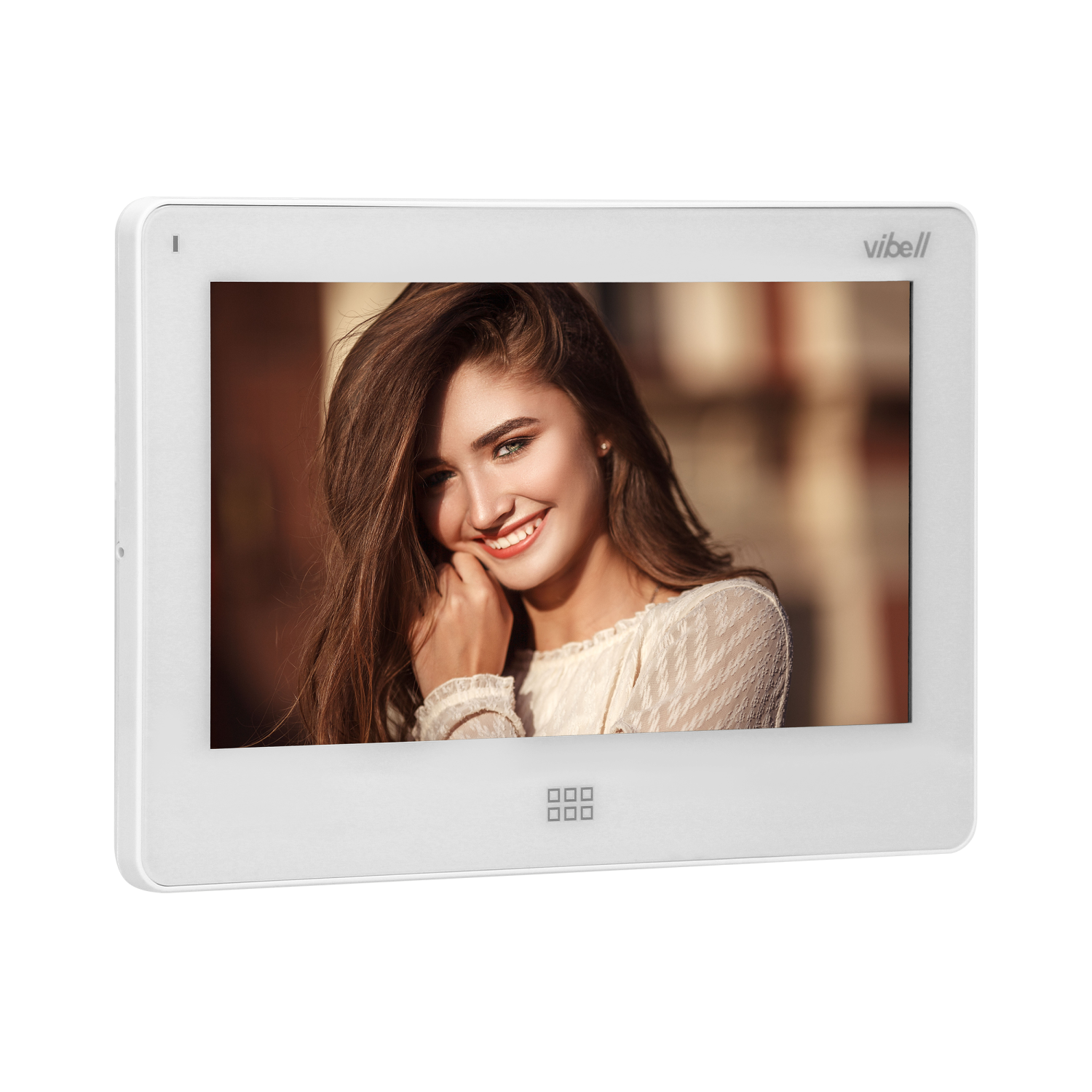

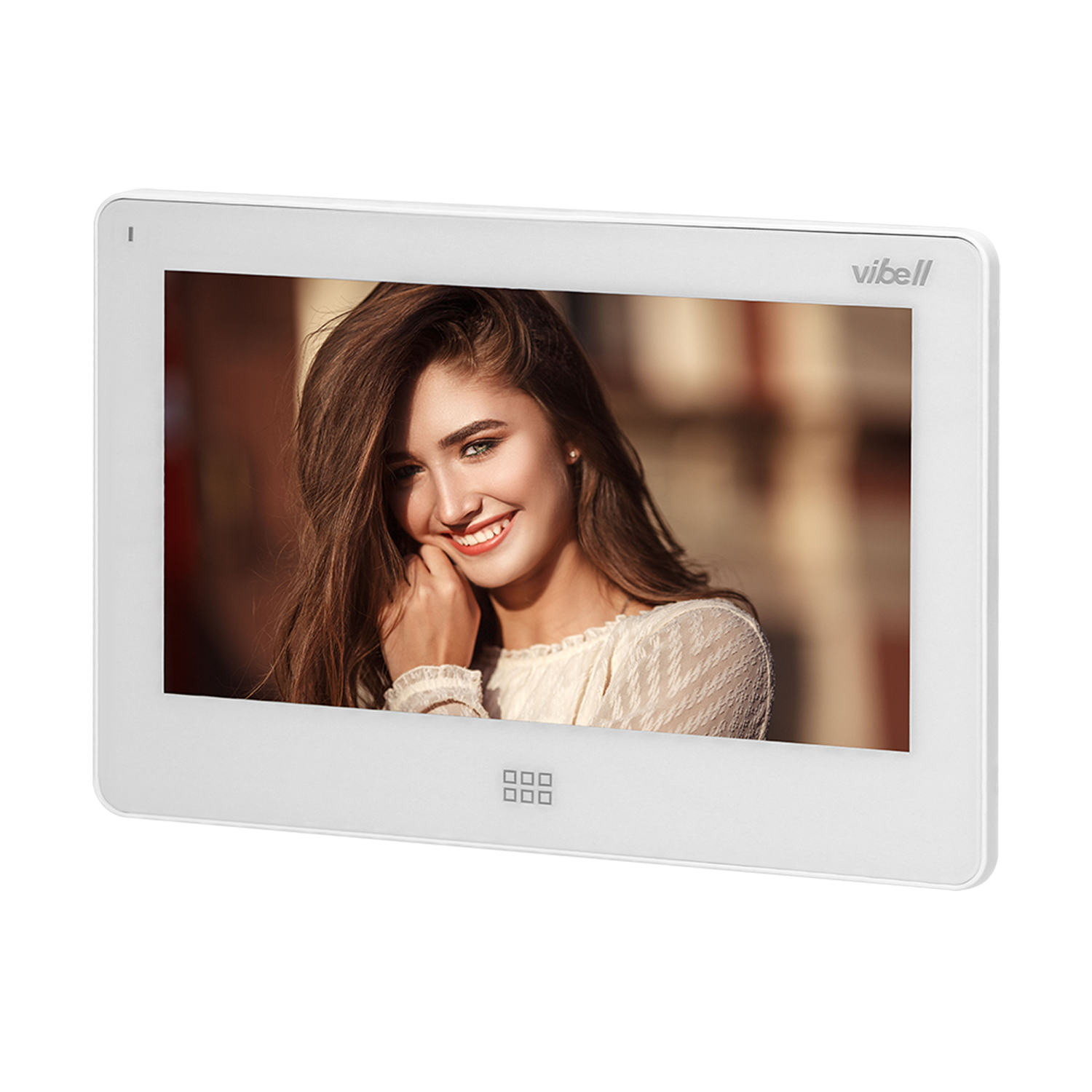

| Monitor: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Screen diagonal [inch]: | 7" |
| Screen resolution: | 800x480 |
| Touch screen: | tak |
| Property picture system: | Kolor |
| With memory function: | tak |
| SD card reader: | tak |
| Internal communication: | tak |
| Number of ringtones: | 7 |
| Loudness control: | tak |
| Mutable call tone: | tak |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Biały |
| Dimensions of the monitor - Width [mm]: | 185 |
| Dimensions of the monitor - Height [mm]: | 127 |
| Dimensions of the monitor - Depth [mm]: | 17 |
| Other features: | funkcja rozłoszeniowa i monitorowania dźwięku, kalendarz, budzik, automatyczna sekretarka, ramka cyfrowa |

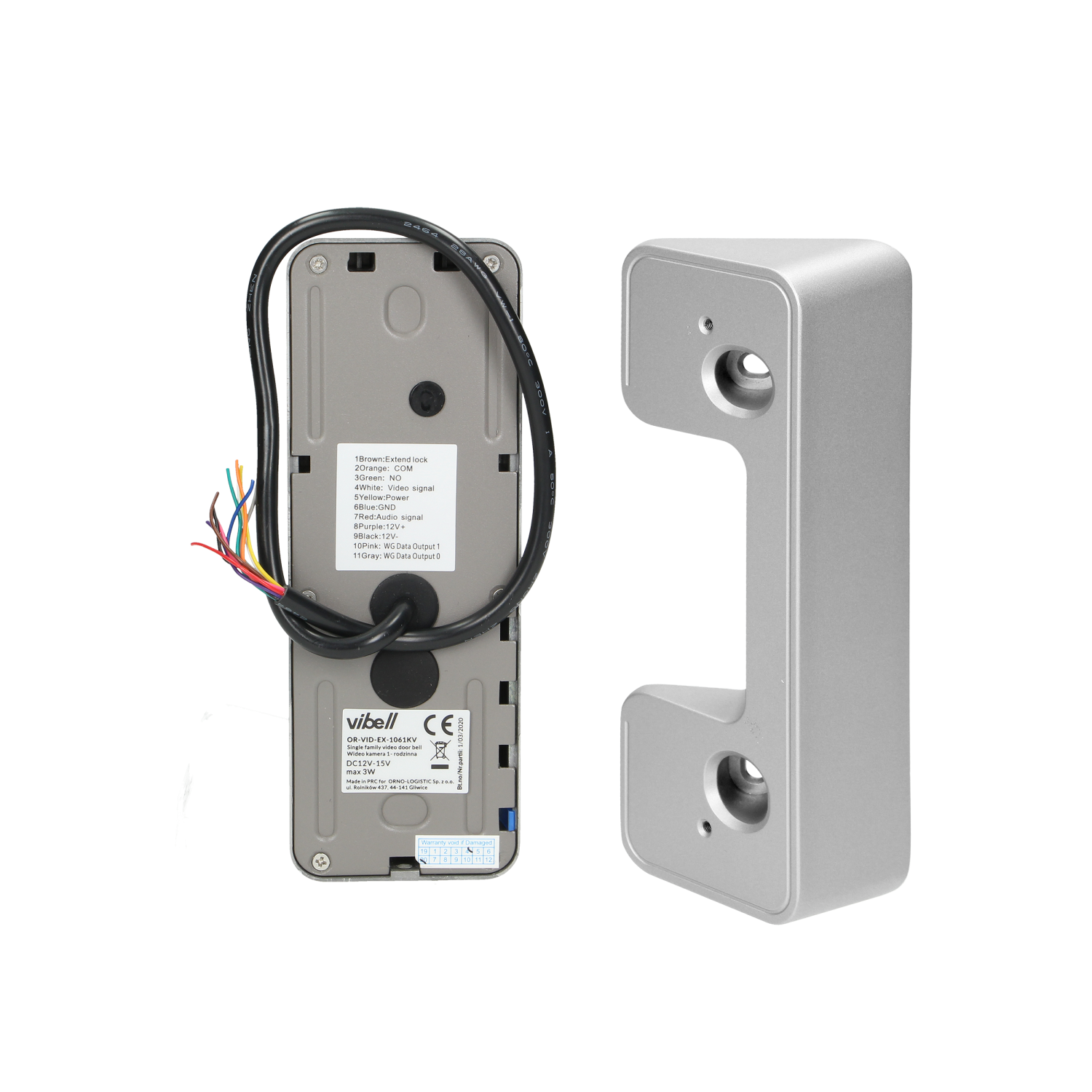

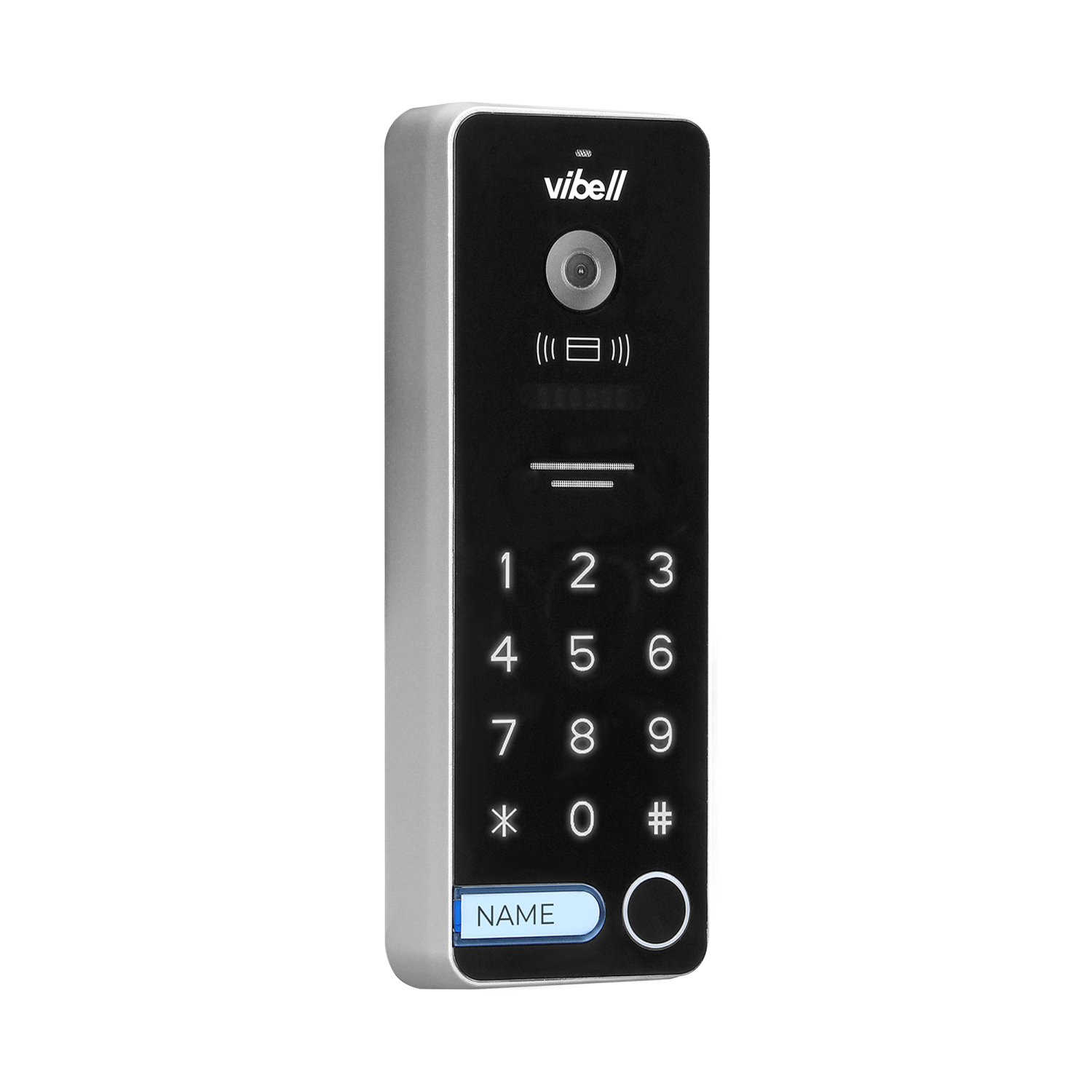

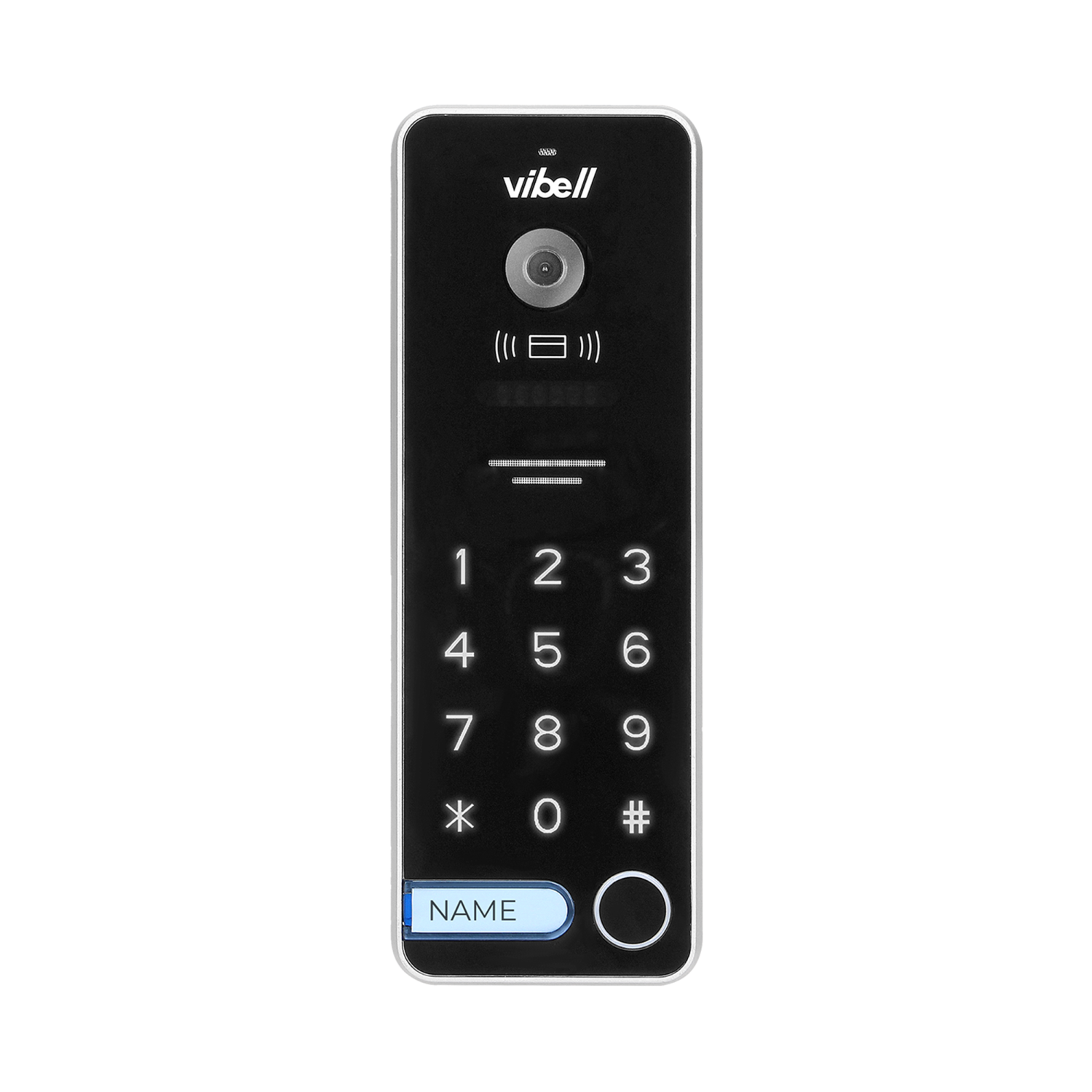

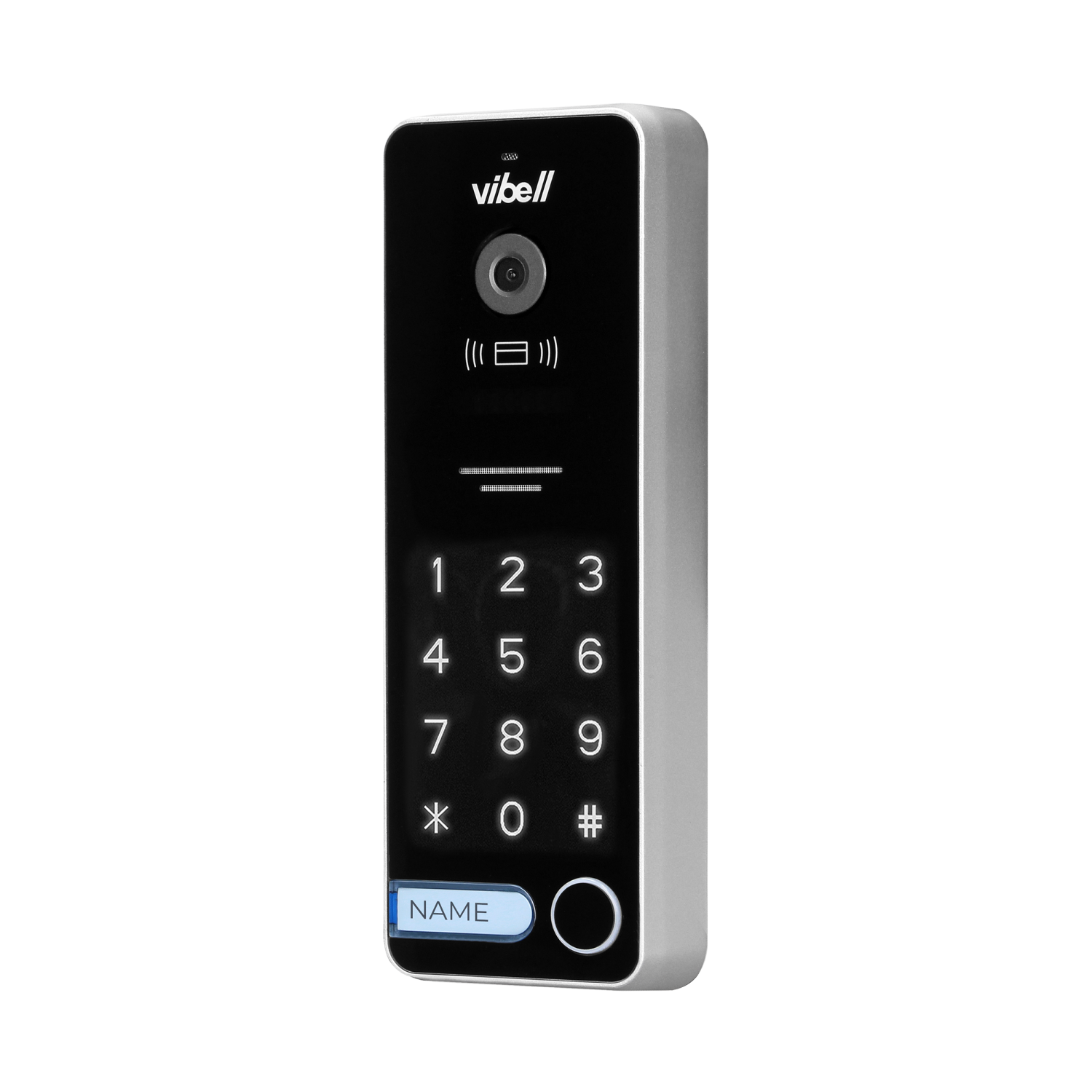

| External panel: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Camera resolution: | 700 TVL |
| Camera view angle (vertical): | 57 ° |
| Camera view angle (horizontal): | 110 ° |
| Night light: | IR |
| With digital door code: | tak |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 125kHz |
| Label space/information surface: | tak |
| With cover: | nie |
| Degree of protection (IP): | IP65 |
| Material outdoor station: | Aluminium+ABS |
| Colour outdoor station: | Czarny |
| Width [mm]: | 55 |
| Height [mm]: | 152 |
| Depth [mm]: | 22 |
| Other features: | RFID - max. 150 użytkowników (breloki w zestawie: 1 administracyjny) |
