Surface-mounted switches and sockets
New
ToDo series combines simple solutions suitable for domestic and professional use. It is a basic electrical equipment series applied in every building thanks to thought-out and simple design. You may use ToDo in service rooms and offices, but also in private residences or flats.
It is aesthetic and minimalistic. In addition, the loft design of the black socket works well in industrial interiors. Premium quality materials ensure high resistance to UV radiation and mechanical damages.

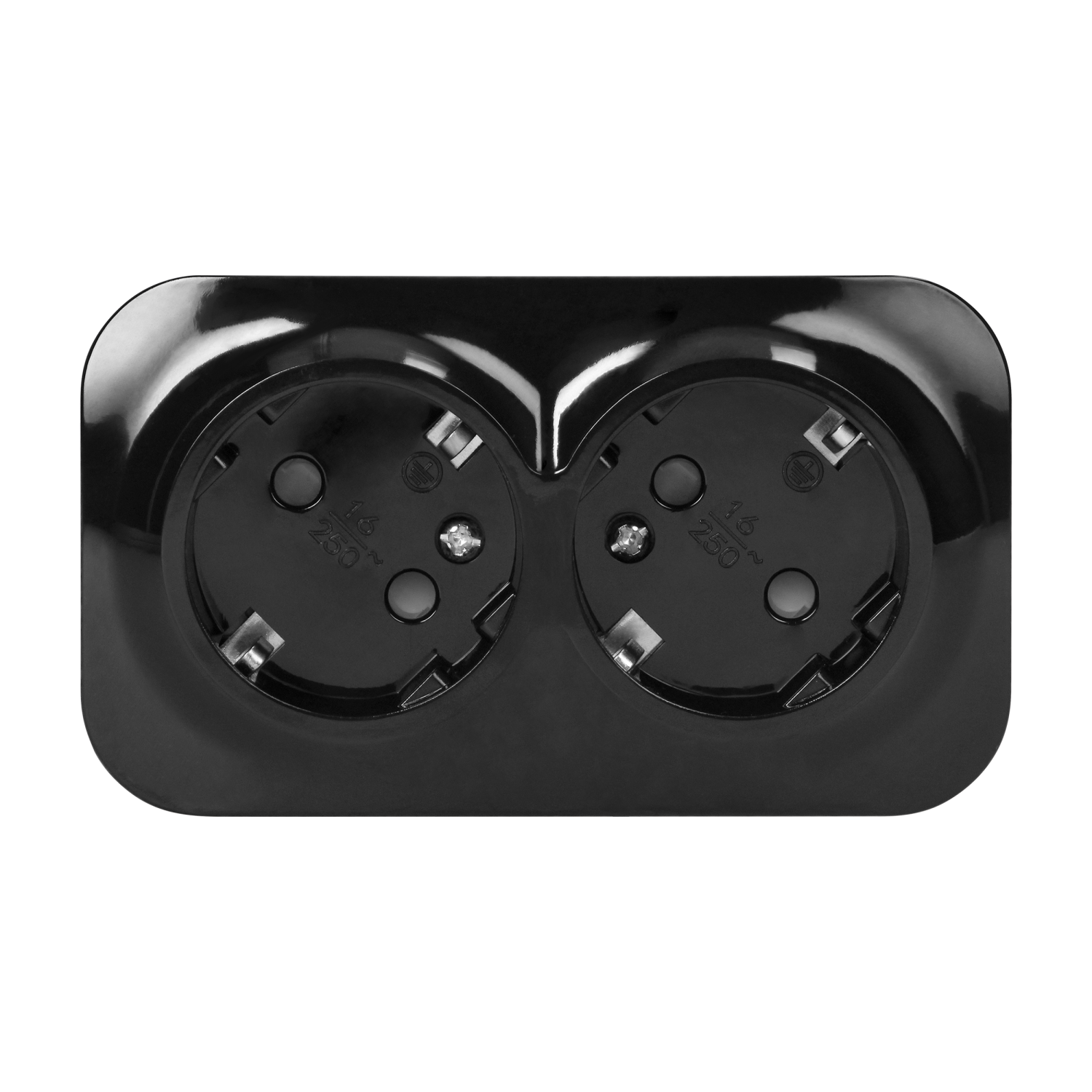

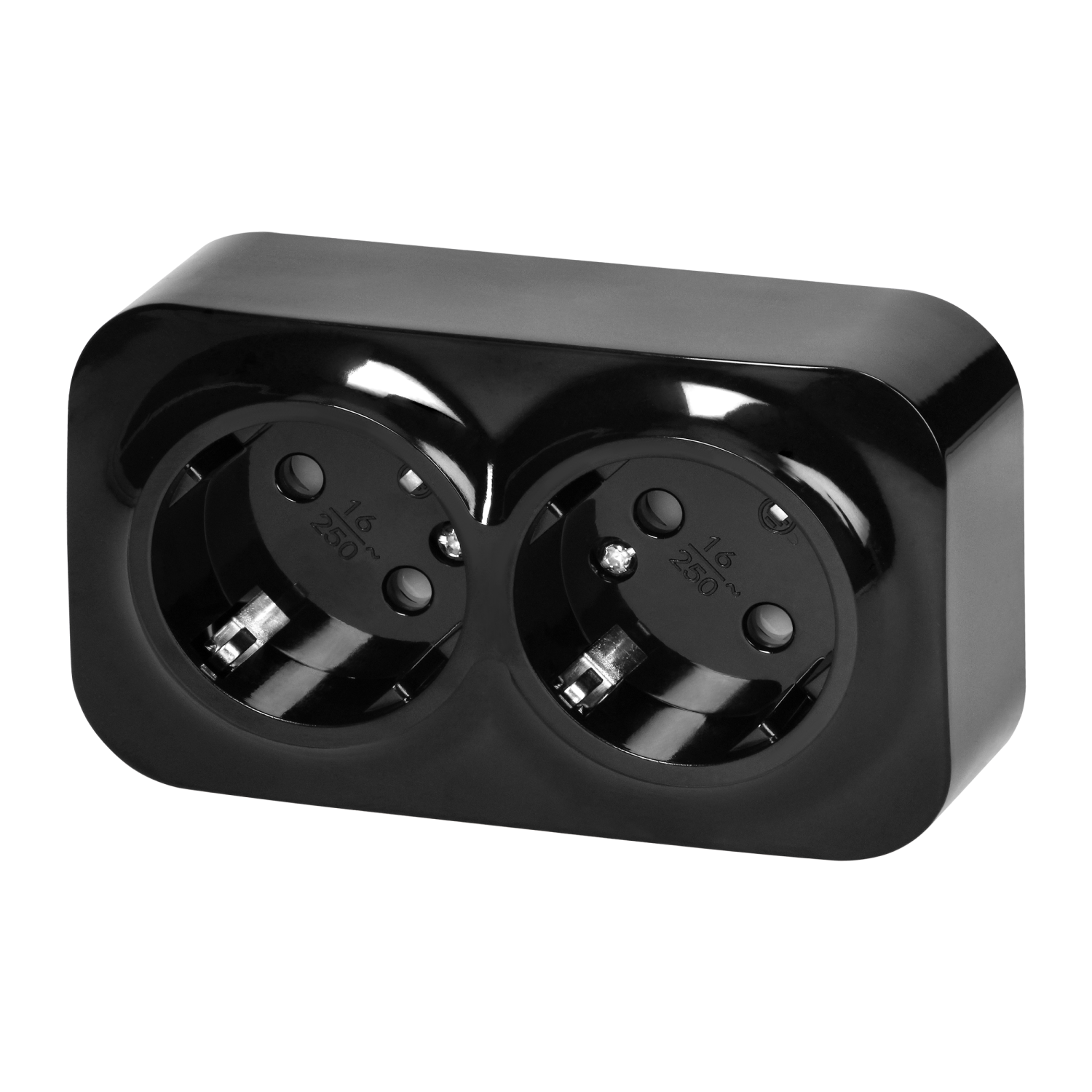

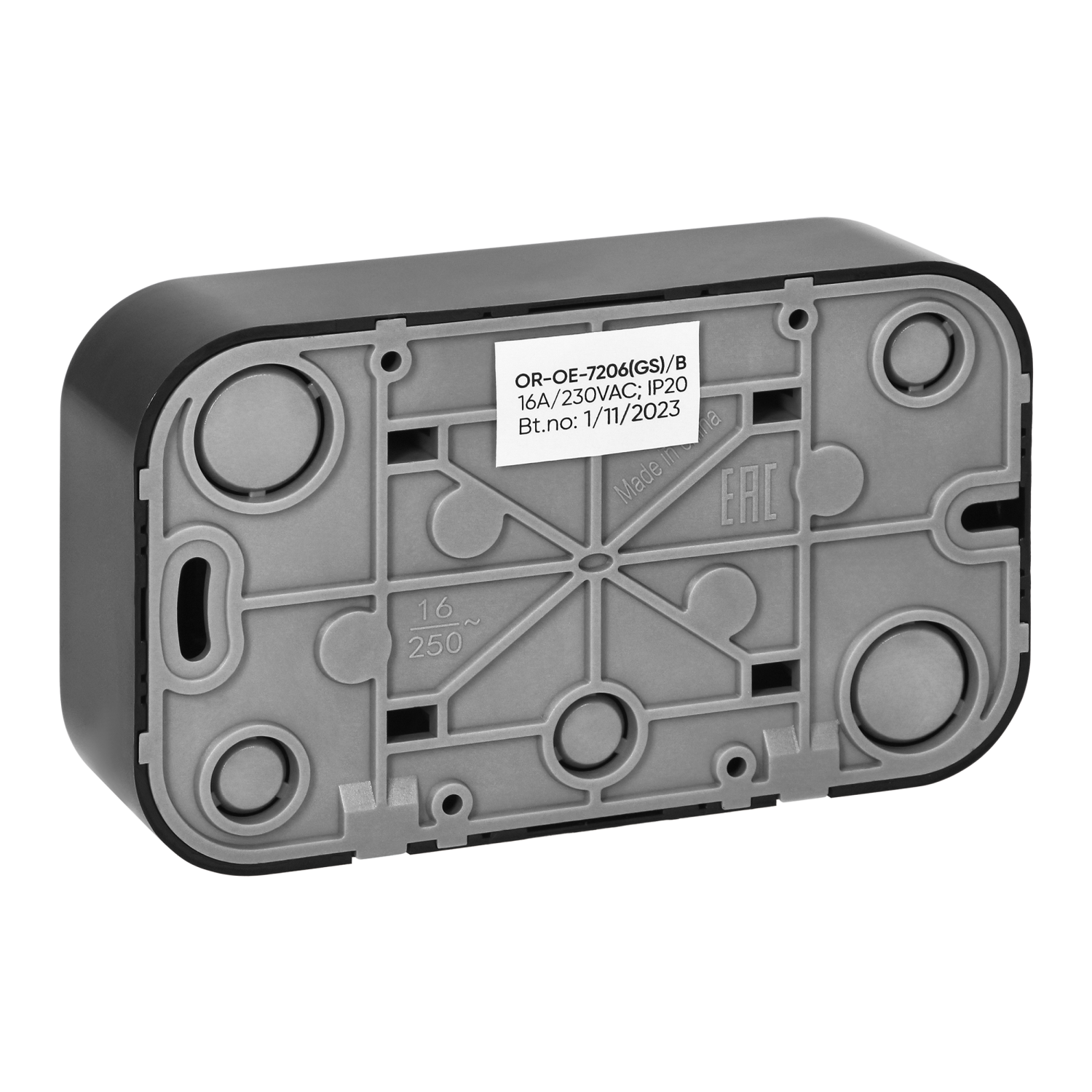

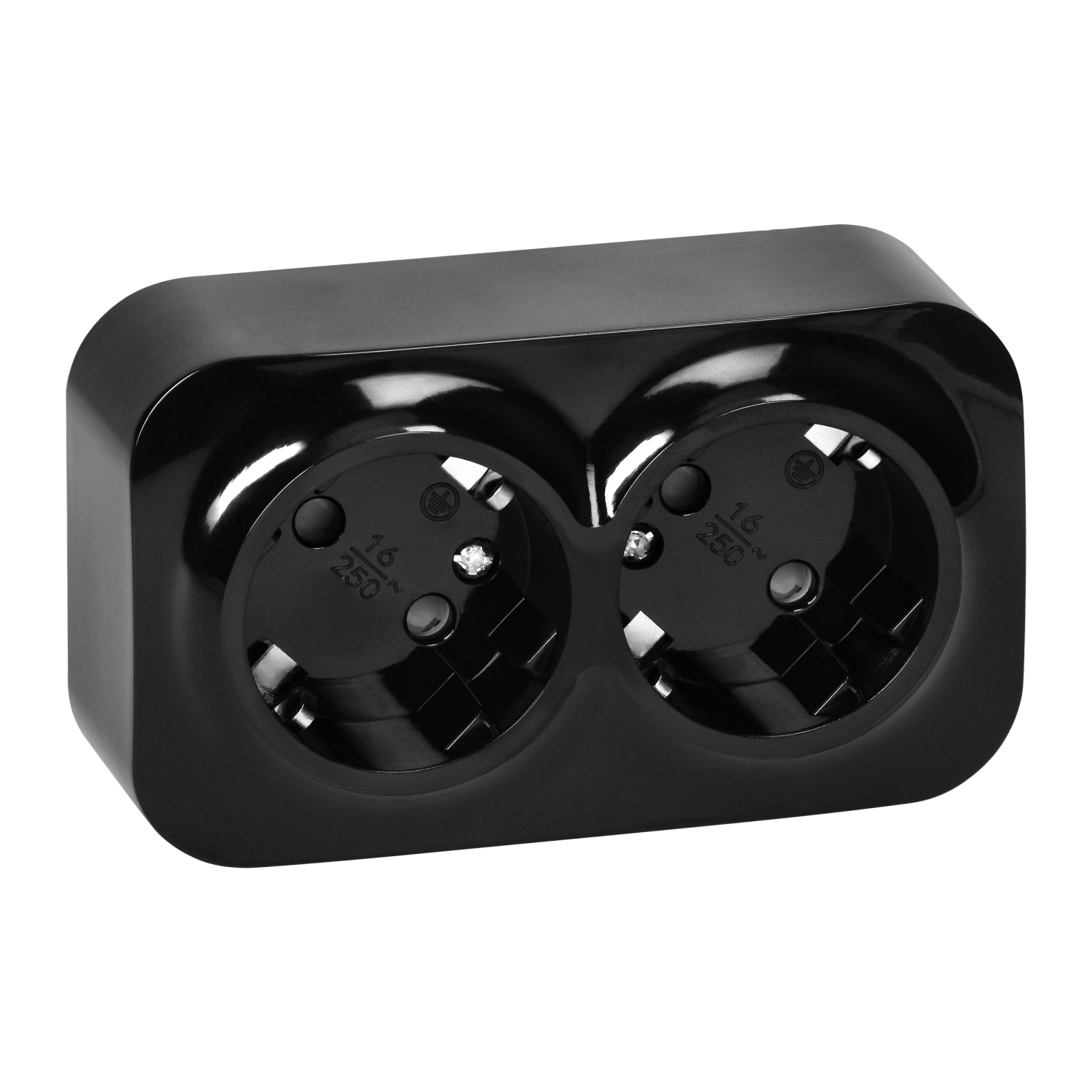

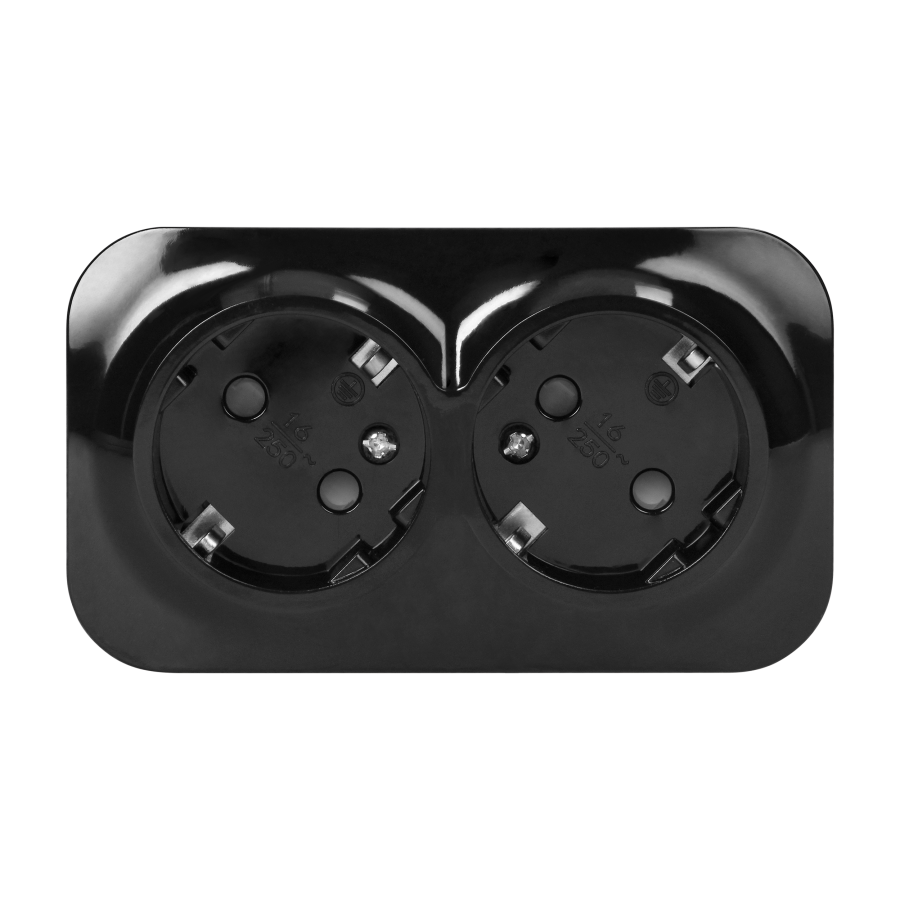

Schuko type of ToDo double socket (2x2P+E) is convenient even during self-assembly and is easy to clean. Moreover, it has many entries to run cables easily from any direction: from the top, bottom and even from the behind. Simply broke the cable opening with the help of special perforations.
IP20 ingress protection rate ensures save and long-lasting usage.
The electrical socket is surface mounted and suitable wherever a convenient and save power source is needed.
Black colour. Set of 10 pcs. The series includes single sockets and switches too. Available also in white and out of the set.
| General information: | |
|---|---|
| Nominal current [A]: | 16 |
| Frequency [Hz]: | 50 |
| Width of device [mm]: | 64 |
| Height of device [mm]: | 128 |
| Depth of device [mm]: | 40 |
| Nominal voltage [V]: | 230 |
| Mounting method: | Montaż natynkowy |
| Colour: | Czarny |
| Model: | Ze stykiem ochronnym (SCHUKO) |
| Number of units: | 2 |
| Connection type: | Zacisk śrubowy |
| Surface protection: | Stan surowy |
| With signal lamp: | nie |
| Number of phases: | 1 |
| With enhanced contact protection: | tak |
| With on/off switch: | nie |
| Protective contact: | tak |
| Label space/information surface: | nie |
| Material quality: | Tworzywo termoplastyczne |
| Material: | Tworzywo sztuczne |
| Type of fastening: | Montaż natynkowy |
| Surface finishing: | Błyszczący |
| Suitable for degree of protection [IP]: | IP20 |
| Quantity: | 10 |
| : |
|---|
