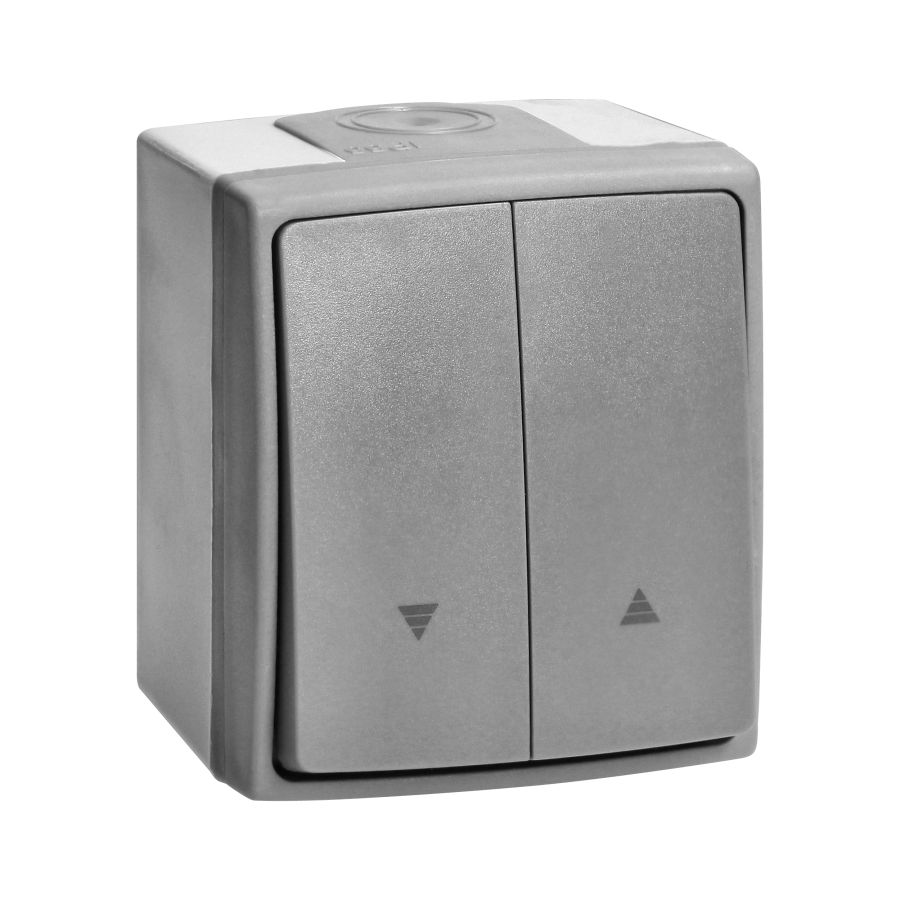

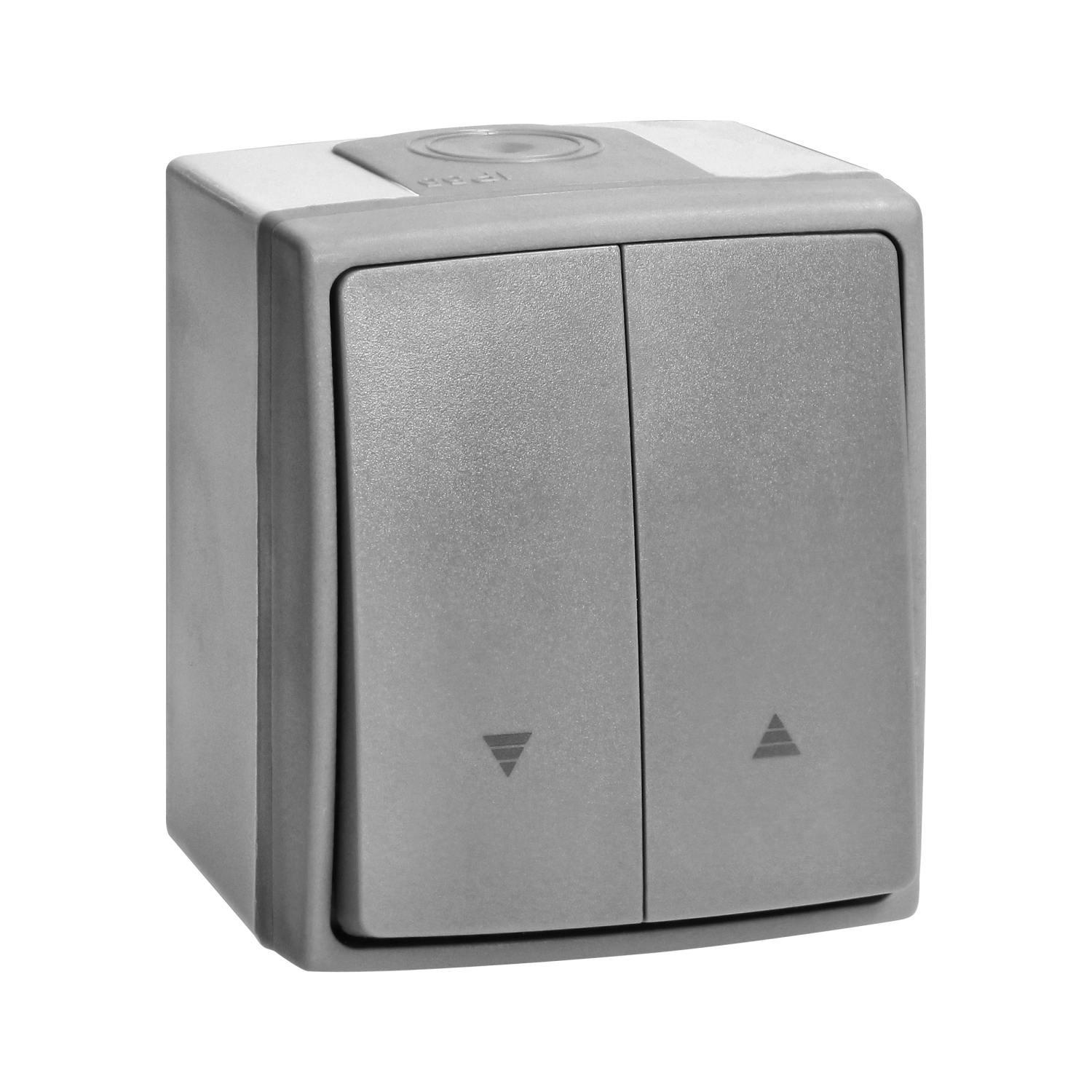

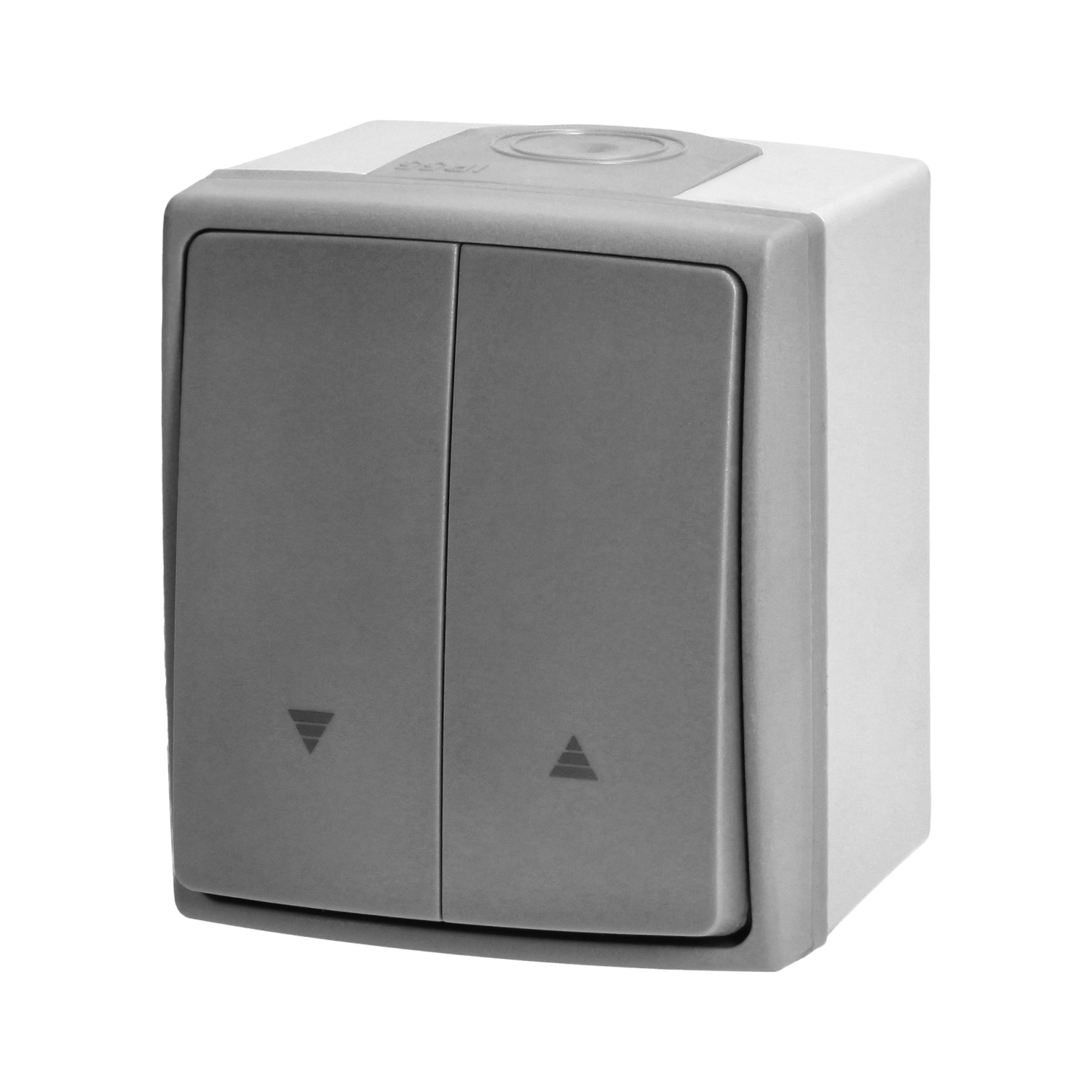

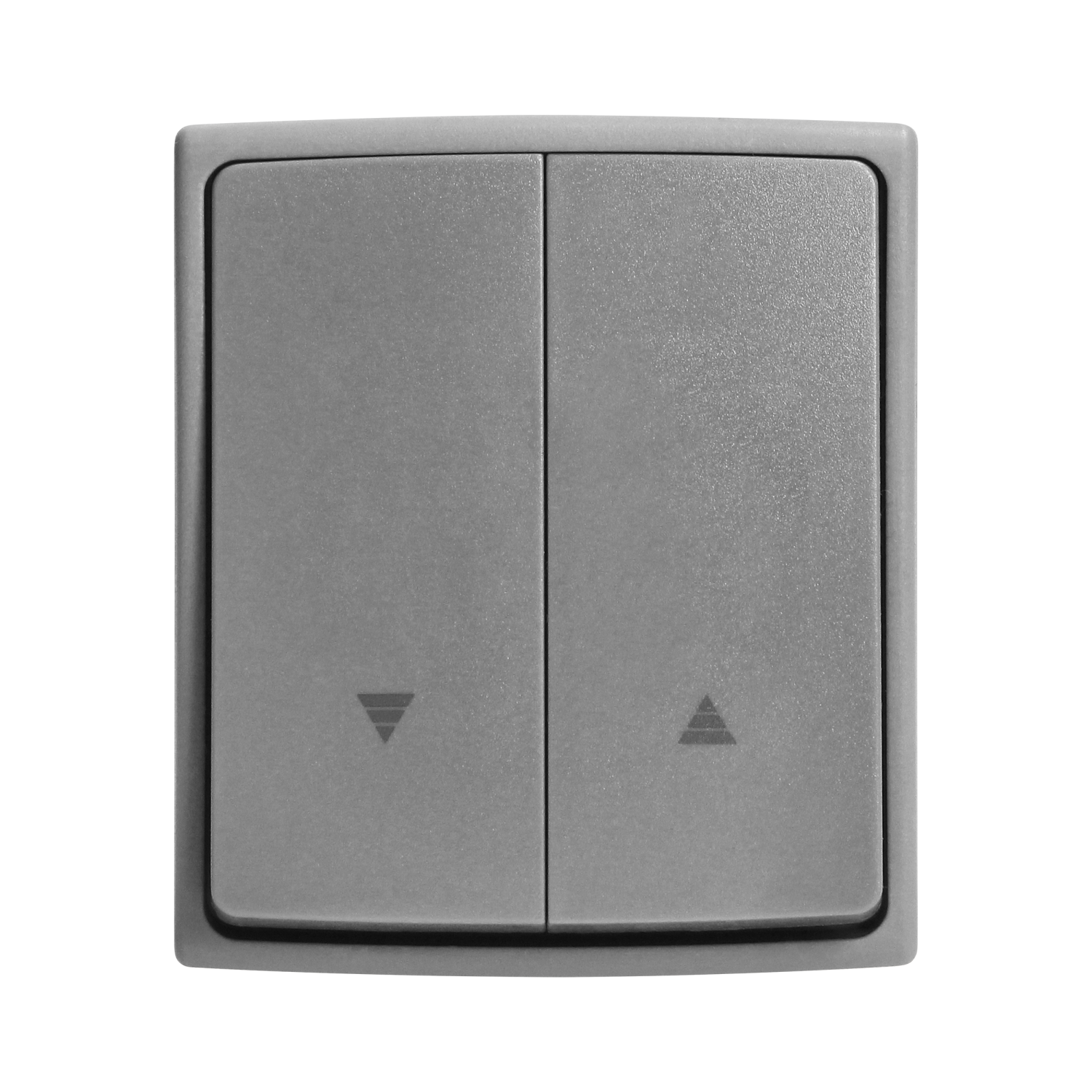

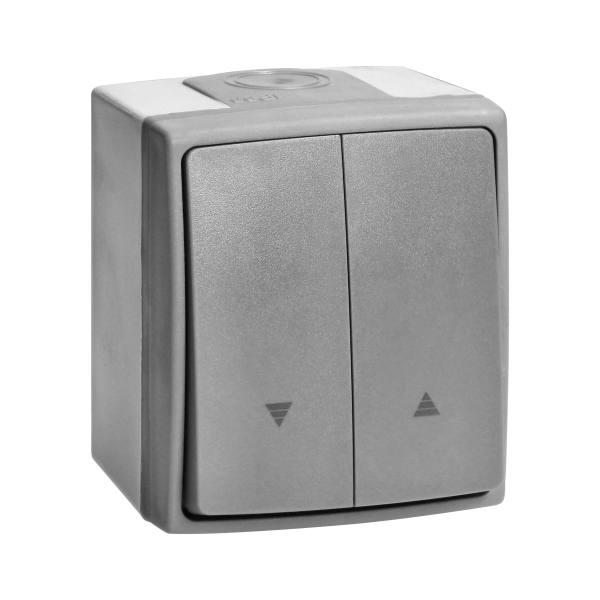

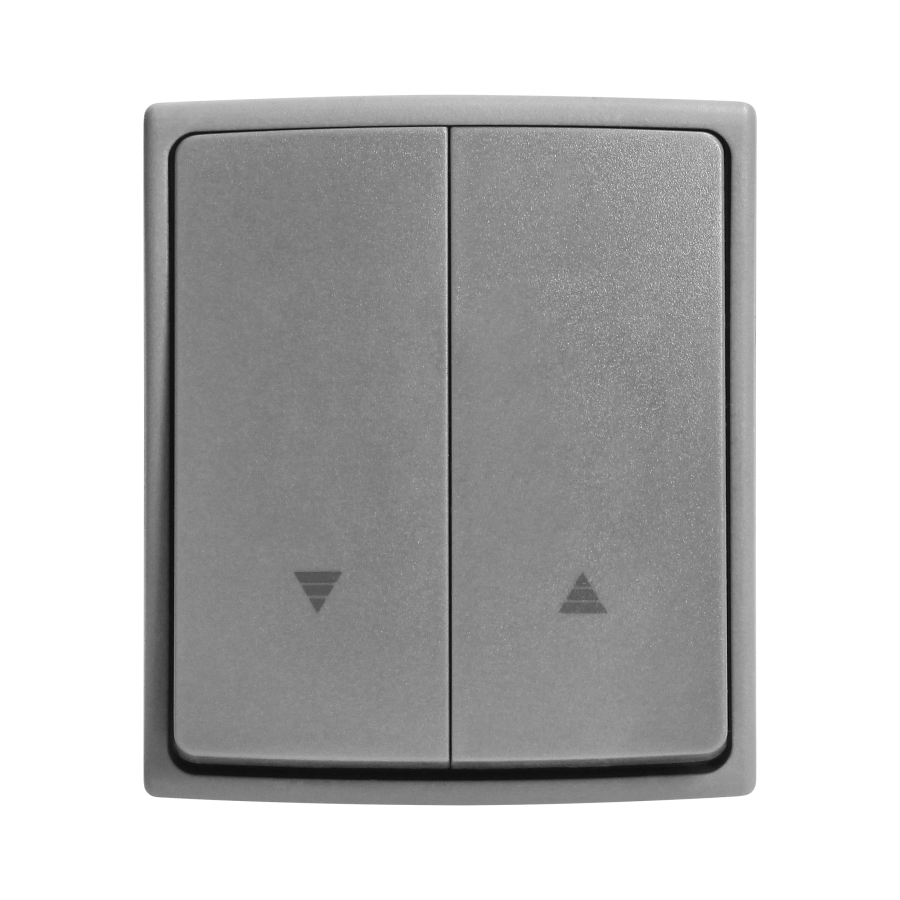

AQUATIC PRO IP55 shutter switch, grey/graphite
AQUATIC PRO IP55 shutter switch, grey/graphite
AQUATIC PRO IP55 shutter switch, grey/graphite
AQUATIC PRO IP55 shutter switch, grey/graphite
AQUATIC PRO IP55 shutter switch, grey/graphite
AQUATIC PRO IP55 shutter switch, grey/graphite
AQUATIC PRO IP55 shutter switch, grey/graphite
AQUATIC PRO IP55 shutter switch, grey/graphite
AQUATIC PRO IP55 shutter switch, grey/graphite
AQUATIC PRO IP55 shutter switch, grey/graphite

AQUATIC PRO IP55 shutter switch, grey/graphite

OR-OE-7408/GR

Description

The Aquatic Pro, is a series designed for the most demanding users, characterised by a robust, sealed construction, a simple, universal design and a protection level for dust and spill resistance - IP55.

Internally, the Aquatic is fitted with rubber sealing elements, externally it is composed of solidly fitted components made of quality flexible plastic, which is resistant to impact and fading.

The Aquatic Pro roller shutter switch is a surface-mounted switch intended for operating roller shutters or blinds, hence it is also commonly referred to as a shutter switch. This is a type of switch whose function is to activate the motor of the roller shutter mechanism, which allows it to be lowered or raised. The switch is equipped with two buttons (up and down) and a safety device to prevent them from being activated simultaneously.

The Aquatic Pro is also an aesthetically pleasing design that blends in with commercial interiors or industrial spaces. The series includes single-pole switches, two-button switches, single and double sockets, socket sets, doorbell buttons with and without illumination.

The wide selection of elements makes it easy to complete a uniform furnishing for a room or even a building.

The series is in a grey-graphite colour scheme.

General information:
Nominal voltage [V]: 230
Mounting method: Montaż natynkowy
Assembly arrangement: Element podstawowy z kompletną obudową
Method of operation: Przycisk wahadłowy
Colour: Szary
Model: Przycisk 2-biegunowy
Connection type: Wtykowe samozaciskowe
Surface protection: Stan surowy
Rated current [A]: 10
Label space/information surface: Tworzywo termoplastyczne
Material quality: Tworzywo termoplastyczne
Number of poles: 2
Material: Tworzywo sztuczne
Type of fastening: Montaż śrubowy
Number of buttons: 2
Electrical and mechanical locking: tak
Surface finishing: Matowy
Suitable for degree of protection [IP]: IP55
Quantity: 1
:

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:13:58Download
Product data sheetENpdf2024-07-17 10:21:45Download
