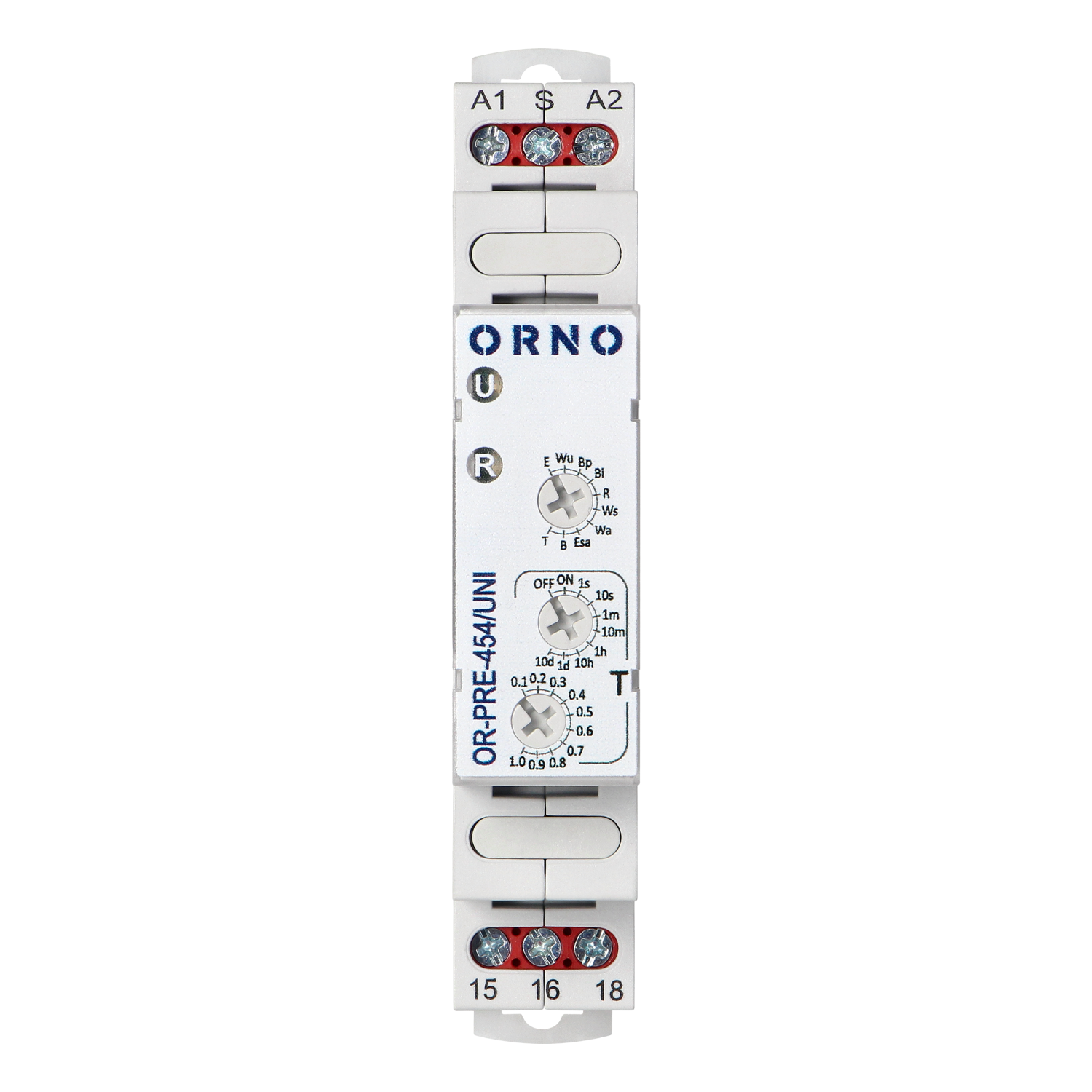

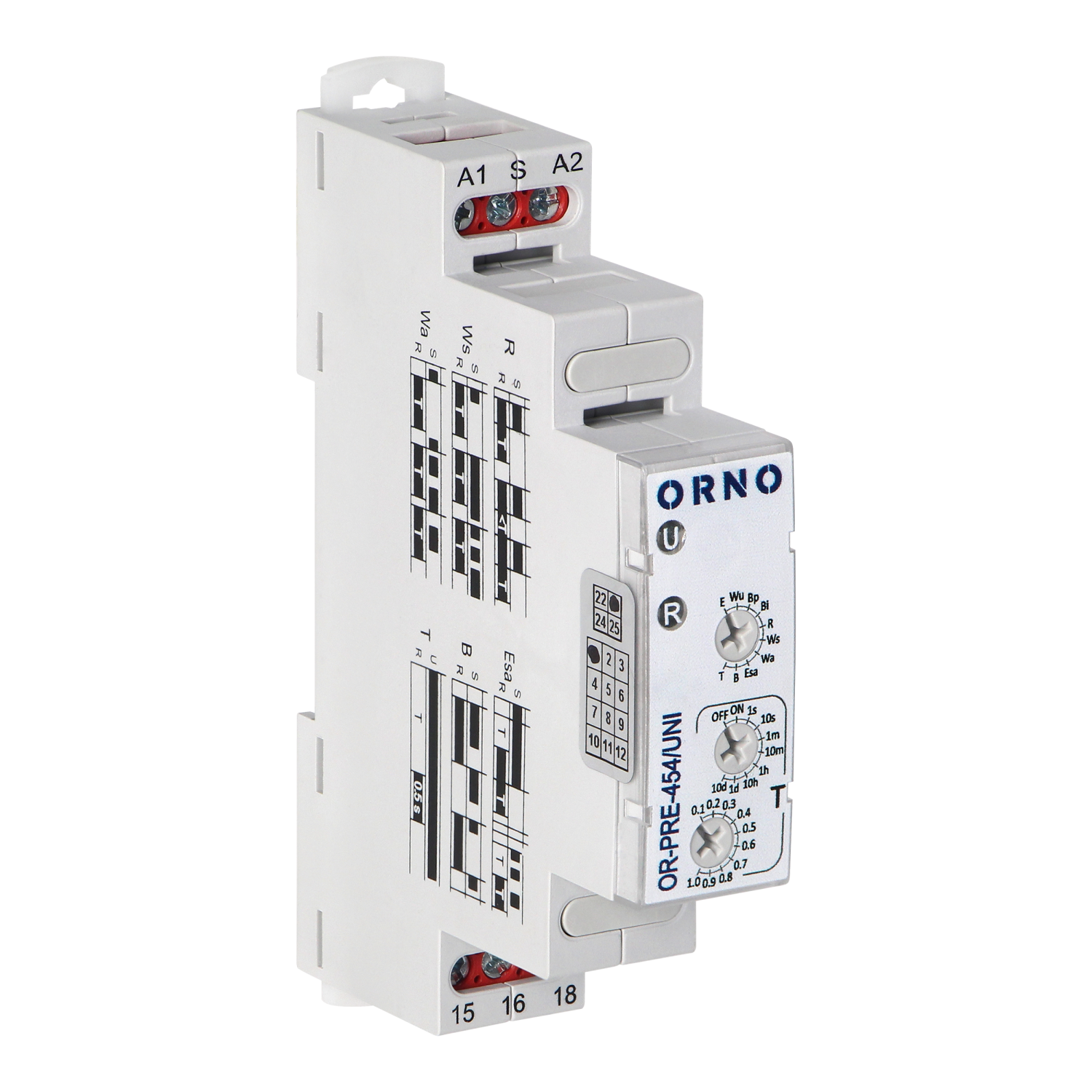

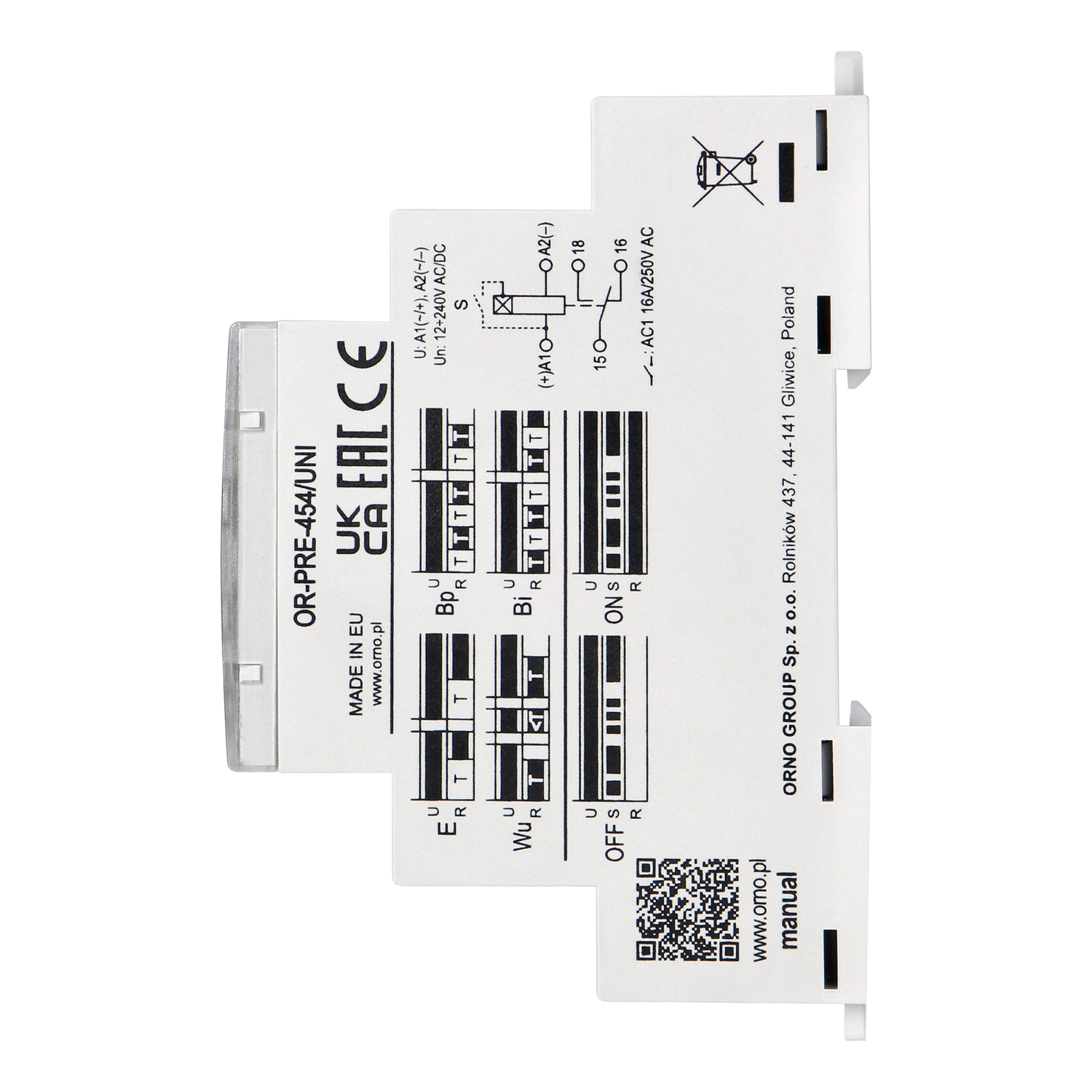

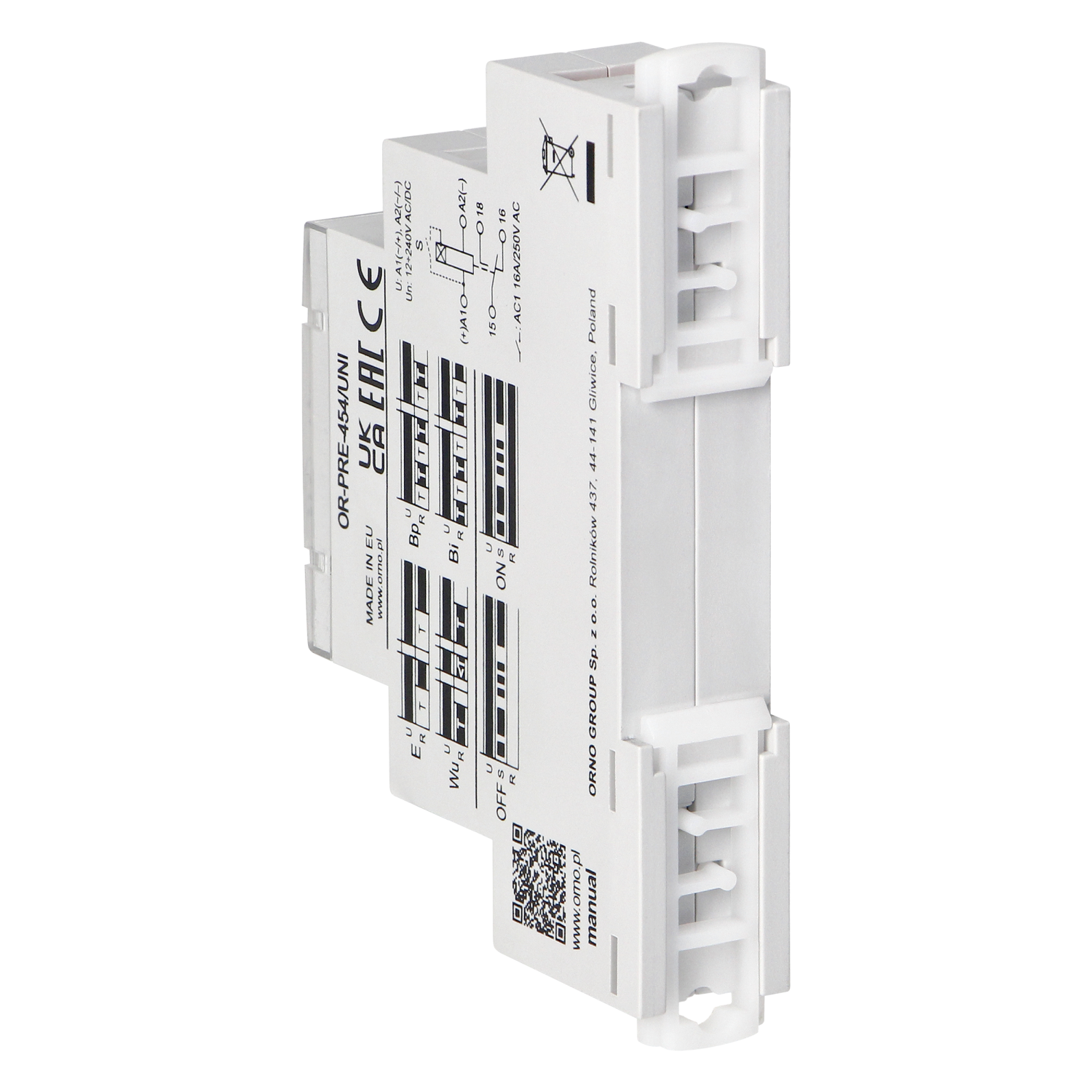

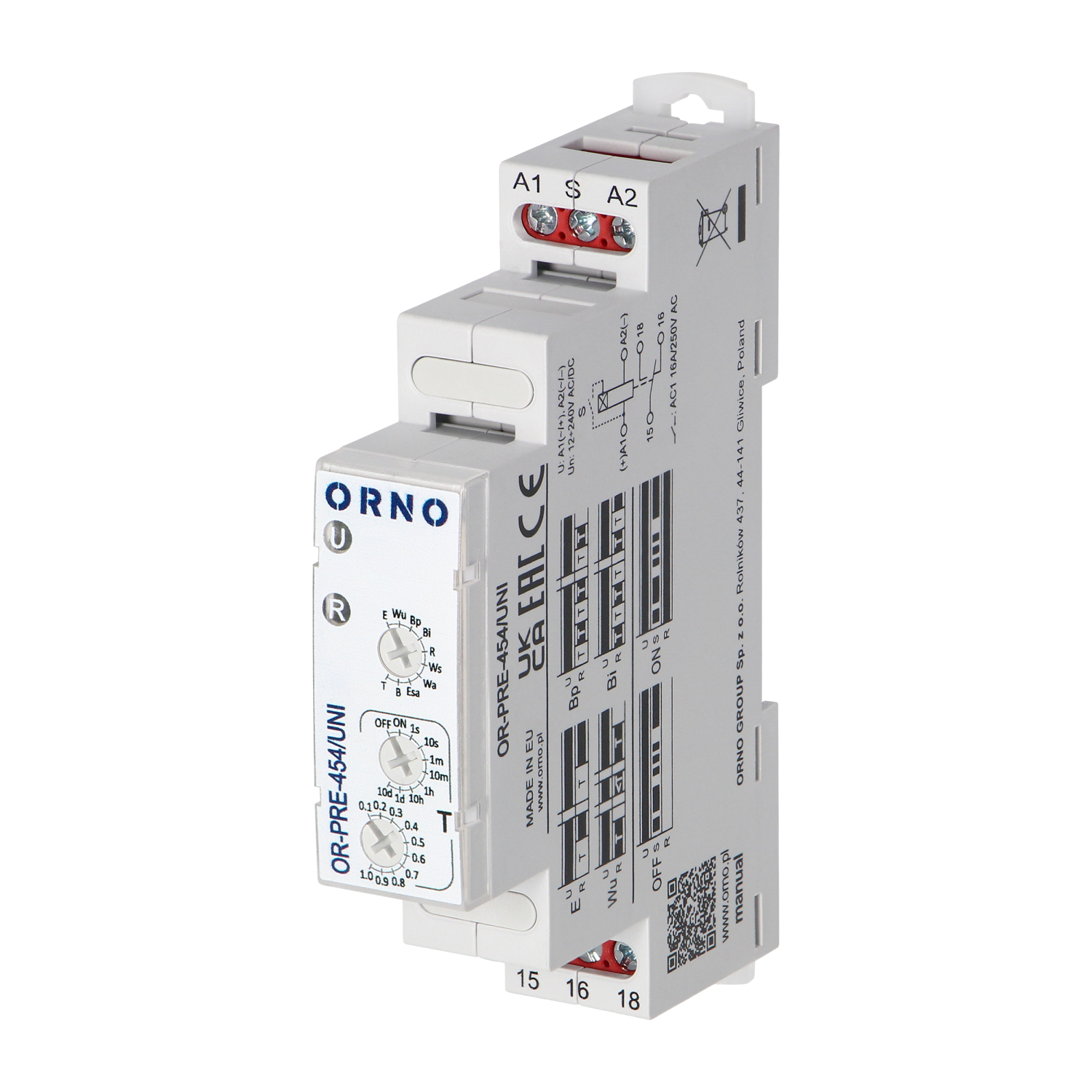

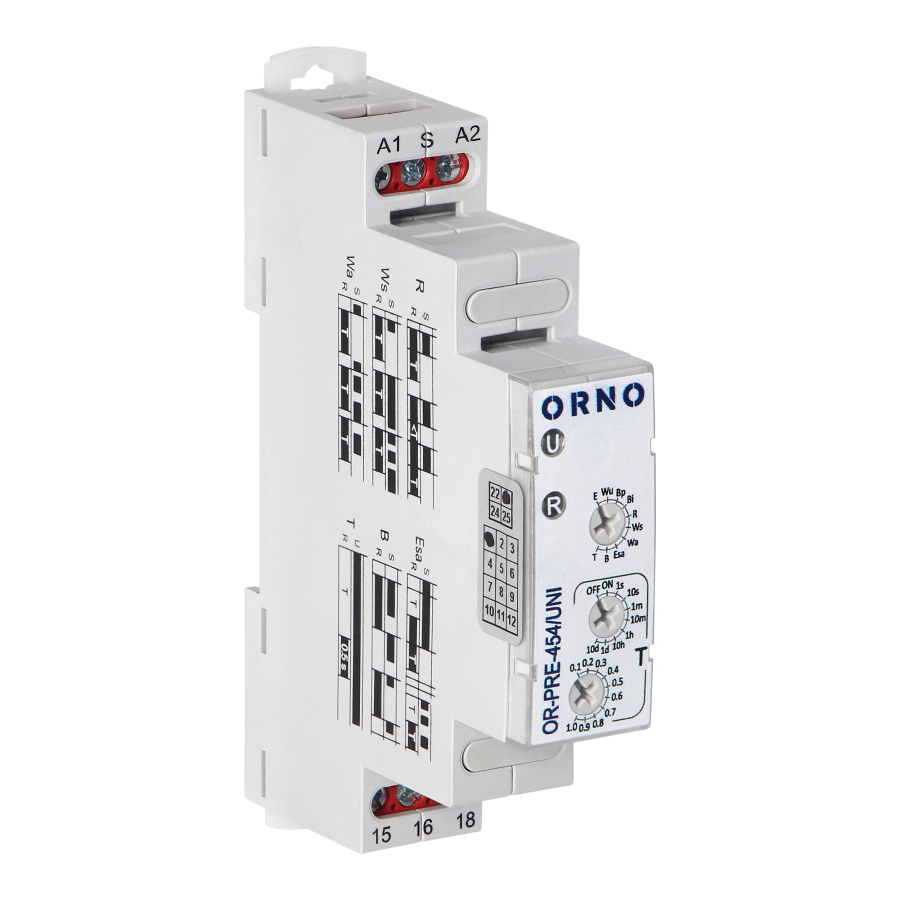

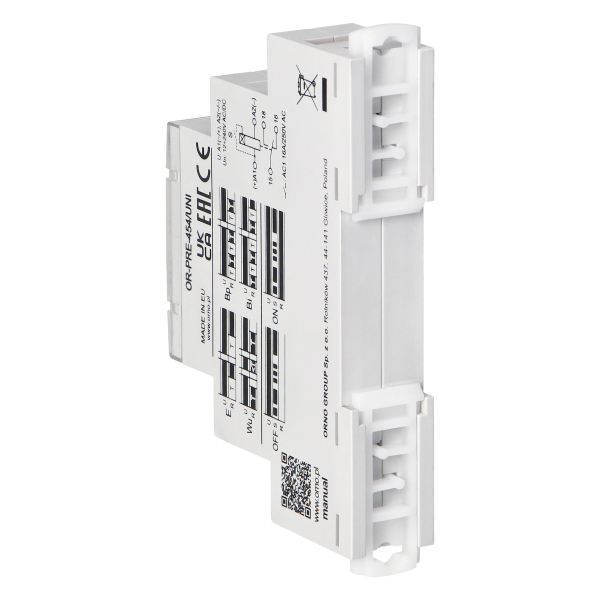

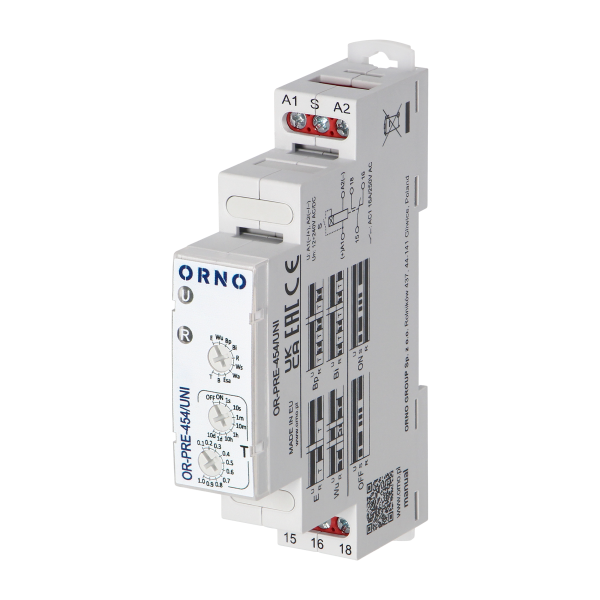

OR-PRE-454/UNI

Description

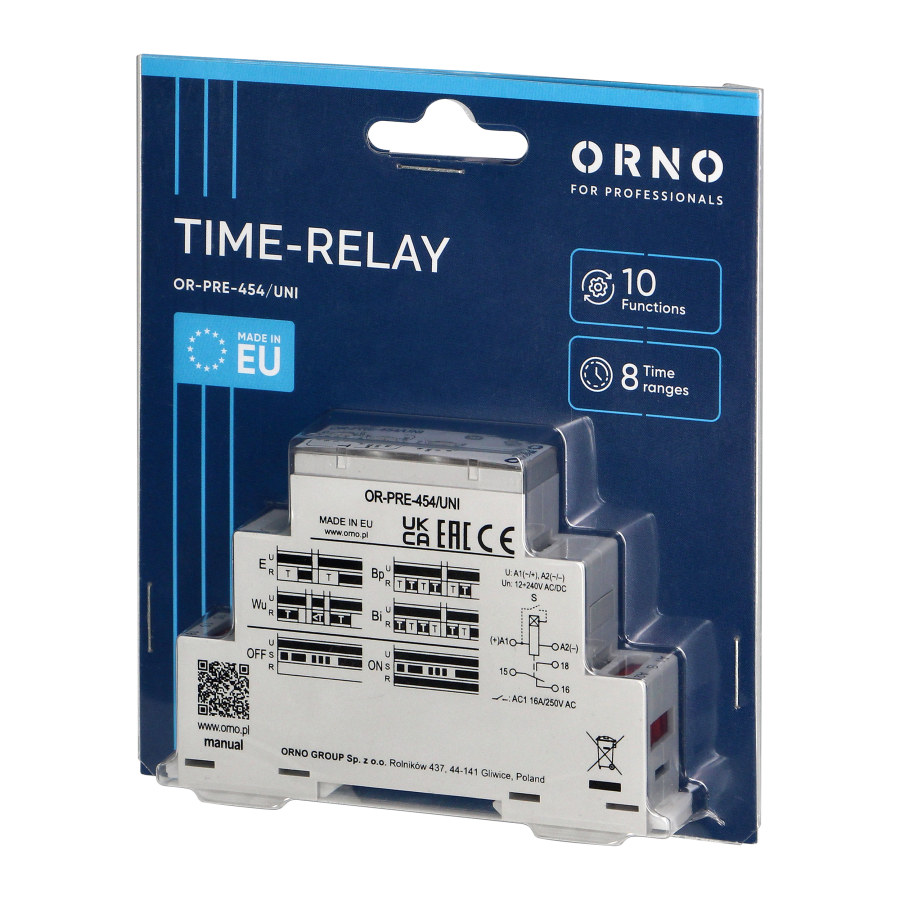

Time relay - 10 functions, universal power supply.

General information:
Storage temperature: from -40°C to +70°C
Number and type of contacts: 1P
Contacts material: AgSnO2
Rated load AC1: 16 A / 250 V AC
Rated load DC1: 16 A / 24 V DC
Degree of protection (IP): 20
Maximum switching capacity in category AC1: 4000 VA
Contact resistance: ≤ 100 mΩ
Maximum switching frequency: 600 cykli/h
Nominal voltage: 230 V
Operating voltage range: 0,9 - 1,1 Un
Overvoltage category: III
Dimensions - depth: 90 mm
Dimensions - width: 17.5 mm
Case flammability standard UL94: V0
Switching life AC1: > 0,5 x 10^5
Dimensions - height: 64.5 mm
Working temperature: -20℃~+50℃
Relative humidity: do 85%
imapct resistance: 15 g
vibration resistance: 0,35 mm DA
Net weight: 66 g

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:19Download
Product data sheetENpdf2024-07-17 10:22:04Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
