Time relays

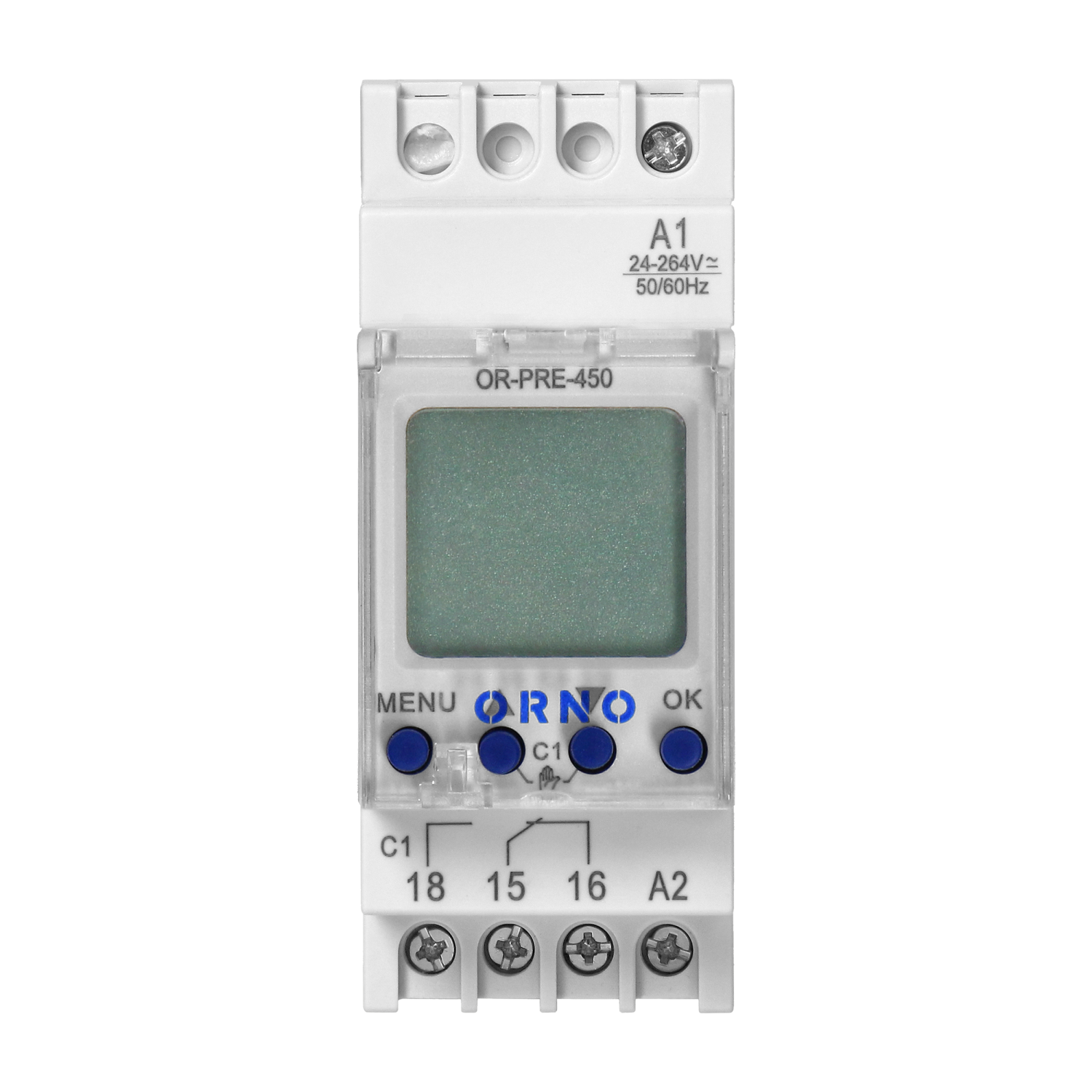

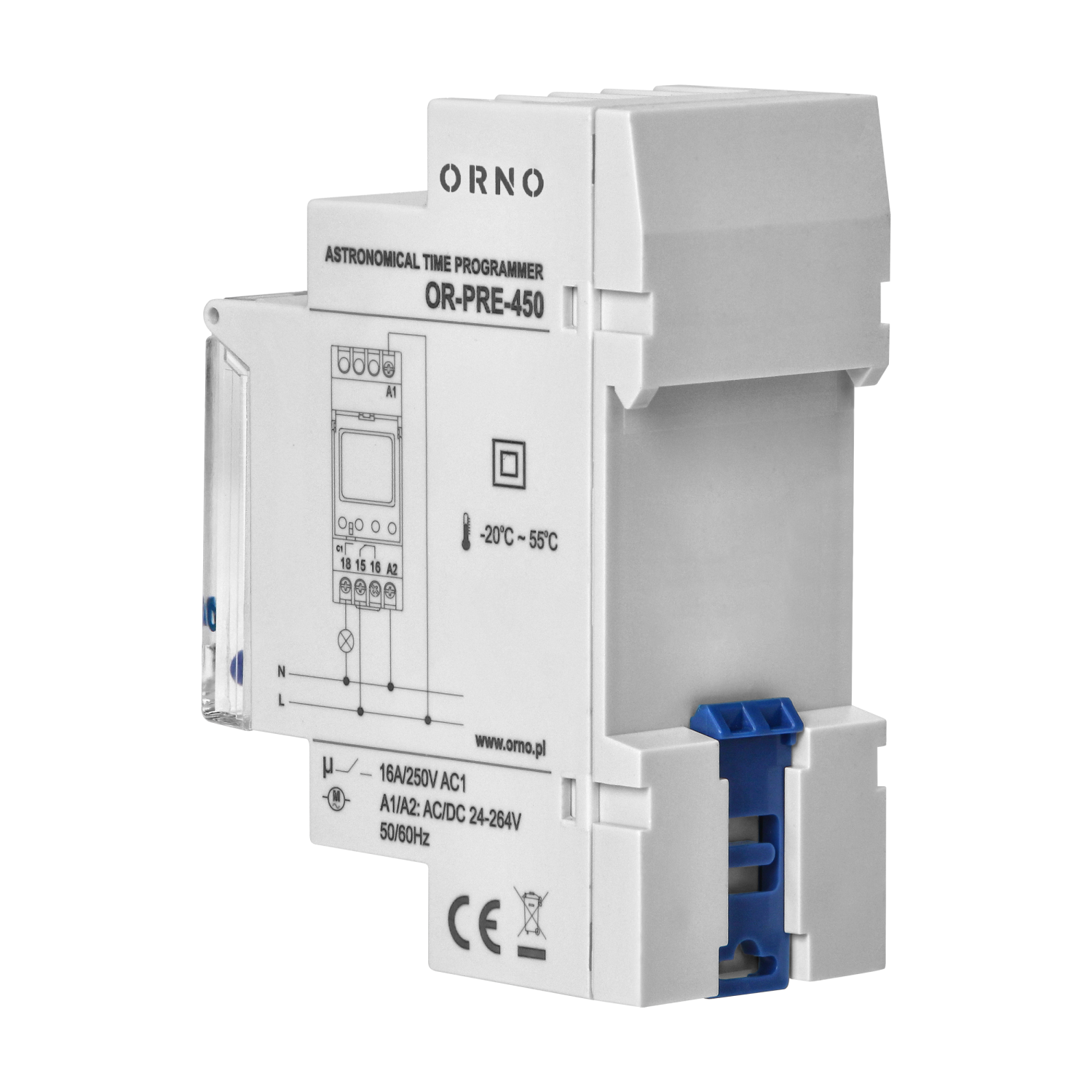

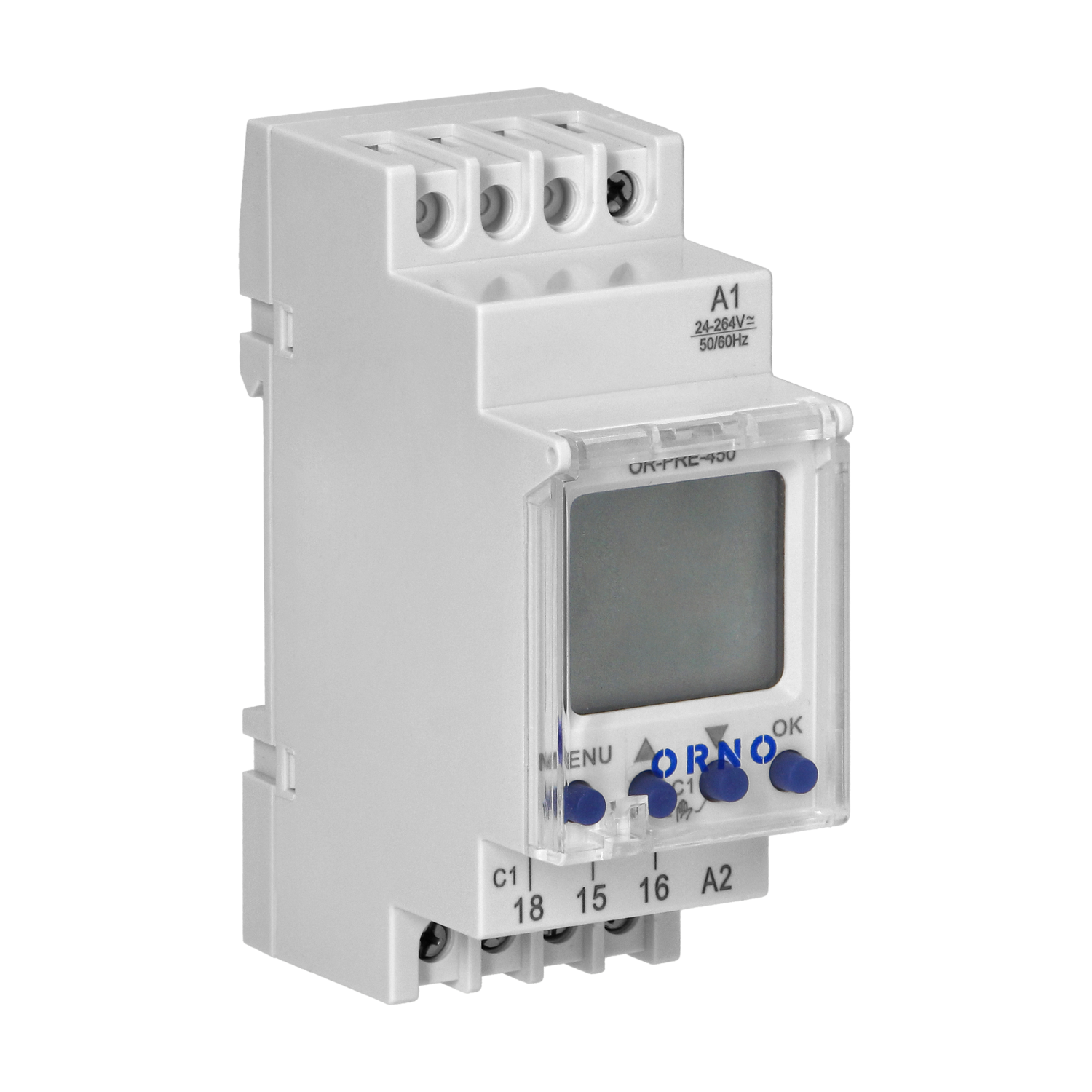

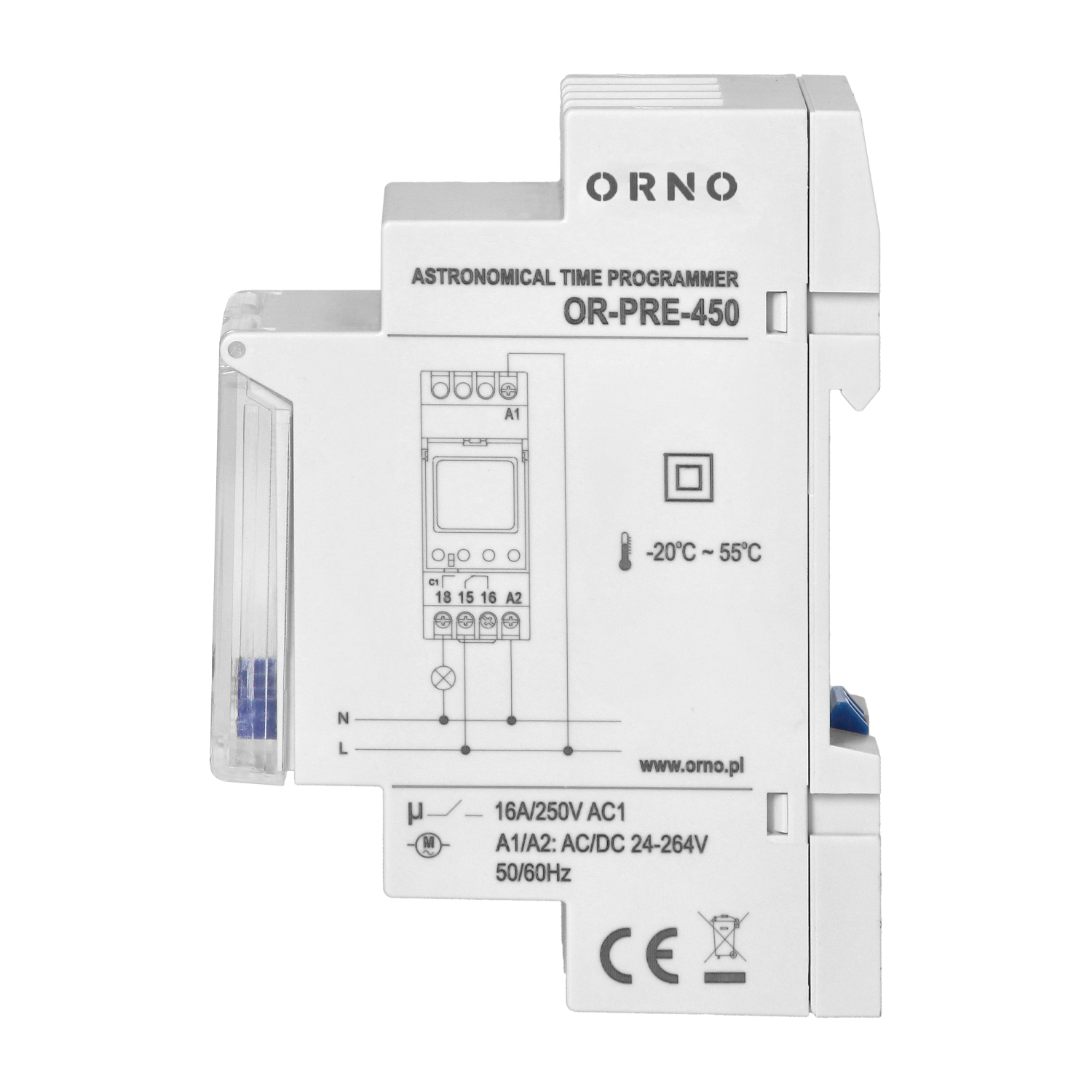

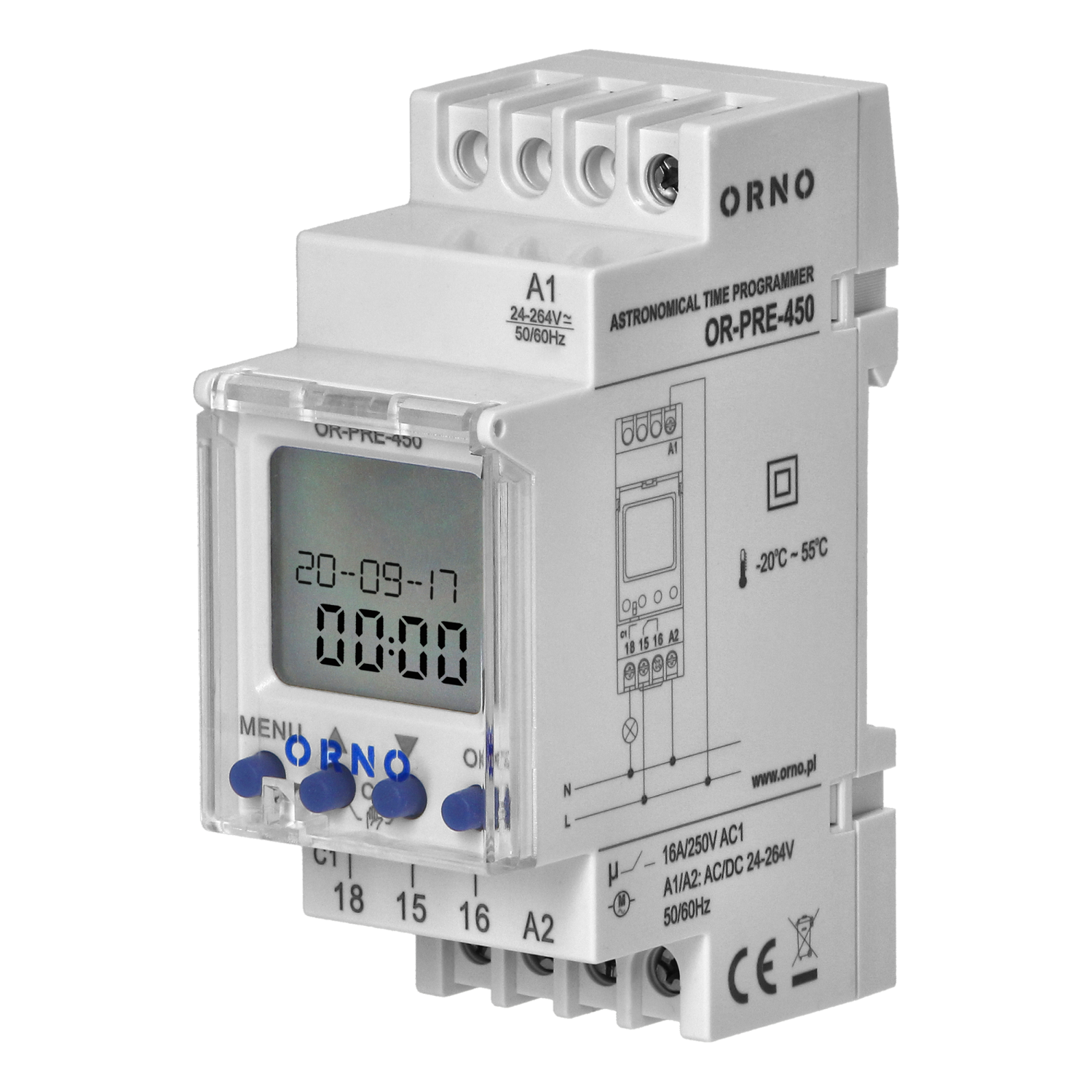

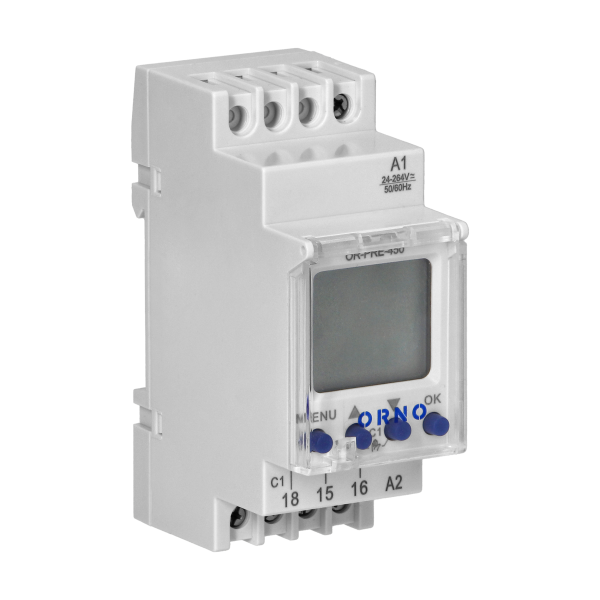

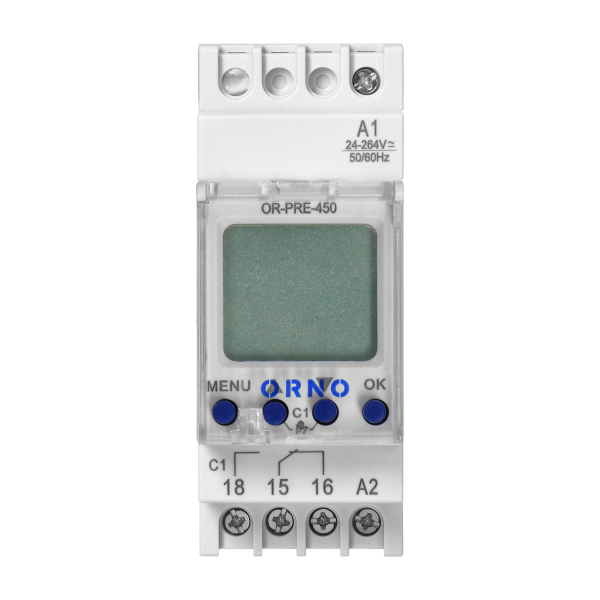

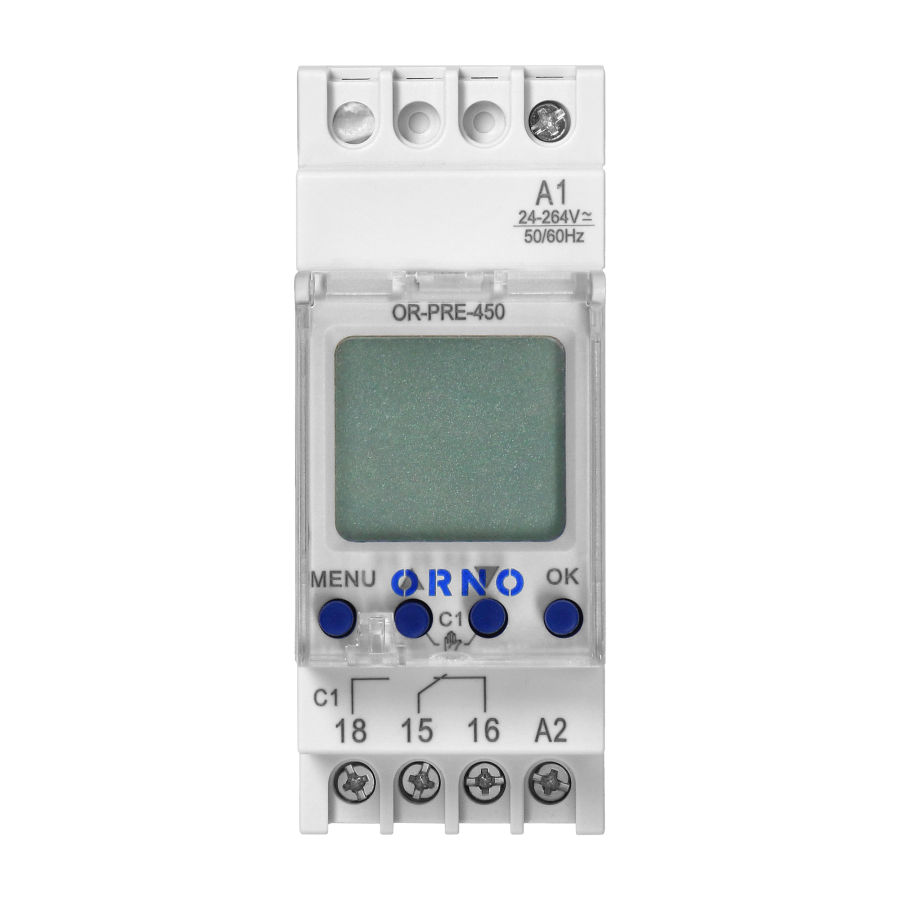

This multi-functional timer allows to save electricity and facilitates the use of various electrical devices. The built-in astronomical clock calculates sunrise and sunset times within a defined geographical area and time zone. This timer switches the power supply on and off within a specified period of time, and 100 switching points allow you to adjust the settings to your individual needs. Types of programs: weekly, annual and astronomical. Operation modes: manual, automatic, holiday, random. The device is ideal to control the operation of lighting, water heaters, motors, pumps, etc. It has a built-in battery that maintains the clock settings in the event of power failure.
| General information: | |
|---|---|
| Nominal voltage: | 24-264V AC/DC |
| Current: | max 16 A |
| Degree of protection (IP): | 20 |
| Installation: | a DIN rail |
| Built-in battery: | Yes |
| Number of programmes: | 52 |
| Dimensions - depth: | 64 mm |
| Dimensions - width: | 90 mm |
| Dimensions - height: | 36 mm |
| Other features: | 3 menu languages |
