Twilight sensors

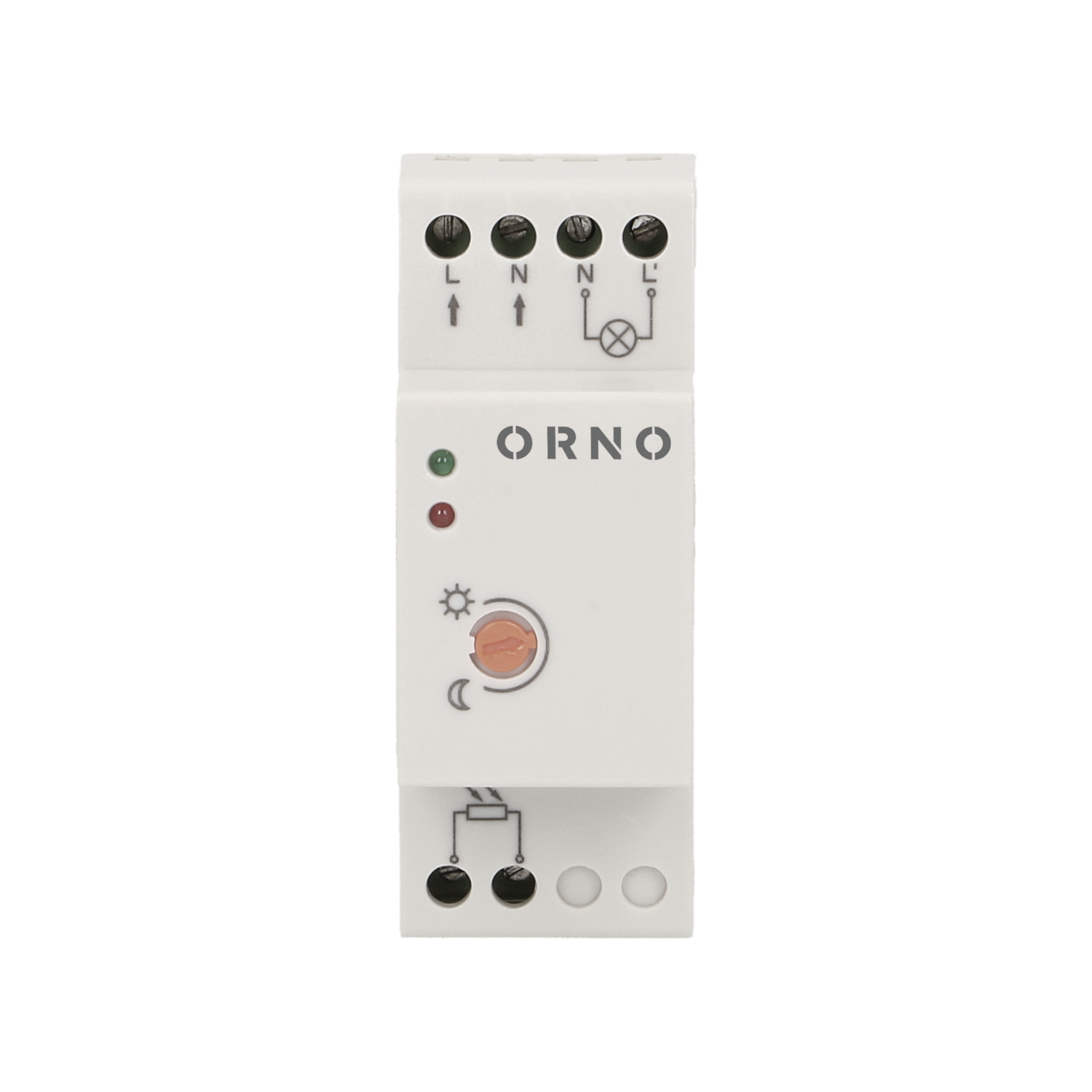

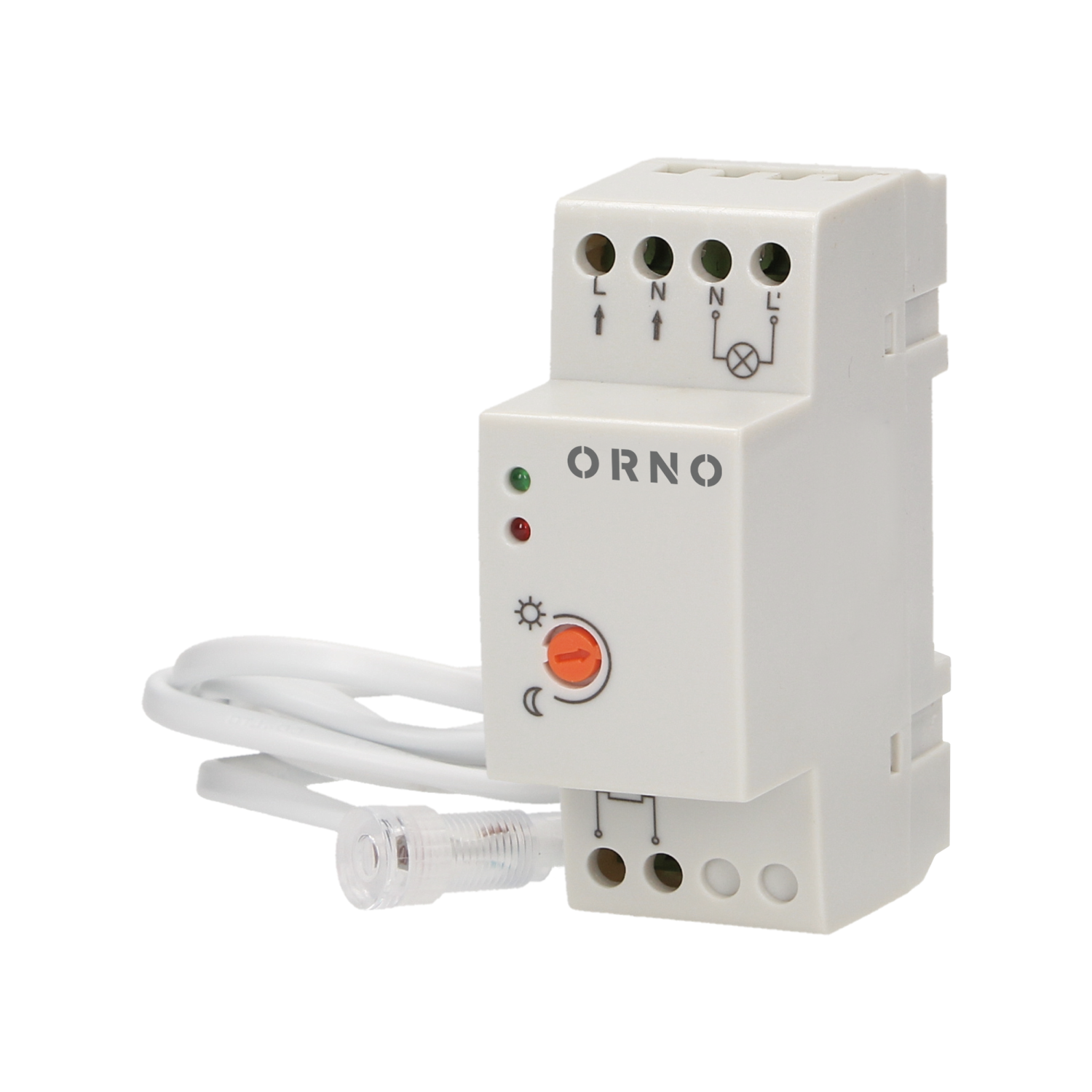

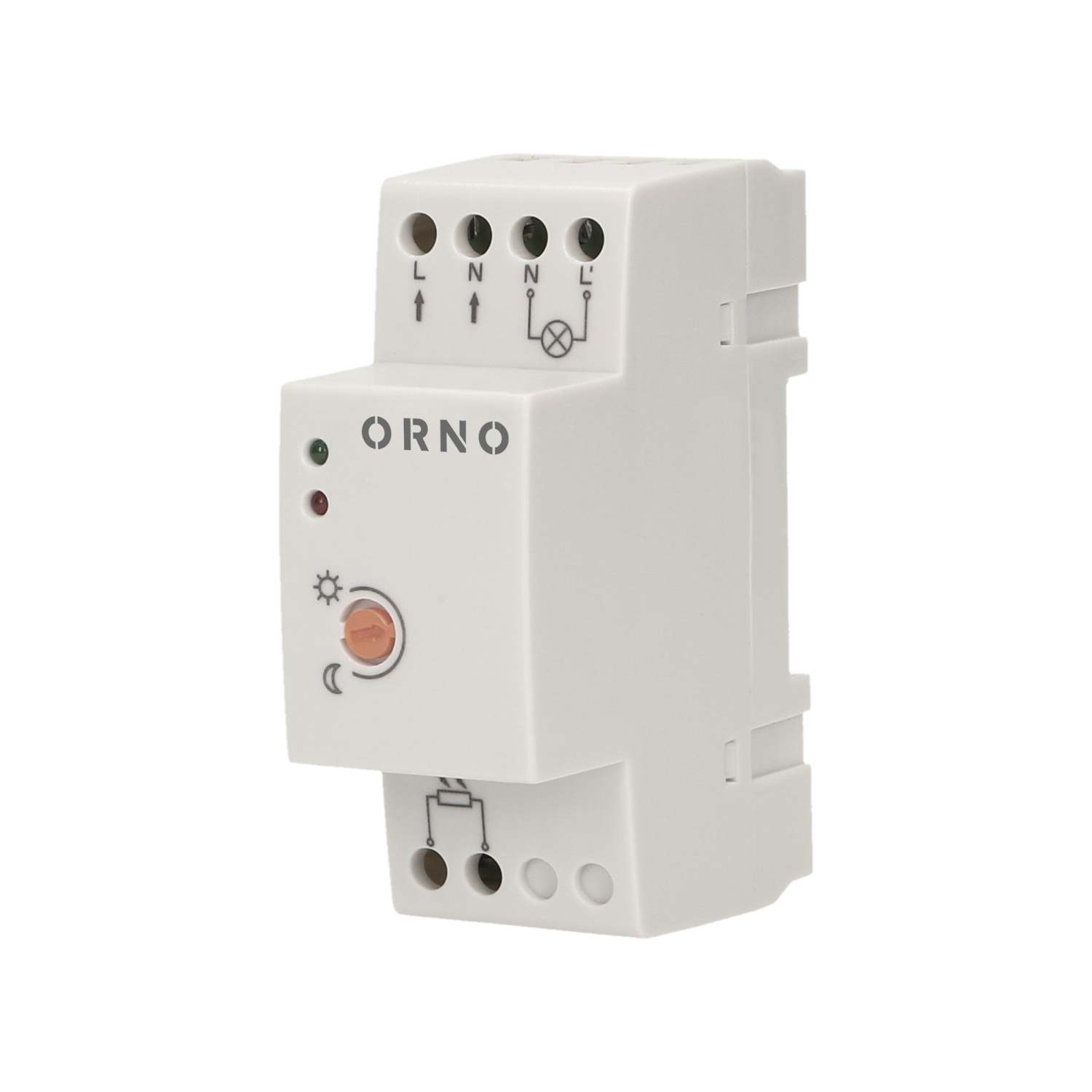

Twilight sensor with hermetic external probe For indoor and outdoor usage Collaborates with LED lighting Regulation: the sensitivity of the light intensity (LUX) Small size and easy installation on a DIN rail Light-sensitive sensor with approx. 1 meter cable (2x0.5mm2) with possibility of extension.
| General information: | |
|---|---|
| Max. load: | 3000W |
| Degree of protection (IP): | 20 / 65 |
| Colour: | white |
| Installation: | a DIN rail |
| Dimensions of the sensor - width (mm): | 35 mm |
| Dimensions of the sensor - height (mm): | 90 mm |
| Dimensions of the sensor - depth (mm): | 66 mm |
| Detection angle: | not applicable |
| Dimensions of the mounting hole: | Ø9,6 mm |
| Type of sensor: | twilight |
| Detection range: | not applicable m |
| Adjustable daylight sensor (LUX): | Yes |
| Daylight sensor adjustment range (LUX): | <2—100lux |
| Adjustable time setting (TIME): | No |
| Adjustment of motion detection range (SENS): | No |
