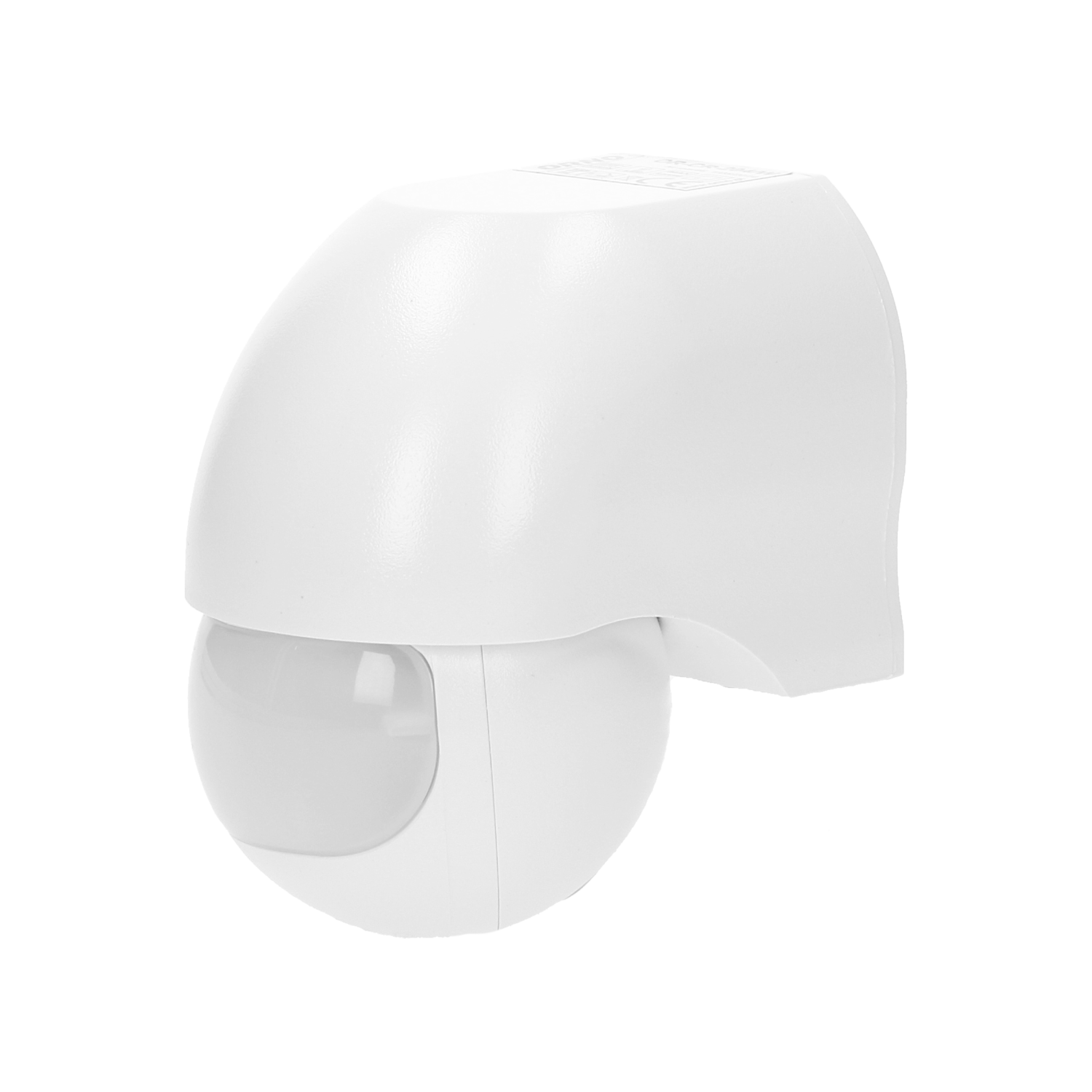

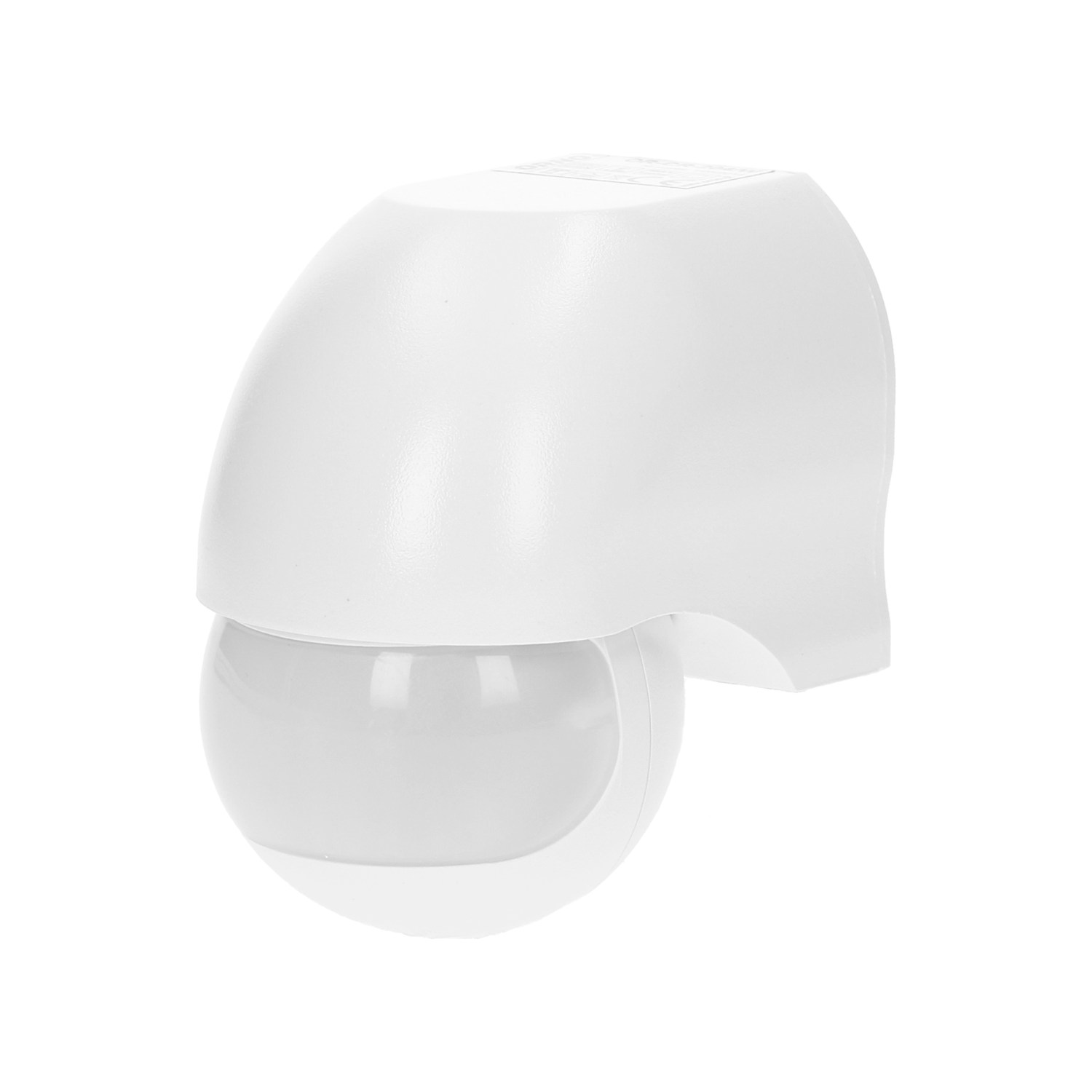

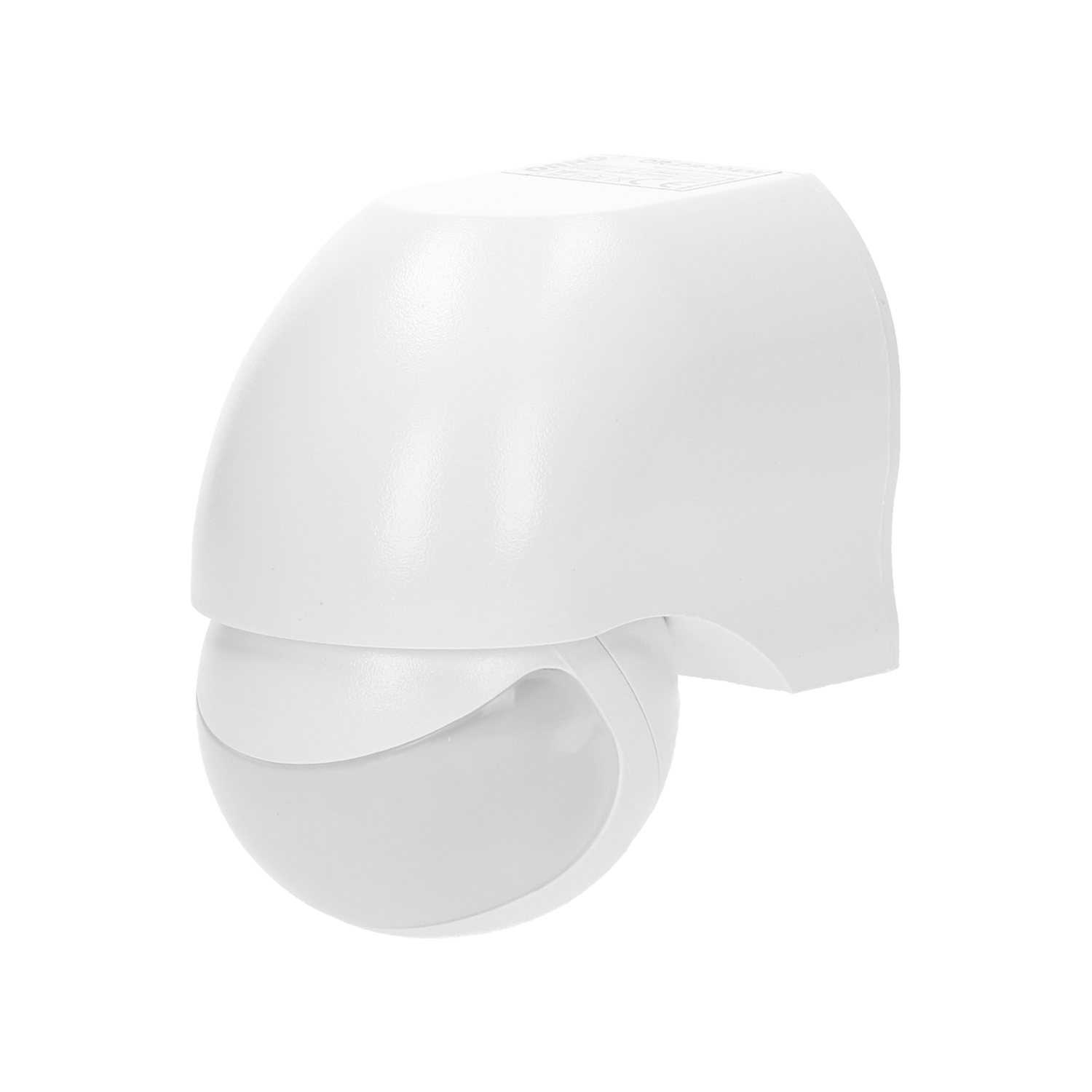

Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44
Adjustable PIR motion sensor 180°, IP44

Adjustable PIR motion sensor 180°, IP44

OR-CR-204/W

Description

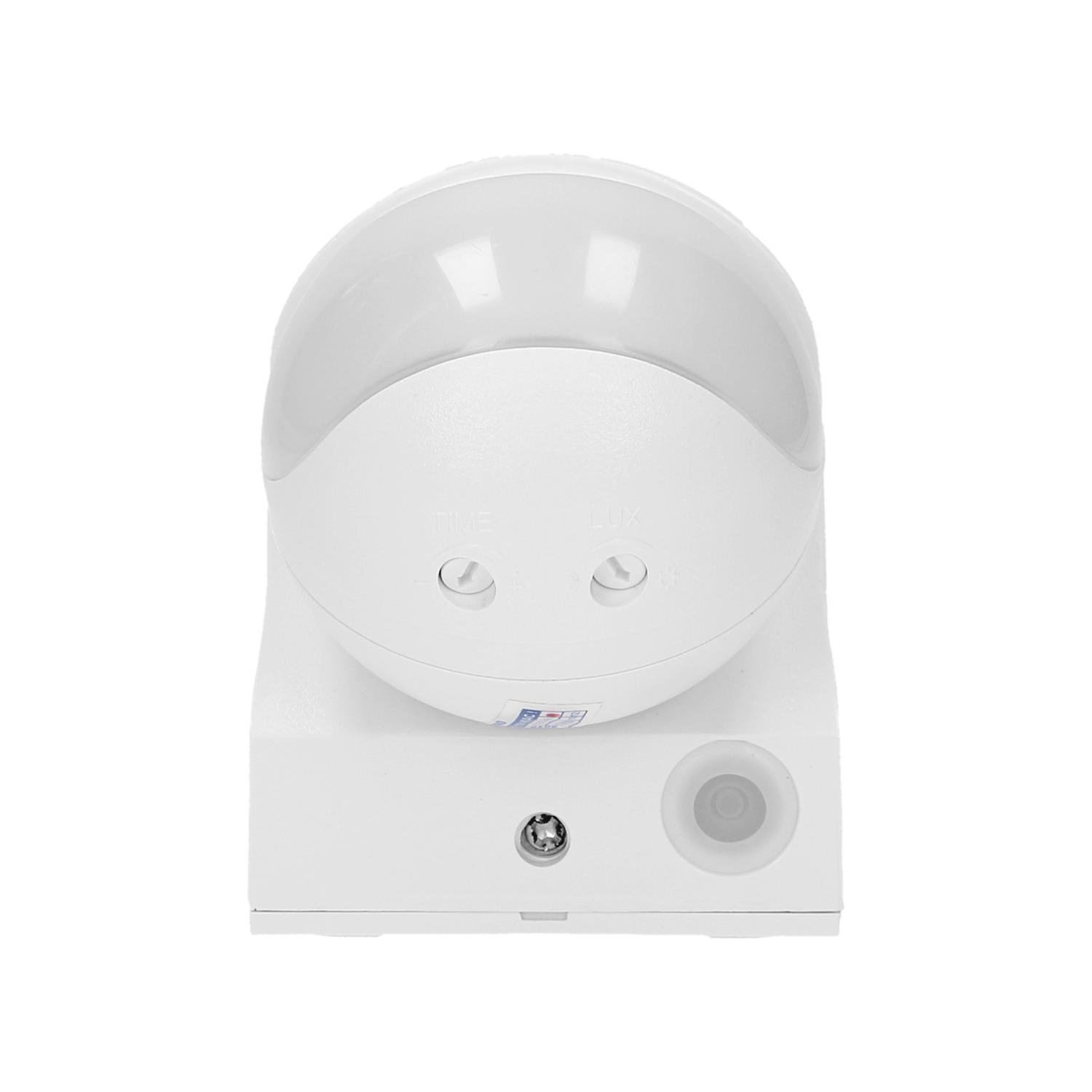

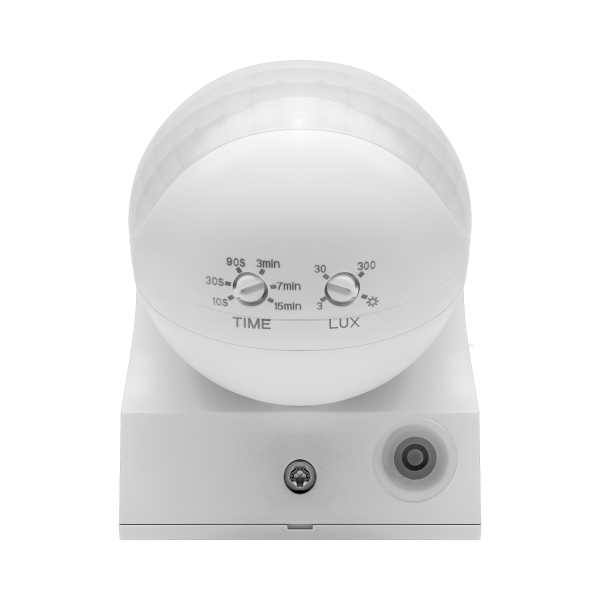

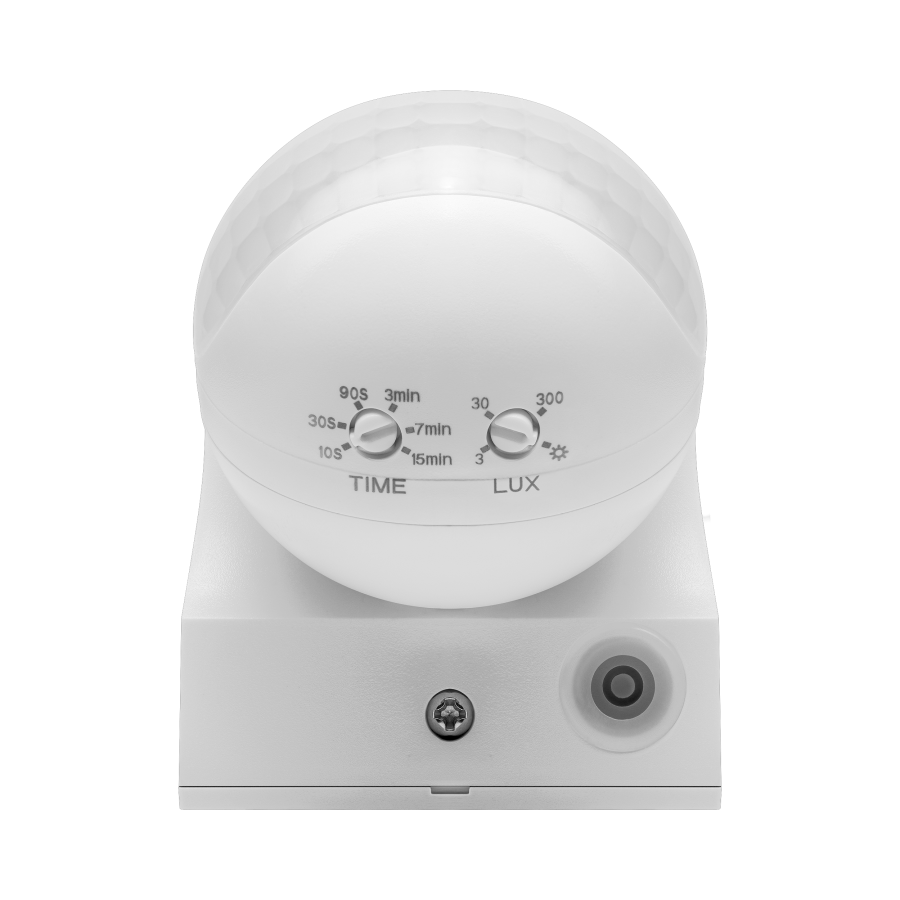

Passive infrared sensor For indoor and outdoor usage Collaborates with LED lighting Mechanical adjustment of vertical and horizontal Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX) Modern design.

General information:
Max. load: 1200
Max. load of the LED light source: 300 W
Degree of protection (IP): 44
Relay output: Yes
Nominal voltage: 230V~, 50Hz
Presence detector: No
Colour: white

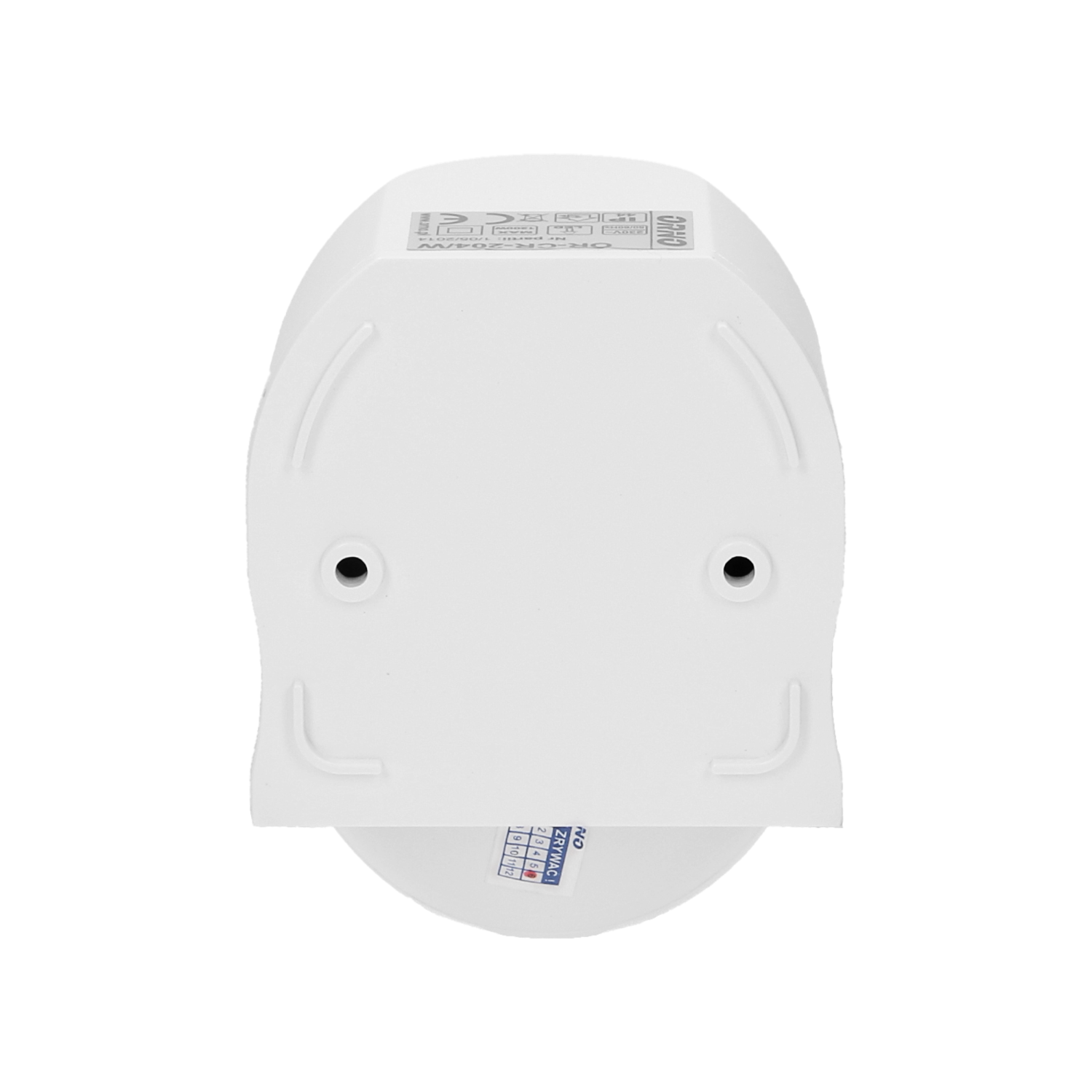

Installation: surface mounting
Dimensions of the sensor - depth (mm): 64 mm
Detection angle: 180°
Type of sensor: Infrared
Detection range: 12 m
Adjustable daylight sensor (LUX): Yes
Daylight sensor adjustment range (LUX): <3—2000lux
Adjustable time setting (TIME): Yes
Lighting time adjustment range (TIME): min: 10 sek. ± 3 sek.; max: 7 min. ± 2 min.
Adjustment of motion detection range (SENS): No

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:12:22Download
Product data sheetENpdf2024-07-17 10:20:27Download
User manualPL, EN, DE, FR, RUpdf2024-03-14 10:39:51Download
User manualSLpdf2024-03-14 10:39:51Download
