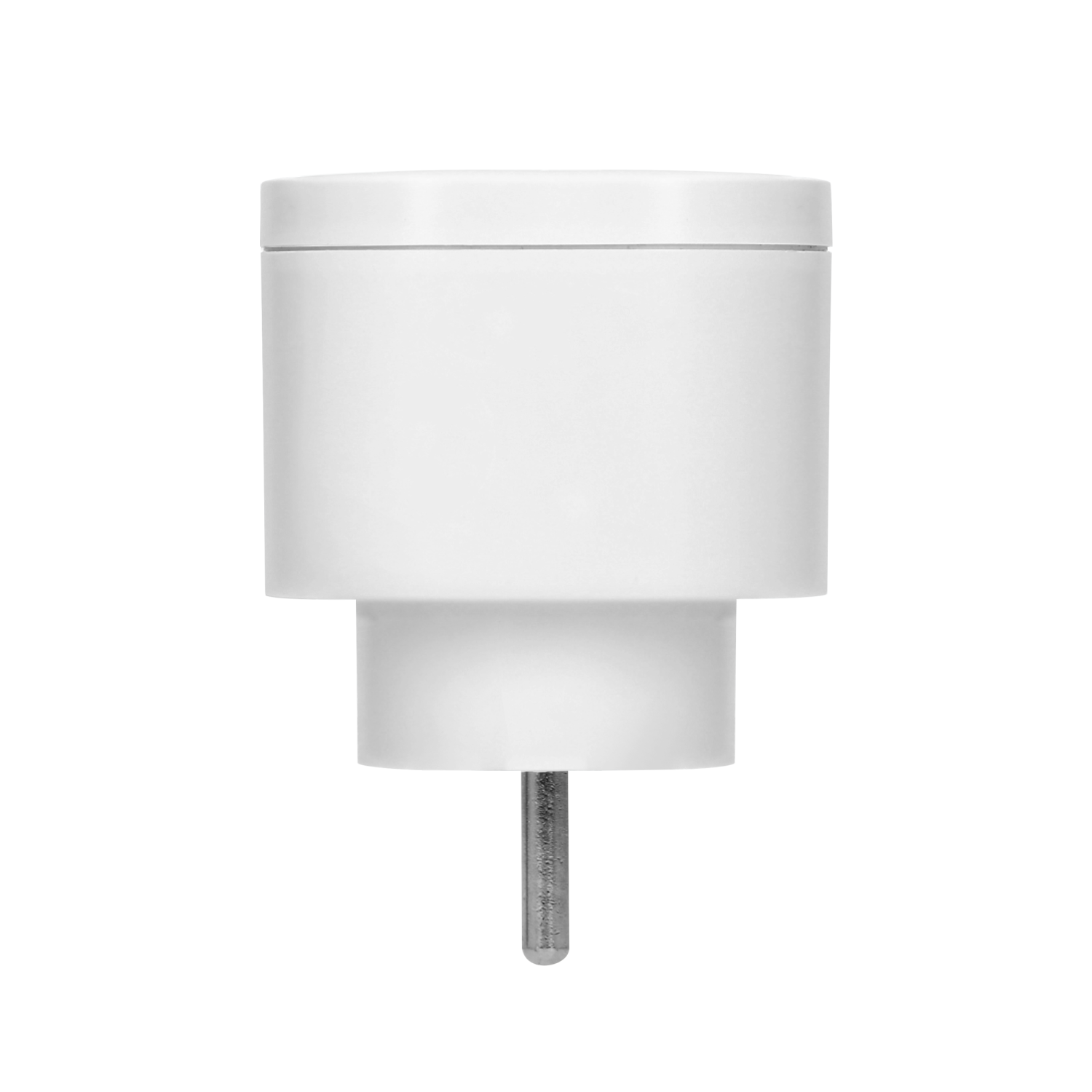

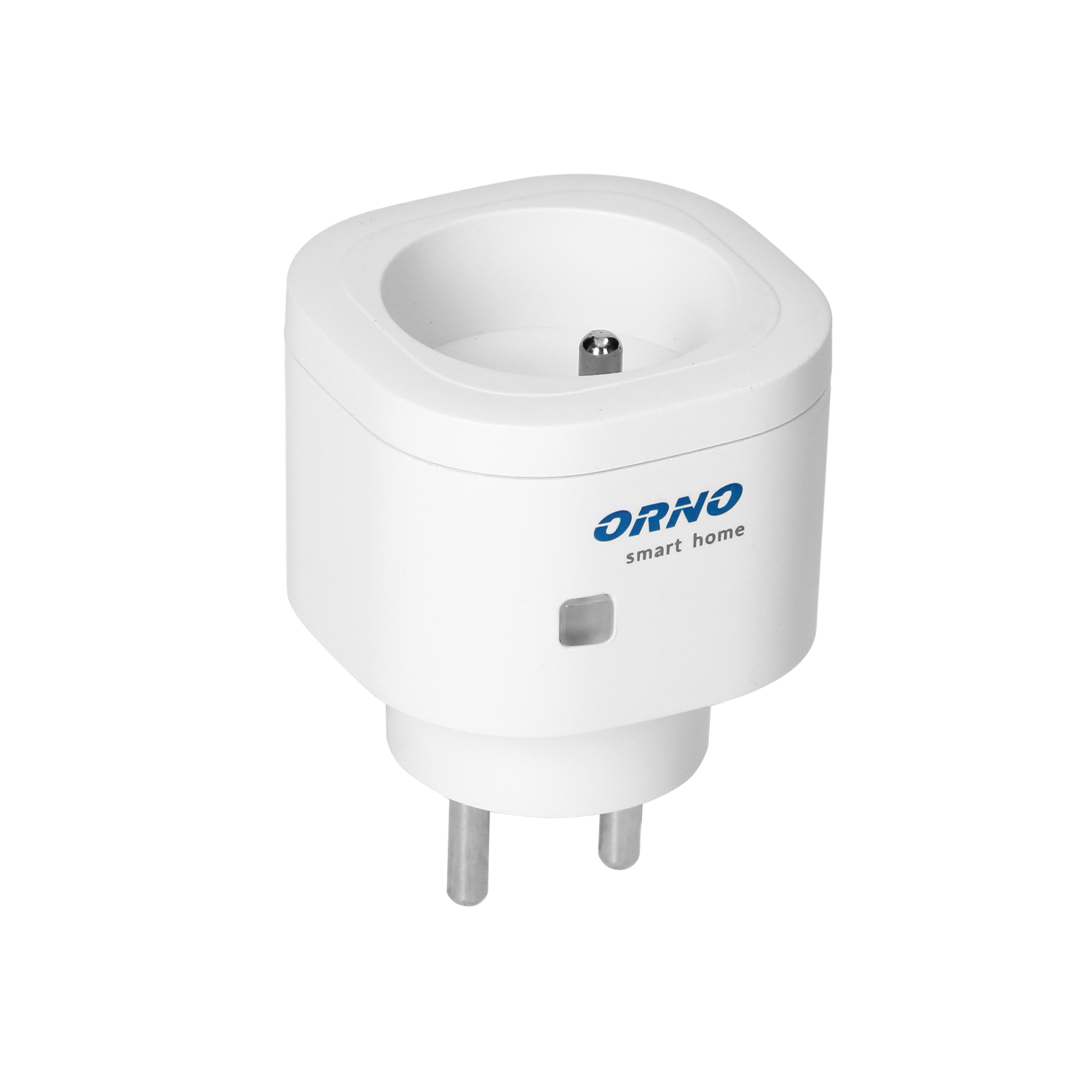

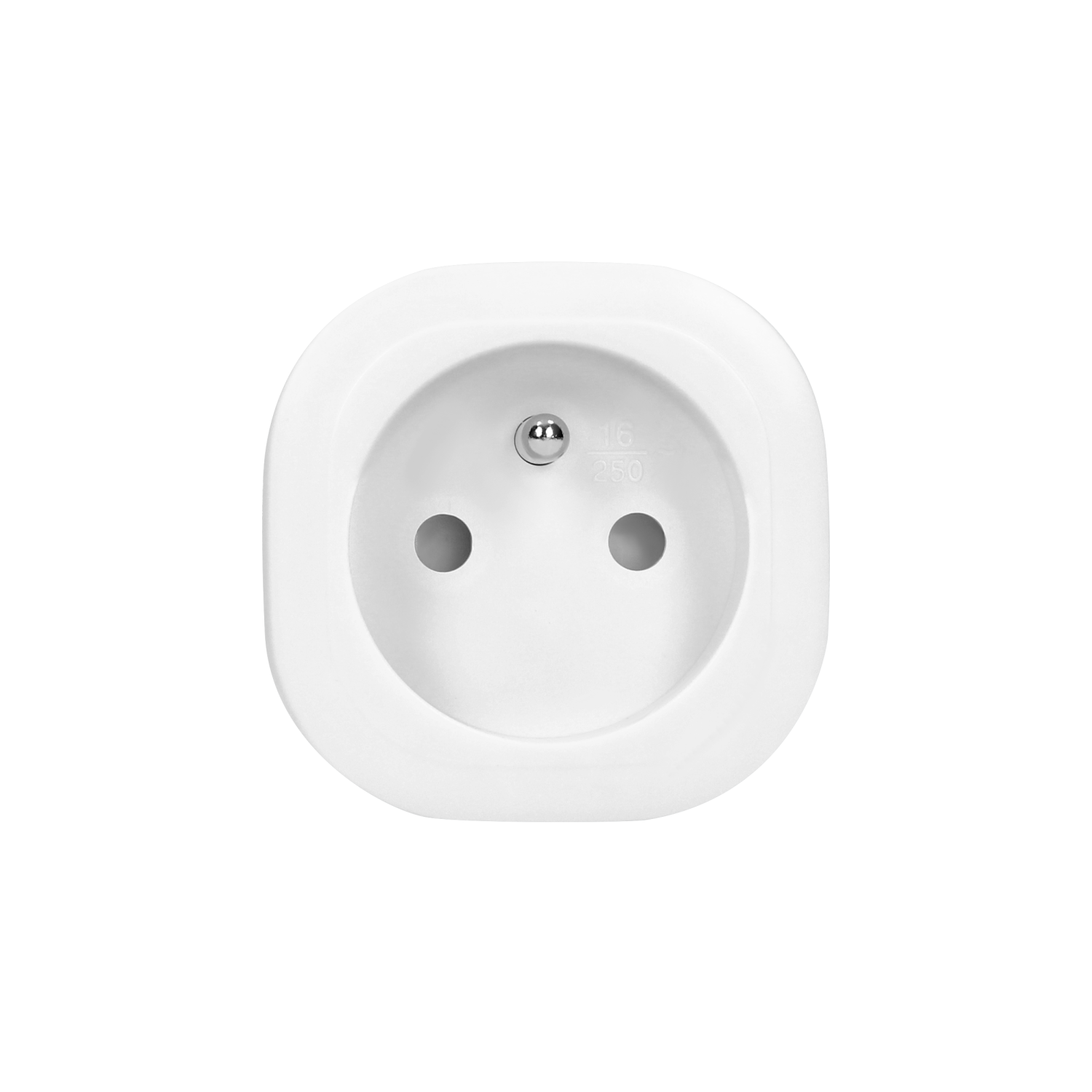

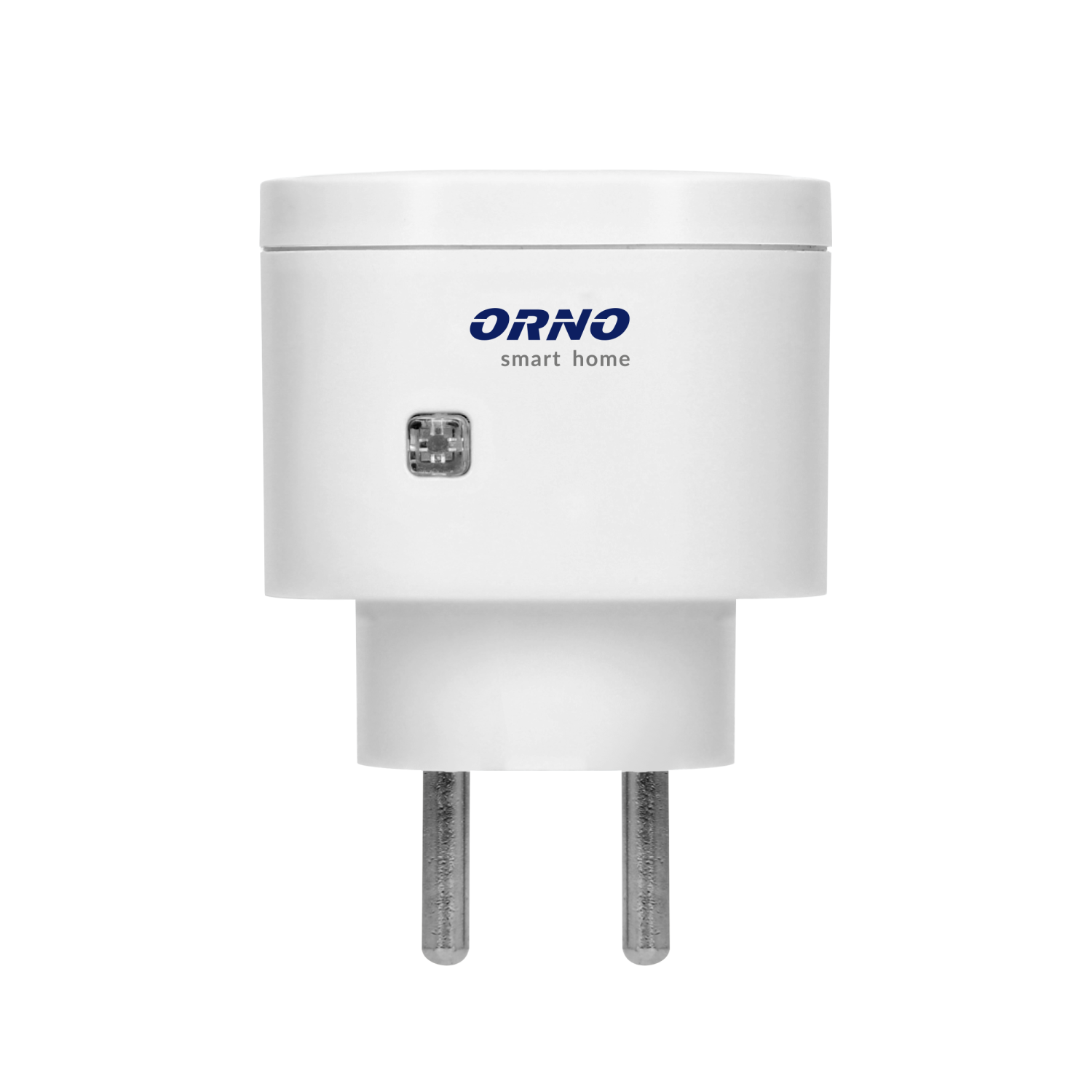

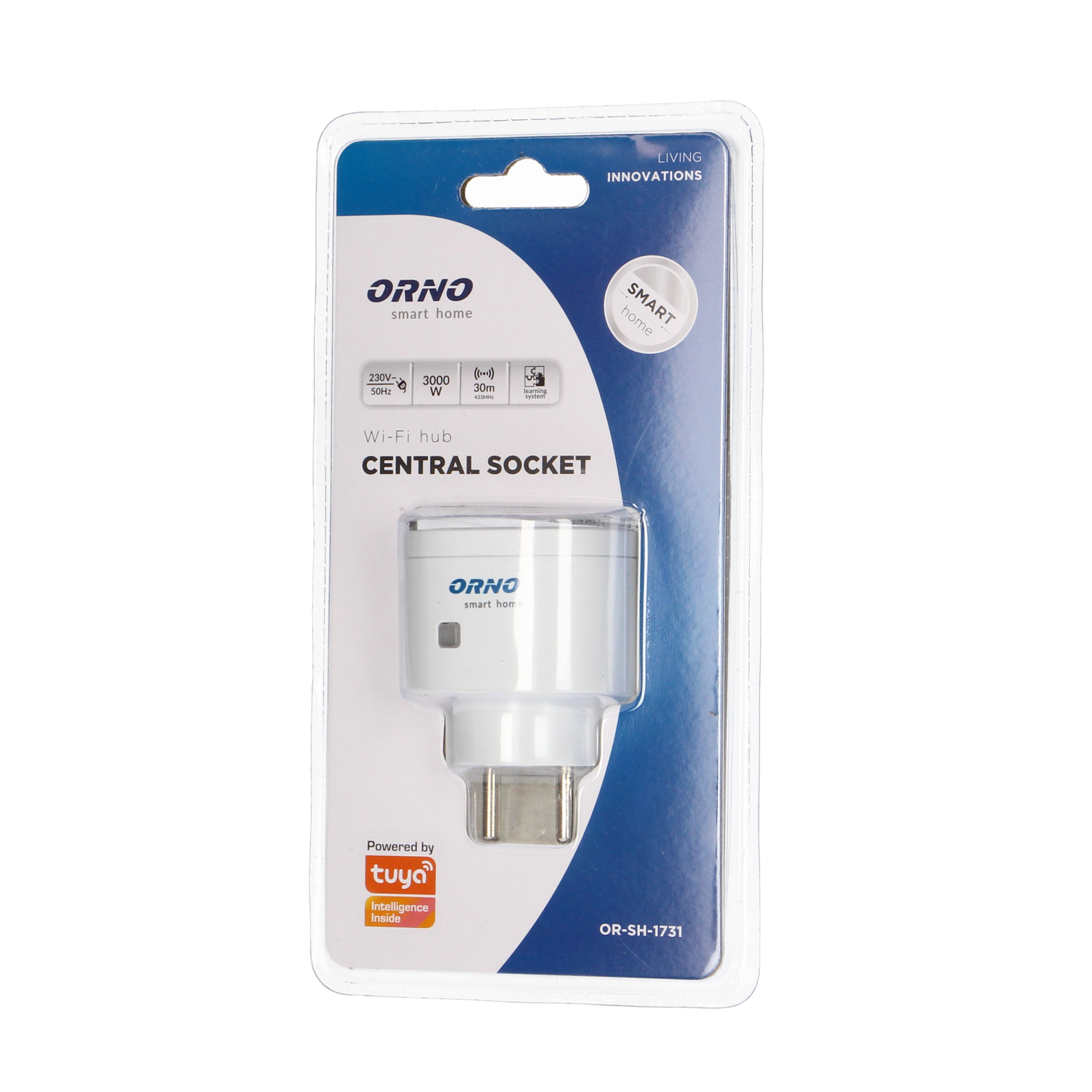

WI-FI hub central socket
Central socket (controller) that communicates with the user by means of Wi-Fi network and can be operated with the use of Android or iOS applications. The central socket is the hub of the ORNO Smart Home system based on the TUYA engine, which is compatible with the Google Home and Alexa smart home systems. The device supports 433MHz radio transmitter and controls sockets and switches which are its executive elements. This system is compatible with ORNO wireless sockets and remote-control units: standard models (OR-GB-417 – 420), MINI models (OR-GB-438 – 440) and IP44 standard socket: OR-GB-429 and MINI OR-GB-441. Major functions of the system – it enables task scheduling; it works as timer (switch on and off delay) and it enables to schedule subsequent actions.
| General information: | |
|---|---|
| Type: | central socket |
| Power supply of the receiver: | 230V AC |
| Max. power of the transmitter: | < 10mW |
| Wi-Fi communication: | Yes |
| Type of transmission: | wireless |
| Max. load: | 3000 W |
| Compliant with Orno Smart Home: | Yes |
| Colour: | white |
| Possibility of extension: | Yes |
| Max. current: | 13 |
| Range in the open area: | 30 m |
| Dimensions - depth: | 55 mm |
| Dimensions - width: | 55 mm |
| Dimensions - height: | 80 mm |
