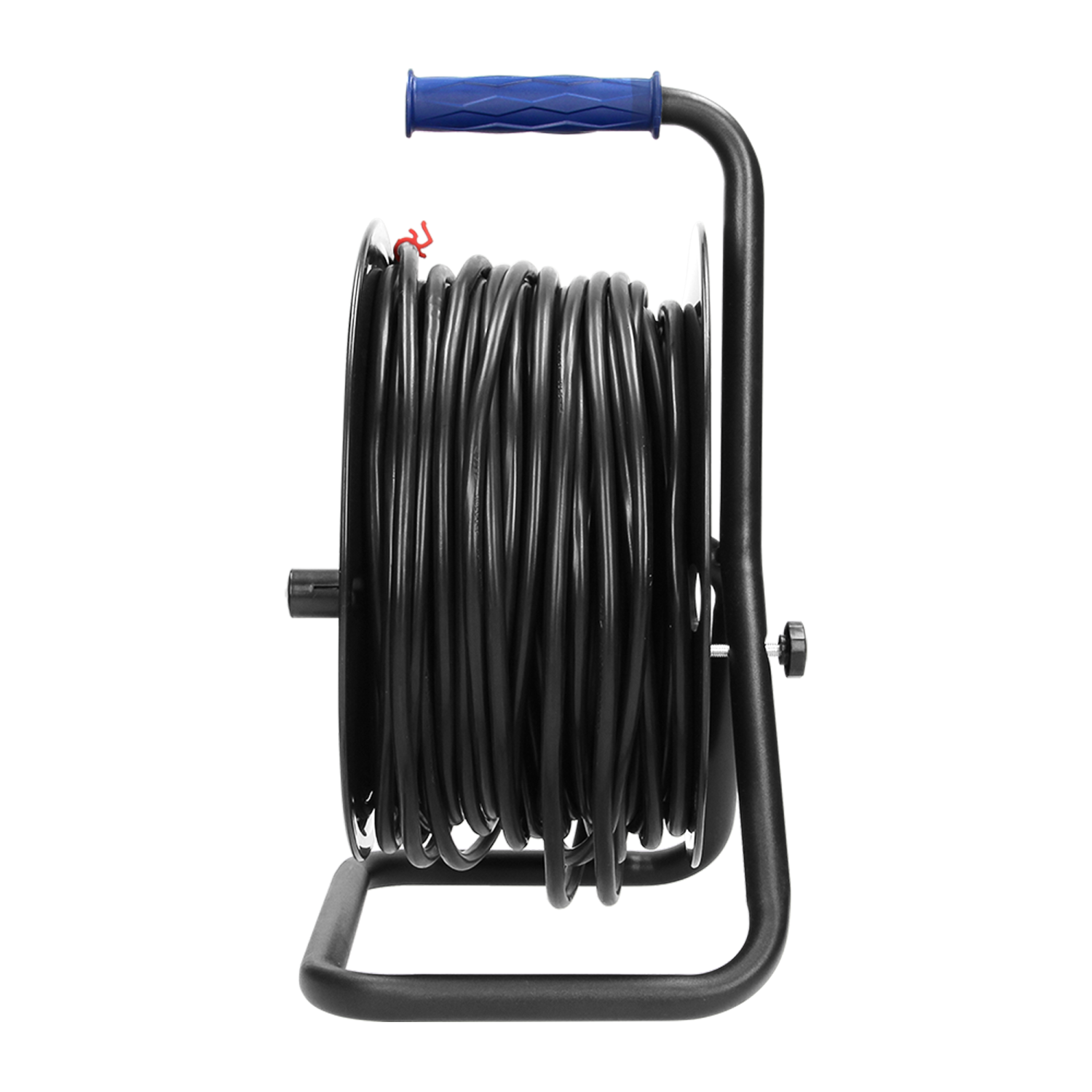

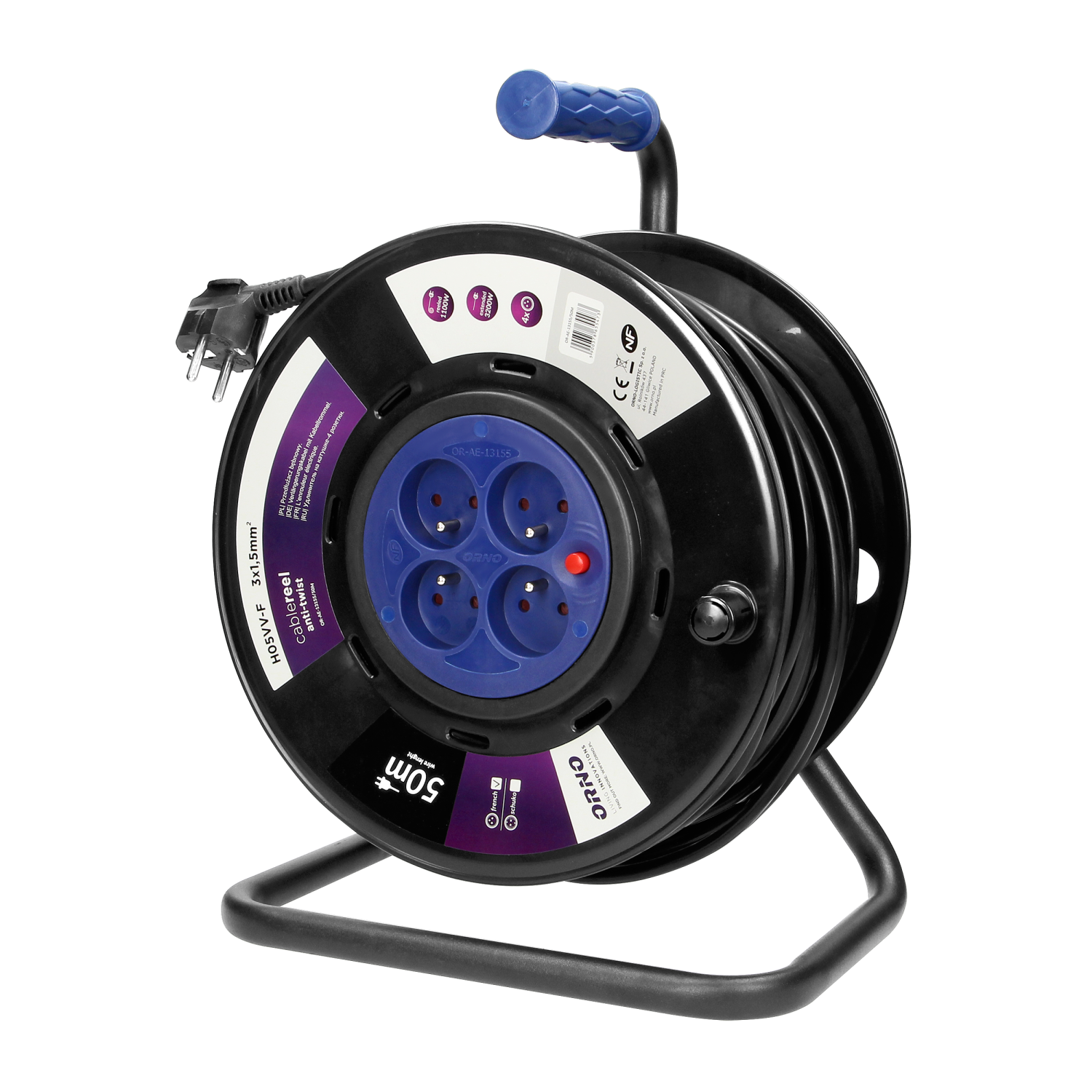

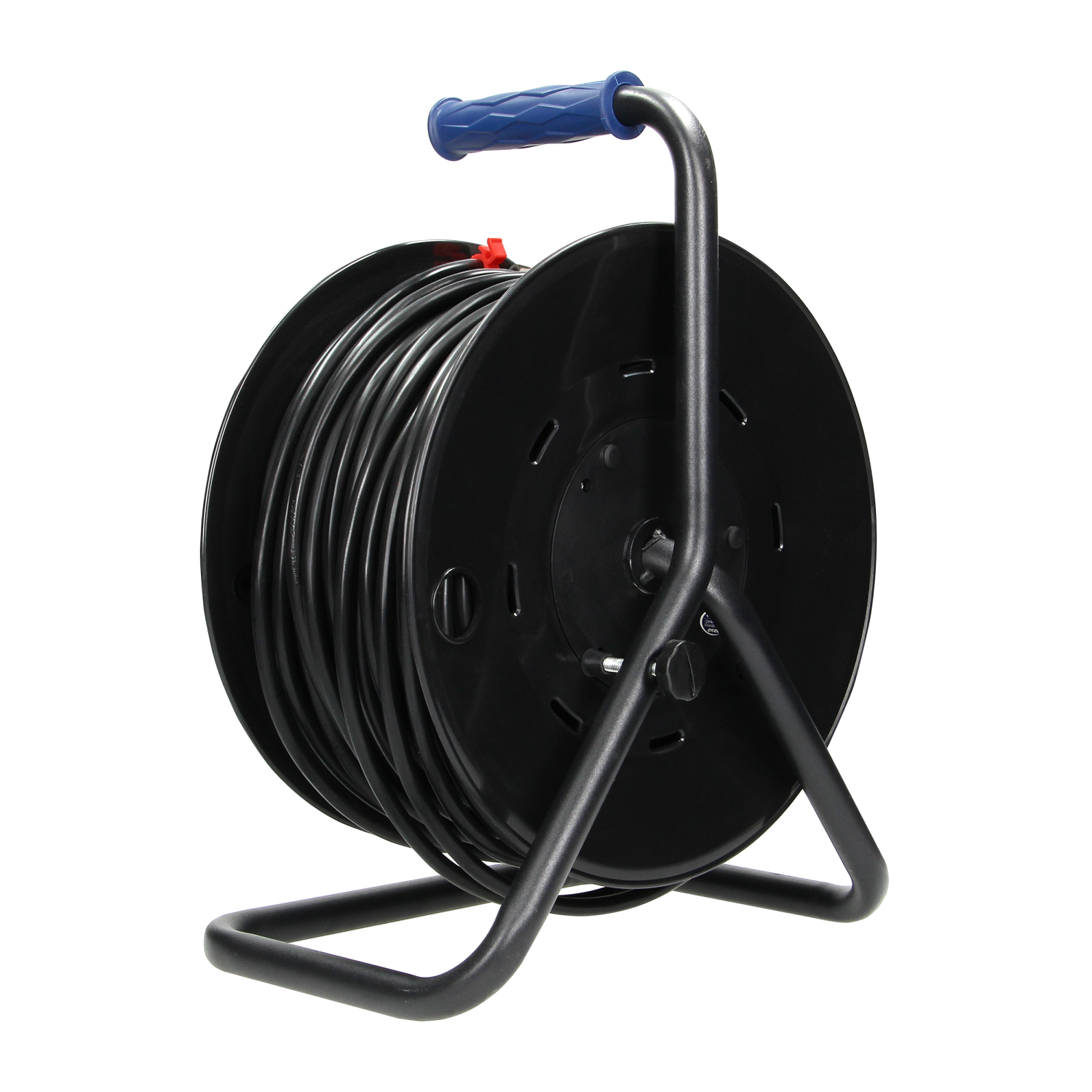

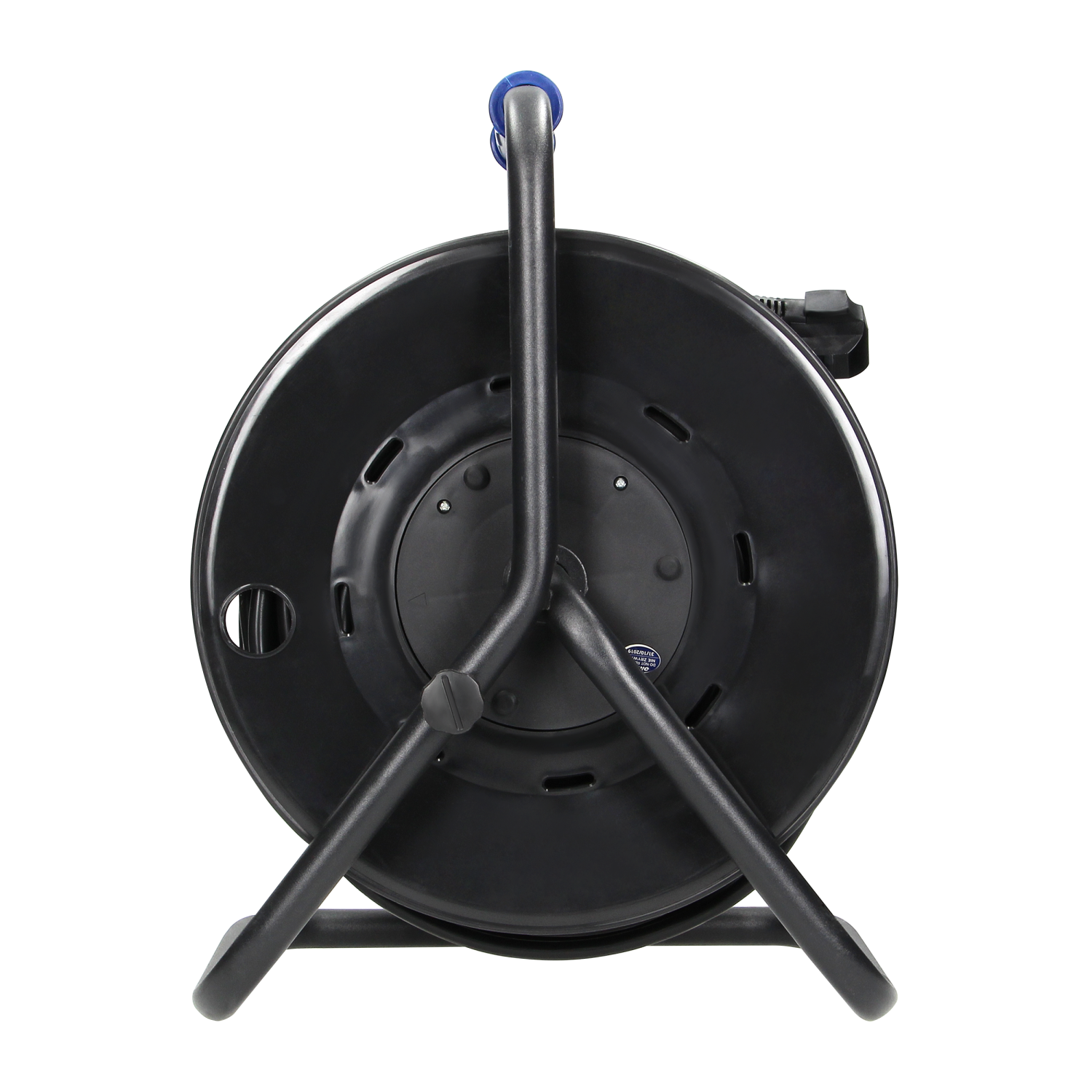

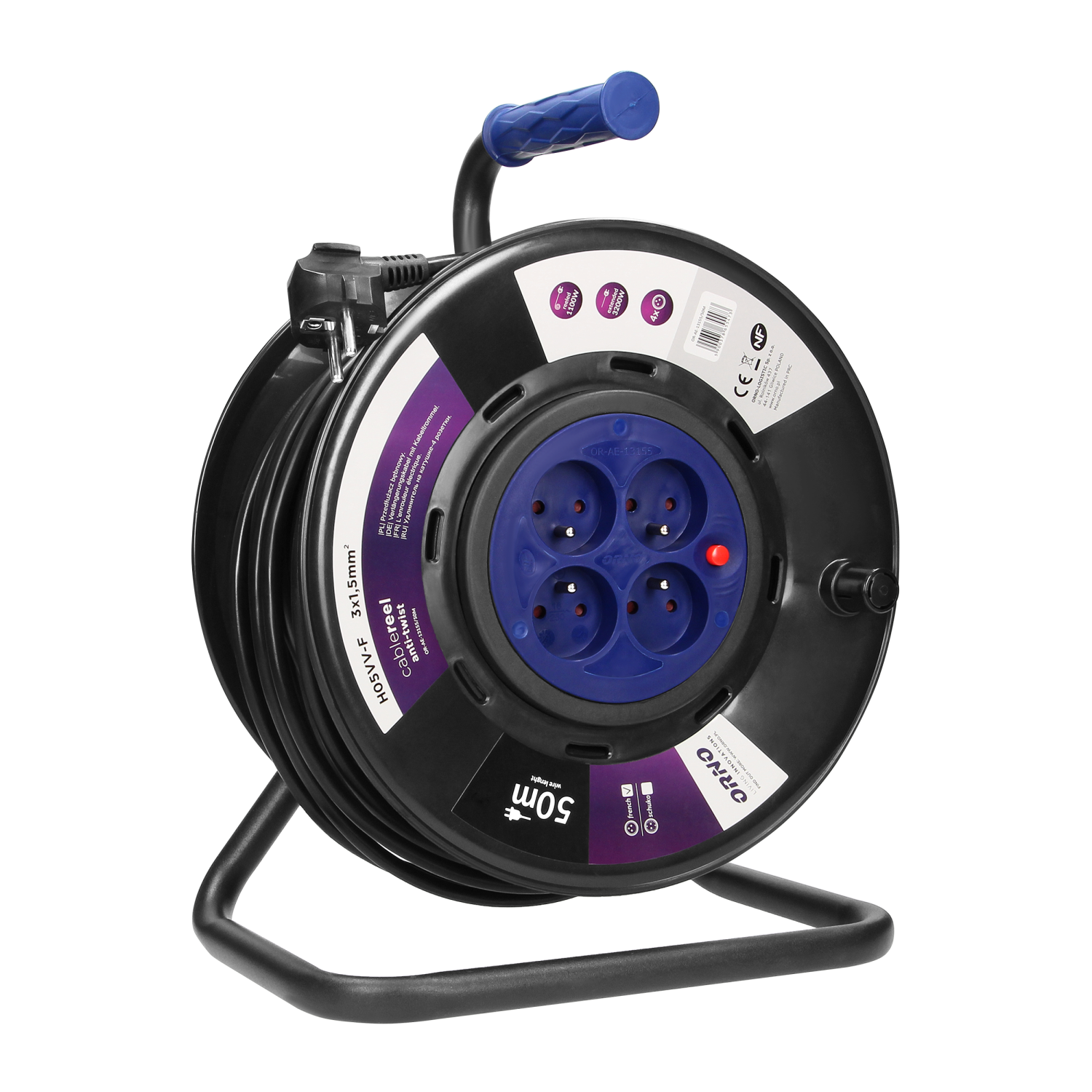

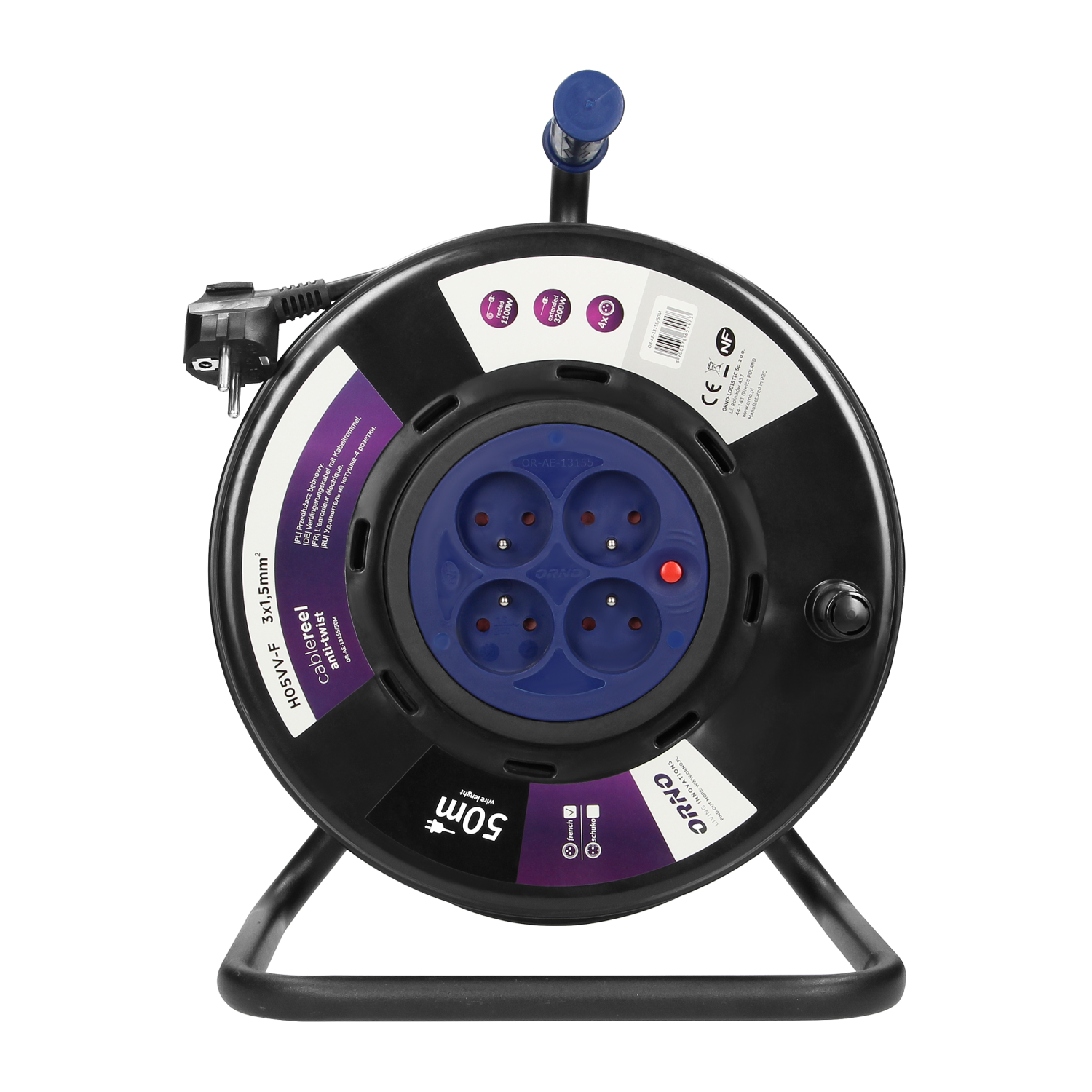

Workshop cable reels
Cable reel with an innovative anti-twist system (fixed sockets) and an overload protection (thermal switch). It provides four, grounded sockets with current circuit protection. Moreover it has a rubber carrying grip, a rotary drum winding handle and reel rotation lock. Designed for challenging conditions, for example workshops or construction sites.
| General information: | |
|---|---|
| Nominal voltage: | 230V~, 50Hz |
| Wire cross-section: | 1,5 mm² |
| Type of socket: | 2P+E |
| Number of wires: | 3 |
| Max. load/current for the reeled wire: | 1100W / 4.8A |
| Standard of the socket: | french (type E) |
| Number of sockets: | 4 |
| Degree of protection (IP): | 20 |
| USB charger: | No |
| Max. load/current for the extended wire: | 3200W / 13.9A |
| Safety shutters: | Yes |
| Other features: | fixed sockets |
| Type of cable: | H05VV-F |
| Wire length: | 50 m |
| Insulation type: | PVC |
