Workshop plugs and sockets

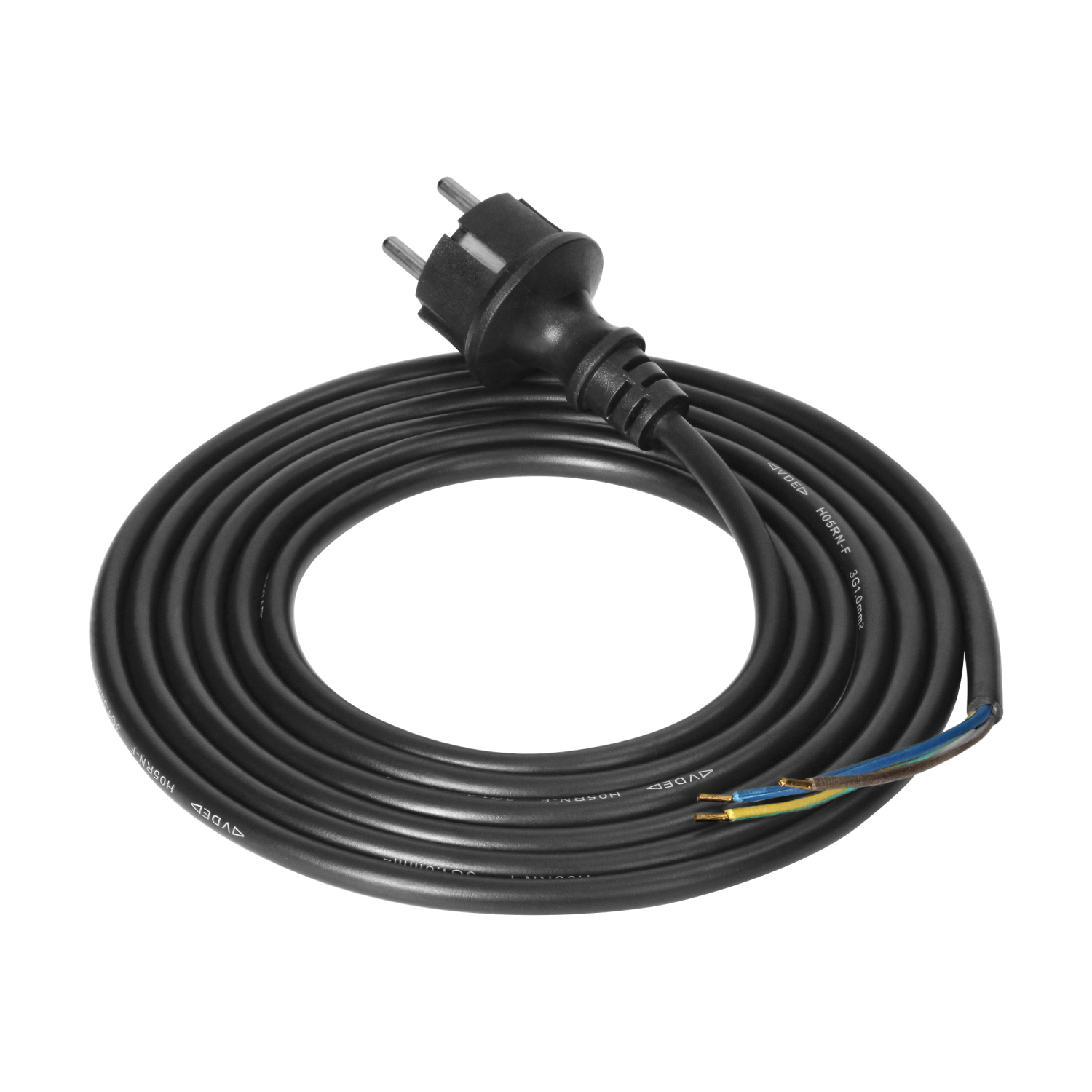

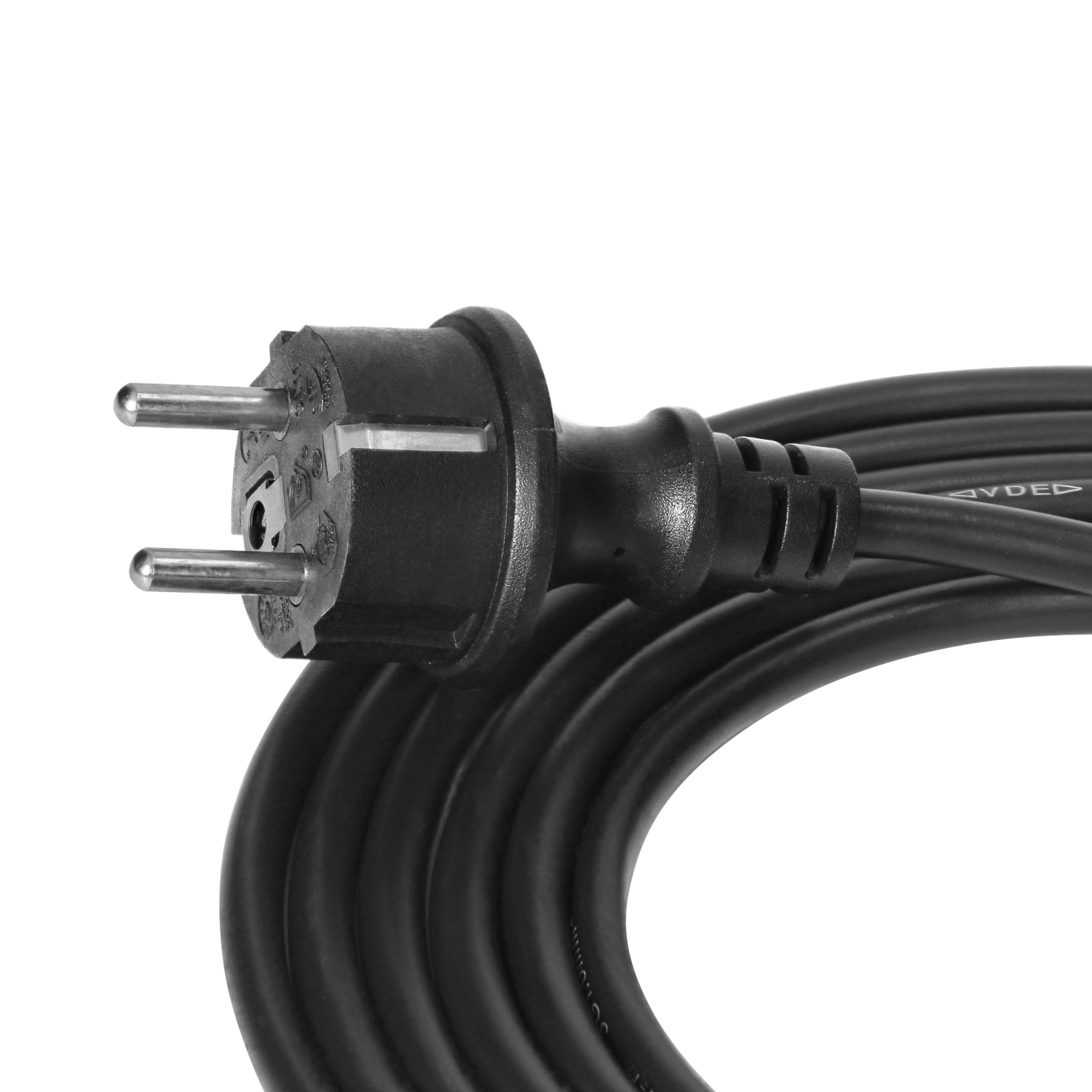

3-wire, black connection cable with Uni-Schuko plug, with a max. power of 2300W with a voltage of 230V. The cable allows the connection of electrical appliances or extension sockets.
Provides increased mechanical and chemical resistance thanks to its robust oil-resistant rubber insulation complying with EN 60811-404.
The increased IP44 protection level allows the cable to be used indoors in dry areas as well as in damp and wet rooms, e.g. in the home, garage, cold store or workshop. It is used to connect receivers to the mains supply.
Cable type: H05RN-F with a cross-section of 3x1mm2.
The cable length is 3m.
| General information: | |
|---|---|
| Connection 1: | Wtyczka ze stykiem ochronnym, prosta |
| Connection 2: | Końcówka tulejkowa |
| Number of cores: | 3 |
| Nominal cross section conductor [mm²]: | 1 |
| Length [m]: | 3 |
| Material outer sheath: | Guma |
| Nominal current [A]: | 10 |
| Nominal voltage [V]: | 230 |
| Frequency [Hz]: | 50 |
| Power [W]: | 2300 |
| Colour outer sheath: | Czarny |
| With protective conductor: | Tak |
| Degree of protection (IP): | 44 |
| Plug-in type: | Uni-Schuko |
| Grounding: | Tak |
| Oil resistant according to EN 60811-404: | Tak |
